Hi ,
i am trying to integrate my KC868-AIO into my loxone system .
i am new to this so i am having some problems.
i have done this so far :
pc and Kincony AIO are connected to the same acces point.
i can acces the AIO tru ESPhome .
[
attachment=5675]
when i configure the AIO there i can find the AIO in my wireless network

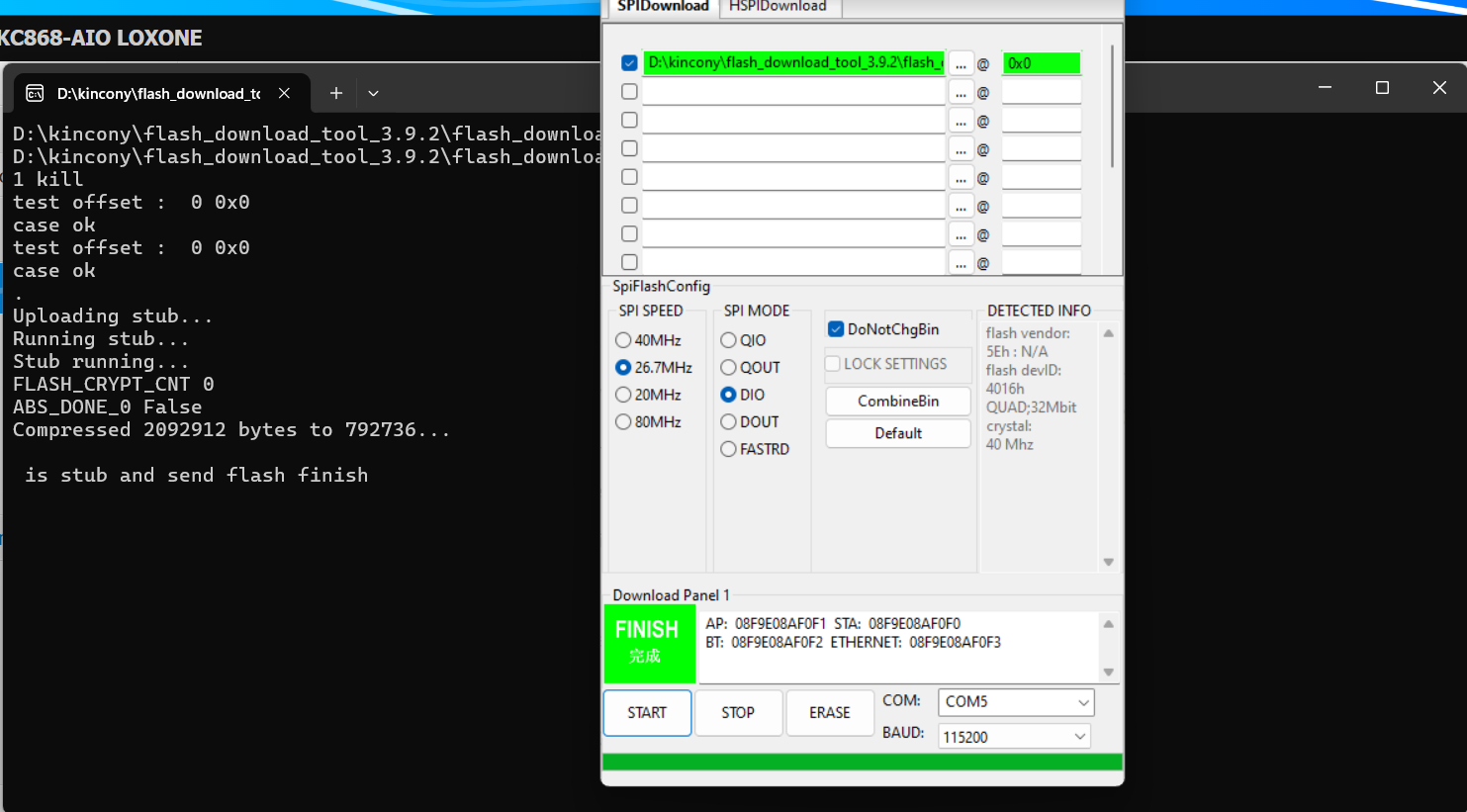

i was able to connect with the download tool so the firmware V2 could be installed but there i get stuck
the download is succesful
[
attachment=5674]
but then i can not do anything .
if i use the scan device tool i can not find the kincony
and the wireless signal of the kincony is gone until i re install it with the esphome "install for first use".
i am sure i am making some silly fault but unexperienced me is stuck at the moment
thanks ,
i re uploaded V2.2 into my unit on adress 0x0 .
[
attachment=5676]
but still i find no way to connect trough eternet or wifi .
what i tried so far :
i made my computer ip static in the same range as the AIO so 192.168.1.101
i used the scan device list but when hitting scan no results
AIO is connected with ethernet to a switch pc is connected to the same switch
also pc and AIO are connected trough usb
[
attachment=5677]
i also tried to reset ESP32 GPIO0 (am i right to assume thats the "download" button , the top one next to the usb C input) by holding to 10+ seconds but no wifi pops up
hi , i havent worked on my system in a long time but did manage to get some work into it recently .
what i done so far :
my setup :
KC868-AIO board
Loxone miniserver V1
i made a virtual ESP home using virtualbox ( will be changing that to a raspberry pi unit or kincony miniserver in the future)

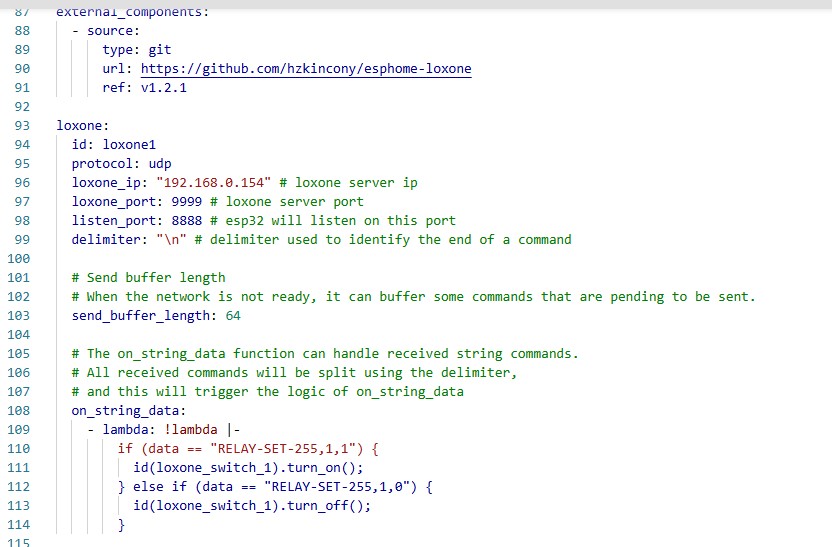

uploaded a new Yaml file to ESPhome with the loxone code writen into it and aletered all inputs and outputs for loxone
[

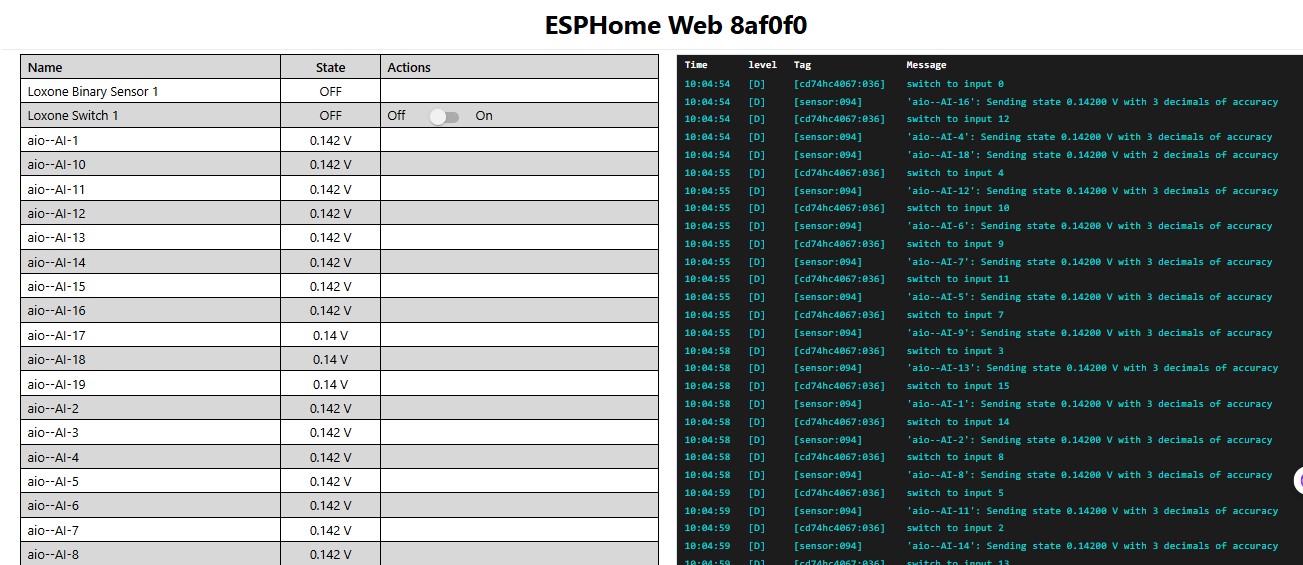

attachment=6554]
[
attachment=6557]
i attached the yaml file also

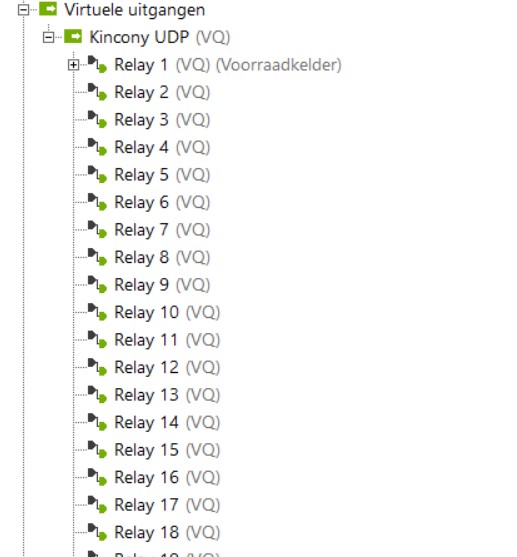

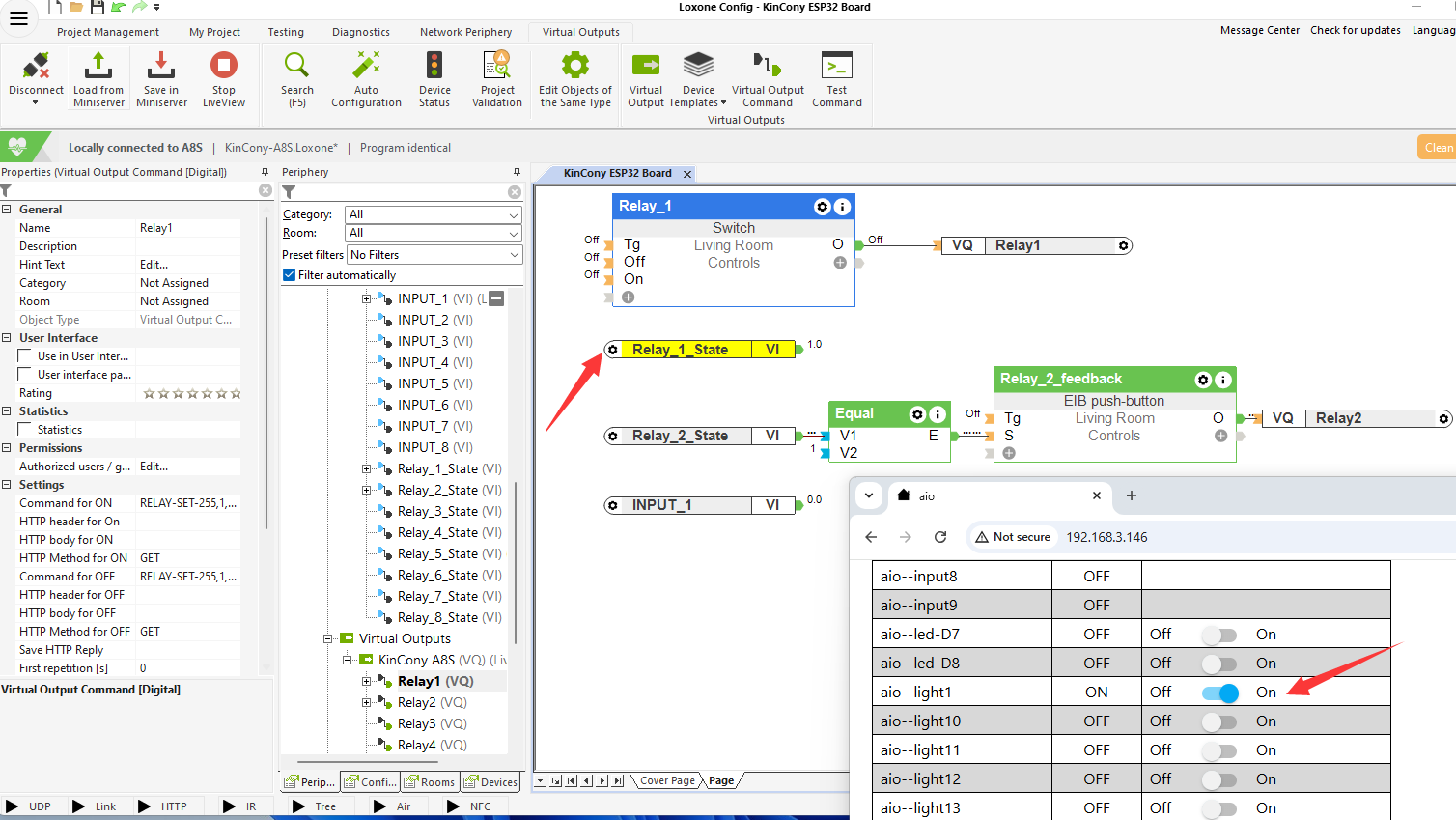

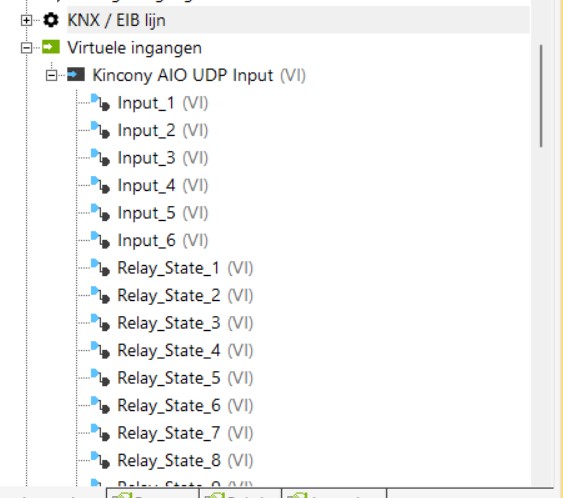

then i did open my loxone config file and imported the UDP inputs and outputs
[
attachment=6555][
attachment=6556]
but i cant get both to communicate with eathother . what am i doing wrong ?
do you want KC868-AIO's digital input ports and digital output ports integrate to Loxone miniserver?
if YES, when i have free time, have a test.
(12-01-2024, 11:54 PM)admin Wrote: [ -> ]do you want KC868-AIO's digital input ports and digital output ports integrate to Loxone miniserver?
if YES, when i have free time, have a test.
Hi , Yes , thats right , i want to use the input and output ports in Loxone .
thanks for wanting to take a look at it .

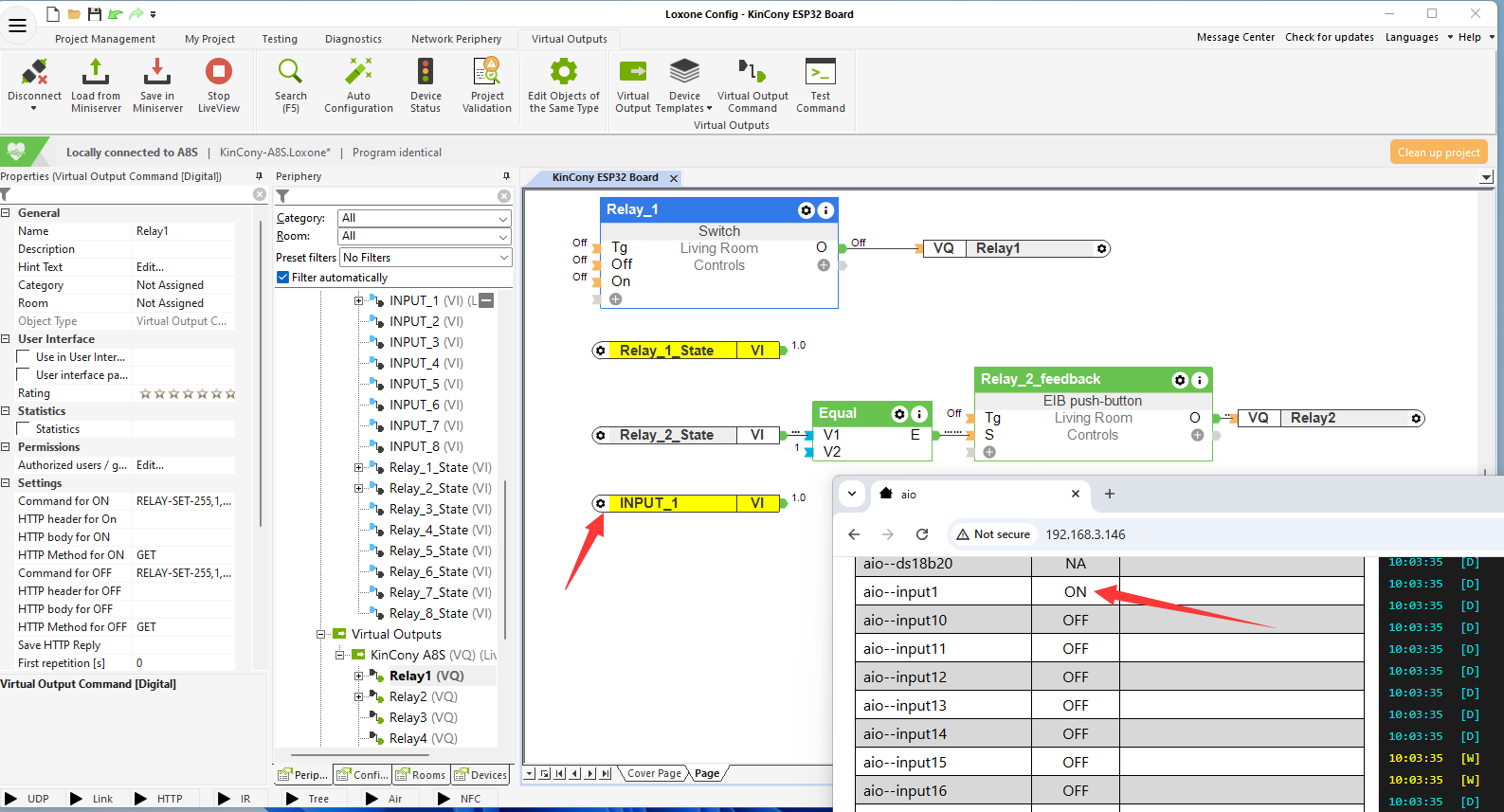

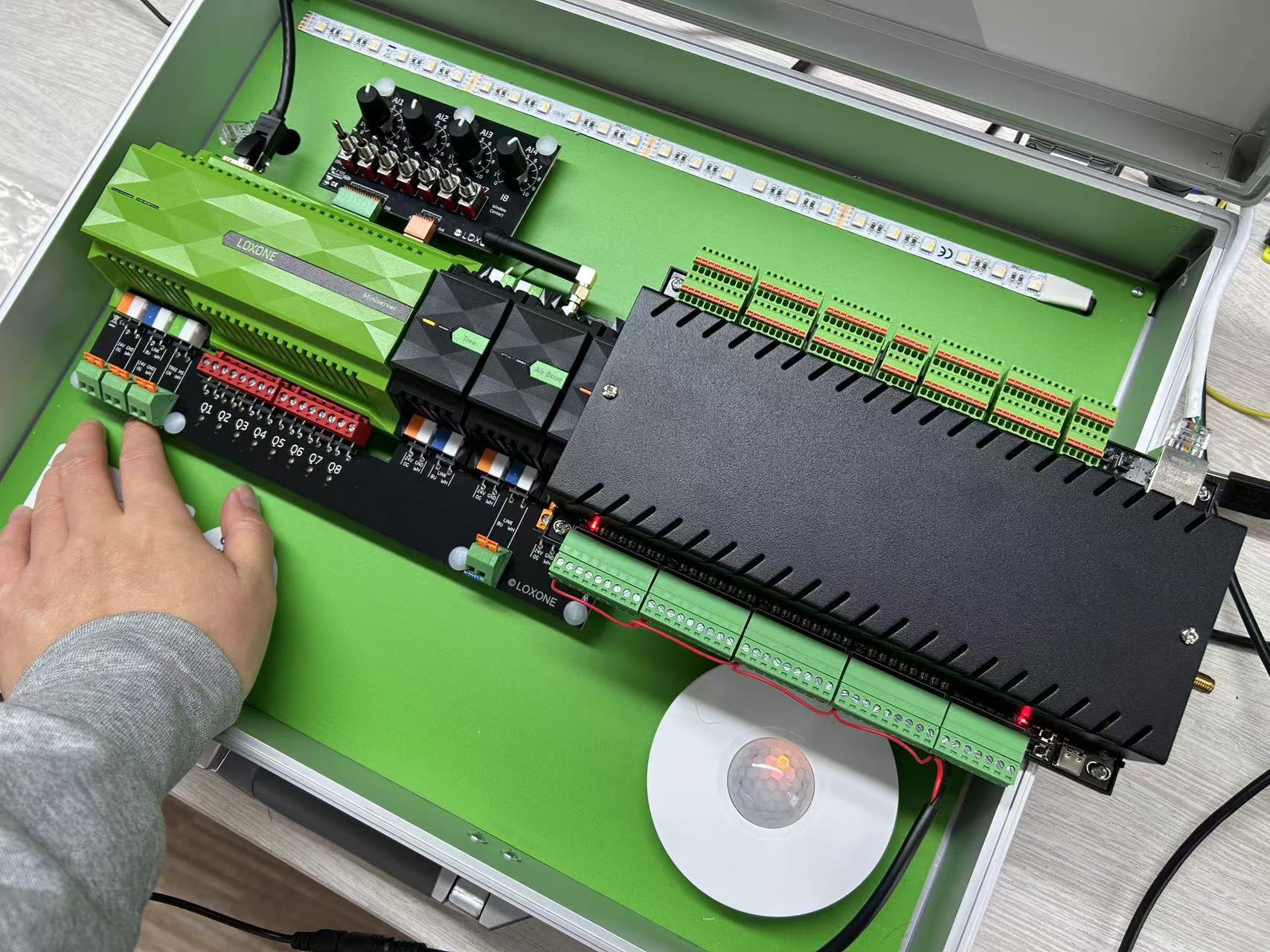

i have tessted KC868-AIO work with Loxone Miniserver, it's OK.
i have write the yaml with 1 channel output and 1 channel input demo for you. you can enable more channels for Loxone Miniserver.
Code:
esphome:
name: aio
esp32:
board: esp32dev
framework:
type: arduino
# Enable logging
logger:
# Enable Home Assistant API
api:
# Example configuration entry
ethernet:
type: LAN8720
mdc_pin: GPIO23
mdio_pin: GPIO18
clk_mode: GPIO17_OUT
phy_addr: 0
i2c:
- id: bus_a
sda: 4
scl: 16
scan: true
external_components:
- source:
type: git
url: https://github.com/hzkincony/esphome-loxone
ref: v1.2.1
# Example configuration entry
pcf8574:
- id: 'pcf8574_hub_out_1' # for output channel 1-16
i2c_id: bus_a
address: 0x24
pcf8575: true
- id: 'pcf8574_hub_out_2' # for output channel 17-32
i2c_id: bus_a
address: 0x25
pcf8575: true
- id: 'pcf8574_hub_out_in_3' # for output channel 33-38 + (input 49-58)
i2c_id: bus_a
address: 0x26
pcf8575: true
- id: 'pcf8574_hub_in_1' # for input channel 1-16
i2c_id: bus_a
address: 0x21
pcf8575: true
- id: 'pcf8574_hub_in_2' # for input channel 17-32
i2c_id: bus_a
address: 0x22
pcf8575: true
- id: 'pcf8574_hub_in_3' # for input channel 33-48
i2c_id: bus_a
address: 0x23
pcf8575: true
# Individual outputs
switch:
- platform: gpio
name: "aio--light1"
id: aio_light1
pin:
pcf8574: pcf8574_hub_out_1
number: 0
mode: OUTPUT
inverted: true
on_turn_on:
- lambda: !lambda |-
id(loxone1).send_string_data("RELAY-SET-255,1,1,OK");
on_turn_off:
- lambda: !lambda |-
id(loxone1).send_string_data("RELAY-SET-255,1,0,OK");
- platform: gpio
name: "aio--light2"
pin:
pcf8574: pcf8574_hub_out_1
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light3"
pin:
pcf8574: pcf8574_hub_out_1
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light4"
pin:
pcf8574: pcf8574_hub_out_1
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light5"
pin:
pcf8574: pcf8574_hub_out_1
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light6"
pin:
pcf8574: pcf8574_hub_out_1
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light7"
pin:
pcf8574: pcf8574_hub_out_1
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light8"
pin:
pcf8574: pcf8574_hub_out_1
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light9"
pin:
pcf8574: pcf8574_hub_out_1
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light10"
pin:
pcf8574: pcf8574_hub_out_1
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light11"
pin:
pcf8574: pcf8574_hub_out_1
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light12"
pin:
pcf8574: pcf8574_hub_out_1
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light13"
pin:
pcf8574: pcf8574_hub_out_1
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light14"
pin:
pcf8574: pcf8574_hub_out_1
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light15"
pin:
pcf8574: pcf8574_hub_out_1
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light16"
pin:
pcf8574: pcf8574_hub_out_1
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light17"
pin:
pcf8574: pcf8574_hub_out_2
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light18"
pin:
pcf8574: pcf8574_hub_out_2
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light19"
pin:
pcf8574: pcf8574_hub_out_2
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light20"
pin:
pcf8574: pcf8574_hub_out_2
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light21"
pin:
pcf8574: pcf8574_hub_out_2
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light22"
pin:
pcf8574: pcf8574_hub_out_2
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light23"
pin:
pcf8574: pcf8574_hub_out_2
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light24"
pin:
pcf8574: pcf8574_hub_out_2
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light25"
pin:
pcf8574: pcf8574_hub_out_2
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light26"
pin:
pcf8574: pcf8574_hub_out_2
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light27"
pin:
pcf8574: pcf8574_hub_out_2
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light28"
pin:
pcf8574: pcf8574_hub_out_2
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light29"
pin:
pcf8574: pcf8574_hub_out_2
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light30"
pin:
pcf8574: pcf8574_hub_out_2
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light31"
pin:
pcf8574: pcf8574_hub_out_2
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light32"
pin:
pcf8574: pcf8574_hub_out_2
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--led-D7"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--led-D8"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 13
mode: OUTPUT
inverted: true
cd74hc4067:
- id: cd74hc4067_1
pin_s0:
pcf8574: pcf8574_hub_out_in_3
number: 8
mode: OUTPUT
inverted: true
pin_s1:
pcf8574: pcf8574_hub_out_in_3
number: 9
mode: OUTPUT
inverted: true
pin_s2:
pcf8574: pcf8574_hub_out_in_3
number: 10
mode: OUTPUT
inverted: true
pin_s3:
pcf8574: pcf8574_hub_out_in_3
number: 11
mode: OUTPUT
inverted: true
one_wire:
- platform: gpio
pin: GPIO5
# Example configuration entry
sensor:
- platform: dallas_temp
address: 0xec0921405caae128
name: "aio--ds18b20"
update_interval: 10s
- platform: adc
pin: 36
id: adc36
update_interval: never
attenuation: 11db
- platform: adc
name: "aio--AI-17"
pin: 39
id: adc39
update_interval: 5s
attenuation: 11db
- platform: adc
pin: 34
name: "aio--AI-18"
id: adc34
update_interval: 5s
attenuation: 11db
- platform: adc
pin: 35
name: "aio--AI-19"
id: adc35
update_interval: 5s
attenuation: 11db
- platform: cd74hc4067
name: "aio--AI-16"
id: ai1
number: 0
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-15"
id: ai2
number: 1
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-14"
id: ai3
number: 2
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-13"
id: ai4
number: 3
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-12"
id: ai5
number: 4
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-11"
id: ai6
number: 5
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-10"
id: ai7
number: 6
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-9"
id: ai8
number: 7
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-8"
id: ai9
number: 8
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-7"
id: ai10
number: 9
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-6"
id: ai11
number: 10
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-5"
id: ai12
number: 11
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-4"
id: ai13
number: 12
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-3"
id: ai14
number: 13
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-2"
id: ai15
number: 14
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-1"
id: ai16
number: 15
sensor: adc36
update_interval: 5s
# Individual inputs
binary_sensor:
- platform: gpio
name: "aio--input1"
id: aio_input1
pin:
pcf8574: pcf8574_hub_in_1
number: 0
mode: INPUT
inverted: true
on_press:
- lambda: !lambda |-
id(loxone1).send_string_data("RELAY-GET_INPUT-255,1,1,OK");
on_release:
- lambda: !lambda |-
id(loxone1).send_string_data("RELAY-GET_INPUT-255,1,0,OK");
- platform: gpio
name: "aio--input2"
pin:
pcf8574: pcf8574_hub_in_1
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input3"
pin:
pcf8574: pcf8574_hub_in_1
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input4"
pin:
pcf8574: pcf8574_hub_in_1
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input5"
pin:
pcf8574: pcf8574_hub_in_1
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input6"
pin:
pcf8574: pcf8574_hub_in_1
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input7"
pin:
pcf8574: pcf8574_hub_in_1
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input8"
pin:
pcf8574: pcf8574_hub_in_1
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input9"
pin:
pcf8574: pcf8574_hub_in_1
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input10"
pin:
pcf8574: pcf8574_hub_in_1
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input11"
pin:
pcf8574: pcf8574_hub_in_1
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input12"
pin:
pcf8574: pcf8574_hub_in_1
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input13"
pin:
pcf8574: pcf8574_hub_in_1
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input14"
pin:
pcf8574: pcf8574_hub_in_1
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input15"
pin:
pcf8574: pcf8574_hub_in_1
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input16"
pin:
pcf8574: pcf8574_hub_in_1
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input17"
pin:
pcf8574: pcf8574_hub_in_2
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input18"
pin:
pcf8574: pcf8574_hub_in_2
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input19"
pin:
pcf8574: pcf8574_hub_in_2
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input20"
pin:
pcf8574: pcf8574_hub_in_2
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input21"
pin:
pcf8574: pcf8574_hub_in_2
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input22"
pin:
pcf8574: pcf8574_hub_in_2
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input23"
pin:
pcf8574: pcf8574_hub_in_2
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input24"
pin:
pcf8574: pcf8574_hub_in_2
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input25"
pin:
pcf8574: pcf8574_hub_in_2
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input26"
pin:
pcf8574: pcf8574_hub_in_2
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input27"
pin:
pcf8574: pcf8574_hub_in_2
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input28"
pin:
pcf8574: pcf8574_hub_in_2
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input29"
pin:
pcf8574: pcf8574_hub_in_2
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input30"
pin:
pcf8574: pcf8574_hub_in_2
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input31"
pin:
pcf8574: pcf8574_hub_in_2
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input32"
pin:
pcf8574: pcf8574_hub_in_2
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input33"
pin:
pcf8574: pcf8574_hub_in_3
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input34"
pin:
pcf8574: pcf8574_hub_in_3
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input35"
pin:
pcf8574: pcf8574_hub_in_3
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input36"
pin:
pcf8574: pcf8574_hub_in_3
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input37"
pin:
pcf8574: pcf8574_hub_in_3
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input38"
pin:
pcf8574: pcf8574_hub_in_3
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input39"
pin:
pcf8574: pcf8574_hub_in_3
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input40"
pin:
pcf8574: pcf8574_hub_in_3
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input41"
pin:
pcf8574: pcf8574_hub_in_3
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input42"
pin:
pcf8574: pcf8574_hub_in_3
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input43"
pin:
pcf8574: pcf8574_hub_in_3
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input44"
pin:
pcf8574: pcf8574_hub_in_3
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input45"
pin:
pcf8574: pcf8574_hub_in_3
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input46"
pin:
pcf8574: pcf8574_hub_in_3
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input47"
pin:
pcf8574: pcf8574_hub_in_3
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input48"
pin:
pcf8574: pcf8574_hub_in_3
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input49"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input50"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input51"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input52"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input53"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input54"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input55"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input56"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input57-s3"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input58-s4"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 15
mode: INPUT
inverted: true
pca9685:
id: 'pca9685_hub'
frequency: 500
output:
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM0"
channel: 0
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM1"
channel: 1
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM2"
channel: 2
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM3"
channel: 3
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM4"
channel: 4
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM5"
channel: 5
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM6"
channel: 6
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM7"
channel: 7
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM8"
channel: 8
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM9"
channel: 9
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM10"
channel: 10
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM11"
channel: 11
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM12"
channel: 12
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM13"
channel: 13
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM14"
channel: 14
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM15"
channel: 15
light:
- platform: monochromatic
name: "aio-Color-LED-1"
output: PWM0
- platform: monochromatic
name: "aio-Color-LED-2"
output: PWM1
- platform: monochromatic
name: "aio-Color-LED-3"
output: PWM2
- platform: monochromatic
name: "aio-Color-LED-4"
output: PWM3
- platform: monochromatic
name: "aio-Color-LED-5"
output: PWM4
- platform: monochromatic
name: "aio-Color-LED-6"
output: PWM5
- platform: monochromatic
name: "aio-Color-LED-7"
output: PWM6
- platform: monochromatic
name: "aio-Color-LED-8"
output: PWM7
- platform: monochromatic
name: "aio-Color-LED-9"
output: PWM8
- platform: monochromatic
name: "aio-Color-LED-10"
output: PWM9
- platform: monochromatic
name: "aio-Color-LED-11"
output: PWM10
- platform: monochromatic
name: "aio-Color-LED-12"
output: PWM11
- platform: monochromatic
name: "aio-Color-LED-13"
output: PWM12
- platform: monochromatic
name: "aio-Color-LED-14"
output: PWM13
- platform: monochromatic
name: "aio-Color-LED-15"
output: PWM14
- platform: monochromatic
name: "aio-Color-LED-16"
output: PWM15
- platform: rgbw
name: "aio-rgbw"
red: PWM1
green: PWM2
blue: PWM3
white: PWM4
web_server:
port: 80
loxone:
id: loxone1
protocol: udp
loxone_ip: "192.168.3.108"
loxone_port: 9999
listen_port: 8888
delimiter: "\n"
send_buffer_length: 64
on_string_data:
# - logger.log:
# format: "on_string_data, data=%s"
# args: [ data.c_str() ]
- lambda: !lambda |-
if (data == "RELAY-SET-255,1,1") {
id(aio_light1).turn_on();
} else if (data == "RELAY-SET-255,1,0") {
id(aio_light1).turn_off();
}
here is yaml file: [
attachment=6573]
[
attachment=6574]
turn ON output1 by home assistant web page, then Loxone will update:
[
attachment=6575]

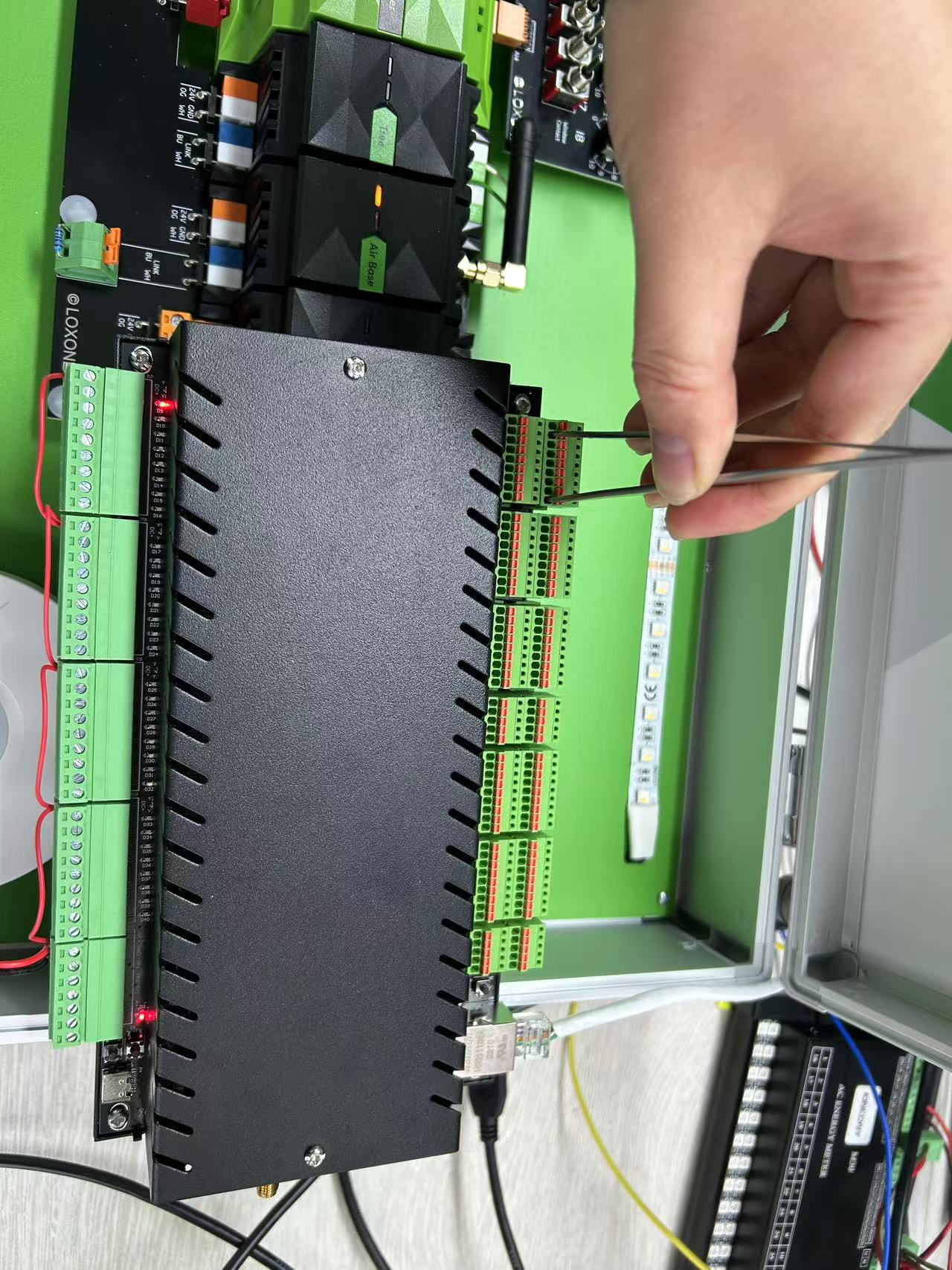

trigger INPUT1 with GND:
[
attachment=6576]
Then will feedback to Loxone config:
[
attachment=6577]
Loxone project download:
https://www.kincony.com/forum/attachment.php?aid=3439
Hi ,
thanks for the help ,
i got further but i am running in some new problems:

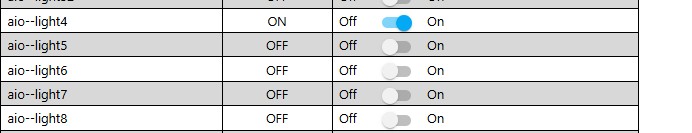

if i press a virtual button in the loxone app ,
i get this state on esphome :
[

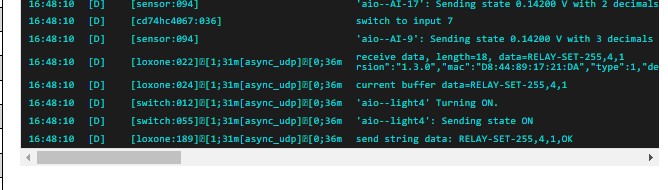

attachment=6709]
[
attachment=6711]

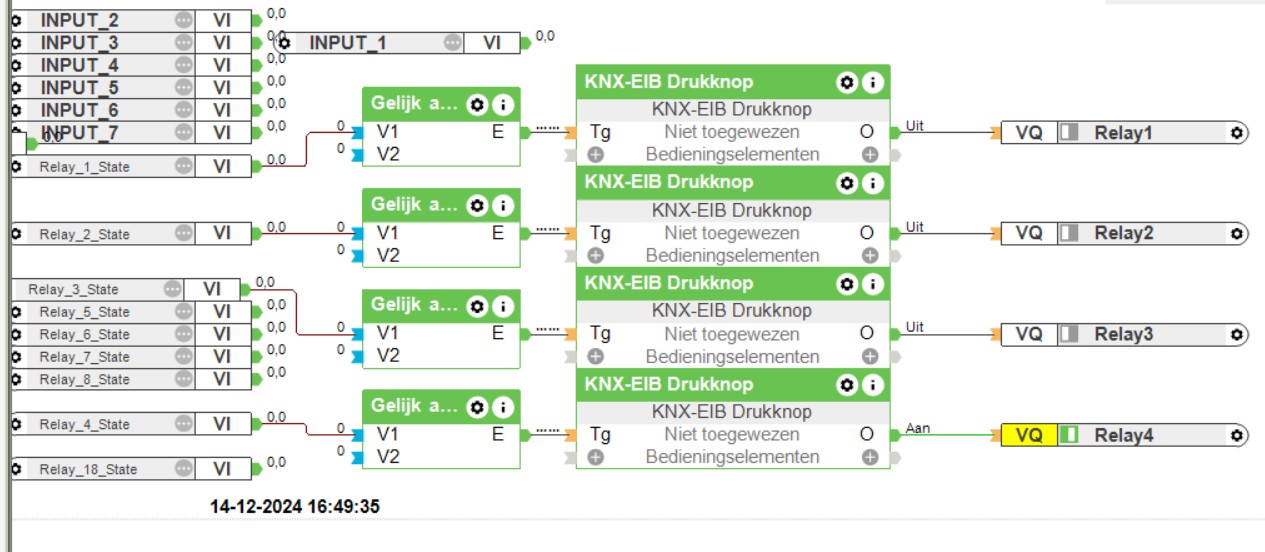

this is the screen i get at the same time on loxone config :
[
attachment=6710]
i think that looks good , but in real life the led of output 4 on the AIO does not turn on . ( i also tested with different outputs but that is the same)
when i press the switch myself in esphome the output does turn on
edit : it seems that i was wrong . the unit freezes when it sends out to the loxone for a state change . it is normaly contanstantly checking the sensor states but when changing one of the relais states and sending it to the loxone it freezes for a little longer than 2 minutes. it also occurs that the lef of the outputs flickers ones for half of a second and then turns off
edit edit : got it solved for the moment ; i changed max output buffer for loxone to 32 instead of 64 and added 100ms delay to all on or off comands for the relais . works like a charm
