Connecting the 0-5v generator to the A3 or A4 the ADC is reporting considerably lower voltages than what is physically generated and measured using a multimeter.

Also if program an event using IFTTT using the ADC voltage to switch a Digital output it will not trigger the event?
E.G. IF AI3 is <=2.00v THEN DO1 to On  if I reduce the voltage to AI3 to less than 2.00v or even drop it down to zero volts DI1 output does not change state.

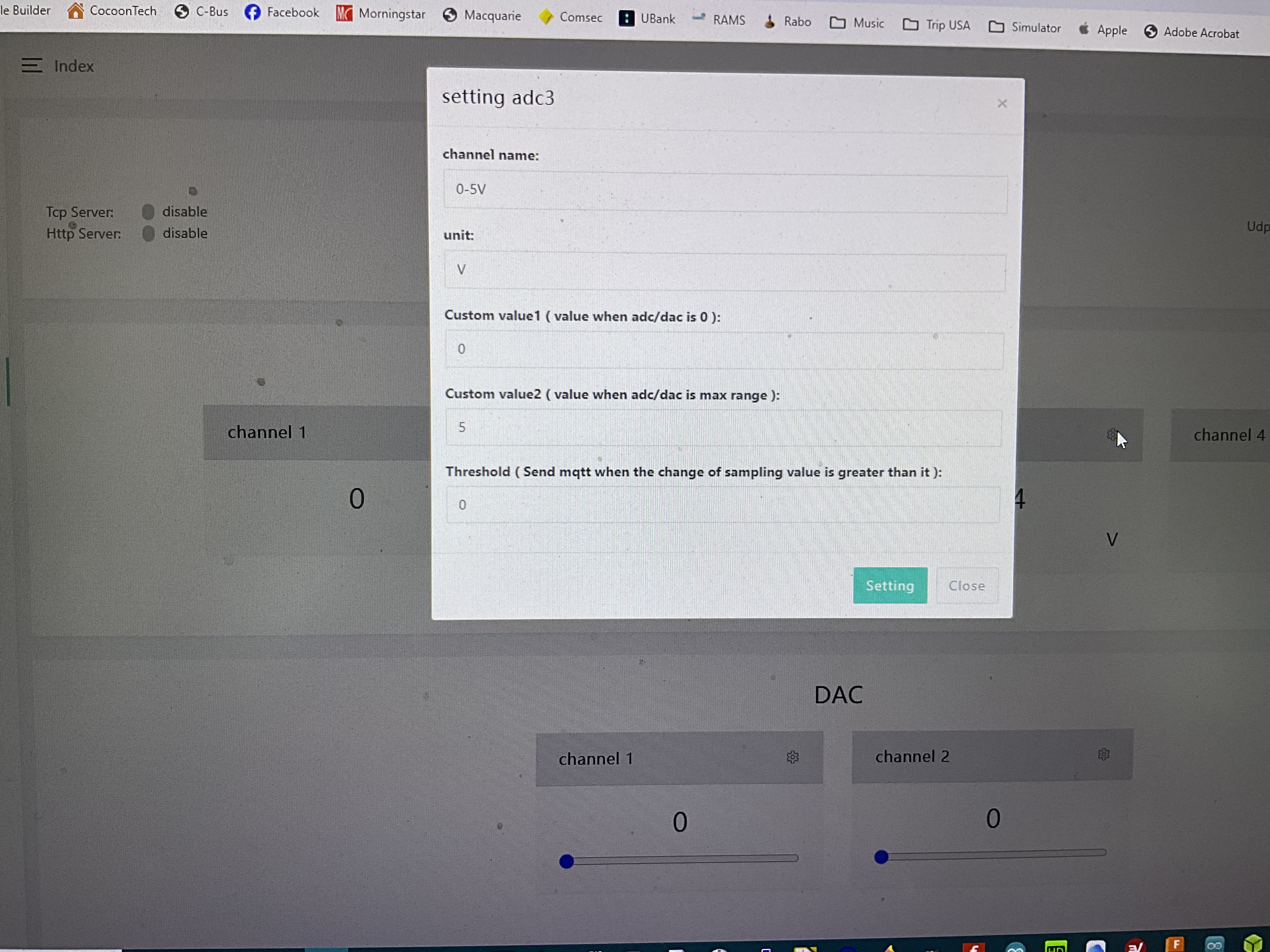

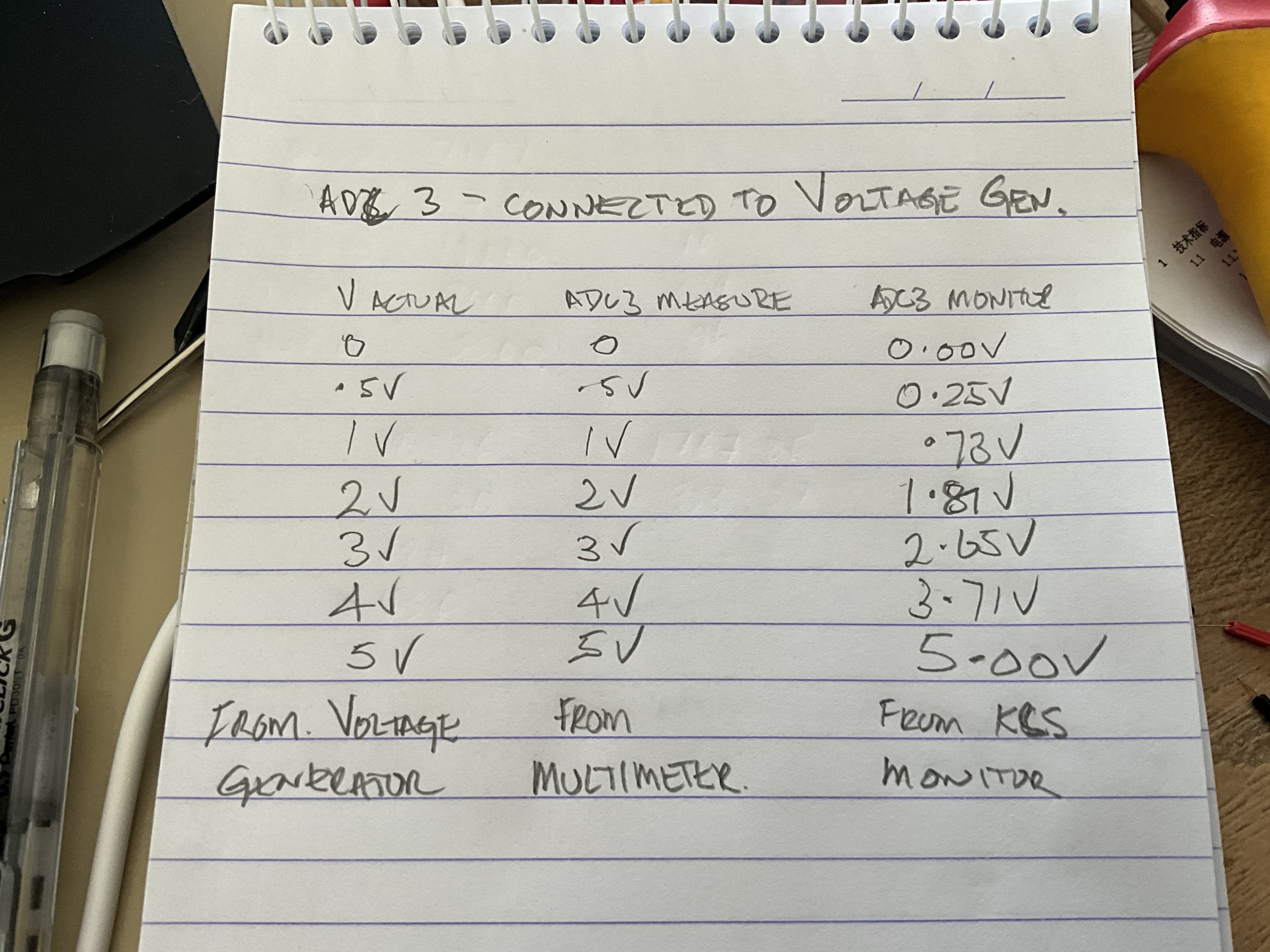

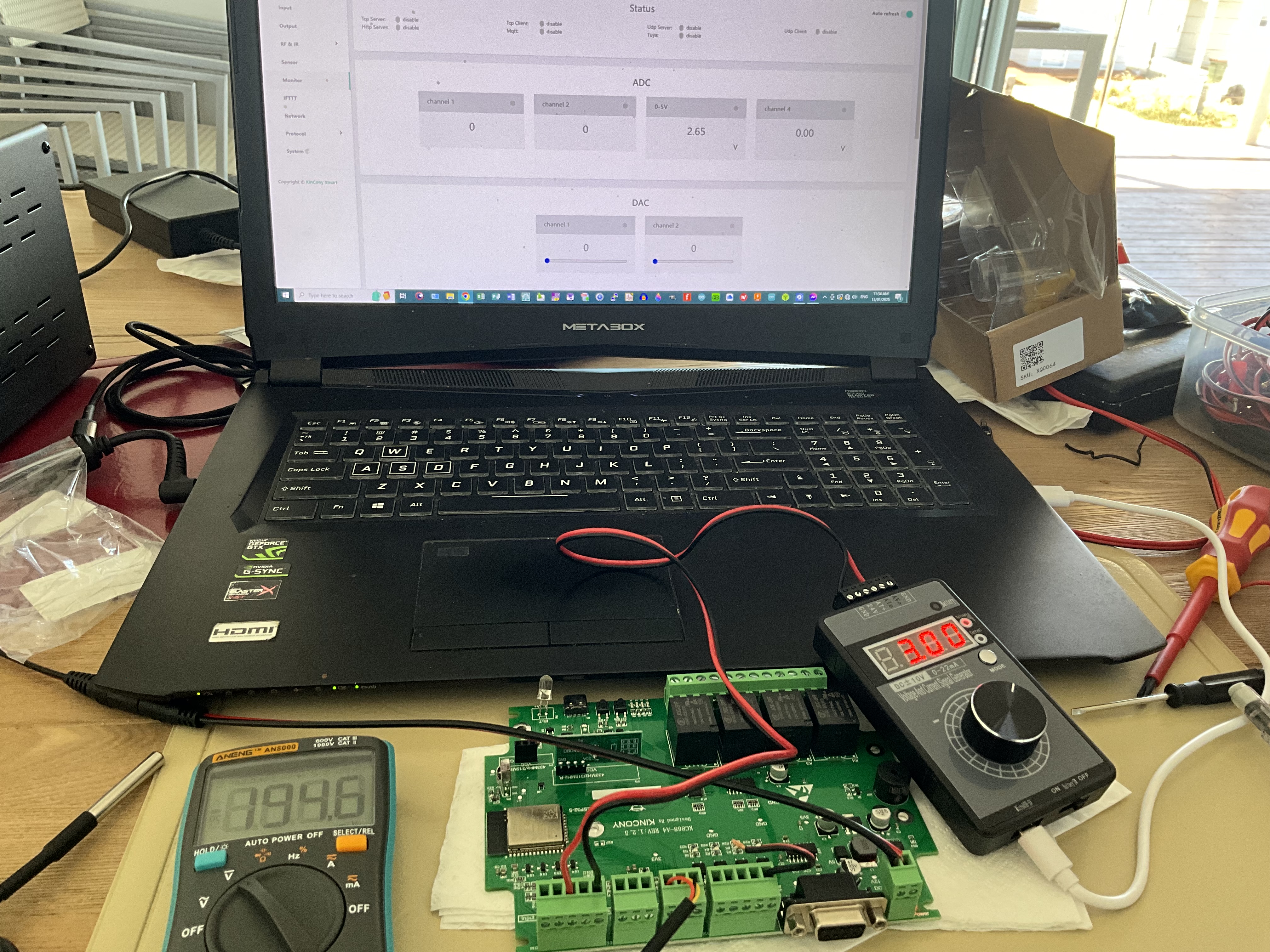

[attachment=6859][attachment=6860][attachment=6861]

Dear Fleetz,

The ESP32's Analog to Digital Converter (ADC) has a resolution of 12 bits, which means it can detect 4096 analog levels. The ADC can convert input voltages between 0 and 3.3 volts into integer values between 0 and 4095.

You are using custom values, so there is no positive result.

Thanks for the reply.

Given the ADC is 12 bit with 0-4096 and accepting that the range is 0 to 3.3v which I was aware of at the time of posting I would expect the accuracy of the KSC monitor from my 0-3v would be extremely close. However it is not. The bit table to voltage therefore can not be accurate.

what KCS firmware version you are using?
after our new year holidays, i can test it.

(01-27-2025, 12:57 AM)admin Wrote: [ -> ]what KCS firmware version you are using?
after our new year holidays, i can test it.

Your version 2

i need details, what firmware version, you can take a photo of KCS INDEX webpage. the webpage have showed the version.
