KinCony ESP32 board integrate to Loxone Miniserver by ESPHome

[admin]

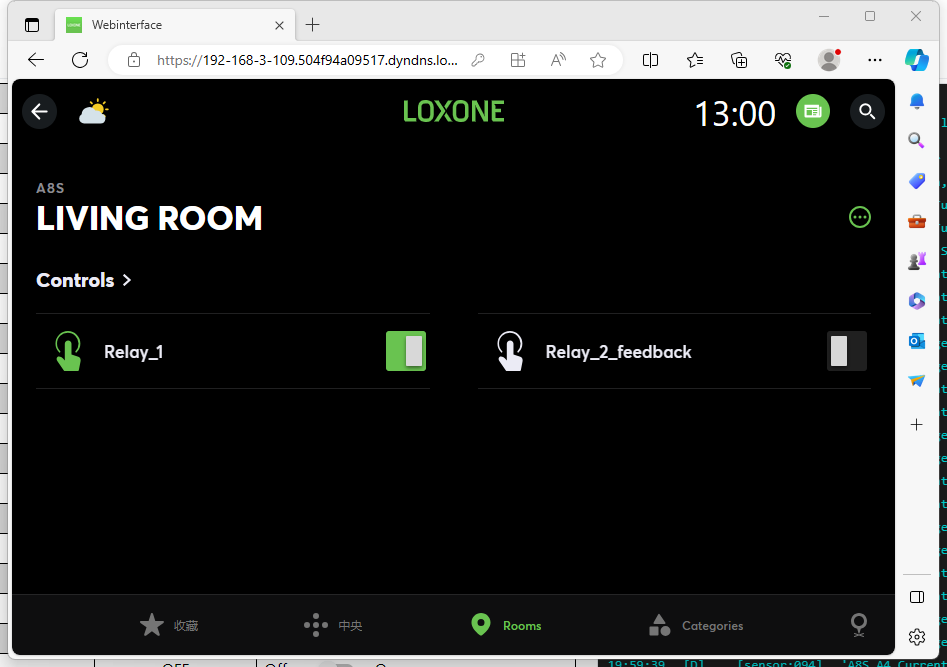

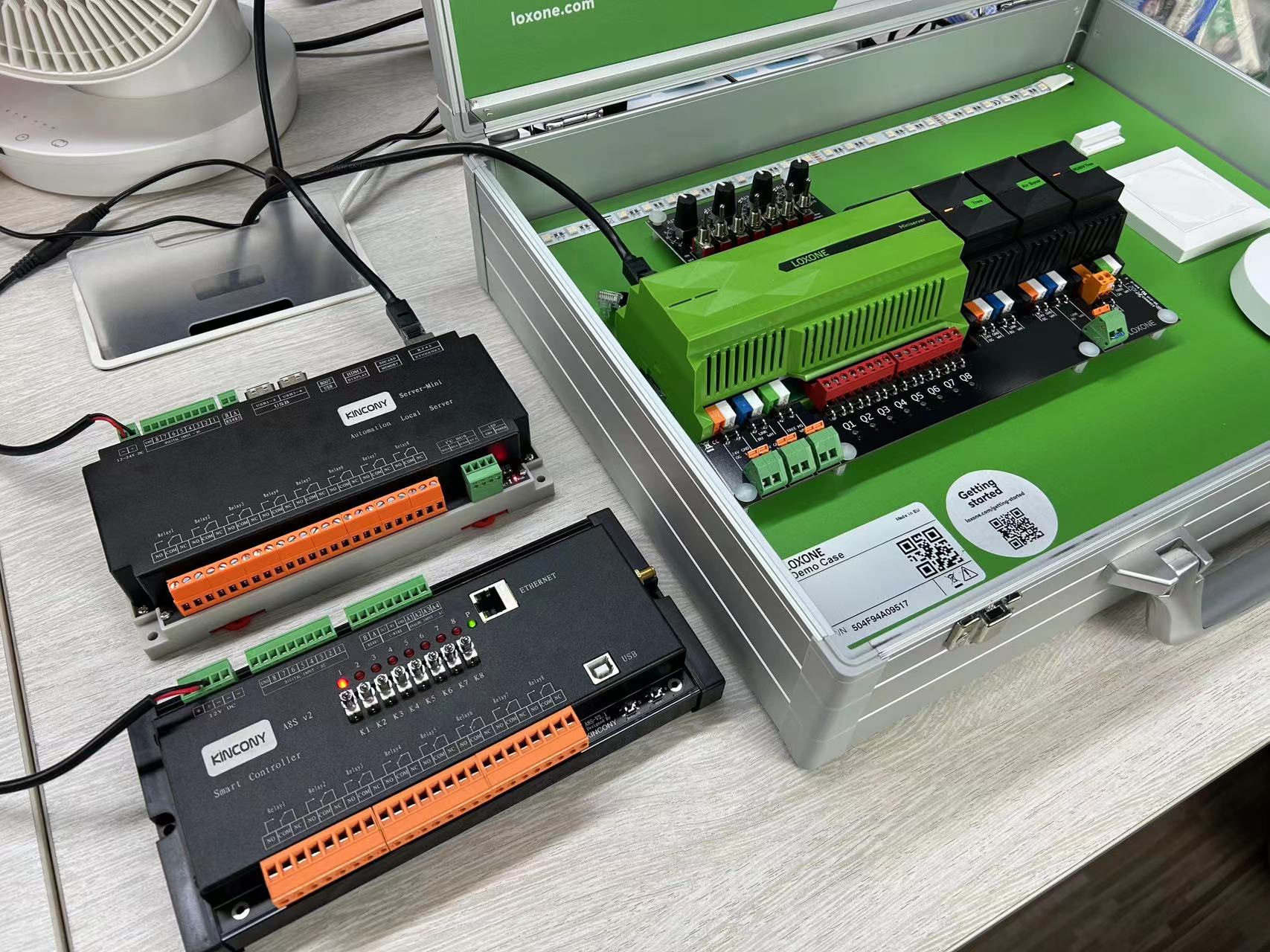

here is sample photo use by KinCony Server-mini (installed home assistant) , A8Sv2 ESP32 relay board, Loxone Miniserver. Actually you can use any ESP32 board work with Loxone and home assistant at the same time.

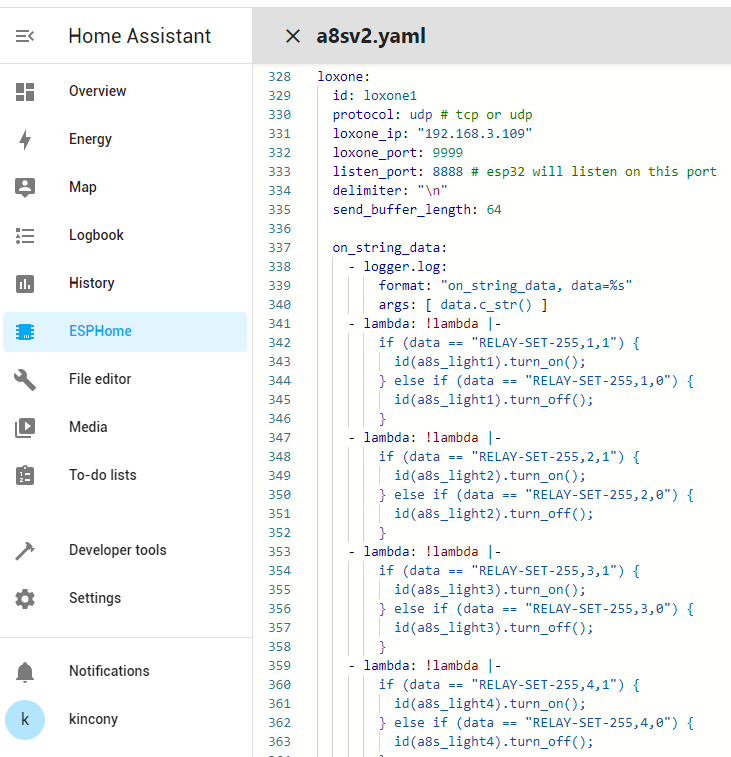

  a8s-Loxone-esphome.txt (Size: 9.77 KB / Downloads: 422)
KinCony-A8S.Loxone project download:

  KinCony-A8S.zip (Size: 29.09 KB / Downloads: 475)

[sanurss]

@admin Is it possible that you update the component code to latest version with support for analog I/O?
https://github.com/hzkincony/esphome-loxone

[admin]

i suggest you use KCS v3, that will be very easy integrate with Loxone miniserver by UDP.
here is online guide: https://www.kincony.com/forum/showthread.php?tid=7264

[sanurss]

What's KCS? I cannot find it in your products, also I don't see the firmware or source code anywhere.

[admin]

KCS is kincony controller's firmware name.
here is KCS v3 online guide: https://www.kincony.com/how-to-use-kcsv3...board.html
