Hello,
I wanted to replace a few relays that are dead on the KC868-H32B Pro, but I can't find their physical location.
For instance the one with the arrow in my picture is the number 1, but it is marked K23 on the PCB.
Do you have a diagram showing the actual number of each relay on the board?
Thank you
Posts: 6,259
Threads: 806
Joined: Oct 2020
Reputation:
151
which terminal port broken now? you can test by multi meter. let me , then i will check for you .
Posts: 42
Threads: 8
Joined: Mar 2024
Reputation:
3
10-19-2024, 09:07 AM
(This post was last modified: 10-19-2024, 09:45 PM by lulu01.)
I am looking for relay 13 on this board, and relays 15, 25, 26 on another one.
Posts: 6,259
Threads: 806
Joined: Oct 2020
Reputation:
151
where you see the relay13,15,25,26? do you means you see the number on software window?
Posts: 42
Threads: 8
Joined: Mar 2024
Reputation:
3
10-19-2024, 02:59 PM
(This post was last modified: 10-19-2024, 03:01 PM by lulu01.)

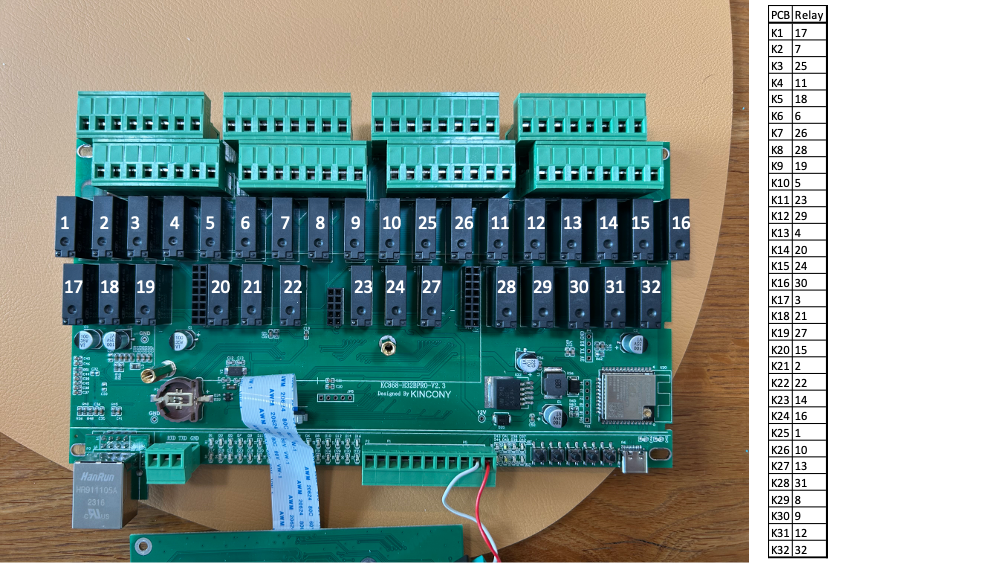

I used a multimeter and here are my findings if it ever can help someone else. This is valid for the H32B Pro HW revision 2.3
Posts: 6,259
Threads: 806
Joined: Oct 2020
Reputation:
151
thanks for sharing your diagram. now you can replace relay , right?
Posts: 42
Threads: 8
Joined: Mar 2024
Reputation:
3
Yes, I already did it on one of the cards.
