Trigger LED on Wall Switch Panel

[petermac]

With the F16, without having digital out ports, is there any way to trigger the LED light on/off on wall switch panel?

[admin]

if relay output DC12v, it can feedback dc12v to wall switch panel.
but i think maybe we will make some new update for HAv2 module feedback relay state by RS485. we will save this idea.

[MariusM]

I have 2,4,6 gang metal switch wall , controls: server and AIO , How can i wire the feedback led for switch panel ?
I have connected the GND and DC to 12 V and the light of all buttons are yellow , so far ok.
When i wire the feedback D1 to output 1 from server, the LED is white without the output to be active, when i activate the output 1 the white led is off.

I want to set te wall switch as follow: when all lights off the button led will be all yellow, when an output is on the feedback led to be white.

[admin]

switch panel's GND need connect with AIO's power GND together.
here is video tour: https://youtu.be/hkU5keBTLf8

[MariusM]


Still not able to set.

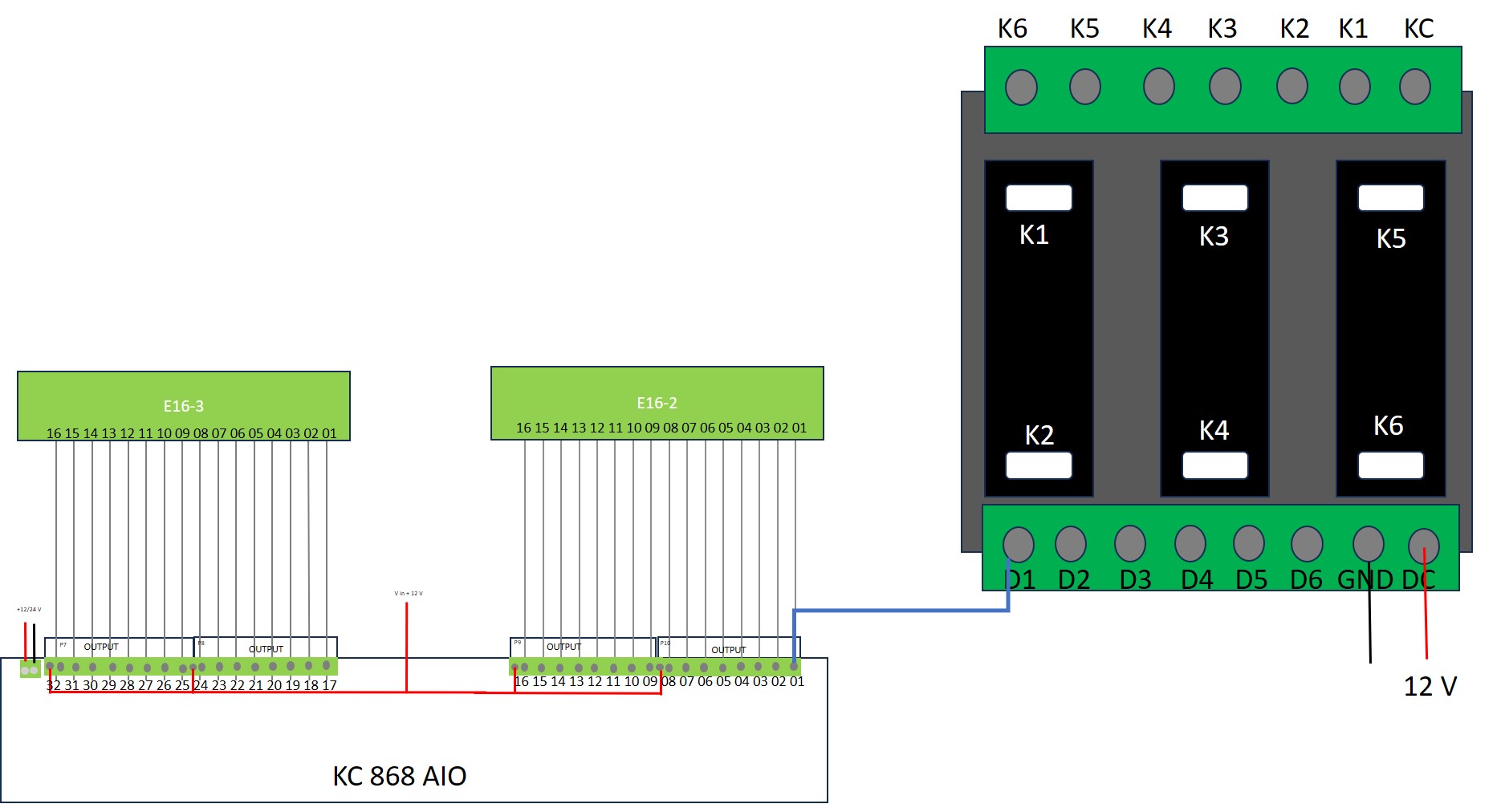

I attached two pictures
When Relay is Off, LED D1 is ON
When Relay is ON, LED D1 is OFF

Looks like i need to invers somehow the signal.

Could you help?

[admin]

KC868-E16v2 relay's coin terminal connect to switch panel's "Dx". switch panel's COMMON connect to GND.
