<![CDATA[Smart Home Automation Forum - KC868-HxB series Smart Controller]]>

<![CDATA[Smart Home Automation Forum - KC868-HxB series Smart Controller]]> https://www.kincony.com/forum/ Sat, 20 Jun 2026 18:50:47 +0000 MyBB <![CDATA[Request for firmware H32]]> https://www.kincony.com/forum/showthread.php?tid=9363 Tue, 26 May 2026 18:31:17 +0800 belar]]> https://www.kincony.com/forum/showthread.php?tid=9363
1. H32B rev 7.2 controller
MCU: AT32F403AVGT7
Need: Bootloader + latest firmware

2. H32 rev 7.1 controller
MCU: STM32F103VCTB
Need: Bootloader + original firmware for KC868-H32]]>
1. H32B rev 7.2 controller
MCU: AT32F403AVGT7
Need: Bootloader + latest firmware

2. H32 rev 7.1 controller
MCU: STM32F103VCTB
Need: Bootloader + original firmware for KC868-H32]]> <![CDATA[KC868-A8 on Heat Pump for SG-Ready]]> https://www.kincony.com/forum/showthread.php?tid=9311 Sun, 03 May 2026 22:28:07 +0800 ssopiadis]]> https://www.kincony.com/forum/showthread.php?tid=9311
With this I want to control (amongst other things) through SG-Ready a heat pump (ALSAVO Air Source Heat Pump Monoblock - 7kW).
The documentation of the heat pump (https://rjwebshop.dk/upload_dir/shop/Zea...Manual.pdf) explains at page 63 that CN10 and CN30 are designed for SG-Ready. These connections I (think) are needed to be connected separately to the relays on the kc868-a8.

Is that right? Do you have any example on how to do that? I think that simple cable without potential will work.

I searched your videos but couldn’t find any information regarding.

Best regards
Savvas]]>
With this I want to control (amongst other things) through SG-Ready a heat pump (ALSAVO Air Source Heat Pump Monoblock - 7kW).
The documentation of the heat pump (https://rjwebshop.dk/upload_dir/shop/Zea...Manual.pdf) explains at page 63 that CN10 and CN30 are designed for SG-Ready. These connections I (think) are needed to be connected separately to the relays on the kc868-a8.

Is that right? Do you have any example on how to do that? I think that simple cable without potential will work.

I searched your videos but couldn’t find any information regarding.

Best regards
Savvas]]> <![CDATA[KC868-COLB - How to Connect by Ethernet and DHCP]]> https://www.kincony.com/forum/showthread.php?tid=9201 Thu, 02 Apr 2026 23:46:39 +0800 upstream]]> https://www.kincony.com/forum/showthread.php?tid=9201
I do not want to use WiFi.

I tried to follow instructions here and I am not successful.

Is TCP Client mode what I need?

When I hold down "Ethernet Mode" button the LED cycles through only 2 options:

1. yellow and white LED
2. yellow, white and blue LED

I can connect to server via WiFi (ssid LPT230) but I do not know if I can change settings for Ethernet.

I have a video of the LEDs but I cannot attach video files here.

Thank you.]]>
I do not want to use WiFi.

I tried to follow instructions here and I am not successful.

Is TCP Client mode what I need?

When I hold down "Ethernet Mode" button the LED cycles through only 2 options:

1. yellow and white LED
2. yellow, white and blue LED

I can connect to server via WiFi (ssid LPT230) but I do not know if I can change settings for Ethernet.

I have a video of the LEDs but I cannot attach video files here.

Thank you.]]> <![CDATA[replace resistance for COLB switch analog input from 0-5v signal to 4-20mA]]> https://www.kincony.com/forum/showthread.php?tid=9161 Tue, 24 Mar 2026 10:07:18 +0800 admin]]> https://www.kincony.com/forum/showthread.php?tid=9161
Replace (R63, R64, R65, R66, R67, R68, R69, R70, R79, R80, R81, R82, R83, R84, R85, R86) 10K resistors with 150R resistors in 1206 package.

Replace (R57, R58, R59, R60, R61, R62, R55, R56, R71, R72, R73, R74, R75, R76, R77, R78) 5.1K resistors with 0 ohm resistors in 0603 package.

.png

Replace (R63, R64, R65, R66, R67, R68, R69, R70, R79, R80, R81, R82, R83, R84, R85, R86) 10K resistors with 150R resistors in 1206 package.

Replace (R57, R58, R59, R60, R61, R62, R55, R56, R71, R72, R73, R74, R75, R76, R77, R78) 5.1K resistors with 0 ohm resistors in 0603 package.

.png

colb-ad.png (Size: 210.78 KB / Downloads: 128) ]]> <![CDATA[KC868-H16B Mqtt stops working intermittently]]> https://www.kincony.com/forum/showthread.php?tid=8823 Tue, 16 Dec 2025 19:14:37 +0800 hlavaste]]> https://www.kincony.com/forum/showthread.php?tid=8823
I have KC868-H16B relay.
What seems to happen is that Mqtt client stops listening to subscriptions after a while.
I have ports 1-6 for lights, and port 16 for heating.
Randomly, port 16 stops responding to mqtt state changes.
Looking at the explorer, the set value is changed to 1 but state is not changed accordingly. This only affects port 16. ports 1-6 are still working.
If I power cycle the relay, it's back to normal again.
Version I'm running is H16B_V4.35.
Any ideas?

Thanks,

Heikki]]>
I have KC868-H16B relay.
What seems to happen is that Mqtt client stops listening to subscriptions after a while.
I have ports 1-6 for lights, and port 16 for heating.
Randomly, port 16 stops responding to mqtt state changes.
Looking at the explorer, the set value is changed to 1 but state is not changed accordingly. This only affects port 16. ports 1-6 are still working.
If I power cycle the relay, it's back to normal again.
Version I'm running is H16B_V4.35.
Any ideas?

Thanks,

Heikki]]> <![CDATA[Where to get schematics of all KC868-A8 and A16 versions with relays ??]]> https://www.kincony.com/forum/showthread.php?tid=8814 Thu, 11 Dec 2025 16:56:40 +0800 peacemakerv]]> https://www.kincony.com/forum/showthread.php?tid=8814 Please, suggest all PDF-versions of the circuit diagrams of all models KC868-A8 and KC868-A16 with mechanical relays on board ?

Searching the market gets various versions, prices - so, it needs to understand what exactly is being sold to choose...

Just so some A8v3 ...]]> Please, suggest all PDF-versions of the circuit diagrams of all models KC868-A8 and KC868-A16 with mechanical relays on board ?

Searching the market gets various versions, prices - so, it needs to understand what exactly is being sold to choose...

Just so some A8v3 ...]]> <![CDATA[KC868-A8V3 and ESPHome firmware]]> https://www.kincony.com/forum/showthread.php?tid=8735 Wed, 12 Nov 2025 17:22:14 +0800 JuDie07]]> https://www.kincony.com/forum/showthread.php?tid=8735 According to the datasheet, it is built around the ESP32-S3 series of SoCs, Xtensa® dual-core 32-bit LX7 microprocessor, flash up to 16 MB,
and PSRAM up to 16 MB, so 16 MB is installed!
Do I need to specify this in the configuration?

esp32:
board: esp32dev
flash_size: 16MB
framework:
type: esp-idf

esp32:
board: esp32-s3-devkitc-1
framework:
type: arduino]]> According to the datasheet, it is built around the ESP32-S3 series of SoCs, Xtensa® dual-core 32-bit LX7 microprocessor, flash up to 16 MB,
and PSRAM up to 16 MB, so 16 MB is installed!
Do I need to specify this in the configuration?

esp32:
board: esp32dev
flash_size: 16MB
framework:
type: esp-idf

esp32:
board: esp32-s3-devkitc-1
framework:
type: arduino]]> <![CDATA[Input and output on same pin]]> https://www.kincony.com/forum/showthread.php?tid=8732 Tue, 11 Nov 2025 09:09:53 +0800 david.karlas]]> https://www.kincony.com/forum/showthread.php?tid=8732
I wonder if there is any board that fits my needs...

I'm driving lights & blinds using 24VDC relays and all over the house I have buttons(lights) or up/down buttons(blinds). All this buttons have 24VDC and are connected to main junction box that has all this relays which drive 240VAC lights/blinds.

I want board that has single pin(so I need to connect just 1 wire, per light) that reads that wire 24V via optocoupler at same time board has on same pin MOSFET that can drive that relay.

So idea is, that I can detect when user is pressing some button and they drive lights, but at same time I can drive lights and in both cases I want to read this signals.

Does such board exist?
I already have KC868-A16 but as far as understand I need additional optocoupler, since I'm not allowed to connect 24VDC on input, so I need external optocoupler to simulate dry contact on KC868-A16 and makes everything ugly with additional optocoupler and 2 wires per relay.

Thanks,
David]]>
I wonder if there is any board that fits my needs...

I'm driving lights & blinds using 24VDC relays and all over the house I have buttons(lights) or up/down buttons(blinds). All this buttons have 24VDC and are connected to main junction box that has all this relays which drive 240VAC lights/blinds.

I want board that has single pin(so I need to connect just 1 wire, per light) that reads that wire 24V via optocoupler at same time board has on same pin MOSFET that can drive that relay.

So idea is, that I can detect when user is pressing some button and they drive lights, but at same time I can drive lights and in both cases I want to read this signals.

Does such board exist?
I already have KC868-A16 but as far as understand I need additional optocoupler, since I'm not allowed to connect 24VDC on input, so I need external optocoupler to simulate dry contact on KC868-A16 and makes everything ugly with additional optocoupler and 2 wires per relay.

Thanks,
David]]> <![CDATA[D16 Dimmer - Set memory value without turning on via MQTT?]]> https://www.kincony.com/forum/showthread.php?tid=8724 Tue, 04 Nov 2025 16:48:22 +0800 stansvec]]> https://www.kincony.com/forum/showthread.php?tid=8724 Is there an MQTT command to update the D16 dimmer's stored brightness memory value WITHOUT actually turning on the dimmer?

Current behavior:

Send

Code:
{"dimmer1": {"value": 50}}
→ Light turns on at 50%
Send

Code:
{"dimmer1": {"value": 0}}
→ Light turns off, hardware remembers 50%
Physical button press → Light restores to 50%

What I need:

While dimmer is OFF, update the stored memory to a different value (e.g., 30%)
So next physical button press turns on at 30%, not 50%
Without the light briefly flashing on

Is there a command like

Code:
{"dimmer1": {"memory": 30}}

or similar that only updates the stored value?

Thanks!]]> Is there an MQTT command to update the D16 dimmer's stored brightness memory value WITHOUT actually turning on the dimmer?

Current behavior:

Send

Code:
{"dimmer1": {"value": 50}}
→ Light turns on at 50%
Send

Code:
{"dimmer1": {"value": 0}}
→ Light turns off, hardware remembers 50%
Physical button press → Light restores to 50%

What I need:

While dimmer is OFF, update the stored memory to a different value (e.g., 30%)
So next physical button press turns on at 30%, not 50%
Without the light briefly flashing on

Is there a command like

Code:
{"dimmer1": {"memory": 30}}

or similar that only updates the stored value?

Thanks!]]> <![CDATA[Using 24VAC with KC868-A16 Board Outputs]]> https://www.kincony.com/forum/showthread.php?tid=8691 Sat, 01 Nov 2025 12:27:41 +0800 Roselrade]]> https://www.kincony.com/forum/showthread.php?tid=8691 Could someone confirm if it’s possible to run 24 VAC through the output channels?
Thanks in advance!]]> Could someone confirm if it’s possible to run 24 VAC through the output channels?
Thanks in advance!]]> <![CDATA[KC868-H32B Pro wrong firmware update]]> https://www.kincony.com/forum/showthread.php?tid=8685 Mon, 27 Oct 2025 21:53:03 +0800 Yooo]]> https://www.kincony.com/forum/showthread.php?tid=8685 <![CDATA[KC-868 COLB - I do not see IP adress]]> https://www.kincony.com/forum/showthread.php?tid=8590 Sun, 28 Sep 2025 20:00:24 +0800 Alois Láska]]> https://www.kincony.com/forum/showthread.php?tid=8590 I have successfully set up the Kyncony KC-868 A4, and using Node-RED with HTTP requests I can now switch the relay. From here, it’s only a matter of programming the desired algorithm.
But since the A4 has a limited number of analog inputs, we also got the KC-868 COLB.

I have successfully upgraded the firmware of the COLB to the latest version using the guides from the forum.

When I use VirCom or IP Scanner software to search for the COLB device in the network, it doesn’t find any COLB. That’s why the SCB software doesn’t work either.

I connected the COLB via Ethernet cable to a switch that assigns IP addresses through DHCP. The laptop I am using is also connected to the same network.

Could you please tell me where I am making a mistake? Do you have a precise guide or step-by-step instructions on how to connect the COLB?

Additional questions:
– Is it possible to connect the COLB via WiFi as well? I am confused by your guides, it’s not clear to me. If yes please send me some guide how.
– How many DS18B20 digital sensors can be connected to a single channel? Only one?

Thank you very much for your assistence,
ALois]]> I have successfully set up the Kyncony KC-868 A4, and using Node-RED with HTTP requests I can now switch the relay. From here, it’s only a matter of programming the desired algorithm.
But since the A4 has a limited number of analog inputs, we also got the KC-868 COLB.

I have successfully upgraded the firmware of the COLB to the latest version using the guides from the forum.

When I use VirCom or IP Scanner software to search for the COLB device in the network, it doesn’t find any COLB. That’s why the SCB software doesn’t work either.

I connected the COLB via Ethernet cable to a switch that assigns IP addresses through DHCP. The laptop I am using is also connected to the same network.

Could you please tell me where I am making a mistake? Do you have a precise guide or step-by-step instructions on how to connect the COLB?

Additional questions:
– Is it possible to connect the COLB via WiFi as well? I am confused by your guides, it’s not clear to me. If yes please send me some guide how.
– How many DS18B20 digital sensors can be connected to a single channel? Only one?

Thank you very much for your assistence,

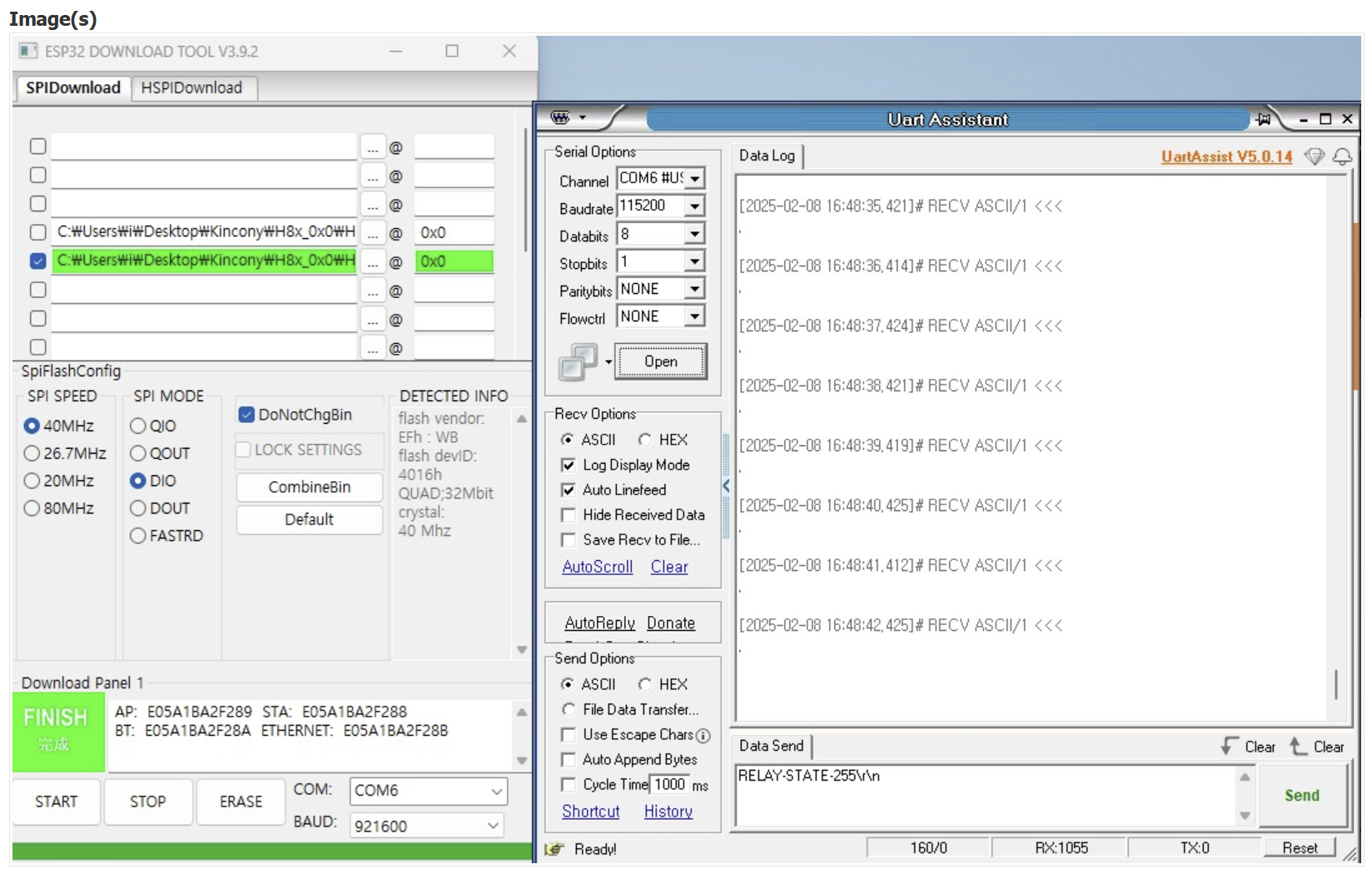

ALois]]> <![CDATA[Unable to connect with firmware tool]]> https://www.kincony.com/forum/showthread.php?tid=8497 Sat, 06 Sep 2025 02:04:35 +0800 zmatthiaz]]> https://www.kincony.com/forum/showthread.php?tid=8497
I can connect the USB-C to my windows 10 machine. And it shows up as COM4.
I can click "OPEN PORT" as soon as the device restarts
But when I click on the bootloader detect button nothing happens

I've tried restarting the device more than 50 times. With varying timings and Baudrates. But no change. I never get the results shown in the youtube video

How do I debug this, what am I doing wrong?
Is the USB C version different than what is shown in the video?

.jpeg

WhatsApp Image 2025-09-05 at 19.57.32.jpeg (Size: 320.58 KB / Downloads: 372) ]]>
I can connect the USB-C to my windows 10 machine. And it shows up as COM4.
I can click "OPEN PORT" as soon as the device restarts
But when I click on the bootloader detect button nothing happens

I've tried restarting the device more than 50 times. With varying timings and Baudrates. But no change. I never get the results shown in the youtube video

How do I debug this, what am I doing wrong?
Is the USB C version different than what is shown in the video?

.jpeg

WhatsApp Image 2025-09-05 at 19.57.32.jpeg (Size: 320.58 KB / Downloads: 372) ]]> <![CDATA[H32BS & Serial Switch Terminal board]]> https://www.kincony.com/forum/showthread.php?tid=8350 Mon, 28 Jul 2025 17:15:17 +0800 deliad]]> https://www.kincony.com/forum/showthread.php?tid=8350
I have a system with 128 keys
2 h32bs controllers which gives me 64 inputs for dry contact keys in total

1. i got 2 pieces of Serial Terminal Switches board v2 that gives me more 64 in total

I want to set each input to action like what i want and not directly to trigger a relay, i do this in home assistant so i set SW_TRIGGER off on the H32bs config page

But, the problem is , if i connect the terminal board to the h32bs, it doesn't extends the inputs to 64 channels , it keeps receive the switches as 1 to 32

The solution to make the switch terminal board to extend the h32bs inputs channels to 64 is to make a feature in the h32bs firmware.

The feature will "mask" the messages that comes from the serial terminal board v2 so they will be output as RELAY-KEY-255,33,1 or RELAY-KEY-255,34,0 RELAY-KEY-255,34,1 and so on.

Then we can use separated 64 dry contact inputs for switches on each h32bs.

2. Then, if we use SW trigger output OFF and home assistant we dont need the DoubleClick function of the h32bs firmware, so also keypress delay time that is used for keypress scanning can be disabled, then we get faster tcp / mqtt state messages from the h32bs after a keypress.

Please make these features
1. Masking / reformatting terminal board v2 messages coming from h32bs serial port
2. A button to disable/enable doubleclick feature to disable the caused delay because of the keypress scanning]]>
I have a system with 128 keys
2 h32bs controllers which gives me 64 inputs for dry contact keys in total

1. i got 2 pieces of Serial Terminal Switches board v2 that gives me more 64 in total

I want to set each input to action like what i want and not directly to trigger a relay, i do this in home assistant so i set SW_TRIGGER off on the H32bs config page

But, the problem is , if i connect the terminal board to the h32bs, it doesn't extends the inputs to 64 channels , it keeps receive the switches as 1 to 32

The solution to make the switch terminal board to extend the h32bs inputs channels to 64 is to make a feature in the h32bs firmware.

The feature will "mask" the messages that comes from the serial terminal board v2 so they will be output as RELAY-KEY-255,33,1 or RELAY-KEY-255,34,0 RELAY-KEY-255,34,1 and so on.

Then we can use separated 64 dry contact inputs for switches on each h32bs.

2. Then, if we use SW trigger output OFF and home assistant we dont need the DoubleClick function of the h32bs firmware, so also keypress delay time that is used for keypress scanning can be disabled, then we get faster tcp / mqtt state messages from the h32bs after a keypress.

Please make these features
1. Masking / reformatting terminal board v2 messages coming from h32bs serial port
2. A button to disable/enable doubleclick feature to disable the caused delay because of the keypress scanning]]> <![CDATA[H32BS - MQTT Topic to get states of switches]]> https://www.kincony.com/forum/showthread.php?tid=8349 Mon, 28 Jul 2025 16:44:51 +0800 deliad]]> https://www.kincony.com/forum/showthread.php?tid=8349
Whats the H32BS MQTT Topic to get states of switches?
No relays no digital inputs

Thanks]]>
Whats the H32BS MQTT Topic to get states of switches?
No relays no digital inputs

Thanks]]>
