Code:
uart:

  id: mod_bus

  tx_pin: 17

  rx_pin: 16

  baud_rate: 9600

  parity: NONE

  stop_bits: 1

  data_bits: 8

  debug:

    direction: BOTH

modbus:

  id: modbus_hub

  uart_id: mod_bus

  flow_control_pin: 32

modbus_controller:

  id: dtsu666

  address: 0x02

  modbus_id: modbus_hub

  update_interval: 10s

  command_throttle: 500ms

sensor:

  - platform: modbus_controller

    modbus_controller_id: dtsu666

    name: "Test - Napięcie UA"

    address: 0x2006

    register_type: read

    value_type: FP32

    unit_of_measurement: "V"

    accuracy_decimals: 1

    filters:

      - multiply: 0.1

  - platform: modbus_controller

    modbus_controller_id: dtsu666

    name: "Test - Prąd IA"

    address: 0x200C

    register_type: read

    value_type: FP32

    unit_of_measurement: "A"

    accuracy_decimals: 2

    filters:

      - multiply: 0.001

]]>

Code:
uart:

  id: mod_bus

  tx_pin: 17

  rx_pin: 16

  baud_rate: 9600

  parity: NONE

  stop_bits: 1

  data_bits: 8

  debug:

    direction: BOTH

modbus:

  id: modbus_hub

  uart_id: mod_bus

  flow_control_pin: 32

modbus_controller:

  id: dtsu666

  address: 0x02

  modbus_id: modbus_hub

  update_interval: 10s

  command_throttle: 500ms

sensor:

  - platform: modbus_controller

    modbus_controller_id: dtsu666

    name: "Test - Napięcie UA"

    address: 0x2006

    register_type: read

    value_type: FP32

    unit_of_measurement: "V"

    accuracy_decimals: 1

    filters:

      - multiply: 0.1

  - platform: modbus_controller

    modbus_controller_id: dtsu666

    name: "Test - Prąd IA"

    address: 0x200C

    register_type: read

    value_type: FP32

    unit_of_measurement: "A"

    accuracy_decimals: 2

    filters:

      - multiply: 0.001

]]> <![CDATA[A8S/A8Sv2 home assistant yaml for KCS mqtt digital input and output]]> https://www.kincony.com/forum/showthread.php?tid=8130 Tue, 03 Jun 2025 13:49:17 +0800 admin]]> https://www.kincony.com/forum/showthread.php?tid=8130
.png


Code:
  switch:

   - name: 'a8s-kcs-output-1'

     unique_id: a8s-kcs-output-1

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output1":{"value":true}}'

     payload_off: '{"output1":{"value":false}}'

     value_template: '{{ value_json.output1.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-2'

     unique_id: a8s-kcs-output-2

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output2":{"value":true}}'

     payload_off: '{"output2":{"value":false}}'

     value_template: '{{ value_json.output2.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-3'

     unique_id: a8s-kcs-output-3

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output3":{"value":true}}'

     payload_off: '{"output3":{"value":false}}'

     value_template: '{{ value_json.output3.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-4'

     unique_id: a8s-kcs-output-4

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output4":{"value":true}}'

     payload_off: '{"output4":{"value":false}}'

     value_template: '{{ value_json.output4.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-5'

     unique_id: a8s-kcs-output-5

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output5":{"value":true}}'

     payload_off: '{"output5":{"value":false}}'

     value_template: '{{ value_json.output5.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-6'

     unique_id: a8s-kcs-output-6

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output6":{"value":true}}'

     payload_off: '{"output6":{"value":false}}'

     value_template: '{{ value_json.output6.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-7'

     unique_id: a8s-kcs-output-7

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output7":{"value":true}}'

     payload_off: '{"output7":{"value":false}}'

     value_template: '{{ value_json.output7.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-8'

     unique_id: a8s-kcs-output-8

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output8":{"value":true}}'

     payload_off: '{"output8":{"value":false}}'

     value_template: '{{ value_json.output8.value }}'

     state_on: true

     state_off: false

  binary_sensor:

   - name: 'a8s-kcs-input-1'

     unique_id: a8s-kcs-input-1

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input1.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-2'

     unique_id: a8s-kcs-input-2

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input2.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-3'

     unique_id: a8s-kcs-input-3

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input3.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-4'

     unique_id: a8s-kcs-input-4

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input4.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-5'

     unique_id: a8s-kcs-input-5

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input5.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-6'

     unique_id: a8s-kcs-input-6

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input6.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-7'

     unique_id: a8s-kcs-input-7

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input7.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-8'

     unique_id: a8s-kcs-input-8

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input8.value }}'

     payload_on: true

     payload_off: false

yaml:

A8S_KCS_HA_mqtt-input-output.txt (Size: 4.57 KB / Downloads: 255) ]]>
.png


Code:
  switch:

   - name: 'a8s-kcs-output-1'

     unique_id: a8s-kcs-output-1

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output1":{"value":true}}'

     payload_off: '{"output1":{"value":false}}'

     value_template: '{{ value_json.output1.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-2'

     unique_id: a8s-kcs-output-2

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output2":{"value":true}}'

     payload_off: '{"output2":{"value":false}}'

     value_template: '{{ value_json.output2.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-3'

     unique_id: a8s-kcs-output-3

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output3":{"value":true}}'

     payload_off: '{"output3":{"value":false}}'

     value_template: '{{ value_json.output3.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-4'

     unique_id: a8s-kcs-output-4

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output4":{"value":true}}'

     payload_off: '{"output4":{"value":false}}'

     value_template: '{{ value_json.output4.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-5'

     unique_id: a8s-kcs-output-5

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output5":{"value":true}}'

     payload_off: '{"output5":{"value":false}}'

     value_template: '{{ value_json.output5.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-6'

     unique_id: a8s-kcs-output-6

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output6":{"value":true}}'

     payload_off: '{"output6":{"value":false}}'

     value_template: '{{ value_json.output6.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-7'

     unique_id: a8s-kcs-output-7

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output7":{"value":true}}'

     payload_off: '{"output7":{"value":false}}'

     value_template: '{{ value_json.output7.value }}'

     state_on: true

     state_off: false

   - name: 'a8s-kcs-output-8'

     unique_id: a8s-kcs-output-8

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     command_topic: 'KC868_A8S/AC1518A88BE0/SET'

     payload_on:  '{"output8":{"value":true}}'

     payload_off: '{"output8":{"value":false}}'

     value_template: '{{ value_json.output8.value }}'

     state_on: true

     state_off: false

  binary_sensor:

   - name: 'a8s-kcs-input-1'

     unique_id: a8s-kcs-input-1

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input1.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-2'

     unique_id: a8s-kcs-input-2

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input2.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-3'

     unique_id: a8s-kcs-input-3

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input3.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-4'

     unique_id: a8s-kcs-input-4

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input4.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-5'

     unique_id: a8s-kcs-input-5

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input5.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-6'

     unique_id: a8s-kcs-input-6

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input6.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-7'

     unique_id: a8s-kcs-input-7

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input7.value }}'

     payload_on: true

     payload_off: false

   - name: 'a8s-kcs-input-8'

     unique_id: a8s-kcs-input-8

     state_topic: 'KC868_A8S/AC1518A88BE0/STATE'

     value_template: '{{ value_json.input8.value }}'

     payload_on: true

     payload_off: false

yaml:

A8S_KCS_HA_mqtt-input-output.txt (Size: 4.57 KB / Downloads: 255) ]]> <![CDATA[A8s v2 inputs not working when using PoE]]> https://www.kincony.com/forum/showthread.php?tid=7691 Sat, 22 Feb 2025 18:43:50 +0800 halt77]]> https://www.kincony.com/forum/showthread.php?tid=7691
It seems to be a problem with the A8S v2 board.

I've tested the A8S v2 with the PoE board and none of the inputs work (using either the KCS or esphome firmware).

If you power the board using the 12v input, everything works as expected (the inputs work), but as soon as you power the board with the Kinkony PoE board, all inputs go down (and they stop showing the expected status).

You can easily diagnose this providing power to the board only with PoE, as you will see the inputs do not work (even using KCS firmware).

I've about 20 A8S v2 boards. How can I correct this so inputs work when using PoE power?

Regards.]]>
It seems to be a problem with the A8S v2 board.

I've tested the A8S v2 with the PoE board and none of the inputs work (using either the KCS or esphome firmware).

If you power the board using the 12v input, everything works as expected (the inputs work), but as soon as you power the board with the Kinkony PoE board, all inputs go down (and they stop showing the expected status).

You can easily diagnose this providing power to the board only with PoE, as you will see the inputs do not work (even using KCS firmware).

I've about 20 A8S v2 boards. How can I correct this so inputs work when using PoE power?

Regards.]]> <![CDATA[A8S v2. Incorrect wiring of toggle switches module]]> https://www.kincony.com/forum/showthread.php?tid=7096 Wed, 20 Nov 2024 22:54:45 +0800 Denis]]> https://www.kincony.com/forum/showthread.php?tid=7096 Is this a known bug and will it be fixed?]]> Is this a known bug and will it be fixed?]]> <![CDATA[Sms relays control]]> https://www.kincony.com/forum/showthread.php?tid=7020 Thu, 07 Nov 2024 06:50:40 +0800 Michele]]> https://www.kincony.com/forum/showthread.php?tid=7020
.jpg


.jpg


.jpg


.jpg


.jpg


.jpg


.jpg


.jpg


.jpg

.jpg


.jpg


.jpg


.jpg


.jpg


.jpg


.jpg


.jpg


.jpg

-1106306608-514111842.jpg (Size: 358.77 KB / Downloads: 442) ]]> <![CDATA[kc868-A8S v2 not working with SIM7600E]]> https://www.kincony.com/forum/showthread.php?tid=6499 Wed, 28 Aug 2024 00:17:02 +0800 t0urista]]> https://www.kincony.com/forum/showthread.php?tid=6499
SIM7600E module plugged in kc868-A8S v2.0 , running KCS 2.2.2.

cannot send message,
cannot receive message (crash/reboot when message is received)
cannot receive call
can only place test phone call

also :

the SIM7600E module was successfuly tested with an usb-to-Serial converter and putty. --> the SIM7600 module works fine, can send/receive messages
I also tried Tasmota on the kc868, impossible to establish connection to the SIM7600 in serial bridge --> Issue with RX/TX GPIO13/GPIO15 ?

Board Model
KC868_A8S
Software Version
v2.2.2
Build Date
Dec 6 2023 22:18:36
Serial Number
08F9E08BCAD4
Board Time
2024-8-27 11:58:45
Time Zone
UTC+2
Lan IP
Lan Netmask
Lan Gateway
Lan MAC
08:F9:E0:8B:CA Big Grin

7
Wifi STA IP
192.168.0.21
Wifi MAC
08:F9:E0:8B:CA Big Grin

4

Tests :

Outgoing
when issuing test; I got this :

MAKE A CALL ; OK, my Mobile phone is properly called.

log :

Code:
I (121694) SIM7600: call +32xxxxxxxxx

SEND A MESSAGE, ERROR (no message received on mobile phone)

Log :

Code:
I (689066) SIM7600: [1/1] 0011000B912374940999F500007A2654747A0E4ACF416110BD3CA783DAE5F93C7C2E83CCF2771BB41CE26CB84810377501

INCOMING

CALL : nothoing happens, no log]]>
SIM7600E module plugged in kc868-A8S v2.0 , running KCS 2.2.2.

cannot send message,
cannot receive message (crash/reboot when message is received)
cannot receive call
can only place test phone call

also :

the SIM7600E module was successfuly tested with an usb-to-Serial converter and putty. --> the SIM7600 module works fine, can send/receive messages
I also tried Tasmota on the kc868, impossible to establish connection to the SIM7600 in serial bridge --> Issue with RX/TX GPIO13/GPIO15 ?

7
Wifi STA IP
192.168.0.21
Wifi MAC
08:F9:E0:8B:CA Big Grin

4

Tests :

Outgoing
when issuing test; I got this :

MAKE A CALL ; OK, my Mobile phone is properly called.

log :

Code:
I (121694) SIM7600: call +32xxxxxxxxx

SEND A MESSAGE, ERROR (no message received on mobile phone)

Log :

Code:
I (689066) SIM7600: [1/1] 0011000B912374940999F500007A2654747A0E4ACF416110BD3CA783DAE5F93C7C2E83CCF2771BB41CE26CB84810377501

INCOMING

CALL : nothoing happens, no log]]> <![CDATA[433MHz remote_receiver]]> https://www.kincony.com/forum/showthread.php?tid=5934 Thu, 20 Jun 2024 05:54:14 +0800 deltabridge]]> https://www.kincony.com/forum/showthread.php?tid=5934
I am using ESPHome 2024.5.5 on the KC868-A8S device. After uploading the firmware that includes the remote_receiver component on GPIO16 for 433 MHz receiving module, the device becomes unresponsive and the web dashboard returns ERR_CONNECTION_REFUSED. Interestingly, when the remote_receiver component is not included, everything functions as expected.

Any ideas about that? Thank you!

Code:
esphome:

  name: kc868-a8s

  platform: ESP32

  board: esp32dev

# Enable logging

logger:

web_server:

  port: 80

ota:

# Enable Home Assistant API

api:

#remote_receiver:

#  pin: GPIO16

#  dump: all

#  tolerance: 50%

#  filter: 250us

#  idle: 2ms

#  buffer_size: 2kb

# Example configuration entry for ESP32

i2c:

  sda: 4

  scl: 5

  scan: true

  id: bus_a

# Example configuration entry

ethernet:

  type: LAN8720

  mdc_pin: GPIO23

  mdio_pin: GPIO18

  clk_mode: GPIO17_OUT

  phy_addr: 0

# Example configuration entry

pcf8574:

  - id: 'pcf8574_hub_out_1' # for output channel 1-8

    address: 0x24

  - id: 'pcf8574_hub_in_1' # for input channel 9-16

    address: 0x22

# Individual outputs

switch:

  - platform: gpio

    name: "relay1"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 0

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay2"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 1

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay3"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 2

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay4"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 3

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay5"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 4

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay6"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 5

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay7"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 6

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay8"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 7

      mode: OUTPUT

      inverted: true

binary_sensor:

  - platform: gpio

    name: "input1"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 0

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input2"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 1

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input3"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 2

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input4"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 3

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input5"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 4

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input6"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 5

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input7"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 6

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input8"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 7

      mode: INPUT

      inverted: true

output:

  - platform: ledc

    pin: GPIO2

    id: buzzer_output

rtttl:

  output: buzzer_output

light:

  - platform: fastled_clockless

    chipset: WS2812B

    pin: GPIO12

    num_leds: 1

    rgb_order: GRB

    name: "rgb_led"

    id: rgb_led

    default_transition_length: 0s

    restore_mode: ALWAYS_OFF

]]>
I am using ESPHome 2024.5.5 on the KC868-A8S device. After uploading the firmware that includes the remote_receiver component on GPIO16 for 433 MHz receiving module, the device becomes unresponsive and the web dashboard returns ERR_CONNECTION_REFUSED. Interestingly, when the remote_receiver component is not included, everything functions as expected.

Any ideas about that? Thank you!

Code:
esphome:

  name: kc868-a8s

  platform: ESP32

  board: esp32dev

# Enable logging

logger:

web_server:

  port: 80

ota:

# Enable Home Assistant API

api:

#remote_receiver:

#  pin: GPIO16

#  dump: all

#  tolerance: 50%

#  filter: 250us

#  idle: 2ms

#  buffer_size: 2kb

# Example configuration entry for ESP32

i2c:

  sda: 4

  scl: 5

  scan: true

  id: bus_a

# Example configuration entry

ethernet:

  type: LAN8720

  mdc_pin: GPIO23

  mdio_pin: GPIO18

  clk_mode: GPIO17_OUT

  phy_addr: 0

# Example configuration entry

pcf8574:

  - id: 'pcf8574_hub_out_1' # for output channel 1-8

    address: 0x24

  - id: 'pcf8574_hub_in_1' # for input channel 9-16

    address: 0x22

# Individual outputs

switch:

  - platform: gpio

    name: "relay1"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 0

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay2"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 1

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay3"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 2

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay4"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 3

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay5"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 4

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay6"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 5

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay7"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 6

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "relay8"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 7

      mode: OUTPUT

      inverted: true

binary_sensor:

  - platform: gpio

    name: "input1"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 0

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input2"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 1

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input3"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 2

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input4"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 3

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input5"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 4

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input6"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 5

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input7"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 6

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "input8"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 7

      mode: INPUT

      inverted: true

output:

  - platform: ledc

    pin: GPIO2

    id: buzzer_output

rtttl:

  output: buzzer_output

light:

  - platform: fastled_clockless

    chipset: WS2812B

    pin: GPIO12

    num_leds: 1

    rgb_order: GRB

    name: "rgb_led"

    id: rgb_led

    default_transition_length: 0s

    restore_mode: ALWAYS_OFF

]]> <![CDATA[Authentication failure]]> https://www.kincony.com/forum/showthread.php?tid=5920 Mon, 17 Jun 2024 20:16:44 +0800 Auxinne Paul]]> https://www.kincony.com/forum/showthread.php?tid=5920 Hello Sir, thanks for good work. I use your boards KC868-A8S, I have like 5 of them but I have problems with "authentication expired"' that happens on home assistant randomly after a while. Could you please help me prevent it?

.jpg

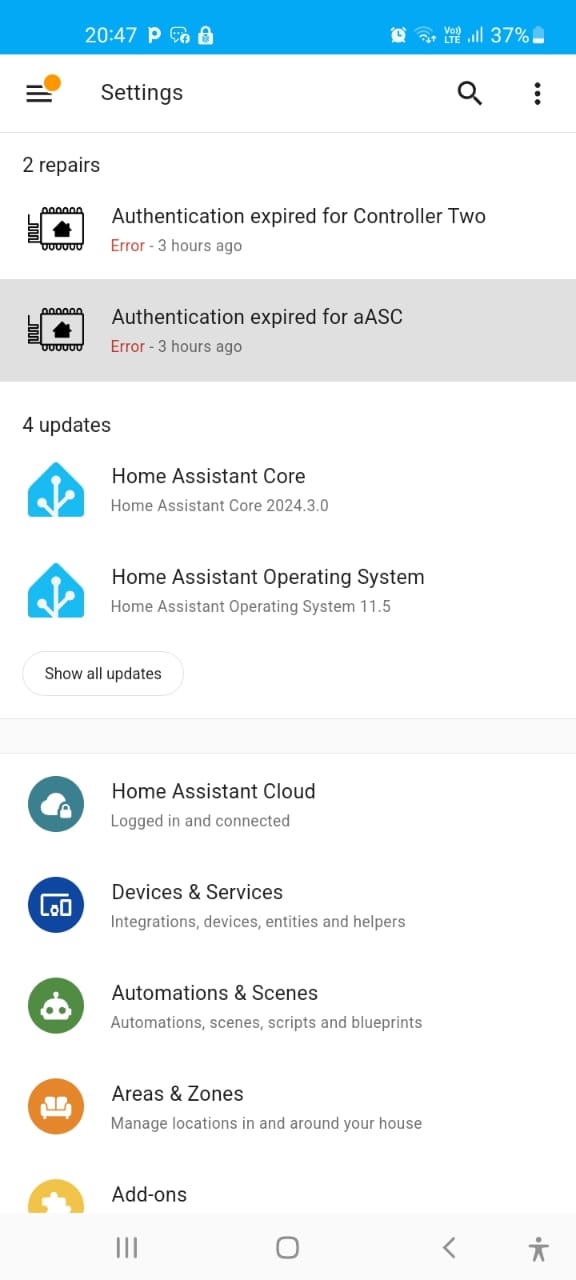

HASS controller expire auth.jpg (Size: 73.02 KB / Downloads: 472) ]]> Hello Sir, thanks for good work. I use your boards KC868-A8S, I have like 5 of them but I have problems with "authentication expired"' that happens on home assistant randomly after a while. Could you please help me prevent it?

.jpg

HASS controller expire auth.jpg (Size: 73.02 KB / Downloads: 472) ]]> <![CDATA[A8s v2 inputs]]> https://www.kincony.com/forum/showthread.php?tid=5914 Mon, 17 Jun 2024 02:51:22 +0800 milan.net]]> https://www.kincony.com/forum/showthread.php?tid=5914
If i short the gnd with any of the input pins nothing happens.
All the relays work fine. Im using I2C address 0x22 for input pcf8574.

Im using the board with esphome.

Code snipet for input

binary_sensor:

- platform: gpio
name: input1
ID:”input1”
pin:
pcf8574: pcf8754_hub_in
number: 0
mode: INPUT

Please advise

Thank you]]>
If i short the gnd with any of the input pins nothing happens.
All the relays work fine. Im using I2C address 0x22 for input pcf8574.

Im using the board with esphome.

Code snipet for input

binary_sensor:

- platform: gpio
name: input1
ID:”input1”
pin:
pcf8574: pcf8754_hub_in
number: 0
mode: INPUT

Please advise

Thank you]]> <![CDATA[A8S and Modbus sensor]]> https://www.kincony.com/forum/showthread.php?tid=5864 Mon, 10 Jun 2024 18:34:57 +0800 milan.net]]> https://www.kincony.com/forum/showthread.php?tid=5864
I would like to ask for help setting up A8S with RS485 Temperature and Humidity Sensor Modbus RTU Use By SHT30 an ESPHome

https://shop.kincony.com/products/rs485-...e-by-sht30

Thank you]]>
I would like to ask for help setting up A8S with RS485 Temperature and Humidity Sensor Modbus RTU Use By SHT30 an ESPHome

https://shop.kincony.com/products/rs485-...e-by-sht30

Thank you]]> <![CDATA[AM2301]]> https://www.kincony.com/forum/showthread.php?tid=5750 Tue, 14 May 2024 23:32:31 +0800 milan.net]]> https://www.kincony.com/forum/showthread.php?tid=5750
I have 2 questions.

I need to use 2x AM2301 sensors, is it possible to use them with this board?

Which poe expansion board do I need to add to this board to use poe directly?]]>
I have 2 questions.

I need to use 2x AM2301 sensors, is it possible to use them with this board?

Which poe expansion board do I need to add to this board to use poe directly?]]> <![CDATA[Home Assistant authentication for kincony boards]]> https://www.kincony.com/forum/showthread.php?tid=5184 Fri, 15 Mar 2024 05:21:41 +0800 Auxinne Paul]]> https://www.kincony.com/forum/showthread.php?tid=5184 I have been using three KC868-A8S boards on home assistant for some months now and I have realized that after sometimes the boards don't post data anymore and upon checking I find out that they complain about authentication 'authentication failure' (shared the photo). Has someone ever experienced this and how can I do away with it completely?

.jpg

esphome error.jpg (Size: 48.36 KB / Downloads: 672) ]]> I have been using three KC868-A8S boards on home assistant for some months now and I have realized that after sometimes the boards don't post data anymore and upon checking I find out that they complain about authentication 'authentication failure' (shared the photo). Has someone ever experienced this and how can I do away with it completely?

.jpg

esphome error.jpg (Size: 48.36 KB / Downloads: 672) ]]> <![CDATA[Ajuda]]> https://www.kincony.com/forum/showthread.php?tid=4365 Sun, 18 Feb 2024 00:12:47 +0800 claudio]]> https://www.kincony.com/forum/showthread.php?tid=4365 <![CDATA[A8S V2 circuit diagram]]> https://www.kincony.com/forum/showthread.php?tid=4213 Thu, 01 Feb 2024 10:16:56 +0800 KinCony Support]]> https://www.kincony.com/forum/showthread.php?tid=4213
.jpg

.jpg

A8SV2.jpg (Size: 2.44 MB / Downloads: 804) ]]> <![CDATA[Scan Device List Not Working]]> https://www.kincony.com/forum/showthread.php?tid=4176 Thu, 18 Jan 2024 06:17:05 +0800 BeAlarmed]]> https://www.kincony.com/forum/showthread.php?tid=4176
.jpg

Scan Device List - not listing new.JPG (Size: 54.8 KB / Downloads: 915) ]]>
.jpg

Scan Device List - not listing new.JPG (Size: 54.8 KB / Downloads: 915) ]]>
