<![CDATA[Smart Home Automation Forum - KC868-AIO]]> https://www.kincony.com/forum/ Sat, 04 Apr 2026 00:53:58 +0000 MyBB <![CDATA[OUTPUT DO1]]> https://www.kincony.com/forum/showthread.php?tid=8848 Sat, 27 Dec 2025 20:09:55 +0800 Lupi84]]> https://www.kincony.com/forum/showthread.php?tid=8848 <![CDATA[Modifying analog Inputs]]> https://www.kincony.com/forum/showthread.php?tid=8271 Thu, 26 Jun 2025 23:10:16 +0800 danmolna]]> https://www.kincony.com/forum/showthread.php?tid=8271 I need 12pcs  0-5V analog inputs for a project and 16 DO.
ESPHome. Home Assistant.

As i see thist product is the most suitable from your catalogue.
But it has 8 0-5V and 8 4-20mA AI-s.

Is it possible to modify the 4-20mA inputs to 0-5V inputs by changing the resistances there to simmilar values like at the 0-5V inputs?


Thanks!!

Daniel]]> I need 12pcs  0-5V analog inputs for a project and 16 DO.
ESPHome. Home Assistant.

As i see thist product is the most suitable from your catalogue.
But it has 8 0-5V and 8 4-20mA AI-s.

Is it possible to modify the 4-20mA inputs to 0-5V inputs by changing the resistances there to simmilar values like at the 0-5V inputs?


Thanks!!

Daniel]]> <![CDATA[AIO pins 0-5v reading 3.150v]]> https://www.kincony.com/forum/showthread.php?tid=8010 Thu, 24 Apr 2025 08:09:14 +0800 Honeybadger]]> https://www.kincony.com/forum/showthread.php?tid=8010
I used the pin 5v from the board to test it too, only reads 3.150v]]>
I used the pin 5v from the board to test it too, only reads 3.150v]]> <![CDATA[Soil moisture sensors]]> https://www.kincony.com/forum/showthread.php?tid=7951 Sat, 19 Apr 2025 02:03:21 +0800 xarouli5]]> https://www.kincony.com/forum/showthread.php?tid=7951
Soil Moisture Sensor
https://a.aliexpress.com/_ExqUPDK

Powered 3.3v, gnd and tried AO on AI (9-16) & DO on DI (1-8). No change seen on inputs of AIO when I dipped sensor in water and out.

Any ideas?]]>
Soil Moisture Sensor
https://a.aliexpress.com/_ExqUPDK

Powered 3.3v, gnd and tried AO on AI (9-16) & DO on DI (1-8). No change seen on inputs of AIO when I dipped sensor in water and out.

Any ideas?]]> <![CDATA[access control panel input number control OUTPUT by wiegand yaml for ESPhome]]> https://www.kincony.com/forum/showthread.php?tid=7663 Fri, 21 Feb 2025 13:47:59 +0800 admin]]> https://www.kincony.com/forum/showthread.php?tid=7663
.jpg   AIO-wiegand-1.jpg (Size: 395.36 KB / Downloads: 440)

.jpg   AIO-wiegand-2.jpg (Size: 263.77 KB / Downloads: 440)

.png   wiegand.png (Size: 80.94 KB / Downloads: 328)
Code:
esphome:
  name: aio

esp32:
  board: esp32dev
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:


# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

i2c:
   - id: bus_a
     sda: 4
     scl: 16
     scan: true

# Example configuration entry
pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-16
    i2c_id: bus_a
    address: 0x24
    pcf8575: true

  - id: 'pcf8574_hub_out_2'  # for output channel 17-32
    i2c_id: bus_a
    address: 0x25
    pcf8575: true

  - id: 'pcf8574_hub_out_in_3'  # for output channel 33-38  + (input 49-58)
    i2c_id: bus_a
    address: 0x26
    pcf8575: true


  - id: 'pcf8574_hub_in_1'  # for input channel 1-16
    i2c_id: bus_a
    address: 0x21
    pcf8575: true

  - id: 'pcf8574_hub_in_2'  # for input channel 17-32
    i2c_id: bus_a
    address: 0x22
    pcf8575: true

  - id: 'pcf8574_hub_in_3'  # for input channel 33-48
    i2c_id: bus_a
    address: 0x23
    pcf8575: true



# Individual outputs
switch:
  - platform: gpio
    name: "aio--light1"
    id: aio_light1
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light2"
    id: aio_light2
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light3"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light4"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light5"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light6"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light7"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light8"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "aio--light9"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 8
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light10"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 9
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light11"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light12"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light13"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light14"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light15"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light16"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 15
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "aio--light17"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light18"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light19"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light20"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light21"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light22"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light23"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light24"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light25"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 8
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light26"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 9
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light27"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light28"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light29"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light30"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light31"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light32"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 15
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--led-D7"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 12
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "aio--led-D8"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 13
      mode: OUTPUT
      inverted: true


cd74hc4067:
  - id: cd74hc4067_1
    pin_s0:
      pcf8574: pcf8574_hub_out_in_3
      number: 8
      mode: OUTPUT
      inverted: true
    pin_s1:
      pcf8574: pcf8574_hub_out_in_3
      number: 9
      mode: OUTPUT
      inverted: true
    pin_s2:
      pcf8574: pcf8574_hub_out_in_3
      number: 10
      mode: OUTPUT
      inverted: true
    pin_s3:
      pcf8574: pcf8574_hub_out_in_3
      number: 11
      mode: OUTPUT
      inverted: true




# Example configuration entry
sensor:

  - platform: adc
    pin: 36
    id: adc36
    update_interval: never
    attenuation: 11db

  - platform: adc
    name: "aio--AI-17"
    pin: 39
    id: adc39
    update_interval: 50s
    attenuation: 11db

  - platform: adc
    pin: 34
    name: "aio--AI-18"
    id: adc34
    update_interval: 50s
    attenuation: 11db

  - platform: adc
    pin: 35
    name: "aio--AI-19"
    id: adc35
    update_interval: 50s
    attenuation: 11db

  - platform: cd74hc4067
    name: "aio--AI-16"
    id: ai1
    number: 0
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-15"
    id: ai2
    number: 1
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-14"
    id: ai3
    number: 2
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-13"
    id: ai4
    number: 3
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-12"
    id: ai5
    number: 4
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-11"
    id: ai6
    number: 5
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-10"
    id: ai7
    number: 6
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-9"
    id: ai8
    number: 7
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-8"
    id: ai9
    number: 8
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-7"
    id: ai10
    number: 9
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-6"
    id: ai11
    number: 10
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-5"
    id: ai12
    number: 11
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-4"
    id: ai13
    number: 12
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-3"
    id: ai14
    number: 13
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-2"
    id: ai15
    number: 14
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-1"
    id: ai16
    number: 15
    sensor: adc36
    update_interval: 50s



# Individual inputs
binary_sensor:
  - platform: gpio
    name: "aio--input1"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input2"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input3"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input4"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input5"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input6"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input7"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input8"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "aio--input9"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input10"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input11"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input12"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input13"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input14"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input15"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input16"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 15
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "aio--input17"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input18"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input19"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input20"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input21"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input22"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input23"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input24"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input25"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input26"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input27"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input28"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input29"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input30"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input31"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input32"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 15
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "aio--input33"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input34"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input35"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input36"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input37"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input38"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input39"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input40"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input41"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input42"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input43"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input44"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input45"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input46"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input47"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input48"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 15
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "aio--input49"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input50"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input51"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input52"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input53"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input54"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input55"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input56"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input57-s3"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input58-s4"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 15
      mode: INPUT
      inverted: true

pca9685:
    id: 'pca9685_hub'
    frequency: 500

output:
  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM0"
    channel: 0

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM1"
    channel: 1

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM2"
    channel: 2

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM3"
    channel: 3

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM4"
    channel: 4

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM5"
    channel: 5

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM6"
    channel: 6

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM7"
    channel: 7

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM8"
    channel: 8

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM9"
    channel: 9

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM10"
    channel: 10

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM11"
    channel: 11

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM12"
    channel: 12

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM13"
    channel: 13

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM14"
    channel: 14

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM15"
    channel: 15


light:
  - platform: monochromatic
    name: "aio-Color-LED-1"
    output: PWM0
  - platform: monochromatic
    name: "aio-Color-LED-2"
    output: PWM1
  - platform: monochromatic
    name: "aio-Color-LED-3"
    output: PWM2
  - platform: monochromatic
    name: "aio-Color-LED-4"
    output: PWM3
  - platform: monochromatic
    name: "aio-Color-LED-5"
    output: PWM4
  - platform: monochromatic
    name: "aio-Color-LED-6"
    output: PWM5
  - platform: monochromatic
    name: "aio-Color-LED-7"
    output: PWM6
  - platform: monochromatic
    name: "aio-Color-LED-8"
    output: PWM7
  - platform: monochromatic
    name: "aio-Color-LED-9"
    output: PWM8
  - platform: monochromatic
    name: "aio-Color-LED-10"
    output: PWM9
  - platform: monochromatic
    name: "aio-Color-LED-11"
    output: PWM10
  - platform: monochromatic
    name: "aio-Color-LED-12"
    output: PWM11
  - platform: monochromatic
    name: "aio-Color-LED-13"
    output: PWM12
  - platform: monochromatic
    name: "aio-Color-LED-14"
    output: PWM13
  - platform: monochromatic
    name: "aio-Color-LED-15"
    output: PWM14
  - platform: monochromatic
    name: "aio-Color-LED-16"
    output: PWM15

  - platform: rgbw
    name: "aio-rgbw"
    red: PWM1
    green: PWM2
    blue: PWM3
    white: PWM4

# Example configuration entry
wiegand:
  - id: mykeypad
    d0: GPIO14
    d1: GPIO5
    on_key:
      - lambda: ESP_LOGI("KEY", "received key %d", x);
    on_tag:
      - lambda: ESP_LOGI("TAG", "received tag %s", x.c_str());
    on_raw:
      - lambda: ESP_LOGI("RAW", "received raw %d bits, value %llx", bits, value);

# Example configuration entry
key_collector:
  - id: pincode_reader
    source_id: mykeypad
    min_length: 3
    max_length: 3
    end_keys: "#"
    end_key_required: true
    back_keys: "*"
    clear_keys: "C"
#    allowed_keys: "0123456789"
    timeout: 5s
    on_progress:
      - logger.log:
          format: "input progress: '%s', started by '%c'"
          args: [ 'x.c_str()', "(start == 0 ? '~' : start)" ]
    on_result:
      - logger.log:
          format: "input result: '%s', started by '%c', ended by '%c'"
          args: [ 'x.c_str()', "(start == 0 ? '~' : start)", "(end == 0 ? '~' : end)" ]

      - if:
          condition:
            lambda: |-
              return x=="101";
          then:
            switch.toggle: aio_light1

      - if:
          condition:
            lambda: |-
              return x=="102";
          then:
            switch.toggle: aio_light2

    on_timeout:
      - logger.log:
          format: "input timeout: '%s', started by '%c'"
          args: [ 'x.c_str()', "(start == 0 ? '~' : start)" ]


ESPHome yaml file download:

.txt   KC868-AIO-ESPHome-wiegand.txt (Size: 21.93 KB / Downloads: 292) ]]>
.jpg   AIO-wiegand-1.jpg (Size: 395.36 KB / Downloads: 440)

.jpg   AIO-wiegand-2.jpg (Size: 263.77 KB / Downloads: 440)

.png   wiegand.png (Size: 80.94 KB / Downloads: 328)
Code:
esphome:
  name: aio

esp32:
  board: esp32dev
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:


# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

i2c:
   - id: bus_a
     sda: 4
     scl: 16
     scan: true

# Example configuration entry
pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-16
    i2c_id: bus_a
    address: 0x24
    pcf8575: true

  - id: 'pcf8574_hub_out_2'  # for output channel 17-32
    i2c_id: bus_a
    address: 0x25
    pcf8575: true

  - id: 'pcf8574_hub_out_in_3'  # for output channel 33-38  + (input 49-58)
    i2c_id: bus_a
    address: 0x26
    pcf8575: true


  - id: 'pcf8574_hub_in_1'  # for input channel 1-16
    i2c_id: bus_a
    address: 0x21
    pcf8575: true

  - id: 'pcf8574_hub_in_2'  # for input channel 17-32
    i2c_id: bus_a
    address: 0x22
    pcf8575: true

  - id: 'pcf8574_hub_in_3'  # for input channel 33-48
    i2c_id: bus_a
    address: 0x23
    pcf8575: true



# Individual outputs
switch:
  - platform: gpio
    name: "aio--light1"
    id: aio_light1
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light2"
    id: aio_light2
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light3"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light4"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light5"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light6"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light7"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light8"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "aio--light9"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 8
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light10"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 9
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light11"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light12"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light13"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light14"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light15"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light16"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 15
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "aio--light17"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light18"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light19"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light20"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light21"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light22"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light23"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light24"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light25"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 8
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light26"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 9
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light27"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light28"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light29"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light30"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light31"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--light32"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 15
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "aio--led-D7"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 12
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "aio--led-D8"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 13
      mode: OUTPUT
      inverted: true


cd74hc4067:
  - id: cd74hc4067_1
    pin_s0:
      pcf8574: pcf8574_hub_out_in_3
      number: 8
      mode: OUTPUT
      inverted: true
    pin_s1:
      pcf8574: pcf8574_hub_out_in_3
      number: 9
      mode: OUTPUT
      inverted: true
    pin_s2:
      pcf8574: pcf8574_hub_out_in_3
      number: 10
      mode: OUTPUT
      inverted: true
    pin_s3:
      pcf8574: pcf8574_hub_out_in_3
      number: 11
      mode: OUTPUT
      inverted: true




# Example configuration entry
sensor:

  - platform: adc
    pin: 36
    id: adc36
    update_interval: never
    attenuation: 11db

  - platform: adc
    name: "aio--AI-17"
    pin: 39
    id: adc39
    update_interval: 50s
    attenuation: 11db

  - platform: adc
    pin: 34
    name: "aio--AI-18"
    id: adc34
    update_interval: 50s
    attenuation: 11db

  - platform: adc
    pin: 35
    name: "aio--AI-19"
    id: adc35
    update_interval: 50s
    attenuation: 11db

  - platform: cd74hc4067
    name: "aio--AI-16"
    id: ai1
    number: 0
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-15"
    id: ai2
    number: 1
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-14"
    id: ai3
    number: 2
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-13"
    id: ai4
    number: 3
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-12"
    id: ai5
    number: 4
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-11"
    id: ai6
    number: 5
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-10"
    id: ai7
    number: 6
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-9"
    id: ai8
    number: 7
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-8"
    id: ai9
    number: 8
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-7"
    id: ai10
    number: 9
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-6"
    id: ai11
    number: 10
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-5"
    id: ai12
    number: 11
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-4"
    id: ai13
    number: 12
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-3"
    id: ai14
    number: 13
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-2"
    id: ai15
    number: 14
    sensor: adc36
    update_interval: 50s

  - platform: cd74hc4067
    name: "aio--AI-1"
    id: ai16
    number: 15
    sensor: adc36
    update_interval: 50s



# Individual inputs
binary_sensor:
  - platform: gpio
    name: "aio--input1"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input2"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input3"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input4"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input5"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input6"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input7"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input8"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "aio--input9"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input10"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input11"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input12"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input13"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input14"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input15"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input16"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 15
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "aio--input17"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input18"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input19"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input20"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input21"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input22"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input23"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input24"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input25"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input26"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input27"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input28"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input29"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input30"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input31"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input32"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 15
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "aio--input33"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input34"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input35"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input36"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input37"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input38"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input39"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input40"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input41"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input42"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input43"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input44"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input45"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input46"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input47"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input48"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 15
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "aio--input49"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input50"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input51"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input52"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input53"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input54"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input55"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input56"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input57-s3"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "aio--input58-s4"
    pin:
      pcf8574: pcf8574_hub_out_in_3
      number: 15
      mode: INPUT
      inverted: true

pca9685:
    id: 'pca9685_hub'
    frequency: 500

output:
  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM0"
    channel: 0

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM1"
    channel: 1

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM2"
    channel: 2

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM3"
    channel: 3

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM4"
    channel: 4

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM5"
    channel: 5

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM6"
    channel: 6

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM7"
    channel: 7

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM8"
    channel: 8

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM9"
    channel: 9

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM10"
    channel: 10

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM11"
    channel: 11

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM12"
    channel: 12

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM13"
    channel: 13

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM14"
    channel: 14

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM15"
    channel: 15


light:
  - platform: monochromatic
    name: "aio-Color-LED-1"
    output: PWM0
  - platform: monochromatic
    name: "aio-Color-LED-2"
    output: PWM1
  - platform: monochromatic
    name: "aio-Color-LED-3"
    output: PWM2
  - platform: monochromatic
    name: "aio-Color-LED-4"
    output: PWM3
  - platform: monochromatic
    name: "aio-Color-LED-5"
    output: PWM4
  - platform: monochromatic
    name: "aio-Color-LED-6"
    output: PWM5
  - platform: monochromatic
    name: "aio-Color-LED-7"
    output: PWM6
  - platform: monochromatic
    name: "aio-Color-LED-8"
    output: PWM7
  - platform: monochromatic
    name: "aio-Color-LED-9"
    output: PWM8
  - platform: monochromatic
    name: "aio-Color-LED-10"
    output: PWM9
  - platform: monochromatic
    name: "aio-Color-LED-11"
    output: PWM10
  - platform: monochromatic
    name: "aio-Color-LED-12"
    output: PWM11
  - platform: monochromatic
    name: "aio-Color-LED-13"
    output: PWM12
  - platform: monochromatic
    name: "aio-Color-LED-14"
    output: PWM13
  - platform: monochromatic
    name: "aio-Color-LED-15"
    output: PWM14
  - platform: monochromatic
    name: "aio-Color-LED-16"
    output: PWM15

  - platform: rgbw
    name: "aio-rgbw"
    red: PWM1
    green: PWM2
    blue: PWM3
    white: PWM4

# Example configuration entry
wiegand:
  - id: mykeypad
    d0: GPIO14
    d1: GPIO5
    on_key:
      - lambda: ESP_LOGI("KEY", "received key %d", x);
    on_tag:
      - lambda: ESP_LOGI("TAG", "received tag %s", x.c_str());
    on_raw:
      - lambda: ESP_LOGI("RAW", "received raw %d bits, value %llx", bits, value);

# Example configuration entry
key_collector:
  - id: pincode_reader
    source_id: mykeypad
    min_length: 3
    max_length: 3
    end_keys: "#"
    end_key_required: true
    back_keys: "*"
    clear_keys: "C"
#    allowed_keys: "0123456789"
    timeout: 5s
    on_progress:
      - logger.log:
          format: "input progress: '%s', started by '%c'"
          args: [ 'x.c_str()', "(start == 0 ? '~' : start)" ]
    on_result:
      - logger.log:
          format: "input result: '%s', started by '%c', ended by '%c'"
          args: [ 'x.c_str()', "(start == 0 ? '~' : start)", "(end == 0 ? '~' : end)" ]

      - if:
          condition:
            lambda: |-
              return x=="101";
          then:
            switch.toggle: aio_light1

      - if:
          condition:
            lambda: |-
              return x=="102";
          then:
            switch.toggle: aio_light2

    on_timeout:
      - logger.log:
          format: "input timeout: '%s', started by '%c'"
          args: [ 'x.c_str()', "(start == 0 ? '~' : start)" ]


ESPHome yaml file download:

.txt   KC868-AIO-ESPHome-wiegand.txt (Size: 21.93 KB / Downloads: 292) ]]> <![CDATA[Interfacing WS2812B led strips]]> https://www.kincony.com/forum/showthread.php?tid=7524 Fri, 31 Jan 2025 05:36:08 +0800 Krushi]]> https://www.kincony.com/forum/showthread.php?tid=7524
Regards
Krushi]]>
Regards
Krushi]]> <![CDATA[DS18B20 longer distance]]> https://www.kincony.com/forum/showthread.php?tid=7073 Sun, 17 Nov 2024 11:37:30 +0800 silicondt]]> https://www.kincony.com/forum/showthread.php?tid=7073
They are mostly around 50-70ft away from the KC868-AIO

They are all home run cable back to KC868-AIO (star patern)

The cable used is 18/3 OFC copper.

I can only get them to work if hooked directly up short run without extending them.

How can I get this setup to work? Resistors? If so what kind?

Thanks]]>
They are mostly around 50-70ft away from the KC868-AIO

They are all home run cable back to KC868-AIO (star patern)

The cable used is 18/3 OFC copper.

I can only get them to work if hooked directly up short run without extending them.

How can I get this setup to work? Resistors? If so what kind?

Thanks]]> <![CDATA[Connect DS18b20 temperature sensor to KC868-AIO]]> https://www.kincony.com/forum/showthread.php?tid=7072 Sun, 17 Nov 2024 03:17:53 +0800 slava]]> https://www.kincony.com/forum/showthread.php?tid=7072
My configuration:

one_wire:
  - pin: GPIO01
    platform: gpio


This is what I am getting:

[10:58:55][C][gpio.one_wire:020]: GPIO 1-wire bus:
[10:58:55][C][gpio.one_wire:021]:  Pin: GPIO1
[10:58:55][W][gpio.one_wire:078]:  Found no devices!




.jpg   20241116_104929.jpg (Size: 2.56 MB / Downloads: 776) ]]>
My configuration:

one_wire:
  - pin: GPIO01
    platform: gpio


This is what I am getting:

[10:58:55][C][gpio.one_wire:020]: GPIO 1-wire bus:
[10:58:55][C][gpio.one_wire:021]:  Pin: GPIO1
[10:58:55][W][gpio.one_wire:078]:  Found no devices!




.jpg   20241116_104929.jpg (Size: 2.56 MB / Downloads: 776) ]]> <![CDATA[KC868-AIO connecting to ESPHome]]> https://www.kincony.com/forum/showthread.php?tid=7041 Sun, 10 Nov 2024 13:36:10 +0800 slava]]> https://www.kincony.com/forum/showthread.php?tid=7041

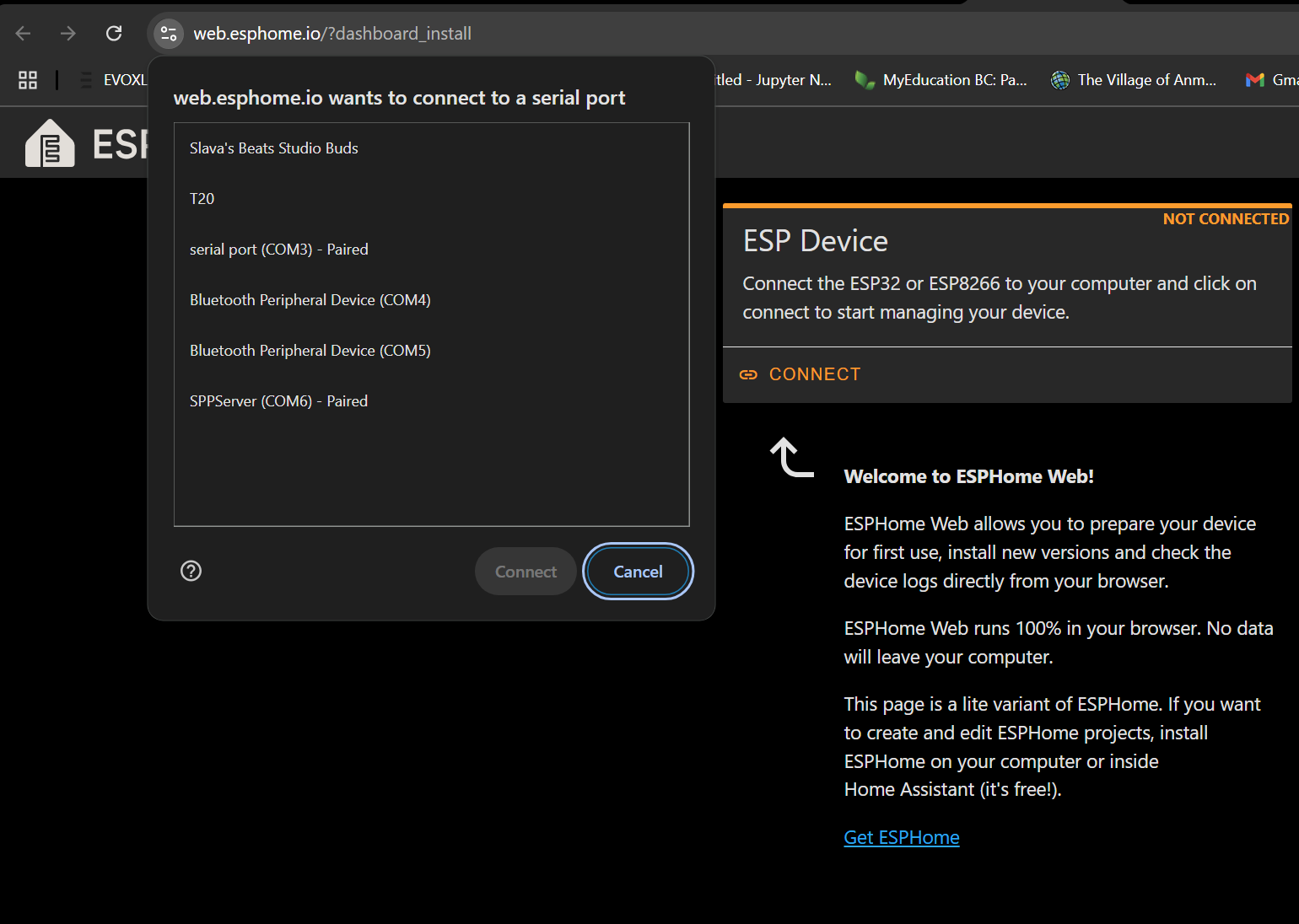

.png   Screenshot 2024-11-09 213235.png (Size: 141.9 KB / Downloads: 433) ]]>
.png   Screenshot 2024-11-09 213235.png (Size: 141.9 KB / Downloads: 433) ]]> <![CDATA[Temp Sensors]]> https://www.kincony.com/forum/showthread.php?tid=6975 Sun, 03 Nov 2024 06:37:30 +0800 silicondt]]> https://www.kincony.com/forum/showthread.php?tid=6975
From the videos it looks like it has two GPIO ports for temp sensors, but not sure if that means only can use two?
Or can multiple temp sensors be hooked to each port ?

We have a project that needs 4 temp sensors. Would we have to use analog temp sensors if we needed more than 2?

Thanks!]]>
From the videos it looks like it has two GPIO ports for temp sensors, but not sure if that means only can use two?
Or can multiple temp sensors be hooked to each port ?

We have a project that needs 4 temp sensors. Would we have to use analog temp sensors if we needed more than 2?

Thanks!]]> <![CDATA[Interfacing multiple LED strips to the AIO board]]> https://www.kincony.com/forum/showthread.php?tid=6805 Sat, 28 Sep 2024 20:05:42 +0800 telewizard13]]> https://www.kincony.com/forum/showthread.php?tid=6805
.png   Screen Shot 2024-09-28 at 8.04.34 AM.png (Size: 123.15 KB / Downloads: 406) ]]>
.png   Screen Shot 2024-09-28 at 8.04.34 AM.png (Size: 123.15 KB / Downloads: 406) ]]> <![CDATA[4-20mah sensor wiring example]]> https://www.kincony.com/forum/showthread.php?tid=6707 Mon, 16 Sep 2024 21:26:10 +0800 aucirc]]> https://www.kincony.com/forum/showthread.php?tid=6707 https://aliexpress.com/item/1005006338737673.html

It's a two-wire sensor, but I can't find any examples of how this should be connected to the KC868-AIO?  As these work best with 24V should the KC868-AIO be powered with 24V also?]]> https://aliexpress.com/item/1005006338737673.html

It's a two-wire sensor, but I can't find any examples of how this should be connected to the KC868-AIO?  As these work best with 24V should the KC868-AIO be powered with 24V also?]]> <![CDATA[AIO board has failed]]> https://www.kincony.com/forum/showthread.php?tid=6671 Fri, 13 Sep 2024 05:06:57 +0800 telewizard13]]> https://www.kincony.com/forum/showthread.php?tid=6671 My 3 month old KC868-AIO board has failed. It no longer communicates with my Home Assistant over ethernet, doesn't appear on WIFI.  Can't connect via USB and the ESP chip on the board is VERY hot. There is no activity on the ethernet connector. Not sure what failed or why, because it was working perfectly even earlier today. The power supply is fine and measures 12.45 volts and the power LEDs are lit, but it appears to be brain dead. I powered it down and disconnected all the I/O plugs and there was no change.
-Telewizard 13

.jpg   IMG_0001.JPG (Size: 68.03 KB / Downloads: 332) ]]> My 3 month old KC868-AIO board has failed. It no longer communicates with my Home Assistant over ethernet, doesn't appear on WIFI.  Can't connect via USB and the ESP chip on the board is VERY hot. There is no activity on the ethernet connector. Not sure what failed or why, because it was working perfectly even earlier today. The power supply is fine and measures 12.45 volts and the power LEDs are lit, but it appears to be brain dead. I powered it down and disconnected all the I/O plugs and there was no change.
-Telewizard 13

.jpg   IMG_0001.JPG (Size: 68.03 KB / Downloads: 332) ]]> <![CDATA[KC868-AIO User guide and other docs]]> https://www.kincony.com/forum/showthread.php?tid=6470 Sun, 25 Aug 2024 01:41:46 +0800 BigDaddyC]]> https://www.kincony.com/forum/showthread.php?tid=6470 I am very new to home automation, & have received my AIO board and was unable to find the user guide. Is it under a different name or the same as another that is already there?
Does this apply to the software i load as well?
Thanks]]> I am very new to home automation, & have received my AIO board and was unable to find the user guide. Is it under a different name or the same as another that is already there?
Does this apply to the software i load as well?
Thanks]]> <![CDATA[KC868-AIO LOXONE]]> https://www.kincony.com/forum/showthread.php?tid=6202 Thu, 25 Jul 2024 21:12:43 +0800 vosn1992]]> https://www.kincony.com/forum/showthread.php?tid=6202
i am trying to integrate my KC868-AIO into my loxone system .

i am new to this so i am having some problems.

i have done this so far :

pc and Kincony AIO are connected to the same acces point.

i can acces the AIO tru ESPhome .

.png   Schermafbeelding 2024-07-25 151134.png (Size: 23.82 KB / Downloads: 707)
when i configure the AIO there i can find the AIO in my wireless network
i was able to connect with the download tool so the firmware V2 could be installed but there i get stuck

the download is succesful

.png   Schermafbeelding 2024-07-25 151019.png (Size: 162.17 KB / Downloads: 668)

but then i can not do anything .

if i use the scan device tool i can not find the kincony
and the wireless signal of the kincony is gone until i re install it with the esphome "install for first use".

i am sure i am making some silly fault but unexperienced me is stuck at the moment Smile]]>
i am trying to integrate my KC868-AIO into my loxone system .

i am new to this so i am having some problems.

i have done this so far :

pc and Kincony AIO are connected to the same acces point.

i can acces the AIO tru ESPhome .

.png   Schermafbeelding 2024-07-25 151134.png (Size: 23.82 KB / Downloads: 707)
when i configure the AIO there i can find the AIO in my wireless network
i was able to connect with the download tool so the firmware V2 could be installed but there i get stuck

the download is succesful

.png   Schermafbeelding 2024-07-25 151019.png (Size: 162.17 KB / Downloads: 668)

but then i can not do anything .

if i use the scan device tool i can not find the kincony
and the wireless signal of the kincony is gone until i re install it with the esphome "install for first use".

i am sure i am making some silly fault but unexperienced me is stuck at the moment Smile]]>
