<![CDATA[Smart Home Automation Forum - Getting Started with ESPHome and Home Assistant]]> https://www.kincony.com/forum/ Wed, 08 Jul 2026 16:27:51 +0000 MyBB <![CDATA[KC868-HA-V21 24v supply]]> https://www.kincony.com/forum/showthread.php?tid=9374 Sun, 31 May 2026 04:08:16 +0800 Gerrit]]> https://www.kincony.com/forum/showthread.php?tid=9374 Hello,
I am planning to use about 15 KC868-HA-V21 modules behind 6-gang momentary switches throughout my whole house and connect them to the KC868-AP dimmer board. The LED strips I am using are 24V.
Can I also use this 24V supply to power the KC868-HA-V21 modules? The documentation states that it is supported, but I want to make sure it is a safe and reliable choice. Or, would it be better to use a separate 12V power supply for the modules?
Thank you for your advice!]]> Hello,
I am planning to use about 15 KC868-HA-V21 modules behind 6-gang momentary switches throughout my whole house and connect them to the KC868-AP dimmer board. The LED strips I am using are 24V.
Can I also use this 24V supply to power the KC868-HA-V21 modules? The documentation states that it is supported, but I want to make sure it is a safe and reliable choice. Or, would it be better to use a separate 12V power supply for the modules?
Thank you for your advice!]]> <![CDATA[DM4 ESPHome yaml for home assistant with tuya]]> https://www.kincony.com/forum/showthread.php?tid=9373 Sat, 30 May 2026 21:35:50 +0800 pavel.hajn]]> https://www.kincony.com/forum/showthread.php?tid=9373 is possible to use DM4 with ESPHome and Tuya ? B8M works fine, but DM4 has some trouble in tuya_wifi_mcu_light_output.cpp

Here is the log:
Reading CMake configuration...
Dependency Graph
|-- noise-c @ 0.1.11
|-- Tuya_WiFi_MCU_SDK @ 0.0.3+sha.66c750a
Compiling .pioenvs/kin-dm4/src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp.o
Compiling .pioenvs/kin-dm4/src/esphome/components/uart/uart_component_esp_idf.cpp.o
Compiling .pioenvs/kin-dm4/src/esphome/components/uart/uart_debugger.cpp.o
Compiling .pioenvs/kin-dm4/src/esphome/components/watchdog/watchdog.cpp.o
Compiling .pioenvs/kin-dm4/src/esphome/components/web_server/list_entities.cpp.o
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp: In member function 'virtual void esphome::tuya_wifi_mcu::TuyaWifiMcuLightOutput:Confusedetup()':
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp:10:28: error: 'class esphome::light::LightState' has no member named 'add_new_remote_values_callback'
  10 |        this->bind_light_->add_new_remote_values_callback([this]() {
      |                            ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp: In lambda function:
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp:15:47: warning: 'float esphome::gamma_uncorrect(float, float)' is deprecated: Use LightState::gamma_uncorrect_lut() instead. Removed in 2026.9.0. [-Wdeprecated-declarations]
  15 |          this->tuya_bright_ = gamma_uncorrect(bright, this->bind_light_->get_gamma_correct()) * 100;
      |                                ~~~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
In file included from src/esphome/components/i2c/i2c.h:5,
                from src/esphome/components/ads1115/ads1115.h:3,
                from src/esphome.h:3,
                from src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.h:3,
                from src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp:1:
src/esphome/core/helpers.h:1597:7: note: declared here
1597 | float gamma_uncorrect(float value, float gamma);
      |      ^~~~~~~~~~~~~~~
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp: In member function 'virtual void esphome::tuya_wifi_mcu::TuyaWifiMcuLightOutput::process_dp_data(const unsigned char*, short unsigned int)':
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp:33:47: warning: 'float esphome::gamma_correct(float, float)' is deprecated: Use LightState::gamma_correct_lut() instead. Removed in 2026.9.0. [-Wdeprecated-declarations]
  33 |        this->output_->set_level(gamma_correct(bright, this->bind_light_->get_gamma_correct()));
      |                                  ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
src/esphome/core/helpers.h:1593:7: note: declared here
1593 | float gamma_correct(float value, float gamma);
      |      ^~~~~~~~~~~~~
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp:35:47: warning: 'float esphome::gamma_correct(float, float)' is deprecated: Use LightState::gamma_correct_lut() instead. Removed in 2026.9.0. [-Wdeprecated-declarations]
  35 |        this->output_->set_level(gamma_correct(bright, 2.8));
      |                                  ~~~~~~~~~~~~~^~~~~~~~~~~~~
src/esphome/core/helpers.h:1593:7: note: declared here
1593 | float gamma_correct(float value, float gamma);
      |      ^~~~~~~~~~~~~
Compiling .pioenvs/kin-dm4/src/esphome/components/web_server/web_server.cpp.o
Compiling .pioenvs/kin-dm4/src/esphome/components/web_server_base/web_server_base.cpp.o
*** [.pioenvs/kin-dm4/src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp.o] Error 1
========================= [FAILED] Took 93.00 seconds =========================

Kind Regards
Pavel Hajn]]> is possible to use DM4 with ESPHome and Tuya ? B8M works fine, but DM4 has some trouble in tuya_wifi_mcu_light_output.cpp

Here is the log:
Reading CMake configuration...
Dependency Graph
|-- noise-c @ 0.1.11
|-- Tuya_WiFi_MCU_SDK @ 0.0.3+sha.66c750a
Compiling .pioenvs/kin-dm4/src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp.o
Compiling .pioenvs/kin-dm4/src/esphome/components/uart/uart_component_esp_idf.cpp.o
Compiling .pioenvs/kin-dm4/src/esphome/components/uart/uart_debugger.cpp.o
Compiling .pioenvs/kin-dm4/src/esphome/components/watchdog/watchdog.cpp.o
Compiling .pioenvs/kin-dm4/src/esphome/components/web_server/list_entities.cpp.o
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp: In member function 'virtual void esphome::tuya_wifi_mcu::TuyaWifiMcuLightOutput:Confusedetup()':
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp:10:28: error: 'class esphome::light::LightState' has no member named 'add_new_remote_values_callback'
  10 |        this->bind_light_->add_new_remote_values_callback([this]() {
      |                            ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp: In lambda function:
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp:15:47: warning: 'float esphome::gamma_uncorrect(float, float)' is deprecated: Use LightState::gamma_uncorrect_lut() instead. Removed in 2026.9.0. [-Wdeprecated-declarations]
  15 |          this->tuya_bright_ = gamma_uncorrect(bright, this->bind_light_->get_gamma_correct()) * 100;
      |                                ~~~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
In file included from src/esphome/components/i2c/i2c.h:5,
                from src/esphome/components/ads1115/ads1115.h:3,
                from src/esphome.h:3,
                from src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.h:3,
                from src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp:1:
src/esphome/core/helpers.h:1597:7: note: declared here
1597 | float gamma_uncorrect(float value, float gamma);
      |      ^~~~~~~~~~~~~~~
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp: In member function 'virtual void esphome::tuya_wifi_mcu::TuyaWifiMcuLightOutput::process_dp_data(const unsigned char*, short unsigned int)':
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp:33:47: warning: 'float esphome::gamma_correct(float, float)' is deprecated: Use LightState::gamma_correct_lut() instead. Removed in 2026.9.0. [-Wdeprecated-declarations]
  33 |        this->output_->set_level(gamma_correct(bright, this->bind_light_->get_gamma_correct()));
      |                                  ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
src/esphome/core/helpers.h:1593:7: note: declared here
1593 | float gamma_correct(float value, float gamma);
      |      ^~~~~~~~~~~~~
src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp:35:47: warning: 'float esphome::gamma_correct(float, float)' is deprecated: Use LightState::gamma_correct_lut() instead. Removed in 2026.9.0. [-Wdeprecated-declarations]
  35 |        this->output_->set_level(gamma_correct(bright, 2.8));
      |                                  ~~~~~~~~~~~~~^~~~~~~~~~~~~
src/esphome/core/helpers.h:1593:7: note: declared here
1593 | float gamma_correct(float value, float gamma);
      |      ^~~~~~~~~~~~~
Compiling .pioenvs/kin-dm4/src/esphome/components/web_server/web_server.cpp.o
Compiling .pioenvs/kin-dm4/src/esphome/components/web_server_base/web_server_base.cpp.o
*** [.pioenvs/kin-dm4/src/esphome/components/tuya_wifi_mcu/light/tuya_wifi_mcu_light_output.cpp.o] Error 1
========================= [FAILED] Took 93.00 seconds =========================

Kind Regards
Pavel Hajn]]> <![CDATA[Instal ESP HA with ethernet]]> https://www.kincony.com/forum/showthread.php?tid=9203 Fri, 03 Apr 2026 04:20:07 +0800 kulibin]]> https://www.kincony.com/forum/showthread.php?tid=9203  I have module ESP32 B24 with ethernet port.
How I can install ESP HA ?
Thanks]]>  I have module ESP32 B24 with ethernet port.
How I can install ESP HA ?
Thanks]]> <![CDATA[AS-ESP32-S3 won't initialize]]> https://www.kincony.com/forum/showthread.php?tid=9143 Fri, 20 Mar 2026 02:49:56 +0800 scottq]]> https://www.kincony.com/forum/showthread.php?tid=9143
When I plugged the device into the HA server, all of the lights turned blue and a tone built up in about 3 steps to a steady tone. The tone continued without stopping for as long as I had the device plugged it (up to 15 minutes, when I unplugged it). It doesn't seem to me that it was flashed with any new firmware as described in this YouTube video: https://www.youtube.com/watch?v=g-KsrZjFljY

While the tone was sounding, I did try to configure the device in my home assistant. I selected "Add Device", saw ESPHome and selected it, and was presented with a modal asking for the host ip address, which I provided. I got a "Unable to connect to the ESPHome device. Make sure the device's YAML configuration includes an 'api' section." as shown in the attached screenshot. I have no way to access any YAML that the device might be using since I can't access the device and can't do anything with it in Home Assistant.

What do I do to get this thing working?

Scott

.png   ESPHome_add_device.png (Size: 19.97 KB / Downloads: 168)

.png   ESPHome_unable_to_connect.png (Size: 33.32 KB / Downloads: 149)

.jpg   IMG_4911.JPG (Size: 3.77 MB / Downloads: 197) ]]>
When I plugged the device into the HA server, all of the lights turned blue and a tone built up in about 3 steps to a steady tone. The tone continued without stopping for as long as I had the device plugged it (up to 15 minutes, when I unplugged it). It doesn't seem to me that it was flashed with any new firmware as described in this YouTube video: https://www.youtube.com/watch?v=g-KsrZjFljY

While the tone was sounding, I did try to configure the device in my home assistant. I selected "Add Device", saw ESPHome and selected it, and was presented with a modal asking for the host ip address, which I provided. I got a "Unable to connect to the ESPHome device. Make sure the device's YAML configuration includes an 'api' section." as shown in the attached screenshot. I have no way to access any YAML that the device might be using since I can't access the device and can't do anything with it in Home Assistant.

What do I do to get this thing working?

Scott

.png   ESPHome_add_device.png (Size: 19.97 KB / Downloads: 168)

.png   ESPHome_unable_to_connect.png (Size: 33.32 KB / Downloads: 149)

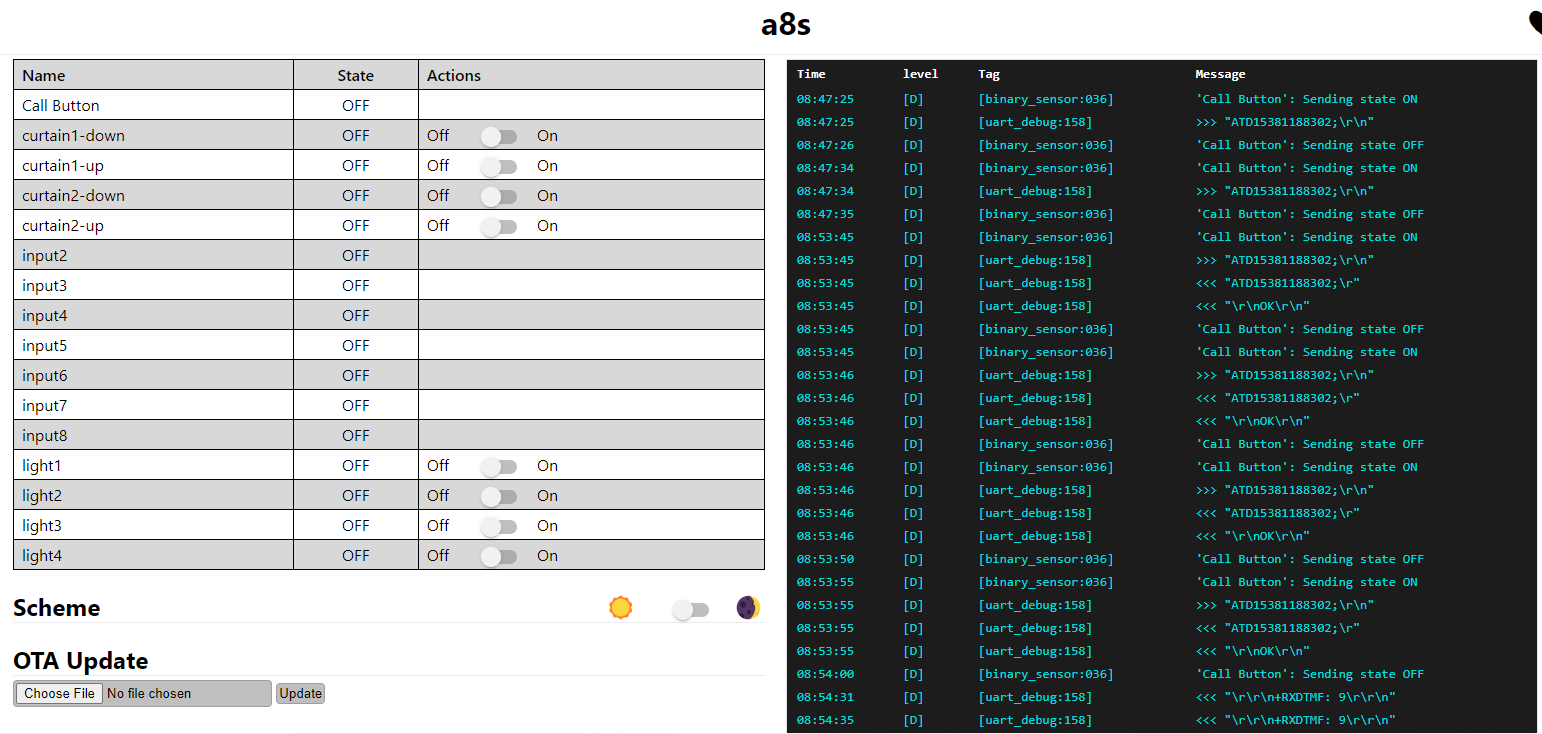

.jpg   IMG_4911.JPG (Size: 3.77 MB / Downloads: 197) ]]> <![CDATA[Device change after damage]]> https://www.kincony.com/forum/showthread.php?tid=9105 Fri, 06 Mar 2026 05:09:34 +0800 OhnsorgeSebastian]]> https://www.kincony.com/forum/showthread.php?tid=9105 <![CDATA[TA with Home Assistant with Ethernet Only]]> https://www.kincony.com/forum/showthread.php?tid=8981 Tue, 03 Feb 2026 06:54:07 +0800 upstream]]> https://www.kincony.com/forum/showthread.php?tid=8981
The yaml example at this post is set to use wifi. I want to use ethernet / poe only.

However, if I remove the wifi components, this line:
PHP Code:
- platform: tuya_wifi_mcu

is located all over the place.

Does anyone have a complete yaml example without any wifi (ethernet only)?]]>
The yaml example at this post is set to use wifi. I want to use ethernet / poe only.

However, if I remove the wifi components, this line:
PHP Code:
- platform: tuya_wifi_mcu

is located all over the place.

Does anyone have a complete yaml example without any wifi (ethernet only)?]]> <![CDATA[Kincony KC868-A4 flashen not work]]> https://www.kincony.com/forum/showthread.php?tid=8749 Wed, 19 Nov 2025 15:35:43 +0800 jurgen2003]]> https://www.kincony.com/forum/showthread.php?tid=8749 ik heb twee Kincony KC 868 A-serie IO-boards, één A4 die werkt met ESP Home en Home Assistant, maar de andere A4 ESP kan niet worden aangesloten. Het verbindingsboard is aangesloten via USB en blijft laden, het board schakelt relais en de zoemer om zonder resultaat. Moet dit board in de flashmodus worden gezet? Zo ja, hoe werkt dat?
groet jurgen]]> ik heb twee Kincony KC 868 A-serie IO-boards, één A4 die werkt met ESP Home en Home Assistant, maar de andere A4 ESP kan niet worden aangesloten. Het verbindingsboard is aangesloten via USB en blijft laden, het board schakelt relais en de zoemer om zonder resultaat. Moet dit board in de flashmodus worden gezet? Zo ja, hoe werkt dat?
groet jurgen]]> <![CDATA[Operating WLAN and Ethernet together]]> https://www.kincony.com/forum/showthread.php?tid=8520 Wed, 10 Sep 2025 15:53:16 +0800 JuDie07]]> https://www.kincony.com/forum/showthread.php?tid=8520  When I enter WLAN and Ethernet together in ESPHome, I get the following error message:

Can you please provide a code example?

.png   KC868-04.png (Size: 29.37 KB / Downloads: 283) ]]>  When I enter WLAN and Ethernet together in ESPHome, I get the following error message:

Can you please provide a code example?

.png   KC868-04.png (Size: 29.37 KB / Downloads: 283) ]]> <![CDATA[Esphome + KC868-HA-V21]]> https://www.kincony.com/forum/showthread.php?tid=8445 Wed, 13 Aug 2025 16:45:42 +0800 duranduy]]> https://www.kincony.com/forum/showthread.php?tid=8445
I connected it via RS485 to the KC868-A2, using the ESPHOME firmware. I added your component from GitHub, and the settings on the HAv2 are factory defaults. Controlling the digital outputs (D1-D6) works fine, but when it comes to changes in the state of the digital inputs, the ESPHome logs only show the following messages:

text
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=1
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=2
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=3
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=4
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=5
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=6
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=7
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=8
found a kc868_ha board, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=1 (also bind output 1-8)
What am I doing wrong? Could it be due to incorrect bind_output parameters? If so, which numbers should I specify?

I took the binary_sensor configuration from your GitHub and followed the instructions from your YouTube channel exactly. Thanks for your help!]]>
I connected it via RS485 to the KC868-A2, using the ESPHOME firmware. I added your component from GitHub, and the settings on the HAv2 are factory defaults. Controlling the digital outputs (D1-D6) works fine, but when it comes to changes in the state of the digital inputs, the ESPHome logs only show the following messages:

text
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=1
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=2
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=3
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=4
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=5
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=6
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=7
dump kc868_ha config, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=8
found a kc868_ha board, target_relay_controller_addr=1, switch_adapter_addr=10, bind_output=1 (also bind output 1-8)
What am I doing wrong? Could it be due to incorrect bind_output parameters? If so, which numbers should I specify?

I took the binary_sensor configuration from your GitHub and followed the instructions from your YouTube channel exactly. Thanks for your help!]]> <![CDATA[Need help choosing modules for 32-channel lighting control with Home Assistant]]> https://www.kincony.com/forum/showthread.php?tid=8280 Mon, 30 Jun 2025 20:23:40 +0800 Karlis_LV]]> https://www.kincony.com/forum/showthread.php?tid=8280 I'm new to KinCony and Home Assistant. I would really appreciate your help.
I want to control my house lighting using Home Assistant, and I need to manage 32+ channels. I’m looking for a solution with the best price/performance.
Important:
  • I am not a programmer, so I need a system that works without writing code, just ready firmware like ESPHome or KinCony’s firmware.
  • I really like KinCony devices, but unfortunately I can't find compact and complete information in one place that explains how to set up a simple lighting project using a few modules.
  • I prefer using I/O extenders (relay modules) that come in a solid metal case or at least with mechanical protection, not open PCB boards.
Could you please help me with:
  1. Which modules do I need to build a 32+ channel Home Assistant lighting control system?
  2. Is there a video or full guide that shows everything: connection, flashing (if needed), and control via Home Assistant?
  3. Can this setup work without programming knowledge?
  4. What is the best I/O expander module with relays that includes a metal or protected enclosure?
  5. Can the system run only on Server16 with CM4 + some simple extender relay board?
I want to build a clean and reliable lighting automation system with good enclosure protection and Home Assistant support.
Thank you very much for your help!]]> I'm new to KinCony and Home Assistant. I would really appreciate your help.
I want to control my house lighting using Home Assistant, and I need to manage 32+ channels. I’m looking for a solution with the best price/performance.
Important:
  • I am not a programmer, so I need a system that works without writing code, just ready firmware like ESPHome or KinCony’s firmware.
  • I really like KinCony devices, but unfortunately I can't find compact and complete information in one place that explains how to set up a simple lighting project using a few modules.
  • I prefer using I/O extenders (relay modules) that come in a solid metal case or at least with mechanical protection, not open PCB boards.
Could you please help me with:
  1. Which modules do I need to build a 32+ channel Home Assistant lighting control system?
  2. Is there a video or full guide that shows everything: connection, flashing (if needed), and control via Home Assistant?
  3. Can this setup work without programming knowledge?
  4. What is the best I/O expander module with relays that includes a metal or protected enclosure?
  5. Can the system run only on Server16 with CM4 + some simple extender relay board?
I want to build a clean and reliable lighting automation system with good enclosure protection and Home Assistant support.
Thank you very much for your help!]]> <![CDATA[B16M Outputs & HomeAssistant Firmware]]> https://www.kincony.com/forum/showthread.php?tid=7861 Sun, 23 Mar 2025 11:06:47 +0800 akat]]> https://www.kincony.com/forum/showthread.php?tid=7861 I've recently deployed a Kincony B16M and flashed it with the stock kincony-b16m.yaml config.

I’m using the digital outputs to control HF41F relays mounted on 41F-1Z-C2-1 boards.
Each relay coil is connected with a 1N4007 flyback diode across A1 and A2. Wiring is as follows:
  • +12V DC to A1
  • 1N4007 across A1 and A2 (cathode on A1)
  • A2 wired to DO1
  • DC port connected to -12V (to complete the circuit)

The issue:
When the B16M boots, DO1 immediately energizes the relay, even though in the WebUI the output appears OFF. Toggling DO1 via the WebUI has no effect on the relay—it remains stuck on. I’ve tried both

inverted: true

inverted: false in the YAML under  b16m-output01, but neither changes the behavior.

Here's the relevant YAML snippet:

Code:
switch:
  - platform: gpio
    name: "b16m-output01"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true
At this point I’m trying to determine whether I’m dealing with a hardware issue or if there’s a nuance with the output logic I’ve missed. Any insights would be appreciated.
Thanks in advance.]]> I've recently deployed a Kincony B16M and flashed it with the stock kincony-b16m.yaml config.

I’m using the digital outputs to control HF41F relays mounted on 41F-1Z-C2-1 boards.
Each relay coil is connected with a 1N4007 flyback diode across A1 and A2. Wiring is as follows:
  • +12V DC to A1
  • 1N4007 across A1 and A2 (cathode on A1)
  • A2 wired to DO1
  • DC port connected to -12V (to complete the circuit)

The issue:
When the B16M boots, DO1 immediately energizes the relay, even though in the WebUI the output appears OFF. Toggling DO1 via the WebUI has no effect on the relay—it remains stuck on. I’ve tried both

inverted: true

inverted: false in the YAML under  b16m-output01, but neither changes the behavior.

Here's the relevant YAML snippet:

Code:
switch:
  - platform: gpio
    name: "b16m-output01"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true
At this point I’m trying to determine whether I’m dealing with a hardware issue or if there’s a nuance with the output logic I’ve missed. Any insights would be appreciated.
Thanks in advance.]]> <![CDATA[Water supply automation]]> https://www.kincony.com/forum/showthread.php?tid=7641 Tue, 18 Feb 2025 14:23:57 +0800 korvin]]> https://www.kincony.com/forum/showthread.php?tid=7641
I wonder if these can work
https://vi.aliexpress.com/item/1005005837609233.html
https://vi.aliexpress.com/item/1005008250776238.html

But if you have something or maybe your partners have, I'd like to buy]]>
I wonder if these can work
https://vi.aliexpress.com/item/1005005837609233.html
https://vi.aliexpress.com/item/1005008250776238.html

But if you have something or maybe your partners have, I'd like to buy]]> <![CDATA[Error: Installing ESPHome on Windows without Home Assistant/Rasberry Pi]]> https://www.kincony.com/forum/showthread.php?tid=7185 Fri, 06 Dec 2024 20:36:12 +0800 OrenaikeJ]]> https://www.kincony.com/forum/showthread.php?tid=7185
.png   ESPHome Installation on Windows Error Message.PNG (Size: 80.6 KB / Downloads: 701) ]]>
.png   ESPHome Installation on Windows Error Message.PNG (Size: 80.6 KB / Downloads: 701) ]]> <![CDATA[Retain Switch status ESPHome after reboot and update / Ethernet setup]]> https://www.kincony.com/forum/showthread.php?tid=6869 Sun, 13 Oct 2024 18:15:57 +0800 S.Krans]]> https://www.kincony.com/forum/showthread.php?tid=6869
if i update the boards A64 / A128 the outputs does not retain their status so if i have switch-1 on and reboot the switch-1 goes off




i run ESPHome true Home Assistant and run the automations true node-red is there a possibility to have it retain the previous state before reboot or update



Also i want to use my ethernet but it wont connect


Code:
esphome:
  name: kincony-kc868-a64-rk
  friendly_name: Kincony KC868-A64-RK

esp32:
  board: esp32dev
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "xxxx"

ota:
  password: "xxx"
  platform: esphome

#wifi:
#  ssid: !secret wifi_ssid
#  password: !secret wifi_password

#  # Enable fallback hotspot (captive portal) in case wifi connection fails
#  ap:
#    ssid: "Kincony-Kc868-A64-Rk"
#    password: !secret wifi_ap

#captive_portal:




# Example configuration entry
i2c:
  - id: bus_a
    sda: 5
    scl: 16
    scan: true
    frequency: 400kHz
  - id: bus_b
    sda: 15
    scl: 4
    scan: true
    frequency: 400kHz


# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

  # Optional manual IP
  manual_ip:
    static_ip: 20.20.20.192
    gateway: 20.20.20.1
    subnet: 255.255.255.0



Thanks in advance
Sijmen]]>
if i update the boards A64 / A128 the outputs does not retain their status so if i have switch-1 on and reboot the switch-1 goes off




i run ESPHome true Home Assistant and run the automations true node-red is there a possibility to have it retain the previous state before reboot or update



Also i want to use my ethernet but it wont connect


Code:
esphome:
  name: kincony-kc868-a64-rk
  friendly_name: Kincony KC868-A64-RK

esp32:
  board: esp32dev
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "xxxx"

ota:
  password: "xxx"
  platform: esphome

#wifi:
#  ssid: !secret wifi_ssid
#  password: !secret wifi_password

#  # Enable fallback hotspot (captive portal) in case wifi connection fails
#  ap:
#    ssid: "Kincony-Kc868-A64-Rk"
#    password: !secret wifi_ap

#captive_portal:




# Example configuration entry
i2c:
  - id: bus_a
    sda: 5
    scl: 16
    scan: true
    frequency: 400kHz
  - id: bus_b
    sda: 15
    scl: 4
    scan: true
    frequency: 400kHz


# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

  # Optional manual IP
  manual_ip:
    static_ip: 20.20.20.192
    gateway: 20.20.20.1
    subnet: 255.255.255.0



Thanks in advance
Sijmen]]> <![CDATA[ESPHome PCF8575 and XL9535 yaml format define updated]]> https://www.kincony.com/forum/showthread.php?tid=6776 Wed, 25 Sep 2024 08:54:06 +0800 admin]]> https://www.kincony.com/forum/showthread.php?tid=6776 if using XL9535 , the pin number will begin 0-7 and 10-17]]> if using XL9535 , the pin number will begin 0-7 and 10-17]]>
