Smart Home Automation Forum - KinCony A24

kincony energy meter to a24

Wed, 11 Feb 2026 02:30:47 +0800

its correct to connect the 8 port in the energy meter to the a port a in thr rs485 and the 7 port in the b in the a24 kincony?


A24 pro 24v compatible?

Sat, 09 Aug 2025 23:30:21 +0800

Due the lack of 63amp contactors in 12v. It's possible to use a power supply with 24v for the a24pro? Not for the relay.. to the unit itself? Thanks a lot!

A24 with to broken relay

Tue, 01 Jul 2025 04:26:47 +0800

Hi, I just install one new KC868-A24 and after power on it - two relays are constantly closed, they supply voltage to the lamp.
this is a defective device. what should I do?




A24 + power socket

Sat, 08 Feb 2025 09:40:39 +0800

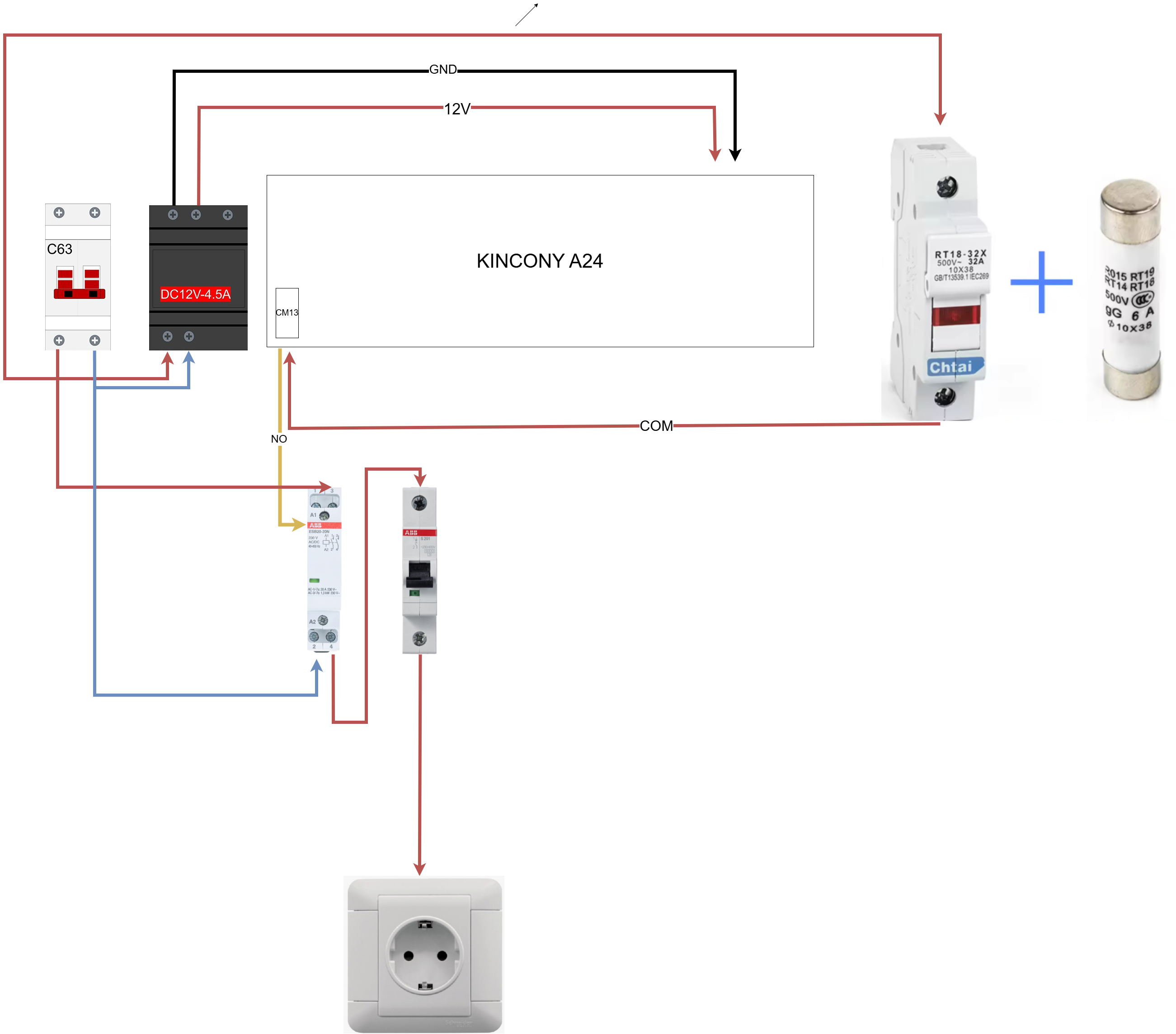

Good day, I drew the diagram using the site https://app.diagrams.net/

Dear friend, please tell me if I understand the diagram for connecting the power socket pcorrectly?

Is it possible to do without a contactor and use only a machine?


Settup heated floor

Sat, 08 Feb 2025 01:28:05 +0800

Dear friend, can you please make a video on how to set up and connect a thermostat and heated floor on the A24 board, perhaps you have already done something similar before, I think many will be interested in how to do this, thank you

A24 Where DAC?

Thu, 06 Feb 2025 04:52:43 +0800

Good day, admin, please tell me, do you have a video https://www.youtube.com/watch?v=kLUGJtZg1aQ, the description says the following "how to slove A32 Pro/A24 DAC dimmer"

However, I do not see the inscription on the case as for the A32 PRO DA1 and DA2 in the lower right corner of the case is located on the A32 Pro

So does the KinCony A24 https://aliexpress.ru/item/1005006364867...757axPMWYQ
have dimmer control? If so, where are the inscriptions?

Thanks

KC868_A24 FIRMWARE

Sat, 11 Jan 2025 04:57:20 +0800

HI EVERYONE, I'M LOOKING FOR THE LATEST FIRMWARE FOR THE KC868_A24 BOARD, CAN ANYONE HELP ME?

A24 work with K-Type Thermocouple by web service

Tue, 26 Nov 2024 09:36:14 +0800



  K-Type Thermocouple.png (Size: 162.84 KB / Downloads: 385)
yaml code:

Code:
esphome:

  name: a24

  platform: ESP32

  board: esp32dev

# Enable logging

logger:

# Enable Home Assistant API

api:

 # Example configuration entry

i2c:

   - id: bus_a

     sda: 16

     scl: 5

     scan: true

     frequency: 400kHz

# Example configuration entry

ethernet:

  type: LAN8720

  mdc_pin: GPIO23

  mdio_pin: GPIO18

  clk_mode: GPIO17_OUT

  phy_addr: 0

# Example configuration entry

pcf8574:

  - id: 'pcf8574_hub_out_1'  # for output channel 1-12 CS1-CS3

    i2c_id: bus_a

    address: 0x21

    pcf8575: true

  - id: 'pcf8574_hub_out_2'  # for output channel 13-24

    i2c_id: bus_a

    address: 0x22

    pcf8575: true

  - id: 'pcf8574_hub_in_1'  # for input channel 1-16

    i2c_id: bus_a

    address: 0x24

    pcf8575: true

  - id: 'pcf8574_hub_in_2'  # for a24--input channel 17-32

    i2c_id: bus_a

    address: 0x25

    pcf8575: true

# Individual outputs

switch:

  - platform: gpio

    name: "a24--light1"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 0

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light2"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 1

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light3"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 2

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light4"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 3

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light5"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 4

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light6"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 5

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light7"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 6

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light8"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 7

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light9"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 8

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light10"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 9

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light11"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 10

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light12"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 11

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light13"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 0

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light14"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 1

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light15"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 2

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light16"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 3

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light17"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 4

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light18"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 5

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light19"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 6

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light20"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 7

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light21"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 8

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light22"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 9

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light23"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 10

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a24--light24"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 11

      mode: OUTPUT

      inverted: true

# Individual inputs

binary_sensor:

  - platform: gpio

    name: "a24--input1"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 0

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input2"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 1

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input3"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 2

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input4"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 3

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input5"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 4

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input6"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 5

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input7"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 6

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input8"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 7

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input9"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 8

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input10"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 9

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input11"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 10

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input12"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 11

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input13"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 12

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input14"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 13

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input15"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 14

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input16"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 15

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input17"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 0

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input18"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 1

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input19"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 2

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input20"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 3

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input21"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 4

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input22"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 5

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input23"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 6

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a24--input24"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 7

      mode: INPUT

      inverted: true

sensor:

  - platform: adc

    pin: 35

    name: "A24 A1 Voltage"

    update_interval: 10s

    attenuation: 11db

    filters:

      - lambda:

          if (x >= 3.11) {

            return x * 1.60256;

          } else if (x <= 0.15) {

            return 0;

          } else {

            return x * 1.51;

          }

  - platform: adc

    pin: 34

    name: "A24 A2 Voltage"

    update_interval: 10s

    attenuation: 11db

    filters:

      # - multiply: 1.51515

      - lambda:

          if (x >= 3.11) {

            return x * 1.60256;

          } else if (x <= 0.15) {

            return 0;

          } else {

            return x * 1.51;

          }

  - platform: adc

    pin: 39

    name: "A24 A3 Current"

    update_interval: 10s

    unit_of_measurement: mA

    attenuation: 11db

    filters:

      - multiply: 6.66666666

  - platform: adc

    pin: 36

    name: "A24 A4 Current"

    update_interval: 10s

    unit_of_measurement: mA

    attenuation: 11db

    filters:

      - multiply: 6.66666666

  - platform: max31855

    name: "K-Type Thermocouple-1"

    cs_pin:

      pcf8574: pcf8574_hub_out_1

      number: 13

      mode: OUTPUT

      inverted: false

    update_interval: 5s

  - platform: max31855

    name: "K-Type Thermocouple-2"

    cs_pin:

      pcf8574: pcf8574_hub_out_1

      number: 14

      mode: OUTPUT

      inverted: false

    update_interval: 5s

  - platform: max31855

    name: "K-Type Thermocouple-3"

    cs_pin:

      pcf8574: pcf8574_hub_out_1

      number: 15

      mode: OUTPUT

      inverted: false

    update_interval: 5s

spi:

  - id: spi_bus0

    clk_pin: 14

    miso_pin: 12

gp8403:

  id: my_gp8403

  voltage: 10V

output:

  - platform: gp8403

    id: gp8403_output_1

    gp8403_id: my_gp8403

    channel: 0

  - platform: gp8403

    id: gp8403_output_2

    gp8403_id: my_gp8403

    channel: 1

light:

  - platform: monochromatic

    name: "A24-DAC-1"

    output: gp8403_output_1

  - platform: monochromatic

    name: "A24-DAC-2"

    output: gp8403_output_2

web_server:

  port: 80

Anybody use DMX on Kincony A24's RS485 on EspHome in Home Assistant?

Wed, 16 Oct 2024 07:29:56 +0800

Good day. Has anybody set up DMX on Kincony A24's RS485 in EspHome in Home Assistant? I tried installing the Github add-in at https://github.com/andyboeh/esphome-dmx512, but I'm a beginner and haven't gotten it to work so far. The Kincony's input and outputs work fine, but I don't know how to proceed. I've put this in the Kincony's Yaml file, and the logger reports the value being sent to DMX_1, but my fixture's DMX indicator doesn't come on, so I don't even know if I wired it correctly. Anyway, here are the Yaml settings:

uart:
id: uart_bus
tx_pin:
number: 33
allow_other_uses: true # For ESPHome >= 2023.12.0
baud_rate: 250000
stop_bits: 2

dmx512:
id: dmx
uart_id: uart_bus
tx_pin:
number: 33
allow_other_uses: true # For ESPHome >= 2023.12.0
uart_num: 1
periodic_update: true
update_interval: 500

output:
- platform: dmx512
channel: 1
universe: dmx
id: dmx_1

light:
- platform: monochromatic
name: "Test Lights"
output: dmx_7
id: light_test
default_transition_length: 2s

A24 Display options

Wed, 14 Feb 2024 00:12:42 +0800

Is there any possibility to connect a display to the A24 panel? I do not use the gsm connection, nor the K-thermometers.

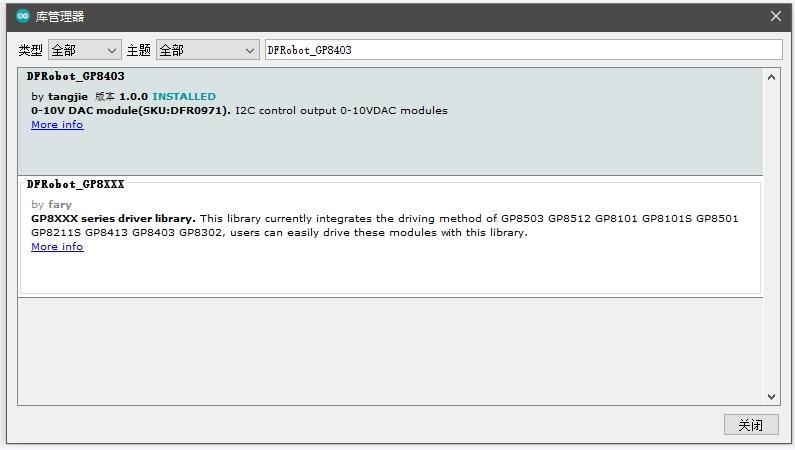

A24 arduino demo source code-07-analog out (DAC)

Mon, 25 Dec 2023 15:56:37 +0800

Code:
#include "DFRobot_GP8403.h"

#include "Wire.h"

DFRobot_GP8403 dac(&Wire,0x58);

void setup() {

  Serial.begin(115200);

  Wire.begin(16,5);

  while(dac.begin()!=0){

    Serial.println("init error");

    delay(1000);

   }

  Serial.println("init succeed");

  //Set DAC output range

  dac.setDACOutRange(dac.eOutputRange10V);

  dac.setDACOutVoltage(10000, 0);

  dac.setDACOutVoltage(10000, 1);

  delay(1000);

  //Store data in the chip

  dac.store();

}

void loop(){

}


A24 wiring circuit diagram

Mon, 25 Dec 2023 08:43:08 +0800


A24 configure yaml for ESPhome

Mon, 18 Dec 2023 19:30:56 +0800


esphome:
name: a24
platform: ESP32
board: esp32dev

# Enable logging
logger:

# Enable Home Assistant API
api:

# Example configuration entry
i2c:
- id: bus_a
sda: 16
scl: 5
scan: true
frequency: 400kHz

# Example configuration entry
ethernet:
type: LAN8720
mdc_pin: GPIO23
mdio_pin: GPIO18
clk_mode: GPIO17_OUT
phy_addr: 0

# Example configuration entry
pcf8574:
- id: 'pcf8574_hub_out_1' # for output channel 1-12 CS1-CS3
i2c_id: bus_a
address: 0x21
pcf8575: true

- id: 'pcf8574_hub_out_2' # for output channel 13-24
i2c_id: bus_a
address: 0x22
pcf8575: true

- id: 'pcf8574_hub_in_1' # for input channel 1-16
i2c_id: bus_a
address: 0x24
pcf8575: true

- id: 'pcf8574_hub_in_2' # for a24--input channel 17-32
i2c_id: bus_a
address: 0x25
pcf8575: true

# Individual outputs
switch:
- platform: gpio
name: "a24--light1"
pin:
pcf8574: pcf8574_hub_out_1
number: 0
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light2"
pin:
pcf8574: pcf8574_hub_out_1
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light3"
pin:
pcf8574: pcf8574_hub_out_1
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light4"
pin:
pcf8574: pcf8574_hub_out_1
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light5"
pin:
pcf8574: pcf8574_hub_out_1
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light6"
pin:
pcf8574: pcf8574_hub_out_1
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light7"
pin:
pcf8574: pcf8574_hub_out_1
number: 6
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light8"
pin:
pcf8574: pcf8574_hub_out_1
number: 7
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light9"
pin:
pcf8574: pcf8574_hub_out_1
number: 8
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light10"
pin:
pcf8574: pcf8574_hub_out_1
number: 9
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light11"
pin:
pcf8574: pcf8574_hub_out_1
number: 10
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light12"
pin:
pcf8574: pcf8574_hub_out_1
number: 11
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light13"
pin:
pcf8574: pcf8574_hub_out_2
number: 0
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light14"
pin:
pcf8574: pcf8574_hub_out_2
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light15"
pin:
pcf8574: pcf8574_hub_out_2
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light16"
pin:
pcf8574: pcf8574_hub_out_2
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light17"
pin:
pcf8574: pcf8574_hub_out_2
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light18"
pin:
pcf8574: pcf8574_hub_out_2
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light19"
pin:
pcf8574: pcf8574_hub_out_2
number: 6
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light20"
pin:
pcf8574: pcf8574_hub_out_2
number: 7
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light21"
pin:
pcf8574: pcf8574_hub_out_2
number: 8
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light22"
pin:
pcf8574: pcf8574_hub_out_2
number: 9
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light23"
pin:
pcf8574: pcf8574_hub_out_2
number: 10
mode: OUTPUT
inverted: true

- platform: gpio
name: "a24--light24"
pin:
pcf8574: pcf8574_hub_out_2
number: 11
mode: OUTPUT
inverted: true

# Individual inputs
binary_sensor:
- platform: gpio
name: "a24--input1"
pin:
pcf8574: pcf8574_hub_in_1
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input2"
pin:
pcf8574: pcf8574_hub_in_1
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input3"
pin:
pcf8574: pcf8574_hub_in_1
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input4"
pin:
pcf8574: pcf8574_hub_in_1
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input5"
pin:
pcf8574: pcf8574_hub_in_1
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input6"
pin:
pcf8574: pcf8574_hub_in_1
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input7"
pin:
pcf8574: pcf8574_hub_in_1
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input8"
pin:
pcf8574: pcf8574_hub_in_1
number: 7
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input9"
pin:
pcf8574: pcf8574_hub_in_1
number: 8
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input10"
pin:
pcf8574: pcf8574_hub_in_1
number: 9
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input11"
pin:
pcf8574: pcf8574_hub_in_1
number: 10
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input12"
pin:
pcf8574: pcf8574_hub_in_1
number: 11
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input13"
pin:
pcf8574: pcf8574_hub_in_1
number: 12
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input14"
pin:
pcf8574: pcf8574_hub_in_1
number: 13
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input15"
pin:
pcf8574: pcf8574_hub_in_1
number: 14
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input16"
pin:
pcf8574: pcf8574_hub_in_1
number: 15
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input17"
pin:
pcf8574: pcf8574_hub_in_2
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input18"
pin:
pcf8574: pcf8574_hub_in_2
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input19"
pin:
pcf8574: pcf8574_hub_in_2
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input20"
pin:
pcf8574: pcf8574_hub_in_2
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input21"
pin:
pcf8574: pcf8574_hub_in_2
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input22"
pin:
pcf8574: pcf8574_hub_in_2
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input23"
pin:
pcf8574: pcf8574_hub_in_2
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "a24--input24"
pin:
pcf8574: pcf8574_hub_in_2
number: 7
mode: INPUT
inverted: true

sensor:
- platform: adc
pin: 35
name: "A24 A1 Voltage"
update_interval: 10s
attenuation: 11db
filters:
- lambda:
if (x >= 3.11) {
return x * 1.60256;
} else if (x <= 0.15) {
return 0;
} else {
return x * 1.51;
}
- platform: adc
pin: 34
name: "A24 A2 Voltage"
update_interval: 10s
attenuation: 11db
filters:
# - multiply: 1.51515
- lambda:
if (x >= 3.11) {
return x * 1.60256;
} else if (x <= 0.15) {
return 0;
} else {
return x * 1.51;
}
- platform: adc
pin: 39
name: "A24 A3 Current"
update_interval: 10s
unit_of_measurement: mA
attenuation: 11db
filters:
- multiply: 6.66666666
- platform: adc
pin: 36
name: "A24 A4 Current"
update_interval: 10s
unit_of_measurement: mA
attenuation: 11db
filters:
- multiply: 6.66666666

- platform: max31855
name: "K-Type Thermocouple-1"
cs_pin:
pcf8574: pcf8574_hub_out_1
number: 13
mode: OUTPUT
inverted: false
update_interval: 5s

- platform: max31855
name: "K-Type Thermocouple-2"
cs_pin:
pcf8574: pcf8574_hub_out_1
number: 14
mode: OUTPUT
inverted: false
update_interval: 5s

- platform: max31855
name: "K-Type Thermocouple-3"
cs_pin:
pcf8574: pcf8574_hub_out_1
number: 15
mode: OUTPUT
inverted: false
update_interval: 5s

spi:
- id: spi_bus0
clk_pin: 14
miso_pin: 12

gp8403:
id: my_gp8403
voltage: 10V

output:
- platform: gp8403
id: gp8403_output_1
gp8403_id: my_gp8403
channel: 0
- platform: gp8403
id: gp8403_output_2
gp8403_id: my_gp8403
channel: 1

light:
- platform: monochromatic
name: "A24-DAC-1"
output: gp8403_output_1
- platform: monochromatic
name: "A24-DAC-2"
output: gp8403_output_2

A24-ESPHome.txt (Size: 10.11 KB / Downloads: 495)

A24 ESP32 I/O pin define

Mon, 18 Dec 2023 19:28:45 +0800

#define ANALOG_A1 GPIO35
#define ANALOG_A2 GPIO34
#define ANALOG_A3 GPIO39
#define ANALOG_A4 GPIO36

IIC Bus-1:A

SDA-A:GPIO16
SCL-A:GPIO5

PCF8575:U15 (relay1-12): i2c address:0x21

PCF8575->U15->P0 (relay 1)
PCF8575->U15->P1 (relay 2)
PCF8575->U15->P2 (relay 3)
PCF8575->U15->P3 (relay 4)
PCF8575->U15->P4 (relay 5)
PCF8575->U15->P5 (relay 6)
PCF8575->U15->P6 (relay 7)
PCF8575->U15->P7 (relay 8)
PCF8575->U15->P10 (relay 9)
PCF8575->U15->P11 (relay 10)
PCF8575->U15->P12 (relay 11)
PCF8575->U15->P13 (relay 12)
PCF8575->U15->P15 (CS1 of MAX31855)
PCF8575->U15->P16 (CS2 of MAX31855)
PCF8575->U15->P17 (CS3 of MAX31855)

PCF8575:U27 (relay13-24): i2c address:0x22

PCF8575->U27->P0 (relay 13)
PCF8575->U27->P1 (relay 14)
PCF8575->U27->P2 (relay 15)
PCF8575->U27->P3 (relay 16)
PCF8575->U27->P4 (relay 17)
PCF8575->U27->P5 (relay 18)
PCF8575->U27->P6 (relay 19)
PCF8575->U27->P7 (relay 20)
PCF8575->U27->P10 (relay 21)
PCF8575->U27->P11 (relay 22)
PCF8575->U27->P12 (relay 23)
PCF8575->U27->P13 (relay 24)

PCF8575:U16 (input1-16): i2c address:0x24

PCF8575->U16->P0 (input 1)
PCF8575->U16->P1 (input 2)
PCF8575->U16->P2 (input 3)
PCF8575->U16->P3 (input 4)
PCF8575->U16->P4 (input 5)
PCF8575->U16->P5 (input 6)
PCF8575->U16->P6 (input 7)
PCF8575->U16->P7 (input 8)
PCF8575->U16->P10 (input 9)
PCF8575->U16->P11 (input 10)
PCF8575->U16->P12 (input 11)
PCF8575->U16->P13 (input 12)
PCF8575->U16->P14 (input 13)
PCF8575->U16->P15 (input 14)
PCF8575->U16->P16 (input 15)
PCF8575->U16->P17 (input 16)

PCF8575:U28 (input17-32): i2c address:0x25

PCF8575->U28->P0 (input 17)
PCF8575->U28->P1 (input 18)
PCF8575->U28->P2 (input 19)
PCF8575->U28->P3 (input 20)
PCF8575->U28->P4 (input 21)
PCF8575->U28->P5 (input 22)
PCF8575->U28->P6 (input 23)
PCF8575->U28->P7 (input 24)
PCF8575->U28->P10 (input 25)
PCF8575->U28->P11 (input 26)
PCF8575->U28->P12 (input 27)
PCF8575->U28->P13 (input 28)
PCF8575->U28->P14 (input 29)
PCF8575->U28->P15 (input 30)
PCF8575->U28->P16 (input 31)
PCF8575->U28->P17 (input 32)

-----------------

1-wire: GPIO15

-----------------

Ethernet (LAN8720) I/O define:

#define ETH_ADDR 0
#define ETH_POWER_PIN -1
#define ETH_MDC_PIN 23
#define ETH_MDIO_PIN 18
#define ETH_TYPE ETH_PHY_LAN8720
#define ETH_CLK_MODE ETH_CLOCK_GPIO17_OUT

--------------------

RS485:
RXD:GPIO32
TXD:GPIO33

4G module:
RXD:GPIO13
TXD:GPIO4

--------------------
SPI bus for MAX31855
SCK: GPIO14
MISO: GPIO12

-------------------
GP8403 DAC i2c address: 0x58

A24 arduino demo source code-06- Ethernet LAN8720 by UDP

Thu, 07 Dec 2023 10:39:57 +0800

Code:
#include

#include

#define ETH_ADDR        0

#define ETH_POWER_PIN  -1

#define ETH_MDC_PIN    23

#define ETH_MDIO_PIN   18

#define ETH_TYPE       ETH_PHY_LAN8720

#define ETH_CLK_MODE   ETH_CLOCK_GPIO17_OUT

WiFiUDP Udp;                      //Create UDP object

unsigned int localUdpPort = 4196; //local port

// Set it based on the IP address of the router

IPAddress local_ip(192, 168, 1, 200);

IPAddress gateway(192, 168, 1, 1);

IPAddress subnet(255, 255, 255, 0);

IPAddress dns(192, 168, 1, 1);

void setup()

{

  Serial.begin(115200);

  Serial.println();

  ETH.begin(ETH_ADDR, ETH_POWER_PIN, ETH_MDC_PIN, ETH_MDIO_PIN, ETH_TYPE, ETH_CLK_MODE); //start with ETH

  // write confir for static IP, gateway,subnet,dns1,dns2

  if (ETH.config(local_ip, gateway, subnet, dns, dns) == false) {

    Serial.println("LAN8720 Configuration failed.");

  }else{Serial.println("LAN8720 Configuration success.");}

  Serial.println("Connected");

  Serial.print("IP Address:");

  Serial.println(ETH.localIP());

  Udp.begin(localUdpPort); //begin UDP listener

}

void loop()

{

  int packetSize = Udp.parsePacket(); //get package size

  if (packetSize)                     //if have received data

  {

    char buf[packetSize];

    Udp.read(buf, packetSize); //read current data

    Serial.println();

    Serial.print("Received: ");

    Serial.println(buf);

    Serial.print("From IP: ");

    Serial.println(Udp.remoteIP());

    Serial.print("From Port: ");

    Serial.println(Udp.remotePort());

    Udp.beginPacket(Udp.remoteIP(), Udp.remotePort()); //ready to send data

    Udp.print("Received: ");

    Udp.write((const uint8_t*)buf, packetSize); //copy data to sender buffer

    Udp.endPacket();            //send data

  }

}
