https://www.kincony.com/forum/ Sat, 02 May 2026 14:43:55 +0000 MyBB https://www.kincony.com/forum/showthread.php?tid=9255 Sat, 18 Apr 2026 10:44:23 +0800 admin]]> https://www.kincony.com/forum/showthread.php?tid=9255
  B16M_wiring.jpg (Size: 301.7 KB / Downloads: 55) ]]> https://www.kincony.com/forum/showthread.php?tid=9254 Sat, 18 Apr 2026 10:43:42 +0800 admin]]> https://www.kincony.com/forum/showthread.php?tid=9254
  KinCony-B16M-smart-controller-diagram.png (Size: 893.2 KB / Downloads: 50) ]]> https://www.kincony.com/forum/showthread.php?tid=8668 Thu, 23 Oct 2025 00:31:16 +0800 muellerjm]]> https://www.kincony.com/forum/showthread.php?tid=8668 https://www.kincony.com/forum/showthread.php?tid=8573 Sun, 21 Sep 2025 23:30:33 +0800 FELIX]]> https://www.kincony.com/forum/showthread.php?tid=8573


  B16A.jpg (Size: 11.64 KB / Downloads: 273) ]]> https://www.kincony.com/forum/showthread.php?tid=8460 Thu, 21 Aug 2025 14:17:03 +0800 jc10000rpm]]> https://www.kincony.com/forum/showthread.php?tid=8460
here is the commands i use:

ipaddress/ctrl.cgi?secret=mysecret&cmd=set_output&id=1&value=1
ipaddress/ctrl.cgi?secret=mysecret&cmd=set_output&id=1&value=0

the browser gives a message saying success, but the output does not come on.

here is example of output (but does not turn on)

{ "id": 1, "value": 1, "status": "success", "code": 0 }

i have program that runs that needs to be able to execute these commands very often and close together]]>
here is the commands i use:

ipaddress/ctrl.cgi?secret=mysecret&cmd=set_output&id=1&value=1
ipaddress/ctrl.cgi?secret=mysecret&cmd=set_output&id=1&value=0

the browser gives a message saying success, but the output does not come on.

here is example of output (but does not turn on)

{ "id": 1, "value": 1, "status": "success", "code": 0 }

i have program that runs that needs to be able to execute these commands very often and close together]]> https://www.kincony.com/forum/showthread.php?tid=8345 Sun, 27 Jul 2025 16:58:57 +0800 paulbalinnel]]> https://www.kincony.com/forum/showthread.php?tid=8345 Board Model
B16
Software Version
v3.9.4


HOME ASSISTANT

Installed version
2025.6.3
Latest version
2025.7.3

If I upgrade HA to the latest versions, the first 2 analog inputs become unavailable

I use MQTT (HA). All other entities are available.]]> Board Model
B16
Software Version
v3.9.4


HOME ASSISTANT

Installed version
2025.6.3
Latest version
2025.7.3

If I upgrade HA to the latest versions, the first 2 analog inputs become unavailable

I use MQTT (HA). All other entities are available.]]> https://www.kincony.com/forum/showthread.php?tid=8305 Mon, 07 Jul 2025 18:05:14 +0800 petermac]]> https://www.kincony.com/forum/showthread.php?tid=8305
Also have a KC868-HAv2 wired as per examples.  I can see the button inputs when using the PC software.

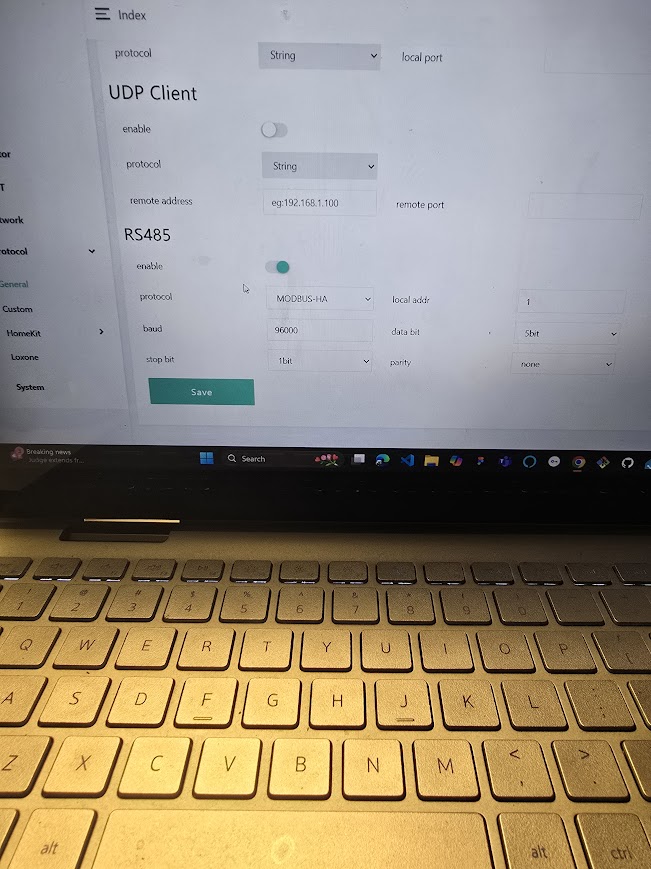

I have turned on RS485 in B16M protocol page with the same settings as per the KC868-HAv2.

How do I achieve the next step of having these button inputs active in Home Assistant - please ELI5.]]>
Also have a KC868-HAv2 wired as per examples.  I can see the button inputs when using the PC software.

I have turned on RS485 in B16M protocol page with the same settings as per the KC868-HAv2.

How do I achieve the next step of having these button inputs active in Home Assistant - please ELI5.]]> https://www.kincony.com/forum/showthread.php?tid=7887 Tue, 01 Apr 2025 15:49:46 +0800 PWJ]]> https://www.kincony.com/forum/showthread.php?tid=7887
Once installed all the inputs and outputs were greyed out and no matter what I did. So I started hunting for instructions. Found the forum but couldnt post (but thats another story) found the ESP32 YAML File for home assistant installed that via ESPHome from my home assistant. That worked too but I was still unable to control the relays from HA even though the buttons moved on my HA nothing was happening on the board.

Now when I try to connect via usb the unit connects then disconnect connects then disconnect as if its drawing too much current and dropping out.

Ive since spoken via we chat and discovered there are some more 12v inputs (I suspect these drive the relays) connected these up but now I am just unable to connect to the unit.

Unfortunately Im at work now so unable to try any suggestions until this evening when I get home, but I would be grateful for any help that might point me in the right direction please. Ideally I need to get this back on Tuya.

Thanks Peter]]>
Once installed all the inputs and outputs were greyed out and no matter what I did. So I started hunting for instructions. Found the forum but couldnt post (but thats another story) found the ESP32 YAML File for home assistant installed that via ESPHome from my home assistant. That worked too but I was still unable to control the relays from HA even though the buttons moved on my HA nothing was happening on the board.

Now when I try to connect via usb the unit connects then disconnect connects then disconnect as if its drawing too much current and dropping out.

Ive since spoken via we chat and discovered there are some more 12v inputs (I suspect these drive the relays) connected these up but now I am just unable to connect to the unit.

Unfortunately Im at work now so unable to try any suggestions until this evening when I get home, but I would be grateful for any help that might point me in the right direction please. Ideally I need to get this back on Tuya.

Thanks Peter]]> https://www.kincony.com/forum/showthread.php?tid=7787 Wed, 12 Mar 2025 06:19:05 +0800 Saif Kitany]]> https://www.kincony.com/forum/showthread.php?tid=7787
- when I configure the Esphome yaml file and start controlling the A32 pro by homeassistant, i loose kcs firmeware ( ican’t login kcs web page).

And when i reinstall kcs firmeware, then i loose the control by homeassistant!!

Why is it happening?]]>
- when I configure the Esphome yaml file and start controlling the A32 pro by homeassistant, i loose kcs firmeware ( ican’t login kcs web page).

And when i reinstall kcs firmeware, then i loose the control by homeassistant!!

Why is it happening?]]> https://www.kincony.com/forum/showthread.php?tid=7767 Fri, 07 Mar 2025 05:05:38 +0800 cycov]]> https://www.kincony.com/forum/showthread.php?tid=7767 What about dimming, can the PCF8575TS I2C I/O expander handle updates fast enough that dimming can be accomplished? What about just adding jumpers from the ESP to the I/O expander outputs to basically do PWM directly if PCF8575TS can't handle it?

Thank you]]> What about dimming, can the PCF8575TS I2C I/O expander handle updates fast enough that dimming can be accomplished? What about just adding jumpers from the ESP to the I/O expander outputs to basically do PWM directly if PCF8575TS can't handle it?

Thank you]]> https://www.kincony.com/forum/showthread.php?tid=7730 Thu, 27 Feb 2025 06:05:04 +0800 mattorola7]]> https://www.kincony.com/forum/showthread.php?tid=7730 I'm trying to install a Wika A-10 Pressure Sensor/Transmitter 8-30VDC 4-20mA P# 13361091. This is the first time I've used a 4-20ma sensor. I've used other 0-5V and 0-10V sensors before with voltage dividers and have been successful.

Can you help me understand how the A1 and A2 Analog Inputs on the B16M work to convert the 4-20ma signal into a voltage and what I should use for the gain? ChatGPT is trying to explain it to me but it describes using a 250ohm shunt resistor. How do I know what internal shunt resistor(s) have been used to convert the signal to be readable by the internal ads1115 chip?

I will be using 12VDC to excite the pressure sensor which is rated for 8-30VDC. The Wika test report shows that the sensor should produce 4ma at 0 bar and 20ma at 2.5 bar (36.2595 PSI). Here is a snapshot of my YAML code for esphome so far:

########################################################
# ADC
########################################################
ads1115:
 - address: 0x48
########################################################
# SENSORS
########################################################
sensor:
  - platform: ads1115
    id: "filter_pressure_voltage"
    name: "Filter Pressure Voltage"
    web_server:
      sorting_group_id: sortgroup_hidden_sensors
    device_class: voltage
    multiplexer: "A0_GND"
    gain: 6.144
    resolution: 16_BITS
    unit_of_measurement: "V"
    icon: mdi:lightning-bolt-circle
    internal: false
    update_interval: 5s
  - platform: template
    id: "filter_pressure_gauge"
    name: "Filter Pressure Gauge"
    web_server:
        sorting_group_id: sortgroup_sensors
    device_class: pressure
    lambda: |-
      // Pressure Sensor Model: Wika A-10 Pressure Transmitter 8-30VDC 4-20mA P# 13361091
      // Convert the voltage (1V to 5V) to PSI (0 to 36.2595 PSI)
      return (id(filter_pressure_voltage).state / 5.0) * 36.2595;
    unit_of_measurement: "PSI"
    accuracy_decimals: 2
    icon: mdi:gauge
    internal: false
    update_interval: 5s]]> I'm trying to install a Wika A-10 Pressure Sensor/Transmitter 8-30VDC 4-20mA P# 13361091. This is the first time I've used a 4-20ma sensor. I've used other 0-5V and 0-10V sensors before with voltage dividers and have been successful.

Can you help me understand how the A1 and A2 Analog Inputs on the B16M work to convert the 4-20ma signal into a voltage and what I should use for the gain? ChatGPT is trying to explain it to me but it describes using a 250ohm shunt resistor. How do I know what internal shunt resistor(s) have been used to convert the signal to be readable by the internal ads1115 chip?

I will be using 12VDC to excite the pressure sensor which is rated for 8-30VDC. The Wika test report shows that the sensor should produce 4ma at 0 bar and 20ma at 2.5 bar (36.2595 PSI). Here is a snapshot of my YAML code for esphome so far:

########################################################
# ADC
########################################################
ads1115:
 - address: 0x48
########################################################
# SENSORS
########################################################
sensor:
  - platform: ads1115
    id: "filter_pressure_voltage"
    name: "Filter Pressure Voltage"
    web_server:
      sorting_group_id: sortgroup_hidden_sensors
    device_class: voltage
    multiplexer: "A0_GND"
    gain: 6.144
    resolution: 16_BITS
    unit_of_measurement: "V"
    icon: mdi:lightning-bolt-circle
    internal: false
    update_interval: 5s
  - platform: template
    id: "filter_pressure_gauge"
    name: "Filter Pressure Gauge"
    web_server:
        sorting_group_id: sortgroup_sensors
    device_class: pressure
    lambda: |-
      // Pressure Sensor Model: Wika A-10 Pressure Transmitter 8-30VDC 4-20mA P# 13361091
      // Convert the voltage (1V to 5V) to PSI (0 to 36.2595 PSI)
      return (id(filter_pressure_voltage).state / 5.0) * 36.2595;
    unit_of_measurement: "PSI"
    accuracy_decimals: 2
    icon: mdi:gauge
    internal: false
    update_interval: 5s]]> https://www.kincony.com/forum/showthread.php?tid=7603 Tue, 11 Feb 2025 07:50:27 +0800 beon intelligent]]> https://www.kincony.com/forum/showthread.php?tid=7603




  20250210_193519.jpg (Size: 144.36 KB / Downloads: 510) ]]> https://www.kincony.com/forum/showthread.php?tid=7319 Sat, 04 Jan 2025 14:17:37 +0800 chaka]]> https://www.kincony.com/forum/showthread.php?tid=7319 Does MOSFET relays support 10A 12V DC?
I see in specs 10A but doesn't say if its AC or DC, please clarify.]]> Does MOSFET relays support 10A 12V DC?
I see in specs 10A but doesn't say if its AC or DC, please clarify.]]> https://www.kincony.com/forum/showthread.php?tid=7313 Fri, 03 Jan 2025 20:10:40 +0800 dolphin78]]> https://www.kincony.com/forum/showthread.php?tid=7313
I have followed the guide indicated on this page "https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html" step by step, but always after a few seconds of starting, the same error appears.

"8-download data fail"

Tips:
Maybe communication instability cuased this error, you can try to reduce the baud rate of download.

And in the rear command window (black window) appears:

test offset :  0 0x0
case ok
test offset :  0 0x0
case ok

Uploading stub...
Running stub...
Stub running...
Compressed 2718032 bytes to 1085371...
[2025-01-03 13:04:58,490][ESP8266Loader_spi[1]][espDownloader.py][line:606][ERROR]: ESP32S3 Chip flash download error esp_write_flash.



I'm sure i selected chipType: ESP32S3 on the initial screen, why appears "ESP8266Loader_spi" text? Is something wrong?

I have tried different cables, bauds anb firmware versions and managed to make the process last longer each time and the green bar grow more, but it still gives an error and never finishes successfully.

I don't know what to do anymore.

I have searched the forum but haven't found any case similar to mine.

What can I do, any help would be appreciated.
Thanks in advance.]]>
I have followed the guide indicated on this page "https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html" step by step, but always after a few seconds of starting, the same error appears.

"8-download data fail"

Tips:
Maybe communication instability cuased this error, you can try to reduce the baud rate of download.

And in the rear command window (black window) appears:

test offset :  0 0x0
case ok
test offset :  0 0x0
case ok

Uploading stub...
Running stub...
Stub running...
Compressed 2718032 bytes to 1085371...
[2025-01-03 13:04:58,490][ESP8266Loader_spi[1]][espDownloader.py][line:606][ERROR]: ESP32S3 Chip flash download error esp_write_flash.



I'm sure i selected chipType: ESP32S3 on the initial screen, why appears "ESP8266Loader_spi" text? Is something wrong?

I have tried different cables, bauds anb firmware versions and managed to make the process last longer each time and the green bar grow more, but it still gives an error and never finishes successfully.

I don't know what to do anymore.

I have searched the forum but haven't found any case similar to mine.

What can I do, any help would be appreciated.
Thanks in advance.]]> https://www.kincony.com/forum/showthread.php?tid=7286 Sun, 29 Dec 2024 18:29:40 +0800 TurSolution]]> https://www.kincony.com/forum/showthread.php?tid=7286 It is possible to do PWM to working with motor and PWM ,
If yes in which voltage?
If no what about the ads1115 it can be config as output or input it possible?

TurSolution]]> It is possible to do PWM to working with motor and PWM ,
If yes in which voltage?
If no what about the ads1115 it can be config as output or input it possible?

TurSolution]]>
