Do the relay on this board support DC as well as AC

Posted by: primeroz - 04-16-2023, 05:50 PM - Forum: KC868-A4 - Replies (1)

	In the docs I see the relay only indicate 10A 250V AC. Most relay module for Arduino I can see on AliExpress also support DC up to 30V. Do this relay support DC as well ? I need to drive an alarm Siren with it which expects 12V DC Thanks

KC868-E16S board/schematic errors

Posted by: AshS - 04-16-2023, 09:41 AM - Forum: KC868-E16S/E16P - Replies (7)

I have been trying to get the A1-A4 inputs working without success.

Working from this drawing: KC868-E16S schematic

I have found some errors:

[Image: KC868-E16-S-fault.png]

I have marked up the errors in red.

A1/CHA1 is connected to R92
A2CHA2 is connected to R91
A3/CHA3 is connected to R83
A4/CHA4 is connected to R82

It seems that the labelling on the board connectors, shown below, is incorrect.

[Image: Screenshot-2023-04-16-at-11-44-40.png]

A1 is connected to GPIO36
A2 is connected to GPIO34
A3 is connected to GPIO35
A4 is connected to GPIO39

Input AA1 is connected to LM224 pin 12
Input AA2 is connected to LM224 pin 10
Input AA3 is connected to LM224 pin 5
Input AA4 is connected to LM224 pin 3

The component labelling of the board matches the corrections that I have made for you on the drawing.

Additionally, you will see that two of the zero ohm resistors on my board, R82 and R83 are open circuit, marked with an X.

Please can you tell me how this can be resolved and provide a link to a correct drawing for my board.

Please can you confirm which GPIO is connected to which Analogue input.

Thank you.

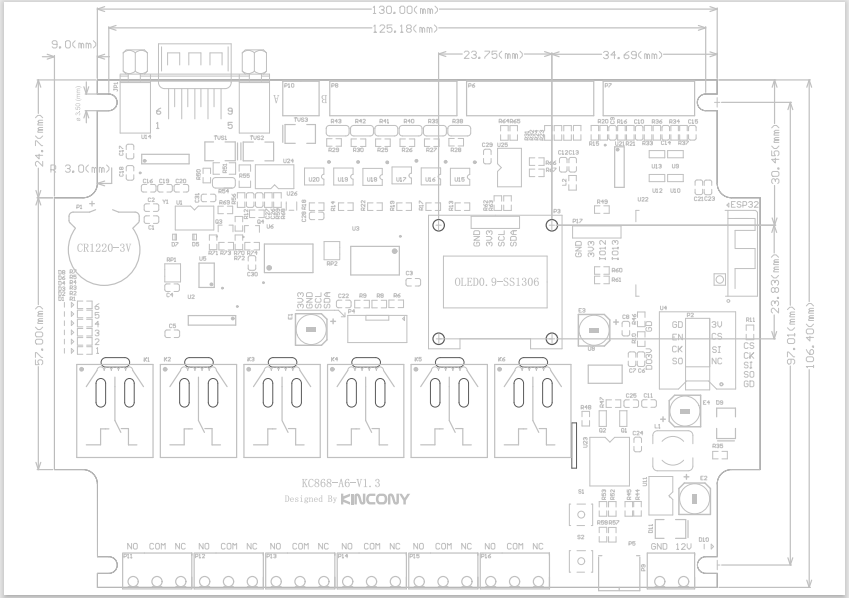

KC868-A6 PCB size details

Posted by: admin - 04-15-2023, 01:15 PM - Forum: KC868-A6 - No Replies

	A6 SIZE.pdf (Size: 52.1 KB / Downloads: 881)

Control relay on KC868-E16S from K868-AM using RS485

Posted by: AshS - 04-14-2023, 09:17 PM - Forum: KC868-AM - Replies (1)

	I am using ESPHome on a E16S and an AM board. I need to control 1 relay on the E16S from the AM board using RS485. Please can you tell me how do use this? I have not used RS485 before. Thank you.

KC868-A16 - Different digital Output modes

Posted by: oxedgar - 04-14-2023, 04:42 AM - Forum: DIY Project - Replies (8)

Hello, I try to get KCS-Firmware to work has i want...
I have one output to need to work in two modes ...
the first is normal On-OFF toggle with one input triggered (this work fine)
The the second mode is to delayed this same output if i trigger another input (this do not work)

The result is to provide one wall button to ON Off Light and for the same light one motion PIR not temporised to work with specific delay set in this smart controller!
Can i make this with KCS firmware?

[Arduino source code for KC868-A8M]-06 RS485

Posted by: KinCony Support - 04-14-2023, 03:19 AM - Forum: KC868-A8M - Replies (6)

[Arduino source code for KC868-A8M]-06 RS485

Code:
#define A8M_RS485_RX 15

#define A8M_RS485_TX 13

void setup() {

  Serial.begin(115200);

  Serial2.begin(115200,SERIAL_8N1,A8M_RS485_RX,A8M_RS485_TX);//A8M

  Serial2.println("A8M RS485 SEND is OK!!");

}

void loop() {

  /*print the received data of RS485 port*/

  while(Serial2.available()>0)

   {

    Serial2.print((char)Serial2.read());//Read rs485 receive data  and print it

   }

  delay(200);

}

Attached Files
.zip

KC868-A8M_RS485.zip (Size: 596 bytes / Downloads: 716)

[Arduino source code for KC868-A8M]-05 OUTPUT

Posted by: KinCony Support - 04-14-2023, 03:16 AM - Forum: KC868-A8M - No Replies

Code:
#include "Arduino.h"

#include "PCF8574.h"

#define SDA 5

#define SCL 4

PCF8574 pcf8574_RE1(0x24,SDA,SCL);//DO

void setup()

{

    Serial.begin(115200);

for(int i=0;i<=7;i++)

{

   pcf8574_RE1.pinMode(i, OUTPUT);

}

   pcf8574_RE1.begin();

for(int i=0;i<=7;i++)

{

  pcf8574_RE1.digitalWrite(i, LOW);delay(200);

}

for(int i=0;i<=7;i++)

{

  pcf8574_RE1.digitalWrite(i, HIGH);delay(200);

}

}

void loop()

{

  /******Output is all off by default, and can be turned

 on or off manually when pressed by the keypad**************/

for(int i=0;i<=7;i++)

{

  pcf8574_RE1.digitalWrite(i, HIGH);delay(100);

}

}

[Arduino source code for KC868-A8M]-05 OUTPUT

Attached Files
.zip

KC868-A8M_OUTPUT.zip (Size: 664 bytes / Downloads: 643)

[Arduino source code for KC868-A8M]-04 LAN8720_UDP

Posted by: KinCony Support - 04-14-2023, 03:16 AM - Forum: KC868-A8M - No Replies

[Arduino source code for KC868-A8M]-04 LAN8720_UDP

Code:
#include <ETH.h>

#include <WiFiUdp.h>

#define ETH_ADDR        0

#define ETH_POWER_PIN  -1

#define ETH_MDC_PIN    23

#define ETH_MDIO_PIN   18

#define ETH_TYPE       ETH_PHY_LAN8720

#define ETH_CLK_MODE   ETH_CLOCK_GPIO17_OUT

WiFiUDP Udp;                      //Create UDP object

unsigned int localUdpPort = 4196; //local port

// Set it based on the IP address of the router

IPAddress local_ip(192, 168, 1, 200);

IPAddress gateway(192, 168, 1, 1);

IPAddress subnet(255, 255, 255, 0);

IPAddress dns(192, 168, 1, 1);

void setup()

{

  Serial.begin(115200);

  Serial.println();

  ETH.begin(ETH_ADDR, ETH_POWER_PIN, ETH_MDC_PIN, ETH_MDIO_PIN, ETH_TYPE, ETH_CLK_MODE); //start with ETH

  // write confir for static IP, gateway,subnet,dns1,dns2

  if (ETH.config(local_ip, gateway, subnet, dns, dns) == false) {

    Serial.println("LAN8720 Configuration failed.");

  }else{Serial.println("LAN8720 Configuration success.");}

 /* while(!((uint32_t)ETH.localIP())) //wait for IP

  {

  }*/

  Serial.println("Connected");

  Serial.print("IP Address:");

  Serial.println(ETH.localIP());

  Udp.begin(localUdpPort); //begin UDP listener

}

void loop()

{

  int packetSize = Udp.parsePacket(); //get package size

  if (packetSize)                     //if have received data

  {

    char buf[packetSize];

    Udp.read(buf, packetSize); //read current data

    Serial.println();

    Serial.print("Received: ");

    Serial.println(buf);

    Serial.print("From IP: ");

    Serial.println(Udp.remoteIP());

    Serial.print("From Port: ");

    Serial.println(Udp.remotePort());

    Udp.beginPacket(Udp.remoteIP(), Udp.remotePort()); //ready to send data

    Udp.print("Received: ");

    Udp.write((const uint8_t*)buf, packetSize); //copy data to sender buffer

    Udp.endPacket();            //send data

  }

}

Attached Files
.zip

KC868-A8M_LAN8720_UDP.zip (Size: 1.13 KB / Downloads: 648)

[Arduino source code for KC868-A8M]-03 INPUT

Posted by: KinCony Support - 04-14-2023, 03:15 AM - Forum: KC868-A8M - No Replies

Code:
/*KC868-A8M input trigger output*/

#include "Arduino.h"

#include "PCF8574.h"

#define SDA 5

#define SCL 4

// Set i2c address

PCF8574 pcf8574_IN1(0x22,SDA,SCL);

PCF8574 pcf8574_RE(0x24,SDA,SCL);

unsigned long timeElapsed;

void setup()

{

    Serial.begin(115200);

    delay(1000);

    pcf8574_RE.pinMode(P0, OUTPUT);

    pcf8574_RE.pinMode(P1, OUTPUT);

    pcf8574_RE.pinMode(P2, OUTPUT);

    pcf8574_RE.pinMode(P3, OUTPUT);

    pcf8574_RE.pinMode(P4, OUTPUT);

    pcf8574_RE.pinMode(P5, OUTPUT);

    pcf8574_RE.pinMode(P6, OUTPUT);

    pcf8574_RE.pinMode(P7, OUTPUT);

    pcf8574_IN1.pinMode(P0, INPUT);

    pcf8574_IN1.pinMode(P1, INPUT);

    pcf8574_IN1.pinMode(P2, INPUT);

    pcf8574_IN1.pinMode(P3, INPUT);

    pcf8574_IN1.pinMode(P4, INPUT);

    pcf8574_IN1.pinMode(P5, INPUT);

    pcf8574_IN1.pinMode(P6, INPUT);

    pcf8574_IN1.pinMode(P7, INPUT);

    pcf8574_IN1.begin();

    pcf8574_RE.begin();

}

void loop()

{

uint8_t val1 = pcf8574_IN1.digitalRead(P0);

uint8_t val2 = pcf8574_IN1.digitalRead(P1);

uint8_t val3 = pcf8574_IN1.digitalRead(P2);

uint8_t val4 = pcf8574_IN1.digitalRead(P3);

uint8_t val5 = pcf8574_IN1.digitalRead(P4);

uint8_t val6 = pcf8574_IN1.digitalRead(P5);

uint8_t val7 = pcf8574_IN1.digitalRead(P6);

uint8_t val8 = pcf8574_IN1.digitalRead(P7);

if (val1==LOW) {

  pcf8574_RE.digitalWrite(P0,LOW);

  delay(100);

  }

else pcf8574_RE.digitalWrite(P0,HIGH);

if (val2==LOW) {

  pcf8574_RE.digitalWrite(P1,LOW);

  delay(100);

  }

else pcf8574_RE.digitalWrite(P1,HIGH);

if (val3==LOW)  {

  pcf8574_RE.digitalWrite(P2,LOW);

  delay(100);

  }

else pcf8574_RE.digitalWrite(P2,HIGH);

if (val4==LOW)  {

  pcf8574_RE.digitalWrite(P3,LOW);

  delay(100);

  }

else pcf8574_RE.digitalWrite(P3,HIGH);

if (val5==LOW)  {

  pcf8574_RE.digitalWrite(P4,LOW);

  delay(100);

  }

else pcf8574_RE.digitalWrite(P4,HIGH);

if (val6==LOW)  {

  pcf8574_RE.digitalWrite(P5,LOW);

  delay(100);

  }

else pcf8574_RE.digitalWrite(P5,HIGH);

if (val7==LOW)  {

  pcf8574_RE.digitalWrite(P6,LOW);

  delay(100);

  }

else pcf8574_RE.digitalWrite(P6,HIGH);

if (val8==LOW)  {

  pcf8574_RE.digitalWrite(P7,LOW);

  delay(100);

  }

else pcf8574_RE.digitalWrite(P7,HIGH);

    delay(300);

}

[Arduino source code for KC868-A8M]-03 INPUT

Attached Files
.zip

KC868-A8M_INPUT.zip (Size: 822 bytes / Downloads: 681)

[Arduino source code for KC868-A8M]-02 DS18B20

Posted by: KinCony Support - 04-14-2023, 03:15 AM - Forum: KC868-A8M - Replies (2)

Code:
#include <DS18B20.h>

DS18B20 ds(14);   //IO13

void setup() {

  Serial.begin(115200);

}

void loop() {

    Serial.printf("Temperature: %.2f C\n",ds.getTempC());

    delay(1000);

}

[Arduino source code for KC868-A8M]-02 DS18B20

Attached Files
.zip

KC868-A8M_DS18B20.zip (Size: 514 bytes / Downloads: 685)
