KC868-AK Firmware

[v1rtus]

I have recently purchased the KC868-AK ESP32 keyboard and I have a few questions:

1. Does it has already firmware? Or I need to flash it?

2. With the keyboard I got RS232 cable, however I haven't found what each color means (Yellow, Blue, Brown vs Rx,Tx,Ground)

3. Is it possible that when I click a button state will be sent via RS485 for example to RaspberryPI?


Thank you in advance!

[admin]

1. Yes, it already have firmware inside, if you want to use by home assistant, KC868-AK support download your yaml config file by ESPHome.
2. RS232 mainly use RXD,TXD,GND. Here you can see the Pin define. what RS232 cable you have used? black color or white color? can you take a photo.

3. sure, now you pressed one button, will send command to RS232 and RS485, just RS485 use by modbus protocol command.

how to use KC868-AK guide: https://www.kincony.com/how-to-use-progr...board.html

[v1rtus]

Thank you for the prompt answer. I have a RS232 cable that came together with the keyboard. It has 3 wires -> Yellow, Blue, Brown and cable itself is black.

[admin]

You can see this photo and some details pin define at here: https://www.kincony.com/how-to-use-kc868...oller.html
check the RS232 cable pin define:

[v1rtus]

I was setting up the module today and noticed that if I would like to perform Off action on multiple relays it works only in case if the setup is 1-32, however if I set for example 2-11 it does not work. Firmware version 1.0.6.

[admin]

take your KC868-AK webpage screen photo of your setting. we want to see whole settings, then we will test.

[v1rtus]

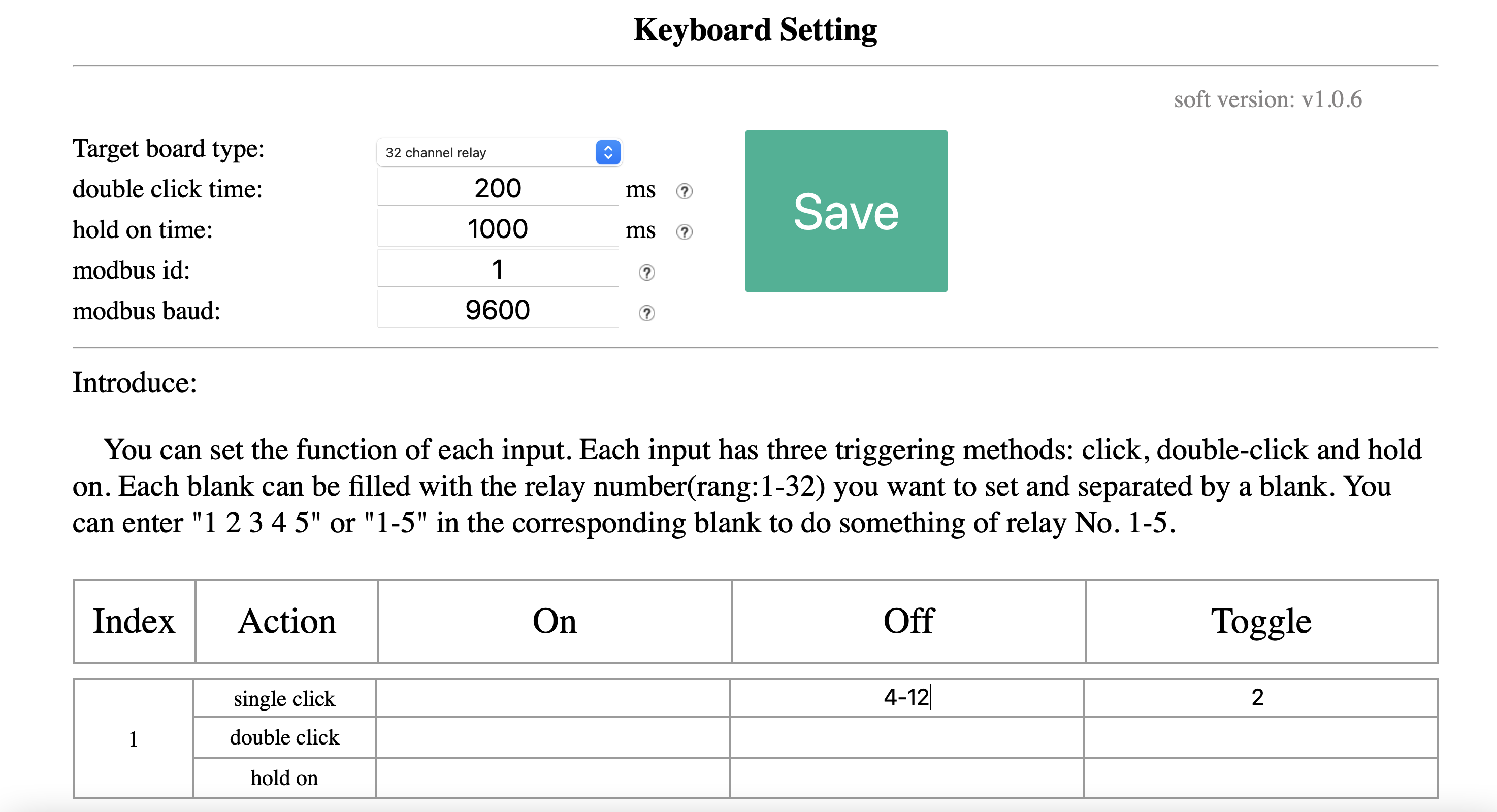

There is screenshot, the first input should turn off outputs 4-12, however it does not happen. It only works when setup is 1-32

[admin]

do you using RS232 or RS485 connect to your relay controller?

[admin]

what's your KC868-AK's firmware version?

[v1rtus]

Firmware version: 1.0.6
I am using RS232 to connect to 32 channel relay controller
