Relay selection
#11
(10-08-2023, 09:27 AM)admin Wrote: can you change another power supply for a test? not use LED power supply.

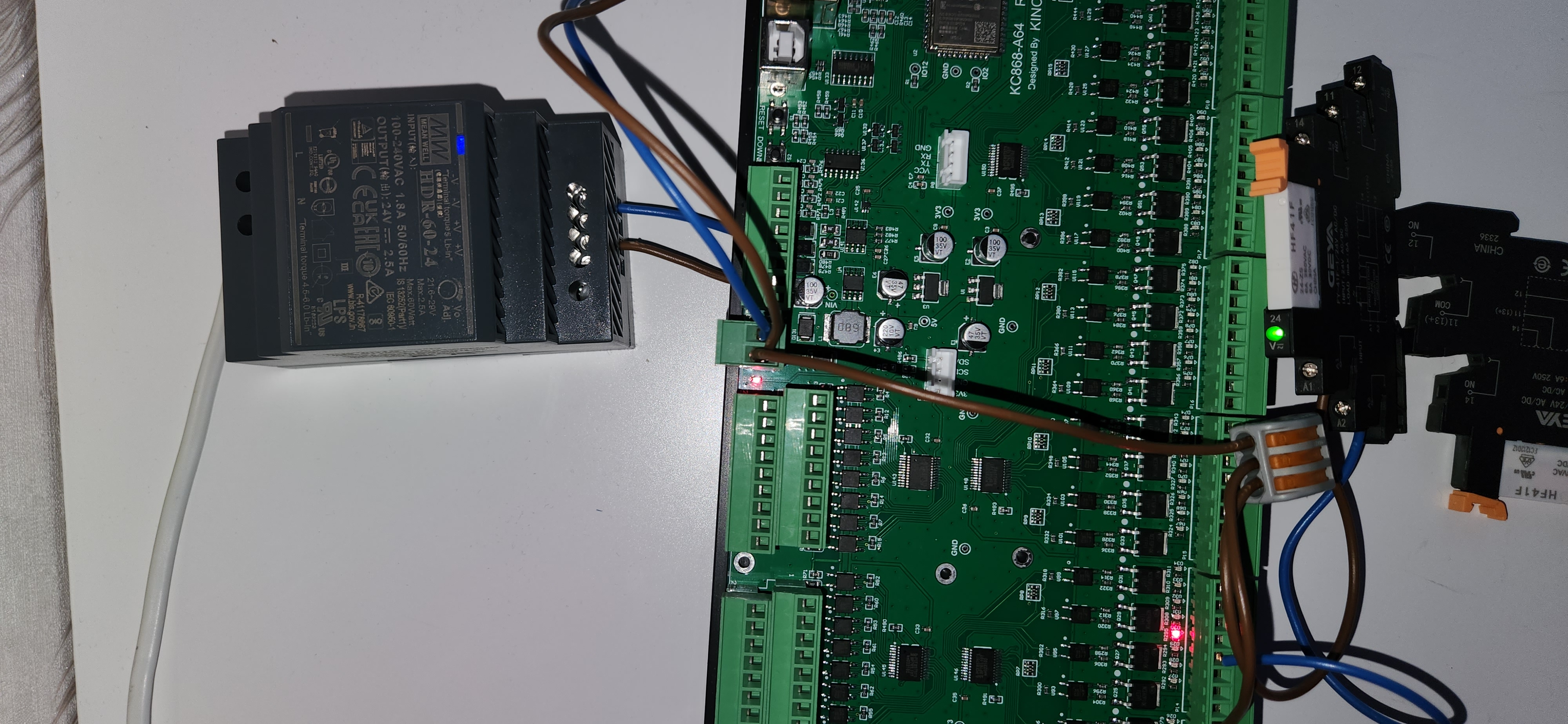

I bought power supply that support recommended.
If it is connected to my circuit, then the indicators are as follows:
The voltage of the digital output without load is 22.5V.
When the relay is connected, the voltage is 8V.
If you pull the SSR out of the relay, the voltage is 12.7V.

Bad bad bad


Attached Files Image(s)

Reply
#12
we will test with this SSR relay, then feedback to you.
Reply
#13
(10-08-2023, 02:18 PM)admin Wrote: we will test with this SSR relay, then feedback to you.

Please, test with this one:
https://aliexpress.ru/item/1005005623893...0395154aed
Reply
#14
yes, we already bought this relay, wait it arrived, will test it.
Reply
#15
(10-09-2023, 10:39 PM)admin Wrote: yes, we already bought this relay, wait it arrived,  will test it.

I'm sure there's nothing wrong with your development, I just received a non-working device.  I simply don’t have the space for another arrangement of devices.  When will you receive the parcel?  Dispute on aliexpress until October 13.
Reply
#16
today will receive relay sample for testing.
Reply
#17

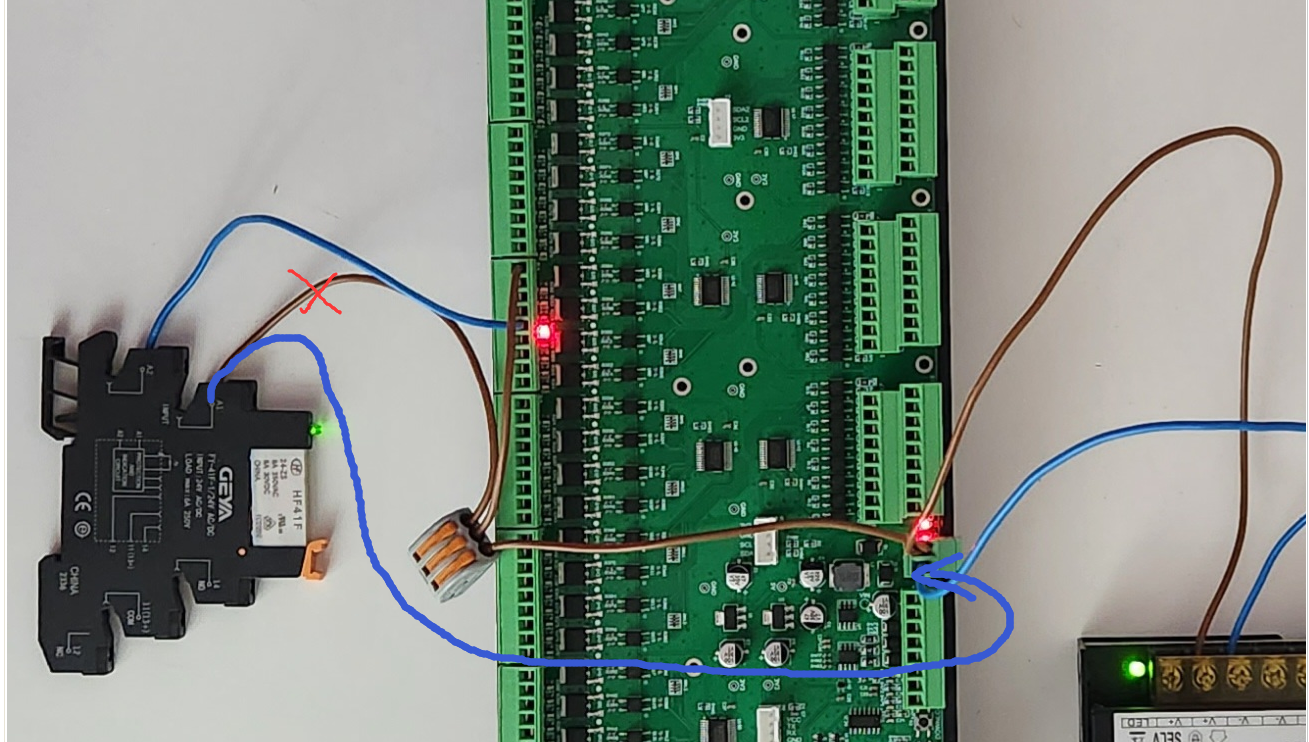

A64 board is no problem, your relay wire wrong. the coin wire it should connect to GND, see this photo.

Reply
#18
(10-11-2023, 12:51 AM)admin Wrote: A64 board is no problem, your relay wire wrong. the coin wire it should connect to GND, see this photo.

Yes. Everything is fine now. Thanks!
Reply
#19
ok, good
