Dimensions for KC868-E16 V2

[lulu01]

Hello,

do you have the exact dimensions (H x h x l) for the KC868-E16 V2 board? I'm especially interested in knowing how much it protrudes towards the front - the minimum distance from the DIN rail that I need to have available.

Thank you!

[admin]

OK, on Monday when we begin work, will take photo of size to you.

[admin]

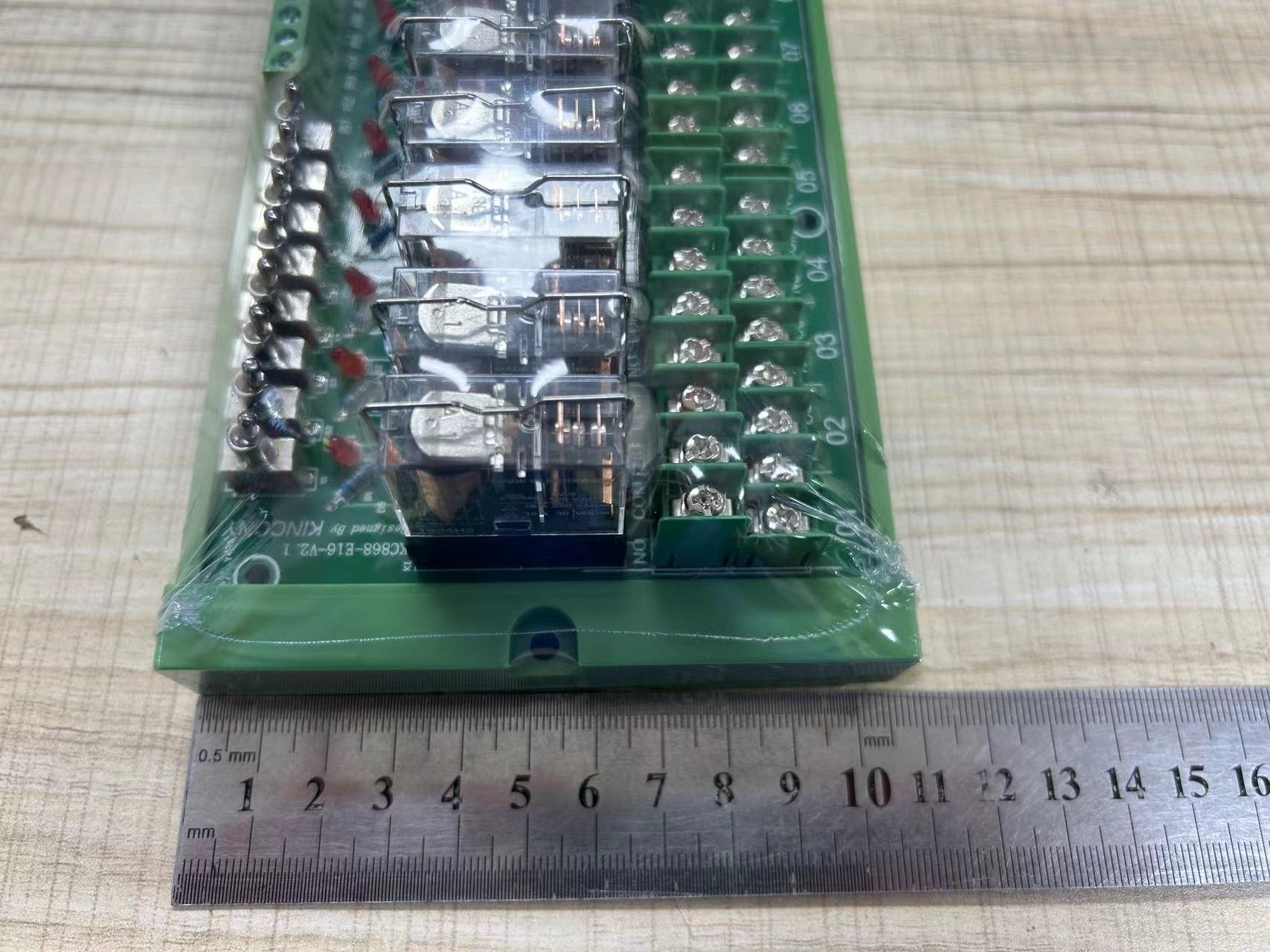

size is 275mm*105mm*55mm. you can check with photo.




[lulu01]

Excellent, thank you!

[Aphiana]

thank you

[davisjame]

I don't have the exact dimensions on hand, but I recommend checking the manufacturer's website or the product manual for detailed specifications. If you can’t find it there, reaching out to their support team might also help. Good luck!
