Smart Home Automation Forum › Technical Support › KC868-A16S
No output DO1-DO16

Thread Rating:
  • 0 Vote(s) - 0 Average
  • 1
  • 2
  • 3
  • 4
  • 5
Threaded Mode
No output DO1-DO16
jeftevag Offline
Junior Member
**
Posts: 10
Threads: 5
Joined: Jan 2024
Reputation: 0
#1
08-31-2025, 04:10 PM (This post was last modified: 08-31-2025, 04:52 PM by jeftevag.)

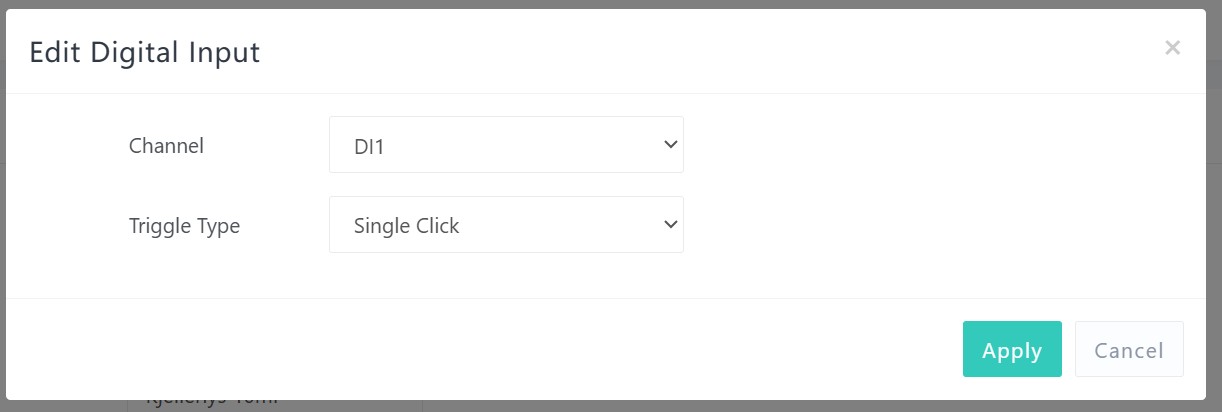

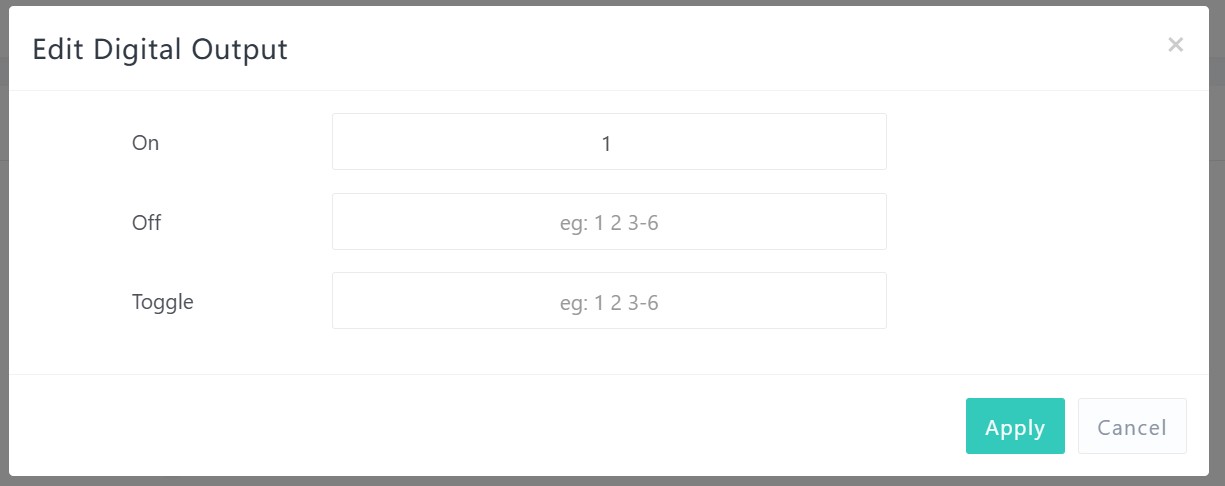

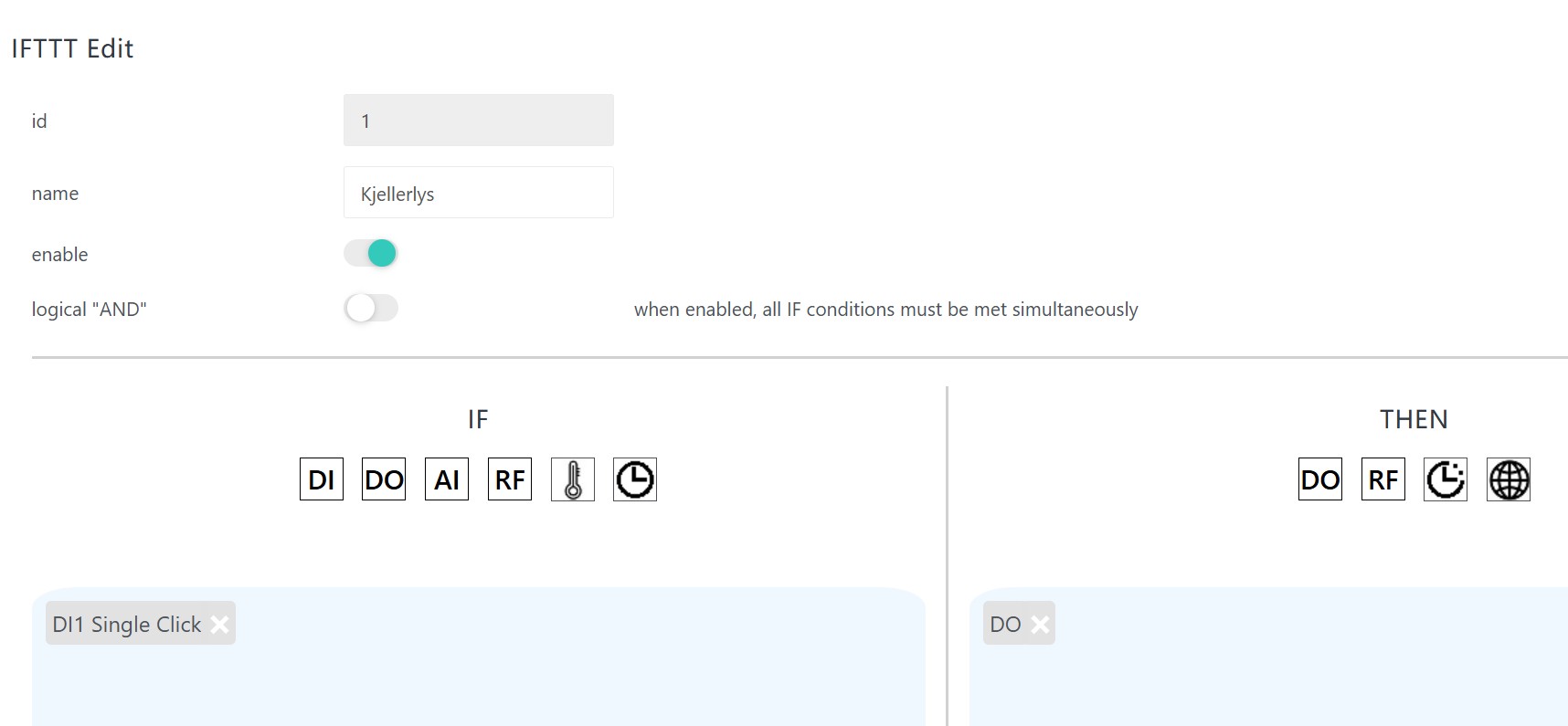

When D1 input is pulled low, the input symbol i the web interface turns green, but the D1 output does not respond. The input push-switches does not do anything. In IFTTT i have: IF DI1  single click, THEN DO 1 ON. When i click RUN, it works fine, but not when i pull DI1 input low og push the DI1 switch. I run firmware version KCS_KC868_E16P_V2.2.14


Attached Files Image(s)

Find
Reply
admin Offline
Administrator
*******
Posts: 9,077
Threads: 1,202
Joined: Oct 2020
Reputation: 235
#2
09-01-2025, 12:11 AM
1: please chose "Raise edge" for "triggle type".
2: after save ifttt, reboot your board.
YouTube: https://www.youtube.com/c/KinCony
Online Store: https://shop.kincony.com
Alibaba Store: https://kincony.en.alibaba.com/
Find
Reply
jeftevag Offline
Junior Member
**
Posts: 10
Threads: 5
Joined: Jan 2024
Reputation: 0
#3
09-01-2025, 03:01 AM
Rising Edge worked fine, thank you Smile
Find
Reply
