I've connected 24V in the output, but the output is only 19V, when high. Like this I can't connect any 24V relay. Is it correct like this?

Also I've conneced like this and I only press 1 output but 2 outputs activate the relay


[attachment=3194]
do you have connect 24v dc work as A16's power supply? all voltage in ports you have connected are dc24v?
(10-05-2023, 10:45 AM)admin Wrote: [ -> ]do you have connect 24v dc work asĀ  A16's power supply? all voltage in ports you have connected are dc24v?

To the board A16 power supply i've connected 12V (the one that came with the board)
To the output ports, all with 24V.
all connect with DC24v power supply.
(10-06-2023, 12:46 AM)admin Wrote: [ -> ]all connect with DC24v power supply.

Even the a16 main board. Its says ONLY 12V.
Thanks for your replie.
yes, A16 power supply also support use DC24v. it support dc12-24v
(10-06-2023, 07:47 AM)admin Wrote: [ -> ]yes, A16 power supply also support use DC24v. it support dc12-24v

It worked!!!!! Thanks!!!!

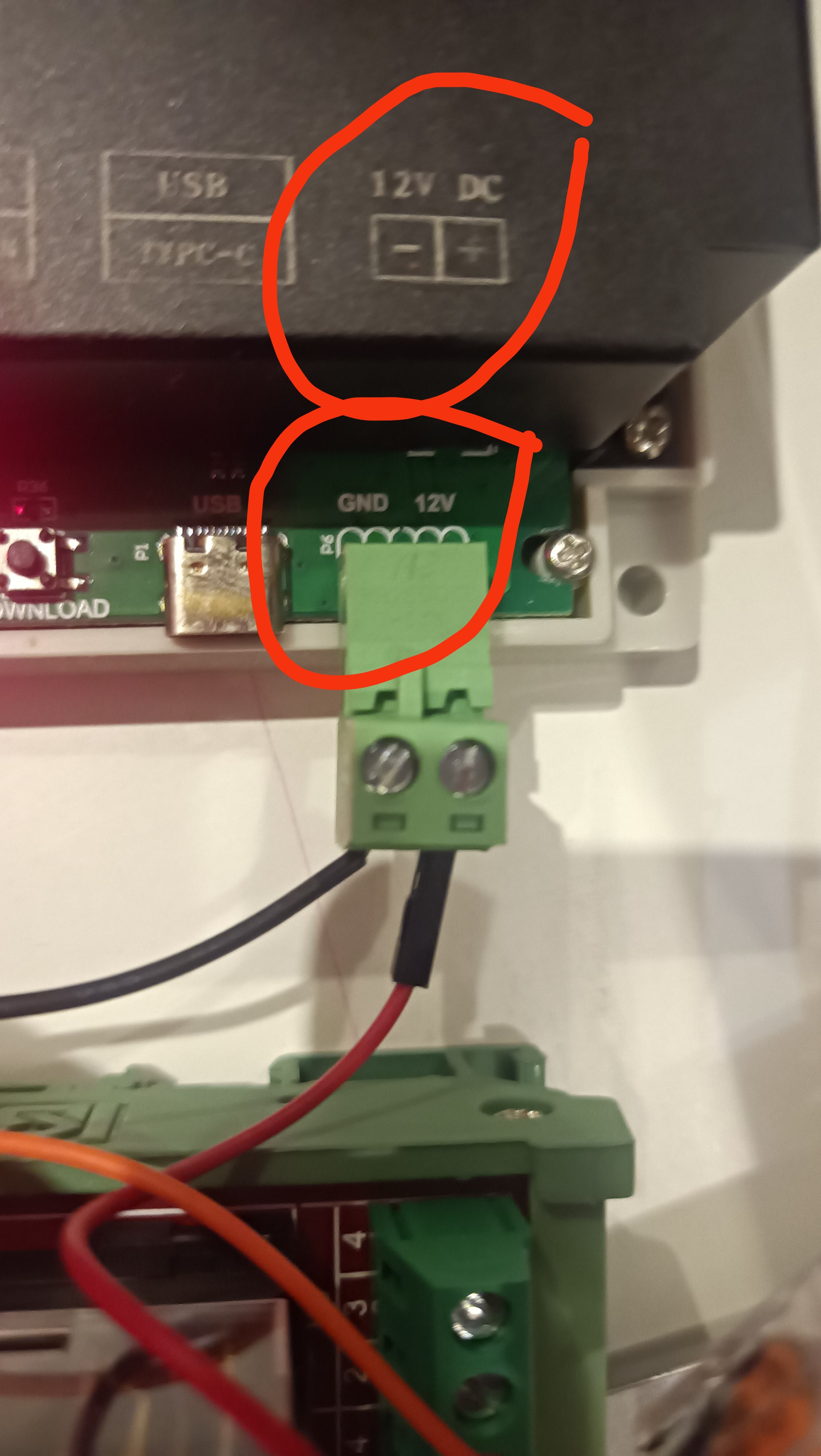

Sugestion: update the name on the board.
[attachment=3197]
ok, before we use for 12v, but later we have updated PCB support dc12-24v work voltage.
(10-07-2023, 12:13 AM)admin Wrote: [ -> ]ok, before we use for 12v, but later we have updated PCB support dc12-24v work voltage.

I just got my 2 boards today and I just wanted to make sure I understand this right.

I have KC868-A16 Rev 1.6. And I want to use digital inputs and outputs in a 24V system.

So I can power the board with 24V and use 24V on IO Ports?
The board says 12V on the power connector... but I can connect safely 24V?

Thanks!!
