  [arduino code examples for B16M]-05 Read free GPIO state
Posted by: admin - 09-27-2024, 02:27 AM - Forum: B16M - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* GPIO Status Monitoring
*
* This program monitors the status (high or low) of multiple GPIO pins on the ESP32-S3.
* It prints the status of the pins to the serial monitor whenever a change is detected.
*
* GPIO Pins Monitored:
* - GPIO 40
* - GPIO 15
* - GPIO 48
* - GPIO 47
* - GPIO 13
* - GPIO 14
* - GPIO 21
* - GPIO 0
*
* Hardware Requirements:
* - Connect the pins to appropriate devices or pull them to HIGH/LOW for testing
*/

#define GPIO_PIN_40 40
#define GPIO_PIN_15 15
#define GPIO_PIN_48 48
#define GPIO_PIN_47 47
#define GPIO_PIN_13 13
#define GPIO_PIN_14 14
#define GPIO_PIN_21 21
#define GPIO_PIN_0 0

// Store the previous state of the GPIO pins
bool prevState[8] = {false, false, false, false, false, false, false, false};

void setup() {
  // Initialize serial communication for debugging purposes
  Serial.begin(115200); // Initialize the serial monitor at 115200 baud
  while (!Serial);      // Wait for the serial monitor to open

  // Initialize GPIO pins as inputs
  pinMode(GPIO_PIN_40, INPUT);
  pinMode(GPIO_PIN_15, INPUT);
  pinMode(GPIO_PIN_48, INPUT);
  pinMode(GPIO_PIN_47, INPUT);
  pinMode(GPIO_PIN_13, INPUT);
  pinMode(GPIO_PIN_14, INPUT);
  pinMode(GPIO_PIN_21, INPUT);
  pinMode(GPIO_PIN_0, INPUT);

  Serial.println("GPIO Status Monitoring Started");
}

void loop() {
  // Read the current state of each GPIO pin
  bool currentState[8];
  currentState[0] = digitalRead(GPIO_PIN_40);
  currentState[1] = digitalRead(GPIO_PIN_15);
  currentState[2] = digitalRead(GPIO_PIN_48);
  currentState[3] = digitalRead(GPIO_PIN_47);
  currentState[4] = digitalRead(GPIO_PIN_13);
  currentState[5] = digitalRead(GPIO_PIN_14);
  currentState[6] = digitalRead(GPIO_PIN_21);
  currentState[7] = digitalRead(GPIO_PIN_0);

  // Check for changes in GPIO pin states
  for (int i = 0; i < 8; i++) {
    if (currentState[i] != prevState[i]) {
      // Print the pin number and its new state if it has changed
      Serial.print("GPIO ");
      Serial.print(i == 0 ? GPIO_PIN_40 :
                   i == 1 ? GPIO_PIN_15 :
                   i == 2 ? GPIO_PIN_48 :
                   i == 3 ? GPIO_PIN_47 :
                   i == 4 ? GPIO_PIN_13 :
                   i == 5 ? GPIO_PIN_14 :
                   i == 6 ? GPIO_PIN_21 : GPIO_PIN_0);
      Serial.print(" changed to ");
      Serial.println(currentState[i] ? "HIGH" : "LOW");
      // Update the previous state
      prevState[i] = currentState[i];
    }
  }

  // Delay to avoid flooding the serial monitor
  delay(100); // Adjust the delay as needed
}
arduino ino file download:
.zip   5-free-gpio-state.zip (Size: 1.05 KB / Downloads: 769)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:
.zip   5-free-gpio-state.ino.merged.zip (Size: 179.77 KB / Downloads: 800)

Print this item

  [arduino code examples for B16M]-04 RS485 communication test
Posted by: admin - 09-27-2024, 02:26 AM - Forum: B16M - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* RS485 Communication Test
*
* This program is a simple test for RS485 communication using ESP32-S3.
* It will send a message over RS485 and then read incoming messages.
* The TXD pin is defined as GPIO 18 and RXD pin is defined as GPIO 8.
*/

#include <HardwareSerial.h>

// Define RS485 pins
#define RS485_RXD 8
#define RS485_TXD 18

// Create a hardware serial object
HardwareSerial rs485Serial(1);

void setup() {
  // Start serial communication for debugging
  Serial.begin(115200);
  while (!Serial);

  // Initialize RS485 Serial communication
  rs485Serial.begin(9600, SERIAL_8N1, RS485_RXD, RS485_TXD);

  Serial.println("RS485 Test Start");
}

void loop() {
  // Send a test message
  rs485Serial.println("Hello from KinCony F16!");

  // Wait for a short period
  delay(1000);

  // Check if data is available to read
  if (rs485Serial.available()) {
    String receivedMessage = "";
    while (rs485Serial.available()) {
      char c = rs485Serial.read();
      receivedMessage += c;
    }
    // Print the received message
    Serial.print("Received: ");
    Serial.println(receivedMessage);
  }

  // Wait before sending the next message
  delay(2000);
}
arduino ino file download:
.zip   4-RS485-Test.zip (Size: 762 bytes / Downloads: 761)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:
.zip   4-RS485-Test.ino.merged.zip (Size: 184.53 KB / Downloads: 780)

Print this item

  [arduino code examples for B16M]-03 Read ADS1115 analog input ports value
Posted by: admin - 09-27-2024, 02:24 AM - Forum: B16M - No Replies

Code:
/*
* This program reads voltage values from the ADS1115 analog-to-digital converter
* on all four channels (A0, A1, A2, A3) and prints the results through the serial port.
* The ADS1115 communicates via the I2C protocol. This version of the code includes
* the capability to specify custom SDA and SCL pins for I2C communication.
*
* Copyright: Made by KinCony IoT: https://www.kincony.com
*
*/

#include <Wire.h>                // Library for I2C communication
#include <DFRobot_ADS1115.h>     // Library for ADS1115 ADC module

// Define the I2C SDA and SCL pins for communication with ADS1115
#define SDA_PIN 38
#define SCL_PIN 39

// Initialize ADS1115 instance using the Wire library
DFRobot_ADS1115 ads(&Wire);

void setup(void)
{
    // Begin serial communication at a baud rate of 115200
    Serial.begin(115200);

    // Initialize the I2C bus using the defined SDA and SCL pins
    Wire.begin(SDA_PIN, SCL_PIN);

    // Set the I2C address for the ADS1115 (default: 0x49)
    ads.setAddr_ADS1115(ADS1115_IIC_ADDRESS0);   // Address is 0x49

    // Set the gain for the ADS1115 (2/3x gain allows for a maximum input voltage of 6.144V)
    ads.setGain(eGAIN_TWOTHIRDS);

    // Set the ADS1115 to operate in single-shot mode (each reading is a single conversion)
    ads.setMode(eMODE_SINGLE);

    // Set the sample rate to 128 samples per second (SPS)
    ads.setRate(eRATE_128);

    // Set the operational status mode to single-conversion start
    ads.setOSMode(eOSMODE_SINGLE);

    // Initialize the ADS1115 module
    ads.init();
}

void loop(void)
{
    // Check if the ADS1115 is properly connected and functioning
    if (ads.checkADS1115())
    {
        // Variables to store the voltage readings for each channel
        int16_t adc0, adc1, adc2, adc3;

        // Read the voltage from channel A0 and print the value
        adc0 = ads.readVoltage(0);
        Serial.print("A0:");
        Serial.print(adc0);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A1 and print the value
        adc1 = ads.readVoltage(1);
        Serial.print("A1:");
        Serial.print(adc1);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A2 and print the value
        adc2 = ads.readVoltage(2);
        Serial.print("A2:");
        Serial.print(adc2);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A3 and print the value
        adc3 = ads.readVoltage(3);
        Serial.print("A3:");
        Serial.print(adc3);
        Serial.println("mV");     // Print the value in millivolts and end the line
    }
    else
    {
        // If ADS1115 is not connected, print a message indicating disconnection
        Serial.println("ADS1115 Disconnected!");
    }

    // Wait for 1 second before the next loop iteration
    delay(1000);
}
arduino ino file download:
.zip   3-ads1115_adc.zip (Size: 1.2 KB / Downloads: 835)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:
.zip   3-ads1115_adc.ino.merged.zip (Size: 190.35 KB / Downloads: 831)

Print this item

  [arduino code examples for B16M]-02 Read digital input ports state
Posted by: admin - 09-27-2024, 02:22 AM - Forum: B16M - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* Description:
* This Arduino program reads the state of a 16-channel PCF8575 I/O expander
* and prints the state of all input pins to the Serial Monitor. The state of
* each pin is represented as a bit in a 16-bit value, where each bit corresponds
* to an input pin. The program prints the input state in binary format.
*
* Pin Definitions:
* - SDA: GPIO 38
* - SCL: GPIO 39
* - PCF8575 I2C Address: 0x24
*/

#include "Arduino.h"
#include "PCF8575.h"

// Define I2C pins
#define I2C_SDA 38  // Define SDA pin
#define I2C_SCL 39  // Define SCL pin

// Set I2C address
PCF8575 pcf8575_IN1(0x24); // The I2C address of the PCF8575

void setup() {
    Serial.begin(115200);

    // Initialize I2C communication
    Wire.begin(I2C_SDA, I2C_SCL); // Initialize I2C with defined SDA and SCL pins

    pcf8575_IN1.begin(); // Initialize the PCF8575

    Serial.println("KinCony F16 16 channel input state 0:ON  1:OFF");
}

void loop() {
    uint16_t state = 0;

    // Read the state of each pin (assuming 16 pins)
    for (int pin = 0; pin < 16; pin++) {
        if (pcf8575_IN1.read(pin)) {
            state |= (1 << pin); // Set the bit for the active pin
        }
    }

    Serial.print("Input state: ");
    Serial.println(state, BIN); // Print the state of inputs in binary

    delay(500); // Delay 500ms
}
arduino ino file download:
.zip   2-digital-input.zip (Size: 840 bytes / Downloads: 815)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:
.zip   2-digital-input.ino.merged.zip (Size: 189.81 KB / Downloads: 761)

Print this item

  [arduino code examples for B16M]-01 Turn ON/OFF OUTPUT
Posted by: admin - 09-27-2024, 02:19 AM - Forum: B16M - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This program controls a 16-channel relay board via a PCF8575 I/O expander.
* It sequentially turns on each relay and then turns them off in a loop.
*
* Pin Definitions:
* - SDA: GPIO 38
* - SCL: GPIO 39
*
* Delay Time:
* - 200 milliseconds between switching relays
*/

#include <Wire.h>        // Include the Wire library for I2C communication
#include <PCF8575.h>     // Include the PCF8575 library to control the I/O expander

#define SDA 38           // Define the SDA pin
#define SCL 39           // Define the SCL pin
#define DELAY_TIME 200   // Define the delay time in milliseconds

// Set I2C address of the PCF8575 module
#define I2C_ADDRESS 0x25 // I2C address of the PCF8575 module

PCF8575 pcf8575_R1(I2C_ADDRESS); // Create a PCF8575 object with the specified I2C address

void setup() {
  // Initialize I2C communication
  Wire.begin(SDA, SCL); // SDA on GPIO 8, SCL on GPIO 18 (according to your board's configuration)

  // Initialize serial communication for debugging (optional)
  Serial.begin(115200);
  Serial.println("PCF8575 Relay Control: Starting...");

  // Initialize the PCF8575 module
  pcf8575_R1.begin();

  // Turn off all relays initially (set all pins HIGH)
  for (int i = 0; i < 16; i++) {
    pcf8575_R1.write(i, HIGH); // Set all relays to OFF (assuming HIGH means OFF for relays)
  }
}

void loop() {
  // Sequentially turn on each relay
  for (int i = 0; i < 16; i++) {
    pcf8575_R1.write(i, LOW);   // Turn on the relay at pin i (LOW means ON for the relay)
    delay(DELAY_TIME);          // Wait for DELAY_TIME milliseconds
  }

  // Sequentially turn off each relay
  for (int i = 0; i < 16; i++) {
    pcf8575_R1.write(i, HIGH);  // Turn off the relay at pin i (HIGH means OFF for the relay)
    delay(DELAY_TIME);          // Wait for DELAY_TIME milliseconds
  }
}
arduino ino file download:
.zip   1-output.zip (Size: 931 bytes / Downloads: 807)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:
.zip   1-output.ino.merged.zip (Size: 189.62 KB / Downloads: 800)

Print this item

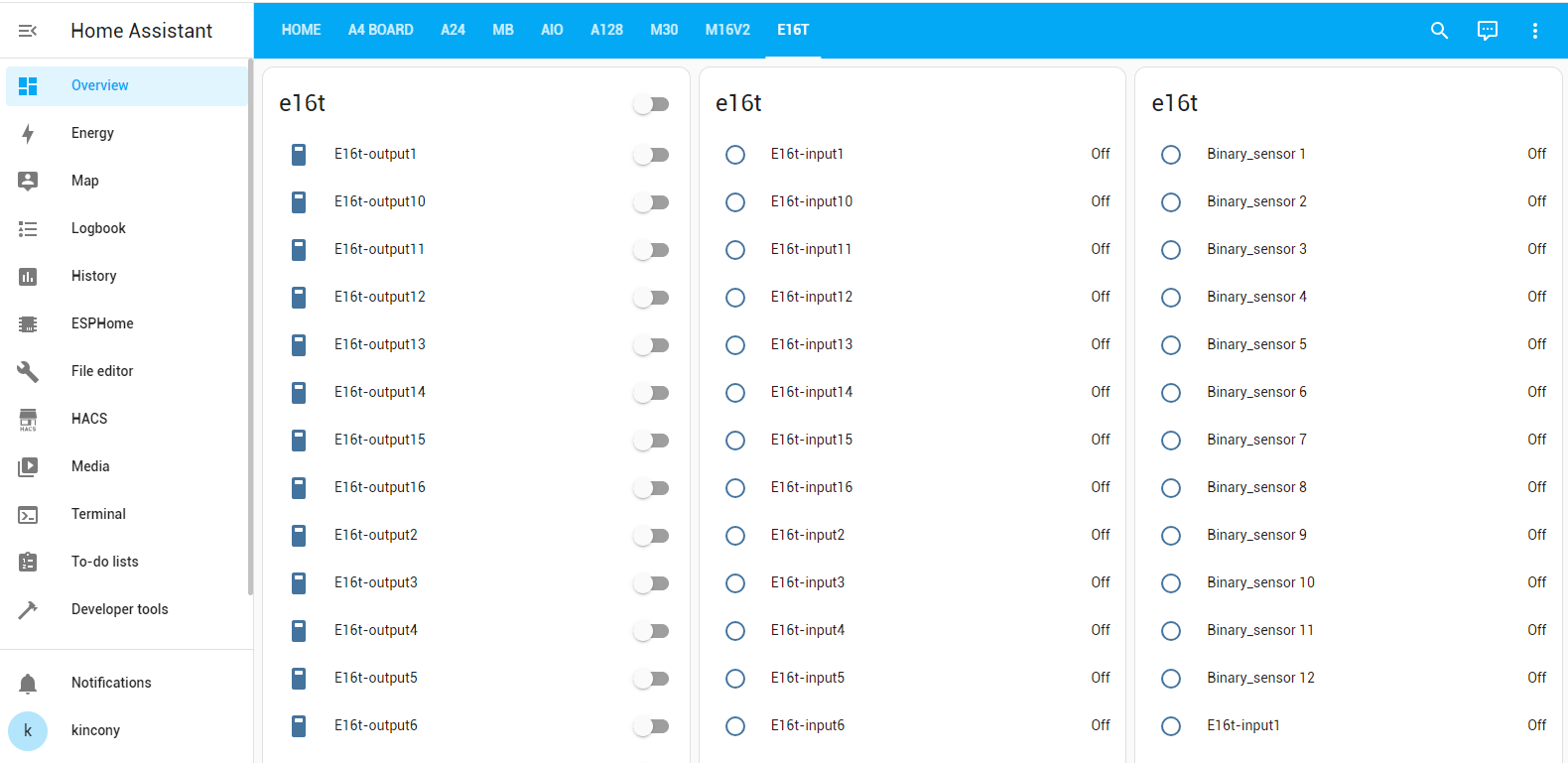

  B16M ESPHome yaml for home assistant with tuya
Posted by: admin - 09-27-2024, 02:16 AM - Forum: B16M - No Replies

Code:
esphome:
  name: b16m
  friendly_name: b16m
  platformio_options:
    board_build.flash_mode: dio
esp32:
  board: esp32-s3-devkitc-1
  framework:
    type: esp-idf

# Enable logging
logger:
  hardware_uart: USB_SERIAL_JTAG
# Enable Home Assistant API
api:
  encryption:
    key: "WeVOuL5oNhjXcfzXtTirlOwvtWvCD5yqIxd3oV4es1k="

ethernet:
  type: W5500
  clk_pin: GPIO42
  mosi_pin: GPIO43
  miso_pin: GPIO44
  cs_pin: GPIO41
  interrupt_pin: GPIO2
  reset_pin: GPIO1

i2c:
   - id: bus_a
     sda: 38
     scl: 39
     scan: true
     frequency: 400kHz

pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-16
    i2c_id: bus_a
    address: 0x25
    pcf8575: true

  - id: 'pcf8574_hub_in_1'  # for input channel 1-16
    i2c_id: bus_a
    address: 0x24
    pcf8575: true

uart:
  - id: uart_1
    baud_rate: 9600
    debug:
      direction: BOTH
      dummy_receiver: true
      after:
        timeout: 10ms
    tx_pin: 18
    rx_pin: 8

switch:
  - platform: uart
    uart_id: uart_1
    name: "RS485 Button"
    data: [0x11, 0x22, 0x33, 0x44, 0x55]

  - platform: gpio
    name: "b16m-output01"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output02"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output03"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output04"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output05"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output06"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output07"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output08"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output09"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 8
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output10"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 9
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output11"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output12"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output13"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output14"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output15"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "b16m-output16"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 15
      mode: OUTPUT
      inverted: true

binary_sensor:
  - platform: gpio
    name: "b16m-input01"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input02"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input03"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input04"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input05"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input06"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input07"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input08"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input09"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input10"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input11"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input12"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input13"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input14"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input15"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "b16m-input16"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 15
      mode: INPUT
      inverted: true
##pull-up resistance on PCB
  - platform: gpio
    name: "b16m-W1-io40"
    pin:
      number: 40
      inverted: true

  - platform: gpio
    name: "b16m-W1-io15"
    pin:
      number: 15
      inverted: true

  - platform: gpio
    name: "b16m-W1-io48"
    pin:
      number: 48
      inverted: true

  - platform: gpio
    name: "b16m-W1-io47"
    pin:
      number: 47
      inverted: true
## without resistance on PCB
  - platform: gpio
    name: "b16m-W1-io13"
    pin:
      number: 13
      inverted: false

  - platform: gpio
    name: "b16m-W1-io14"
    pin:
      number: 14
      inverted:  false

  - platform: gpio
    name: "b16m-W1-io21"
    pin:
      number: 21
      inverted: false

ads1115:
  - address: 0x48
sensor:
  - platform: ads1115
    multiplexer: 'A0_GND'
    gain: 6.144
    resolution: 16_BITS
    name: "ADS1115 Channel A0-GND"
    update_interval: 5s
  - platform: ads1115
    multiplexer: 'A1_GND'
    gain: 6.144
    name: "ADS1115 Channel A1-GND"
    update_interval: 5s
  - platform: ads1115
    multiplexer: 'A2_GND'
    gain: 6.144
    name: "ADS1115 Channel A2-GND"
    update_interval: 5s
  - platform: ads1115
    multiplexer: 'A3_GND'
    gain: 6.144
    name: "ADS1115 Channel A3-GND"
    update_interval: 5s

web_server:
  port: 80
download yaml file:
.txt   B16M_HA.txt (Size: 7.15 KB / Downloads: 820)

Print this item

  B16M ESP32-S3 IO pins define
Posted by: admin - 09-27-2024, 02:13 AM - Forum: B16M - Replies (2)

IIC Bus:

SDA:GPIO38
SCL:GPIO39

PCF8575:U57 (relay1-16): i2c address:0x25
PCF8575:U58 (input1-16): i2c address:0x24

DS3231 RTC i2c address: 0x68
SSD1306 display: i2c address:0x3c
ADS1115 (4CH ADC): i2c address:0x48
-----------------

1-wire (pull-up resistance on PCB):
1-wire1:GPIO40
1-wire2:GPIO15
1-wire3:GPIO48
1-wire4:GPIO47

free GPIOs (without pull-up resistance on PCB):
free gpio-1:GPIO13
free gpio-2:GPIO14
free gpio-3:GPIO21
-----------------

Ethernet (W5500) I/O define:

clk_pin: GPIO42
mosi_pin: GPIO43
miso_pin: GPIO44
cs_pin: GPIO41

interrupt_pin: GPIO2
reset_pin: GPIO1

--------------------
RS485:
RXD:GPIO8
TXD:GPIO18

Tuya module:
RXD:GPIO17
TXD:GPIO16

Tuya network button: Tuya module's P28
Tuya network LED: Tuya module's P16
--------------------
SD Card:
SPI-MOSI:GPIO10
SPI-SCK:GPIO11
SPI-MISO:GPIO12
SPI-CS:GPIO9

Print this item

  ESPHome PCF8575 and XL9535 yaml format define updated
Posted by: admin - 09-25-2024, 12:54 AM - Forum: Getting Started with ESPHome and Home Assistant - No Replies

if using PCF8575 , the pin number will begin 0-7 and 8-15
if using XL9535 , the pin number will begin 0-7 and 10-17

Print this item

  OLED display for A4
Posted by: tarajas - 09-24-2024, 10:02 PM - Forum: KC868-A4 - Replies (6)

Hi,

Is it possible to add an I2C OlED display to the A4 via using the 433MHz PINs? On 1.2.4 board I have those available...

Maybe I could add the display to the DIN plastic enclosure creating a cutout with a dremel and fixing the display with screws, so that some important info could be shown there...

P3 has looking the board from head on:
VCC ? ? GND
Where should the SDA and SCL be connected?

Print this item

  Any plans for KC868-D16 update?
Posted by: VKAN - 09-24-2024, 05:55 PM - Forum: Suggestions and feedback on KinCony's products - Replies (1)

Hi,

Time to time I see that Kincony updates and improves existing boards. Do you considering updating KC868-D16?
Probably running with ESP32?

Print this item
