Hello, I bought a KC868-E16S and would appreciate some help to get this device working in Home Assistant.
This is my first experience with ESPHome.

Just by connecting over Ethernet, the device didn't get an IP address by DHCP.
I searched for information/documentation but could find anything.
Finally by connecting with USB I did write a file with and got WiFi working but not the LAN interface.
I found a yaml file (KC868-E16S/E16P demo configure for ESPhome) for this device, uncommented the manual IP section, assigned a fixed IP and was able to upload that file to the device.
Still I could not get the LAN interface working, no LEDS, no ping reply.

Can you please tell me how to get this device working or point me to the documentation for it.

Thank you.

1. run arduino calibration program code to find your "Sensitivity" value for ESPHome M16v2 component.
here is arduino code: https://www.kincony.com/forum/showthread.php?tid=3089
before use this arduino code, you need install "ZMPT101B" arduino library firstly.

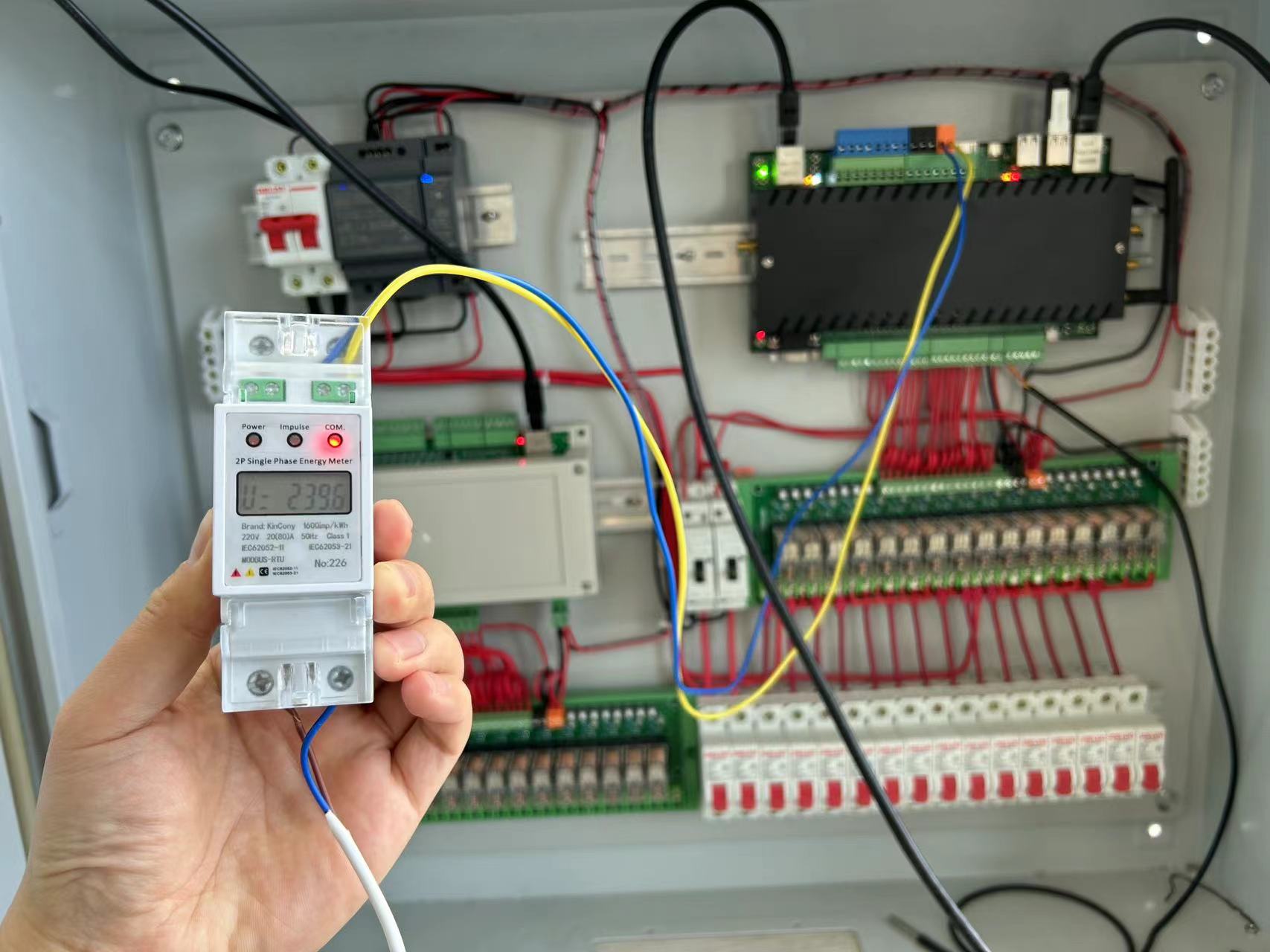

then before run this code, use multi meter test your L and N voltage , then only "Change this based on actual voltage" in code:


when running this code, serial port will print  "Sensitivity" value at the end.

then change  "Sensitivity" value in home assistant "/homeassistant/esphome/zmpt101b/zmpt101b_custom_sensor.h"

now it's completed.


Hello,
We want to developp an plc with a embedded web server.
The plc will be usable with a very short lesson.
For doing that, we need a 8 or 16 Mo of memory.

Do you know if it is possible to buy card with an adapted cpu? Is that possible to change the existing cpu?


Many thanks for your response.
Best regards!
Thierry

Hi!  Newbie and KinCony products enthusiast here..

I'm about to build a new house and would like to use KinCony products. What I would like:
- Control devices via Ethernet / Wifi. I would like to use cable as much as possible.
- Home Assistante to control from Phone
- Control devices using Siri (preferred), Alexa or Google
- Control devices from Internet (WAN)
- Have a plan B in case KC868 server goes down. e.g:  if Raspberry hangs I would still like to power on/off lights via traditional switch
- Control Temparature sensors
- Control TV
- Control Garden Irrigation
- Doors sensors
- Dimming lights (not all, just in base floor)

Size:
- Two floor house
- 70-80 bulbs. some paired together per room. Not sure how many Wall Switches.
- 2 TVs
- 3 doors sensors (opened/closed)
- 2 temperature sensors
- 5 courtain motors

Question/doubts:
- COMPONENTS: Would https://www.alibaba.com/product-detail/S...67057.html satisfy all the requirements?  Am I missing components??
- CABLING: Not sure how to proceed with cabling and best practices. Should I cable both floors to Distribution box?  Should I divide electric cabling from ethernet/RS485 in different pipes?  Would be good to concentrate cabling in second floor and then connect to first floor (Distribution Box)
- SWITCHES: If using smart wall switches, how can I still use traditional switching in case KC868 goes down?
- GARDEN IRRIGATION: How to control this?

I would really appreciate help.
Thank you

Hi,

I looked into your website and I like all your board.
Great !

You have so many board, it is difficult to find the correct one.
I have a project for which I need at least 4 boards with 8 inputs and some relays (no more than 6 for each).
I will use esphome with Ethernet.


What could be the best board for me ?
KC868-A8
KC868-A8S
KC868-A8S V2
....

Thanks,

Dear Kincony-Team,

I'm currently looking for a suitable circuit board to realize a new project. At my search I found your website and some boards that could be the right one (for example the KC868-AI) but I’m not sure which one is the right one. Can you possibly tell me if the KC868-AI is the right one respectively which of your boards would be suitable?

I have 13 windows in my house and every window has an sensor for the status (open, closed and tilted). I want to integrate these sensors in my already existing Home Assistant installation. I think the integration via ESP could be one solution.
Here the information about the sensors:


• 7-wire cable
  • 2 wires for the sabotage loop / sabotage line

  • 2 wires for the signaling contact (generally open/closed)

  • 3 wires for the open/tilted state (common "ground")


• General:
  • Switch voltage max. 48V DC

  • Contact resistance max. 150mOhm

• Surveillance:
  • Switching current max. 0.5A

  • Transport current max. 1.0A

  • Switch performance max. 10W pure ohmic load

• or for the tilt status query:
  • Switching current max. 0.25A

  • Transport current max. 1.2A

  • Switch performance max. 3W pure ohmic load


Attached Files

Thumbnail(s)


Hello
I Want conncetd TDS Sensor
Model SEN0244   to KC868-A8
I tride this  example :
#define TdsSensorPin 34
#define VREF 3.3              // analog reference voltage(Volt) of the ADC
#define SCOUNT  30            // sum of sample point

int analogBuffer[SCOUNT];    // store the analog value in the array, read from ADC
int analogBufferTemp[SCOUNT];
int analogBufferIndex = 0;
int copyIndex = 0;

float averageVoltage = 0;
float tdsValue = 0;
float temperature = 23;      // current temperature for compensation

// median filtering algorithm
int getMedianNum(int bArray[], int iFilterLen){
  int bTab[iFilterLen];
  for (byte i = 0; i<iFilterLen; i++)
  bTab[i] = bArray[i];
  int i, j, bTemp;
  for (j = 0; j < iFilterLen - 1; j++) {
    for (i = 0; i < iFilterLen - j - 1; i++) {
      if (bTab[i] > bTab[i + 1]) {
        bTemp = bTab[i];
        bTab[i] = bTab[i + 1];
        bTab[i + 1] = bTemp;
      }
    }
  }
  if ((iFilterLen & 1) > 0){
    bTemp = bTab[(iFilterLen - 1) / 2];
  }
  else {
    bTemp = (bTab[iFilterLen / 2] + bTab[iFilterLen / 2 - 1]) / 2;
  }
  return bTemp;
}

void setup(){
  Serial.begin(115200);
  pinMode(TdsSensorPin,INPUT);
}

void loop(){
  static unsigned long analogSampleTimepoint = millis();
  if(millis()-analogSampleTimepoint > 40U){    //every 40 milliseconds,read the analog value from the ADC
    analogSampleTimepoint = millis();
    analogBuffer[analogBufferIndex] = analogRead(TdsSensorPin);    //read the analog value and store into the buffer
    analogBufferIndex++;
    if(analogBufferIndex == SCOUNT){
      analogBufferIndex = 0;
    }
  }

  static unsigned long printTimepoint = millis();
  if(millis()-printTimepoint > 800U){
    printTimepoint = millis();
    for(copyIndex=0; copyIndex<SCOUNT; copyIndex++){
      analogBufferTemp[copyIndex] = analogBuffer[copyIndex];

      // read the analog value more stable by the median filtering algorithm, and convert to voltage value
      averageVoltage = getMedianNum(analogBufferTemp,SCOUNT) * (float)VREF / 1024.0;

      //temperature compensation formula: fFinalResult(25^C) = fFinalResult(current)/(1.0+0.02*(fTP-25.0));
      float compensationCoefficient = 1.0+0.02*(temperature-25.0);
      //temperature compensation
      float compensationVoltage=averageVoltage/compensationCoefficient;

      //convert voltage value to tds value
      tdsValue=(133.42*compensationVoltage*compensationVoltage*compensationVoltage - 255.86*compensationVoltage*compensationVoltage + 857.39*compensationVoltage)*0.5;

      //Serial.print("voltage:");
      //Serial.print(averageVoltage,2);
      //Serial.print("V  ");
      Serial.print("TDS Value:");
      Serial.print(tdsValue,0);
      Serial.println("ppm");
    }
  }
}


the result ppm 0

I Need Help
