[Arduino source code for M30]-02 read all energy meter data

Posted by: admin - 01-05-2024, 11:25 AM - Forum: KC868-M16 / M1 / MB / M30 - No Replies

Code:
#include <ModbusMaster.h>

#include <arduino.h>

#include "HardwareSerial.h"

ModbusMaster node;

HardwareSerial my485Serial(2);

#define CHANNEL     0

String temp="";

void read_485(){

  while(my485Serial.available()>0)

  {

    temp = my485Serial.readString();   //read one data then delete it from buffer

     Serial.println(temp);

     //delay(100);

  }

  temp="";

}

void setup() {

  // put your setup code here, to run once:

  Serial.begin(115200);

  my485Serial.begin(115200,SERIAL_8N1,32,33);///rx:32  tx:33

  while(my485Serial.read()>0){}

  node.begin(1,my485Serial);

}

void loop() {

  // put your main code here, to run repeatedly:

  //first chip BL0910 address:100  second chip BL0910 address:200  third chip BL0910 address:300  every address have 35 bytes data

  if(0 == node.readHoldingRegisters(100,35))

  {

      Serial.print("register value: ");

      for(int i=0;i<35;i++)

      {

        Serial.print(node.getResponseBuffer(i));

        Serial.print(" ");

      }

  }

  Serial.println(" ");

  Serial.println("next circle!");

  delay(500);

}

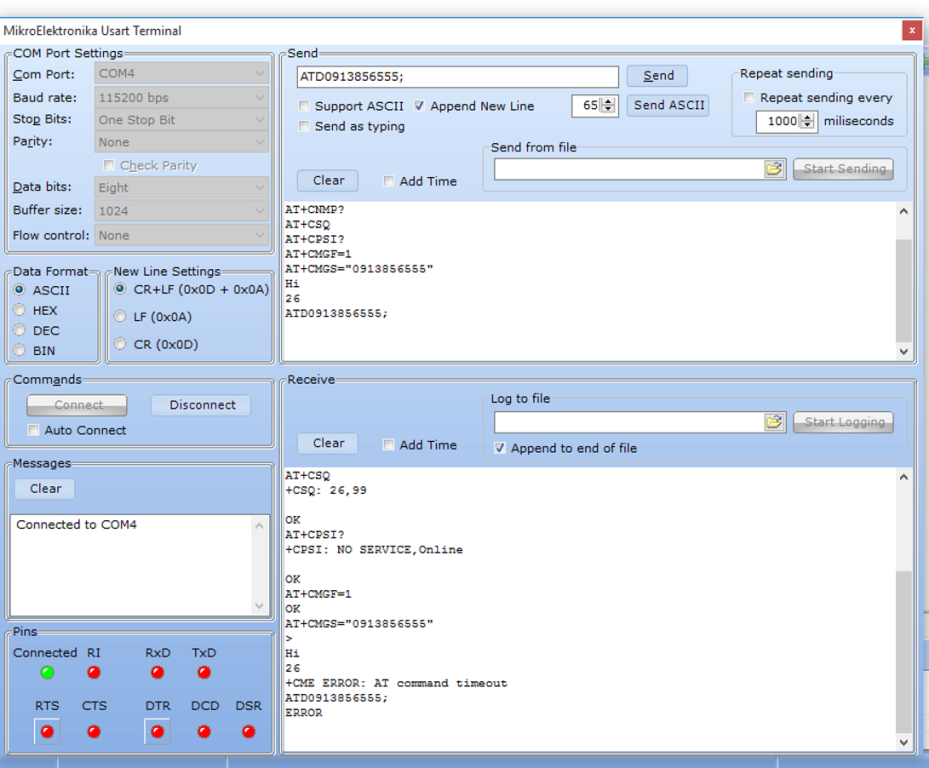

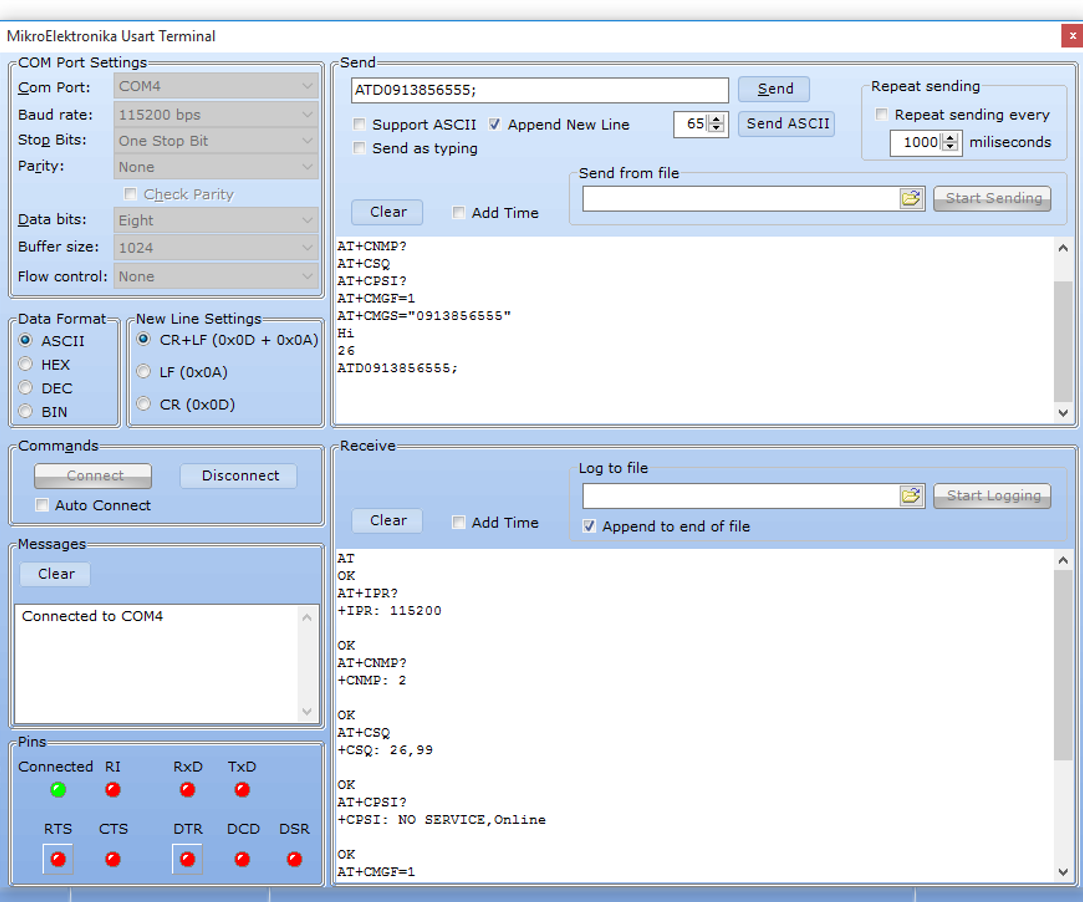

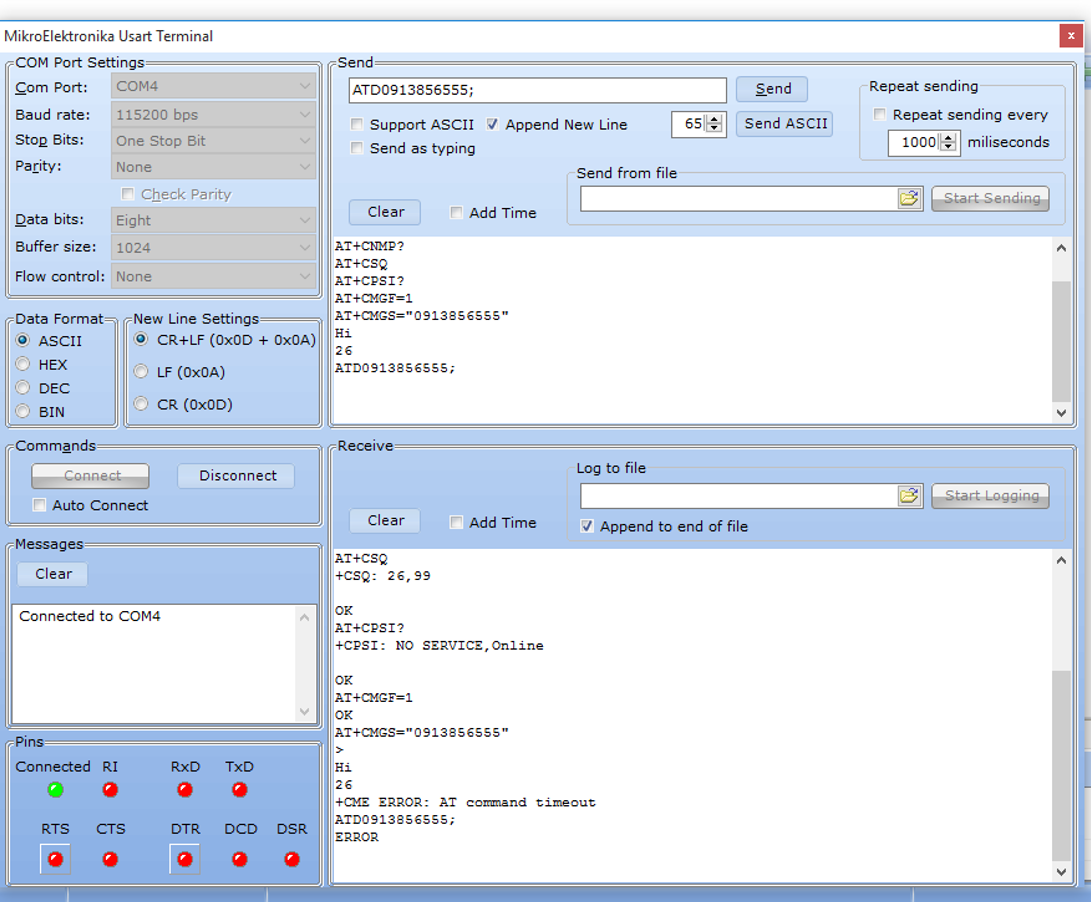

[Arduino source code for M30]-01 debug 4G module AT command

Posted by: admin - 01-05-2024, 11:23 AM - Forum: KC868-M16 / M1 / MB / M30 - No Replies

Code:
void setup() {

  Serial.begin(115200);

  Serial2.begin(115200);

}

void loop() {

  while (Serial.available()) {

    //  delay(1);

      Serial2.write(Serial.read());

  }

  while (Serial2.available()) {

       Serial.write(Serial2.read());

  }

}

M30 RS485 and Serial port development guide

Posted by: admin - 01-05-2024, 11:20 AM - Forum: KC868-M16 / M1 / MB / M30 - Replies (12)

M30 have one ARM cpu on board. the ARM CPU have one RS485 modbus interface for user. another ARM CPU's serial port connect to ESP32's GPIO.

RS485 communication settings: 38400bps,8,N,1
ESP32 serial port communication settings: 115200bps,8,N,1

they have some modbus protocol, just use by different baud rate.

first BL0910 chip read CT 1-10 channel current. modbus address is 100.
second BL0910 chip read CT 11-20 channel current. modbus address is 200.
third BL0910 chip read CT 21-30 channel current. modbus address is 300.

every BL0910 have 35 bytes data, here are data structure:

this use by modbus pull tool:

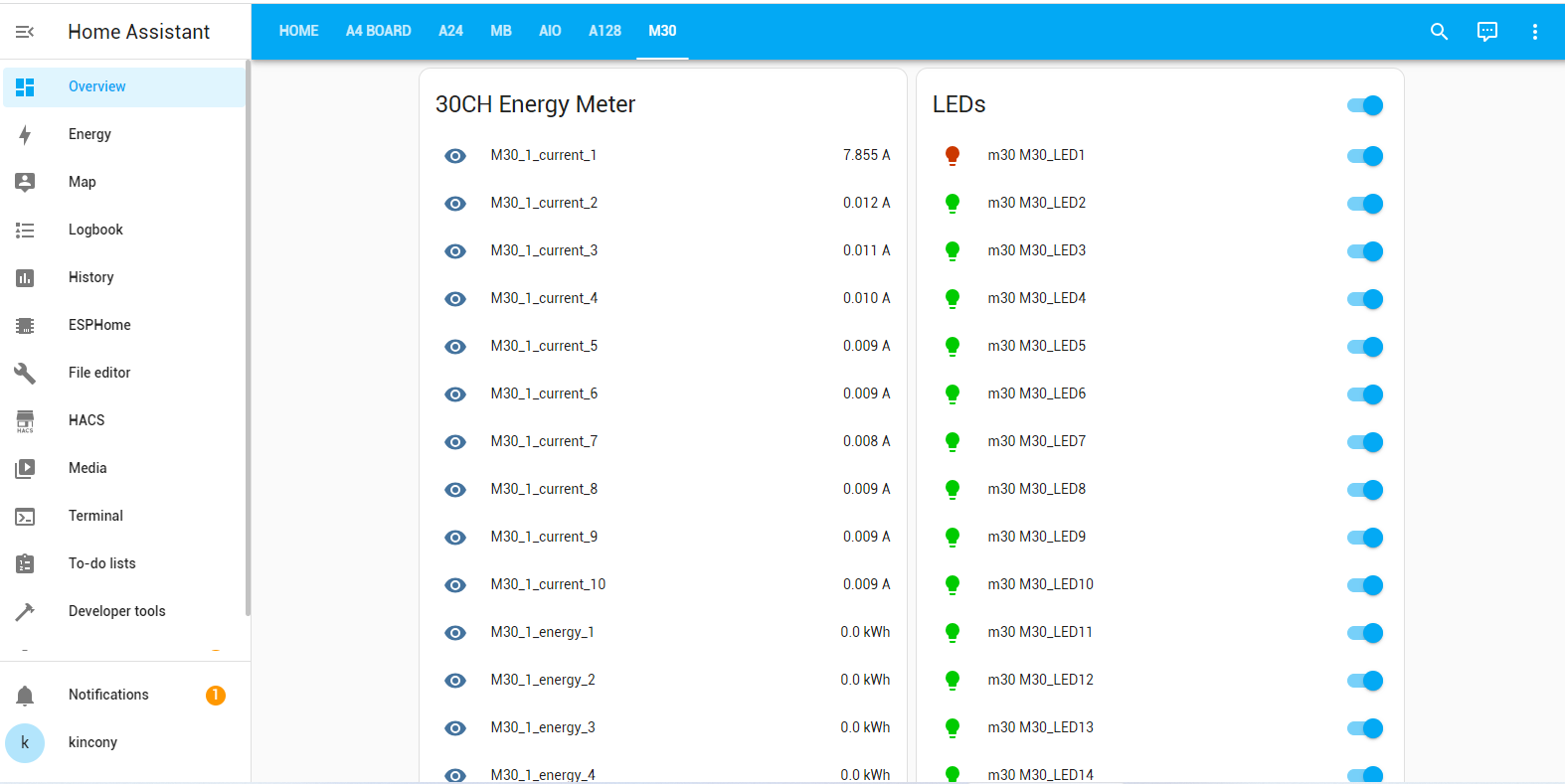

M30 configure yaml for ESPhome

Posted by: admin - 01-05-2024, 11:11 AM - Forum: KC868-M16 / M1 / MB / M30 - Replies (81)

yaml download:
.txt   M30_HA_LEDs.txt (Size: 49.87 KB / Downloads: 785)
modbus pull screen setting:

substitutions:
max_current_range1: "10"
max_current_range2: "10"
max_current_range3: "10"
max_current_range4: "10"
max_current_range5: "10"
max_current_range6: "10"
max_current_range7: "10"
max_current_range8: "10"
max_current_range9: "10"
max_current_range10: "10"
max_current_range11: "10"
max_current_range12: "10"
max_current_range13: "10"
max_current_range14: "10"
max_current_range15: "10"
max_current_range16: "10"
max_current_range17: "10"
max_current_range18: "10"
max_current_range19: "10"
max_current_range20: "10"
max_current_range21: "10"
max_current_range22: "10"
max_current_range23: "10"
max_current_range24: "10"
max_current_range25: "10"
max_current_range26: "10"
max_current_range27: "10"
max_current_range28: "10"
max_current_range29: "10"
max_current_range30: "10"

esphome:
name: m30
friendly_name: m30

esp32:
board: esp32dev
framework:
type: arduino

# Enable logging
logger:
# baud_rate: 0

# Enable Home Assistant API
api:
encryption:
key: "8G0kVEA0/DqgAavgKNyy9EYUrWo6pEZM38JVMAryJv8="

ota:
password: "2a26484203d80a83798414c879541760"

ethernet:
type: LAN8720
mdc_pin: GPIO23
mdio_pin: GPIO18
clk_mode: GPIO17_OUT
phy_addr: 0

uart:
id: modbus_uart
rx_pin: 32
tx_pin: 33
baud_rate: 115200
stop_bits: 1
data_bits: 8
parity: NONE

modbus:
id: modbus_hub
uart_id: modbus_uart

modbus_controller:
- id: modbus_hub_m30
address: 1
modbus_id: modbus_hub
update_interval: 5s

sensor:
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 100
register_type: holding
name: m30_1_current_1
id: m30_1_current_1
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_1_current_1).state;
float red = (current - 0.0) / ${max_current_range1};
float green = (${max_current_range1} - current) / ${max_current_range1};
float blue = 0.0;

auto call = id(M30_LED1).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 101
register_type: holding
name: m30_1_current_2
id: m30_1_current_2
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_1_current_2).state;
float red = (current - 0.0) / ${max_current_range2};
float green = (${max_current_range2} - current) / ${max_current_range2};
float blue = 0.0;

auto call = id(M30_LED2).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 102
register_type: holding
name: m30_1_current_3
id: m30_1_current_3
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_1_current_3).state;
float red = (current - 0.0) / ${max_current_range3};
float green = (${max_current_range3} - current) / ${max_current_range3};
float blue = 0.0;

auto call = id(M30_LED3).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 103
register_type: holding
name: m30_1_current_4
id: m30_1_current_4
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_1_current_4).state;
float red = (current - 0.0) / ${max_current_range4};
float green = (${max_current_range4} - current) / ${max_current_range4};
float blue = 0.0;

auto call = id(M30_LED4).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 104
register_type: holding
name: m30_1_current_5
id: m30_1_current_5
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_1_current_5).state;
float red = (current - 0.0) / ${max_current_range5};
float green = (${max_current_range5} - current) / ${max_current_range5};
float blue = 0.0;

auto call = id(M30_LED5).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 105
register_type: holding
name: m30_1_current_6
id: m30_1_current_6
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_1_current_6).state;
float red = (current - 0.0) / ${max_current_range6};
float green = (${max_current_range6} - current) / ${max_current_range6};
float blue = 0.0;

auto call = id(M30_LED6).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 106
register_type: holding
name: m30_1_current_7
id: m30_1_current_7
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_1_current_7).state;
float red = (current - 0.0) / ${max_current_range7};
float green = (${max_current_range7} - current) / ${max_current_range7};
float blue = 0.0;

auto call = id(M30_LED7).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 107
register_type: holding
name: m30_1_current_8
id: m30_1_current_8
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_1_current_8).state;
float red = (current - 0.0) / ${max_current_range8};
float green = (${max_current_range8} - current) / ${max_current_range8};
float blue = 0.0;

auto call = id(M30_LED8).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 108
register_type: holding
name: m30_1_current_9
id: m30_1_current_9
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_1_current_9).state;
float red = (current - 0.0) / ${max_current_range9};
float green = (${max_current_range9} - current) / ${max_current_range9};
float blue = 0.0;

auto call = id(M30_LED9).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 109
register_type: holding
name: m30_1_current_10
id: m30_1_current_10
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_1_current_10).state;
float red = (current - 0.0) / ${max_current_range10};
float green = (${max_current_range10} - current) / ${max_current_range10};
float blue = 0.0;

auto call = id(M30_LED10).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 110
register_type: holding
name: m30_1_voltage
id: m30_1_voltage
unit_of_measurement: V
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 111
register_type: holding
name: m30_1_watt_1
id: m30_1_watt_1
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 112
register_type: holding
name: m30_1_watt_2
id: m30_1_watt_2
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 113
register_type: holding
name: m30_1_watt_3
id: m30_1_watt_3
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 114
register_type: holding
name: m30_1_watt_4
id: m30_1_watt_4
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 115
register_type: holding
name: m30_1_watt_5
id: m30_1_watt_5
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 116
register_type: holding
name: m30_1_watt_6
id: m30_1_watt_6
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 117
register_type: holding
name: m30_1_watt_7
id: m30_1_watt_7
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 118
register_type: holding
name: m30_1_watt_8
id: m30_1_watt_8
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 119
register_type: holding
name: m30_1_watt_9
id: m30_1_watt_9
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 120
register_type: holding
name: m30_1_watt_10
id: m30_1_watt_10
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 121
register_type: holding
name: m30_1_energy_1
id: m30_1_energy_1
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 122
register_type: holding
name: m30_1_energy_2
id: m30_1_energy_2
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 123
register_type: holding
name: m30_1_energy_3
id: m30_1_energy_3
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 124
register_type: holding
name: m30_1_energy_4
id: m30_1_energy_4
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 125
register_type: holding
name: m30_1_energy_5
id: m30_1_energy_5
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 126
register_type: holding
name: m30_1_energy_6
id: m30_1_energy_6
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 127
register_type: holding
name: m30_1_energy_7
id: m30_1_energy_7
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 128
register_type: holding
name: m30_1_energy_8
id: m30_1_energy_8
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 129
register_type: holding
name: m30_1_energy_9
id: m30_1_energy_9
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 130
register_type: holding
name: m30_1_energy_10
id: m30_1_energy_10
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 131
register_type: holding
name: m30_1_energy_sum
id: m30_1_energy_sum
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 132
register_type: holding
name: m30_1_period
id: m30_1_period
unit_of_measurement: Hz
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 133
register_type: holding
name: m30_1_tps_1
id: m30_1_tps_1
unit_of_measurement: °C
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
# - platform: modbus_controller
# modbus_controller_id: modbus_hub_m30
# address: 134
# register_type: holding
# name: m30_1_tps_2
# id: m30_1_tps_2
# unit_of_measurement: °C
# accuracy_decimals: 1
# value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 200
register_type: holding
name: m30_2_current_1
id: m30_2_current_1
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_2_current_1).state;
float red = (current - 0.0) / ${max_current_range11};
float green = (${max_current_range11} - current) / ${max_current_range11};
float blue = 0.0;

auto call = id(M30_LED11).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 201
register_type: holding
name: m30_2_current_2
id: m30_2_current_2
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_2_current_2).state;
float red = (current - 0.0) / ${max_current_range12};
float green = (${max_current_range12} - current) / ${max_current_range12};
float blue = 0.0;

auto call = id(M30_LED12).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 202
register_type: holding
name: m30_2_current_3
id: m30_2_current_3
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_2_current_3).state;
float red = (current - 0.0) / ${max_current_range13};
float green = (${max_current_range13} - current) / ${max_current_range13};
float blue = 0.0;

auto call = id(M30_LED13).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 203
register_type: holding
name: m30_2_current_4
id: m30_2_current_4
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_2_current_4).state;
float red = (current - 0.0) / ${max_current_range14};
float green = (${max_current_range14} - current) / ${max_current_range14};
float blue = 0.0;

auto call = id(M30_LED14).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 204
register_type: holding
name: m30_2_current_5
id: m30_2_current_5
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_2_current_5).state;
float red = (current - 0.0) / ${max_current_range15};
float green = (${max_current_range15} - current) / ${max_current_range15};
float blue = 0.0;

auto call = id(M30_LED15).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 205
register_type: holding
name: m30_2_current_6
id: m30_2_current_6
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_2_current_6).state;
float red = (current - 0.0) / ${max_current_range16};
float green = (${max_current_range16} - current) / ${max_current_range16};
float blue = 0.0;

auto call = id(M30_LED16).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 206
register_type: holding
name: m30_2_current_7
id: m30_2_current_7
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_2_current_7).state;
float red = (current - 0.0) / ${max_current_range17};
float green = (${max_current_range17} - current) / ${max_current_range17};
float blue = 0.0;

auto call = id(M30_LED17).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 207
register_type: holding
name: m30_2_current_8
id: m30_2_current_8
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_2_current_8).state;
float red = (current - 0.0) / ${max_current_range18};
float green = (${max_current_range18} - current) / ${max_current_range18};
float blue = 0.0;

auto call = id(M30_LED18).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 208
register_type: holding
name: m30_2_current_9
id: m30_2_current_9
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_2_current_9).state;
float red = (current - 0.0) / ${max_current_range19};
float green = (${max_current_range19} - current) / ${max_current_range19};
float blue = 0.0;

auto call = id(M30_LED19).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 209
register_type: holding
name: m30_2_current_10
id: m30_2_current_10
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_2_current_10).state;
float red = (current - 0.0) / ${max_current_range20};
float green = (${max_current_range20} - current) / ${max_current_range20};
float blue = 0.0;

auto call = id(M30_LED20).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 210
register_type: holding
name: m30_2_voltage
id: m30_2_voltage
unit_of_measurement: V
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 211
register_type: holding
name: m30_2_watt_1
id: m30_2_watt_1
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 212
register_type: holding
name: m30_2_watt_2
id: m30_2_watt_2
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 213
register_type: holding
name: m30_2_watt_3
id: m30_2_watt_3
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 214
register_type: holding
name: m30_2_watt_4
id: m30_2_watt_4
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 215
register_type: holding
name: m30_2_watt_5
id: m30_2_watt_5
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 216
register_type: holding
name: m30_2_watt_6
id: m30_2_watt_6
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 217
register_type: holding
name: m30_2_watt_7
id: m30_2_watt_7
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 218
register_type: holding
name: m30_2_watt_8
id: m30_2_watt_8
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 219
register_type: holding
name: m30_2_watt_9
id: m30_2_watt_9
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 220
register_type: holding
name: m30_2_watt_10
id: m30_2_watt_10
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 221
register_type: holding
name: m30_2_energy_1
id: m30_2_energy_1
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 222
register_type: holding
name: m30_2_energy_2
id: m30_2_energy_2
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 223
register_type: holding
name: m30_2_energy_3
id: m30_2_energy_3
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 224
register_type: holding
name: m30_2_energy_4
id: m30_2_energy_4
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 225
register_type: holding
name: m30_2_energy_5
id: m30_2_energy_5
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 226
register_type: holding
name: m30_2_energy_6
id: m30_2_energy_6
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 227
register_type: holding
name: m30_2_energy_7
id: m30_2_energy_7
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 228
register_type: holding
name: m30_2_energy_8
id: m30_2_energy_8
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 229
register_type: holding
name: m30_2_energy_9
id: m30_2_energy_9
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 230
register_type: holding
name: m30_2_energy_10
id: m30_2_energy_10
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 231
register_type: holding
name: m30_2_energy_sum
id: m30_2_energy_sum
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 232
register_type: holding
name: m30_2_period
id: m30_2_period
unit_of_measurement: Hz
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 233
register_type: holding
name: m30_2_tps_1
id: m30_2_tps_1
unit_of_measurement: °C
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
# - platform: modbus_controller
# modbus_controller_id: modbus_hub_m30
# address: 234
# register_type: holding
# name: m30_2_tps_2
# id: m30_2_tps_2
# unit_of_measurement: °C
# accuracy_decimals: 1
# value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 300
register_type: holding
name: m30_3_current_1
id: m30_3_current_1
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_3_current_1).state;
float red = (current - 0.0) / ${max_current_range21};
float green = (${max_current_range21} - current) / ${max_current_range21};
float blue = 0.0;

auto call = id(M30_LED21).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 301
register_type: holding
name: m30_3_current_2
id: m30_3_current_2
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_3_current_2).state;
float red = (current - 0.0) / ${max_current_range22};
float green = (${max_current_range22} - current) / ${max_current_range22};
float blue = 0.0;

auto call = id(M30_LED22).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 302
register_type: holding
name: m30_3_current_3
id: m30_3_current_3
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_3_current_3).state;
float red = (current - 0.0) / ${max_current_range23};
float green = (${max_current_range23} - current) / ${max_current_range23};
float blue = 0.0;

auto call = id(M30_LED23).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 303
register_type: holding
name: m30_3_current_4
id: m30_3_current_4
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_3_current_4).state;
float red = (current - 0.0) / ${max_current_range24};
float green = (${max_current_range24} - current) / ${max_current_range24};
float blue = 0.0;

auto call = id(M30_LED24).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 304
register_type: holding
name: m30_3_current_5
id: m30_3_current_5
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_3_current_5).state;
float red = (current - 0.0) / ${max_current_range25};
float green = (${max_current_range25} - current) / ${max_current_range25};
float blue = 0.0;

auto call = id(M30_LED25).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 305
register_type: holding
name: m30_3_current_6
id: m30_3_current_6
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_3_current_6).state;
float red = (current - 0.0) / ${max_current_range26};
float green = (${max_current_range26} - current) / ${max_current_range26};
float blue = 0.0;

auto call = id(M30_LED26).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 306
register_type: holding
name: m30_3_current_7
id: m30_3_current_7
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_3_current_7).state;
float red = (current - 0.0) / ${max_current_range27};
float green = (${max_current_range27} - current) / ${max_current_range27};
float blue = 0.0;

auto call = id(M30_LED27).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 307
register_type: holding
name: m30_3_current_8
id: m30_3_current_8
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_3_current_8).state;
float red = (current - 0.0) / ${max_current_range28};
float green = (${max_current_range28} - current) / ${max_current_range28};
float blue = 0.0;

auto call = id(M30_LED28).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 308
register_type: holding
name: m30_3_current_9
id: m30_3_current_9
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_3_current_9).state;
float red = (current - 0.0) / ${max_current_range29};
float green = (${max_current_range29} - current) / ${max_current_range29};
float blue = 0.0;

auto call = id(M30_LED29).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 309
register_type: holding
name: m30_3_current_10
id: m30_3_current_10
unit_of_measurement: A
accuracy_decimals: 3
value_type: U_WORD
filters:
- multiply: 0.00098
on_value:
- then:
- lambda: |-
float current = id(m30_3_current_10).state;
float red = (current - 0.0) / ${max_current_range30};
float green = (${max_current_range30} - current) / ${max_current_range30};
float blue = 0.0;

auto call = id(M30_LED30).turn_on();
call.set_brightness(0.6);
call.set_rgb(red, green, blue);
call.set_color_mode(ColorMode::RGB);
call.perform();
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 310
register_type: holding
name: m30_3_voltage
id: m30_3_voltage
unit_of_measurement: V
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 311
register_type: holding
name: m30_3_watt_1
id: m30_3_watt_1
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 312
register_type: holding
name: m30_3_watt_2
id: m30_3_watt_2
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 313
register_type: holding
name: m30_3_watt_3
id: m30_3_watt_3
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 314
register_type: holding
name: m30_3_watt_4
id: m30_3_watt_4
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 315
register_type: holding
name: m30_3_watt_5
id: m30_3_watt_5
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 316
register_type: holding
name: m30_3_watt_6
id: m30_3_watt_6
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 317
register_type: holding
name: m30_3_watt_7
id: m30_3_watt_7
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 318
register_type: holding
name: m30_3_watt_8
id: m30_3_watt_8
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 319
register_type: holding
name: m30_3_watt_9
id: m30_3_watt_9
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 320
register_type: holding
name: m30_3_watt_10
id: m30_3_watt_10
unit_of_measurement: W
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 321
register_type: holding
name: m30_3_energy_1
id: m30_3_energy_1
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 322
register_type: holding
name: m30_3_energy_2
id: m30_3_energy_2
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 323
register_type: holding
name: m30_3_energy_3
id: m30_3_energy_3
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 324
register_type: holding
name: m30_3_energy_4
id: m30_3_energy_4
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 325
register_type: holding
name: m30_3_energy_5
id: m30_3_energy_5
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 326
register_type: holding
name: m30_3_energy_6
id: m30_3_energy_6
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 327
register_type: holding
name: m30_3_energy_7
id: m30_3_energy_7
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 328
register_type: holding
name: m30_3_energy_8
id: m30_3_energy_8
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 329
register_type: holding
name: m30_3_energy_9
id: m30_3_energy_9
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 330
register_type: holding
name: m30_3_energy_10
id: m30_3_energy_10
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 331
register_type: holding
name: m30_3_energy_sum
id: m30_3_energy_sum
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_WORD
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 332
register_type: holding
name: m30_3_period
id: m30_3_period
unit_of_measurement: Hz
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
modbus_controller_id: modbus_hub_m30
address: 333
register_type: holding
name: m30_3_tps_1
id: m30_3_tps_1
unit_of_measurement: °C
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.1
# - platform: modbus_controller
# modbus_controller_id: modbus_hub_m30
# address: 334
# register_type: holding
# name: m30_3_tps_2
# id: m30_3_tps_2
# unit_of_measurement: °C
# accuracy_decimals: 1
# value_type: U_WORD

light:
- platform: partition
name: "M30_LED1"
id: M30_LED1
segments:
- id: light1
from: 14
to: 14

- platform: partition
name: "M30_LED2"
id: M30_LED2
segments:
- id: light1
from: 13
to: 13

- platform: partition
name: "M30_LED3"
id: M30_LED3
segments:
- id: light1
from: 12
to: 12

- platform: partition
name: "M30_LED4"
id: M30_LED4
segments:
- id: light1
from: 11
to: 11

- platform: partition
name: "M30_LED5"
id: M30_LED5
segments:
- id: light1
from: 10
to: 10

- platform: partition
name: "M30_LED6"
id: M30_LED6
segments:
- id: light1
from: 9
to: 9

- platform: partition
name: "M30_LED7"
id: M30_LED7
segments:
- id: light1
from: 8
to: 8

- platform: partition
name: "M30_LED8"
id: M30_LED8
segments:
- id: light1
from: 7
to: 7

- platform: partition
name: "M30_LED9"
id: M30_LED9
segments:
- id: light1
from: 6
to: 6

- platform: partition
name: "M30_LED10"
id: M30_LED10
segments:
- id: light1
from: 5
to: 5

- platform: partition
name: "M30_LED11"
id: M30_LED11
segments:
- id: light1
from: 4
to: 4

- platform: partition
name: "M30_LED12"
id: M30_LED12
segments:
- id: light1
from: 3
to: 3

- platform: partition
name: "M30_LED13"
id: M30_LED13
segments:
- id: light1
from: 2
to: 2

- platform: partition
name: "M30_LED14"
id: M30_LED14
segments:
- id: light1
from: 1
to: 1

- platform: partition
name: "M30_LED15"
id: M30_LED15
segments:
- id: light1
from: 0
to: 0

- platform: partition
name: "M30_LED16"
id: M30_LED16
segments:
- id: light1
from: 15
to: 15

- platform: partition
name: "M30_LED17"
id: M30_LED17
segments:
- id: light1
from: 16
to: 16

- platform: partition
name: "M30_LED18"
id: M30_LED18
segments:
- id: light1
from: 17
to: 17

- platform: partition
name: "M30_LED19"
id: M30_LED19
segments:
- id: light1
from: 18
to: 18

- platform: partition
name: "M30_LED20"
id: M30_LED20
segments:
- id: light1
from: 19
to: 19

- platform: partition
name: "M30_LED21"
id: M30_LED21
segments:
- id: light1
from: 20
to: 20

- platform: partition
name: "M30_LED22"
id: M30_LED22
segments:
- id: light1
from: 21
to: 21

- platform: partition
name: "M30_LED23"
id: M30_LED23
segments:
- id: light1
from: 22
to: 22

- platform: partition
name: "M30_LED24"
id: M30_LED24
segments:
- id: light1
from: 23
to: 23

- platform: partition
name: "M30_LED25"
id: M30_LED25
segments:
- id: light1
from: 24
to: 24

- platform: partition
name: "M30_LED26"
id: M30_LED26
segments:
- id: light1
from: 25
to: 25

- platform: partition
name: "M30_LED27"
id: M30_LED27
segments:
- id: light1
from: 26
to: 26

- platform: partition
name: "M30_LED28"
id: M30_LED28
segments:
- id: light1
from: 27
to: 27

- platform: partition
name: "M30_LED29"
id: M30_LED29
segments:
- id: light1
from: 28
to: 28

- platform: partition
name: "M30_LED30"
id: M30_LED30
segments:
- id: light1
from: 29
to: 29

# Example for light segment source
- platform: esp32_rmt_led_strip
id: light1
rgb_order: GRB
pin: GPIO12
num_leds: 30
rmt_channel: 0
chipset: ws2812

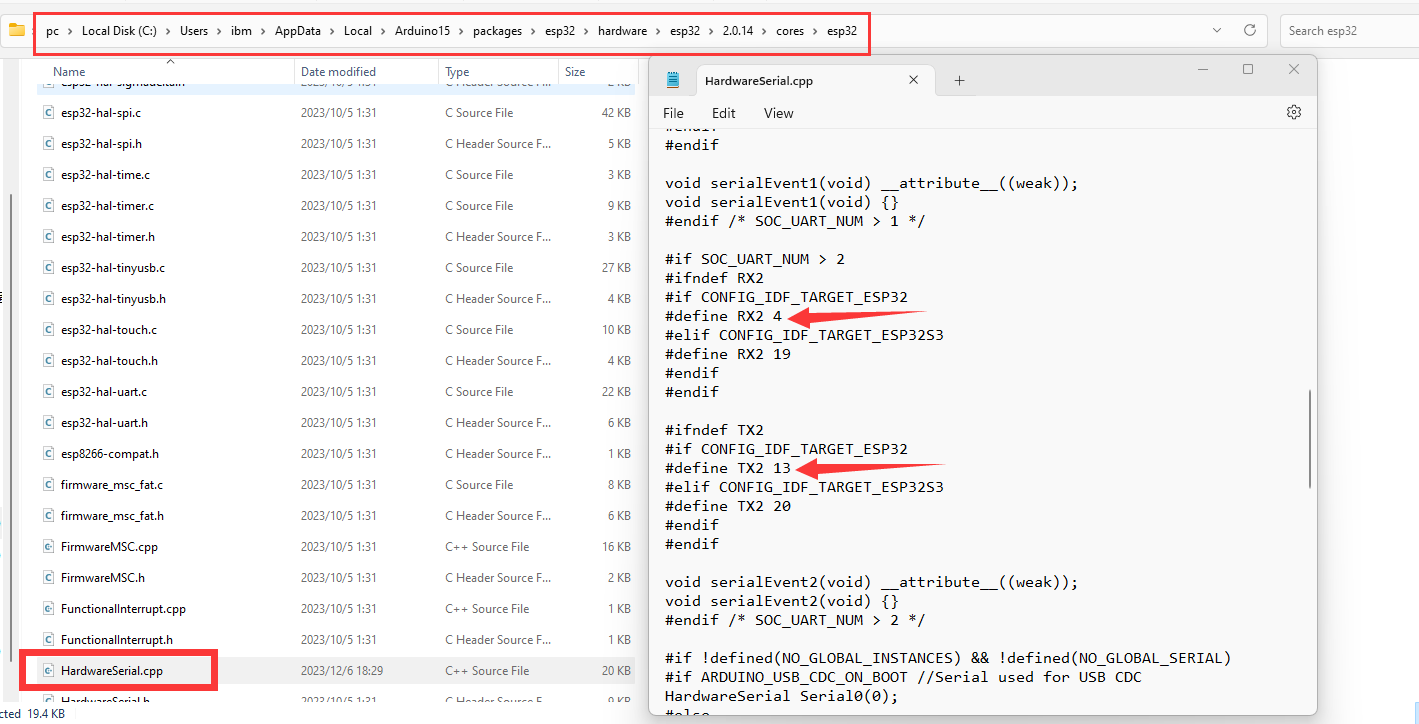

M30 ESP32 I/O pin define

Posted by: admin - 01-05-2024, 11:02 AM - Forum: KC868-M16 / M1 / MB / M30 - Replies (7)

	Ethernet (LAN8720) I/O define: ETH_ADDR 0 ETH_POWER_PIN -1 ETH_MDC_PIN 23 ETH_MDIO_PIN 18 ETH_TYPE ETH_PHY_LAN8720 ETH_CLK_MODE ETH_CLOCK_GPIO17_OUT IIC BUS: SDA:5 SCL:16 SPI BUS: SCK:14 MOSI:15 MISO:2 WS2812 RGBW LED:12 ---------------------------------- ARM CPU TXD:32 ARM CPU RXD:33 4G: RXD:13 TXD:4

how to enable Raspberry pi CM4 additional UART serial ports

Posted by: admin - 01-05-2024, 06:02 AM - Forum: KC868-Server Raspberry Pi4 local server - No Replies

	edit config.txt file, add: dtoverlay=uart2 dtoverlay=uart3 dtoverlay=uart4 dtoverlay=uart5 Note that the kernel will reject attempts to enable UARTs where the pins are in use by something else (e.g. UART0, UART1 or one of the I2C ports), or it might even disable the other thing, so make sure what you are trying to do is possible. uart1 being enabled by default, pi 4 having 4 extra uarts.

Communicate between multiple ESP's with RS485 Modbus

Posted by: k0cka - 01-04-2024, 11:22 PM - Forum: Getting Started with ESPHome and Home Assistant - Replies (10)

Hello, I was searching on the internet but I could not find answers to my questions. So I would like to try my luck here and see if someone can help me.

I would like to ask if it’s possible to communicate between multiple ESP’s using modbus in ESPHome. So for example - I press a button on esp1 and turn on a relay on esp2.

I have some max485 modules to convert UART to RS485, but I just don’t understand how should the yaml files been written since I’m a total newbie in this field.

Thank you in advance!

Multiple DS18B20 Temperature sensor at the same GPIO pin

Posted by: tamibandy - 01-04-2024, 03:57 PM - Forum: DIY Project - Replies (1)

Hello,

On Kincony A8 controller, I made a code for reading multiple temperature sensor with one GPIO(14) pin (DS18B20 type). I made the reading on the second core of the ESP32's processor, to don't make any delay in the normal program cycle.
In the code is managed the multiple reading to can assign every DS18B20 temperature sensor to a fix variable by unique code of the DS18B20.

Here I will attach a short code about it. I didn't uploaded all of the code because there is a lot of other things in it too. Maybe if you want to use, need to do some other implementations too. But for a start it is perfect.

Code:
#include <DS18B20.h>

#include <Preferences.h>

DS18B20 ds(14);

struct DS18B20_tempSensor {

  uint8_t temperatureID;

  uint8_t address[8];

  float value;

};

DS18B20_tempSensor dsTemp[16];

struct Parameters {

  uint32_t  magic;

  byte temperatureAddress[16][8];

};

Parameters paramLocal;

const Parameters paramDefault = {

  0x626C6E6B

};

float temperature[16];

void setup() {

  loadParameters();

  xTaskCreatePinnedToCore(

      Task1code, /* Function to implement the task */

      "Task1", /* Name of the task */

      10000,  /* Stack size in words */

      NULL,  /* Task input parameter */

      0,  /* Priority of the task */

      &Task1,  /* Task handle. */

      0); /* Core where the task should run */

}

void loop() {

}

void Task1code( void * parameter) {

  for(;;) {

    while(ds.selectNext()) {

      uint8_t address[8];

      ds.getAddress(address);

      bool found = false;

      for(int i = 0; i < 16; i++) {

        if(memcmp(dsTemp[i].address, address, 8) == 0) {

          found = true;

          dsTemp[i].value = ds.getTempC();

          break;

        }

      }

      if(!found) {

        for(int i = 0; i < 16; i++) {

          bool empty = true;

          for(int j = 0; j < 8; j++) {

            if(dsTemp[i].address[j] != 0) {

              empty = false;

              break;

            }

          }

          if(empty) {

            ds.setResolution(12);

            bool match = false;

            for(int j = 0; j < 16; j++) {

              if(memcmp(paramLocal.temperatureAddress[j], address, 8) == 0) {

                match = true;

                dsTemp[i].temperatureID = j + 1;

                break;

              }

            }

            if(!match) {

              dsTemp[i].temperatureID = 99;

            }

            for(int j = 0; j < 8; j++) {

              dsTemp[i].address[j] = address[j];

            }

            dsTemp[i].value = ds.getTempC();

            break;

          }

        }

      }

    }

  }

}

bool loadParameters() {

  Preferences prefs;

  if (prefs.begin("esp32", true)) { // read-only

    memset(&paramLocal, 0, sizeof(paramLocal));

    prefs.getBytes("parameters", &paramLocal, sizeof(paramLocal));

    if (paramLocal.magic != paramDefault.magic) {

      Serial.print(F("Using default parameters."));

      paramLocal = paramDefault;

    }

    return true;

  } else {

    Serial.print(F("Parameters read failed"));

    return false;

  }

}

bool saveParameters() {

  Preferences prefs;

  if (prefs.begin("esp32", false)) { // writeable

    prefs.putBytes("parameters", &paramLocal, sizeof(paramLocal));

    Serial.print(F("Parameters stored to flash"));

    return true;

  } else {

    Serial.print(F("Parameters write failed"));

    return false;

  }

}

Module sim7670C cannot send messages, cannot call, nor receive messages or calls! Ple

Posted by: Tchip - 01-04-2024, 02:14 PM - Forum: Development - Replies (7)

	Hi everybody! I'm new to the 7670C sim module and currently I still don't know how to configure it to receive, send messages and calls. I sent AT commands to it and it responded OK. But when I send messages and calls, it cannot make or receive calls and messages. Look forward to the help. Thank you so much!

It is possible a hardware modification?

Posted by: tamibandy - 01-04-2024, 10:59 AM - Forum: KC868-A8 - Replies (1)

	Is there possibility to do A8 custom board? Board with nextion HMI connector 5VDC, GND, STX, RTX? Instead of 433 radio control. Ethernet not needed if WiFi is available and those GPIO pins could be freed up.

Pages (381): « Previous 1 … 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 … 381 Next »

Login
Username:
Password:	Lost Password?
	Remember me
