Thumbs Up [Arduino IDE demo source code for KC868-E16S]--#06-KC868-E16S-RS485
Posted by: KinCony Support - 05-17-2022, 01:29 AM - Forum: KC868-E16S/E16P - No Replies

[Arduino IDE demo source code for KC868-E16S]--#06-KC868-E16S-RS485


Code:
/*WWW.KINCONY.COM */
/*KC868-E16S CODE OF RS485*/
void setup(){
  Serial2.begin(9600,SERIAL_8N1,13,32);// IO13 is 485RX  IO32 is 485TX
}

void loop() {
Serial2.println("abcd123456789551");// send abcd123456789551
}



Attached Files
.zip   KC868-E16S-RS485.zip (Size: 469.31 KB / Downloads: 1026)
Print this item

Thumbs Up [Arduino IDE demo source code for KC868-E16S]--#05-KC868-E16S-LAN8720_UDP
Posted by: KinCony Support - 05-17-2022, 01:28 AM - Forum: KC868-E16S/E16P - No Replies

[Arduino IDE demo source code for KC868-E16S]--#05-KC868-E16S-LAN8720_UDP


Code:
/*www.kincony.com */
/* KC868-E16S CODE OF LAN8720-UDP */
#include <ETH.h>
#include <WiFiUdp.h>

#define ETH_ADDR        0
#define ETH_POWER_PIN  -1
#define ETH_MDC_PIN    23
#define ETH_MDIO_PIN   18
#define ETH_TYPE       ETH_PHY_LAN8720
#define ETH_CLK_MODE   ETH_CLOCK_GPIO17_OUT

WiFiUDP Udp;                      //Create UDP object
unsigned int localUdpPort = 4196; //local port
IPAddress local_ip(192, 168, 1, 200);
IPAddress gateway(192, 168, 1, 1);
IPAddress subnet(255, 255, 255, 0);
IPAddress dns(192, 168, 1, 1);

void setup()
{
  Serial.begin(115200);
  Serial.println();

  ETH.begin(ETH_ADDR, ETH_POWER_PIN, ETH_MDC_PIN, ETH_MDIO_PIN, ETH_TYPE, ETH_CLK_MODE); //start with ETH

  // write confir for static IP, gateway,subnet,dns1,dns2
  if (ETH.config(local_ip, gateway, subnet, dns, dns) == false) {
    Serial.println("LAN8720 Configuration failed.");
  }else{Serial.println("LAN8720 Configuration success.");}

  Serial.println("Connected");
  Serial.print("IP Address:");
  Serial.println(ETH.localIP());

  Udp.begin(localUdpPort); //begin UDP listener
}

void loop()
{
  int packetSize = Udp.parsePacket(); //get package size
  if (packetSize)                     //if have received data
  {
    char buf[packetSize];
    Udp.read(buf, packetSize); //read current data
    Serial.println();
    Serial.print("Received: ");
    Serial.println(buf);
    Serial.print("From IP: ");
    Serial.println(Udp.remoteIP());
    Serial.print("From Port: ");
    Serial.println(Udp.remotePort());

    Udp.beginPacket(Udp.remoteIP(), Udp.remotePort()); //ready to send data
    Udp.print("Received: ");
    Udp.write((const uint8_t*)buf, packetSize); //copy data to sender buffer
    Udp.endPacket();            //send data
  }
}




Attached Files
.zip   KC868-E16S-LAN8720_UDP.zip (Size: 1.11 KB / Downloads: 931)
Print this item

Thumbs Up [Arduino IDE demo source code for KC868-E16S]--#04-KC868-E16S-ADC_IN
Posted by: KinCony Support - 05-17-2022, 01:25 AM - Forum: KC868-E16S/E16P - No Replies

[Arduino IDE demo source code for KC868-E16S]--#04-KC868-E16S-ADC_IN


Code:
/*www.kinocny.com */
/*KC868-E16S CODE OF ADC-IN*/

#include "Arduino.h"

#define ANALOG_A1   36
#define ANALOG_A2   35
#define ANALOG_A3   34
#define ANALOG_A4   39

void setup()
{
    Serial.begin(115200);
    delay(500);

  pinMode(ANALOG_A1,INPUT);
  pinMode(ANALOG_A2,INPUT);
  pinMode(ANALOG_A3,INPUT);
  pinMode(ANALOG_A4,INPUT);
}

void loop()
{

  if(analogRead(ANALOG_A1)!=0)  {Serial.printf("Current Reading A1 on Pin(%d)=%d\n",ANALOG_A1,analogRead(ANALOG_A1));}
  if(analogRead(ANALOG_A2)!=0)  {Serial.printf("Current Reading A2 on Pin(%d)=%d\n",ANALOG_A2,analogRead(ANALOG_A2));}
  if(analogRead(ANALOG_A3)!=0)  {Serial.printf("Current Reading A3 on Pin(%d)=%d\n",ANALOG_A3,analogRead(ANALOG_A3));}
  if(analogRead(ANALOG_A4)!=0)  {Serial.printf("Current Reading A4 on Pin(%d)=%d\n",ANALOG_A4,analogRead(ANALOG_A4));}
  delay(50);
}



Attached Files
.zip   KC868-E16S-ADC_IN.zip (Size: 674 bytes / Downloads: 895)
Print this item

Thumbs Up [Arduino IDE demo source code for KC868-E16S]--#03-KC868-E16S-8574-DO
Posted by: KinCony Support - 05-17-2022, 01:21 AM - Forum: KC868-E16S/E16P - No Replies

[Arduino IDE demo source code for KC868-E16S]--#03-KC868-E16S-8574-DO


Code:
/*KC868-E16S Code of PCF8574 OUTPUT  CONTROL RELAYS*/
/*Press and hold on key Download ,relays ON,   release key relays OFF*/
#include "Arduino.h"
#include "PCF8574.h"

/*Set pcf8574 Output i2c address and SDA IO16/ SCL IO15*/
#define buttonPin 0
PCF8574 pcf8574_1(0x21,16,15);
PCF8574 pcf8574_2(0x25,16,15);

void setup()
{
    Serial.begin(115200);
/* Set pinMode to OUTPUT*/
   pinMode(buttonPin, INPUT);// key download  IO0

    pcf8574_1.pinMode(P0, OUTPUT);
  pcf8574_1.pinMode(P1, OUTPUT);
  pcf8574_1.pinMode(P2, OUTPUT);
  pcf8574_1.pinMode(P3, OUTPUT);
  pcf8574_1.pinMode(P4, OUTPUT);
  pcf8574_1.pinMode(P5, OUTPUT);
  pcf8574_1.pinMode(P6, OUTPUT);
  pcf8574_1.pinMode(P7, OUTPUT);

  pcf8574_2.pinMode(P0, OUTPUT);
  pcf8574_2.pinMode(P1, OUTPUT);
  pcf8574_2.pinMode(P2, OUTPUT);
  pcf8574_2.pinMode(P3, OUTPUT);
  pcf8574_2.pinMode(P4, OUTPUT);
  pcf8574_2.pinMode(P5, OUTPUT);
  pcf8574_2.pinMode(P6, OUTPUT);
  pcf8574_2.pinMode(P7, OUTPUT);

  pcf8574_1.begin();
  pcf8574_2.begin();
}

void loop()
{
if(digitalRead(buttonPin)==0)
{
      pcf8574_1.digitalWrite(P0, LOW);  delay(100);
    pcf8574_1.digitalWrite(P1, LOW);  delay(100);
    pcf8574_1.digitalWrite(P2, LOW);  delay(100);
    pcf8574_1.digitalWrite(P3, LOW);  delay(100);
    pcf8574_1.digitalWrite(P4, LOW);  delay(100);
    pcf8574_1.digitalWrite(P5, LOW);  delay(100);
    pcf8574_1.digitalWrite(P6, LOW);  delay(100);
    pcf8574_1.digitalWrite(P7, LOW);  delay(100);

    pcf8574_2.digitalWrite(P0, LOW);  delay(100);
    pcf8574_2.digitalWrite(P1, LOW);  delay(100);
    pcf8574_2.digitalWrite(P2, LOW);  delay(100);
    pcf8574_2.digitalWrite(P3, LOW);  delay(100);
    pcf8574_2.digitalWrite(P4, LOW);  delay(100);
    pcf8574_2.digitalWrite(P5, LOW);  delay(100);
    pcf8574_2.digitalWrite(P6, LOW);  delay(100);
    pcf8574_2.digitalWrite(P7, LOW);  delay(100);
  }
  else
  {
    pcf8574_1.digitalWrite(P0, HIGH);  delay(100);
    pcf8574_1.digitalWrite(P1, HIGH);  delay(100);
    pcf8574_1.digitalWrite(P2, HIGH);  delay(100);
    pcf8574_1.digitalWrite(P3, HIGH);  delay(100);
    pcf8574_1.digitalWrite(P4, HIGH);  delay(100);
    pcf8574_1.digitalWrite(P5, HIGH);  delay(100);
    pcf8574_1.digitalWrite(P6, HIGH);  delay(100);
    pcf8574_1.digitalWrite(P7, HIGH);  delay(100);

    pcf8574_2.digitalWrite(P0, HIGH);  delay(100);
    pcf8574_2.digitalWrite(P1, HIGH);  delay(100);
    pcf8574_2.digitalWrite(P2, HIGH);  delay(100);
    pcf8574_2.digitalWrite(P3, HIGH);  delay(100);
    pcf8574_2.digitalWrite(P4, HIGH);  delay(100);
    pcf8574_2.digitalWrite(P5, HIGH);  delay(100);
    pcf8574_2.digitalWrite(P6, HIGH);  delay(100);
    pcf8574_2.digitalWrite(P7, HIGH);  delay(100);
  }
}



Attached Files
.zip   KC868-E16S-8574-DO.zip (Size: 911 bytes / Downloads: 881)
Print this item

Thumbs Up [Arduino IDE demo source code for KC868-E16S]--#02-KC868-E16S-8574-DI
Posted by: KinCony Support - 05-17-2022, 01:17 AM - Forum: KC868-E16S/E16P - No Replies

[Arduino IDE demo source code for KC868-E16S]--#02-KC868-E16S-8574-DI


Code:
/*KC868-E16S pcf8574 -digital input code*/
#include "Arduino.h"
#include "PCF8574.h"

// Set i2c address
PCF8574 pcf8574_IN1(0x22,16,15);
PCF8574 pcf8574_IN2(0x24,16,15);
void setup()
{
    Serial.begin(115200);
    delay(1000);

  pcf8574_IN1.begin();
  pcf8574_IN2.begin();


pcf8574_IN1.pinMode(P0, INPUT);
pcf8574_IN1.pinMode(P1, INPUT);
pcf8574_IN1.pinMode(P2, INPUT);
pcf8574_IN1.pinMode(P3, INPUT);
pcf8574_IN1.pinMode(P4, INPUT);
pcf8574_IN1.pinMode(P5, INPUT);
pcf8574_IN1.pinMode(P6, INPUT);
pcf8574_IN1.pinMode(P7, INPUT);

pcf8574_IN2.pinMode(P0, INPUT);
pcf8574_IN2.pinMode(P1, INPUT);
pcf8574_IN2.pinMode(P2, INPUT);
pcf8574_IN2.pinMode(P3, INPUT);
pcf8574_IN2.pinMode(P4, INPUT);
pcf8574_IN2.pinMode(P5, INPUT);
pcf8574_IN2.pinMode(P6, INPUT);
pcf8574_IN2.pinMode(P7, INPUT);
}

void loop()
{
   if (pcf8574_IN1.digitalRead(P0)==0)  {Serial.println("KEY1 PRESSED");}delay(100);
   if (pcf8574_IN1.digitalRead(P1)==0)  {Serial.println("KEY2 PRESSED");}delay(100);
   if (pcf8574_IN1.digitalRead(P2)==0)  {Serial.println("KEY3 PRESSED");}delay(100);
   if (pcf8574_IN1.digitalRead(P3)==0)  {Serial.println("KEY4 PRESSED");}delay(100);
   if (pcf8574_IN1.digitalRead(P4)==0)  {Serial.println("KEY5 PRESSED");}delay(100);
   if (pcf8574_IN1.digitalRead(P5)==0)  {Serial.println("KEY6 PRESSED");}delay(100);
   if (pcf8574_IN1.digitalRead(P6)==0)  {Serial.println("KEY7 PRESSED");}delay(100);
   if (pcf8574_IN1.digitalRead(P7)==0)  {Serial.println("KEY8 PRESSED");}delay(100);

   if (pcf8574_IN2.digitalRead(P0)==0)  {Serial.println("KEY9 PRESSED");}delay(100);
   if (pcf8574_IN2.digitalRead(P1)==0)  {Serial.println("KEY10 PRESSED");}delay(100);
   if (pcf8574_IN2.digitalRead(P2)==0)  {Serial.println("KEY11 PRESSED");}delay(100);
   if (pcf8574_IN2.digitalRead(P3)==0)  {Serial.println("KEY12 PRESSED");}delay(100);
   if (pcf8574_IN2.digitalRead(P4)==0)  {Serial.println("KEY13 PRESSED");}delay(100);
   if (pcf8574_IN2.digitalRead(P5)==0)  {Serial.println("KEY14 PRESSED");}delay(100);
   if (pcf8574_IN2.digitalRead(P6)==0)  {Serial.println("KEY15 PRESSED");}delay(100);
   if (pcf8574_IN2.digitalRead(P7)==0)  {Serial.println("KEY16 PRESSED");}delay(100);


}




Attached Files
.zip   KC868-E16S-8574-DI.zip (Size: 783 bytes / Downloads: 899)
Print this item

Thumbs Up [Arduino IDE demo source code for KC868-E16S]--#01-KC868-E16S-433-decode
Posted by: KinCony Support - 05-17-2022, 01:07 AM - Forum: KC868-E16S/E16P - No Replies

[Arduino IDE demo source code for KC868-E16S]--#01-KC868-E16S-433-decode


Code:
/*www.kinocny.com */
/*KC868-E16S CODE OF 433MHz decode*/

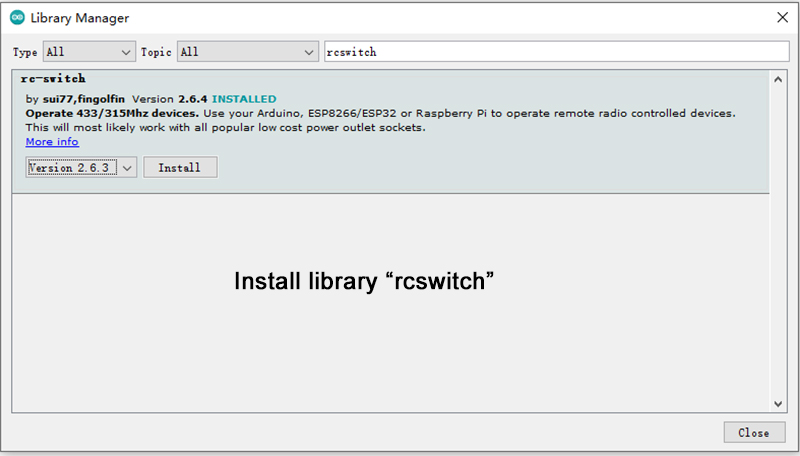

#include <RCSwitch.h>

RCSwitch mySwitch = RCSwitch();

void setup() {
  Serial.begin(9600);
  mySwitch.enableReceive(digitalPinToInterrupt(4));
}

void loop() {
  if (mySwitch.available()) {

    Serial.print("Received ");
    Serial.print( mySwitch.getReceivedValue() );
    Serial.print(" / ");
    Serial.print( mySwitch.getReceivedBitlength() );
    Serial.print("bit ");
    Serial.print("Protocol: ");
    Serial.println( mySwitch.getReceivedProtocol() );

    mySwitch.resetAvailable();
  }
}




Attached Files
.zip   KC868-E16S-433-decode.zip (Size: 669 bytes / Downloads: 867)
Print this item

  KC868 H32B in home assistant
Posted by: ahmedwizza - 05-17-2022, 12:49 AM - Forum: KC868-HxB series Smart Controller - Replies (4)

hello engineer could you please help my in home assistant

when i add KC868 H32B to home assistant .needed to make one switch control all On and Off like attached photos.



Attached Files Thumbnail(s)

Print this item

Thumbs Up [Arduino IDE of KC868-E16S]--#00-KC868-E16S-configure for ESPhome
Posted by: admin - 05-17-2022, 12:45 AM - Forum: KC868-E16S/E16P - Replies (13)

esphome:
  name: kc868-e16s
  platform: ESP32
  board: esp32dev


# Example configuration entry for ESP32
i2c:
  sda: 16
  scl: 15
  scan: true
  id: bus_a


# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

  # Optional manual IP
#  manual_ip:
#    static_ip: 192.168.1.199
#    gateway: 192.168.1.1
#    subnet: 255.255.255.0


# Example configuration entry
pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-8
    address: 0x21

  - id: 'pcf8574_hub_out_2'  # for output channel 9-16
    address: 0x25

  - id: 'pcf8574_hub_in_1'  # for input channel 1-8
    address: 0x22

  - id: 'pcf8574_hub_in_2'  # for input channel 9-16
    address: 0x24

# Individual outputs
switch:
  - platform: gpio
    name: "e16s-output1"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output2"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output3"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output4"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output5"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output6"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output7"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output8"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output9"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output10"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output11"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output12"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output13"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output14"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output15"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16s-output16"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 7
      mode: OUTPUT
      inverted: true

binary_sensor:
  - platform: gpio
    name: "e16s-input1"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input2"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input3"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input4"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input5"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input6"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input7"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input8"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input9"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input10"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input11"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input12"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input13"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input14"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input15"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16s-input16"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 7
      mode: INPUT
      inverted: true

# Enable logging
logger:

# Enable Home Assistant API
api:



Print this item

  KC868-E16S ESP32 I/O pin define
Posted by: admin - 05-17-2022, 12:44 AM - Forum: KC868-E16S/E16P - Replies (4)

ANALOG_A1  GPIO36
ANALOG_A2  GPIO35
ANALOG_A3  GPIO34
ANALOG_A4  GPIO39

IIC SDA:GPIO16
IIC SCL:GPIO15

PCF8574:U27 (relay1-8): 100 001 = 0x21
PCF8574:U28 (relay9-16): 100 101 = 0x25

PCF8574:U23 (DI1-8): 100 010 = 0x22
PCF8574:U24 (DI9-16): 100 100 = 0x24

RF433MHz wireless receiver: GPIO4

BEEP:GPIO2

Ethernet (LAN8720) I/O define:

#define ETH_ADDR        0
#define ETH_POWER_PIN  -1
#define ETH_MDC_PIN    23
#define ETH_MDIO_PIN  18
#define ETH_TYPE      ETH_PHY_LAN8720
#define ETH_CLK_MODE  ETH_CLOCK_GPIO17_OUT

--------------------
RS485:
RXD:GPIO13
TXD:GPIO32

Extend serial port (3.3v TTL level):
RXD:GPIO14
TXD:GPIO33

Print this item

  inputs and outputs
Posted by: Amaral989 - 05-16-2022, 12:43 AM - Forum: KC868-Server Raspberry Pi4 local server - Replies (5)

Hello,
Finally received my KC868 server and so far its has been great setting it up.
I am planning on putting this in my RV (camper van) .  i do have a question concerning inputs and outputs. In the camper van there are a few on/off switches for lights. There is some other switches that are momentary switches. Is there a way to change the programming to latch the relay . For example, if i press the momentary button, it should close the relay. Press the button again, release the relay.

Thank you,
John

Print this item
