[Arduino demo source code for KC868-A4]-03 send 433MHz RF signal

Posted by: KinCony Support - 01-07-2022, 02:18 AM - Forum: KC868-A4 - No Replies

Code 2: //The demo code is RF-send You can copy the code to your Arduino IDE

Code:
#include <RCSwitch.h>

RCSwitch mySwitch = RCSwitch();

void setup() {

  Serial.begin(9600);

    mySwitch.enableTransmit(21);  // IO21

  }

void loop() {

  /* See Example: TypeA_WithDIPSwitches */

  mySwitch.switchOn("11111", "00010");

  delay(1000);

  mySwitch.switchOff("11111", "00010");

  delay(1000);

  /* Same switch as above, but using decimal code */

  mySwitch.send(5393, 24);

  delay(1000);

  mySwitch.send(5396, 24);

  delay(1000);

  /* Same switch as above, but using binary code */

  mySwitch.send("000000000001010100010001");

  delay(1000);

  mySwitch.send("000000000001010100010100");

  delay(1000);

  /* Same switch as above, but tri-state code */

  mySwitch.sendTriState("00000FFF0F0F");

  delay(1000);

  mySwitch.sendTriState("00000FFF0FF0");

  delay(1000);

  delay(20000);

}

[Arduino demo source code for KC868-A4]-02 433MHz RF signal receive decode

Posted by: KinCony Support - 01-07-2022, 02:13 AM - Forum: KC868-A4 - No Replies

Code 1: //The demo code is RF-receive You can copy the code to your Arduino IDE

Code:
#include <RCSwitch.h>

RCSwitch mySwitch = RCSwitch();

void setup() {

  Serial.begin(9600);

  mySwitch.enableReceive(digitalPinToInterrupt(19));  //IO19

  Serial.print("begin test");

}

void loop() {

  if (mySwitch.available()) {

    Serial.print("Received ");

    Serial.print( mySwitch.getReceivedValue() );

    Serial.print(" / ");

    Serial.print( mySwitch.getReceivedBitlength() );

    Serial.print("bit ");

    Serial.print("Protocol: ");

    Serial.println( mySwitch.getReceivedProtocol() );

    mySwitch.resetAvailable();

  }

}

[Arduino demo source code for KC868-A4]-01 config Arduino IDE for ESP32 module

Posted by: KinCony Support - 01-07-2022, 02:06 AM - Forum: KC868-A4 - No Replies

	Before using KC868-A4, you need to set the parameters of the preference Copy the following URL:https://dl.espressif.com/dl/package_esp32_index.json KC868-A4-schematic.pdf (Size: 244.64 KB / Downloads: 1153)

KC868-D8 V4.37 new firmware update

Posted by: admin - 01-06-2022, 12:03 PM - Forum: News - Replies (5)

improvement:

when switch button work in "1 Key" mode . we let the "UP" and "DOWN" button ports with the same function. so that easy for connect two thick wire from two different places. such as this two thick wire not easy connect to one terminal pole.



update BIN file firmware by "KC868 Controller Network Bootloader" tool.

[Image: KC868-Controller-Network-Bootloader.png]
KC868 Controller Network Bootloader

[Image: zip.png]    KC868 Controller Network Bootloader.zip

firmware BIN file

.zip   Dimmer8_V437_0106.zip (Size: 45.49 KB / Downloads: 896)

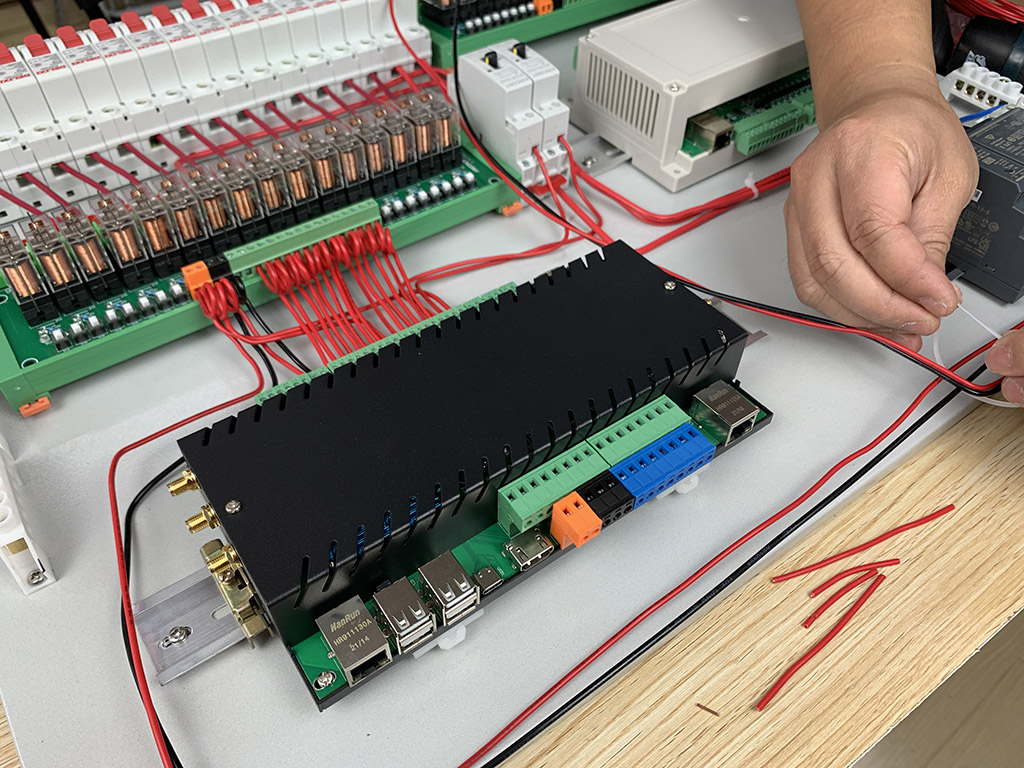

Smart Home Hardware

Posted by: Mati - 01-06-2022, 10:58 AM - Forum: DIY Project - Replies (7)

Hello all,
Which one of your product do you recommend for home automation.
I have RaspberryPi with home assistant. I would like to control blinds and lights via HA and also via manual wall switches. And later adding some sensors and stuff…
I was looking at Kincony relay module but there is so many options that I dont know which to choose for the best output.

Here is shematic what I would like to achieve.

KC868-A4 Serial Ports and Scl Sda ? and Voltage range of 4-20mA ports

Posted by: gokhan - 01-06-2022, 08:55 AM - Forum: KC868-HxB series Smart Controller - Replies (1)

Does KC868-A4 model control card support to connect Nextion Screen by using Tx2 Rx2 of ESP32
or connect I2C LC by using SCL SDA ?

I looked for but I think KC868-A4 doesn't have SLC SDA and TX2 RX2 ports ? İf it has could you show us ?

Secondly I have 4-20mA sensor output and voltage of sensor terminals is 24V
what happens if I connect 4-20mA sensor output to KC868-A4 4-20mA ports
does the 24V of supply voltage of sensor damage the ports of KC868-A4 ?

Huh

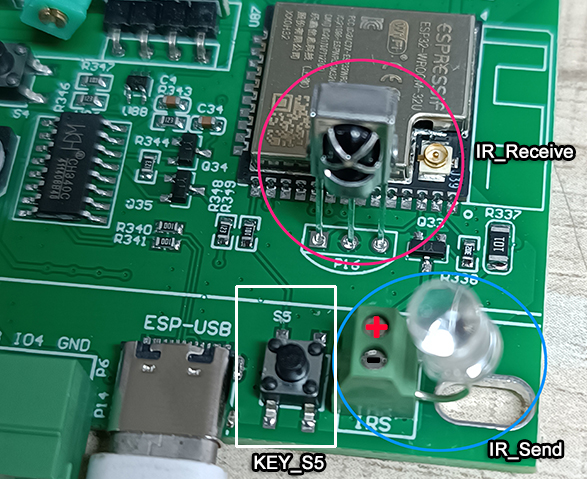

KC868-A16 ethernet work with home assistant by ESPHome configure

Posted by: admin - 01-06-2022, 02:04 AM - Forum: KC868-A16 - Replies (30)

esphome:
name: a16
platform: ESP32
board: esp32dev

# Example configuration entry for ESP32
i2c:
sda: 4
scl: 5
scan: true
id: bus_a

# Example configuration entry
ethernet:
type: LAN8720
mdc_pin: GPIO23
mdio_pin: GPIO18
clk_mode: GPIO17_OUT
phy_addr: 0

# Optional manual IP
manual_ip:
static_ip: 192.168.1.199
gateway: 192.168.1.1
subnet: 255.255.255.0

# Example configuration entry
pcf8574:
- id: 'pcf8574_hub_out_1' # for output channel 1-8
address: 0x24

- id: 'pcf8574_hub_out_2' # for output channel 9-16
address: 0x25

- id: 'pcf8574_hub_in_1' # for input channel 1-8
address: 0x21

- id: 'pcf8574_hub_in_2' # for input channel 9-16
address: 0x22

# Individual outputs
switch:
- platform: gpio
name: "light1"
pin:
pcf8574: pcf8574_hub_out_1
# Use pin number 0
number: 0
# One of INPUT or OUTPUT
mode: OUTPUT
inverted: false

- platform: gpio
name: "light9"
pin:
pcf8574: pcf8574_hub_out_2
# Use pin number 0
number: 0
# One of INPUT or OUTPUT
mode: OUTPUT
inverted: false

binary_sensor:
- platform: gpio
name: "input1"
pin:
pcf8574: pcf8574_hub_in_1
# Use pin number 0
number: 0
# One of INPUT or OUTPUT
mode: INPUT
inverted: false

- platform: gpio
name: "input9"
pin:
pcf8574: pcf8574_hub_in_2
# Use pin number 0
number: 0
# One of INPUT or OUTPUT
mode: INPUT
inverted: false

# Enable logging
logger:

# Enable Home Assistant API
api:

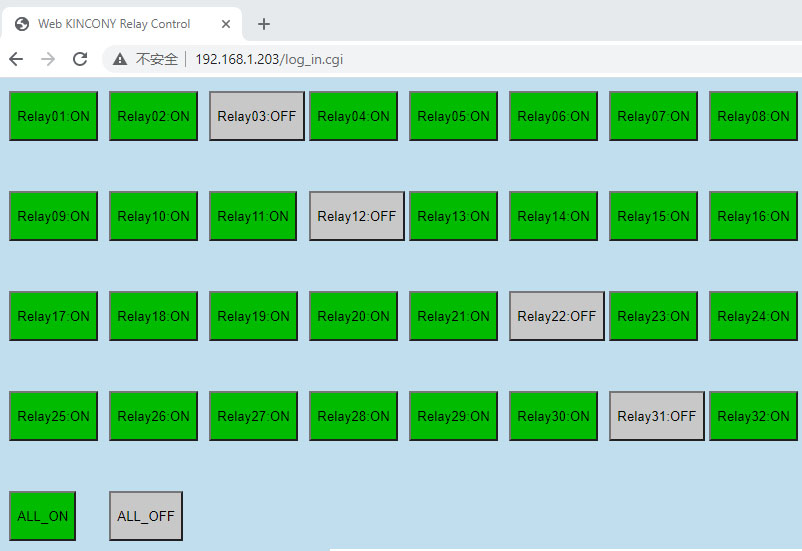

Controlling all wall sockets using Kincony products

Posted by: viktor - 01-05-2022, 09:23 PM - Forum: KC868-HxB series Smart Controller - Replies (5)

Hi guys,
I follow Kincony products for some time and really like all the features they bring. I'm not electrician, have no experience with smart installations yet, but have master's from computer networks. As we are moving to a new flat that requires complete re-construction, I'm playing with an idea to buy Kincony products and turn that place into a smart one. I'm not fan of wireless connections due to security, so was thinking about wiring everything - around 10 lights, 15 wall switches, 30 wall sockets and 4 external curtains. LAN network would be OK for me. I struggle with few things and maybe somebody in this forum can help me to answer them? Sorry If my questions are lame...

1. Is above described scenario OK for Kincony products?
2. I'm located in Europe and our sockets have max load of 16A. I see that KC868-H output ports have max load of 10A. So how can this control 16A sockets? Should I use those Omron relays that support 16A? If so how to chain them?
3. If I want to be able to turn on/off each wall socket separately, what products should I use and how to wire them? Max output ports I see in the list is 32, so seems like I need to do some chaining? Also, when it comes to connection, do I need to run separate L wire between relay appliance and sockets? When it comes to N and GND wires, those can be chained from one socket to another?
4. I understand that wall switches will only use 12V. Initially I thought they only use some simple data bus wire to send signal about pushed button to controller. But looking at the pictures of some Kincony switches in articles posted here, there are many ports on the back side. So how does this actually work and how many wires do I need to run to each wall switch?
5. Finally, which products should I buy to achieve all of this? It is clear that I will need to ask electrician for installation. But I would like to understand this myself as well.

Thank you.

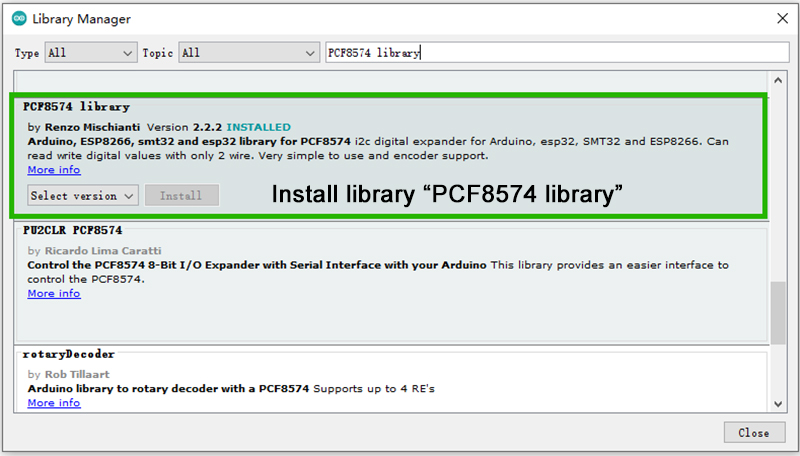

[Arduino IDE demo source code for KC868-A16]--#08-PCF8574-DO

Posted by: KinCony Support - 01-05-2022, 08:27 AM - Forum: KC868-A16 - Replies (17)

Code 7: //The demo code is PCF8574-DO You can copy the code to your Arduino IDE.

Code:
#include "Arduino.h"

#include "PCF8574.h"

// Set i2c address

PCF8574 pcf8574_1(0x24,4,5);

PCF8574 pcf8574_2(0x25,4,5);

void setup()

{

  Serial.begin(115200);

  pcf8574_1.pinMode(P0, OUTPUT);

  pcf8574_1.pinMode(P1, OUTPUT);

  pcf8574_1.pinMode(P2, OUTPUT);

  pcf8574_1.pinMode(P3, OUTPUT);

  pcf8574_1.pinMode(P4, OUTPUT);

  pcf8574_1.pinMode(P5, OUTPUT);

  pcf8574_1.pinMode(P6, OUTPUT);

  pcf8574_1.pinMode(P7, OUTPUT);

  pcf8574_2.pinMode(P0, OUTPUT);

  pcf8574_2.pinMode(P1, OUTPUT);

  pcf8574_2.pinMode(P2, OUTPUT);

  pcf8574_2.pinMode(P3, OUTPUT);

  pcf8574_2.pinMode(P4, OUTPUT);

  pcf8574_2.pinMode(P5, OUTPUT);

  pcf8574_2.pinMode(P6, OUTPUT);

  pcf8574_2.pinMode(P7, OUTPUT);

    Serial.print("Init pcf8574_1...");

    if (pcf8574_1.begin()){

        Serial.println("PCF8574_1_OK");

    }else{

        Serial.println("PCF8574_1_KO");

    }

  Serial.print("Init pcf8574_2...");

  if (pcf8574_2.begin()){

    Serial.println("PCF8574_2_OK");

  }else{

    Serial.println("PCF8574_2_KO");

  }

}

void loop()

{

  pcf8574_1.digitalWrite(P7, LOW);

  delay(1000);

  pcf8574_1.digitalWrite(P7, HIGH);

  delay(1000);

  pcf8574_2.digitalWrite(P7, LOW);

  delay(1000);

  pcf8574_2.digitalWrite(P7, HIGH);

  delay(1000);

}

[Arduino IDE demo source code for KC868-A16]--#07-PCF8574-DI

Posted by: KinCony Support - 01-05-2022, 08:26 AM - Forum: KC868-A16 - Replies (4)

Code 6: //The demo code is PCF8574-DI You can copy the code to your Arduino IDE

Code:
#include "Arduino.h"

#include "PCF8574.h"

// Set i2c input address

PCF8574 pcf8574_1(0x22,4,5);  // channel 1-8    address: 100010

PCF8574 pcf8574_2(0x21,4,5);  //channel 9-16    address: 100001

unsigned long timeElapsed;

void setup()

{

    Serial.begin(115200);

    delay(1000);

 pcf8574_1.pinMode(P0, INPUT);

 pcf8574_1.pinMode(P1, INPUT);

 pcf8574_1.pinMode(P2, INPUT);

 pcf8574_1.pinMode(P3, INPUT);

 pcf8574_1.pinMode(P4, INPUT);

 pcf8574_1.pinMode(P5, INPUT);

 pcf8574_1.pinMode(P6, INPUT);

 pcf8574_1.pinMode(P7, INPUT);

 pcf8574_2.pinMode(P0, INPUT);

 pcf8574_2.pinMode(P1, INPUT);

 pcf8574_2.pinMode(P2, INPUT);

 pcf8574_2.pinMode(P3, INPUT);

 pcf8574_2.pinMode(P4, INPUT);

 pcf8574_2.pinMode(P5, INPUT);

 pcf8574_2.pinMode(P6, INPUT);

 pcf8574_2.pinMode(P7, INPUT);

    Serial.print("Init pcf8574...");

    if (pcf8574_1.begin()){

        Serial.println("pcf8574_1_OK");

    }else{

        Serial.println("pcf8574_1_KO");

    }

  Serial.print("Init pcf8574...");

  if (pcf8574_2.begin()){

    Serial.println("pcf8574_2_OK");

  }else{

    Serial.println("pcf8574_2_KO");

  }

}

void loop()

{

 uint8_t val1 = pcf8574_1.digitalRead(P0);

 uint8_t val2 = pcf8574_1.digitalRead(P1);

 uint8_t val3 = pcf8574_1.digitalRead(P2);

 uint8_t val4 = pcf8574_1.digitalRead(P3);

 uint8_t val5 = pcf8574_1.digitalRead(P4);

 uint8_t val6 = pcf8574_1.digitalRead(P5);

 uint8_t val7 = pcf8574_1.digitalRead(P6);

 uint8_t val8 = pcf8574_1.digitalRead(P7);

 uint8_t val9 = pcf8574_2.digitalRead(P0);

 uint8_t val10 = pcf8574_2.digitalRead(P1);

 uint8_t val11 = pcf8574_2.digitalRead(P2);

 uint8_t val12 = pcf8574_2.digitalRead(P3);

 uint8_t val13 = pcf8574_2.digitalRead(P4);

 uint8_t val14 = pcf8574_2.digitalRead(P5);

 uint8_t val15 = pcf8574_2.digitalRead(P6);

 uint8_t val16 = pcf8574_2.digitalRead(P7);

 if (val1==LOW) Serial.println("KEY1 PRESSED");

 if (val2==LOW) Serial.println("KEY2 PRESSED");

 if (val3==LOW) Serial.println("KEY3 PRESSED");

 if (val4==LOW) Serial.println("KEY4 PRESSED");

 if (val5==LOW) Serial.println("KEY5 PRESSED");

 if (val6==LOW) Serial.println("KEY6 PRESSED");

 if (val7==LOW) Serial.println("KEY7 PRESSED");

 if (val8==LOW) Serial.println("KEY8 PRESSED");

 if (val9==LOW) Serial.println("KEY1 PRESSED");

 if (val10==LOW) Serial.println("KEY2 PRESSED");

 if (val11==LOW) Serial.println("KEY3 PRESSED");

 if (val12==LOW) Serial.println("KEY4 PRESSED");

 if (val13==LOW) Serial.println("KEY5 PRESSED");

 if (val14==LOW) Serial.println("KEY6 PRESSED");

 if (val15==LOW) Serial.println("KEY7 PRESSED");

 if (val16==LOW) Serial.println("KEY8 PRESSED");

 delay(300);

}

Pages (409): « Previous 1 … 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 … 409 Next »

Login
Username:
Password:	Lost Password?
	Remember me
