KC868-AK Firmware

[admin]

if want work, take a video of your step, how did by you.

[v1rtus]

I am following this video: https://www.youtube.com/watch?v=MI2_qAIEt2U
Relay Controller: KC868-H32

ST-Link



Connected pins:

Controller G -> ST-Link GND
Controller DIO -> ST-Link SWDIO
Controller CLK -> ST-Link SWCLK
Controller RST -> ST-Link RST






[admin]

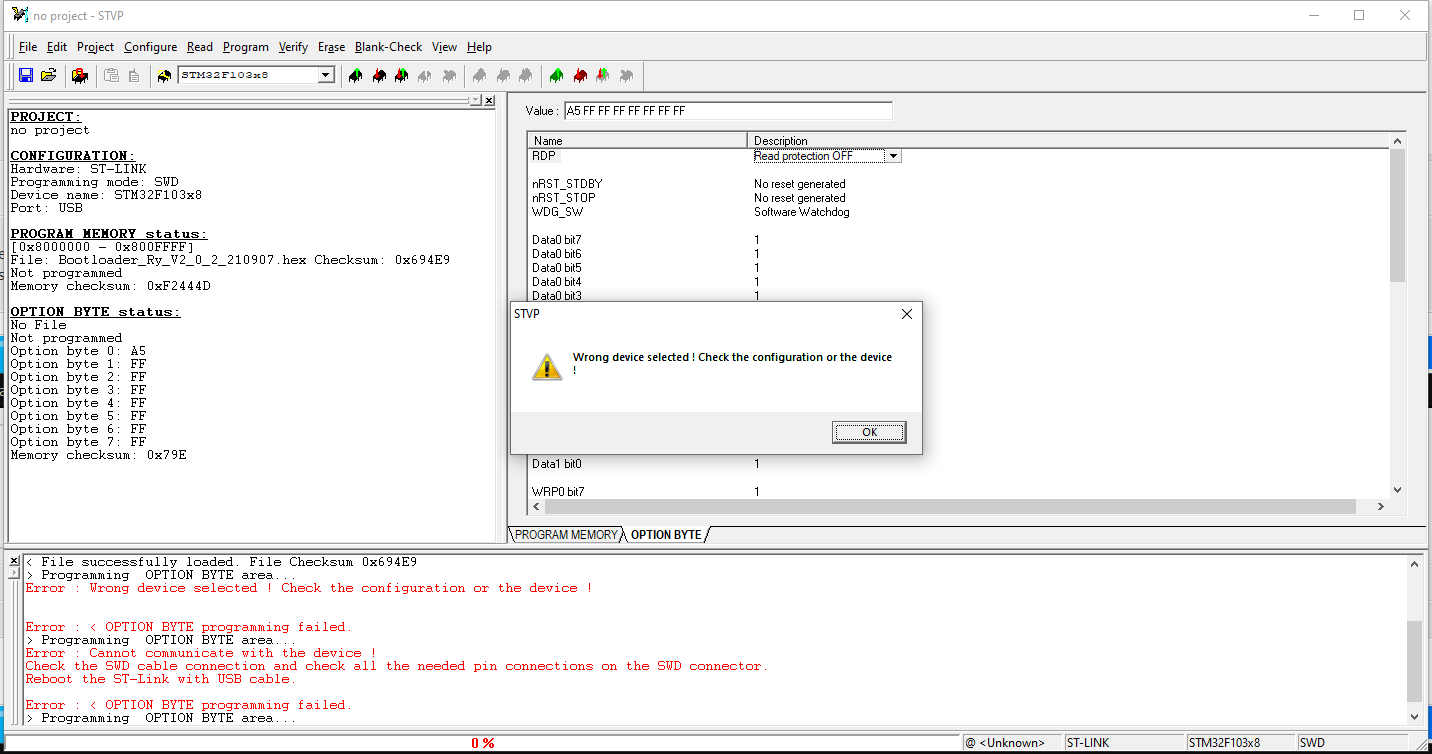

chip list whether have : STM32F103xC ?
because your CPU is STM32F103VCT6

[v1rtus]

thanks a lot, I was able to write .hex to the controller. However now I cannot update the firmware now using KC868 Controller Bootloader tool, it cannot detect bootloader and not reacting to holding any switch.



[admin]

when controller power on, MUST <5 second to click "detect" button by tool.

[v1rtus]

yes, I click the detect button <5 secs after power one, unfortunately it cannot detect a bootloader and no switch is working, is it possible to rollback the bootloader?

[admin]

do you have whatsapp number? i will let our technical support use "Anydesk" remote control your PC to help you download firmware.

[v1rtus]

there is no problem with firmware download, I have done it many times already! The problem is that controller only read light is on, it is not reacting to holding any button, I cannot access to it via serial or ethernet.

[admin]

because now only BOOTLOADER inside, but no firmware inside.

[v1rtus]

I am following the instruction, I have RS232 connect and Bootloader software running, after I power the controller I press detect bootloader but nothing happens

---

I am following this steps -> https://www.youtube.com/watch?v=LLIJe9VTVq8
