KC868-A8-E

[avihay]

I was able to create a recording of the remote for the generator, it records the ignition frequency and that when I send a test it does not turn on the generator, is there a possibility that I end an on or off that will send the code several times in a row? And in the background of the recording?

[admin]

upload your log file or screen photo, when you detected RF signal. what have decode?

[avihay]

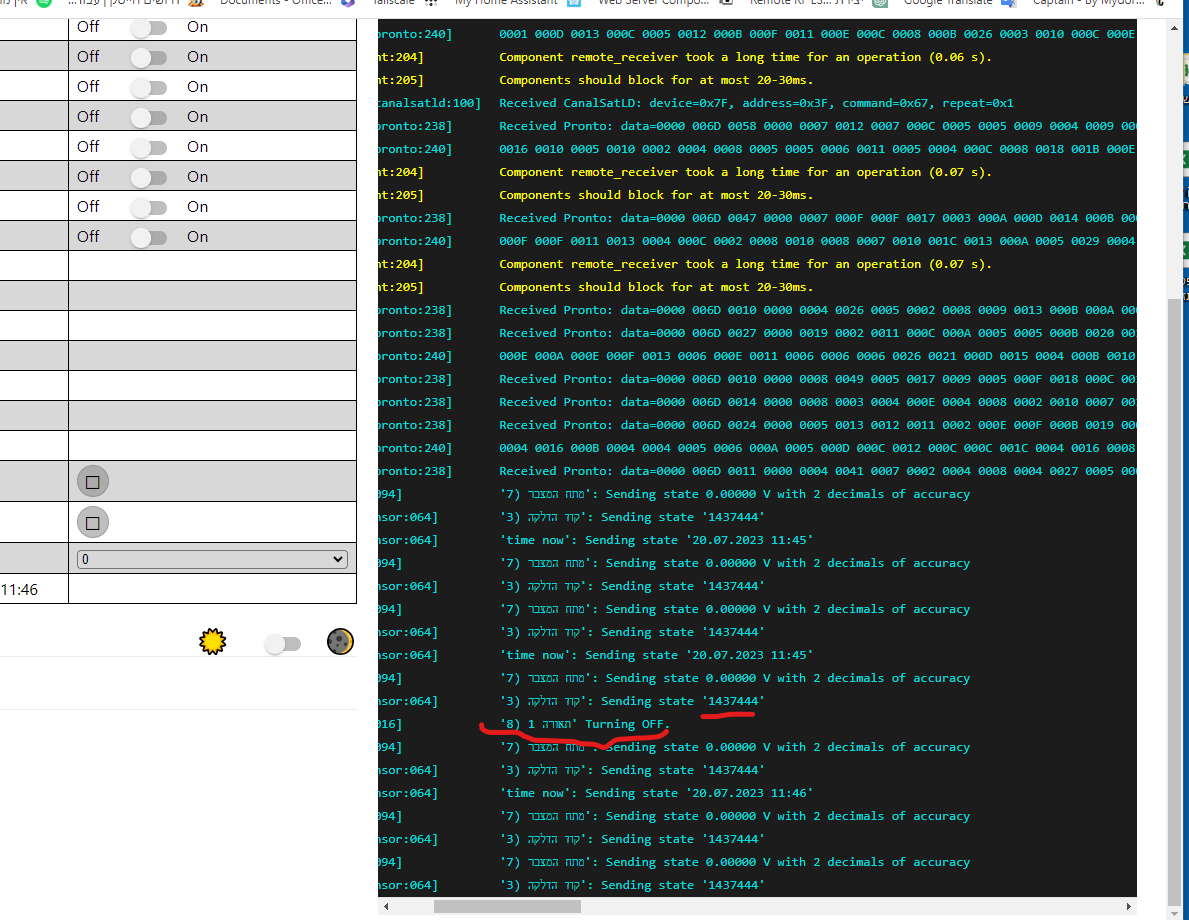

Attached is a log file of sending the ignition switch

---

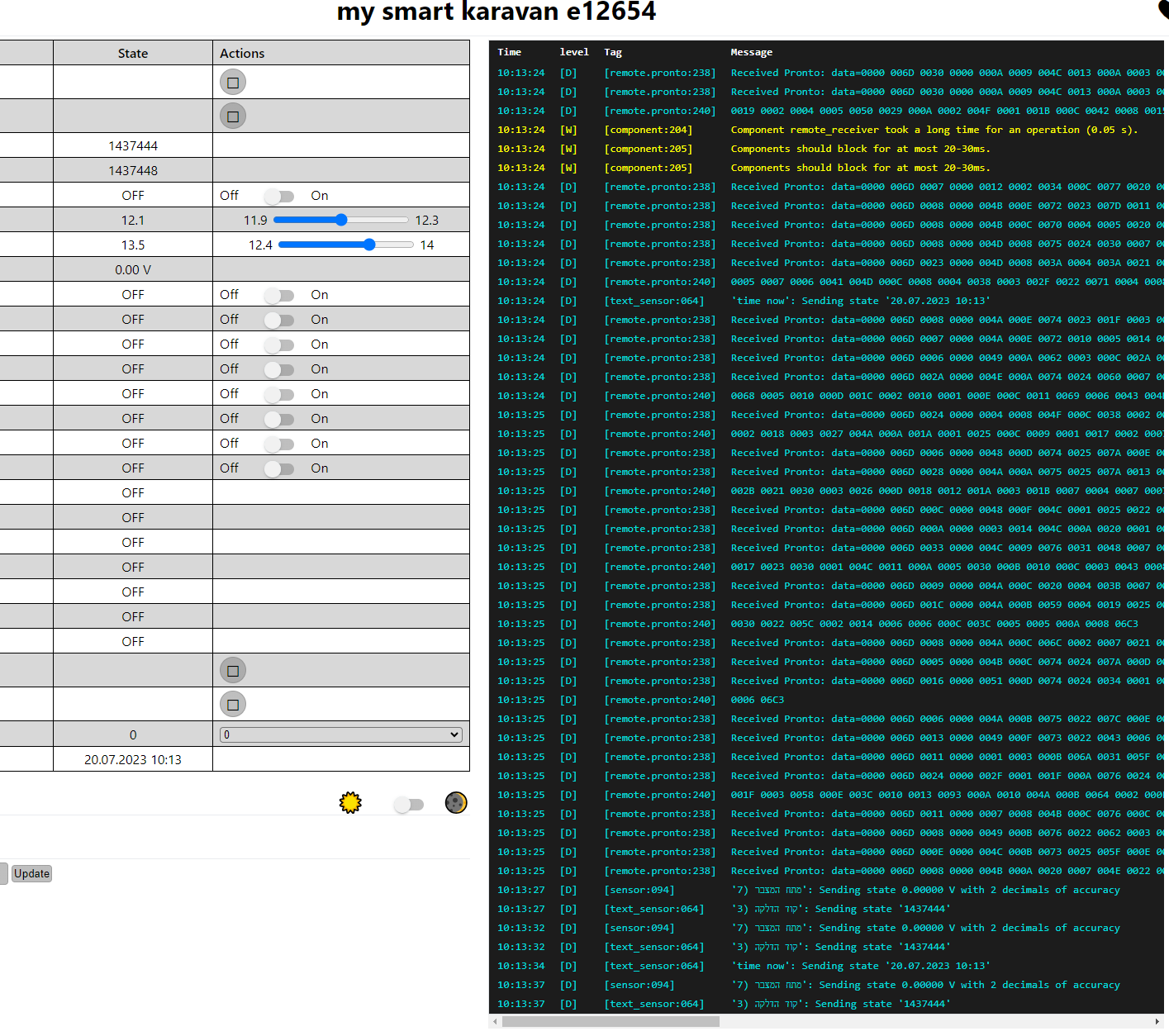

Attached is a log file of sending the ignition switch 2

[avihay]

The ignition code sends a shutdown to the lighting, it is not clear why instead of sending without a breaker such as to the air conditioner

[avihay]

?????

---

Do you have a code for recording an rf remote?

[admin]

this is demo config code for KC868-A8S, you can update the RF receiver GPIO pin define use for your A8 board.
the function is RF decode and use RF remote toggle relay output.

Code:

esphome:
  name: a8s
  platform: ESP32
  board: esp32dev


remote_receiver:
  pin: 16
  dump:
    - rc_switch
  tolerance: 50%
  filter: 250us
  idle: 2ms
  buffer_size: 2kb



# Example configuration entry for ESP32
i2c:
  sda: 4
  scl: 5
  scan: true
  id: bus_a


# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

  # Optional manual IP
  manual_ip:
    static_ip: 192.168.1.199
    gateway: 192.168.1.1
    subnet: 255.255.255.0


# Example configuration entry
pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-8
    address: 0x24

  - id: 'pcf8574_hub_in_1'  # for input channel 1-8
    address: 0x22

# Individual outputs
switch:
  - platform: gpio
    name: "light1"
    id: light1
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "light2"
    id: light2
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "light3"
    id: light3
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "light4"
    id: light4
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "curtain1-up"
    id: relay5
    interlock: [relay6]
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true



  - platform: gpio
    name: "curtain1-down"
    id: relay6
    interlock: [relay5]
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "curtain2-up"
    id: relay7
    interlock: [relay8]
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "curtain2-down"
    id: relay8
    interlock: [relay7]
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true


binary_sensor:
  - platform: gpio
    name: "input1"
    on_press:
      then:
        - switch.toggle: light1
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "input2"
    on_press:
      then:
        - switch.toggle: light2
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "input3"
    on_press:
      then:
        - switch.toggle: light3
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "input4"
    on_press:
      then:
        - switch.toggle: light4
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "input5"
    on_press:
      then:
        - switch.toggle: relay5
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "input6"
    on_press:
      then:
        - switch.toggle: relay6
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "input7"
    on_press:
      then:
        - switch.toggle: relay7
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "input8"
    on_press:
      then:
        - switch.toggle: relay8
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true

  - platform: remote_receiver
    name: "remoter1"
    rc_switch_raw:
      code: '001111010111001010111000'
      protocol: 1
    on_press:
      then:
        - switch.toggle: light1
    filters:
      - delayed_off: 200ms

  - platform: remote_receiver
    name: "remoter2"
    rc_switch_raw:
      code: '001111010111001010111100'
      protocol: 1
    on_press:
      then:
        - switch.toggle: light2
    filters:
      - delayed_off: 200ms

  - platform: remote_receiver
    name: "remoter3"
    rc_switch_raw:
      code: '001111010111001010110100'
      protocol: 1
    on_press:
      then:
        - switch.toggle: light3
    filters:
      - delayed_off: 200ms

  - platform: remote_receiver
    name: "remoter4"
    rc_switch_raw:
      code: '001111010111001010111001'
      protocol: 1
    on_press:
      then:
        - switch.toggle: light4
    filters:
      - delayed_off: 200ms

  - platform: remote_receiver
    name: "remoter5"
    rc_switch_raw:
      code: '001111010111001010110010'
      protocol: 1
    on_press:
      then:
        - switch.toggle: relay5
    filters:
      - delayed_off: 200ms

  - platform: remote_receiver
    name: "remoter6"
    rc_switch_raw:
      code: '001111010111001010110101'
      protocol: 1
    on_press:
      then:
        - switch.toggle: relay6
    filters:
      - delayed_off: 200ms

  - platform: remote_receiver
    name: "remoter7"
    rc_switch_raw:
      code: '001111010111001010110001'
      protocol: 1
    on_press:
      then:
        - switch.toggle: relay7
    filters:
      - delayed_off: 200ms

  - platform: remote_receiver
    name: "remoter8"
    rc_switch_raw:
      code: '001111010111001010110011'
      protocol: 1
    on_press:
      then:
        - switch.toggle: relay8
    filters:
      - delayed_off: 200ms

  - platform: gpio
    name: "PIR1"
    pin: 14
    device_class: motion
    on_release:
       - script.execute: motion_timer

script:
  - id: motion_timer
    mode: restart
    then:
      - delay: 10s
      - switch.turn_off: light1
      - switch.turn_off: light2
      - switch.turn_off: light3
      - switch.turn_off: light4


# Enable logging
logger:

# Enable Home Assistant API
api:

[avihay]

Have you seen the ceremony file.tex that I attached, I don't want to activate lighting buttons with the rf, I want to activate a generator with a remote control and my board is kc868-a8. Does your code have a button to record my remote control? See also an example of the file you sent me with your software Girbasa Acharna

[admin]

here have some details, such as :
on_...:
  - remote_transmitter.transmit_rc_switch_raw:
      code: '001010011001111101011011'
      protocol: 1

https://esphome.io/components/remote_transmitter.html

wireless function need to debug and test. if you can received and decode your RF signal, just send out.

take a photo of your A8 board, whether have installed RF sender module?

[avihay]

I hope you now understand what I want. I need a button on the remote control for recording, a button for recording and turning off, and two test buttons for turning off and on, as in this code you prepared for me. KCS_KC868_A8_V2.0.2 I don't want to turn on RF lighting

[admin]

i think you need solder an wire as antena on your RF sender module. if can't work, on weekend, i have free time, make a video tour for you, how to config RF sender learned signal with esphome.
