  Error when flashing A32 Pro
Posted by: drazvan2003 - 11-29-2024, 07:03 PM - Forum: DIY Project - Replies (6)

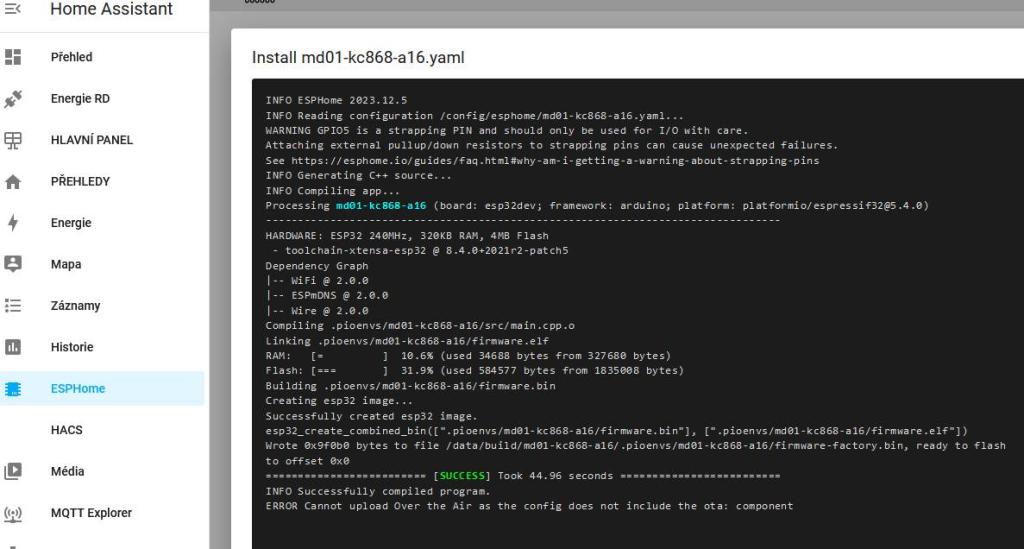

im getting this error when im trying to flash my a32pro

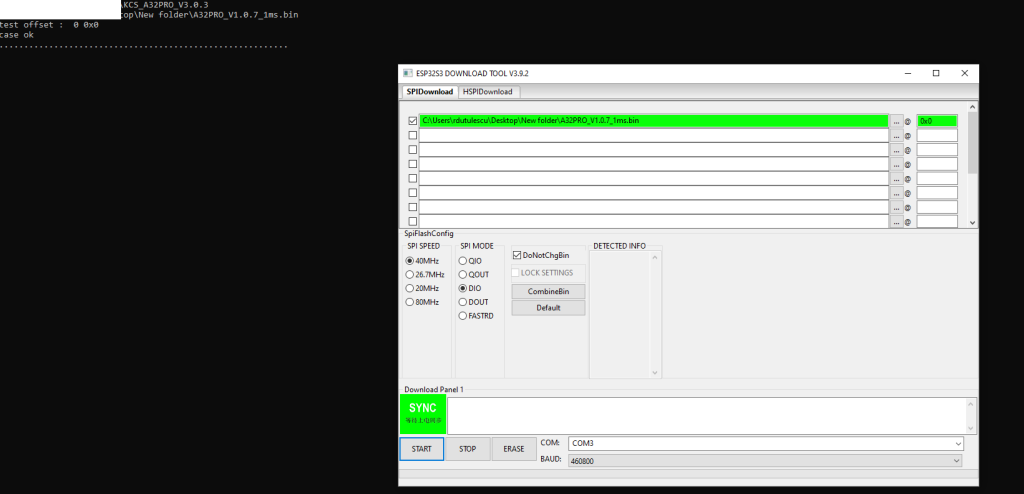

as you can see in the picture attached that my config, i hit run, it stays for ever in loading. When i stop this i get

[2024-11-29 20:56:35,958][ESP8266Loader_spi[1]][espDownloader.py][line:422][ERROR]: Chip sync error
[2024-11-29 20:56:35,958][ESP8266Loader_spi[1]][espDownloader.py][line:582][ERROR]: ESP32S3 Chip sync error esp_sync_blocking.



Attached Files Thumbnail(s)

Print this item

  Hardware issues
Posted by: ogo - 11-29-2024, 09:54 AM - Forum: KC868-A8 - Replies (1)

Hello,

I bought a KC868-A8 a while ago that I've been using to test things and learn. Today I finally wanted to configure it properly to controls some lights. I have two issues

  1. Output 3 and 4 don't work: when I enable the outputs via home assistant or KCS, the LEDs for the outputs don't turn on, and I can't hear the click on the relay.
  2. When activating output 8, outputs 5, 6, and 7 are also activated: When I activate output 8 via home assistant or KCS, the LEDs of outputs 5, 6, 7, 8 turn on, even though those relays aren't active.

Things I've done so far:
  • Remove everything from home assistant and install it again
  • Disconnect everything from the board
  • Flashed KCS instead of ESPHome
  • Factory reset using KCS
  • Flashed ESPHome again

Nothing seems to fix it, so I can only think it's a hardware issue, not software. The board version is 1.6, and it also has a 433 MHz receiver/transmitter.

Any ideas?

Print this item

  Replacing KCS868-E8 relays with 24V
Posted by: Revinor - 11-29-2024, 09:24 AM - Forum: Development - Replies (1)

I'm using 24V output from KCS868-B16M for controlling few devices. At same time, I would like to use some of these outputs to drive 230VAC. Can I just replace all relays on KCS868-E8 with G2R-1A-E-24VDC, connect 24V supply and 24V outputs from KCS868-B16M there and everything will work? Or are there some parts there which won't work with 24V even if all relays are replaced?

Print this item

  G1 ESP32-S3 IO pins define
Posted by: admin - 11-28-2024, 12:01 PM - Forum: G1 - Replies (2)

IIC SDA:GPIO12
IIC SCL:GPIO11

------------------------

Ethernet (W5500) I/O define:

clk_pin: GPIO42
mosi_pin: GPIO43
miso_pin: GPIO44
cs_pin: GPIO41

interrupt_pin: GPIO2
reset_pin: GPIO1
--------------------
RS485:
RXD:GPIO18
TXD:GPIO8
--------------------
4G SIM7600:
RXD:GPIO10
TXD:GPIO9
--------------------
1-wire (pull-up resistance on PCB):
1-wire1:GPIO15
1-wire2:GPIO16
1-wire3:GPIO17
1-wire4:GPIO40

1-wire (without resistance on PCB):
1-wire1:GPIO13
1-wire2:GPIO14
1-wire2:GPIO21

free GPIOs(without ESD diode on PCB):
GPIO4
GPIO5
GPIO6
GPIO7

------------------------
24C02 EPROM i2c address: 0x50
SSD1306 display: i2c address:0x3c

Print this item

  F24 ESPHome yaml for home assistant
Posted by: admin - 11-28-2024, 11:54 AM - Forum: F24 - No Replies

Code:
esphome:
  name: f24
  friendly_name: f24
  platformio_options:
    board_build.extra_flags:
      # WIFI_CONTROL_SELF_MODE = 0
      # WIFI_CONTROL_SELF_MODE = 1
      - "-DWIFI_CONTROL_SELF_MODE=1"
esp32:
  board: esp32-s3-devkitc-1
  framework:
    type: arduino


external_components:
  - source:
      type: git
      url: https://github.com/hzkincony/esphome-tuya-wifi-mcu
      ref: v1.3.0

# Enable logging

  # hardware_uart: USB_SERIAL_JTAG
# Enable Home Assistant API
api:
  encryption:
    key: "WeVOuL5oNhjXcfzXtTirlOwvtWvCD5yqIxd3oV4es1k="

ethernet:
  type: W5500
  clk_pin: GPIO42
  mosi_pin: GPIO43
  miso_pin: GPIO44
  cs_pin: GPIO41
  interrupt_pin: GPIO2
  reset_pin: GPIO1

i2c:
   - id: bus_a
     sda: 8
     scl: 18
     scan: true
     frequency: 400kHz

pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 9-24
    i2c_id: bus_a
    address: 0x25
    pcf8575: true

  - id: 'pcf8574_hub_in_1'  # for digital input channel 1-16
    i2c_id: bus_a
    address: 0x24
    pcf8575: true

  - id: 'pcf8574_hub_out_in_2'  # for output channel 1-8  + (input 17-24)
    i2c_id: bus_a
    address: 0x26
    pcf8575: true

uart:
  - id: uart_1    #RS485
    baud_rate: 9600
    debug:
      direction: BOTH
      dummy_receiver: true
      after:
        timeout: 10ms
    tx_pin: 16
    rx_pin: 17

  - id: tuya_mcu_uart
    tx_pin: GPIO39
    rx_pin: GPIO38
    baud_rate: 9600

tuya_wifi_mcu:
  # tuya mcu product id
  product_id: cchos3g1j2ucfbyd
  uart_id: tuya_mcu_uart
  wifi_reset_pin: 28
  wifi_led_pin: 16

switch:
  - platform: uart
    uart_id: uart_1
    name: "RS485 Button"
    data: [0x11, 0x22, 0x33, 0x44, 0x55]

  - platform: gpio
    name: "f24-output01"
    id: "f24_output01"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 12
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output1-tuya
    dp_id: 1
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output01"

  - platform: gpio
    name: "f24-output02"
    id: "f24_output02"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 13
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output2-tuya
    dp_id: 2
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output02"

  - platform: gpio
    name: "f24-output03"
    id: "f24_output03"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 14
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output3-tuya
    dp_id: 3
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output03"

  - platform: gpio
    name: "f24-output04"
    id: "f24_output04"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 15
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output4-tuya
    dp_id: 4
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output04"

  - platform: gpio
    name: "f24-output05"
    id: "f24_output05"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 8
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output5-tuya
    dp_id: 5
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output05"

  - platform: gpio
    name: "f24-output06"
    id: "f24_output06"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 9
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output6-tuya
    dp_id: 6
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output06"

  - platform: gpio
    name: "f24-output07"
    id: "f24_output07"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 10
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output7-tuya
    dp_id: 101
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output07"

  - platform: gpio
    name: "f24-output08"
    id: "f24_output08"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 11
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output8-tuya
    dp_id: 102
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output08"

  - platform: gpio
    name: "f24-output09"
    id: "f24_output09"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output9-tuya
    dp_id: 103
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output09"

  - platform: gpio
    name: "f24-output10"
    id: "f24_output10"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output10-tuya
    dp_id: 104
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output10"

  - platform: gpio
    name: "f24-output11"
    id: "f24_output11"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output11-tuya
    dp_id: 105
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output11"

  - platform: gpio
    name: "f24-output12"
    id: "f24_output12"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output12-tuya
    dp_id: 106
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output12"

  - platform: gpio
    name: "f24-output13"
    id: "f24_output13"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output13-tuya
    dp_id: 107
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output13"

  - platform: gpio
    name: "f24-output14"
    id: "f24_output14"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output14-tuya
    dp_id: 108
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output14"

  - platform: gpio
    name: "f24-output15"
    id: "f24_output15"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output15-tuya
    dp_id: 109
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output15"

  - platform: gpio
    name: "f24-output16"
    id: "f24_output16"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output16-tuya
    dp_id: 110
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output16"

  - platform: gpio
    name: "f24-output17"
    id: "f24_output17"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 8
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output17-tuya
    dp_id: 126
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output17"

  - platform: gpio
    name: "f24-output18"
    id: "f24_output18"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 9
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output18-tuya
    dp_id: 129
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output18"

  - platform: gpio
    name: "f24-output19"
    id: "f24_output19"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 10
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output19-tuya
    dp_id: 130
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output19"

  - platform: gpio
    name: "f24-output20"
    id: "f24_output20"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 11
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output20-tuya
    dp_id: 131
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output20"

  - platform: gpio
    name: "f24-output21"
    id: "f24_output21"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 12
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output21-tuya
    dp_id: 132
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output21"

  - platform: gpio
    name: "f24-output22"
    id: "f24_output22"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 13
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output22-tuya
    dp_id: 133
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output22"

  - platform: gpio
    name: "f24-output23"
    id: "f24_output23"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 14
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output23-tuya
    dp_id: 134
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output23"

  - platform: gpio
    name: "f24-output24"
    id: "f24_output24"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 15
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-output24-tuya
    dp_id: 135
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "f24_output24"


binary_sensor:
  - platform: gpio
    name: "f24-input01"
    id: "f24_input01"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input1-tuya
    dp_id: 111
    bind_binary_sensor_id: f24_input01
    internal: true

  - platform: gpio
    name: "f24-input02"
    id: "f24_input02"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input2-tuya
    dp_id: 112
    bind_binary_sensor_id: f24_input02
    internal: true

  - platform: gpio
    name: "f24-input03"
    id: "f24_input03"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input3-tuya
    dp_id: 113
    bind_binary_sensor_id: f24_input03
    internal: true

  - platform: gpio
    name: "f24-input04"
    id: "f24_input04"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input4-tuya
    dp_id: 114
    bind_binary_sensor_id: f24_input04
    internal: true

  - platform: gpio
    name: "f24-input05"
    id: "f24_input05"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input5-tuya
    dp_id: 115
    bind_binary_sensor_id: f24_input05
    internal: true

  - platform: gpio
    name: "f24-input06"
    id: "f24_input06"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input6-tuya
    dp_id: 116
    bind_binary_sensor_id: f24_input06
    internal: true

  - platform: gpio
    name: "f24-input07"
    id: "f24_input07"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input7-tuya
    dp_id: 117
    bind_binary_sensor_id: f24_input07
    internal: true

  - platform: gpio
    name: "f24-input08"
    id: "f24_input08"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input8-tuya
    dp_id: 118
    bind_binary_sensor_id: f24_input08
    internal: true

  - platform: gpio
    name: "f24-input09"
    id: "f24_input09"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 8
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input9-tuya
    dp_id: 119
    bind_binary_sensor_id: f24_input09
    internal: true

  - platform: gpio
    name: "f24-input10"
    id: "f24_input10"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 9
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input10-tuya
    dp_id: 120
    bind_binary_sensor_id: f24_input10
    internal: true

  - platform: gpio
    name: "f24-input11"
    id: "f24_input11"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 10
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input11-tuya
    dp_id: 121
    bind_binary_sensor_id: f24_input11
    internal: true

  - platform: gpio
    name: "f24-input12"
    id: "f24_input12"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 11
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input12-tuya
    dp_id: 122
    bind_binary_sensor_id: f24_input12
    internal: true

  - platform: gpio
    name: "f24-input13"
    id: "f24_input13"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 12
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input13-tuya
    dp_id: 123
    bind_binary_sensor_id: f24_input13
    internal: true

  - platform: gpio
    name: "f24-input14"
    id: "f24_input14"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 13
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input14-tuya
    dp_id: 124
    bind_binary_sensor_id: f24_input14
    internal: true

  - platform: gpio
    name: "f24-input15"
    id: "f24_input15"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 14
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: f24-input15-tuya
    dp_id: 125
    bind_binary_sensor_id: f24_input15
    internal: true

  - platform: gpio
    name: "f24-input16"
    id: "f24_input16"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 15
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "f24-input17"
    id: "f24_input17"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 0
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "f24-input18"
    id: "f24_input18"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 1
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "f24-input19"
    id: "f24_input19"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 2
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "f24-input20"
    id: "f24_input20"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 3
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "f24-input21"
    id: "f24_input21"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 4
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "f24-input22"
    id: "f24_input22"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 5
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "f24-input23"
    id: "f24_input23"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 6
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "f24-input24"
    id: "f24_input24"
    pin:
      pcf8574: pcf8574_hub_out_in_2
      number: 7
      mode: INPUT
      inverted: true


##pull-up resistance on PCB
  - platform: gpio
    name: "f24-W1-io48"
    pin:
      number: 48
      inverted: true

  - platform: gpio
    name: "f24-W1-io47"
    pin:
      number: 47
      inverted: true

  - platform: gpio
    name: "f24-W1-io21"
    pin:
      number: 21
      inverted: true

  - platform: gpio
    name: "f24-W1-io15"
    pin:
      number: 15
      inverted: true
## without resistance on PCB
  - platform: gpio
    name: "f24-W1-io13"
    pin:
      number: 13
      inverted: false

  - platform: gpio
    name: "f24-W1-io14"
    pin:
      number: 14
      inverted:  false

  - platform: gpio
    name: "f24-433M"
    pin:
      number: 40
      inverted:  false

sensor:
  - platform: adc
    pin: 5
    name: "f24 A1 Voltage"
    update_interval: 5s
    attenuation: 11db
    filters:
      - lambda:
          if (x >= 3.11) {
            return x * 1.60256;
          } else if (x <= 0.15) {
            return 0;
          } else {
            return x * 1.51;
          }
  - platform: adc
    pin: 7
    name: "f24 A2 Voltage"
    update_interval: 5s
    attenuation: 11db
    filters:
      # - multiply: 1.51515
      - lambda:
          if (x >= 3.11) {
            return x * 1.60256;
          } else if (x <= 0.15) {
            return 0;
          } else {
            return x * 1.51;
          }
  - platform: adc
    pin: 6
    name: "f24 A3 Current"
    update_interval: 5s
    unit_of_measurement: mA
    attenuation: 11db
    filters:
      - multiply: 6.66666666
  - platform: adc
    pin: 4
    name: "f24 A4 Current"
    update_interval: 5s
    unit_of_measurement: mA
    attenuation: 11db
    filters:
      - multiply: 6.66666666

web_server:
  port: 80

font:
  - file: "gfonts://Roboto"
    id: roboto
    size: 20

display:
  - platform: ssd1306_i2c
    i2c_id: bus_a
    model: "SSD1306 128x64"
    address: 0x3C
    lambda: |-
      it.printf(0, 0, id(roboto), "KinCony F24");
download yaml file:

.txt   F24-HA.txt (Size: 18.55 KB / Downloads: 590)

Print this item

  [arduino code examples for F24]-12 How to control one relay
Posted by: admin - 11-28-2024, 11:52 AM - Forum: F24 - Replies (2)

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This program controls a 24-channel relay board via two PCF8575 I/O expanders.
* It toggles relay 24 every 2 seconds and prints its status via the serial port.
*
* Pin Definitions:
* - SDA: GPIO 8
* - SCL: GPIO 18
*
* Relay 24 is controlled through the first PCF8575 (I2C_ADDRESS_R1).
*/

#include <Wire.h>        // Include the Wire library for I2C communication
#include <PCF8575.h>     // Include the PCF8575 library to control the I/O expander

#define SDA 8            // Define the SDA pin
#define SCL 18           // Define the SCL pin
#define TOGGLE_DELAY 2000  // Define the toggle delay time (2 seconds)

// Set I2C addresses of the PCF8575 modules
#define I2C_ADDRESS_R1 0x25 // I2C address of the first PCF8575 module (for relays 9-24)
#define I2C_ADDRESS_R2 0x26 // I2C address of the second PCF8575 module (for relays 1-8)

PCF8575 pcf8575_R1(I2C_ADDRESS_R1); // Create a PCF8575 object for the first module (for relays 9-24)
PCF8575 pcf8575_R2(I2C_ADDRESS_R2); // Create a PCF8575 object for the second module (for relays 1-8)

bool relay24State = HIGH; // Initialize relay 24 state to OFF (assuming HIGH is OFF)

void setup() {
  // Initialize I2C communication
  Wire.begin(SDA, SCL); // SDA on GPIO 8, SCL on GPIO 18 (according to your board's configuration)

  // Initialize serial communication for debugging
  Serial.begin(115200);
  Serial.println("PCF8575 Relay 24 Toggle Program: Starting...");

  // Initialize the PCF8575 modules
  pcf8575_R1.begin();
  pcf8575_R2.begin();

  // Ensure that all relays are turned off initially (set all pins HIGH)
  for (int i = 0; i < 16; i++) {
    pcf8575_R1.write(i, HIGH); // Set relays 9-24 to OFF (assuming HIGH means OFF for relays)
    pcf8575_R2.write(i, HIGH); // Set relays 1-8 to OFF (assuming HIGH means OFF for relays)
  }
}

void loop() {
  // Toggle relay 24 state (relay 24 corresponds to pin 15 on pcf8575_R1)
  relay24State = !relay24State; // Toggle the state
  pcf8575_R1.write(15, relay24State); // Write the new state to relay 24

  // Print the current state of relay 24 to the serial port
  if (relay24State == LOW) {
    Serial.println("Relay 24 is ON");
  } else {
    Serial.println("Relay 24 is OFF");
  }

  // Wait for 2 seconds before toggling again
  delay(TOGGLE_DELAY);
}
arduino ino file download:

.zip   12-control-one-relay.zip (Size: 1.09 KB / Downloads: 566)

Print this item

  [arduino code examples for F24]-11 digital INPUT trigger OUTPUT directly
Posted by: admin - 11-28-2024, 11:51 AM - Forum: F24 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This program reads 24 input states from two PCF8575 I/O expanders and
* controls a corresponding 24-channel relay module.
* When an input pin is LOW, the corresponding relay is turned ON (LOW means ON for the relay).
* When the input pin is HIGH, the corresponding relay is turned OFF.
*
* Pin Definitions:
* - SDA: GPIO 8
* - SCL: GPIO 18
* - Input I2C Address 1 (inputs 1-16): 0x24
* - Input/Relay I2C Address 2 (inputs 17-24 and relays 1-8): 0x26
* - Relay I2C Address 3 (relays 9-24): 0x25
*/

#include <Wire.h>        // I2C communication
#include <PCF8575.h>     // Library to control the PCF8575 I/O expander

// Define I2C pins
#define SDA 8            // SDA pin
#define SCL 18           // SCL pin

// I2C addresses for the PCF8575 modules
#define INPUT_I2C_ADDRESS_1 0x24   // I2C address for the first input PCF8575 module (inputs 1-16)
#define INPUT_RELAY_I2C_ADDRESS_2 0x26   // I2C address for inputs 17-24 and relays 1-8
#define RELAY_I2C_ADDRESS_3 0x25   // I2C address for relays 9-24

PCF8575 pcf8575_IN1(INPUT_I2C_ADDRESS_1);    // Create an object for the first input PCF8575 (inputs 1-16)
PCF8575 pcf8575_IN2(INPUT_RELAY_I2C_ADDRESS_2);    // Create an object for the second input PCF8575 (inputs 17-24 and relays 1-8)
PCF8575 pcf8575_RL(RELAY_I2C_ADDRESS_3);    // Create an object for the relay PCF8575 (relays 9-24)

void setup() {
  // Initialize I2C communication
  Wire.begin(SDA, SCL);

  // Initialize serial communication
  Serial.begin(115200);

  // Initialize input and relay modules
  pcf8575_IN1.begin();  // For inputs 1-16
  pcf8575_IN2.begin();  // For inputs 17-24 and relays 1-8
  pcf8575_RL.begin();   // For relays 9-24

  // Turn off all relays at the start (LOW means OFF)
  for (int i = 0; i < 8; i++) {
    pcf8575_IN2.write(i, LOW);  // Turn off relays 1-8
  }
  for (int i = 0; i < 16; i++) {
    pcf8575_RL.write(i, LOW);  // Turn off relays 9-24
  }

  Serial.println("System started: Input state controlling 24 relays");
}

void loop() {
  // Read and control relays 1-16
  for (int i = 0; i < 16; i++) {
    bool inputState = pcf8575_IN1.read(i);  // Read input i from the first input module
    if (inputState) {
      pcf8575_RL.write(i, HIGH);  // If input is HIGH, turn the corresponding relay OFF
    } else {
      pcf8575_RL.write(i, LOW);   // If input is LOW, turn the corresponding relay ON
    }
  }

  // Read and control relays 17-24 (shared with second input module)
  for (int i = 0; i < 8; i++) {
    bool inputState = pcf8575_IN2.read(i + 8);  // Read input 17-24 from the second input module (pins 8-15)
    if (inputState) {
      pcf8575_IN2.write(i, HIGH);  // If input is HIGH, turn the corresponding relay OFF (1-8)
    } else {
      pcf8575_IN2.write(i, LOW);   // If input is LOW, turn the corresponding relay ON (1-8)
    }
  }

  // Delay for 500 milliseconds
  delay(500);
}
arduino ino file download:

.zip   11-input-trigger-output.zip (Size: 1.11 KB / Downloads: 542)

Print this item

  [arduino code examples for F24]-10 Print TEXT on SSD1306 OLED displayer
Posted by: admin - 11-28-2024, 11:50 AM - Forum: F24 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program demonstrates how to display text on an SSD1306 128x64 OLED display using the U8g2 library.
* The program draws two lines of text on the display:
* - The first line is "KINCONY" in a larger font.
* - The second line is "www.kincony.com" in a smaller font.
*
* The display is connected via I2C (software implementation) with:
* - SCL (clock) on pin IO18
* - SDA (data) on pin IO8
*
* The display's I2C address is set to 0x3C.
*/

#include <U8g2lib.h>  // Include the U8g2 library for controlling the OLED display
#include <Wire.h>     // Include the Wire library for I2C communication

// Initialize the display using the software I2C method (SCL = IO18, SDA = IO8)
U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0,  18, 8, U8X8_PIN_NONE);  // Screen rotation: U8G2_R0

// Function to display page 1 content
void page1() {
  // Set font size 18 for the larger "KINCONY" text
  u8g2.setFont(u8g2_font_timR18_tf);  // Use the Times Roman font, size 18
  u8g2.setFontPosTop();               // Set the text position at the top of the display
  u8g2.setCursor(5, 0);               // Position the cursor at coordinates (5, 0)
  u8g2.print("KINCONY");              // Display the text "KINCONY" on the screen

  // Set font size 12 for the smaller "www.kincony.com" text
  u8g2.setFont(u8g2_font_timR12_tf);  // Use the Times Roman font, size 12
  u8g2.setCursor(0, 40);              // Position the cursor at coordinates (0, 40)
  u8g2.print("www.kincony.com");      // Display the text "www.kincony.com"
}

// Setup function, runs once when the program starts
void setup() {
  // Set the I2C address for the display to 0x3C
  u8g2.setI2CAddress(0x3C*2);  // I2C address shift for 8-bit format

  // Initialize the display
  u8g2.begin();

  // Enable UTF-8 character printing for the display
  u8g2.enableUTF8Print();  // Allow UTF-8 encoded text to be printed
}

// Main loop function, continuously runs after setup()
void loop() {
  // Begin the display drawing process
  u8g2.firstPage();  // Prepare the first page for drawing
  do {
    // Call the page1() function to draw content on the display
    page1();
  } while (u8g2.nextPage());  // Continue to the next page until all pages are drawn
}
arduino ino file download:

.zip   10-oled-ssd1306.zip (Size: 1.11 KB / Downloads: 536)

Print this item

  [arduino code examples for F32]-10 Print TEXT on SSD1306 OLED displayer
Posted by: admin - 11-28-2024, 11:50 AM - Forum: F32 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program demonstrates how to display text on an SSD1306 128x64 OLED display using the U8g2 library.
* The program draws two lines of text on the display:
* - The first line is "KINCONY" in a larger font.
* - The second line is "www.kincony.com" in a smaller font.
*
* The display is connected via I2C (software implementation) with:
* - SCL (clock) on pin IO18
* - SDA (data) on pin IO8
*
* The display's I2C address is set to 0x3C.
*/

#include <U8g2lib.h>  // Include the U8g2 library for controlling the OLED display
#include <Wire.h>     // Include the Wire library for I2C communication

// Initialize the display using the software I2C method (SCL = IO18, SDA = IO8)
U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0,  18, 8, U8X8_PIN_NONE);  // Screen rotation: U8G2_R0

// Function to display page 1 content
void page1() {
  // Set font size 18 for the larger "KINCONY" text
  u8g2.setFont(u8g2_font_timR18_tf);  // Use the Times Roman font, size 18
  u8g2.setFontPosTop();               // Set the text position at the top of the display
  u8g2.setCursor(5, 0);               // Position the cursor at coordinates (5, 0)
  u8g2.print("KINCONY");              // Display the text "KINCONY" on the screen

  // Set font size 12 for the smaller "www.kincony.com" text
  u8g2.setFont(u8g2_font_timR12_tf);  // Use the Times Roman font, size 12
  u8g2.setCursor(0, 40);              // Position the cursor at coordinates (0, 40)
  u8g2.print("www.kincony.com");      // Display the text "www.kincony.com"
}

// Setup function, runs once when the program starts
void setup() {
  // Set the I2C address for the display to 0x3C
  u8g2.setI2CAddress(0x3C*2);  // I2C address shift for 8-bit format

  // Initialize the display
  u8g2.begin();

  // Enable UTF-8 character printing for the display
  u8g2.enableUTF8Print();  // Allow UTF-8 encoded text to be printed
}

// Main loop function, continuously runs after setup()
void loop() {
  // Begin the display drawing process
  u8g2.firstPage();  // Prepare the first page for drawing
  do {
    // Call the page1() function to draw content on the display
    page1();
  } while (u8g2.nextPage());  // Continue to the next page until all pages are drawn
}
arduino ino file download:

.zip   10-oled-ssd1306.zip (Size: 1.11 KB / Downloads: 534)

Print this item

  [arduino code examples for F24]-09 how to communication with Tuya WiFi module
Posted by: admin - 11-28-2024, 11:49 AM - Forum: F24 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program implements communication between ESP32 and the Tuya module
* via UART (serial communication). It listens for specific packets from the Tuya module
* and responds according to the predefined commands.
*
* Functionality:
* 1. When the ESP32 receives a heartbeat packet (55 AA 00 00 00 00 FF),
*    it sends a heartbeat response (55 AA 03 00 00 01 00 03).
* 2. When the ESP32 receives a product information request (55 AA 00 01 00 00 00),
*    it sends a product information response (55 AA 03 01 ...).
* 3. When the ESP32 receives a work mode request (55 AA 00 02 00 00 01),
*    it sends a work mode response (55 AA 03 02 00 03 10 1C 14 47).
* 4. When the ESP32 receives a network status request (55 AA 00 03 00 01 00 03),
*    it sends a network status response (55 AA 03 03 00 00 05).
* 5. Subsequent heartbeat packets (55 AA 00 00 00 00 FF) are responded to with
*    (55 AA 03 00 00 01 01 04).
*/

#include <HardwareSerial.h>

// Create a HardwareSerial object for UART communication on ESP32
HardwareSerial tuyaSerial(1);

// Define the GPIO pins for TXD and RXD used for serial communication
#define TXD_PIN 39
#define RXD_PIN 38

// Set the baud rate for Tuya module communication to 9600
#define BAUD_RATE 9600

// Define the response packets for different commands from the Tuya module

// Heartbeat response: 55 AA 03 00 00 01 00 03
uint8_t heartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x00, 0x03};

// Product info response with a detailed payload (e.g., firmware version, product name, etc.)
uint8_t productInfoResponse[] = {
  0x55, 0xAA, 0x03, 0x01, 0x00, 0x2A, 0x7B, 0x22, 0x70, 0x22, 0x3A, 0x22,
  0x63, 0x68, 0x6D, 0x7A, 0x6C, 0x67, 0x6A, 0x70, 0x61, 0x64, 0x70, 0x71,
  0x78, 0x64, 0x6B, 0x6F, 0x22, 0x2C, 0x22, 0x76, 0x22, 0x3A, 0x22, 0x31,
  0x2E, 0x30, 0x2E, 0x30, 0x22, 0x2C, 0x22, 0x6D, 0x22, 0x3A, 0x30, 0x7D, 0xAA
};

// Work mode response: 55 AA 03 02 00 03 10 1C 14 47
uint8_t workModeResponse[] = {0x55, 0xAA, 0x03, 0x02, 0x00, 0x03, 0x10, 0x1C, 0x14, 0x47};

// Network status response: 55 AA 03 03 00 00 05
uint8_t netStatusResponse[] = {0x55, 0xAA, 0x03, 0x03, 0x00, 0x00, 0x05};

// Subsequent heartbeat response: 55 AA 03 00 00 01 01 04
uint8_t secondHeartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x01, 0x04};

void setup() {
  // Initialize the serial communication for debugging at 115200 baud rate
  Serial.begin(115200);

  // Initialize the serial communication with Tuya module at 9600 baud rate
  tuyaSerial.begin(BAUD_RATE, SERIAL_8N1, RXD_PIN, TXD_PIN);

  // Debug message to indicate that the serial communication has been initialized
  Serial.println("ESP32-Tuya serial communication initialized.");
}

void loop() {
  // Check if data is available from the Tuya module
  if (tuyaSerial.available()) {
    uint8_t incomingPacket[7];  // Array to store the received packet
    size_t bytesRead = tuyaSerial.readBytes(incomingPacket, 7); // Read 7 bytes from Tuya

    // Check if the packet has a valid header (0x55, 0xAA)
    if (bytesRead >= 2 && incomingPacket[0] == 0x55 && incomingPacket[1] == 0xAA) {
      // If less than 7 bytes were received, wait for more data
      if (bytesRead < 7) {
        Serial.println("Incomplete packet received. Waiting for remaining bytes...");
        delay(50); // Delay to allow more data to be received
        while (tuyaSerial.available()) {
          incomingPacket[bytesRead++] = tuyaSerial.read(); // Continue reading remaining bytes
          if (bytesRead >= 7) break;
        }
      }

      // If still less than 7 bytes, discard the incomplete packet
      if (bytesRead < 7) {
        Serial.println("Error: Incomplete packet discarded.");
        return;
      }

      // Debug: Print the received packet for logging
      Serial.print("Received packet: ");
      for (size_t i = 0; i < 7; i++) {
        Serial.print(incomingPacket[i], HEX);
        Serial.print(" ");
      }
      Serial.println();

      // Call the function to process the received packet
      processTuyaPacket(incomingPacket, 7);

    } else {
      // If the header is invalid, discard the packet and flush the buffer
      Serial.print("Error: Invalid packet header. Data received: ");
      for (size_t i = 0; i < bytesRead; i++) {
        Serial.print(incomingPacket[i], HEX);
        Serial.print(" ");
      }
      Serial.println();
      tuyaSerial.flush(); // Clear the serial buffer
    }
  }

  // Delay to avoid CPU overuse
  delay(100);
}

// Function to process the received packet and send the appropriate response
void processTuyaPacket(uint8_t* packet, size_t size) {
  // Ensure the packet size is 7 and the header is valid
  if (size == 7 && packet[0] == 0x55 && packet[1] == 0xAA) {
    // Determine the command in the packet (packet[2])
    switch(packet[2]) {
      case 0x00:
        if (packet[3] == 0x00 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0xFF) {
          Serial.println("Heartbeat received.");
          sendPacket(heartBeatResponse, sizeof(heartBeatResponse));
        } else if (packet[3] == 0x01 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x00) {
          Serial.println("Product info request received.");
          sendPacket(productInfoResponse, sizeof(productInfoResponse));
        } else if (packet[3] == 0x02 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x01) {
          Serial.println("Work mode request received.");
          sendPacket(workModeResponse, sizeof(workModeResponse));
        } else if (packet[3] == 0x03 && packet[4] == 0x00 && packet[5] == 0x01 && packet[6] == 0x00) {
          Serial.println("Network status request received.");
          sendPacket(netStatusResponse, sizeof(netStatusResponse));
        }
        break;

      default:
        Serial.println("Error: Unhandled command received.");
        break;
    }
  }
}

// Function to send the response packet to the Tuya module
void sendPacket(uint8_t* packet, size_t size) {
  // Send the packet via UART to Tuya module
  tuyaSerial.write(packet, size);

  // Debug: Print the sent packet for logging
  Serial.print("Sent packet: ");
  for (size_t i = 0; i < size; i++) {
    Serial.print(packet[i], HEX);
    Serial.print(" ");
  }
  Serial.println();
}
arduino ino file download:

.zip   9-tuya-wifi-config.zip (Size: 2 KB / Downloads: 551)

Print this item
