coding support

Posted by: Salman - 12-27-2024, 07:09 PM - Forum: KC868-A4 - Replies (1)

greetings,

I would like to do the followings
3 digital input and one digital output

the trouble that digital input 3 should be permissive low to activiate relay 1.
then I would the software while the relay 1 is activiated, to monitor digital input 3.
if it is remain high, keep relay 1
if it is switch to low , de activate relay 1

if ( digital input 1 == high and digital input 2 == high and digital input 3 == low ( this is will be permissive signal ) )
digital output 1 == high

if ( digital input 1 = low and digital input 2== low )
digital output 1 == low

if ( digital input 3 == low )
delay 1 minute
digital output 1 = low

kc868-a6 define IO

Posted by: smortopoul - 12-27-2024, 06:50 PM - Forum: KC868-A6 - Replies (1)

	what is the meaning of this PCF8574 pcf8574(0x24, 04, 15) ? and how i can define both inputs and outputs?

H32B conrolled by Nodered

Posted by: Saif Kitany - 12-27-2024, 04:13 PM - Forum: News - Replies (7)

hello technical support team,

I produced nodered diagram(for test) to control h32b controller. for test, i want to control 3 realys by one switch.
the problem is :

when i turn on the switch, i got just one relay turn on from the three relays.(they don't turn on all of them in the same time). but if i put timer for the other 2 relays, then i got all relays turn on.

realy 22----> 0 sec
relay 23---> 0.3 sec
relay 24---> 0.6 sec

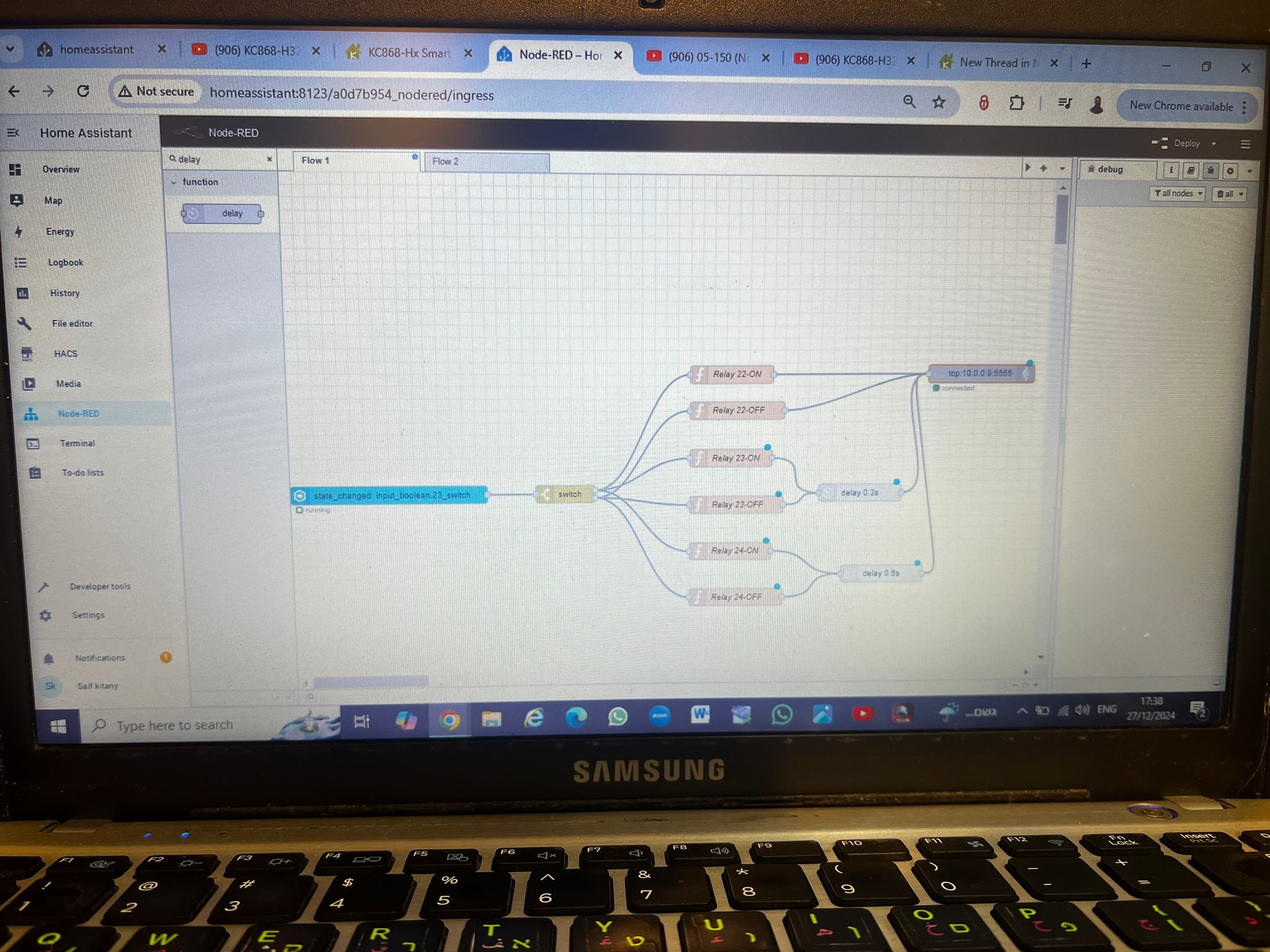

i will add a pictures of the diagrams : one picture without delay, the seconed picture with delay

Attached Files Thumbnail(s)

Problem in output relay

Posted by: Bergoglio - 12-27-2024, 11:17 AM - Forum: KC868-A16S - Replies (3)

Good afternoon,

I flashed several times the KC868-A16S board with ESPHome firmware but the relay n. 8 remains always in on state (also the status led on the board) and it is impossible to control it.

This is the last firmware (still with the problem) :

Code:
esphome:

  name: centralina-citofono

  friendly_name: Centralina citofono

esp32:

  board: esp32dev

  framework:

    type: arduino

# Enable logging

logger:

# Enable Home Assistant API

api:

  encryption:

    key: "E3acLht11PoN5oLlgBJPgIO/+elvX80lTzGbQPfVnH8="

ota:

  - platform: esphome

    password: "0b4d665617eac63f109a0dd7b51a409e"

# Example configuration entry for ESP32

i2c:

  sda: 4

  scl: 5

  scan: true

  id: bus_a

# Example configuration entry

ethernet:

  type: LAN8720

  mdc_pin: GPIO23

  mdio_pin: GPIO18

  clk_mode: GPIO17_OUT

  phy_addr: 0

# Example configuration entry

pcf8574:

  - id: 'pcf8574_hub_out_1'  # for output channel 1-8

    address: 0x24

  - id: 'pcf8574_hub_out_2'  # for output channel 9-16

    address: 0x25

  - id: 'pcf8574_hub_in_1'  # for input channel 1-8

    address: 0x22

  - id: 'pcf8574_hub_in_2'  # for input channel 9-16

    address: 0x23

# Individual outputs

switch:

  - platform: gpio

    name: "a16s-output1"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 0

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output2"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 1

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output3"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 2

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output4"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 3

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output5"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 4

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output6"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 5

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output7"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 6

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output8"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 7

      mode:

        output: true

      inverted: true

  - platform: gpio

    name: "a16s-output9"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 0

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output10"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 1

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output11"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 2

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output12"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 3

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output13"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 4

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output14"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 5

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output15"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 6

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16s-output16"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 7

      mode: OUTPUT

      inverted: true

  - platform: restart

    name: EspHome Node Restart

binary_sensor:

  - platform: gpio

    name: "a16s-input1"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 0

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input2"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 1

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input3"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 2

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input4"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 3

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input5"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 4

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input6"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 5

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input7"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 6

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input8"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 7

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input9"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 0

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input10"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 1

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input11"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 2

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input12"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 3

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input13"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 4

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input14"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 5

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input15"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 6

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16s-input16"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 7

      mode: INPUT

      inverted: true

Can You help me ?

A16 - MQTT Issues

Posted by: PierrePetite - 12-27-2024, 09:33 AM - Forum: KC868-A series and Uair Smart Controller - Replies (7)

Hey,

first of all: Thanks for this great product! I am now trying to connect it via MQTT to Home Assistant. (I had several issues by using ESPHome, so I wanna stick with MQTT for now).

What I did:

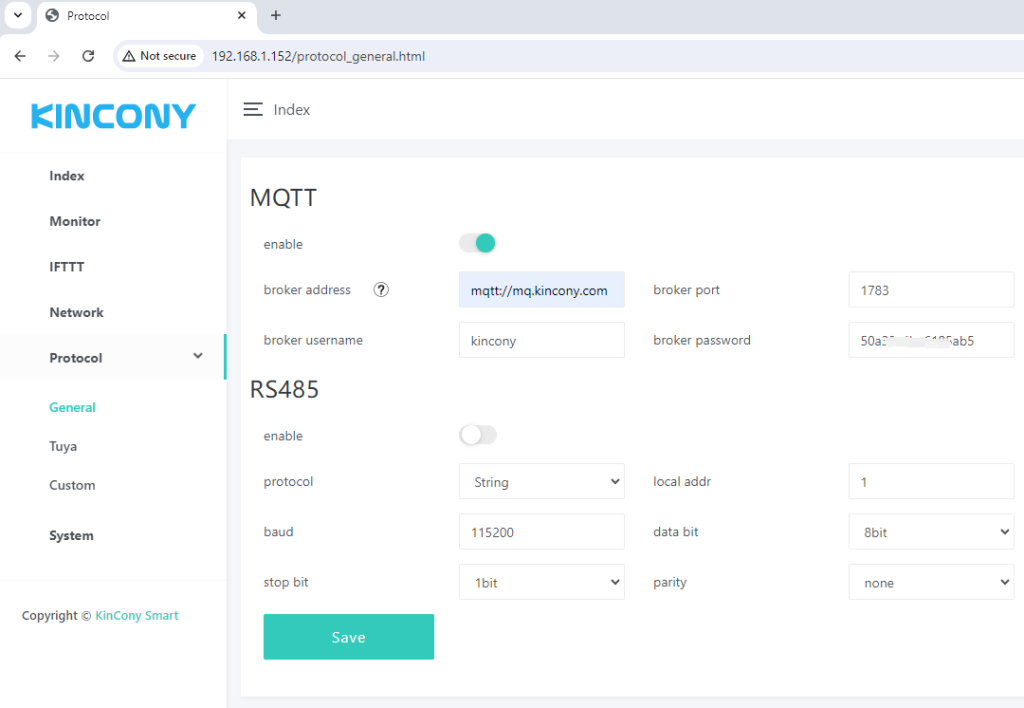

MQTT Setup within KCS
Setup Mosquito and MQTT within Home-Assistant (Already existing)
Confirmed that the Packages are received by listening to #

I have used the following YAML within Home Assistants configuration.yaml, customized based on the received packages while listening to #:

Code:
mqtt:

  switch:

   - name: 'kcs868-a16-output-1'

     unique_id: kcs868-a16-output-1

     state_topic: 'KC868_A16/2CBCBB646ACC/STATE'

     command_topic: 'KC868_A16/2CBCBB646ACC/SET'

     payload_on:  '{"output1":{"value":true}}'

     payload_off:  '{"output1":{"value":false}}'

     value_template: '{{ value_json.output1.value }}'

     state_on: true

     state_off: false

As a result, I can - after restarting Home Assistant control the Output 1.
BUT: It does not show the current status of Output one! (See Screenshot). Status is unknown.

Any Idea what went wrong? What could I check?

[Image: EClPwLZ.png]

kc868-a6 communication fault

Posted by: smortopoul - 12-27-2024, 07:51 AM - Forum: KC868-A6 - Replies (1)

Hi I have a kc868-a6 board that i have recently bought. I can't manage to communicate with it. I am using the esp32 download tool v3.9.2 in order to download the firmware "KCS_KC868_A6_V2.2.8.bin" but at the command dos screen that opens it shows repeatedly dots when i push the start button.
after too many dots without result i press the stop button and it gives the messages

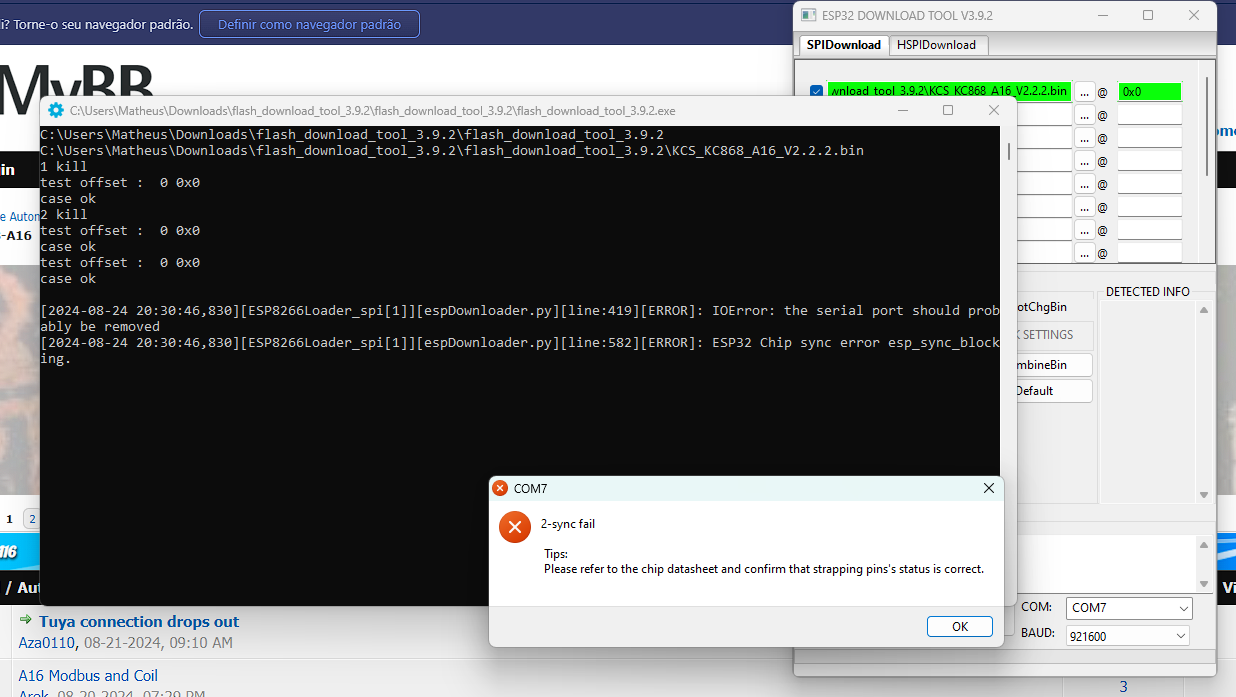

"[2024-12-27 02:19:54,814][ESP8266Loader_spi[1]][espDownloader.py][line:422][ERROR]: Chip sync error
[2024-12-27 02:19:54,814][ESP8266Loader_spi[1]][espDownloader.py][line:582][ERROR]: ESP32 Chip sync error esp_sync_blocking.
no log file output ..."
I am using a usb to rs232 converter and it gives me the COM3 port.
I have also tried with a direct usb cable but it doesn't shows any port.
Can anyone please help me?
I have also tried with the arduino application to upload a short sketch but it can't communicate with the board.
Then I have installed the "KC868-A series ESP32 board USB Driver For Windows" but with no success again.
Finally i have tried with the "uart assistant" tool but no success.
The attached file has the printscreen of my trials

.pdf kc868-a6 communication problem.pdf (Size: 447.95 KB / Downloads: 846)

Lora code

Posted by: EHB - 12-27-2024, 05:50 AM - Forum: KC868-A series and Uair Smart Controller - Replies (9)

	Is there LoRa code for me to peruse while I wait for my new board (KC 868-A6 I think) Thanks!

"KCS" v3 firmware UDP STRING protocol document for Loxone Miniserver

Posted by: admin - 12-27-2024, 01:54 AM - Forum: "KCS" v2 firmware system - Replies (2)

support by > KCS v3.4.0 using KinCony B16M, F16, F24, A32 Pro smart controller.

1: control digital output (DO)
Loxone send to KCS: RELAY-SET-255,2,1 //turn ON DO2
KCS back to Loxone: RELAY-SET-255,2,1,OK
Loxone send to KCS: RELAY-SET-255,2,0 //turn OFF DO2
KCS back to Loxone: RELAY-SET-255,2,0,OK

2: digital output (DO) state feedback
KCS back to Loxone: RELAY-SET-255,3,1,OK //DO3 is ON
KCS back to Loxone: RELAY-SET-255,3,0,OK //DO3 is OFF

3: digital input (DI) state feedback
KCS back to Loxone: RELAY-GET_INPUT-255,4,1,OK //DI4 is ON
KCS back to Loxone: RELAY-GET_INPUT-255,4,0,OK //DI4 is OFF

4: control analog output (AO)
Loxone send to KCS: RELAY-SET_DAC_255,2,0 //channel 2 AO=0 0%
KCS back to Loxone: RELAY-SET_DAC_255,2,0,OK
Loxone send to KCS: RELAY-SET_DAC_255,3,255 //channel 3 AO=255 100%
KCS back to Loxone: RELAY-SET_DAC_255,3,255,OK

5: analog output (AO) state feedback
KCS back to Loxone: RELAY-GET_DAC_255,1,107,OK //channel 1 AO=107
KCS back to Loxone: RELAY-GET_DAC_255,2,255,OK //channel 2 AO=255

6: analog input (AI) state feedback
KCS back to Loxone: RELAY-GET_ADC-255,1,2670,OK //channel1 ADC is 2670

7: RF433M receiver state feedback
KCS back to Loxone: RELAY-GET_RF-255,2,1,OK //channel2 RF sensor is ON
KCS back to Loxone: RELAY-GET_RF-255,3,0,OK //channel3 RF sensor is OFF

8: temperature & humidity sensor feedback
KCS back to Loxone:RELAY-GET_SENSOR-255,3,16.8,46.8,OK //channel3 sensor temperature=16.8℃ humidity=46.8%
KCS back to Loxone:RELAY-GET_SENSOR-255,4,27.8,-100,OK //channel4 sensor temperature=27.8℃ without humidity

download Loxone config demo project file and integration guide from: https://www.kincony.com/forum/showthread.php?tid=7264

KCS v3 Loxone Miniserver integration guide

Posted by: admin - 12-27-2024, 01:17 AM - Forum: KinCony integrate with Loxone home automation - No Replies

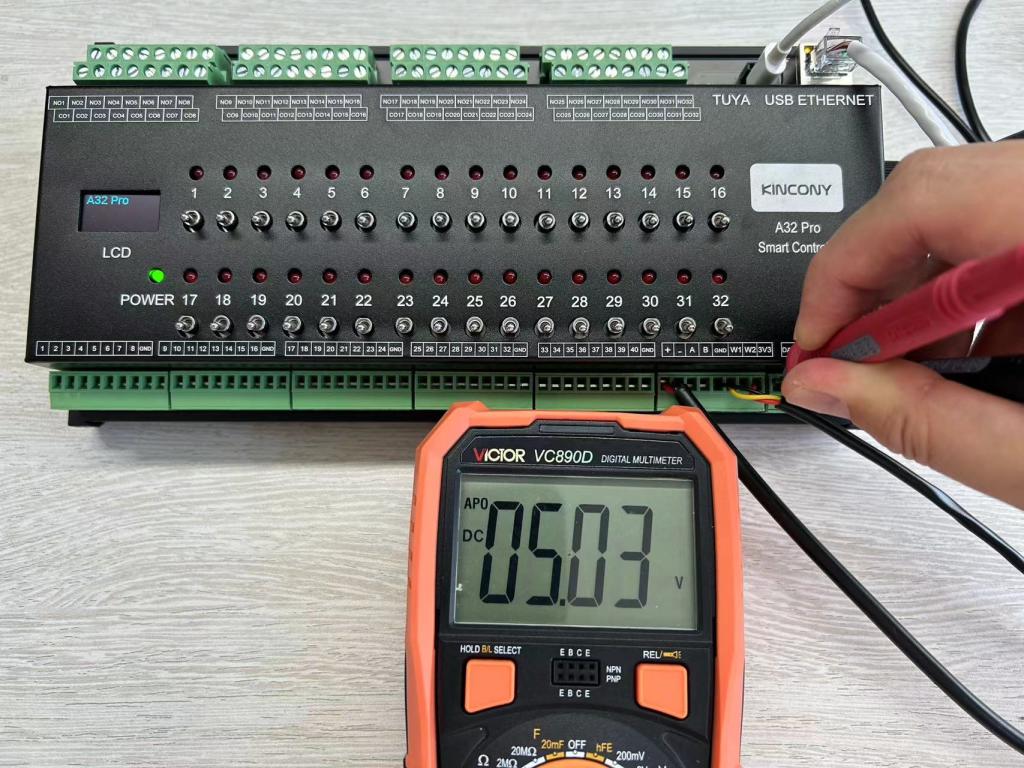

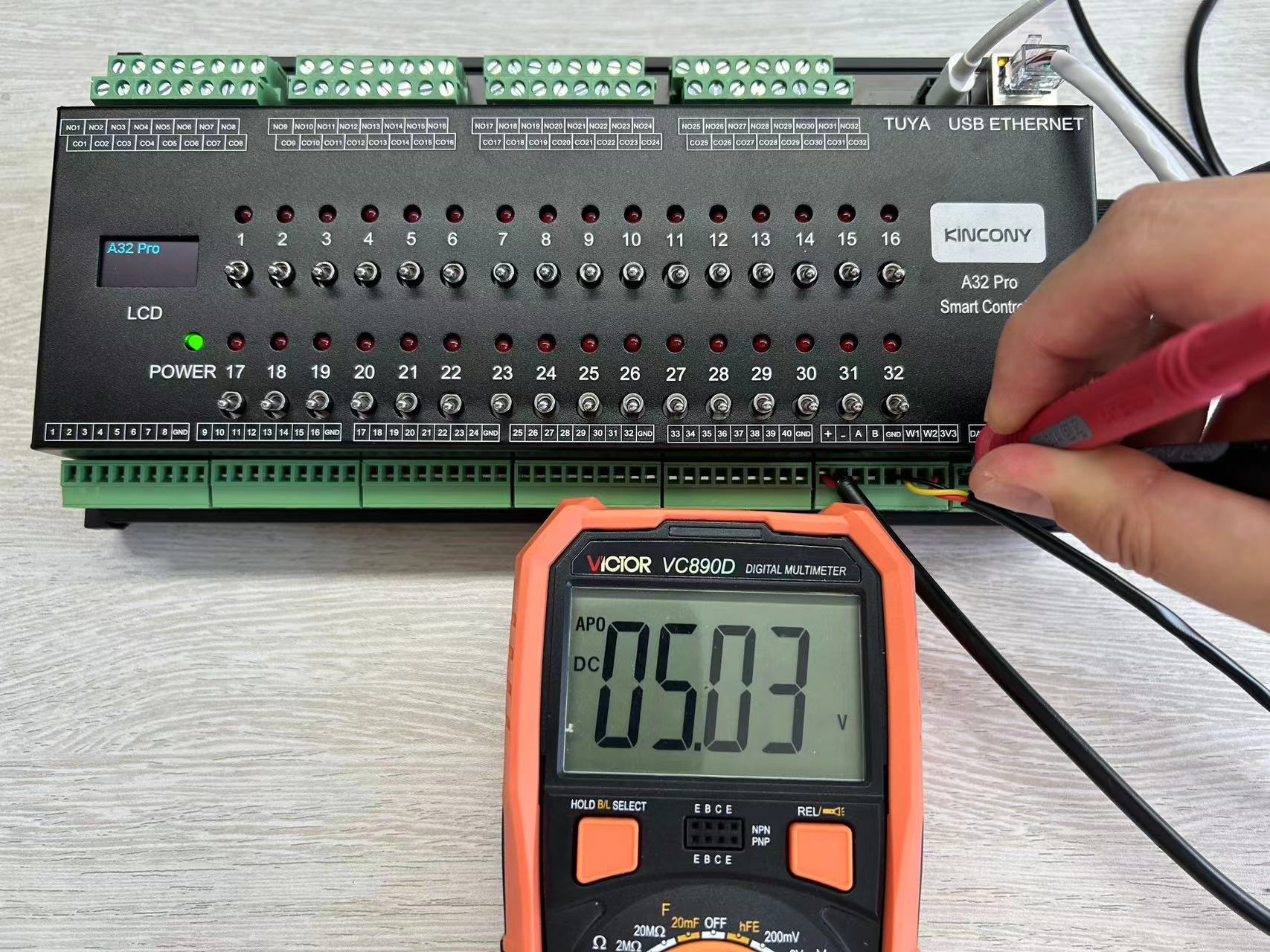

KCS v3 support Loxone integration by UDP protocol. here is all details demo show with KinCony A32 Pro using DO (digital output), DI (digital input), AO (analog output for dimmer), AI (analog input), RS485 sensor and GPIO 1-wire sensor.

KCS v3 use by KinCony ESP32-S3 smart controller.

about demo function list:
1/a. Relay1 switch: you can trun ON/OFF relay1
1/b. Relay2 button: hold on the button relay2 is ON, release finger, relay2 is OFF. Usually use for curtain.
1/c. Relay1 State: feedback relay1's newest state, even if relay control by other ways, such as home assistant, tuya app, web browser, wall switch.

2. DI1 State: monitor digital input1 state.

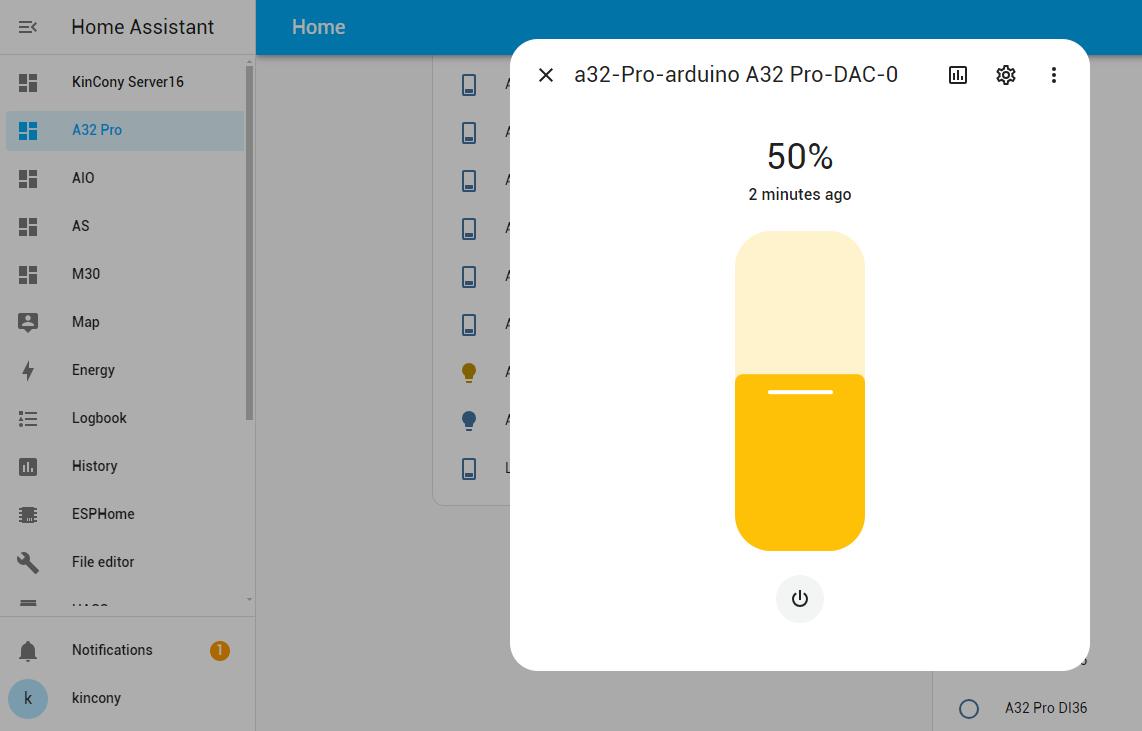

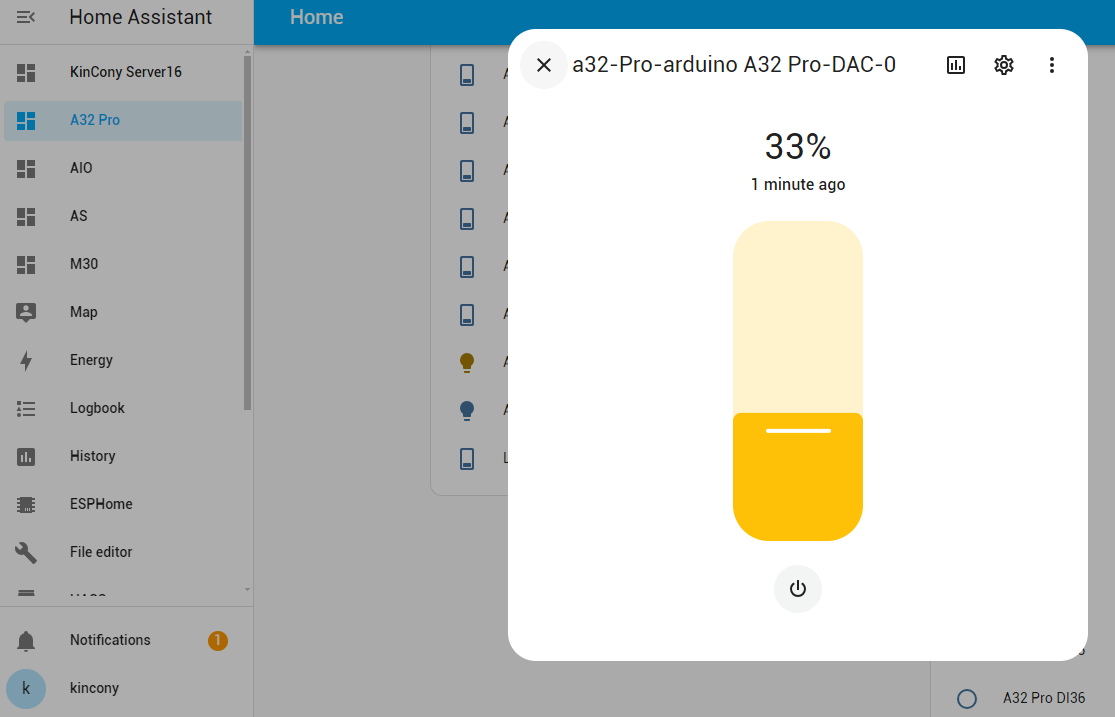

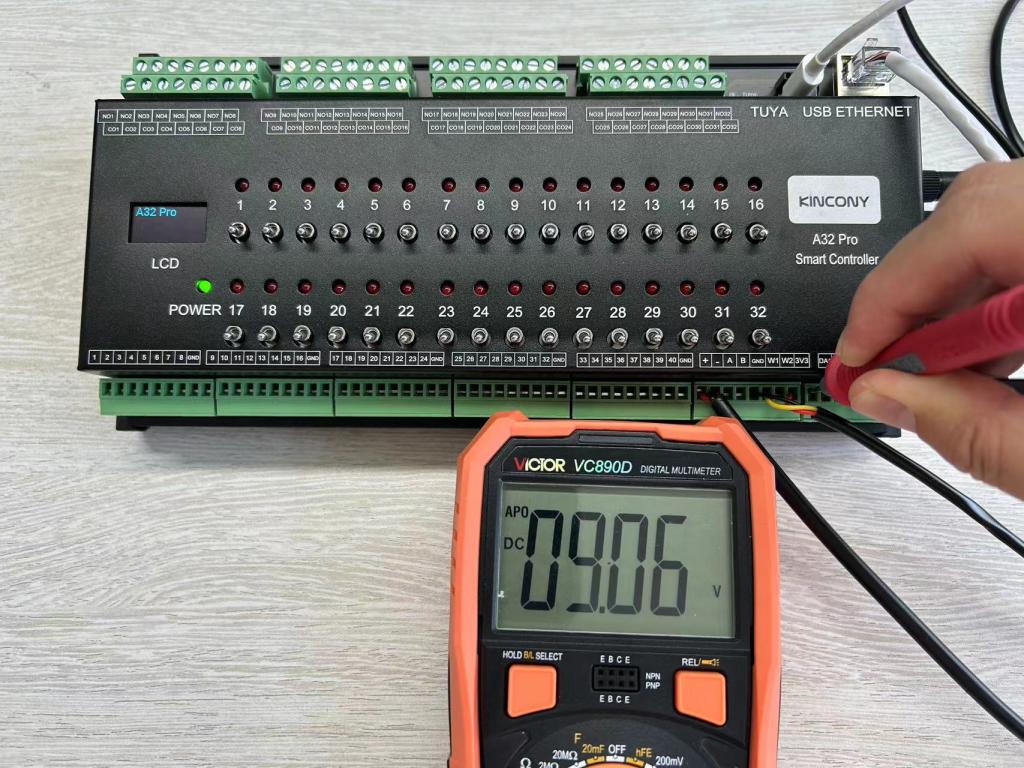

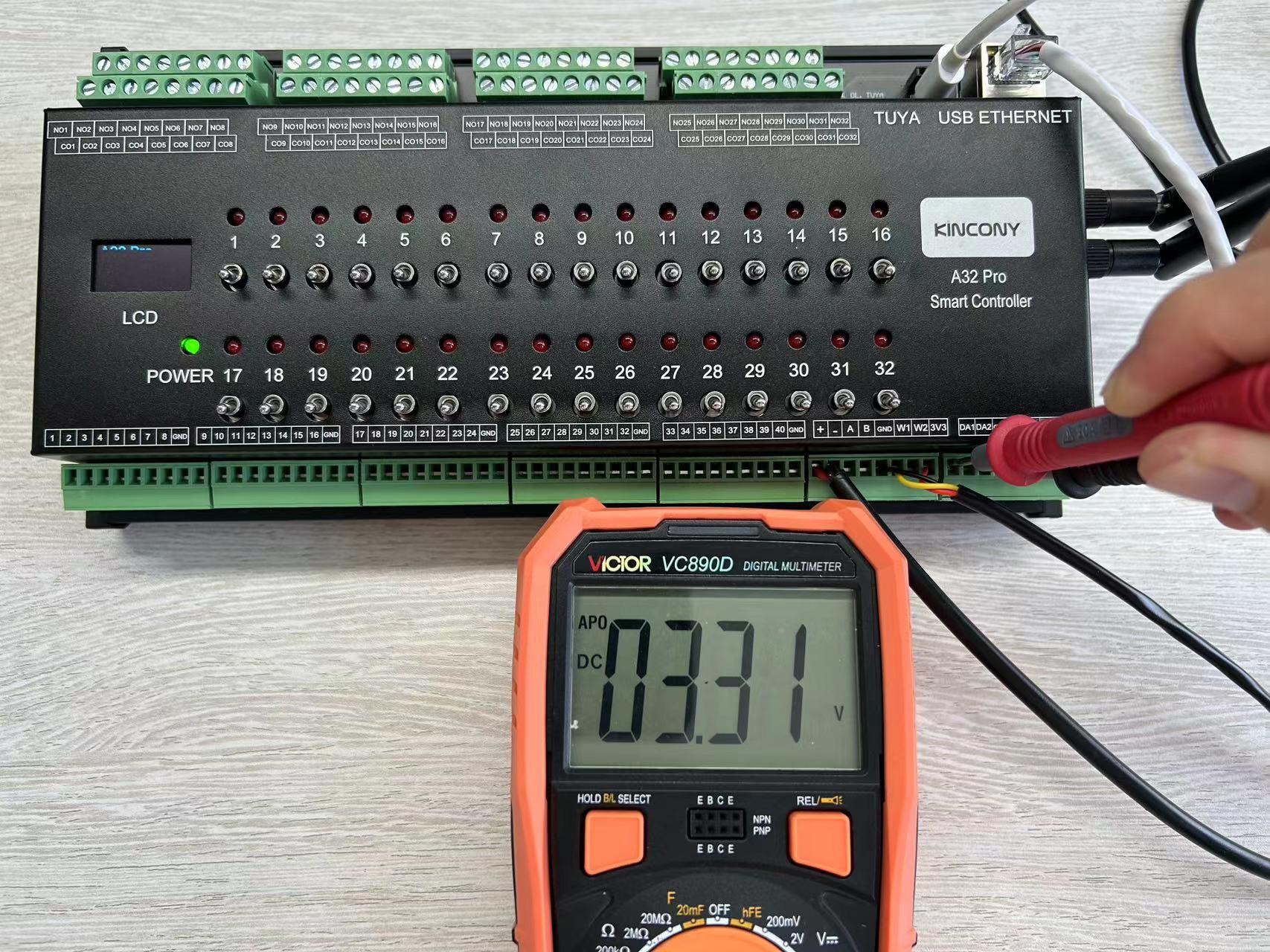

3. Dimmer (AO1): dimmer output with channel1 (range 0--255)
4. feedback AO1's newest state, even if dimmer control by other ways, such as home assistant, tuya app, web browser, wall switch.
5. RF433M: monitor RF433MHz sensor state for ON/OFF

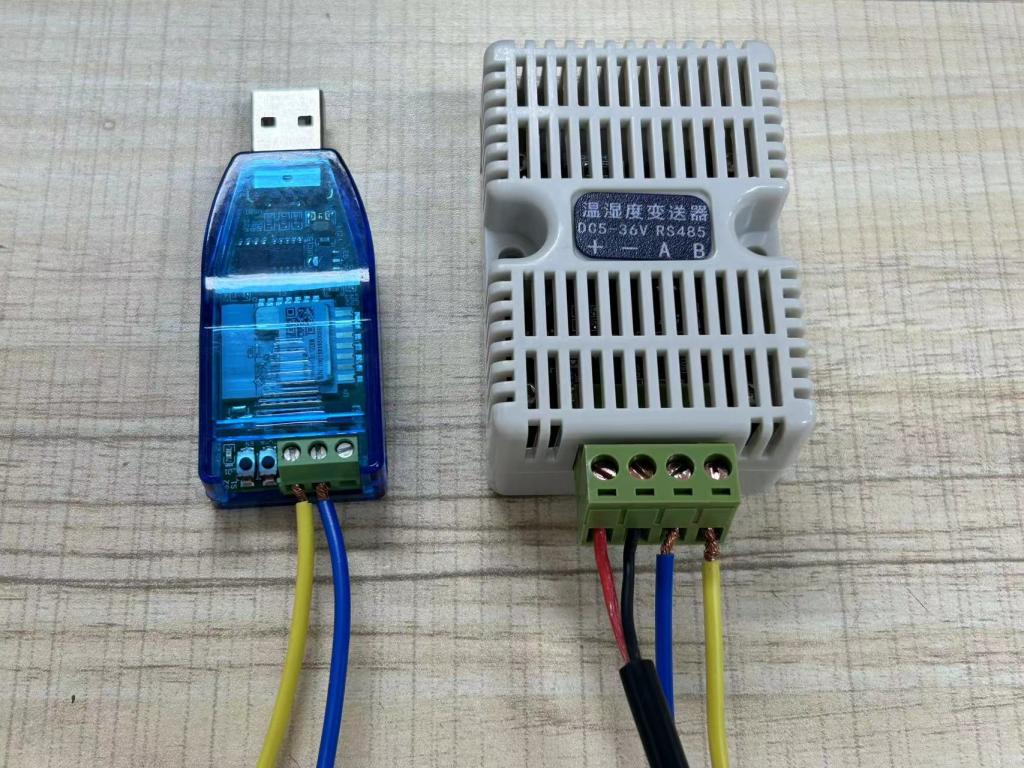

6/a. Sensor1Temp: one temperature & humidity sensor's temperature value
6/b. Sensor1Hum: one temperature & humidity sensor's humidity value

7.Sensor2Temp: one temperature sensor's temperature value






download Loxone config project demo at here:

.zip   Loxone-Kincony-KCS-DEMO.zip (Size: 12 KB / Downloads: 983)
the project default user and password are:
admin
123456abc
make sure your KCS version >v3.4.0


go to Loxone webpage, config ip and port for Loxone Miniserver.

Enable UDP Server, input any port number unused, that means KinCony controller will work as a UDP Server listen to Loxone client, receive command from Loxone Miniserver.

Enable UDP Client, input any port number unused, that means KinCony controller will work as a UDP Client connect to Loxone server, feedback state to Loxone Miniserver.

about protocol demo:

1: control digital output (DO)
Loxone send to KCS: RELAY-SET-255,2,1 //turn ON DO2
KCS back to Loxone: RELAY-SET-255,2,1,OK
Loxone send to KCS: RELAY-SET-255,2,0 //turn OFF DO2
KCS back to Loxone: RELAY-SET-255,2,0,OK


2: digital output (DO) state feedback
KCS back to Loxone: RELAY-SET-255,3,1,OK //DO3 is ON
KCS back to Loxone: RELAY-SET-255,3,0,OK //DO3 is OFF


3: digital input (DI) state feedback
KCS back to Loxone: RELAY-GET_INPUT-255,4,1,OK //DI4 is ON
KCS back to Loxone: RELAY-GET_INPUT-255,4,0,OK //DI4 is OFF


4: control analog output (AO)
Loxone send to KCS: RELAY-SET_DAC_255,2,0 //channel 2 AO=0 0%
KCS back to Loxone: RELAY-SET_DAC_255,2,0,OK
Loxone send to KCS: RELAY-SET_DAC_255,3,255 //channel 3 AO=255 100%
KCS back to Loxone: RELAY-SET_DAC_255,3,255,OK


5: analog output (AO) state feedback
KCS back to Loxone: RELAY-GET_DAC_255,1,107,OK //channel 1 AO=107
KCS back to Loxone: RELAY-GET_DAC_255,2,255,OK //channel 2 AO=255


6: analog input (AI) state feedback
KCS back to Loxone: RELAY-GET_ADC-255,1,2670,OK //channel1 ADC is 2670


7: RF433M receiver state feedback
KCS back to Loxone: RELAY-GET_RF-255,2,1,OK //channel2 RF sensor is ON
KCS back to Loxone: RELAY-GET_RF-255,3,0,OK //channel3 RF sensor is OFF


8: temperature & humidity sensor feedback
KCS back to Loxone:RELAY-GET_SENSOR-255,3,16.8,46.8,OK //channel3 sensor temperature=16.8℃ humidity=46.8%
KCS back to Loxone:RELAY-GET_SENSOR-255,4,27.8,-100,OK //channel4 sensor temperature=27.8℃ without humidity

"KCS" v3.4.0 firmware for B16M F16 F24 A32Pro controller

Posted by: admin - 12-27-2024, 01:00 AM - Forum: "KCS" v2 firmware system - Replies (6)

v3.4.0 improvement:
1. Added Loxone Miniserver UDP protocol
2. Added RS485 sensor
3. When DO is ALL ON, increase the delay of each channel and the delay is 10ms, so that can protect power supply.
4. Fix the problem that multiple DI false configurations in ifttt cannot work well.
5. Fix the problem that ifttt processing will be blocked when mqtt is disconnected

Attached Files
.zip

KCS_A32PRO_V3.4.0.zip (Size: 1,011.58 KB / Downloads: 1005)
.zip

KCS_B16M_V3.4.0.zip (Size: 1.01 MB / Downloads: 1062)
.zip

KCS_F16_V3.4.0.zip (Size: 1.02 MB / Downloads: 1029)
.zip

KCS_F24_V3.4.0.zip (Size: 1.02 MB / Downloads: 946)

Pages (425): « Previous 1 … 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 … 425 Next »

Login
Username:
Password:	Lost Password?
	Remember me
