access control panel by wiegand protocol configure yaml for ESPhome

Posted by: admin - 05-08-2023, 03:31 AM - Forum: KC868-A32/A32 Pro - Replies (13)

	here is demo config file for access control panel. control relay2 or relay3 by different finger or IC card or INPUT NUMBER by touch panel. HA_A32_finger_wiegand26_tag.txt (Size: 12.93 KB / Downloads: 1388)

KC868-AP ESPHome demo config switch panel control LED for home assistant by ethernet

Posted by: admin - 05-08-2023, 01:19 AM - Forum: KC868-AP / ADR - Replies (4)

this is config file for digital input1 with button control KC868-AP output1:
1: click button for ON/OFF LED,
2: hold on button for change led brightness.

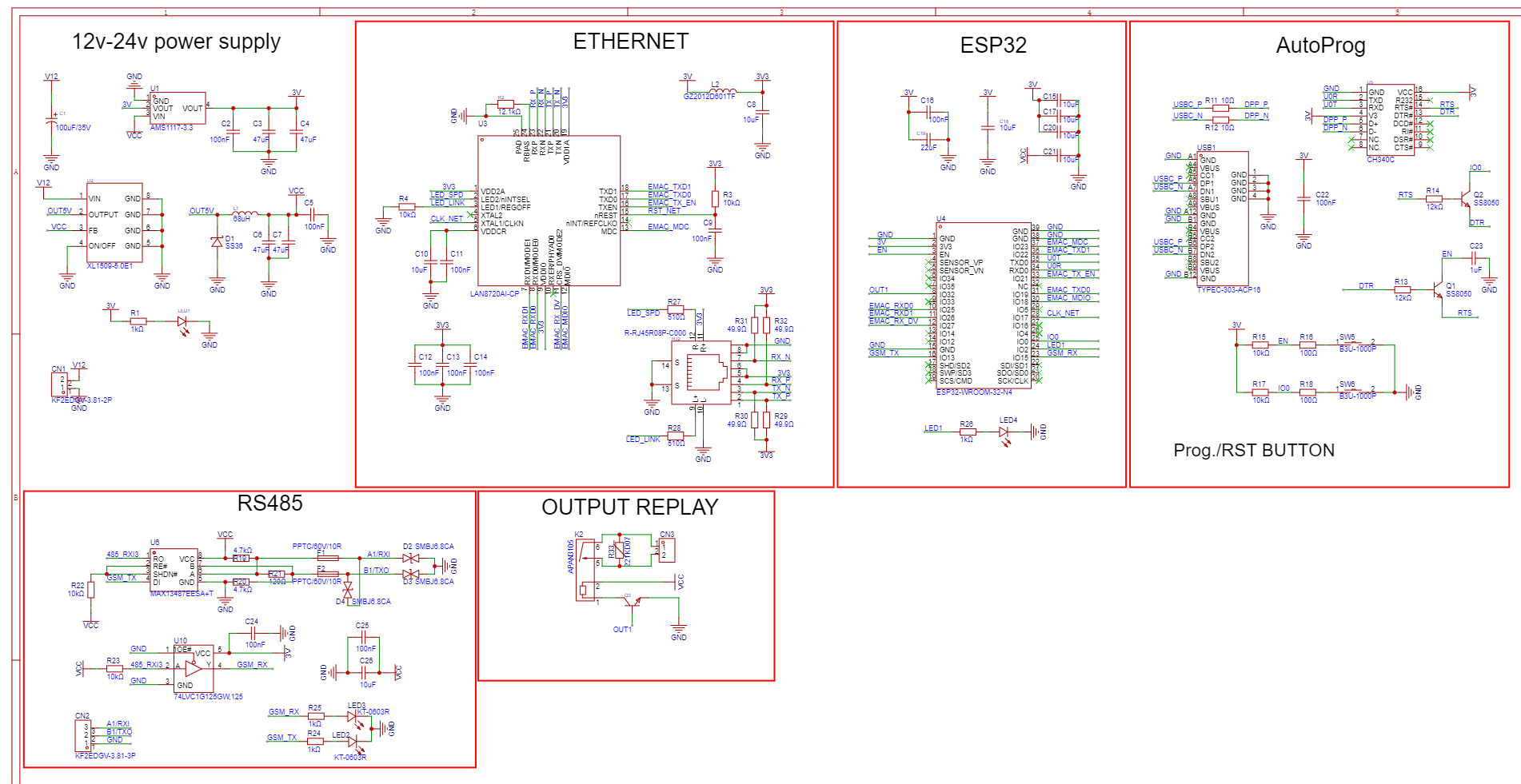

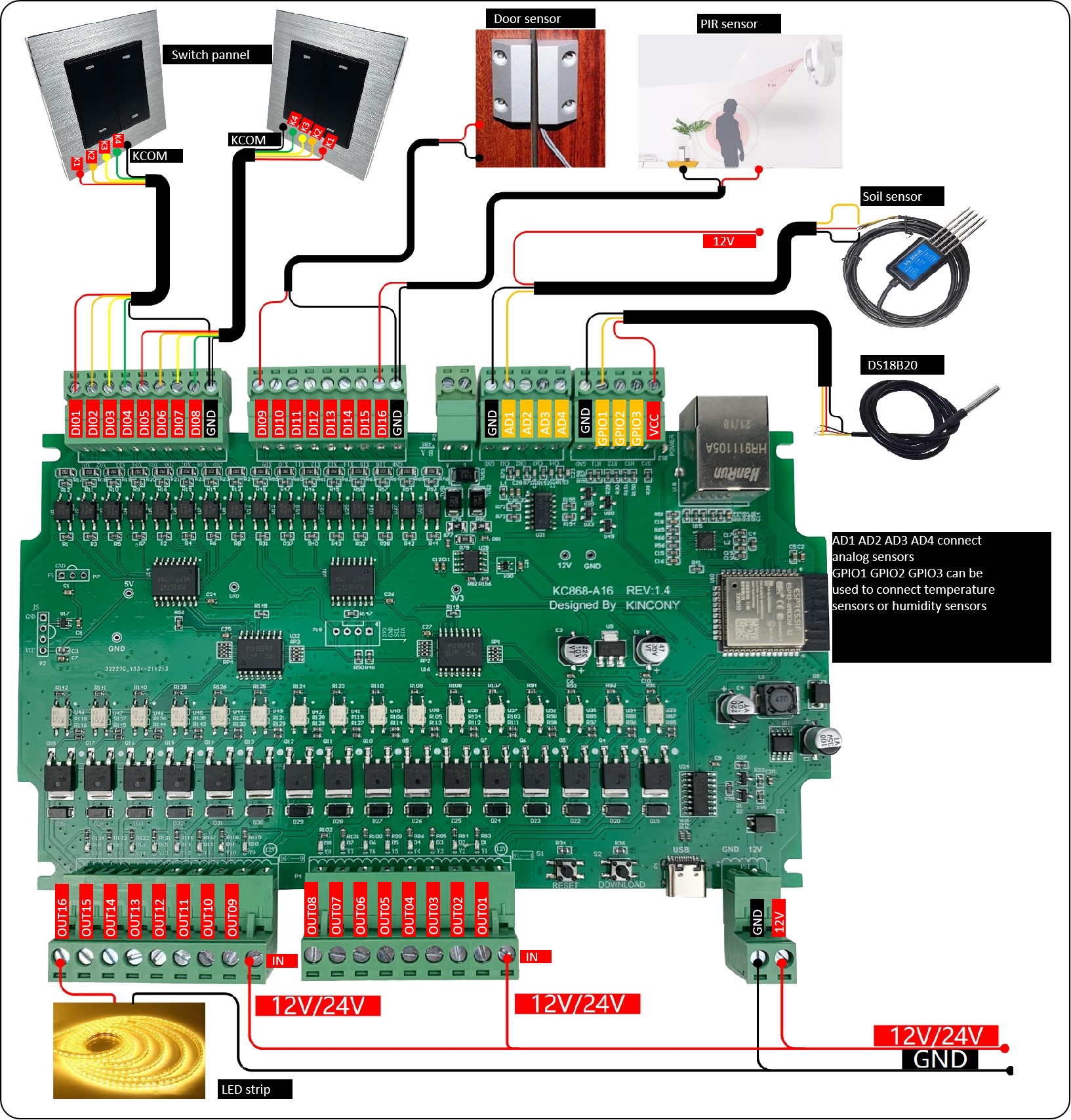

[Image: attachment.php?aid=2392]
esphome:
name: ap

esp32:
board: esp32dev
framework:
type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:
encryption:
key: "hx8eSqbwjWs9/2bK0qK55QfTIOpI4gCfzLOeaOXZMaU="

# Example configuration entry
ethernet:
type: LAN8720
mdc_pin: GPIO23
mdio_pin: GPIO18
clk_mode: GPIO17_OUT
phy_addr: 0

# Example configuration entry for ESP32
i2c:
sda: 4
scl: 16
scan: true
id: bus_a

pcf8574:
- id: 'pcf8574_hub_in_1' # for input channel 1-8 maybe 0x22 / 0x3A
address: 0x22

- id: 'pcf8574_hub_in_2' # for input channel 9-16
address: 0x21

binary_sensor:
- platform: gpio
name: "ap-input1"
pin:
pcf8574: pcf8574_hub_in_1
number: 0
mode: INPUT
inverted: true
id: light_1_touch
on_click:
then:
- if:
condition:
light.is_off: light_1
then:
light.turn_on:
id: light_1
brightness: 1.0
else:
light.turn_off: light_1
on_press:
then:
- if:
condition:
light.is_off: light_1
then:
- delay: 0.5s
- while:
condition:
binary_sensor.is_on: light_1_touch
then:
- light.dim_relative:
id: light_1
relative_brightness: 5%
transition_length: 0.1s
- delay: 0.1s
else:
- delay: 0.5s
- while:
condition:
and:
- binary_sensor.is_on: light_1_touch
- light.is_on: light_1
then:
- light.dim_relative:
id: light_1
relative_brightness: -5%
transition_length: 0.1s
- delay: 0.1s

- platform: gpio
name: "ap-input2"
pin:
pcf8574: pcf8574_hub_in_1
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input3"
pin:
pcf8574: pcf8574_hub_in_1
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input4"
pin:
pcf8574: pcf8574_hub_in_1
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input5"
pin:
pcf8574: pcf8574_hub_in_1
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input6"
pin:
pcf8574: pcf8574_hub_in_1
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input7"
pin:
pcf8574: pcf8574_hub_in_1
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input8"
pin:
pcf8574: pcf8574_hub_in_1
number: 7
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input9"
pin:
pcf8574: pcf8574_hub_in_2
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input10"
pin:
pcf8574: pcf8574_hub_in_2
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input11"
pin:
pcf8574: pcf8574_hub_in_2
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input12"
pin:
pcf8574: pcf8574_hub_in_2
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input13"
pin:
pcf8574: pcf8574_hub_in_2
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input14"
pin:
pcf8574: pcf8574_hub_in_2
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input15"
pin:
pcf8574: pcf8574_hub_in_2
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input16"
pin:
pcf8574: pcf8574_hub_in_2
number: 7
mode: INPUT
inverted: true

- platform: gpio
name: "ap-input17"
pin:
number: 34
inverted: true

- platform: gpio
name: "ap-input18"
pin:
number: 35
inverted: true

pca9685:
id: 'pca9685_hub'
frequency: 500

output:
- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM0"
channel: 0

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM1"
channel: 1

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM2"
channel: 2

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM3"
channel: 3

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM4"
channel: 4

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM5"
channel: 5

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM6"
channel: 6

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM7"
channel: 7

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM8"
channel: 8

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM9"
channel: 9

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM10"
channel: 10

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM11"
channel: 11

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM12"
channel: 12

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM13"
channel: 13

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM14"
channel: 14

- platform: pca9685
pca9685_id: 'pca9685_hub'
id: "PWM15"
channel: 15

light:
- platform: monochromatic
name: "Color-LED-1"
id: light_1
output: PWM0
- platform: monochromatic
name: "Color-LED-2"
output: PWM1
- platform: monochromatic
name: "Color-LED-3"
output: PWM2
- platform: monochromatic
name: "Color-LED-4"
output: PWM3
- platform: monochromatic
name: "Color-LED-5"
output: PWM4
- platform: monochromatic
name: "Color-LED-6"
output: PWM5
- platform: monochromatic
name: "Color-LED-7"
output: PWM6
- platform: monochromatic
name: "Color-LED-8"
output: PWM7
- platform: monochromatic
name: "Color-LED-9"
output: PWM8
- platform: monochromatic
name: "Color-LED-10"
output: PWM9
- platform: monochromatic
name: "Color-LED-11"
output: PWM10
- platform: monochromatic
name: "Color-LED-12"
output: PWM11
- platform: monochromatic
name: "Color-LED-13"
output: PWM12
- platform: monochromatic
name: "Color-LED-14"
output: PWM13
- platform: monochromatic
name: "Color-LED-15"
output: PWM14
- platform: monochromatic
name: "Color-LED-16"
output: PWM15

- platform: rgbw
name: "ap-rgbw"
red: PWM1
green: PWM2
blue: PWM3
white: PWM4

switch:
- platform: gpio
name: "ap-light1"
pin: 13
inverted: false

- platform: gpio
name: "ap-light2"
pin: 2
inverted: false

Momentry Switches A4S

Posted by: mark2023 - 05-07-2023, 07:47 PM - Forum: DIY Project - Replies (5)

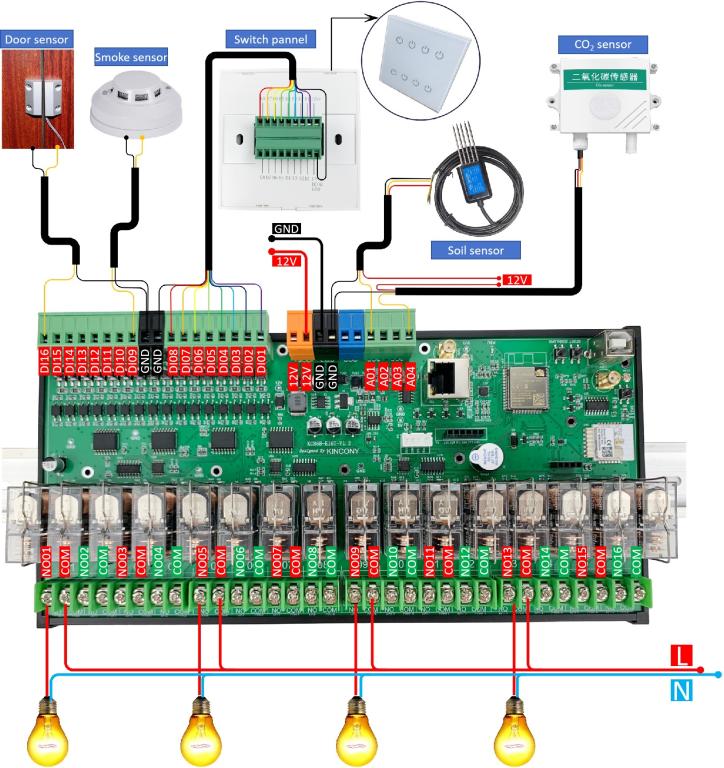

	Hello, I have a A4S Controller and a 2 button glass momentry switch and a 6 button momentry switch. Can someone share a wiring diagram for both these switches onto the A4S. I connected the glass switch but the input was permantly on in HA and pessing the switch made no difference. If i could have a wiring digram for all terminals on the switches as a example that would be great.

Free sample request

Posted by: skajer - 05-07-2023, 12:44 PM - Forum: Apply for free sample product - No Replies

Hello,

I am interested in learning about KinCony's products and would like to apply for a free sample. As someone who is passionate about technology, I believe that KinCony's products have the potential to enhance my understanding of smart control systems and related fields.

I would like to apply under condition A, as I plan to use the KC868-A4 or KC101 kit for my personal learning and development. I am excited to explore the capabilities of these products and to gain hands-on experience with them.

Best regards,
skajer

ESPHome DAC output DC 0-10V

Posted by: Loki - 05-06-2023, 11:39 PM - Forum: KC868-A4S - Replies (9)

	Hi, I don't understand how to correctly integrate the AO 01-08 (0-10V) as DAC output in the ESPHome yaml. Could you please show me an example programme? Many thanks in advance

[Arduino source code for KC868-A32M]-07_PCF8574_DO

Posted by: KinCony Support - 05-06-2023, 01:16 AM - Forum: KC868-A32M - No Replies

[Arduino source code for KC868-A32M]-07_PCF8574_DO

Code:
/*kc868-a32m pcf8575 out*/

#include "Arduino.h"

#include "PCF8574.h"

#define a 100

// Set i2c address

PCF8574 pcf8574_R1(0x23,4,5);

PCF8574 pcf8574_R2(0x24,4,5);

PCF8574 pcf8574_R3(0x25,4,5);

PCF8574 pcf8574_R4(0x26,4,5);

void setup()

{

    Serial.begin(115200);

    Wire.begin();

for(int i=0;i<=7;i++){

  pcf8574_R1.pinMode(i,OUTPUT);

  pcf8574_R2.pinMode(i,OUTPUT);

  pcf8574_R3.pinMode(i,OUTPUT);

  pcf8574_R4.pinMode(i,OUTPUT);

}

    pcf8574_R1.begin();

    pcf8574_R2.begin();

    pcf8574_R3.begin();

    pcf8574_R4.begin();

    for(int j=0;j<=31;j++){

     if(j<=7){

              pcf8574_R1.digitalWrite(j,LOW);

              delay(a);

             }

     if(7<j<=15){

              pcf8574_R2.digitalWrite(j-8,LOW);

              delay(a);

             }

     if(15<j<=23){

              pcf8574_R3.digitalWrite(j-16,LOW);

              delay(a);

             }

     if(23<j<=31){

              pcf8574_R4.digitalWrite(j-24,LOW);

              delay(a);

             }

    }

    for(int j=0;j<=31;j++){

     if(j<=7){

              pcf8574_R1.digitalWrite(j,HIGH);

              delay(a);

             }

     if(7<j<=15){

              pcf8574_R2.digitalWrite(j-8,HIGH);

              delay(a);

             }

     if(15<j<=23){

              pcf8574_R3.digitalWrite(j-16,HIGH);

              delay(a);

             }

     if(23<j<=31){

              pcf8574_R4.digitalWrite(j-24,HIGH);

              delay(a);

             }

    }

}

void loop()

{

}

Attached Files
.zip

KC868-A32M-PCF8574_DO.zip (Size: 779 bytes / Downloads: 496)

[Arduino source code for KC868-A32M]-06_ADC

Posted by: KinCony Support - 05-06-2023, 01:14 AM - Forum: KC868-A32M - No Replies

[Arduino source code for KC868-A32M]-06_ADC

Code:
/*KC868-A32M- ADC*/

#include "Arduino.h"

#include "PCF8574.h"

#define ANALOG_A1   34

#define ANALOG_A2   35

#define ANALOG_A3   39

#define ANALOG_A4   36

void setup()

{

    Serial.begin(115200);

  pinMode(ANALOG_A1,INPUT);

  pinMode(ANALOG_A2,INPUT);

  pinMode(ANALOG_A3,INPUT);

  pinMode(ANALOG_A4,INPUT);

}

void loop()

{

  if(analogRead(ANALOG_A1)!=0){

    Serial.printf("Current Reading A1 on Pin(%d)=%d\n",ANALOG_A1,analogRead(ANALOG_A1));

  }

   if(analogRead(ANALOG_A2)!=0){

    Serial.printf("Current Reading A2 on Pin(%d)=%d\n",ANALOG_A2,analogRead(ANALOG_A2));

   }

   if(analogRead(ANALOG_A3)!=0){

    Serial.printf("Current Reading A3 on Pin(%d)=%d\n",ANALOG_A3,analogRead(ANALOG_A3));

   }

   if(analogRead(ANALOG_A4)!=0){

    Serial.printf("Current Reading A4 on Pin(%d)=%d\n",ANALOG_A4,analogRead(ANALOG_A4));

   }

   delay(100);

}

Attached Files
.zip

KC868-A32M-ADC.zip (Size: 650 bytes / Downloads: 451)

[Arduino source code for KC868-A32M]-05_433_RECEIVE

Posted by: KinCony Support - 05-06-2023, 01:13 AM - Forum: KC868-A32M - No Replies

[Arduino source code for KC868-A32M]-05_433_RECEIVE

Code:
#include <RCSwitch.h>

RCSwitch mySwitch = RCSwitch();

void setup() {

  Serial.begin(115200);

  mySwitch.enableReceive(digitalPinToInterrupt(14));  //IO19

  Serial.print("begin test");

}

void loop() {

  if (mySwitch.available()) {

    Serial.print("Received ");

    Serial.print( mySwitch.getReceivedValue() );

    Serial.print(" / ");

    Serial.print( mySwitch.getReceivedBitlength() );

    Serial.print("bit ");

    Serial.print("Protocol: ");

    Serial.println( mySwitch.getReceivedProtocol() );

    mySwitch.resetAvailable();

  }

}

Attached Files
.zip

KC868-A32M-433_RECEIVE.zip (Size: 641 bytes / Downloads: 477)

[Arduino source code for KC868-A32M]-04_RS485

Posted by: KinCony Support - 05-06-2023, 01:13 AM - Forum: KC868-A32M - No Replies

[Arduino source code for KC868-A32M]-04_RS485

Code:
/*KC868-A32M RS485*/

#define A8M_RS485_RX 15

#define A8M_RS485_TX 13

void setup() {

  Serial.begin(115200);

  Serial2.begin(115200,SERIAL_8N1,A8M_RS485_RX,A8M_RS485_TX);//A8M

  Serial2.println("A32M RS485 SEND is OK!!");

}

void loop() {

  while(Serial2.available()>0)

   {

    Serial2.print((char)Serial2.read());

   }

  delay(200);

}

Attached Files
.zip

KC868-A32M_RS485.zip (Size: 569 bytes / Downloads: 497)

[Arduino source code for KC868-A32M]-03_LAN8720_UDP

Posted by: KinCony Support - 05-06-2023, 01:12 AM - Forum: KC868-A32M - No Replies

[Arduino source code for KC868-A32M]-03_LAN8720_UDP

Code:
#include <ETH.h>

#include <WiFiUdp.h>

#define ETH_ADDR        0

#define ETH_POWER_PIN  -1

#define ETH_MDC_PIN    23

#define ETH_MDIO_PIN   18

#define ETH_TYPE       ETH_PHY_LAN8720

#define ETH_CLK_MODE   ETH_CLOCK_GPIO17_OUT

WiFiUDP Udp;                      //Create UDP object

unsigned int localUdpPort = 4196; //local port

IPAddress local_ip(192, 168, 1, 200);

IPAddress gateway(192, 168, 1, 1);

IPAddress subnet(255, 255, 255, 0);

IPAddress dns(192, 168, 1, 1);

void setup()

{

  Serial.begin(115200);

  Serial.println();

  ETH.begin(ETH_ADDR, ETH_POWER_PIN, ETH_MDC_PIN, ETH_MDIO_PIN, ETH_TYPE, ETH_CLK_MODE); //start with ETH

  // write confir for static IP, gateway,subnet,dns1,dns2

  if (ETH.config(local_ip, gateway, subnet, dns, dns) == false) {

    Serial.println("LAN8720 Configuration failed.");

  }else{Serial.println("LAN8720 Configuration success.");}

 /* while(!((uint32_t)ETH.localIP())) //wait for IP

  {

  }*/

  Serial.println("Connected");

  Serial.print("IP Address:");

  Serial.println(ETH.localIP());

  Udp.begin(localUdpPort); //begin UDP listener

}

void loop()

{

  int packetSize = Udp.parsePacket(); //get package size

  if (packetSize)                     //if have received data

  {

    char buf[packetSize];

    Udp.read(buf, packetSize); //read current data

    Serial.println();

    Serial.print("Received: ");

    Serial.println(buf);

    Serial.print("From IP: ");

    Serial.println(Udp.remoteIP());

    Serial.print("From Port: ");

    Serial.println(Udp.remotePort());

    Udp.beginPacket(Udp.remoteIP(), Udp.remotePort()); //ready to send data

    Udp.print("Received: ");

    Udp.write((const uint8_t*)buf, packetSize); //copy data to sender buffer

    Udp.endPacket();            //send data

  }

}

Attached Files
.zip

KC868-A32M_LAN8720_UDP.zip (Size: 1.11 KB / Downloads: 475)

Pages (358): « Previous 1 … 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 … 358 Next »

Login
Username:
Password:	Lost Password?
	Remember me
