Note: This protocol document use for KinCony smart controller:
KC868-AM ASR A2 A4 A4S A6 A8 A8M A8S A16 A16S E16S A32 A32M A64 A128 AG AK AI AIO AP
Different board will have different channel of digital output, digital input , ADC, DAC, so the protocol is same , just according to the hardware resource to set channel number.

Attached Files

  KC868-A-series-protocol-MQTT_firmware_V2.pdf (Size: 115.15 KB / Downloads: 4515)

Note: This protocol document use for KinCony smart controller:
KC868-AM ASR A2 A4 A4S A6 A8 A8M A8S A16 A16S E16S A32 A32M A64 A128 AG AK AI AIO AP
Different board will have different channel of digital output, digital input , ADC, DAC, so the protocol is same , just according to the hardware resource to set channel number.

Attached Files

  KC868-A-series-protocol-String_firmware_V2.pdf (Size: 151.42 KB / Downloads: 1491)

How can I connect A8s to Touchscreen pass TTL Serial ?
Please suggest....

Attached Files

Thumbnail(s)


Is there a firmware update for H32w, that make me able to make the relays in introlck mode?

Hello,
I read everything in the forum, but I still did not understand if there is a way to bootload a CM4 server from an SSD drive via USB. I've tried everything I can find on the web, but nothing works. I use a Verbatim SSD drive, model Store 'n' go mini ssd with usb 3.2. Please help! Thank you.

Here is "KCS" firmware for KinCony KC868-A series (ESP32) board.
How to download and use, online guide: https://www.kincony.com/esp32-kcsv2-firmware.html

v2.0.5 improment:

1. IFTTT function running locally
2. 4G SIM7600 GSM module for SMS, voice control , DTMF control way.
3. use tuya app by 4G if without ethernet or wifi.
4. digital input port support "OLD switch panel"
5. support DS18B20/DHT11/DHT22 sensor monitor.
6. support AUTOMATION with HTTP,TCP,RS232,RS485,UDP protocol to other devices.
7. relay output "momentary delay time" set be set longer.
8. fixed some bugs based "KCS v1" firmware.
9. support many new ESP32 board models.
10. something other updates.

Attached Files

  KCS_KC868_A2_V2.0.5.zip (Size: 814.06 KB / Downloads: 881)
  KCS_KC868_A4_V2.0.5.zip (Size: 804.81 KB / Downloads: 799)
  KCS_KC868_A6_V2.0.5.zip (Size: 800.51 KB / Downloads: 729)
  KCS_KC868_A8_V2.0.5.zip (Size: 808.14 KB / Downloads: 883)
  KCS_KC868_A8M_V2.0.5.zip (Size: 825.43 KB / Downloads: 684)
  KCS_KC868_A8S_V2.0.5.zip (Size: 827.08 KB / Downloads: 722)
  KCS_KC868_A16_V2.0.5.zip (Size: 815.77 KB / Downloads: 713)
  KCS_KC868_A16S_V2.0.5.zip (Size: 826.86 KB / Downloads: 693)
  KCS_KC868_A32_V2.0.5.zip (Size: 809.59 KB / Downloads: 695)
  KCS_KC868_A32M_V2.0.5.zip (Size: 828.11 KB / Downloads: 757)
  KCS_KC868_A64_V2.0.5.zip (Size: 809.53 KB / Downloads: 839)
  KCS_KC868_A128_V2.0.5.zip (Size: 809.7 KB / Downloads: 698)
  KCS_KC868_AG_V2.0.5.zip (Size: 786.69 KB / Downloads: 693)
  KCS_KC868_AI_V2.0.5.zip (Size: 811.87 KB / Downloads: 669)
  KCS_KC868_AK_V2.0.5.zip (Size: 789.89 KB / Downloads: 770)
  KCS_KC868_AM_V2.0.5.zip (Size: 801.33 KB / Downloads: 671)
  KCS_KC868_ASR_V2.0.5.zip (Size: 776.8 KB / Downloads: 724)
  KCS_KC868_E16S_V2.0.5.zip (Size: 811.91 KB / Downloads: 750)
  KCS_KC868_UAIR_V2.0.5.zip (Size: 789.83 KB / Downloads: 782)

I am having problems with the DS1307 RTC. It works fine when it is not used with the CR1220 button cell backup. When the CR1220 button cell is inserted the time cannot be set up and it always read 2165/165/165 (Saturday) 165:165:85. I have tried two CR1220 button cells, one of them new,  and I have checked that they provides 3 V.  Any suggestion?

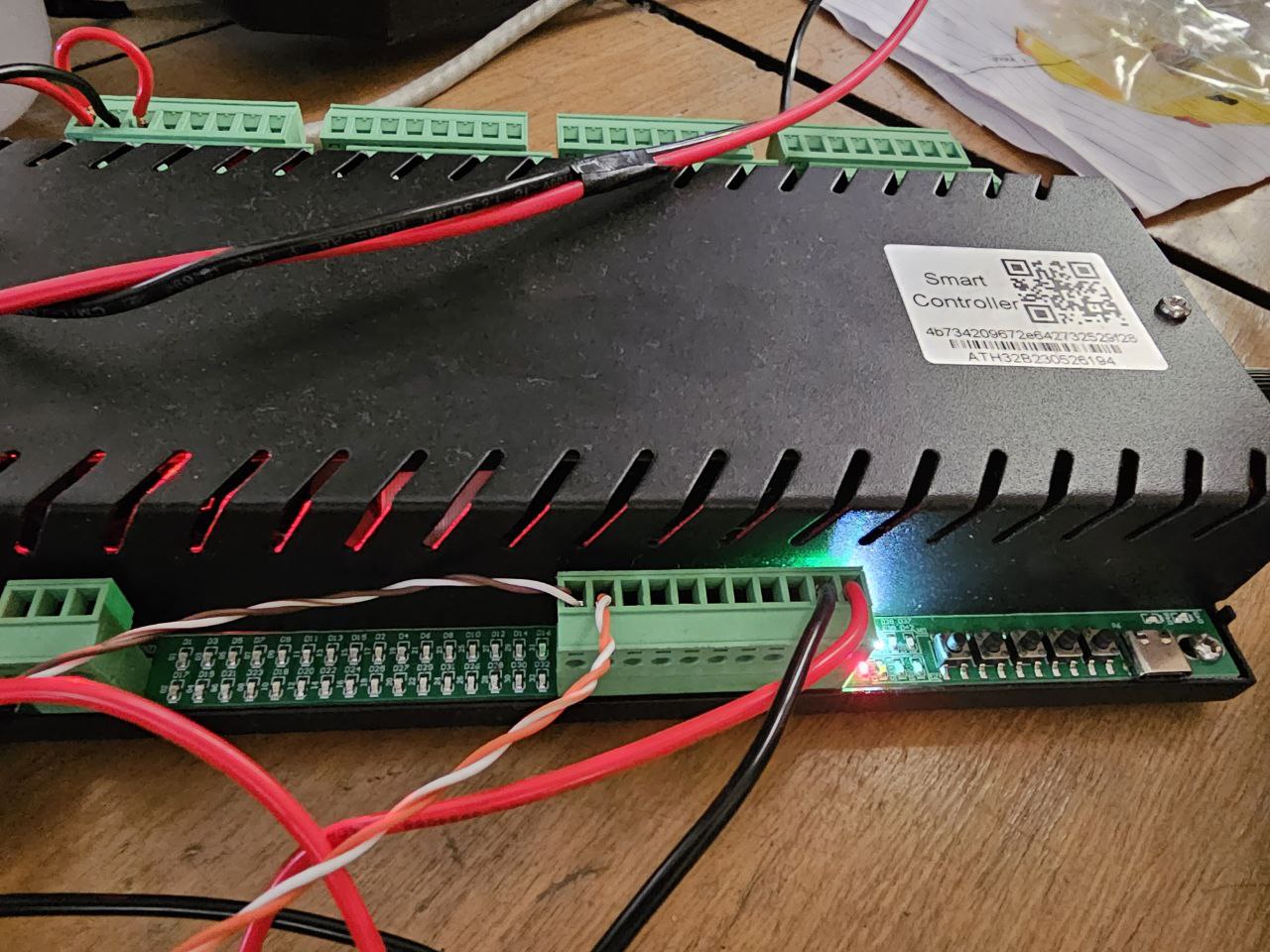

I have a problem with the button switch board working with the KC868-H32B Pro. When I click on an entry the relay turns on and off. It doesn't change levels. But by activating the controller's internal buttons, the relay is in the high state. And on the button switch board they work ALL ON and ALL OFF, normally. I updated the firmware to 1.18. Thank you if you can help me.

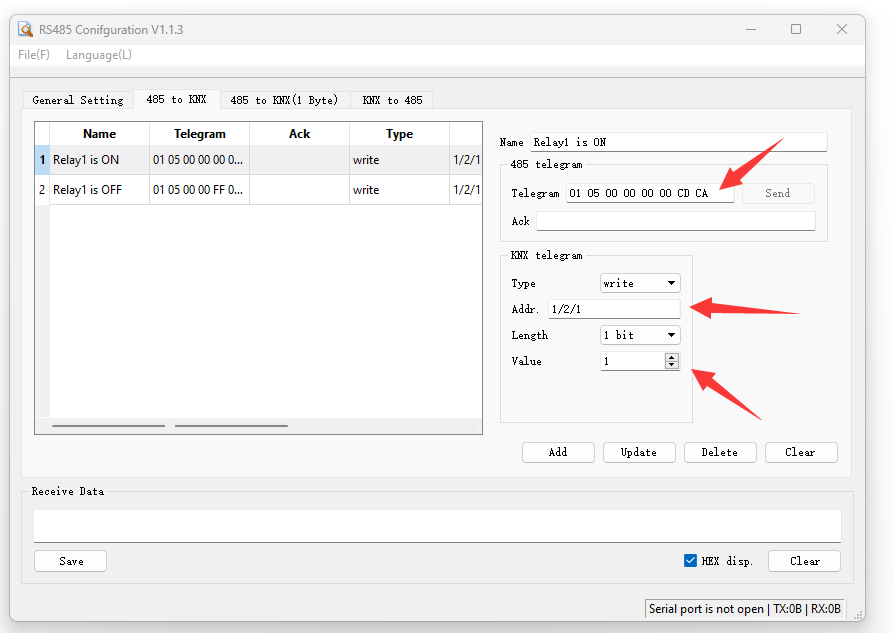

This is demo solution, KinCony H32B Pro relay controller work with KNX system. 8 gang switch panel is KNX type.
KinCony H32B Pro / H32BS relay controller RS485 command list：

send: Turn ON Relay1：01 05 00 00 FF 00 8C 3A  receive：01 05 00 00 FF 00 8C 3A
send: Turn ON Relay2：01 05 00 01 FF 00 DD FA  receive：01 05 00 01 FF 00 DD FA
send: Turn ON Relay3：01 05 00 02 FF 00 2D FA  receive：01 05 00 02 FF 00 2D FA
send: Turn ON Relay4：01 05 00 03 FF 00 7C 3A  receive：01 05 00 03 FF 00 7C 3A
send: Turn ON Relay5：01 05 00 04 FF 00 CD FB  receive：01 05 00 04 FF 00 CD FB
send: Turn ON Relay6：01 05 00 05 FF 00 9C 3B  receive：01 05 00 05 FF 00 9C 3B
send: Turn ON Relay7：01 05 00 06 FF 00 6C 3B  receive：01 05 00 06 FF 00 6C 3B
send: Turn ON Relay8：01 05 00 07 FF 00 3D FB  receive：01 05 00 07 FF 00 3D FB
send: Turn ON Relay9：01 05 00 08 FF 00 0D F8  receive：01 05 00 08 FF 00 0D F8
send: Turn ON Relay10：01 05 00 09 FF 00 5C 38  receive：01 05 00 09 FF 00 5C 38
send: Turn ON Relay11：01 05 00 0A FF 00 AC 38  receive：01 05 00 0A FF 00 AC 38
send: Turn ON Relay12：01 05 00 0B FF 00 FD F8  receive：01 05 00 0B FF 00 FD F8
send: Turn ON Relay13：01 05 00 0C FF 00 4C 39  receive：01 05 00 0C FF 00 4C 39
send: Turn ON Relay14：01 05 00 0D FF 00 1D F9  receive：01 05 00 0D FF 00 1D F9
send: Turn ON Relay15：01 05 00 0E FF 00 ED F9  receive：01 05 00 0E FF 00 ED F9
send: Turn ON Relay16：01 05 00 0F FF 00 BC 39  receive：01 05 00 0F FF 00 BC 39
send: Turn ON Relay17：01 05 00 10 FF 00 8D FF  receive：01 05 00 10 FF 00 8D FF
send: Turn ON Relay18：01 05 00 11 FF 00 DC 3F  receive：01 05 00 11 FF 00 DC 3F
send: Turn ON Relay19：01 05 00 12 FF 00 2C 3F  receive：01 05 00 12 FF 00 2C 3F
send: Turn ON Relay20：01 05 00 13 FF 00 7D FF  receive：01 05 00 13 FF 00 7D FF
send: Turn ON Relay21：01 05 00 14 FF 00 CC 3E  receive：01 05 00 14 FF 00 CC 3E
send: Turn ON Relay22：01 05 00 15 FF 00 9D FE  receive：01 05 00 15 FF 00 9D FE
send: Turn ON Relay23：01 05 00 16 FF 00 6D FE  receive：01 05 00 16 FF 00 6D FE
send: Turn ON Relay24：01 05 00 17 FF 00 3C 3E  receive：01 05 00 17 FF 00 3C 3E
send: Turn ON Relay25：01 05 00 18 FF 00 0C 3D  receive：01 05 00 18 FF 00 0C 3D
send: Turn ON Relay26：01 05 00 19 FF 00 5D FD  receive：01 05 00 19 FF 00 5D FD
send: Turn ON Relay27：01 05 00 1A FF 00 AD FD  receive：01 05 00 1A FF 00 AD FD
send: Turn ON Relay28：01 05 00 1B FF 00 FC 3D  receive：01 05 00 1B FF 00 FC 3D
send: Turn ON Relay29：01 05 00 1C FF 00 4D FC  receive：01 05 00 1C FF 00 4D FC
send: Turn ON Relay30：01 05 00 1D FF 00 1C 3C  receive：01 05 00 1D FF 00 1C 3C
send: Turn ON Relay31：01 05 00 1E FF 00 EC 3C  receive：01 05 00 1E FF 00 EC 3C
send: Turn ON Relay32：01 05 00 1F FF 00 BD FC  receive：01 05 00 1F FF 00 BD FC
---------------------------------------------------------------------

send: Turn OFF Relay1：01 05 00 00 00 00 CD CA  receive：01 05 00 00 00 00 CD CA
send: Turn OFF Relay2：01 05 00 01 00 00 9C 0A  receive：01 05 00 01 00 00 9C 0A
send: Turn OFF Relay3：01 05 00 02 00 00 6C 0A  receive：01 05 00 02 00 00 6C 0A
send: Turn OFF Relay4：01 05 00 03 00 00 3D CA  receive：01 05 00 03 00 00 3D CA
send: Turn OFF Relay5：01 05 00 04 00 00 8C 0B  receive：01 05 00 04 00 00 8C 0B
send: Turn OFF Relay6：01 05 00 05 00 00 DD CB  receive：01 05 00 05 00 00 DD CB
send: Turn OFF Relay7：01 05 00 06 00 00 2D CB  receive：01 05 00 06 00 00 2D CB
send: Turn OFF Relay8：01 05 00 07 00 00 7C 0B  receive：01 05 00 07 00 00 7C 0B
send: Turn OFF Relay9：01 05 00 08 00 00 4C 08  receive：01 05 00 08 00 00 4C 08
send: Turn OFF Relay10：01 05 00 09 00 00 1D C8  receive：01 05 00 09 00 00 1D C8
send: Turn OFF Relay11：01 05 00 0A 00 00 ED C8  receive：01 05 00 0A 00 00 ED C8
send: Turn OFF Relay12：01 05 00 0B 00 00 BC 08  receive：01 05 00 0B 00 00 BC 08
send: Turn OFF Relay13：01 05 00 0C 00 00 0D C9  receive：01 05 00 0C 00 00 0D C9
send: Turn OFF Relay14：01 05 00 0D 00 00 5C 09  receive：01 05 00 0D 00 00 5C 09
send: Turn OFF Relay15：01 05 00 0E 00 00 AC 09  receive：01 05 00 0E 00 00 AC 09
send: Turn OFF Relay16：01 05 00 0F 00 00 FD C9  receive：01 05 00 0F 00 00 FD C9
send: Turn OFF Relay17：01 05 00 10 00 00 CC 0F  receive：01 05 00 10 00 00 CC 0F
send: Turn OFF Relay18：01 05 00 11 00 00 9D CF  receive：01 05 00 11 00 00 9D CF
send: Turn OFF Relay19：01 05 00 12 00 00 6D CF  receive：01 05 00 12 00 00 6D CF
send: Turn OFF Relay20：01 05 00 13 00 00 3C 0F  receive：01 05 00 13 00 00 3C 0F
send: Turn OFF Relay21：01 05 00 14 00 00 8D CE  receive：01 05 00 14 00 00 8D CE
send: Turn OFF Relay22：01 05 00 15 00 00 DC 0E  receive：01 05 00 15 00 00 DC 0E
send: Turn OFF Relay23：01 05 00 16 00 00 2C 0E  receive：01 05 00 16 00 00 2C 0E
send: Turn OFF Relay24：01 05 00 17 00 00 7D CE  receive：01 05 00 17 00 00 7D CE
send: Turn OFF Relay25：01 05 00 18 00 00 4D CD  receive：01 05 00 18 00 00 4D CD
send: Turn OFF Relay26：01 05 00 19 00 00 1C 0D  receive：01 05 00 19 00 00 1C 0D
send: Turn OFF Relay27：01 05 00 1A 00 00 EC 0D  receive：01 05 00 1A 00 00 EC 0D
send: Turn OFF Relay28：01 05 00 1B 00 00 BD CD  receive：01 05 00 1B 00 00 BD CD
send: Turn OFF Relay29：01 05 00 1C 00 00 0C 0C  receive：01 05 00 1C 00 00 0C 0C
send: Turn OFF Relay30：01 05 00 1D 00 00 5D CC  receive：01 05 00 1D 00 00 5D CC
send: Turn OFF Relay31：01 05 00 1E 00 00 AD CC  receive：01 05 00 1E 00 00 AD CC
send: Turn OFF Relay32：01 05 00 1F 00 00 FC 0C  receive：01 05 00 1F 00 00 FC 0C

----------------------------------------------------------------

ALL ON:
send：01 0F 00 00 00 20 04 FF FF FF FF C5 1C  receive：01 0F 00 00 00 20 54 13

ALL OFF:
send：01 0F 00 00 00 20 04 00 00 00 00 C4 88  receive：01 0F 00 00 00 20 54 13





Attached Files

  H32B_Pro_H32BS_RS485_Command_List.txt (Size: 5.71 KB / Downloads: 418)
  RS485_Configuration_V1.1.3.zip (Size: 5.61 MB / Downloads: 567)
