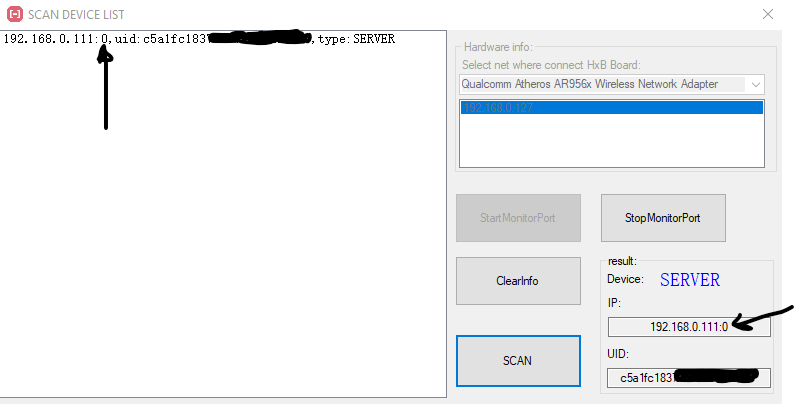

how to get chip id as mentioned in your publish topic ..i am getting only 8bits..and your UUID chip id is 12 bit...

Hi.
I can no longer find and access my KC868-A16 board by WIFI or LAN.
How to do a factory reset?

Hello.I have a panel mentioned in the title.I would like to use it in Homeassistant with tasmota firmware.However, the template code I found for it does not work.Could you help me with a suitable code?I would like to use the inputs and outputs and I would also like to use a temperature sensor (DS18B20).Thank you very much

Attached Files

Thumbnail(s)


We have designed KC868-AIO (ESP32 ALL IN ONE) board for home automation DIYer. it can easy integrate to home assistant by ESPHome. the hardware have 32CH mosfet output + 58CH digital input + 16CH analog output + 19CH analog input, support RS485 + Ethernet + WiFi + Bluetooth + 4G SIM7600 module + DS3231 RTC module.

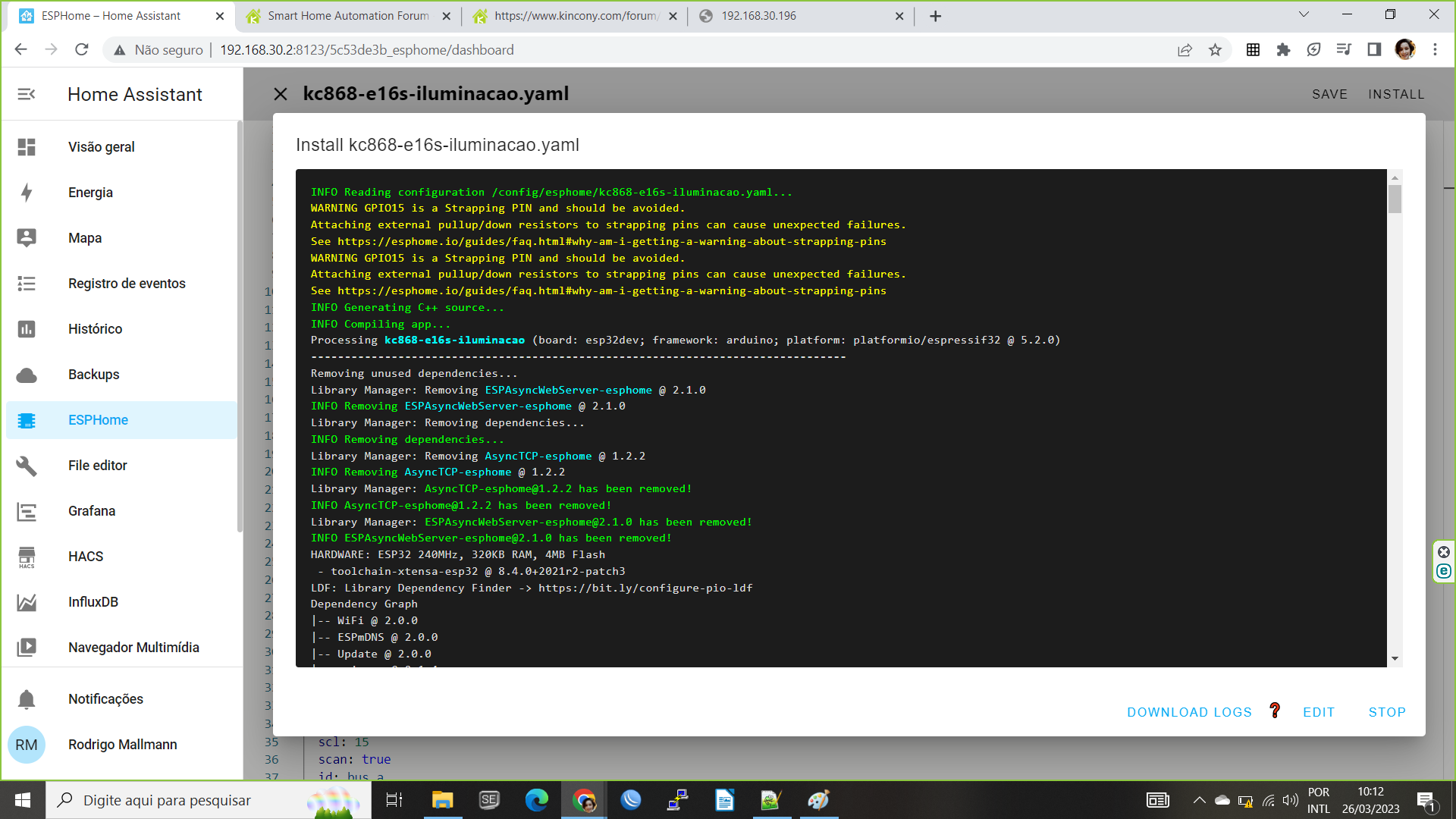

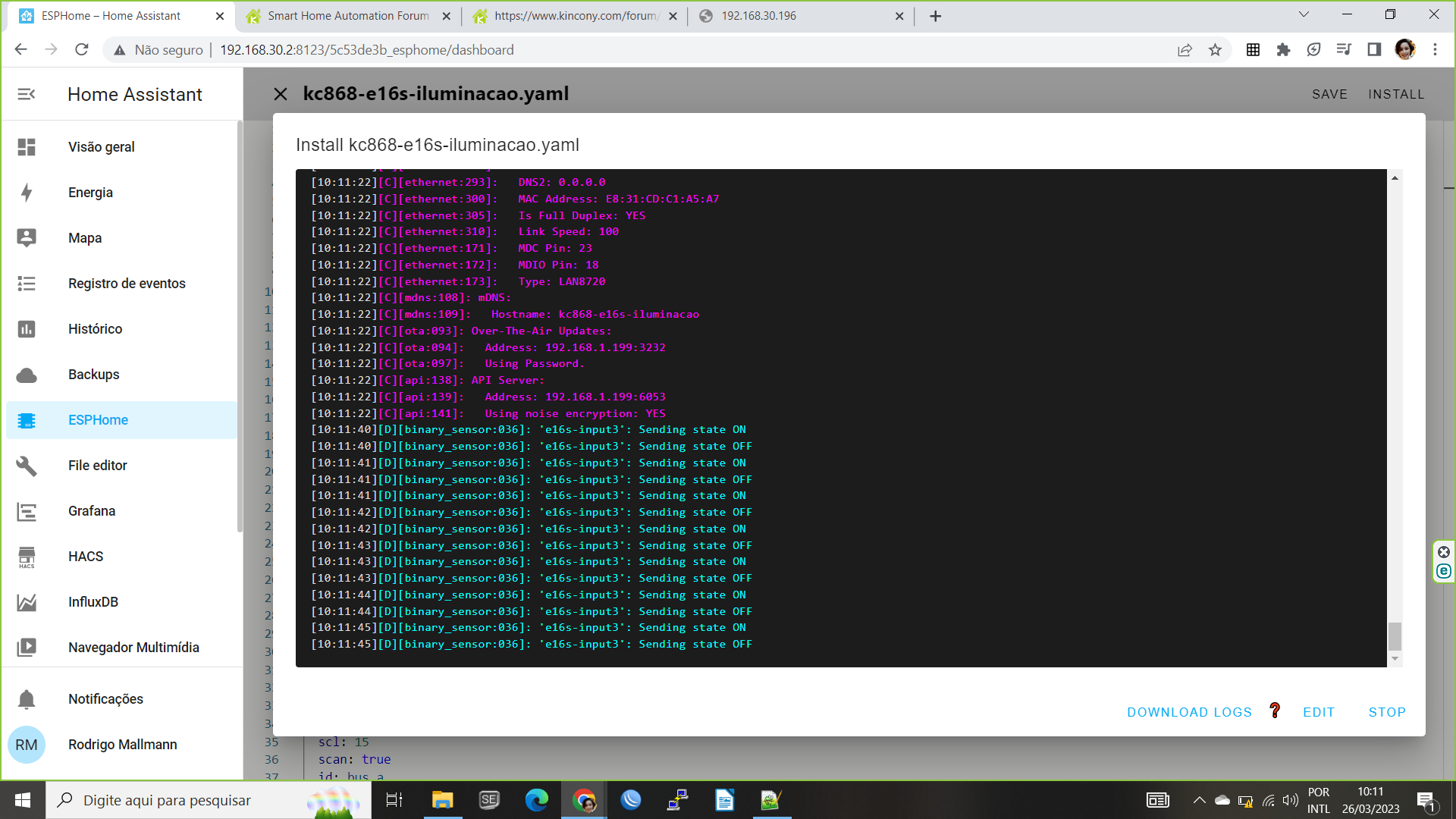

Olá, tudo bem, estou tentando implementar o esphome via home assistant no KC868-E16S, porem quando inicia a compilação esta dando um erro conforme imagem em anexo, e no final do processo de instalacao quando tento acionar o relay pelo switch touch o relay nao fica armado. Poderia me orientar onde eu estou errando no processo. Um detalhe importante, se instalo a versao web, o equipamento funciona normalmente.

Attached Files

Thumbnail(s)


Please, How can I control somfy rolling shutter over home assistant
frequency 433.42 MHz

Attached Files

Thumbnail(s)


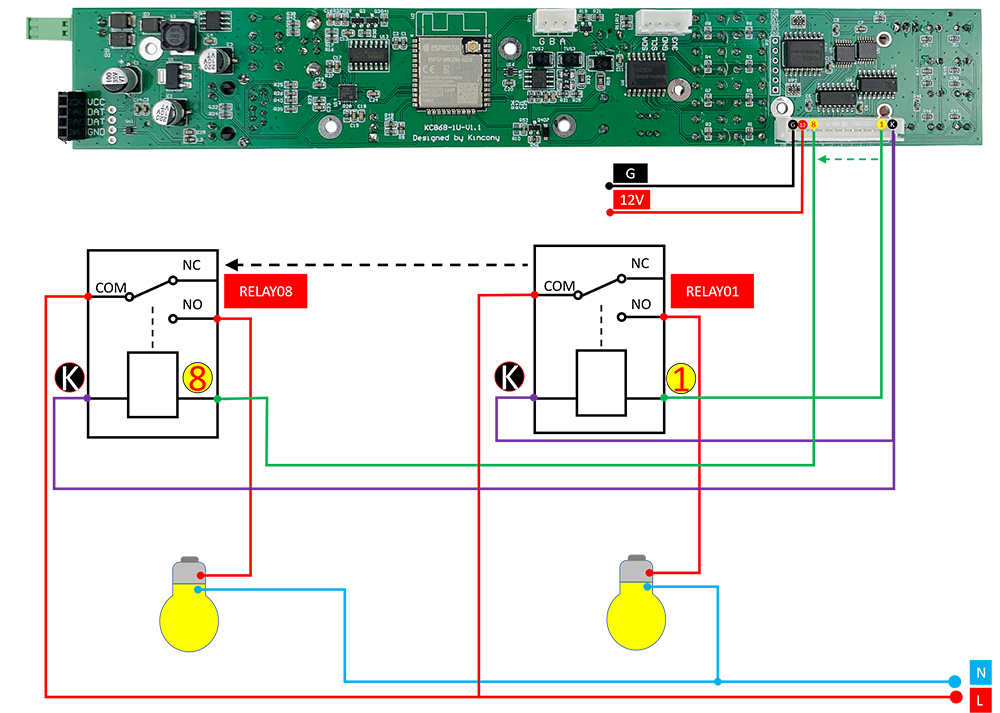

Hi, I can't understand which doors are to be configured to command the relays from ESP32.
can you help me. From the example file I can't understand, thanks



  KC868-AIO-ESPHome.txt (Size: 20.73 KB / Downloads: 1768)

ESP32 ANALOG_A1 GPIO36 For (Analog Multiplexer: cd74hc4067) to extend "analog input" 1-16

ESP32 ANALOG_A2  GPIO39  analog input 17
ESP32 ANALOG_A3  GPIO34  analog input 18
ESP32 ANALOG_A4  GPIO35  analog input 19

IIC Bus:A

SDA-A:GPIO4
SCL-A:GPIO16

PCF8575:U40 (output 1-16): 100 100 = 0x24
PCF8575:U41 (output 17-32): 100 101 = 0x25

PCF8575:U42 (output 33-38): 100 110 = 0x26

cd74hc4067
S0-A: PCF8575->U42->P10 (output 33)
S1-B: PCF8575->U42->P11 (output 34)
S2-C: PCF8575->U42->P12 (output 35)
S3-D: PCF8575->U42->P13 (output 36)

free LEDs:

LED-D7: PCF8575->U42->P14 (output 37)
LED-D8: PCF8575->U42->P15 (output 38)
-----------------------------------------------------------------------------------

PCF8575:U35 (input 1-16): 100 001 = 0x21
PCF8575:U37 (input 17-32): 100 010 = 0x22

PCF8575:U38 (input 33-48): 100 011 = 0x23
PCF8575:U42 (input 49-58): 100 110 = 0x26

PCF8575->U42->P0 (input 49)
PCF8575->U42->P1 (input 50)
PCF8575->U42->P2 (input 51)
PCF8575->U42->P3 (input 52)
PCF8575->U42->P4 (input 53)
PCF8575->U42->P5 (input 54)
PCF8575->U42->P6 (input 55)
PCF8575->U42->P7 (input 56)
PCF8575->U42->P14 (input 57)
PCF8575->U42->P15 (input 58)

-----------------------------------------------------------------------------------------

PCA9685: address 0x00
-----------------------------------------------------------------------------------------

Button-S1: reset
Button-S2: GPIO0
Button-S3: PCF8575->U42->P14 (input 57)
Button-S4: PCF8575->U42->P15 (input 58)

-------------------------------------------------------------------------------------------


DS18B20/DHT11/DHT21/LED strip -(TP1): GPIO14
DS18B20/DHT11/DHT21/LED strip -(TP2): GPIO5

-------------------------------------------------------------------------------------------

Ethernet (LAN8720) I/O define:

#define ETH_ADDR        0
#define ETH_POWER_PIN  -1
#define ETH_MDC_PIN    23
#define ETH_MDIO_PIN  18
#define ETH_TYPE      ETH_PHY_LAN8720
#define ETH_CLK_MODE  ETH_CLOCK_GPIO17_OUT

-------------------------------------------------------------------------------------------

RS485:
RXD(A): GPIO32
TXD(B): GPIO33

------------------------------------------------------------------------------------------

4G GSM Module / Extend serial port:

RXD: GPIO13
TXD: GPIO15

---------------------------------------------------------------------------------------------

DS3231 RTC module: IIC address 0x68
EEPROM's default I2C address is 0x57
