[Arduino source code for KC868-1U]-02_INPUT

Posted by: KinCony Support - 06-21-2023, 05:19 AM - Forum: KC868-1U - No Replies

[Arduino source code for KC868-1U]-02_INPUT

Code:
/*KC868-1U Digital input code*/

#include "Arduino.h"

#include "PCF8574.h"

// Set i2c address

PCF8574 pcf8574_IN1(0x22,4,16);

void setup()

{

    Serial.begin(115200);

    delay(1000);

 pcf8574_IN1.pinMode(P0, INPUT);

 pcf8574_IN1.pinMode(P1, INPUT);

 pcf8574_IN1.pinMode(P2, INPUT);

 pcf8574_IN1.pinMode(P3, INPUT);

 pcf8574_IN1.pinMode(P4, INPUT);

 pcf8574_IN1.pinMode(P5, INPUT);

 pcf8574_IN1.pinMode(P6, INPUT);

 pcf8574_IN1.pinMode(P7, INPUT);

    pcf8574_IN1.begin();

}

void loop()

{

 uint8_t val1 = pcf8574_IN1.digitalRead(P0);

 uint8_t val2 = pcf8574_IN1.digitalRead(P1);

 uint8_t val3 = pcf8574_IN1.digitalRead(P2);

 uint8_t val4 = pcf8574_IN1.digitalRead(P3);

 uint8_t val5 = pcf8574_IN1.digitalRead(P4);

 uint8_t val6 = pcf8574_IN1.digitalRead(P5);

 uint8_t val7 = pcf8574_IN1.digitalRead(P6);

 uint8_t val8 = pcf8574_IN1.digitalRead(P7);

 if (val1==LOW) Serial.println("KEY1 PRESSED");

 if (val2==LOW) Serial.println("KEY2 PRESSED");

 if (val3==LOW) Serial.println("KEY3 PRESSED");

 if (val4==LOW) Serial.println("KEY4 PRESSED");

 if (val5==LOW) Serial.println("KEY5 PRESSED");

 if (val6==LOW) Serial.println("KEY6 PRESSED");

 if (val7==LOW) Serial.println("KEY7 PRESSED");

 if (val8==LOW) Serial.println("KEY8 PRESSED");

    delay(300);

}

[Arduino source code for KC868-1U]-01_DS18B20

Posted by: KinCony Support - 06-21-2023, 05:19 AM - Forum: KC868-1U - No Replies

[Arduino source code for KC868-1U]-01_DS18B20

Code:
#include <DS18B20.h>

DS18B20 ds1(14);

void setup() {

  Serial.begin(115200);

}

void loop() {

      Serial.printf("Tem1 is %.2f C \n ",ds1.getTempC());

}

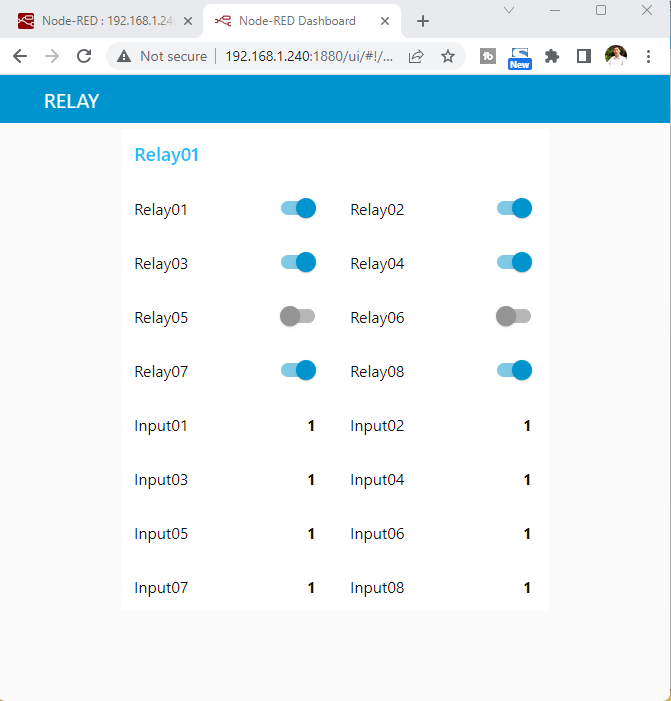

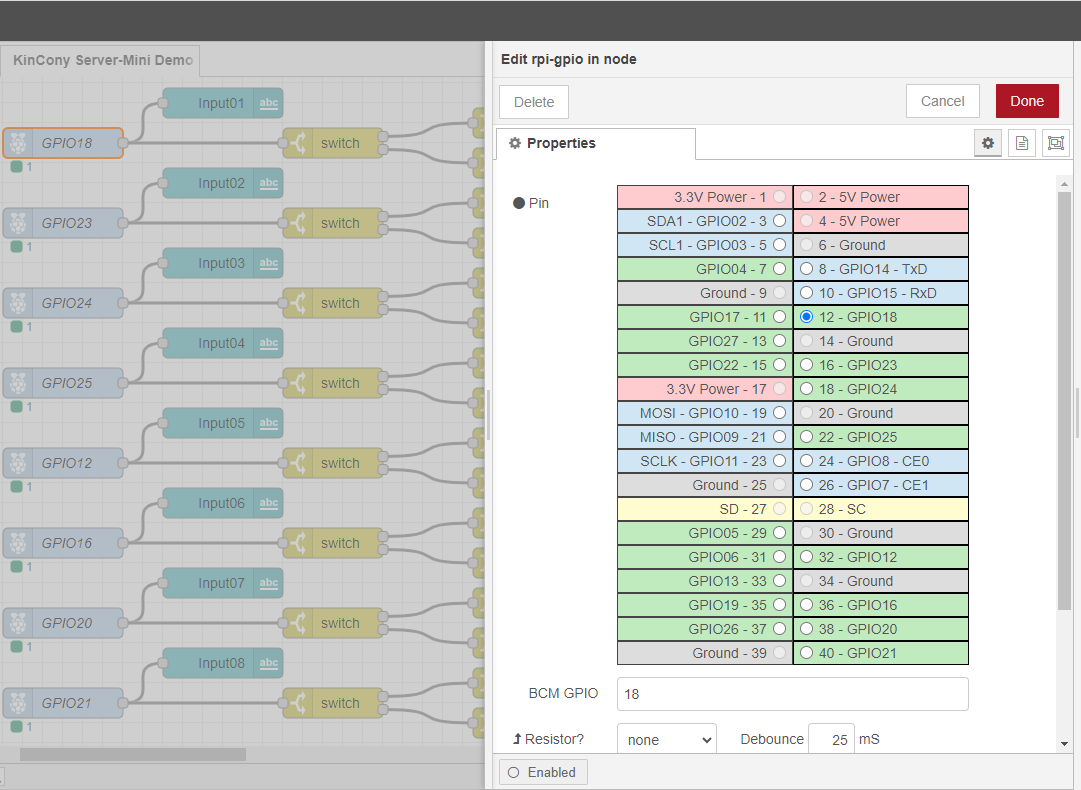

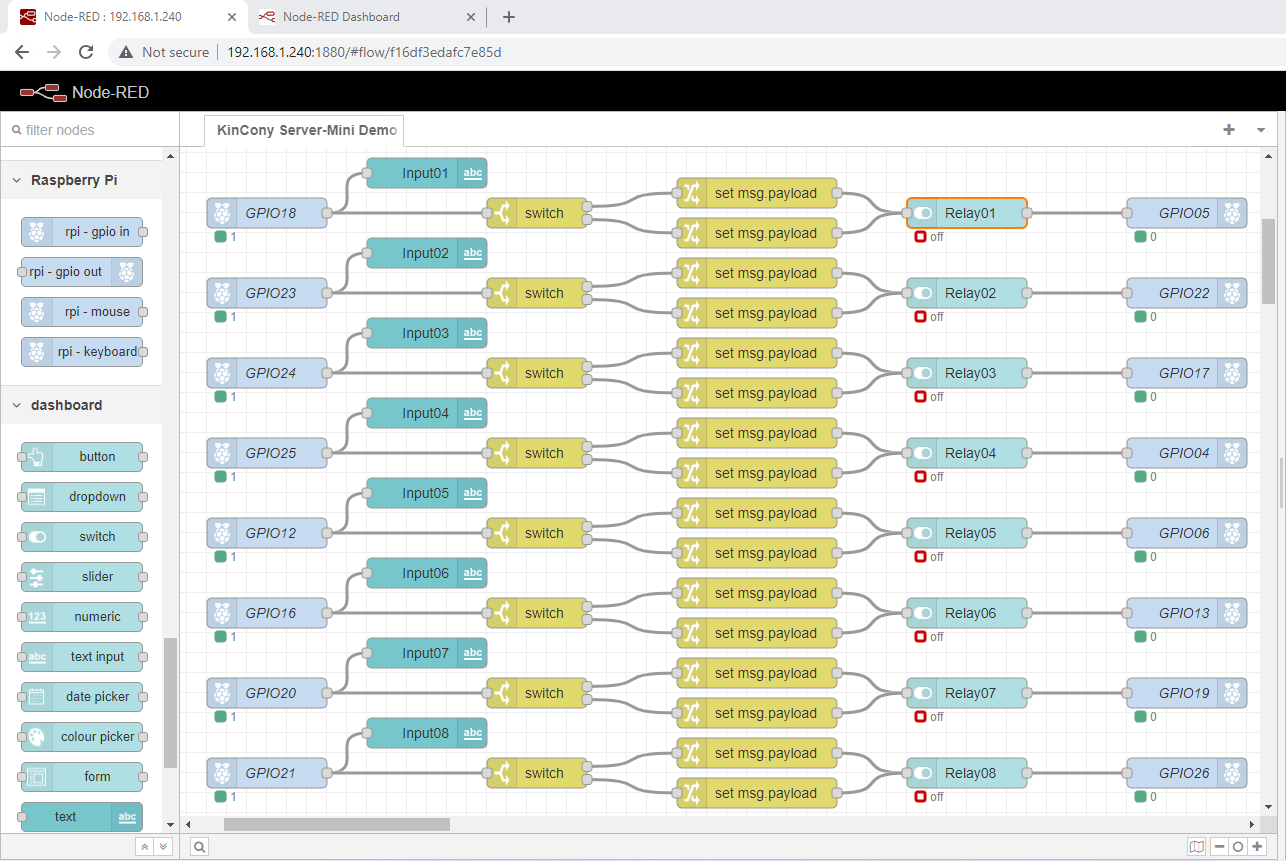

Node-Red demo for Server-Mini use by RELAY and INPUT

Posted by: admin - 06-21-2023, 04:07 AM - Forum: KinCony Server-Mini / Server-16 Raspberry Pi4 relay module - Replies (2)

	Node-Red json file download: KinCony_Server_Mini.zip (Size: 2.84 KB / Downloads: 887)

SERVER-MINI PCB python test code

Posted by: admin - 06-21-2023, 01:52 AM - Forum: KinCony Server-Mini / Server-16 Raspberry Pi4 relay module - Replies (7)

these python code use for test KinCony Server-Mini PCB hardware. you can test it locally or use remote login by putty tool. before test, install Raspberry Pi OS on SD card or eMMC (if your CM4 with eMMC)

.pdf   SERVER-MINI_test_python_code .pdf (Size: 1 MB / Downloads: 845)

.zip   putty-64bit-0.79-pre20230504-installer.zip (Size: 3.08 MB / Downloads: 898)

.zip   rpiboot_setup.zip (Size: 9.9 MB / Downloads: 713)

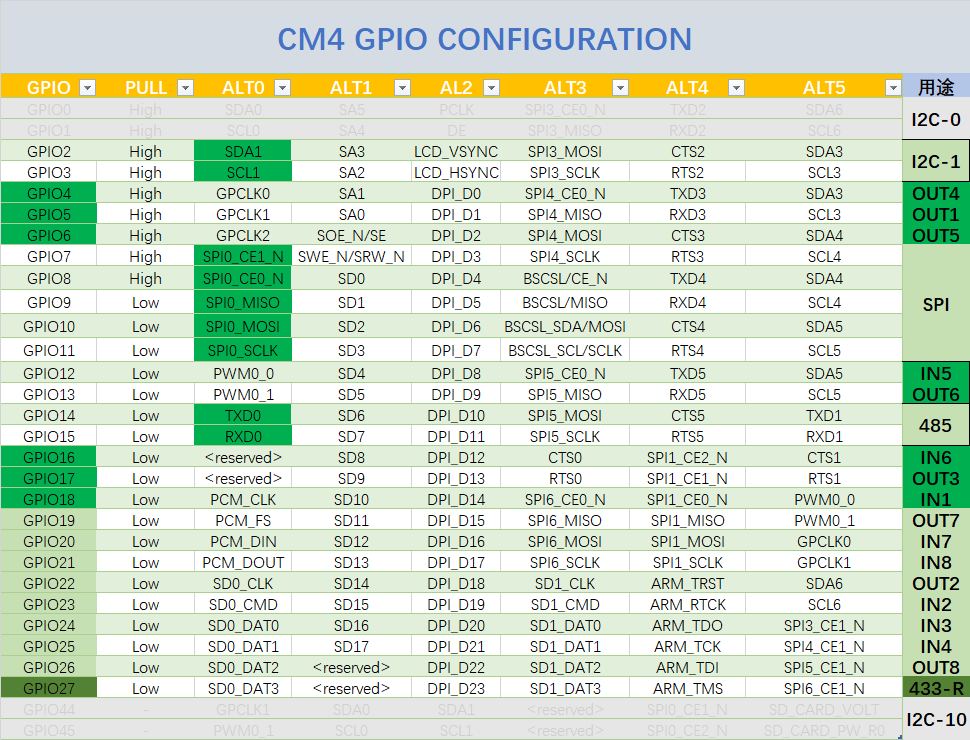

SERVER-MINI Raspberry Pi CM4 GPIO pins define

Posted by: admin - 06-21-2023, 01:27 AM - Forum: KinCony Server-Mini / Server-16 Raspberry Pi4 relay module - Replies (1)

Server-Mini hardware interface and resource

Posted by: admin - 06-21-2023, 01:26 AM - Forum: KinCony Server-Mini / Server-16 Raspberry Pi4 relay module - Replies (8)

	KinCony Server-Mini.pdf (Size: 12.97 MB / Downloads: 1072)

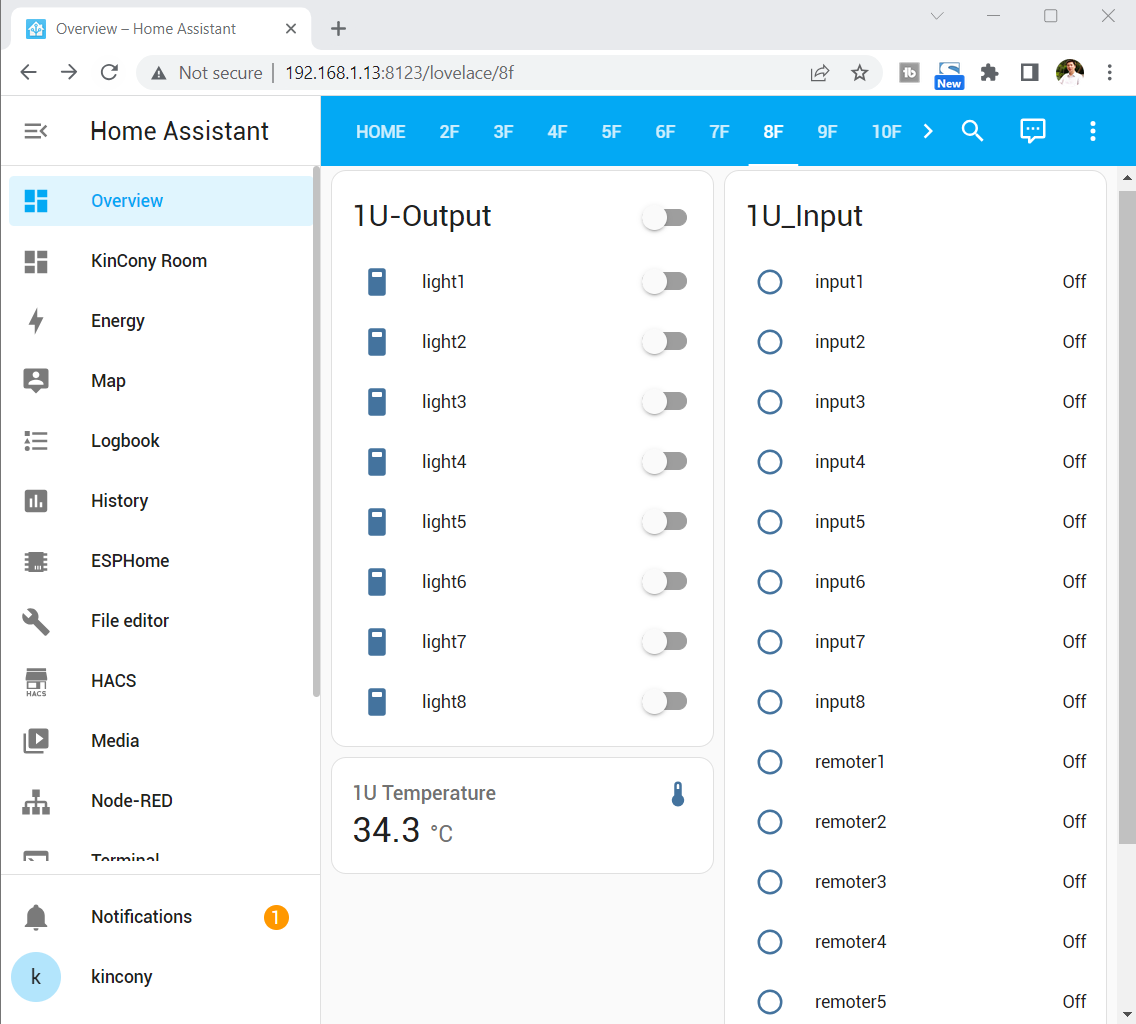

KC868-1U configure yaml for ESPhome Home assistant

Posted by: admin - 06-21-2023, 01:23 AM - Forum: KC868-1U - No Replies

.txt KC868-1U-ha-config.txt (Size: 5.76 KB / Downloads: 427)

esphome:
name: 1u
platform: ESP32
board: esp32dev

remote_receiver:
pin: 13
dump:
- rc_switch
tolerance: 50%
filter: 250us
idle: 2ms
buffer_size: 2kb
# Example configuration entry for ESP32
i2c:
sda: 4
scl: 16
scan: true
id: bus_a
# Example configuration entry
ethernet:
type: LAN8720
mdc_pin: GPIO23
mdio_pin: GPIO18
clk_mode: GPIO17_OUT
phy_addr: 0
# Optional manual IP
# manual_ip:
# static_ip: 192.168.1.199
# gateway: 192.168.1.1
# subnet: 255.255.255.0
# Example configuration entry
pcf8574:
- id: 'pcf8574_hub_out_1' # for output channel 1-8
address: 0x24
- id: 'pcf8574_hub_in_1' # for input channel 1-8
address: 0x22
# Individual outputs
switch:
- platform: gpio
name: "light1"
id: light1
pin:
pcf8574: pcf8574_hub_out_1
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "light2"
id: light2
pin:
pcf8574: pcf8574_hub_out_1
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "light3"
id: light3
pin:
pcf8574: pcf8574_hub_out_1
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "light4"
id: light4
pin:
pcf8574: pcf8574_hub_out_1
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "light5"
id: light5
pin:
pcf8574: pcf8574_hub_out_1
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "light6"
id: light6
pin:
pcf8574: pcf8574_hub_out_1
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "light7"
id: light7
pin:
pcf8574: pcf8574_hub_out_1
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "light8"
id: light8
pin:
pcf8574: pcf8574_hub_out_1
number: 7
mode: OUTPUT
inverted: true
binary_sensor:
- platform: gpio
name: "input1"
on_press:
then:
- switch.toggle: light1
pin:
pcf8574: pcf8574_hub_in_1
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "input2"
on_press:
then:
- switch.toggle: light2
pin:
pcf8574: pcf8574_hub_in_1
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "input3"
on_press:
then:
- switch.toggle: light3
pin:
pcf8574: pcf8574_hub_in_1
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "input4"
on_press:
then:
- switch.toggle: light4
pin:
pcf8574: pcf8574_hub_in_1
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "input5"
on_press:
then:
- switch.toggle: light5
pin:
pcf8574: pcf8574_hub_in_1
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "input6"
on_press:
then:
- switch.toggle: light6
pin:
pcf8574: pcf8574_hub_in_1
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "input7"
on_press:
then:
- switch.toggle: light7
pin:
pcf8574: pcf8574_hub_in_1
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "input8"
on_press:
then:
- switch.toggle: light8
pin:
pcf8574: pcf8574_hub_in_1
number: 7
mode: INPUT
inverted: true
- platform: remote_receiver
name: "remoter1"
rc_switch_raw:
code: '001111010111001010111000'
protocol: 1
on_press:
then:
- switch.toggle: light1
filters:
- delayed_off: 200ms
- platform: remote_receiver
name: "remoter2"
rc_switch_raw:
code: '001111010111001010111100'
protocol: 1
on_press:
then:
- switch.toggle: light2
filters:
- delayed_off: 200ms

- platform: remote_receiver
name: "remoter3"
rc_switch_raw:
code: '001111010111001010110100'
protocol: 1
on_press:
then:
- switch.toggle: light3
filters:
- delayed_off: 200ms

- platform: remote_receiver
name: "remoter4"
rc_switch_raw:
code: '001111010111001010111001'
protocol: 1
on_press:
then:
- switch.toggle: light4
filters:
- delayed_off: 200ms

- platform: remote_receiver
name: "remoter5"
rc_switch_raw:
code: '001111010111001010110010'
protocol: 1
on_press:
then:
- switch.toggle: light5
filters:
- delayed_off: 200ms
- platform: remote_receiver
name: "remoter6"
rc_switch_raw:
code: '001111010111001010110101'
protocol: 1
on_press:
then:
- switch.toggle: light6
filters:
- delayed_off: 200ms

- platform: remote_receiver
name: "remoter7"
rc_switch_raw:
code: '001111010111001010110001'
protocol: 1
on_press:
then:
- switch.toggle: light7
filters:
- delayed_off: 200ms

- platform: remote_receiver
name: "remoter8"
rc_switch_raw:
code: '001111010111001010110011'
protocol: 1
on_press:
then:
- switch.toggle: light8
filters:
- delayed_off: 200ms

# Enable logging
logger:
# Enable Home Assistant API
api:
dallas:
- pin: 14
update_interval: 5s
sensor:
- platform: dallas
address: 0xa538cee908646128
name: "1U Temperature"

KC868-1U ESP32 I/O pin define

Posted by: admin - 06-21-2023, 01:21 AM - Forum: KC868-1U - No Replies

	IIC SDA:4 IIC SCL:16 Relay_IIC_address 0x24 Input_IIC_address 0x22 DS18B20/DHT11/DHT21/LED strip -2: 14 RF433MHz wireless receiver: 13 IR Sender:5 IR Receiver:15 Ethernet (LAN8720) I/O define: #define ETH_ADDR 0 #define ETH_POWER_PIN -1 #define ETH_MDC_PIN 23 #define ETH_MDIO_PIN 18 #define ETH_TYPE ETH_PHY_LAN8720 #define ETH_CLK_MODE ETH_CLOCK_GPIO17_OUT RS485: RXD:32 TXD:33 Buzzer:2

KinCony Server-Mini Raspberry Pi4 relay board released

Posted by: admin - 06-20-2023, 12:56 AM - Forum: News - No Replies

KinCony Server-Mini is a raspberry pi CM4 relay board for smart home automation and industrial automation control, it’s mini version of KC868-Server. Server-Mini smart controller support 8 channel relay output and wall switch connect to it directly. The most important is integrated Raspberry pi CM4 module. Relay and digital input port have connected with CM4 module’s GPIO directly. You can use Node-Red easy to control relay and read digital input port and use I2C bus extender.
[Image: Server-mini1_01.jpg]
[Image: Server-mini1_02.jpg]
[Image: Server-mini1_03.jpg]
[Image: Server-mini2_01.jpg]
[Image: Server-mini2_02.jpg]

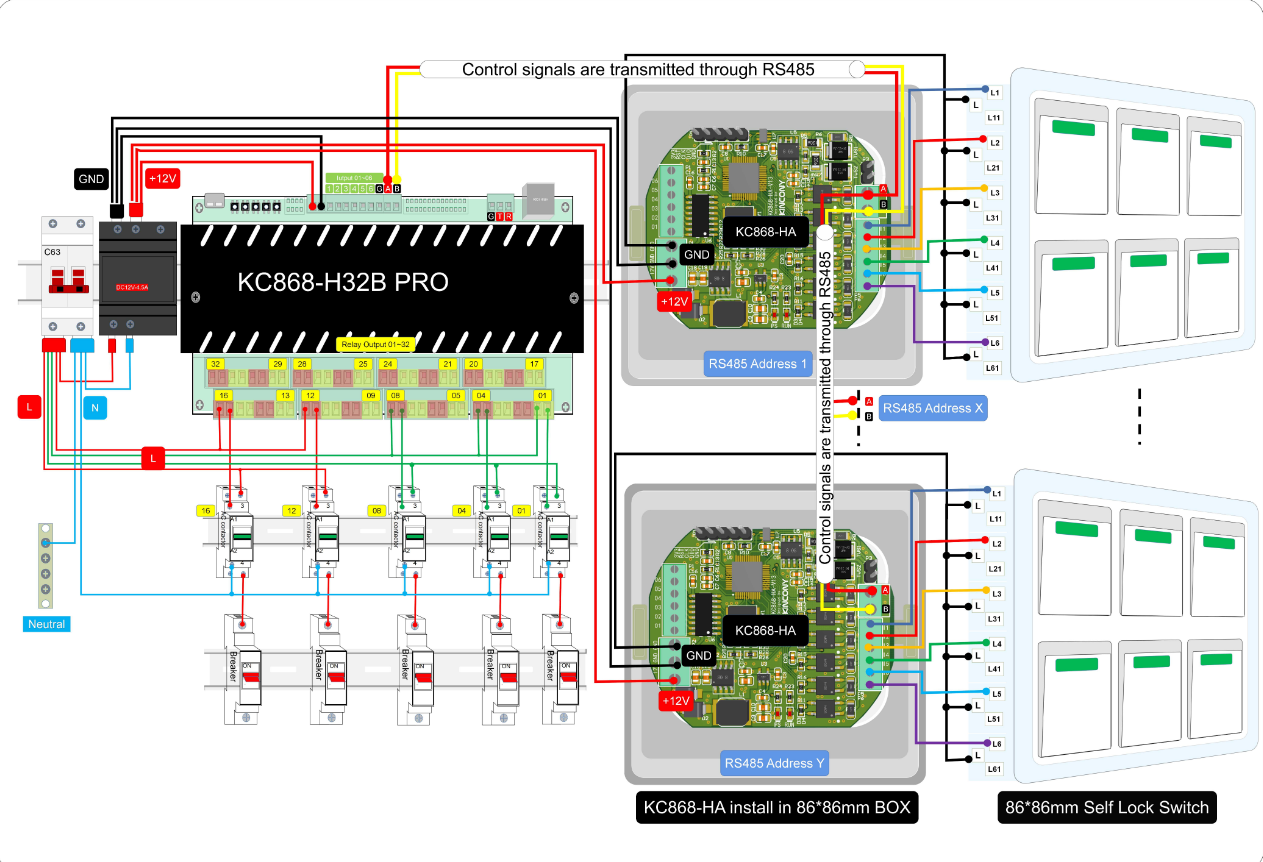

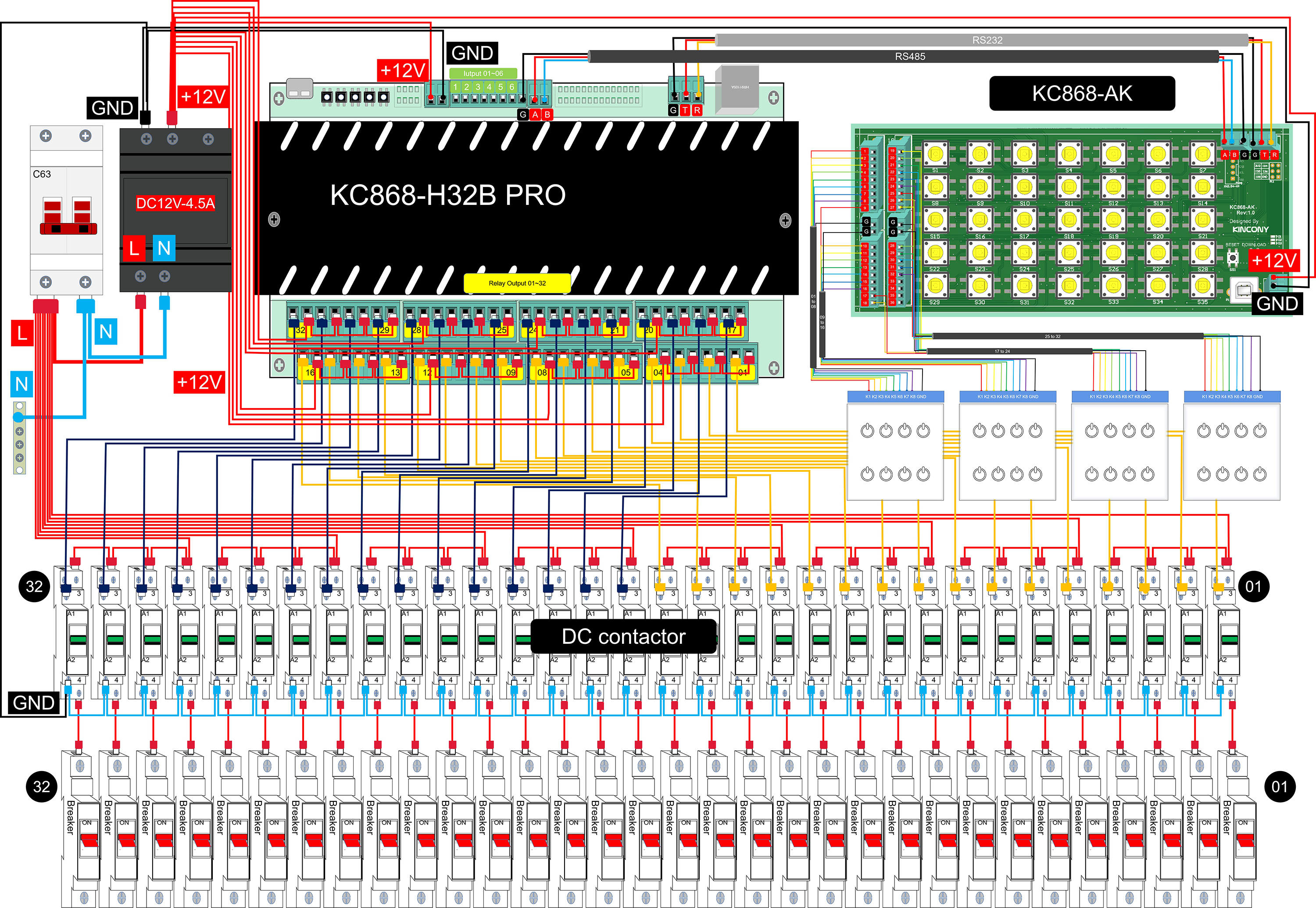

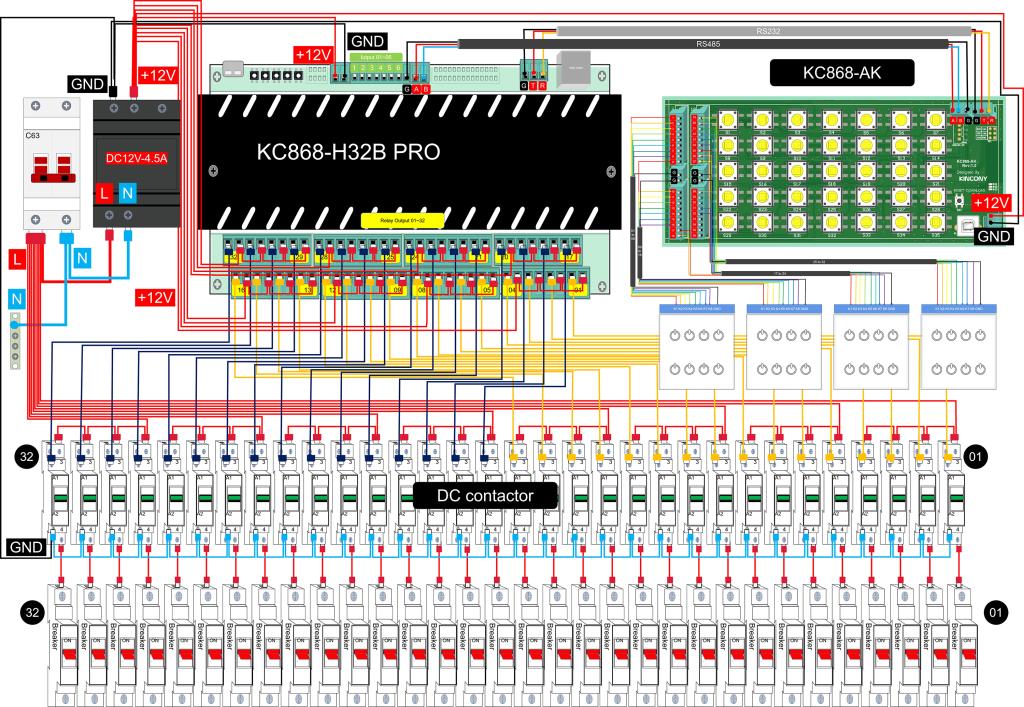

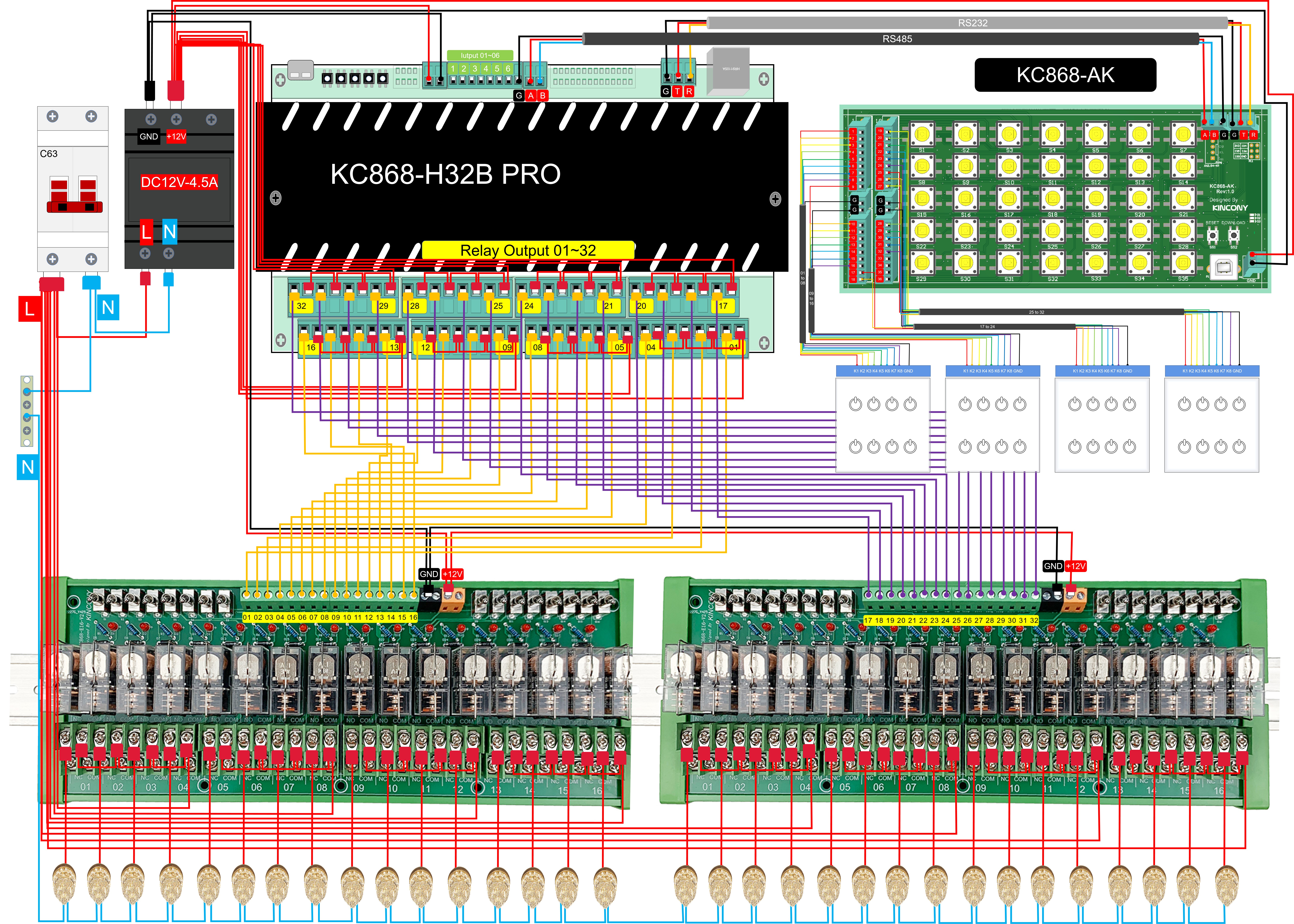

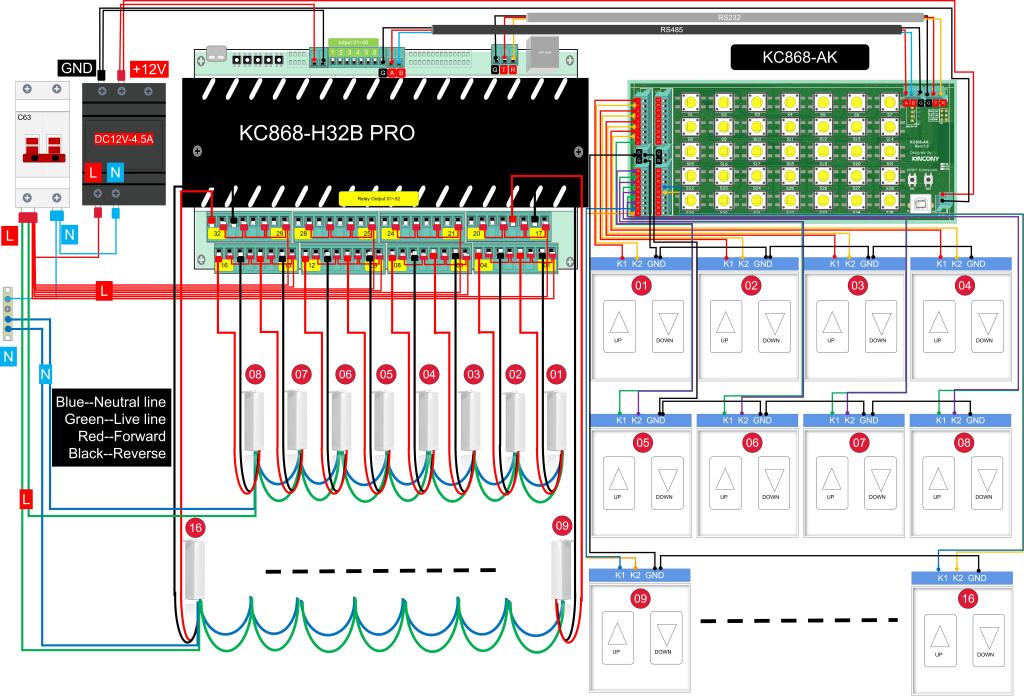

Specifications lack of information for KC868-HxB

Posted by: fomKLM - 06-18-2023, 10:41 AM - Forum: KC868-HxB series Smart Controller - Replies (3)

About:
https://www.kincony.com/16-channel-ether...-h16b.html

After consulting the website and documentation. Could anyone clarify, please the following:

For the Input Ports:
What is the voltage input range / type of input / type of current for the inputs of the module?
There is NO INFORMATION regarding these ports!
f.e. DC 0-5V dry contact
or AC 230V
or whatever.

For the Output Ports:
Are they isolated? Can be used for different phases? i.e relay1: Phase1-N, relay2: Phase2-N.. relay{n} phase{1,2,3}-N
Can be the unit operated at 10A/per port continousuly? (what is the duty service?)

For the "working voltage":
What is the tolerance for the power supply? In volts or %. What is the maximun current drained, I.e. mx operational power of this unit?

In general:
What is the derrating with altitude / ambient temperature (stated as -20 to +70 C)?

Are there diagrams regarding mounting spacing required (safe areas, clear areas) and hole spacing?

I think the "product parameters" for most of the products should be updated to reflect more "basic" information.

Thank you.
