AM2120 Temperature Sensor

Posted by: mrteaiot - 06-24-2023, 06:02 AM - Forum: KC868-A8 - Replies (3)

I bought this AM2120 Temperature and Humidity Sensor and I am not able to get it to read input sensor on my ESPHOME. I have bought AM2301 and it works fine with the same ESPHOME code as below:

- platform: dht
pin: 33
model: AM2302 ## New Sensor AM2120 NOT WORKING - NA reading
temperature:
name: "S4-Temp"
accuracy_decimals: 1
humidity:
name: "S4-Humidity"
accuracy_decimals: 1
update_interval: 30s

Do I use the wrong code for my board?

Thanks..

GSM CALL RELAY

Posted by: Anthonio - 06-24-2023, 12:29 AM - Forum: KC868-A2 - Replies (9)

Hello,

I am having difficulty for coding my script, I would like to make a GSM relay which activates the GPIO 15 relay upon the module receipt a call ! but I cannot do it can you help me?

I think my problem is from the command of call detection.

Thanks

Code:
#include <SoftwareSerial.h>

// Create software serial object to communicate with A6

SoftwareSerial mySerial(13, 34); // A6 Tx & Rx is connected to Arduino #3 & #2

int relayPin = 15; // GPIO 15 connected to the relay

void setup()

{

  // Begin serial communication with Arduino and Arduino IDE (Serial Monitor)

  Serial.begin(115200);

  // Begin serial communication with Arduino and A6

  mySerial.begin(115200);

  Serial.println("Initializing...");

  pinMode(relayPin, OUTPUT); // Set the relay pin as an output

  digitalWrite(relayPin, LOW); // Initialize the relay as OFF

}

void loop()

{

  updateSerial();

  checkCall();

}

void updateSerial()

{

  delay(500);

  while (Serial.available())

  {

    mySerial.write(Serial.read()); // Forward what Serial received to Software Serial Port

  }

  while(mySerial.available())

  {

    Serial.write(mySerial.read()); // Forward what Software Serial received to Serial Port

  }

}

void checkCall()

{

  if (mySerial.available())

  {

    String response = mySerial.readString();

    if (response.indexOf("+CLCC: 1,1,2,4,0") != -1) // Check if "+CLCC: 1,1,2,4,0" is present in the response

    {

      activateRelay();

    }

  }

}

void activateRelay()

{

  digitalWrite(relayPin, HIGH); // Turn ON the relay

  delay(5000); // Keep the relay ON for 5 seconds

  digitalWrite(relayPin, LOW); // Turn OFF the relay

}

Which GND to use for sensors ?

Posted by: primeroz - 06-23-2023, 01:58 PM - Forum: KC868-A2 - Replies (1)

Hi, the only GND i see on the A2 is the one also used for POWER IN

I want to connect a PIR , i can take the `3v3` from the board but i am not sure which GND to use . Should i use the same as the `INPUT power` ?

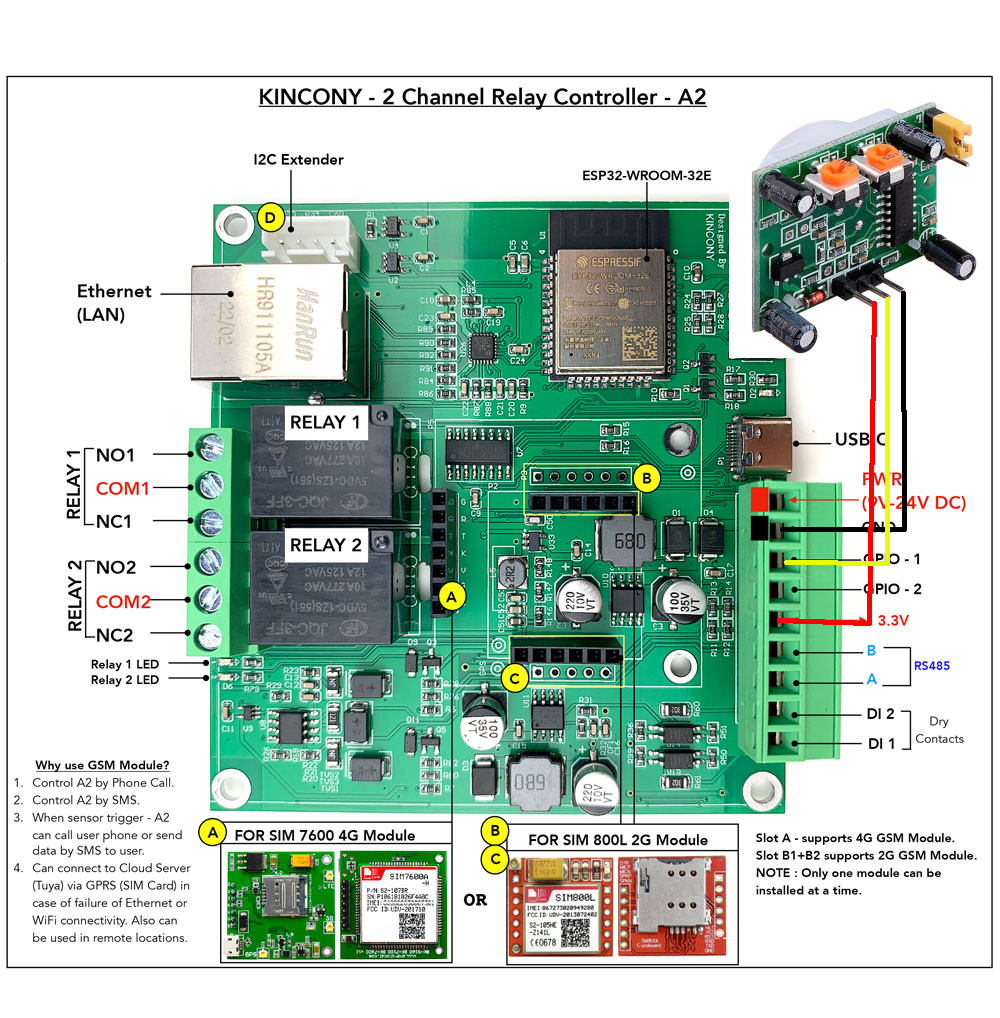

example diagram of what i want to do

Attached Files Thumbnail(s)

Trouble controlling the H100 Inverter using RS485 Protocol

Posted by: shaolink - 06-22-2023, 06:48 PM - Forum: DIY Project - Replies (9)

I was following this video

how to control VFD (Variable Frequency Drive) inverter by KC868-COLB - YouTube

And wrote this code to control my H100 Inverter ( How to: H100 VFD & 1.5KW Air-Cooled Spindle Setup - Zhong Hua Jiang - How To - Carbide 3D Community Site)

import serial

def calculate_crc(data):
reg_crc = 0xFFFF
for byte in data:
reg_crc ^= byte
for _ in range(8):
if reg_crc & 0x0001:
reg_crc = (reg_crc >> 1) ^ 0xA001
else:
reg_crc >>= 1
return reg_crc

# RS485 port settings
rs485_port = 'COM12'
rs485_baud_rate = 115200
rs485_parity = serial.PARITY_NONE
rs485_stop_bits = serial.STOPBITS_ONE
rs485_data_bits = serial.EIGHTBITS

try:
# Open the RS485 serial port
ser = serial.Serial(
port=rs485_port,
baudrate=rs485_baud_rate,
parity=rs485_parity,
stopbits=rs485_stop_bits,
bytesize=rs485_data_bits,
timeout=1
)

# Send a command via RS485 in RTU mode
command = [0x64, 0x01, 0x02, 0x20, 0x00, 0x00, 0x01, 0x43, 0xCA] # Modify the command in hexadecimal format
crc = calculate_crc(command)
command.append(crc & 0xFF) # Low byte
command.append((crc >> 8) & 0xFF) # High byte
ser.write(bytes(command))

# Read the RS485 response
response_rs485 = ser.readline()
hex_response_rs485 = ' '.join(hex(byte) for byte in response_rs485)
print("RS485 Response:", hex_response_rs485)

# Close the RS485 serial port
ser.close()

except serial.SerialException as e:
print("Error opening or accessing the serial port:", str(e))

This is the code I wrote. The checksum passes, and everything else is fine. But when I run the code, it doesn't reflect any changes on the Inverter/ Motor. Please help.

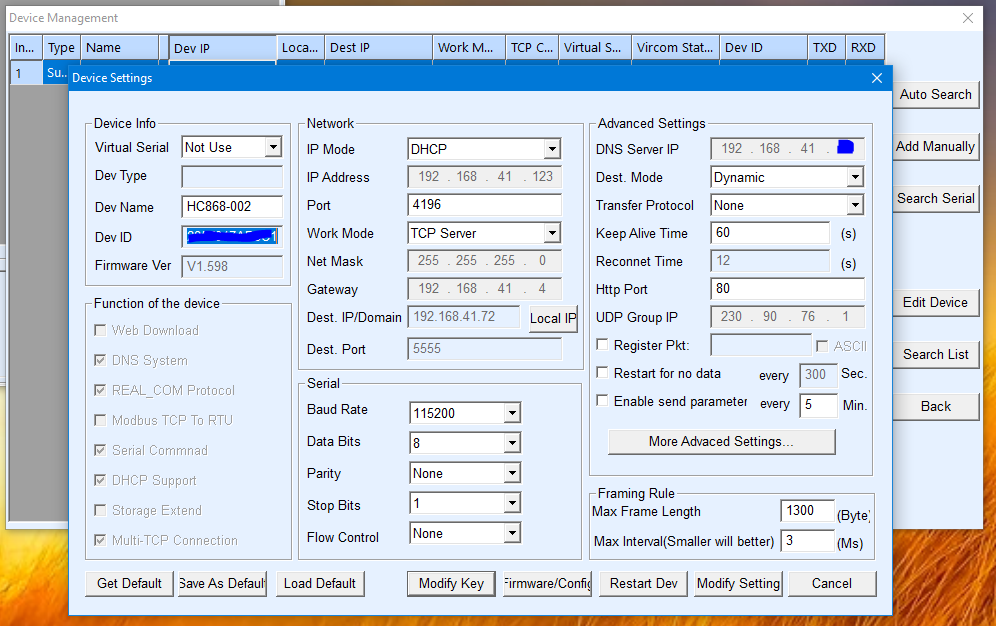

The connections on the RS485 can be found in the images attached below.

Please help! Thanks in advance.

Attached Files Thumbnail(s)

Request a free sample

Posted by: marekduzi - 06-22-2023, 05:41 AM - Forum: Apply for free sample product - No Replies

Dobrý den,
chtěl bych získat zkušební bezplatný vzorek ovladače KC868-A4. Pracuji jako elektrikář v automobilovém průmyslu nákladních automobilů, kde jsme také prodejci značek TATRA Trucks CZECH a dále speciální nástavby na přání, kde jsme museli požádat o jinou firmu o vývoj hardwaru a pro daný typ zákazníka. Díky Vašemu ovladači bychom tyto věci zvládli sami a určitě bychom dokázali další udělat na nákup více kusů a vašich zařízení. Velmi bych ocenil vzorek zdarma. Heart

KC868-1U ESP32 DIY PCB Board released

Posted by: admin - 06-22-2023, 01:00 AM - Forum: News - No Replies

	KC868-1U is a esp32 diy pcb board. it can install to 1U size box, let your relay controller become smart. if you have a power sequencer, KC868-1U will easy connect it, so that smart control your rack power strip. You can DIY one smart power sequencer. It will support arduino IDE, home assistant by ESPHome, also support Tasmota open source home automation platform.

KinCony KC868-AP Modbus using in Esphome not working

Posted by: nikhuge - 06-21-2023, 09:59 PM - Forum: KC868-A series and Uair Smart Controller - Replies (1)

i am trying to configure a Light/humidity/temperature modbus sensor with kincony Ap modbus port in esphome. below is my configuration and sensor data sheet is attached,I am getting this error in the esphome logs

"No response recieved removed from send queue"

Can point what I am doing wrong.

Code:
esphome:

  name: kincony-esp32-dimmer

  friendly_name: Kincony-Esp32-Dimmer

esp32:

  board: esp32dev

  framework:

    type: arduino

# Enable logging

logger:

# Enable Home Assistant API

api:

  encryption:

    key: "7p6IWmIbZjSt7YFWX2bKaCBB1bTmhraTZo+P4cV7BoE="

ota:

  password: "2aa38947ee1ec3376d4e0b941ce919da"

wifi:

  ssid: !secret wifi_ssid

  password: !secret wifi_password

  # Enable fallback hotspot (captive portal) in case wifi connection fails

  ap:

    ssid: "Kincony-Esp32-Dimmer"

    password: "uIm62IkfOTJ0"

captive_portal:

web_server:

  port: 80

#Modbus Configuration for Sensors

uart:

  id: mbus

  tx_pin: GPIO33

  rx_pin: GPIO14

  baud_rate: 9600

modbus:

  id: modbus1

  uart_id: mbus

  send_wait_time: 200ms

modbus_controller:

- id: light_sensor1

  address: 1

  modbus_id: modbus1

  update_interval: 1s

# Example configuration entry

# ethernet:

#   type: LAN8720

#   mdc_pin: GPIO23

#   mdio_pin: GPIO18

#   clk_mode: GPIO17_OUT

#   phy_addr: 0

# Example configuration entry for ESP32

i2c:

  sda: 4

  scl: 16

  scan: true

  id: bus_a

pcf8574:

  - id: 'pcf8574_hub_in_1'  # for input channel 1-8    maybe 0x22  /  0x3A

    address: 0x3A

  - id: 'pcf8574_hub_in_2'  # for input channel 9-16

    address: 0x21

sensor:

  - platform: modbus_controller

    modbus_controller_id: light_sensor1

    id: light_intensity

    name: "Light Intensity"

    address: 0x02

    unit_of_measurement: "Lux" ## for any other unit the value is returned in minutes

    register_type: read

    value_type: U_WORD

    accuracy_decimals: 1

  - platform: modbus_controller

    modbus_controller_id: light_sensor1

    id: temp

    name: "Temperature"

    address: 0x01

    unit_of_measurement: "C" ## for any other unit the value is returned in minutes

    register_type: read

    value_type: U_WORD

    accuracy_decimals: 1

  - platform: modbus_controller

    modbus_controller_id: light_sensor1

    id: humidity

    name: "Humidity"

    address: 0x00

    unit_of_measurement: "%" ## for any other unit the value is returned in minutes

    register_type: read

    value_type: U_WORD

    accuracy_decimals: 1

binary_sensor:

  - platform: gpio

    name: "ap-input1"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 0

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input2"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 1

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input3"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 2

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input4"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 3

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input5"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 4

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input6"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 5

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input7"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 6

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input8"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 7

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input9"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 0

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input10"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 1

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input11"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 2

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input12"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 3

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input13"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 4

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input14"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 5

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input15"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 6

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input16"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 7

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "ap-input17"

    pin:

      number: 34

      inverted: true

  - platform: gpio

    name: "ap-input18"

    pin:

      number: 35

      inverted: true

pca9685:

    id: 'pca9685_hub'

    frequency: 500

output:

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM0"

    channel: 0

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM1"

    channel: 1

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM2"

    channel: 2

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM3"

    channel: 3

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM4"

    channel: 4

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM5"

    channel: 5

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM6"

    channel: 6

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM7"

    channel: 7

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM8"

    channel: 8

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM9"

    channel: 9

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM10"

    channel: 10

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM11"

    channel: 11

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM12"

    channel: 12

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM13"

    channel: 13

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM14"

    channel: 14

  - platform: pca9685

    pca9685_id: 'pca9685_hub'

    id: "PWM15"

    channel: 15

light:

  - platform: monochromatic

    name: "Color-LED-1"

    output: PWM0

  - platform: monochromatic

    name: "Color-LED-2"

    output: PWM1

  - platform: monochromatic

    name: "Color-LED-3"

    output: PWM2

  - platform: monochromatic

    name: "Color-LED-4"

    output: PWM3

  - platform: monochromatic

    name: "Color-LED-5"

    output: PWM4

  - platform: monochromatic

    name: "Color-LED-6"

    output: PWM5

  - platform: monochromatic

    name: "Color-LED-7"

    output: PWM6

  - platform: monochromatic

    name: "Color-LED-8"

    output: PWM7

  - platform: monochromatic

    name: "Color-LED-9"

    output: PWM8

  - platform: monochromatic

    name: "Color-LED-10"

    output: PWM9

  - platform: monochromatic

    name: "Color-LED-11"

    output: PWM10

  - platform: monochromatic

    name: "Color-LED-12"

    output: PWM11

  - platform: monochromatic

    name: "Color-LED-13"

    output: PWM12

  - platform: monochromatic

    name: "Color-LED-14"

    output: PWM13

  - platform: monochromatic

    name: "Color-LED-15"

    output: PWM14

  - platform: monochromatic

    name: "Color-LED-16"

    output: PWM15

  - platform: rgbw

    name: "ap-rgbw"

    red: PWM1

    green: PWM2

    blue: PWM3

    white: PWM4

switch:

  - platform: gpio

    name: "ap-light1"

    pin: 13

    inverted: false

  - platform: gpio

    name: "ap-light2"

    pin: 2

    inverted: false

Attached Files
.pdf

CWT-SL Light sensor (RS485 type) Manual.pdf (Size: 458.11 KB / Downloads: 2766)

[Arduino source code for KC868-1U]-07_RS485

Posted by: KinCony Support - 06-21-2023, 05:22 AM - Forum: KC868-1U - No Replies

[Arduino source code for KC868-1U]-07_RS485

Code:
/*KC868-1U  RS485 CODE*/

#define RS485RX  32

#define RS485TX  33

void setup() {

  Serial.begin(115200);

  Serial2.begin(115200,SERIAL_8N1,A2_RS485RX,A2_RS485TX);

   Serial2.println("RS485 SEND is OK!!");

   Serial2.println("******************");

}

void loop() {

  /*print the received data of RS485 port*/

  while(Serial2.available()>0)

   {

    Serial2.print((char)Serial2.read());//Read rs485 receive data  and print it

   }

  delay(200);

}

[Arduino source code for KC868-1U]-06_OUTPUT

Posted by: KinCony Support - 06-21-2023, 05:22 AM - Forum: KC868-1U - No Replies

[Arduino source code for KC868-1U]-06_OUTPUT

Code:
/*KC868-1U PCF8574 digital output code*/

#include "Arduino.h"

#include "PCF8574.h"

// Set i2c address

PCF8574 pcf8574_OUT1(0x24,4,16);

void setup()

{

    Serial.begin(115200);

//    delay(1000);

    // Set pinMode to OUTPUT

    pcf8574_OUT1.pinMode(P0, OUTPUT);

  pcf8574_OUT1.pinMode(P1, OUTPUT);

  pcf8574_OUT1.pinMode(P2, OUTPUT);

  pcf8574_OUT1.pinMode(P3, OUTPUT);

  pcf8574_OUT1.pinMode(P4, OUTPUT);

  pcf8574_OUT1.pinMode(P5, OUTPUT);

  pcf8574_OUT1.pinMode(P6, OUTPUT);

  pcf8574_OUT1.pinMode(P7, OUTPUT);

   pcf8574_OUT1.begin();

}

void loop()

{

  for(int i=0;i<=7;i++){

    pcf8574_OUT1.digitalWrite(i, LOW);

    delay(1000);

  }

  for(int i=0;i<=7;i++){

    pcf8574_OUT1.digitalWrite(i, HIGH);

    delay(1000);

  }

}

[Arduino source code for KC868-1U]-05_LAN8720_UDP

Posted by: KinCony Support - 06-21-2023, 05:21 AM - Forum: KC868-1U - No Replies

[Arduino source code for KC868-1U]-05_LAN8720_UDP

Code:
#include <ETH.h>

#include <WiFiUdp.h>

#define ETH_ADDR        0

#define ETH_POWER_PIN  -1

#define ETH_MDC_PIN    23

#define ETH_MDIO_PIN   18

#define ETH_TYPE       ETH_PHY_LAN8720

#define ETH_CLK_MODE   ETH_CLOCK_GPIO17_OUT

WiFiUDP Udp;                      //Create UDP object

unsigned int localUdpPort = 4196; //local port

// Set it based on the IP address of the router

IPAddress local_ip(192, 168, 1, 200);

IPAddress gateway(192, 168, 1, 1);

IPAddress subnet(255, 255, 255, 0);

IPAddress dns(192, 168, 1, 1);

void setup()

{

  Serial.begin(115200);

  Serial.println();

  ETH.begin(ETH_ADDR, ETH_POWER_PIN, ETH_MDC_PIN, ETH_MDIO_PIN, ETH_TYPE, ETH_CLK_MODE); //start with ETH

  // write confir for static IP, gateway,subnet,dns1,dns2

  if (ETH.config(local_ip, gateway, subnet, dns, dns) == false) {

    Serial.println("LAN8720 Configuration failed.");

  }else{Serial.println("LAN8720 Configuration success.");}

 /* while(!((uint32_t)ETH.localIP())) //wait for IP

  {

  }*/

  Serial.println("Connected");

  Serial.print("IP Address:");

  Serial.println(ETH.localIP());

  Udp.begin(localUdpPort); //begin UDP listener

}

void loop()

{

  int packetSize = Udp.parsePacket(); //get package size

  if (packetSize)                     //if have received data

  {

    char buf[packetSize];

    Udp.read(buf, packetSize); //read current data

    Serial.println();

    Serial.print("Received: ");

    Serial.println(buf);

    Serial.print("From IP: ");

    Serial.println(Udp.remoteIP());

    Serial.print("From Port: ");

    Serial.println(Udp.remotePort());

    Udp.beginPacket(Udp.remoteIP(), Udp.remotePort()); //ready to send data

    Udp.print("Received: ");

    Udp.write((const uint8_t*)buf, packetSize); //copy data to sender buffer

    Udp.endPacket();            //send data

  }

}

Pages (409): « Previous 1 … 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 … 409 Next »

Login
Username:
Password:	Lost Password?
	Remember me
