KC868-UAIR screws for case

Posted by: dmshimself - 05-15-2022, 11:39 AM - Forum: KC868-Uair - Replies (10)

I will be swapping the board in a KC868-UAIR case over at some point because the original board didn't work. I see there are 2 small screws securing the board into the bottom of the case but I'm not able to see what size and head the screws are because they are in quite a deep well. I've zoomed in with my iphone and got good lighting in place, but the screws are so tiny, I'm not able to make out what type of screw driver to use. I don't want to strip the heads taking them out, so does anyone know what screws these are? There is a video of someone assembling the case, but it doesn't explain this.

KC868-UAIR inside case - how does IR receiver see signals?

Posted by: dmshimself - 05-13-2022, 11:07 PM - Forum: KC868-Uair - Replies (2)

I'm hoping my KC868-UAIR works with all its devices and in preparation for that I've looked at the tower case the board goes into. The IR receiver is to the left of the 2 USB sockets on the board, but the case has no clear window for IR signals to go through and reach the board itself. Also I've noticed that the 4 IR transmitters on the board are placed close to the clearish plastic ring that runs round the outside of the case, but if the LED lights on the KC868-UAIR are on, will signals being able to get out of the tower case to reach my devices?

Has anyone used this device and is prepared to comment on the way the case works to let IR light in and allow IR light out when the lights of the KC868-UAIR are on?

[Arduino IDE demo source code for KC868-A64]--#05-PCF8575_Input_code

Posted by: KinCony Support - 05-13-2022, 05:51 AM - Forum: KC868-A64 - Replies (9)

[Arduino IDE demo source code for KC868-A64]--#05-PCF8575_Input_code

Code:
/*www.kinocny.com */

/*KC868-A64 CODE OF PCF8575 READ INPUT*/

#include "Arduino.h"

#include "PCF8575.h"

// Set i2c address

PCF8575 pcf8575_IN1(0x24,15,4);

PCF8575 pcf8575_IN2(0x25,15,4);

PCF8575 pcf8575_IN3(0x21,15,4);

PCF8575 pcf8575_IN4(0x22,15,4);

void setup()

{

    Serial.begin(115200);

  pcf8575_IN1.begin();

  pcf8575_IN2.begin();

  pcf8575_IN3.begin();

  pcf8575_IN4.begin();

 for(int i=0;i<16;i++)

 {

  pcf8575_IN1.pinMode(i,INPUT);

  pcf8575_IN2.pinMode(i,INPUT);

  pcf8575_IN3.pinMode(i,INPUT);

  pcf8575_IN4.pinMode(i,INPUT);

 }

  Serial.println("KC868-A64 64 channel input state 0:ON  1:OFF");

}

void loop()

{

  uint16_t var_1 = 0;

  uint16_t var_2 = 0;

  uint16_t var_3 = 0;

  uint16_t var_4 = 0;

  var_1 = pcf8575_IN1.digitalReadAll();

  var_2 = pcf8575_IN2.digitalReadAll();

  var_3 = pcf8575_IN3.digitalReadAll();

  var_4 = pcf8575_IN4.digitalReadAll();

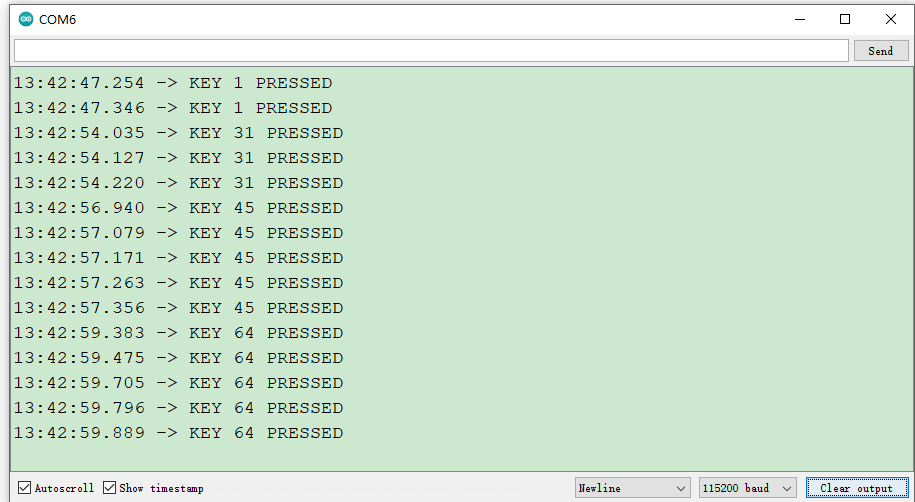

/* Detect IN1-IN16  If triggered print "KEY i PRESSED"  */

  for(int i=0;i<16;i++)

  {

    if((var_1>>i&1)==0)

    {

     Serial.print("KEY ");

     Serial.print(i+1);

     Serial.println(" PRESSED");

    }

  }

/* Detect IN17-IN32  If triggered print "KEY i PRESSED"  */

  for(int i=0;i<16;i++)

  {

    if((var_2>>i&1)==0)

    {

     Serial.print("KEY ");

     Serial.print(i+17);

     Serial.println(" PRESSED");

   }

  }

/* Detect IN33-IN48  If triggered print "KEY i PRESSED"  */

 for(int i=0;i<16;i++)

  {

    if((var_3>>i&1)==0)

    {

     Serial.print("KEY ");

     Serial.print(i+33);

     Serial.println(" PRESSED");

   }

  }

/* Detect IN49-IN64  If triggered print "KEY i PRESSED"  */

   for(int i=0;i<16;i++)

  {

    if((var_4>>i&1)==0)

    {

     Serial.print("KEY ");

     Serial.print(i+49);

     Serial.println(" PRESSED");

    }

  }

 delay(100);

}

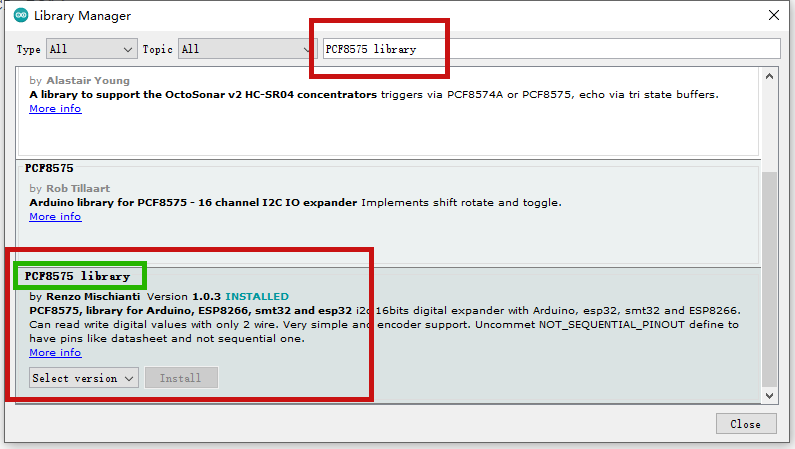

you should install the library PCF8575 library

Before Upload the code ,you should find the PCF8575.h in PCF8575 Library file,and enable the the code in below picture

Attached Files
.zip

KC868-A64-PCF8575-DI.zip (Size: 1.13 KB / Downloads: 757)

KC868-A32 with Tasmota

Posted by: petez69 - 05-12-2022, 12:46 PM - Forum: KC868-A32/A32 Pro - Replies (3)

Hi Kincony

I would like to use the board with tasmota as the board can operate standalone (via web interface) or via MQTT.....

I've searched high and low but I cant find the full config, could you please help with:

1) Information we need to add to üser_config_override.h to add the expanders and ethernet
2) Config changes needed in Tasmota web configuration to enable the expanders.

ESPHome is very well documented however dont want to use it for now with Homeassistant.

Many thanks, have ordered A16 and A32, waiting for delivery :-)

Peter

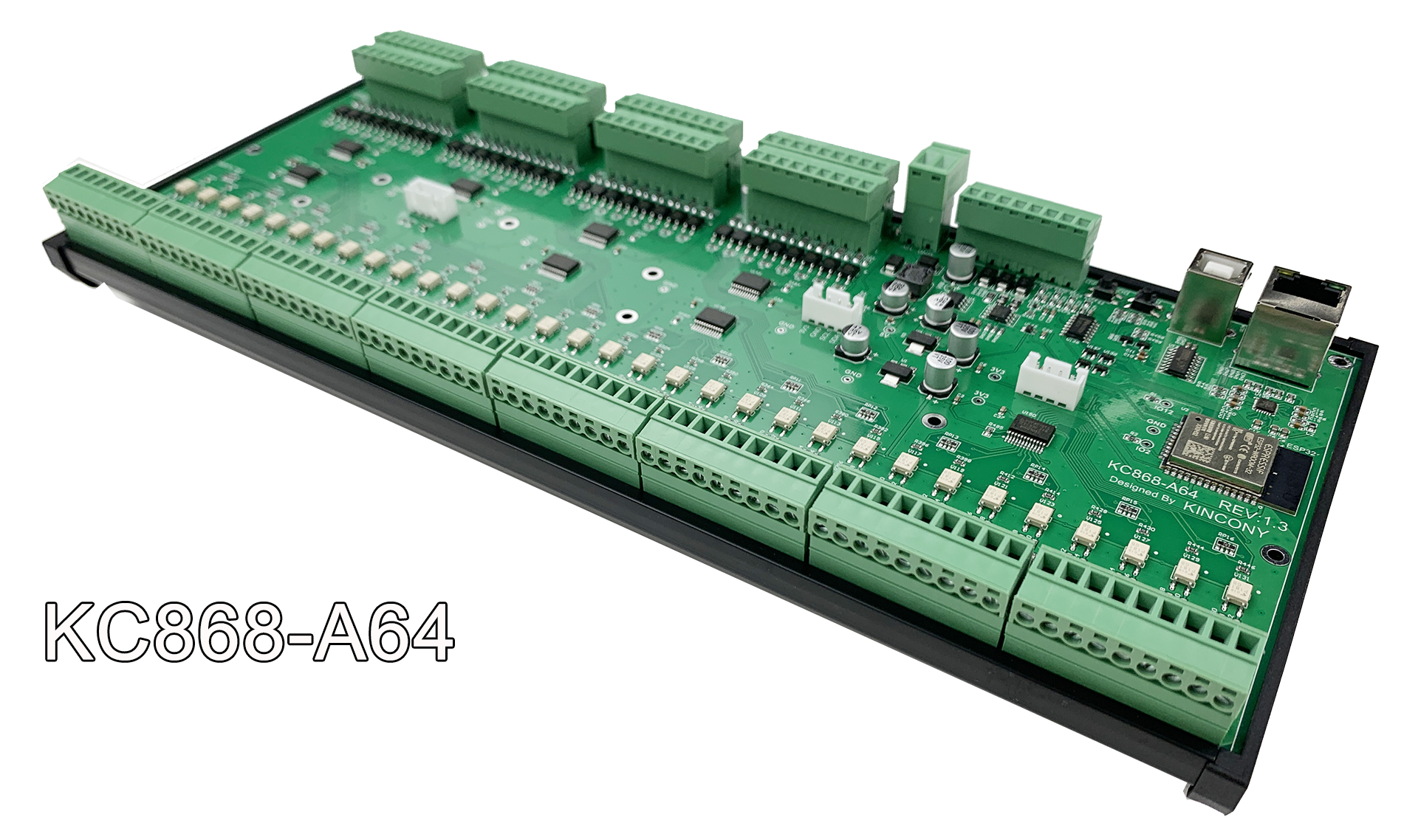

[Arduino IDE demo source code for KC868-A64]--ALL code

Posted by: KinCony Support - 05-12-2022, 07:45 AM - Forum: KC868-A64 - No Replies

	Attached Files KC868-A64-ADC_INOUT.zip (Size: 686 bytes / Downloads: 685) KC868-A64-LAN8720.zip (Size: 1.29 KB / Downloads: 637) KC868-A64-PCF8575-DO.zip (Size: 1.48 KB / Downloads: 668) KC868-A64-RS485.zip (Size: 697 bytes / Downloads: 672) KC868-A64-PCF8575-DI.zip (Size: 1.13 KB / Downloads: 657)

[Arduino IDE demo source code for KC868-A64]--#04-PCF8575_Output_code

Posted by: KinCony Support - 05-12-2022, 07:35 AM - Forum: KC868-A64 - No Replies

[Arduino IDE demo source code for KC868-A64]--#04-PCF8575_Output_code

Code:
/*www.kincony.com */

/*KC868-A64 Code of PCF8575 output*/

#include "Arduino.h"

#include "PCF8575.h"

// Set i2c address

PCF8575 pcf8575_R1(0x24,5,16);  //SDA IO5  , SCL IO16

PCF8575 pcf8575_R2(0x25,5,16);

PCF8575 pcf8575_R3(0x21,5,16);

PCF8575 pcf8575_R4(0x22,5,16);

unsigned long timeElapsed;

void setup()

{

  Serial.begin(115200);

for(int i=0;i<16;i++)

{

  pcf8575_R1.pinMode(i,OUTPUT);

  pcf8575_R2.pinMode(i,OUTPUT);

  pcf8575_R3.pinMode(i,OUTPUT);

  pcf8575_R4.pinMode(i,OUTPUT);

}

  pcf8575_R1.begin();

  pcf8575_R2.begin();

  pcf8575_R3.begin();

  pcf8575_R4.begin();

/*

pcf8575_R1.pinMode(P0,OUTPUT);

pcf8575_R1.pinMode(P1,OUTPUT);

pcf8575_R1.pinMode(P2,OUTPUT);

pcf8575_R1.pinMode(P3,OUTPUT);

pcf8575_R1.pinMode(P4,OUTPUT);

pcf8575_R1.pinMode(P5,OUTPUT);

pcf8575_R1.pinMode(P6,OUTPUT);

pcf8575_R1.pinMode(P7,OUTPUT);

pcf8575_R1.pinMode(P8,OUTPUT);

pcf8575_R1.pinMode(P9,OUTPUT);

pcf8575_R1.pinMode(P10,OUTPUT);

pcf8575_R1.pinMode(P11,OUTPUT);

pcf8575_R1.pinMode(P12,OUTPUT);

pcf8575_R1.pinMode(P13,OUTPUT);

pcf8575_R1.pinMode(P14,OUTPUT);

pcf8575_R1.pinMode(P15,OUTPUT);

pcf8575_R2.pinMode(P0,OUTPUT);

pcf8575_R2.pinMode(P1,OUTPUT);

pcf8575_R2.pinMode(P2,OUTPUT);

pcf8575_R2.pinMode(P3,OUTPUT);

pcf8575_R2.pinMode(P4,OUTPUT);

pcf8575_R2.pinMode(P5,OUTPUT);

pcf8575_R2.pinMode(P6,OUTPUT);

pcf8575_R2.pinMode(P7,OUTPUT);

pcf8575_R2.pinMode(P8,OUTPUT);

pcf8575_R2.pinMode(P9,OUTPUT);

pcf8575_R2.pinMode(P10,OUTPUT);

pcf8575_R2.pinMode(P11,OUTPUT);

pcf8575_R2.pinMode(P12,OUTPUT);

pcf8575_R2.pinMode(P13,OUTPUT);

pcf8575_R2.pinMode(P14,OUTPUT);

pcf8575_R2.pinMode(P15,OUTPUT);

pcf8575_R3.pinMode(P0,OUTPUT);

pcf8575_R3.pinMode(P1,OUTPUT);

pcf8575_R3.pinMode(P2,OUTPUT);

pcf8575_R3.pinMode(P3,OUTPUT);

pcf8575_R3.pinMode(P4,OUTPUT);

pcf8575_R3.pinMode(P5,OUTPUT);

pcf8575_R3.pinMode(P6,OUTPUT);

pcf8575_R3.pinMode(P7,OUTPUT);

pcf8575_R3.pinMode(P8,OUTPUT);

pcf8575_R3.pinMode(P9,OUTPUT);

pcf8575_R3.pinMode(P10,OUTPUT);

pcf8575_R3.pinMode(P11,OUTPUT);

pcf8575_R3.pinMode(P12,OUTPUT);

pcf8575_R3.pinMode(P13,OUTPUT);

pcf8575_R3.pinMode(P14,OUTPUT);

pcf8575_R3.pinMode(P15,OUTPUT);

pcf8575_R4.pinMode(P0,OUTPUT);

pcf8575_R4.pinMode(P1,OUTPUT);

pcf8575_R4.pinMode(P2,OUTPUT);

pcf8575_R4.pinMode(P3,OUTPUT);

pcf8575_R4.pinMode(P4,OUTPUT);

pcf8575_R4.pinMode(P5,OUTPUT);

pcf8575_R4.pinMode(P6,OUTPUT);

pcf8575_R4.pinMode(P7,OUTPUT);

pcf8575_R4.pinMode(P8,OUTPUT);

pcf8575_R4.pinMode(P9,OUTPUT);

pcf8575_R4.pinMode(P10,OUTPUT);

pcf8575_R4.pinMode(P11,OUTPUT);

pcf8575_R4.pinMode(P12,OUTPUT);

pcf8575_R4.pinMode(P13,OUTPUT);

pcf8575_R4.pinMode(P14,OUTPUT);

pcf8575_R4.pinMode(P15,OUTPUT);   */

}

void loop()

{

for(int j=0;j<16;j++)

{

  pcf8575_R1.digitalWrite(j,LOW); delay(50);

}

for(int j=0;j<16;j++)

{

  pcf8575_R2.digitalWrite(j,LOW); delay(50);

}

for(int j=0;j<16;j++)

{

  pcf8575_R3.digitalWrite(j,LOW); delay(50);

}

for(int j=0;j<16;j++)

{

  pcf8575_R4.digitalWrite(j,LOW); delay(50);

}

for(int j=0;j<16;j++)

{

  pcf8575_R1.digitalWrite(j,HIGH); delay(50);

}

for(int j=0;j<16;j++)

{

  pcf8575_R2.digitalWrite(j,HIGH); delay(50);

}

for(int j=0;j<16;j++)

{

  pcf8575_R3.digitalWrite(j,HIGH); delay(50);

}

for(int j=0;j<16;j++)

{

  pcf8575_R4.digitalWrite(j,HIGH); delay(50);

}

/*

 //R1 LOW----------------------

pcf8575_R1.digitalWrite(P0,LOW);

delay(50);

pcf8575_R1.digitalWrite(P1,LOW);

delay(50);

pcf8575_R1.digitalWrite(P2,LOW);

delay(50);

pcf8575_R1.digitalWrite(P3,LOW);

delay(50);

pcf8575_R1.digitalWrite(P4,LOW);

delay(50);

pcf8575_R1.digitalWrite(P5,LOW);

delay(50);

pcf8575_R1.digitalWrite(P6,LOW);

delay(50);

pcf8575_R1.digitalWrite(P7,LOW);

delay(50);

pcf8575_R1.digitalWrite(P8,LOW);

delay(50);

pcf8575_R1.digitalWrite(P9,LOW);

delay(50);

pcf8575_R1.digitalWrite(P10,LOW);

delay(50);

pcf8575_R1.digitalWrite(P11,LOW);

delay(50);

pcf8575_R1.digitalWrite(P12,LOW);

delay(50);

pcf8575_R1.digitalWrite(P13,LOW);

delay(50);

pcf8575_R1.digitalWrite(P14,LOW);

delay(50);

pcf8575_R1.digitalWrite(P15,LOW);

delay(50);

//R2 LOW------------------------

pcf8575_R2.digitalWrite(P0,LOW);

delay(50);

pcf8575_R2.digitalWrite(P1,LOW);

delay(50);

pcf8575_R2.digitalWrite(P2,LOW);

delay(50);

pcf8575_R2.digitalWrite(P3,LOW);

delay(50);

pcf8575_R2.digitalWrite(P4,LOW);

delay(50);

pcf8575_R2.digitalWrite(P5,LOW);

delay(50);

pcf8575_R2.digitalWrite(P6,LOW);

delay(50);

pcf8575_R2.digitalWrite(P7,LOW);

delay(50);

pcf8575_R2.digitalWrite(P8,LOW);

delay(50);

pcf8575_R2.digitalWrite(P9,LOW);

delay(50);

pcf8575_R2.digitalWrite(P10,LOW);

delay(50);

pcf8575_R2.digitalWrite(P11,LOW);

delay(50);

pcf8575_R2.digitalWrite(P12,LOW);

delay(50);

pcf8575_R2.digitalWrite(P13,LOW);

delay(50);

pcf8575_R2.digitalWrite(P14,LOW);

delay(50);

pcf8575_R2.digitalWrite(P15,LOW);

delay(50);

//R3 LOW------------------------

pcf8575_R3.digitalWrite(P0,LOW);

delay(50);

pcf8575_R3.digitalWrite(P1,LOW);

delay(50);

pcf8575_R3.digitalWrite(P2,LOW);

delay(50);

pcf8575_R3.digitalWrite(P3,LOW);

delay(50);

pcf8575_R3.digitalWrite(P4,LOW);

delay(50);

pcf8575_R3.digitalWrite(P5,LOW);

delay(50);

pcf8575_R3.digitalWrite(P6,LOW);

delay(50);

pcf8575_R3.digitalWrite(P7,LOW);

delay(50);

pcf8575_R3.digitalWrite(P8,LOW);

delay(50);

pcf8575_R3.digitalWrite(P9,LOW);

delay(50);

pcf8575_R3.digitalWrite(P10,LOW);

delay(50);

pcf8575_R3.digitalWrite(P11,LOW);

delay(50);

pcf8575_R3.digitalWrite(P12,LOW);

delay(50);

pcf8575_R3.digitalWrite(P13,LOW);

delay(50);

pcf8575_R3.digitalWrite(P14,LOW);

delay(50);

pcf8575_R3.digitalWrite(P15,LOW);

delay(50);

//R4 LOW------------------------

pcf8575_R4.digitalWrite(P0,LOW);

delay(50);

pcf8575_R4.digitalWrite(P1,LOW);

delay(50);

pcf8575_R4.digitalWrite(P2,LOW);

delay(50);

pcf8575_R4.digitalWrite(P3,LOW);

delay(50);

pcf8575_R4.digitalWrite(P4,LOW);

delay(50);

pcf8575_R4.digitalWrite(P5,LOW);

delay(50);

pcf8575_R4.digitalWrite(P6,LOW);

delay(50);

pcf8575_R4.digitalWrite(P7,LOW);

delay(50);

pcf8575_R4.digitalWrite(P8,LOW);

delay(50);

pcf8575_R4.digitalWrite(P9,LOW);

delay(50);

pcf8575_R4.digitalWrite(P10,LOW);

delay(50);

pcf8575_R4.digitalWrite(P11,LOW);

delay(50);

pcf8575_R4.digitalWrite(P12,LOW);

delay(50);

pcf8575_R4.digitalWrite(P13,LOW);

delay(50);

pcf8575_R4.digitalWrite(P14,LOW);

delay(50);

pcf8575_R4.digitalWrite(P15,LOW);

delay(50);

//R1 HIGH-----------------------

pcf8575_R1.digitalWrite(P0,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P1,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P2,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P3,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P4,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P5,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P6,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P7,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P8,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P9,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P10,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P11,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P12,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P13,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P14,HIGH);

delay(50);

pcf8575_R1.digitalWrite(P15,HIGH);

delay(50);

//R3 HIGH------------------------

pcf8575_R2.digitalWrite(P0,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P1,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P2,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P3,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P4,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P5,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P6,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P7,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P8,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P9,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P10,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P11,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P12,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P13,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P14,HIGH);

delay(50);

pcf8575_R2.digitalWrite(P15,HIGH);

delay(50);

//R3 HIGH-----------------------

pcf8575_R3.digitalWrite(P0,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P1,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P2,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P3,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P4,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P5,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P6,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P7,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P8,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P9,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P10,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P11,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P12,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P13,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P14,HIGH);

delay(50);

pcf8575_R3.digitalWrite(P15,HIGH);

delay(50);

//R4 HIGH------------------------

pcf8575_R4.digitalWrite(P0,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P1,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P2,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P3,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P4,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P5,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P6,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P7,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P8,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P9,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P10,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P11,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P12,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P13,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P14,HIGH);

delay(50);

pcf8575_R4.digitalWrite(P15,HIGH);

delay(50);

*/

}

Attached Files
.zip

KC868-A64-PCF8575-DO.zip (Size: 1.48 KB / Downloads: 614)

[Arduino IDE demo source code for KC868-A64]--#03-ADC_code

Posted by: KinCony Support - 05-12-2022, 07:20 AM - Forum: KC868-A64 - No Replies

[Arduino IDE demo source code for KC868-A64]--#03-ADC_code

Code:
/*www.kincony.com*/

/*KC868-A64 Code of ADC_INPUT */

#include "Arduino.h"

#define ANALOG_A1   39

#define ANALOG_A2   34

#define ANALOG_A3   36

#define ANALOG_A4   35

void setup()

{

    Serial.begin(115200);

    delay(1000);

  pinMode(ANALOG_A1,INPUT);

  pinMode(ANALOG_A2,INPUT);

  pinMode(ANALOG_A3,INPUT);

  pinMode(ANALOG_A4,INPUT);

}

void loop()

{

  delay(500);

  if(analogRead(ANALOG_A1)!=0)  {Serial.printf("Current Reading A1 on Pin(%d)=%d\n",ANALOG_A1,analogRead(ANALOG_A1));}

  if(analogRead(ANALOG_A2)!=0)  {Serial.printf("Current Reading A2 on Pin(%d)=%d\n",ANALOG_A2,analogRead(ANALOG_A2));}

  if(analogRead(ANALOG_A3)!=0)  {Serial.printf("Current Reading A3 on Pin(%d)=%d\n",ANALOG_A3,analogRead(ANALOG_A3));}

  if(analogRead(ANALOG_A4)!=0)  {Serial.printf("Current Reading A4 on Pin(%d)=%d\n",ANALOG_A4,analogRead(ANALOG_A4));}

}

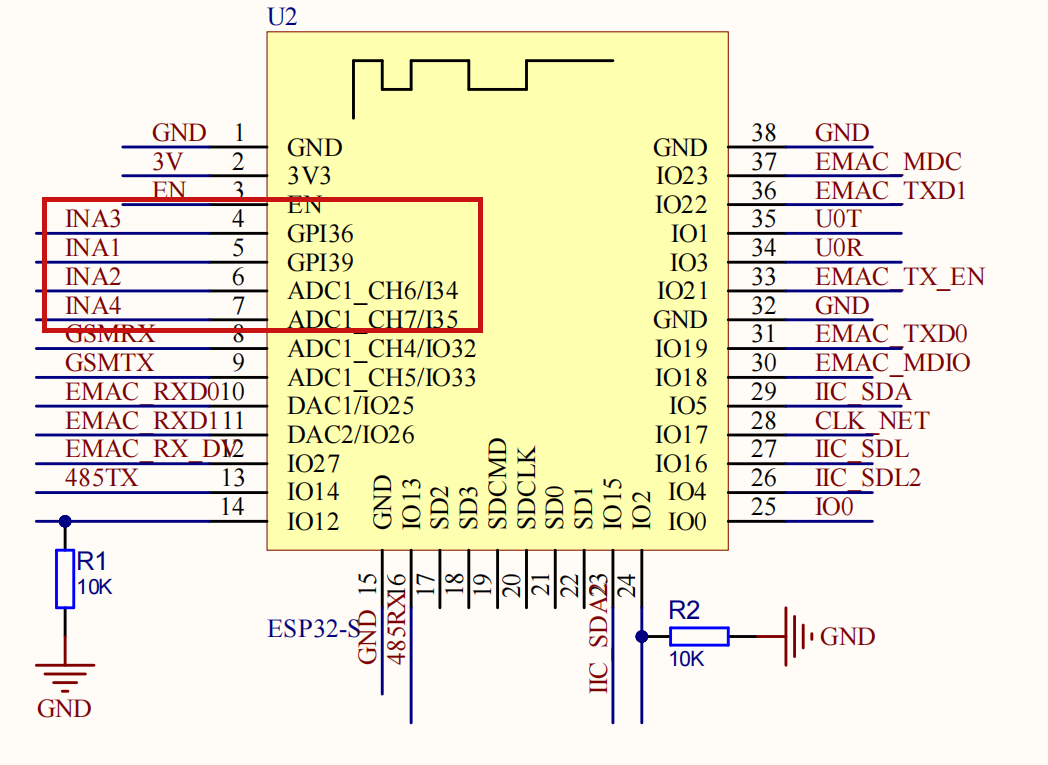

Attached Files
.zip

KC868-A64-ADC_INOUT.zip (Size: 686 bytes / Downloads: 605)

[Arduino IDE demo source code for KC868-A64]--#02-LAN8720_UDP_code

Posted by: KinCony Support - 05-12-2022, 07:04 AM - Forum: KC868-A64 - No Replies

[Arduino IDE demo source code for KC868-A64]--#02-LAN8720_UDP_code

Code:
/*www.kincony.com*/

/*KC868-A64 code of LAN8720 */

#include <ETH.h>

#include <WiFiUdp.h>

#define ETH_ADDR        0

#define ETH_POWER_PIN  -1

#define ETH_MDC_PIN    23

#define ETH_MDIO_PIN   18

#define ETH_TYPE       ETH_PHY_LAN8720

#define ETH_CLK_MODE   ETH_CLOCK_GPIO17_OUT

WiFiUDP Udp;                      //Create UDP object

unsigned int localUdpPort = 4196; //local port

// Set it based on the IP address of the router

IPAddress local_ip(192, 168, 1, 200);

IPAddress gateway(192, 168, 1, 1);

IPAddress subnet(255, 255, 255, 0);

IPAddress dns(192, 168, 1, 1);

void setup()

{

  Serial.begin(115200);

  Serial.println();

  ETH.begin(ETH_ADDR, ETH_POWER_PIN, ETH_MDC_PIN, ETH_MDIO_PIN, ETH_TYPE, ETH_CLK_MODE); //start with ETH

  // write confir for static IP, gateway,subnet,dns1,dns2

  if (ETH.config(local_ip, gateway, subnet, dns, dns) == false) {

    Serial.println("LAN8720 Configuration failed.");

  }else{Serial.println("LAN8720 Configuration success.");}

  Serial.println("Connected");

  Serial.print("IP Address:");

  Serial.println(ETH.localIP());

  Udp.begin(localUdpPort); //begin UDP listener

}

void loop()

{

  int packetSize = Udp.parsePacket(); //get package size

  if (packetSize)                     //if have received data

  {

    char buf[packetSize];

    Udp.read(buf, packetSize); //read current data

    Serial.println();

    Serial.print("Received: ");

    Serial.println(buf);

    Serial.print("From IP: ");

    Serial.println(Udp.remoteIP());

    Serial.print("From Port: ");

    Serial.println(Udp.remotePort());

    Udp.beginPacket(Udp.remoteIP(), Udp.remotePort()); //ready to send data

    Udp.print("Received: ");

    Udp.write((const uint8_t*)buf, packetSize); //copy data to sender buffer

    Udp.endPacket();            //send data

  }

}

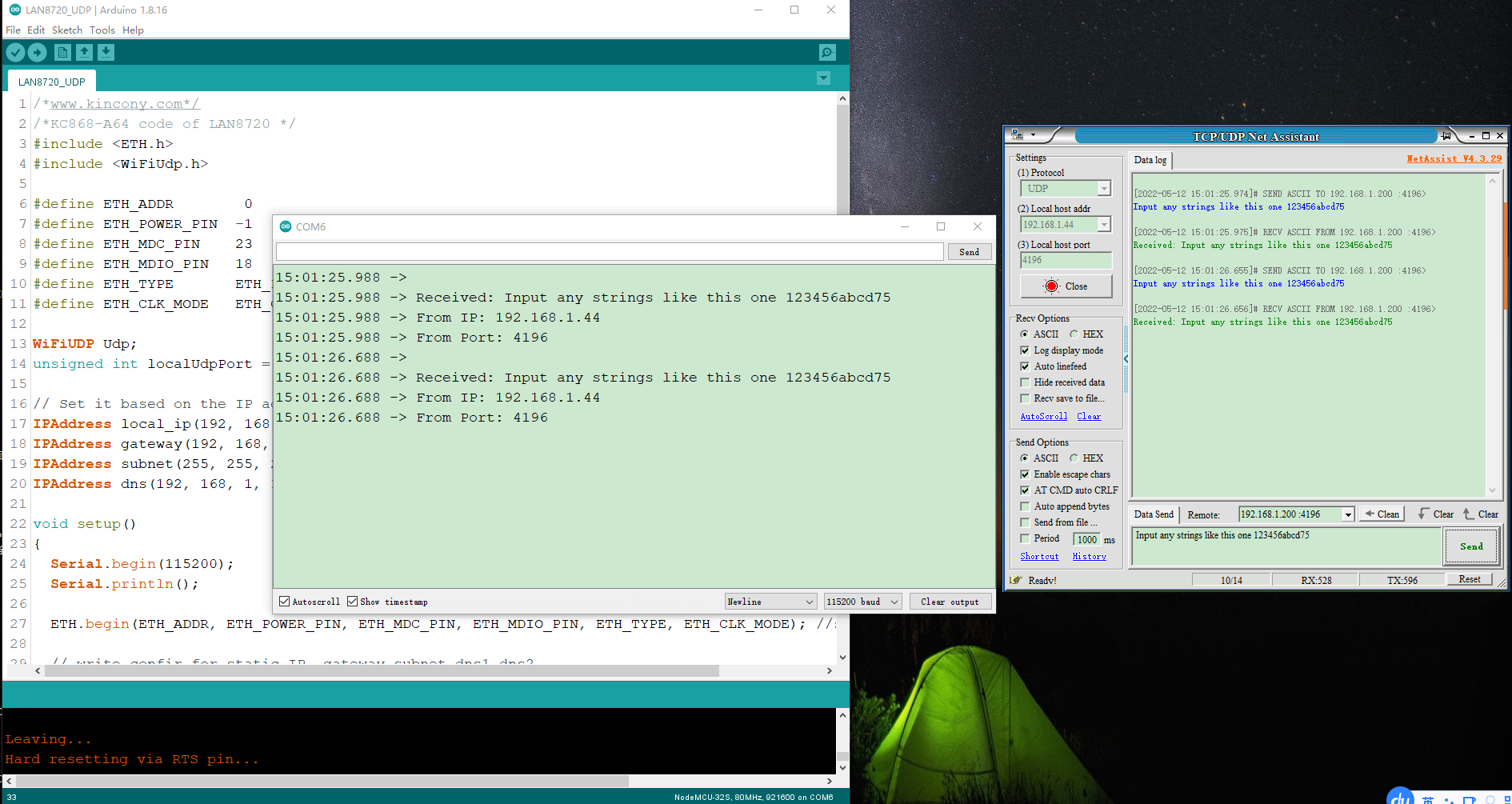

Attached Files
.zip

KC868-A64-LAN8720.zip (Size: 1.29 KB / Downloads: 645)
.zip

NetAssist.zip (Size: 481.86 KB / Downloads: 596)

[Arduino IDE demo source code for KC868-A64]--#01-RS485_code

Posted by: KinCony Support - 05-12-2022, 06:56 AM - Forum: KC868-A64 - No Replies

[Arduino IDE demo source code for KC868-A64]--#01-RS485_code

Code:
/*WWW.KINCONY.COM*/

/*KC868-A64 code of RS485 */

void setup() {

Serial2.begin(9600,SERIAL_8N1,13,14);  //  IO13   485RX   IO14 485TX

}

void loop() {

Serial2.println("KinCony ACBDEFG"); // Enter your print string

delay(1500);

}

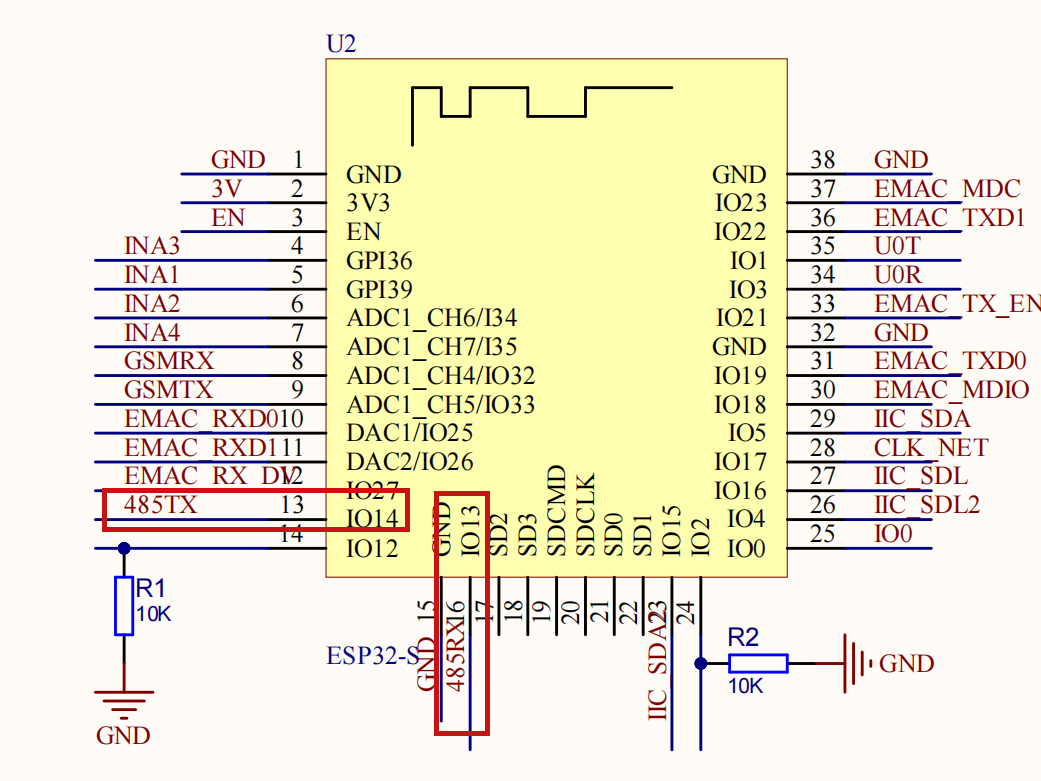

Attached Files
.zip

KC868-A64-RS485.zip (Size: 697 bytes / Downloads: 658)

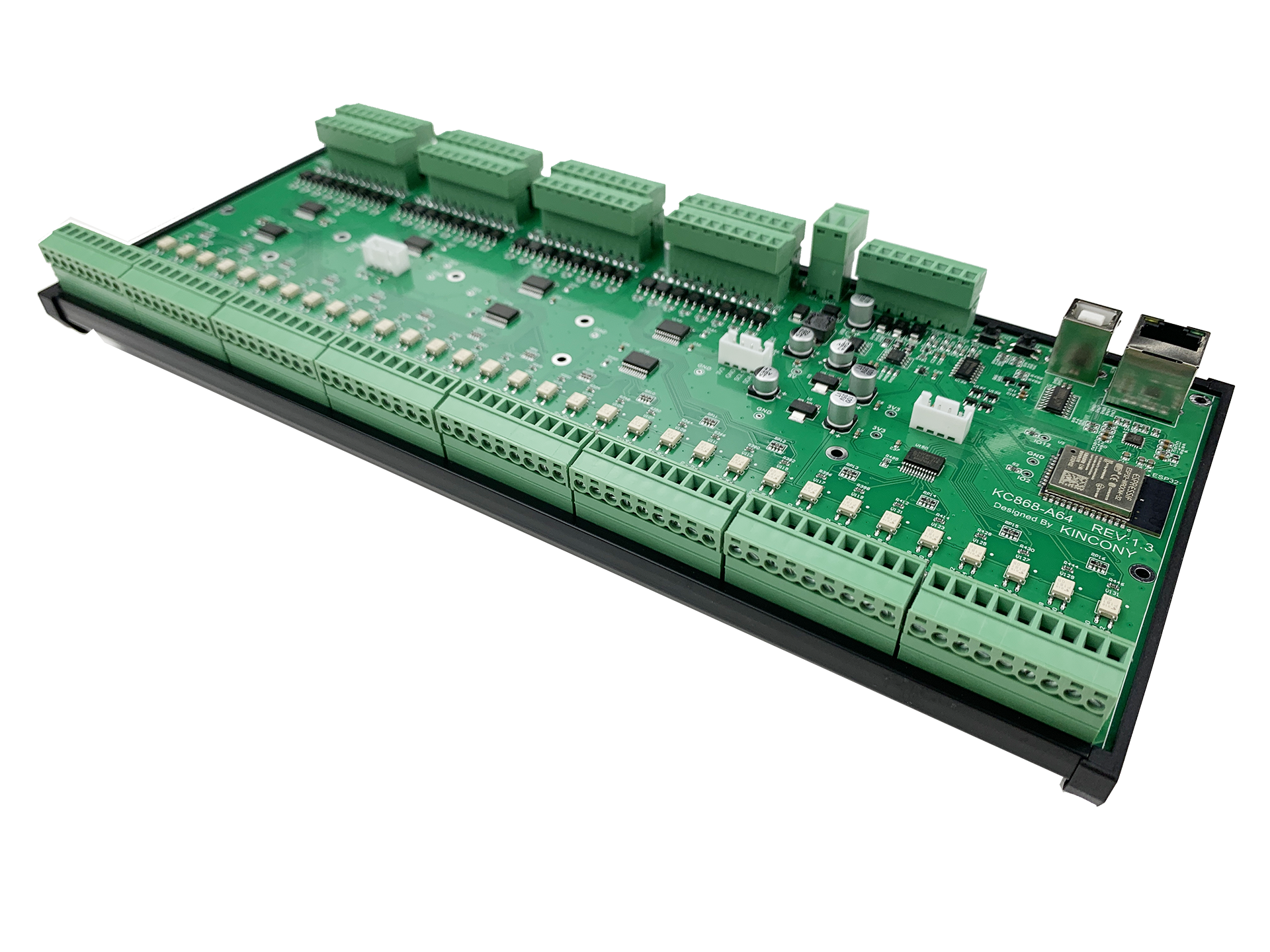

KC868-A64 configure for ESPhome

Posted by: admin - 05-12-2022, 01:05 AM - Forum: KC868-A64 - Replies (13)

esphome:
name: a64
platform: ESP32
board: esp32dev

# Enable logging
logger:

# Enable Home Assistant API
api:

# Example configuration entry
i2c:
- id: bus_a
sda: 5
scl: 16
scan: true
frequency: 400kHz
- id: bus_b
sda: 15
scl: 4
scan: true
frequency: 400kHz

# Example configuration entry
ethernet:
type: LAN8720
mdc_pin: GPIO23
mdio_pin: GPIO18
clk_mode: GPIO17_OUT
phy_addr: 0

# Optional manual IP
manual_ip:
static_ip: 192.168.1.198
gateway: 192.168.1.1
subnet: 255.255.255.0

# Example configuration entry
pcf8574:
- id: 'pcf8574_hub_out_1' # for output channel 1-16
i2c_id: bus_a
address: 0x24
pcf8575: true

- id: 'pcf8574_hub_out_2' # for output channel 17-32
i2c_id: bus_a
address: 0x25
pcf8575: true

- id: 'pcf8574_hub_out_3' # for output channel 33-48
i2c_id: bus_a
address: 0x21
pcf8575: true

- id: 'pcf8574_hub_out_4' # for output channel 49-64
i2c_id: bus_a
address: 0x22
pcf8575: true

- id: 'pcf8574_hub_in_1' # for a64--input channel 1-16
i2c_id: bus_b
address: 0x24
pcf8575: true

- id: 'pcf8574_hub_in_2' # for a64--input channel 17-32
i2c_id: bus_b
address: 0x25
pcf8575: true

- id: 'pcf8574_hub_in_3' # for a64--input channel 33-48
i2c_id: bus_b
address: 0x21
pcf8575: true

- id: 'pcf8574_hub_in_4' # for a64--input channel 49-64
i2c_id: bus_b
address: 0x22
pcf8575: true

# Individual outputs
switch:
- platform: gpio
name: "a64--light1"
pin:
pcf8574: pcf8574_hub_out_1
number: 0
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light2"
pin:
pcf8574: pcf8574_hub_out_1
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light3"
pin:
pcf8574: pcf8574_hub_out_1
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light4"
pin:
pcf8574: pcf8574_hub_out_1
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light5"
pin:
pcf8574: pcf8574_hub_out_1
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light6"
pin:
pcf8574: pcf8574_hub_out_1
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light7"
pin:
pcf8574: pcf8574_hub_out_1
number: 6
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light8"
pin:
pcf8574: pcf8574_hub_out_1
number: 7
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light9"
pin:
pcf8574: pcf8574_hub_out_1
number: 8
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light10"
pin:
pcf8574: pcf8574_hub_out_1
number: 9
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light11"
pin:
pcf8574: pcf8574_hub_out_1
number: 10
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light12"
pin:
pcf8574: pcf8574_hub_out_1
number: 11
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light13"
pin:
pcf8574: pcf8574_hub_out_1
number: 12
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light14"
pin:
pcf8574: pcf8574_hub_out_1
number: 13
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light15"
pin:
pcf8574: pcf8574_hub_out_1
number: 14
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light16"
pin:
pcf8574: pcf8574_hub_out_1
number: 15
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light17"
pin:
pcf8574: pcf8574_hub_out_2
number: 0
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light18"
pin:
pcf8574: pcf8574_hub_out_2
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light19"
pin:
pcf8574: pcf8574_hub_out_2
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light20"
pin:
pcf8574: pcf8574_hub_out_2
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light21"
pin:
pcf8574: pcf8574_hub_out_2
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light22"
pin:
pcf8574: pcf8574_hub_out_2
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light23"
pin:
pcf8574: pcf8574_hub_out_2
number: 6
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light24"
pin:
pcf8574: pcf8574_hub_out_2
number: 7
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light25"
pin:
pcf8574: pcf8574_hub_out_2
number: 8
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light26"
pin:
pcf8574: pcf8574_hub_out_2
number: 9
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light27"
pin:
pcf8574: pcf8574_hub_out_2
number: 10
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light28"
pin:
pcf8574: pcf8574_hub_out_2
number: 11
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light29"
pin:
pcf8574: pcf8574_hub_out_2
number: 12
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light30"
pin:
pcf8574: pcf8574_hub_out_2
number: 13
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light31"
pin:
pcf8574: pcf8574_hub_out_2
number: 14
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light32"
pin:
pcf8574: pcf8574_hub_out_2
number: 15
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light33"
pin:
pcf8574: pcf8574_hub_out_3
number: 0
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light34"
pin:
pcf8574: pcf8574_hub_out_3
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light35"
pin:
pcf8574: pcf8574_hub_out_3
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light36"
pin:
pcf8574: pcf8574_hub_out_3
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light37"
pin:
pcf8574: pcf8574_hub_out_3
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light38"
pin:
pcf8574: pcf8574_hub_out_3
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light39"
pin:
pcf8574: pcf8574_hub_out_3
number: 6
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light40"
pin:
pcf8574: pcf8574_hub_out_3
number: 7
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light41"
pin:
pcf8574: pcf8574_hub_out_3
number: 8
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light42"
pin:
pcf8574: pcf8574_hub_out_3
number: 9
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light43"
pin:
pcf8574: pcf8574_hub_out_3
number: 10
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light44"
pin:
pcf8574: pcf8574_hub_out_3
number: 11
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light45"
pin:
pcf8574: pcf8574_hub_out_3
number: 12
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light46"
pin:
pcf8574: pcf8574_hub_out_3
number: 13
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light47"
pin:
pcf8574: pcf8574_hub_out_3
number: 14
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light48"
pin:
pcf8574: pcf8574_hub_out_3
number: 15
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light49"
pin:
pcf8574: pcf8574_hub_out_4
number: 0
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light50"
pin:
pcf8574: pcf8574_hub_out_4
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light51"
pin:
pcf8574: pcf8574_hub_out_4
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light52"
pin:
pcf8574: pcf8574_hub_out_4
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light53"
pin:
pcf8574: pcf8574_hub_out_4
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light54"
pin:
pcf8574: pcf8574_hub_out_4
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light55"
pin:
pcf8574: pcf8574_hub_out_4
number: 6
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light56"
pin:
pcf8574: pcf8574_hub_out_4
number: 7
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light57"
pin:
pcf8574: pcf8574_hub_out_4
number: 8
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light58"
pin:
pcf8574: pcf8574_hub_out_4
number: 9
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light59"
pin:
pcf8574: pcf8574_hub_out_4
number: 10
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light60"
pin:
pcf8574: pcf8574_hub_out_4
number: 11
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light61"
pin:
pcf8574: pcf8574_hub_out_4
number: 12
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light62"
pin:
pcf8574: pcf8574_hub_out_4
number: 13
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light63"
pin:
pcf8574: pcf8574_hub_out_4
number: 14
mode: OUTPUT
inverted: true

- platform: gpio
name: "a64--light64"
pin:
pcf8574: pcf8574_hub_out_4
number: 15
mode: OUTPUT
inverted: true

# Individual inputs
binary_sensor:
- platform: gpio
name: "a64--input1"
pin:
pcf8574: pcf8574_hub_in_1
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input2"
pin:
pcf8574: pcf8574_hub_in_1
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input3"
pin:
pcf8574: pcf8574_hub_in_1
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input4"
pin:
pcf8574: pcf8574_hub_in_1
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input5"
pin:
pcf8574: pcf8574_hub_in_1
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input6"
pin:
pcf8574: pcf8574_hub_in_1
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input7"
pin:
pcf8574: pcf8574_hub_in_1
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input8"
pin:
pcf8574: pcf8574_hub_in_1
number: 7
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input9"
pin:
pcf8574: pcf8574_hub_in_1
number: 8
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input10"
pin:
pcf8574: pcf8574_hub_in_1
number: 9
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input11"
pin:
pcf8574: pcf8574_hub_in_1
number: 10
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input12"
pin:
pcf8574: pcf8574_hub_in_1
number: 11
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input13"
pin:
pcf8574: pcf8574_hub_in_1
number: 12
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input14"
pin:
pcf8574: pcf8574_hub_in_1
number: 13
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input15"
pin:
pcf8574: pcf8574_hub_in_1
number: 14
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input16"
pin:
pcf8574: pcf8574_hub_in_1
number: 15
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input17"
pin:
pcf8574: pcf8574_hub_in_2
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input18"
pin:
pcf8574: pcf8574_hub_in_2
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input19"
pin:
pcf8574: pcf8574_hub_in_2
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input20"
pin:
pcf8574: pcf8574_hub_in_2
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input21"
pin:
pcf8574: pcf8574_hub_in_2
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input22"
pin:
pcf8574: pcf8574_hub_in_2
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input23"
pin:
pcf8574: pcf8574_hub_in_2
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input24"
pin:
pcf8574: pcf8574_hub_in_2
number: 7
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input25"
pin:
pcf8574: pcf8574_hub_in_2
number: 8
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input26"
pin:
pcf8574: pcf8574_hub_in_2
number: 9
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input27"
pin:
pcf8574: pcf8574_hub_in_2
number: 10
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input28"
pin:
pcf8574: pcf8574_hub_in_2
number: 11
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input29"
pin:
pcf8574: pcf8574_hub_in_2
number: 12
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input30"
pin:
pcf8574: pcf8574_hub_in_2
number: 13
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input31"
pin:
pcf8574: pcf8574_hub_in_2
number: 14
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input32"
pin:
pcf8574: pcf8574_hub_in_2
number: 15
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input33"
pin:
pcf8574: pcf8574_hub_in_3
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input34"
pin:
pcf8574: pcf8574_hub_in_3
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input35"
pin:
pcf8574: pcf8574_hub_in_3
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input36"
pin:
pcf8574: pcf8574_hub_in_3
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input37"
pin:
pcf8574: pcf8574_hub_in_3
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input38"
pin:
pcf8574: pcf8574_hub_in_3
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input39"
pin:
pcf8574: pcf8574_hub_in_3
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input40"
pin:
pcf8574: pcf8574_hub_in_3
number: 7
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input41"
pin:
pcf8574: pcf8574_hub_in_3
number: 8
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input42"
pin:
pcf8574: pcf8574_hub_in_3
number: 9
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input43"
pin:
pcf8574: pcf8574_hub_in_3
number: 10
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input44"
pin:
pcf8574: pcf8574_hub_in_3
number: 11
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input45"
pin:
pcf8574: pcf8574_hub_in_3
number: 12
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input46"
pin:
pcf8574: pcf8574_hub_in_3
number: 13
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input47"
pin:
pcf8574: pcf8574_hub_in_3
number: 14
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input48"
pin:
pcf8574: pcf8574_hub_in_3
number: 15
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input49"
pin:
pcf8574: pcf8574_hub_in_4
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input50"
pin:
pcf8574: pcf8574_hub_in_4
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input51"
pin:
pcf8574: pcf8574_hub_in_4
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input52"
pin:
pcf8574: pcf8574_hub_in_4
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input53"
pin:
pcf8574: pcf8574_hub_in_4
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input54"
pin:
pcf8574: pcf8574_hub_in_4
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input55"
pin:
pcf8574: pcf8574_hub_in_4
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input56"
pin:
pcf8574: pcf8574_hub_in_4
number: 7
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input57"
pin:
pcf8574: pcf8574_hub_in_4
number: 8
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input58"
pin:
pcf8574: pcf8574_hub_in_4
number: 9
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input59"
pin:
pcf8574: pcf8574_hub_in_4
number: 10
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input60"
pin:
pcf8574: pcf8574_hub_in_4
number: 11
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input61"
pin:
pcf8574: pcf8574_hub_in_4
number: 12
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input62"
pin:
pcf8574: pcf8574_hub_in_4
number: 13
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input63"
pin:
pcf8574: pcf8574_hub_in_4
number: 14
mode: INPUT
inverted: true

- platform: gpio
name: "a64--input64"
pin:
pcf8574: pcf8574_hub_in_4
number: 15
mode: INPUT
inverted: true

# Example configuration entry
sensor:
- platform: adc
pin: 39
name: "a64--analog--1"
update_interval: 20s
attenuation: 11db

- platform: adc
pin: 34
name: "a64--analog--2"
update_interval: 20s
attenuation: 11db

- platform: adc
pin: 36
name: "a64--analog--3"
update_interval: 20s
attenuation: 11db

- platform: adc
pin: 35
name: "a64--analog--4"
update_interval: 20s
attenuation: 11db

Attached Files
.txt

KC868-A64-ESPHome_PCF8575_Analog.txt (Size: 21.08 KB / Downloads: 782)

Pages (379): « Previous 1 … 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 … 379 Next »

Login
Username:
Password:	Lost Password?
	Remember me
