Note: This protocol document use for KinCony ESP32 smart controller:

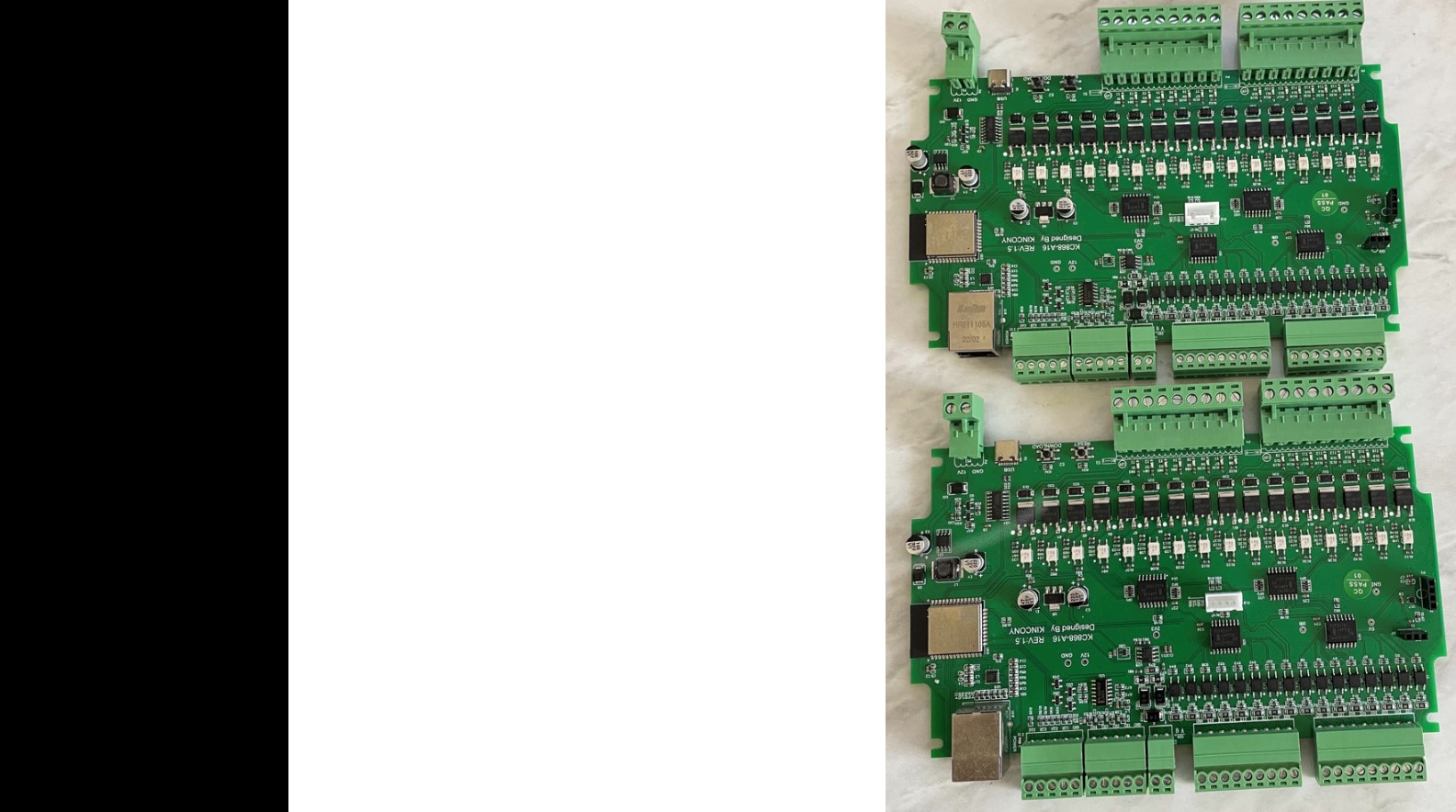

KC868-A4 KC868-A6  KC868-A8 KC868-A8S KC868-A16 KC868-E16S KC868-A32 KC868-A64 KC868-A128 smart controller
Different board will have different channel of digital output, digital input , ADC, DAC, so the protocol is same , just according to the hardware resource to set channel number.

  KC868-A-series-protocol-MQTT.pdf (Size: 105.97 KB / Downloads: 2609)

Note: This protocol document use for KinCony ESP32 smart controller:
KC868-A4 KC868-A6  KC868-A8 KC868-A8S KC868-A16 KC868-E16S KC868-A32 KC868-A64 KC868-A128 smart controller
Different board will have different channel of digital output, digital input , ADC, DAC, so the protocol is same , just according to the hardware resource to set channel number.

  KC868-A-series-protocol-ModBus.pdf (Size: 139.11 KB / Downloads: 4974)

Note: This protocol document use for KinCony ESP32 smart controller:
KC868-A4 KC868-A6  KC868-A8 KC868-A8S KC868-A16 KC868-E16S KC868-A32 KC868-A64 KC868-A128 smart controller
Different board will have different channel of digital output, digital input , ADC, DAC, so the protocol is same , just according to the hardware resource to set channel number.

  KC868-A-series-protocol-HTTP.pdf (Size: 176.61 KB / Downloads: 1394)

“KCS” means “KinCony Super” , this is a new firmware developed by KinCony for KC868-A series products in 2023. It has powerful functions and supports multiple communication protocols. It can manage various functions of the device through web pages, such as: input configuration, output configuration, monitoring management page, Timing schedule task mode, network configuration, communication protocol configuration, system configuration and other related functions


Input configuration:


Binding of digital input port and output port, setting of effective value of high and low level, support multiple trigger modes through digital input port, such as: single click, double click, hold on mode

Output configuration:


Output level invert, support delay auto off, support jog mode control, support interlock setting

monitoring management page:


Monitor the status of the input in real time through the web page, and manually control the output

Timing schedule task mode:


Support custom scheduled tasks by year, month, day, hour, minute

Network Configuration:


configuration of ethernet and wifi

Communication protocol configuration:


Support MQTT, HTTP, TCP Server, TCP Client, UDP Server, UDP Client, Modbus multiple communication protocols

Tuya App configuration:


Configure Tuya app license to remote control board by internet

System Configuration:


default parameter settings

Hi All,

I just purchased one board KC868-A8S but is seems i am usung wrong protocol.

When sending any message i receive an just an echo of same command.

i need to flash any firmware?
where i can find a communication protocol?

Please help,
Luigi.

How to make communication with an HMI, by Ethernet?

command does not work, it was supposed to give a command that if button 1 was LOW, it would activate output P0, what did i do wrong to make it not work?

#include "Arduino.h"
#include "PCF8574.h"

// Define o endereço de entrada do i2c
PCF8574 pcf8574_1(0x22,4,5); // canal 1-8 endereço: 100010
PCF8574 pcf8574_2(0x21,4,5); // endereço do canal 9-16: 100001
PCF8574 pcf8574_3(0x25,4,5);


unsigned long timeElapsed;
void setup()
{
    Serial.begin(115200);
    atraso(1000);


pcf8574_3.pinMode(P5, OUTPUT);

pcf8574_1.pinMode(P0, ENTRADA);
pcf8574_1.pinMode(P1, ENTRADA);
pcf8574_1.pinMode(P2, ENTRADA);
pcf8574_1.pinMode(P3, ENTRADA);
pcf8574_1.pinMode(P4, INPUT);
pcf8574_1.pinMode(P5, ENTRADA);
pcf8574_1.pinMode(P6, INPUT);
pcf8574_1.pinMode(P7, ENTRADA);

pcf8574_2.pinMode(P0, ENTRADA);
pcf8574_2.pinMode(P1, ENTRADA);
pcf8574_2.pinMode(P2, ENTRADA);
pcf8574_2.pinMode(P3, ENTRADA);
pcf8574_2.pinMode(P4, INPUT);
pcf8574_2.pinMode(P5, ENTRADA);
pcf8574_2.pinMode(P6, INPUT);
pcf8574_2.pinMode(P7, ENTRADA);

    Serial.print("Iniciar pcf8574...");
    if (pcf8574_1.begin()){
        Serial.println("pcf8574_1_OK");
    }outro{
        Serial.println("pcf8574_1_KO");
    }

  Serial.print("Iniciar pcf8574...");
  if (pcf8574_2.begin()){
    Serial.println("pcf8574_2_OK");
  }outro{
    Serial.println("pcf8574_2_KO");
  }
Serial.print("Iniciar pcf8574...");
    if (pcf8574_3.begin()){
        Serial.println("pcf8574_3_OK");
    }outro{
        Serial.println("pcf8574_3_KO");
    }

}

laço vazio()
{
uint8_t val1 = pcf8574_1.digitalRead(P0);
uint8_t val2 = pcf8574_1.digitalRead(P1);
uint8_t val3 = pcf8574_1.digitalRead(P2);
uint8_t val4 = pcf8574_1.digitalRead(P3);
uint8_t val5 = pcf8574_1.digitalRead(P4);
uint8_t val6 = pcf8574_1.digitalRead(P5);
uint8_t val7 = pcf8574_1.digitalRead(P6);
uint8_t val8 = pcf8574_1.digitalRead(P7);

uint8_t val9 = pcf8574_2.digitalRead(P0);
uint8_t val10 = pcf8574_2.digitalRead(P1);
uint8_t val11 = pcf8574_2.digitalRead(P2);
uint8_t val12 = pcf8574_2.digitalRead(P3);
uint8_t val13 = pcf8574_2.digitalRead(P4);
uint8_t val14 = pcf8574_2.digitalRead(P5);
uint8_t val15 = pcf8574_2.digitalRead(P6);
uint8_t val16 = pcf8574_2.digitalRead(P7);

if (val1==BAIXO) {pcf8574_3.digitalWrite(P0, ALTO);}


if (val1==BAIXO) Serial.println("TECLA 1 PRESSIONADA");
if (val2==BAIXO) Serial.println("TECLA 2 PRESSIONADA");
if (val3==BAIXO) Serial.println("TECLA 3 PRESSIONADA");
if (val4==BAIXO) Serial.println("TECLA 4 PRESSIONADA");
if (val5==BAIXO) Serial.println("TECLA 5 PRESSIONADA");
if (val6==BAIXO) Serial.println("TECLA 6 PRESSIONADA");
if (val7==BAIXO) Serial.println("TECLA 7 PRESSIONADA");
if (val8==BAIXO) Serial.println("TECLA8 PRESSIONADA");

if (val9==BAIXO) Serial.println("TECLA 1 PRESSIONADA");
if (val10==BAIXO) Serial.println("TECLA 2 PRESSIONADA");
if (val11==BAIXO) Serial.println("TECLA 3 PRESSIONADA");
if (val12==BAIXO) Serial.println("TECLA 4 PRESSIONADA");
if (val13==BAIXO) Serial.println("TECLA 5 PRESSIONADA");
if (val14==BAIXO) Serial.println("TECLA 6 PRESSIONADA");
if (val15==BAIXO) Serial.println("TECLA 7 PRESSIONADA");
if (val16==BAIXO) Serial.println("TECLA8 PRESSIONADA");
atraso(300);
}

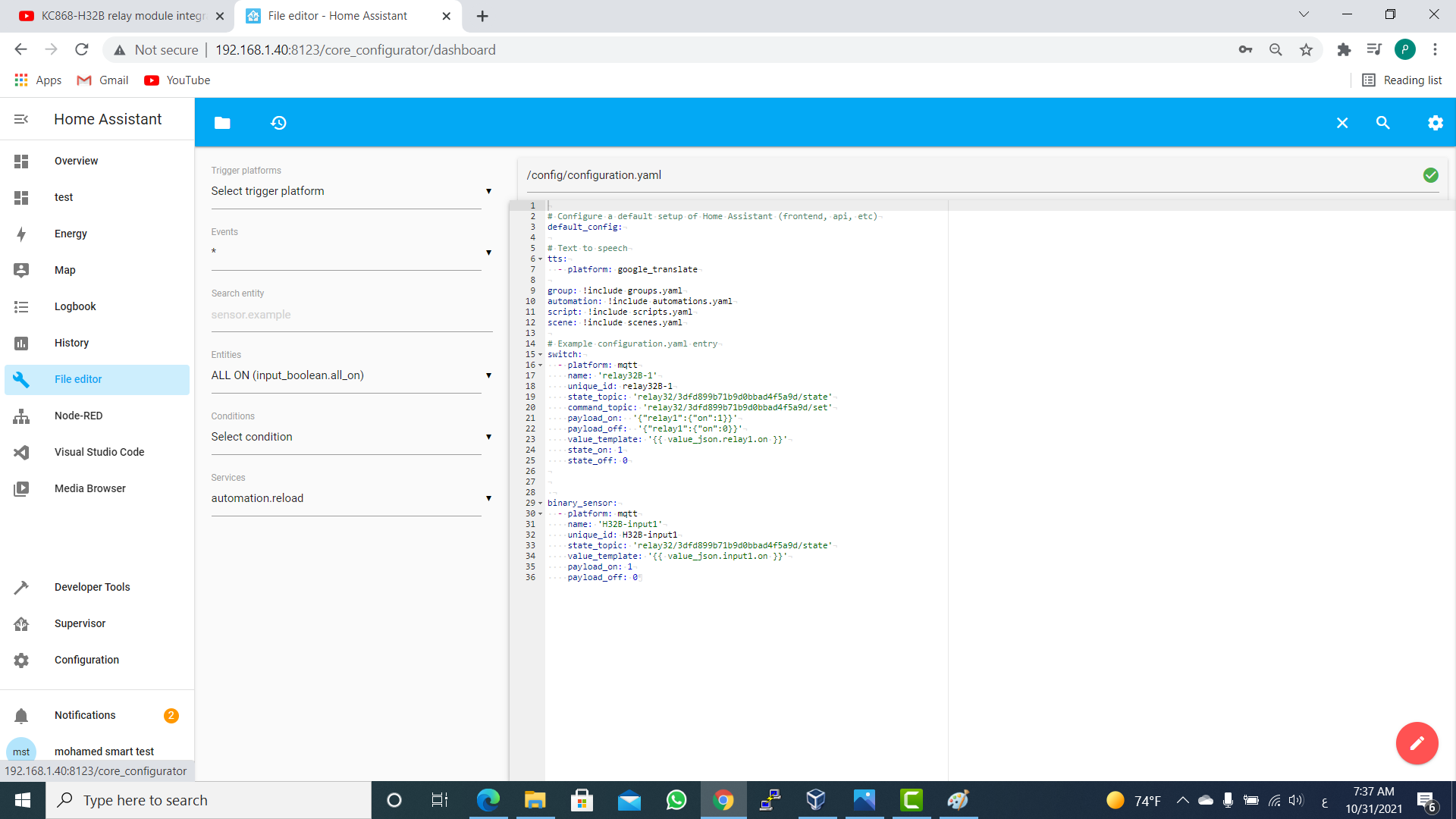

Hi,

I tried turning on and off without any problem, esphome is working.

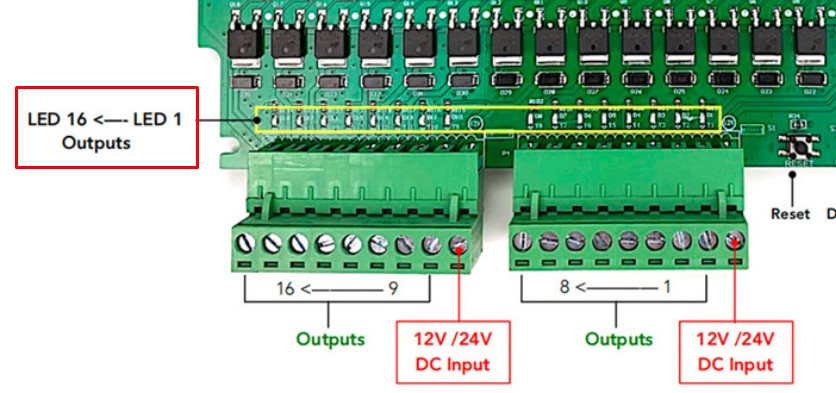

But when i check the board, the output led does not light up when i turn it on.
Below are the yaml i used, is there anything missing or wrong that causes the led not to light up when i switch it on using esphome?
Btw i have not connect or use any DC12/24v input yet.

# Example configuration entry for output input channel 1-16
pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-8
    address: 0x24
  - id: 'pcf8574_hub_out_2'  # for output channel 9-16
    address: 0x25

  - id: 'pcf8574_hub_in_1'  # for input channel 1-8
    address: 0x21
  - id: 'pcf8574_hub_in_2'  # for input channel 9-16
    address: 0x22

switch:
 - platform: gpio
    name: "switch01"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true
  - platform: gpio
    name: "switch02"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true
  - platform: gpio
    name: "switch03"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true
  - platform: gpio
    name: "switch04"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true

binary_sensor:
  - platform: gpio
    name: "input01"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true
  - platform: gpio
    name: "input02"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true
  - platform: gpio
    name: "input03"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true
  - platform: gpio
    name: "input04"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

Attached Files

Thumbnail(s)


Hello,

I looking for the tasmota FW and config file for the KC868-AI

any advise?

I just received a KC868-A8S board and am not able to get it to work. I started with the relay sample program. I copied pin_arduino.h to the project and changed SDA and SCL to 4 and 5 respectively as indicated. I also added static_assert statements to make sure that the correct values were picked up. The program compiled and loaded successfully. The pcf.begin() statement returns false indicating an error occurred. I then tried the sample I2CScanner project, mad the same changes and ran it. It indicated that there were no I2C devices detected. I also have a KC868-A4 which works correctly. The code is different but all the wiring is the same so I don't thing I have any cable problems.

// Visual Micro is in vMicro>General>Tutorial Mode
//
/*
    Name:      KC868_01.ino
    Created: 1/4/2023 4:15:15 PM
    Author:
*/

// Define User Types below here or use a .h file
//
// Import required libraries
#include <Arduino.h>
#include <PCF8574.h>

#define I2C_RELAYS_ADDR  0x24

/**/

static_assert ((SDA!=4),"SDA not defined correctly for KC878-A8S");
static_assert ((SCL!=5),"SCL not defined correctly for KC878-A8S");

PCF8574 pcf(I2C_RELAYS_ADDR,SDA,SCL);

// The setup() function runs once each time the micro-controller starts
void setup()
{
  Serial.begin(115200);
  delay(1000);

  Serial.println(F("Start Kincony KC868 - A8S Relays example..."));

  pcf.pinMode(P0, OUTPUT);
  pcf.pinMode(P1, OUTPUT);
  pcf.pinMode(P2, OUTPUT);
  pcf.pinMode(P3, OUTPUT);
  pcf.pinMode(P4, OUTPUT);
  pcf.pinMode(P5, OUTPUT);
  pcf.pinMode(P6, OUTPUT);
  pcf.pinMode(P7, OUTPUT);
  Serial.print("Initialize PCF8574 ");
  if (pcf.begin())
    Serial.println(F("OK"));
  else
    Serial.println(F("Error"));
  delay(20);
}

// Add the main program code into the continuous loop() function
void loop()
{
  pcf.digitalWrite(P4,HIGH);
  Serial.print(F("Relay #"));
  Serial.print(P4);
  Serial.println(F("ON"))  ;
  delay(10000);
  pcf.digitalWrite(P4,LOW);
  Serial.print(F("Relay #"));
  Serial.print(P4);
  Serial.println(F("OFF"))  ;
}



Sketch uses 214946 bytes (16%) of program storage space. Maximum is 1310720 bytes.
Global variables use 14688 bytes (4%) of dynamic memory, leaving 312992 bytes for local variables. Maximum is 327680 bytes.
esptool.py v3.0-dev

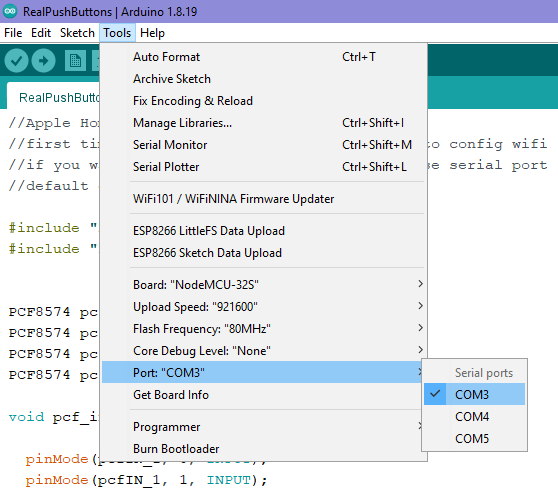

Serial port COM3
Connecting........_
Chip is ESP32-D0WD-V3 (revision 3)
Features: WiFi, BT, Dual Core, 240MHz, VRef calibration in efuse, Coding Scheme None
Crystal is 40MHz
MAC: c4:de:e2:ce:cc:74
Uploading stub...
Running stub...
Stub running...
Changing baud rate to 921600
Changed.
Configuring flash size...
Auto-detected Flash size: 4MB
Compressed 8192 bytes to 47...
Writing at 0x0000e000... (100 %)
Wrote 8192 bytes (47 compressed) at 0x0000e000 in 0.0 seconds (effective 6553.6 kbit/s)...
Hash of data verified.
Compressed 17120 bytes to 11164...
Writing at 0x00001000... (100 %)
Wrote 17120 bytes (11164 compressed) at 0x00001000 in 0.1 seconds (effective 951.1 kbit/s)...
Hash of data verified.
Compressed 215056 bytes to 113168...
Writing at 0x00010000... (14 %)
Writing at 0x00014000... (28 %)
Writing at 0x00018000... (42 %)
Writing at 0x0001c000... (57 %)
Writing at 0x00020000... (71 %)
Writing at 0x00024000... (85 %)
Writing at 0x00028000... (100 %)
Wrote 215056 bytes (113168 compressed) at 0x00010000 in 1.9 seconds (effective 927.0 kbit/s)...
Hash of data verified.
Compressed 3072 bytes to 128...
Writing at 0x00008000... (100 %)
Wrote 3072 bytes (128 compressed) at 0x00008000 in 0.0 seconds (effective 3072.0 kbit/s)...
Hash of data verified.

Leaving...
Hard resetting via RTS pin...

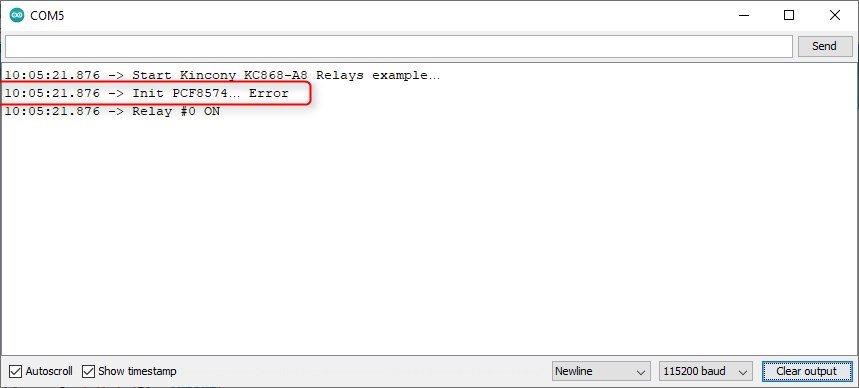

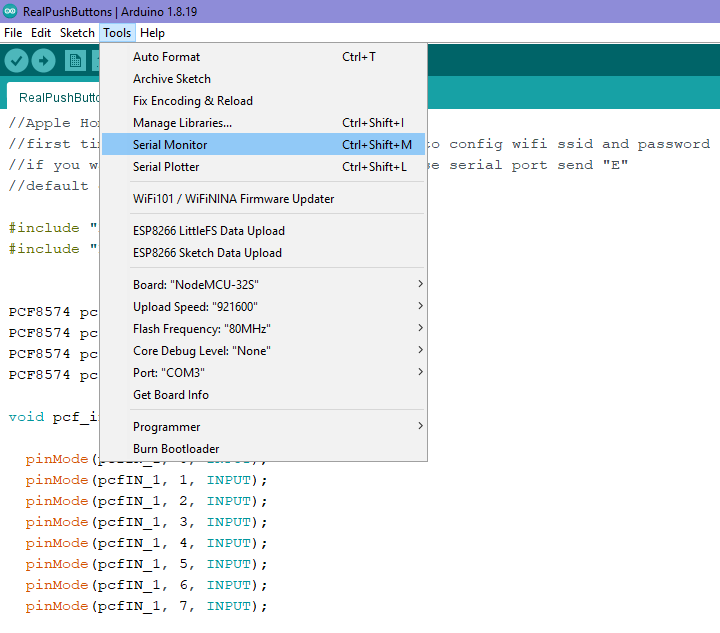

Start Kincony KC868 - A8S Relays example...
Initialize PCF8574 Error
Relay #4ON
Relay #4OFF
Relay #4ON
Relay #4OFF
Relay #4ON
Relay #4OFF
Relay #4ON
Relay #4OFF
Relay #4ON
Relay #4OFF
Relay #4ON




// --------------------------------------
// i2c_scanner
//
// Version 1
//    This program (or code that looks like it)
//    can be found in many places.
//    For example on the Arduino.cc forum.
//    The original author is not know.
// Version 2, Juni 2012, Using Arduino 1.0.1
//    Adapted to be as simple as possible by Arduino.cc user Krodal
// Version 3, Feb 26  2013
//    V3 by louarnold
// Version 4, March 3, 2013, Using Arduino 1.0.3
//    by Arduino.cc user Krodal.
//    Changes by louarnold removed.
//    Scanning addresses changed from 0...127 to 1...119,
//    according to the i2c scanner by Nick Gammon
//    https://www.gammon.com.au/forum/?id=10896
// Version 5, March 28, 2013
//    As version 4, but address scans now to 127.
//    A sensor seems to use address 120.
// Version 6, November 27, 2015.
//    Added waiting for the Leonardo serial communication.
//
//
// This sketch tests the standard 7-bit addresses
// Devices with higher bit address might not be seen properly.
//

#include <Wire.h>

static_assert ((SDA!=4),"SDA not defined correctly for KC878-A8S");
static_assert ((SCL!=5),"SCL not defined correctly for KC878-A8S");


void setup()
{
  Serial.begin(115200);
  delay(1000);
  while (!Serial);            // Leonardo: wait for serial monitor
  Serial.println("\nI2C Scanner");

if (Wire.begin(SDA,SCL))
  Serial.println("I2C Initialized");
else
  Serial.println("I2C Init Failed");

}


void loop()
{
  byte error, address;
  int nDevices;

  Serial.println("Scanning...");

  nDevices = 0;
  for(address = 1; address < 127; address++ )
  {
    // The i2c_scanner uses the return value of
    // the Write.endTransmisstion to see if
    // a device did acknowledge to the address.
    Wire.beginTransmission(address);
    error = Wire.endTransmission();

    if (error == 0)
    {
      Serial.print("I2C device found at address 0x");
      if (address<16)
        Serial.print("0");
      Serial.print(address,HEX);
      Serial.println("  !");

      nDevices++;
    }
    else if (error==4)
    {
      Serial.print("Unknown error at address 0x");
      if (address<16)
        Serial.print("0");
      Serial.println(address,HEX);
    }
  }
  if (nDevices == 0)
    Serial.println("No I2C devices found\n");
  else
    Serial.println("done\n");

  delay(5000);          // wait 5 seconds for next scan
}





Scanning...
No I2C devices found

Scanning...
No I2C devices found

Scanning...
No I2C devices found

Scanning...
No I2C devices found
