I bought it and used it, but it doesn't work.

I put the code on esphome and turned on the switch, but the led doesn't light up.

i use this code


esphome:
  name: a16

  platform: ESP32

  board: esp32dev





# Example configuration entry for ESP32

i2c:

  sda: 4

  scl: 5

  scan: true

  id: bus_a



# Example configuration entry

pcf8574:

  - id: 'pcf8574_hub_out_1'  # for output channel 1-8

    address: 0x24



  - id: 'pcf8574_hub_out_2'  # for output channel 9-16

    address: 0x25



  - id: 'pcf8574_hub_in_1'  # for input channel 1-8

    address: 0x21



  - id: 'pcf8574_hub_in_2'  # for input channel 9-16

    address: 0x22



# Individual outputs

switch:

  - platform: gpio

    name: "light1"

    pin:

      pcf8574: pcf8574_hub_out_1

      # Use pin number 0

      number: 0

      # One of INPUT or OUTPUT

      mode: OUTPUT

      inverted: false



  - platform: gpio

    name: "light9"

    pin:

      pcf8574: pcf8574_hub_out_2

      # Use pin number 0

      number: 0

      # One of INPUT or OUTPUT

      mode: OUTPUT

      inverted: false



binary_sensor:

  - platform: gpio

    name: "input1"

    pin:

      pcf8574: pcf8574_hub_in_1

      # Use pin number 0

      number: 0

      # One of INPUT or OUTPUT

      mode: INPUT

      inverted: false



  - platform: gpio

    name: "input9"

    pin:

      pcf8574: pcf8574_hub_in_2

      # Use pin number 0

      number: 0

      # One of INPUT or OUTPUT

      mode: INPUT
      inverted: false

# Enable logging

logger:



# Enable Home Assistant API

api:

  encryption:

    key: "xxxxxxxxxxxxxxxxxxxxxxxxxxxxx"



ota:

  password: "xxxxxxxxxxxxxxxxx"



wifi:

  ssid: !secret wifi_ssid

  password: !secret wifi_password



  # Enable fallback hotspot (captive portal) in case wifi connection fails

  ap:

    ssid: "xxxxxxxxxxxxxxx"

    password: "xxxxxxxx"



captive_portal:


  KC868-A128-ESPHome_PCF8575_Analog.txt (Size: 40.53 KB / Downloads: 881)

esphome:
  name: a128
  platform: ESP32
  board: esp32dev


# Enable logging
logger:

# Enable Home Assistant API
api:


# Example configuration entry
i2c:
  - id: bus_a
    sda: 5
    scl: 16
    scan: true
    frequency: 400kHz
  - id: bus_b
    sda: 15
    scl: 4
    scan: true
    frequency: 400kHz


# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

  # Optional manual IP
  manual_ip:
    static_ip: 192.168.1.198
    gateway: 192.168.1.1
    subnet: 255.255.255.0

# Example configuration entry
pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-16
    i2c_id: bus_a
    address: 0x24
    pcf8575: true

  - id: 'pcf8574_hub_out_2'  # for output channel 17-32
    i2c_id: bus_a
    address: 0x25
    pcf8575: true

  - id: 'pcf8574_hub_out_3'  # for output channel 33-48
    i2c_id: bus_a
    address: 0x21
    pcf8575: true

  - id: 'pcf8574_hub_out_4'  # for output channel 49-64
    i2c_id: bus_a
    address: 0x22
    pcf8575: true

  - id: 'pcf8574_hub_out_5'  # for output channel 65-80
    i2c_id: bus_a
    address: 0x26
    pcf8575: true

  - id: 'pcf8574_hub_out_6'  # for output channel 81-96
    i2c_id: bus_a
    address: 0x27
    pcf8575: true

  - id: 'pcf8574_hub_out_7'  # for output channel 97-112
    i2c_id: bus_a
    address: 0x20
    pcf8575: true

  - id: 'pcf8574_hub_out_8'  # for output channel 113-128
    i2c_id: bus_a
    address: 0x23
    pcf8575: true



  - id: 'pcf8574_hub_in_1'  # for a128-input channel 1-16
    i2c_id: bus_b
    address: 0x24
    pcf8575: true

  - id: 'pcf8574_hub_in_2'  # for a128-input channel 17-32
    i2c_id: bus_b
    address: 0x25
    pcf8575: true

  - id: 'pcf8574_hub_in_3'  # for a128-input channel 33-48
    i2c_id: bus_b
    address: 0x21
    pcf8575: true

  - id: 'pcf8574_hub_in_4'  # for a128-input channel 49-64
    i2c_id: bus_b
    address: 0x22
    pcf8575: true

  - id: 'pcf8574_hub_in_5'  # for a128-input channel 65-80
    i2c_id: bus_b
    address: 0x26
    pcf8575: true

  - id: 'pcf8574_hub_in_6'  # for a128-input channel 81-96
    i2c_id: bus_b
    address: 0x27
    pcf8575: true

  - id: 'pcf8574_hub_in_7'  # for a128-input channel 97-112
    i2c_id: bus_b
    address: 0x20
    pcf8575: true

  - id: 'pcf8574_hub_in_8'  # for a128-input channel 113-128
    i2c_id: bus_b
    address: 0x23
    pcf8575: true


# Individual outputs
switch:
  - platform: gpio
    name: "a128-light1"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light2"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light3"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light4"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light5"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light6"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light7"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light8"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "a128-light9"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 8
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light10"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 9
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light11"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light12"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light13"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light14"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light15"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light16"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 15
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "a128-light17"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light18"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light19"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light20"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light21"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light22"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light23"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light24"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light25"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 8
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light26"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 9
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light27"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light28"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light29"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light30"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light31"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light32"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 15
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light33"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light34"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light35"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light36"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light37"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light38"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light39"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light40"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light41"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 8
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light42"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 9
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light43"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light44"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light45"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light46"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light47"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light48"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 15
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "a128-light49"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light50"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light51"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light52"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light53"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light54"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light55"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light56"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light57"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 8
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light58"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 9
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light59"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light60"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light61"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light62"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light63"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light64"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 15
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light65"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light66"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light67"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light68"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light69"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light70"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light71"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light72"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light73"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 8
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light74"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 9
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light75"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light76"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light77"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light78"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light79"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light80"
    pin:
      pcf8574: pcf8574_hub_out_5
      number: 15
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light81"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light82"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light83"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light84"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light85"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light86"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light87"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light88"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light89"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 8
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light90"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 9
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light91"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light92"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light93"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light94"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light95"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light96"
    pin:
      pcf8574: pcf8574_hub_out_6
      number: 15
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light97"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light98"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light99"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light100"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light101"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light102"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light103"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light104"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light105"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 8
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light106"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 9
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light107"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light108"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light109"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light110"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light111"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light112"
    pin:
      pcf8574: pcf8574_hub_out_7
      number: 15
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light113"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light114"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light115"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light116"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light117"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light118"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light119"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light120"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light121"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 8
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light122"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 9
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light123"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light124"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light125"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light126"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light127"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a128-light128"
    pin:
      pcf8574: pcf8574_hub_out_8
      number: 15
      mode: OUTPUT
      inverted: true


# Individual inputs
binary_sensor:
  - platform: gpio
    name: "a128-input1"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input2"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input3"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input4"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input5"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input6"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input7"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input8"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "a128-input9"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input10"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input11"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input12"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input13"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input14"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input15"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input16"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 15
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "a128-input17"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input18"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input19"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input20"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input21"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input22"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input23"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input24"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input25"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input26"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input27"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input28"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input29"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input30"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input31"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input32"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 15
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "a128-input33"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input34"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input35"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input36"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input37"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input38"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input39"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input40"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input41"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input42"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input43"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input44"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input45"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input46"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input47"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input48"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 15
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "a128-input49"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input50"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input51"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input52"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input53"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input54"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input55"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input56"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input57"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input58"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input59"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input60"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input61"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input62"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input63"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input64"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 15
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "a128-input65"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input66"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input67"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input68"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input69"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input70"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input71"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input72"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input73"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input74"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input75"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input76"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input77"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input78"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input79"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input80"
    pin:
      pcf8574: pcf8574_hub_in_5
      number: 15
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "a128-input81"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input82"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input83"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input84"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input85"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input86"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input87"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input88"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input89"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input90"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input91"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input92"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input93"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input94"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input95"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input96"
    pin:
      pcf8574: pcf8574_hub_in_6
      number: 15
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input97"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input98"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input99"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input100"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input101"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input102"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input103"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input104"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input105"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input106"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input107"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input108"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input109"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input110"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input111"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input112"
    pin:
      pcf8574: pcf8574_hub_in_7
      number: 15
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input113"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input114"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input115"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input116"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input117"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input118"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input119"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input120"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input121"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 8
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input122"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 9
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input123"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 10
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input124"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 11
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input125"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 12
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input126"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 13
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input127"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 14
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a128-input128"
    pin:
      pcf8574: pcf8574_hub_in_8
      number: 15
      mode: INPUT
      inverted: true

#define ANALOG_A1  GPIO39
#define ANALOG_A2  GPIO34
#define ANALOG_A3  GPIO36
#define ANALOG_A4  GPIO35

IIC Bus-1:A

SDA-A:GPIO5
SCL-A:GPIO16


PCF8575:U144 (relay1-16): 100 100 = 0x24
PCF8575:U146 (relay17-32): 100 101 = 0x25
PCF8575:U148 (relay33-48): 100 001 = 0x21
PCF8575:U150 (relay49-64): 100 010 = 0x22
PCF8575:U280 (relay65-80): 100 110 = 0x26
PCF8575:U282 (relay81-96): 100 111 = 0x27
PCF8575:U284 (relay97-112): 100 000 = 0x20
PCF8575:U286 (relay113-128): 100 011 = 0x23

IIC Bus-2:B
SDA-B:GPIO15
SCL-B:GPIO4

PCF8575:U143 (DI1-16): 100 100 = 0x24
PCF8575:U145 (DI17-32): 100 101 = 0x25
PCF8575:U147 (DI33-48): 100 001 = 0x21
PCF8575:U149 (DI49-64): 100 010 = 0x22
PCF8575:U279 (DI65-80): 100 110 = 0x26
PCF8575:U281 (DI81-96): 100 111 = 0x27
PCF8575:U283 (DI97-112): 100 000 = 0x20
PCF8575:U285 (DI113-128): 100 011 = 0x23

-----------------

Ethernet (LAN8720) I/O define:

#define ETH_ADDR        0
#define ETH_POWER_PIN  -1
#define ETH_MDC_PIN    23
#define ETH_MDIO_PIN  18
#define ETH_TYPE      ETH_PHY_LAN8720
#define ETH_CLK_MODE  ETH_CLOCK_GPIO17_OUT

--------------------

RS485:
RXD:GPIO13
TXD:GPIO14

Extend serial port (3.3v TTL level):
RXD:GPIO32
TXD:GPIO33

I am using TCP IN node for getting value. Depending on the value I need to set the value brightness of light 1 . my entity is input_number.light_1.

but I getting errors. how to write JSON for the above requirement.

Objective : Set the value to input_bumber.light_1 using json


please find the attachment for your reference..Please help me to sort out this issue.

Attached Files

Thumbnail(s)


We have designed KC868-A128 ESP32 board use for huge INPUT and OUTPUT devices for home automation DIY. it is a input module based on ESP32 chip. it have 128 channel digital input ports, every input channel use optocoupler isolation, so that can work for 1000 meter with sensors or any dry contact devices. Support work with RS485. Made For ESPHome and easily integrate to home assistant for smart home automation project DIY. You can write any code by Arduino IDE to ESP32 wifi/bluetooth/ethernet RS485 module.

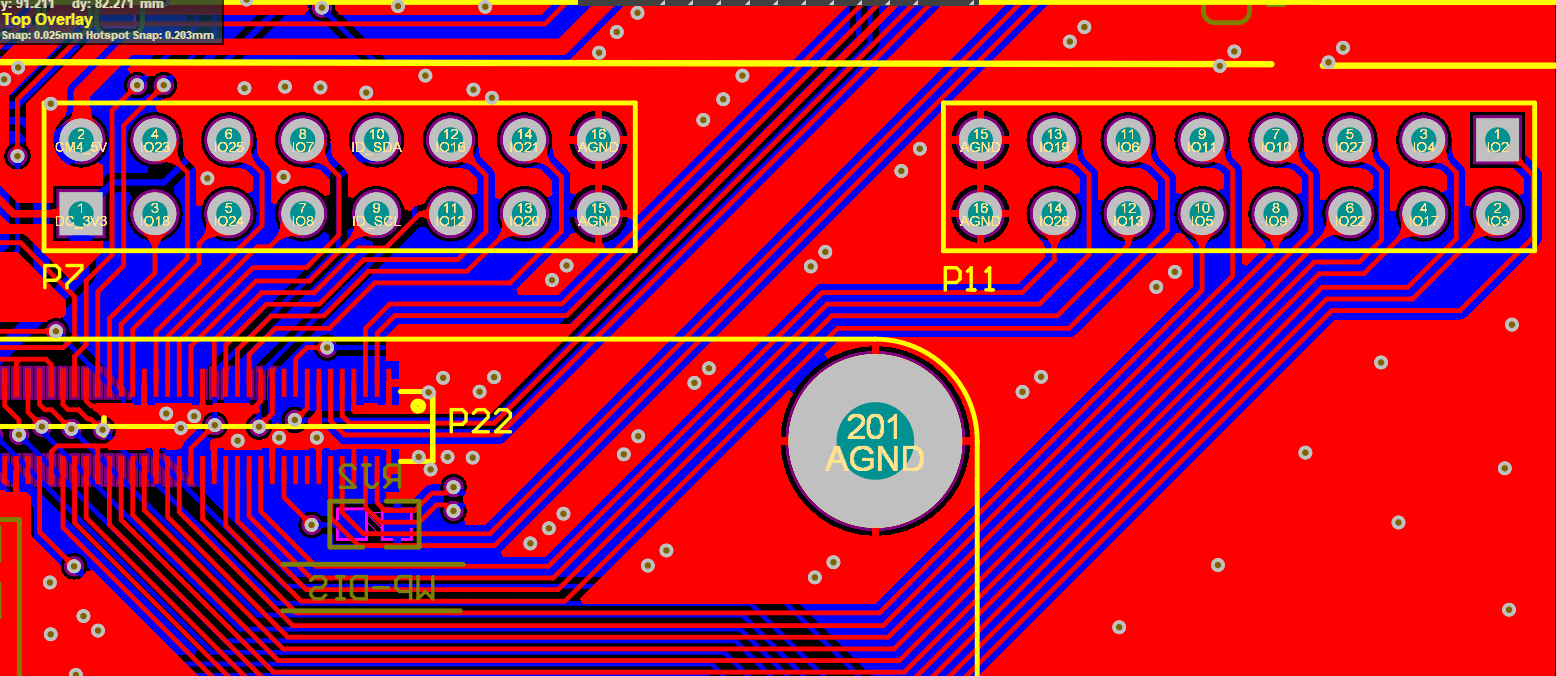

new pcb v1.5 of KC868-A8, replaced USB-C with MiniUSB port.

Here are our demo dashboard used frontend plugin in HACS:

Weather Card
Config Template Card
Simple Weather Card
Kiosk Mode
card-mod
mini-graph-card
button-card
Homekit panel card


Here is 3D dashboard demo video used config file:

  home-assistant-dashboard-3d-kincony-yaml.txt (Size: 35.28 KB / Downloads: 894)
Here is 3D dashboard sample photos:

  home-assistant-dashboard-3d-kincony.zip (Size: 4.87 MB / Downloads: 927)

Hi.
I need code for KC868-A8 V1.4 For MQTT Use just like in KC868-4 mqtt code what is is useles because i2C and it has only WIFI.

Ineed
1. LAN Configuration with static ip and dhcp disabled with //
2.WIFI Configuration with static ip but not in use //
3.MQTT control lines i will edit subs and bups. inputs has to buplish and outputs has to subscribe
4. example how to make output control momentary or latching.
Can somebody help me . i have tried but i need code to learn and cant find eny clear code to read and understand.

Please tell me (if it possible) how to use rs 485 port with tasmota firmware?
I've got some rs 485 devices (such as C02 sensors, wind speed and so on) and want them to receive data from. Like i receive data from tasmota sensors to my mqtt server by json strings.

I have connected to rs 485 port some of them (powered on of cource) but no data came. like nothing happens.

Is it really possible with KC868-A16 or I must search some other device?

Thank you.

if you are using CM4 8G eMMC version, installed home assistant and add-on. when you have not enough space of eMMC, you can use "movedata disk" function, that can move your data to USB disk, save your eMMC space. it's easy.
