esphome:
  name: ap

esp32:
  board: esp32dev
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "hx8eSqbwjWs9/2bK0qK55QfTIOpI4gCfzLOeaOXZMaU="

ota:
  password: "31aa1919b5a0deffc8f9dbcaedd7561b"

wifi:
  ssid: KinCony
  password: a12345678

  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "Ap Fallback Hotspot"
    password: "CWh7uQPhdrfU"

captive_portal:


# Example configuration entry for ESP32
i2c:
  sda: 4
  scl: 16
  scan: true
  id: bus_a

pcf8574:
  - id: 'pcf8574_hub_in_1'  # for input channel 1-8    maybe 0x22  /  0x3A
    address: 0x3A

  - id: 'pcf8574_hub_in_2'  # for input channel 9-16
    address: 0x21

binary_sensor:
  - platform: gpio
    name: "ap-input1"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input2"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input3"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input4"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input5"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input6"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input7"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input8"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input9"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input10"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input11"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input12"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input13"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input14"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input15"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input16"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input17"
    pin:
      number: 34
      inverted: true

  - platform: gpio
    name: "ap-input18"
    pin:
      number: 35
      inverted: true

pca9685:
    id: 'pca9685_hub'
    frequency: 500

output:
  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM0"
    channel: 0

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM1"
    channel: 1

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM2"
    channel: 2

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM3"
    channel: 3

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM4"
    channel: 4

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM5"
    channel: 5

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM6"
    channel: 6

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM7"
    channel: 7

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM8"
    channel: 8

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM9"
    channel: 9

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM10"
    channel: 10

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM11"
    channel: 11

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM12"
    channel: 12

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM13"
    channel: 13

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM14"
    channel: 14

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM15"
    channel: 15


light:
  - platform: monochromatic
    name: "Color-LED-1"
    output: PWM0
  - platform: monochromatic
    name: "Color-LED-2"
    output: PWM1
  - platform: monochromatic
    name: "Color-LED-3"
    output: PWM2
  - platform: monochromatic
    name: "Color-LED-4"
    output: PWM3
  - platform: monochromatic
    name: "Color-LED-5"
    output: PWM4
  - platform: monochromatic
    name: "Color-LED-6"
    output: PWM5
  - platform: monochromatic
    name: "Color-LED-7"
    output: PWM6
  - platform: monochromatic
    name: "Color-LED-8"
    output: PWM7
  - platform: monochromatic
    name: "Color-LED-9"
    output: PWM8
  - platform: monochromatic
    name: "Color-LED-10"
    output: PWM9
  - platform: monochromatic
    name: "Color-LED-11"
    output: PWM10
  - platform: monochromatic
    name: "Color-LED-12"
    output: PWM11
  - platform: monochromatic
    name: "Color-LED-13"
    output: PWM12
  - platform: monochromatic
    name: "Color-LED-14"
    output: PWM13
  - platform: monochromatic
    name: "Color-LED-15"
    output: PWM14
  - platform: monochromatic
    name: "Color-LED-16"
    output: PWM15

  - platform: rgbw
    name: "ap-rgbw"
    red: PWM1
    green: PWM2
    blue: PWM3
    white: PWM4


switch:
  - platform: gpio
    name: "ap-light1"
    pin: 13
    inverted: false

  - platform: gpio
    name: "ap-light2"
    pin: 2
    inverted: false

esphome:
  name: ap

esp32:
  board: esp32dev
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "hx8eSqbwjWs9/2bK0qK55QfTIOpI4gCfzLOeaOXZMaU="

# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0



# Example configuration entry for ESP32
i2c:
  sda: 4
  scl: 16
  scan: true
  id: bus_a

pcf8574:
  - id: 'pcf8574_hub_in_1'  # for input channel 1-8    maybe 0x22  /  0x3A
    address: 0x3A

  - id: 'pcf8574_hub_in_2'  # for input channel 9-16
    address: 0x21

binary_sensor:
  - platform: gpio
    name: "ap-input1"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input2"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input3"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input4"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input5"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input6"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input7"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input8"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input9"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input10"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input11"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input12"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input13"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input14"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input15"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input16"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "ap-input17"
    pin:
      number: 34
      inverted: true

  - platform: gpio
    name: "ap-input18"
    pin:
      number: 35
      inverted: true

pca9685:
    id: 'pca9685_hub'
    frequency: 500

output:
  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM0"
    channel: 0

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM1"
    channel: 1

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM2"
    channel: 2

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM3"
    channel: 3

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM4"
    channel: 4

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM5"
    channel: 5

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM6"
    channel: 6

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM7"
    channel: 7

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM8"
    channel: 8

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM9"
    channel: 9

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM10"
    channel: 10

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM11"
    channel: 11

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM12"
    channel: 12

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM13"
    channel: 13

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM14"
    channel: 14

  - platform: pca9685
    pca9685_id: 'pca9685_hub'
    id: "PWM15"
    channel: 15


light:
  - platform: monochromatic
    name: "Color-LED-1"
    output: PWM0
  - platform: monochromatic
    name: "Color-LED-2"
    output: PWM1
  - platform: monochromatic
    name: "Color-LED-3"
    output: PWM2
  - platform: monochromatic
    name: "Color-LED-4"
    output: PWM3
  - platform: monochromatic
    name: "Color-LED-5"
    output: PWM4
  - platform: monochromatic
    name: "Color-LED-6"
    output: PWM5
  - platform: monochromatic
    name: "Color-LED-7"
    output: PWM6
  - platform: monochromatic
    name: "Color-LED-8"
    output: PWM7
  - platform: monochromatic
    name: "Color-LED-9"
    output: PWM8
  - platform: monochromatic
    name: "Color-LED-10"
    output: PWM9
  - platform: monochromatic
    name: "Color-LED-11"
    output: PWM10
  - platform: monochromatic
    name: "Color-LED-12"
    output: PWM11
  - platform: monochromatic
    name: "Color-LED-13"
    output: PWM12
  - platform: monochromatic
    name: "Color-LED-14"
    output: PWM13
  - platform: monochromatic
    name: "Color-LED-15"
    output: PWM14
  - platform: monochromatic
    name: "Color-LED-16"
    output: PWM15

  - platform: rgbw
    name: "ap-rgbw"
    red: PWM1
    green: PWM2
    blue: PWM3
    white: PWM4


switch:
  - platform: gpio
    name: "ap-light1"
    pin: 13
    inverted: false

  - platform: gpio
    name: "ap-light2"
    pin: 2
    inverted: false

IIC SDA:GPIO4
IIC SCL:GPIO16

PCF8574:U14 (DI1-8):  0x22
PCF8574:U31 (DI9-16): 0x21

PCA9685 IIC address: 0x00

DI17: GPIO34
DI18: GPIO35

Relay1: GPIO13
Relay2: GPIO2

Button_Download: GPIO0

Ethernet (LAN8720) I/O define:

#define ETH_ADDR        0
#define ETH_POWER_PIN  -1
#define ETH_MDC_PIN    23
#define ETH_MDIO_PIN  18
#define ETH_TYPE      ETH_PHY_LAN8720
#define ETH_CLK_MODE  ETH_CLOCK_GPIO17_OUT

--------------------
RS485:
RXD:GPIO33
TXD:GPIO14

Extend serial:
GPIO5
GPIO32

Hi

I have a situation when Home Assistant starts all my entities from 2 COLB modules have 'unknown' values. That's because the COLB modules are note sending periodic state messages ore they have no availability topic.   They are sending data only on state changes. That's could be critical in some situations like climate control.
Example:
Turning on or off the heating in some rooms based on windows states. If a window in a room is closed then turn on the heating in that specific room. Now When HA starts the state of the window will be unknown so the heating won't start. That's only a banal example but in some critical scenes this could be an issue.
Proposed solution:
Make COLB to periodically (ex: every second) send stats data or when HA starts make some request to COLB topic to provide current sensor states.

This could massive improve the device reliability. Is it possible? Thank you.

Hi Team

In Lesson 3 - of Home Automation Power distribution Box - below is the link

New tab (kincony.com)

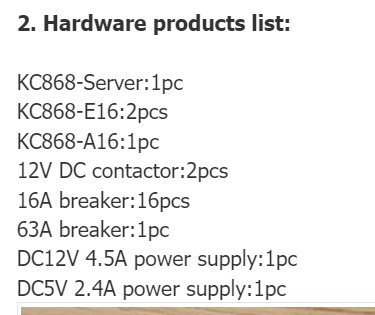

Kindly confirm the What is the "Amps " used for ( 12V DC contactor) in Hardware lists ?



Thanks & Regards,
Arshad

Attached Files

Thumbnail(s)

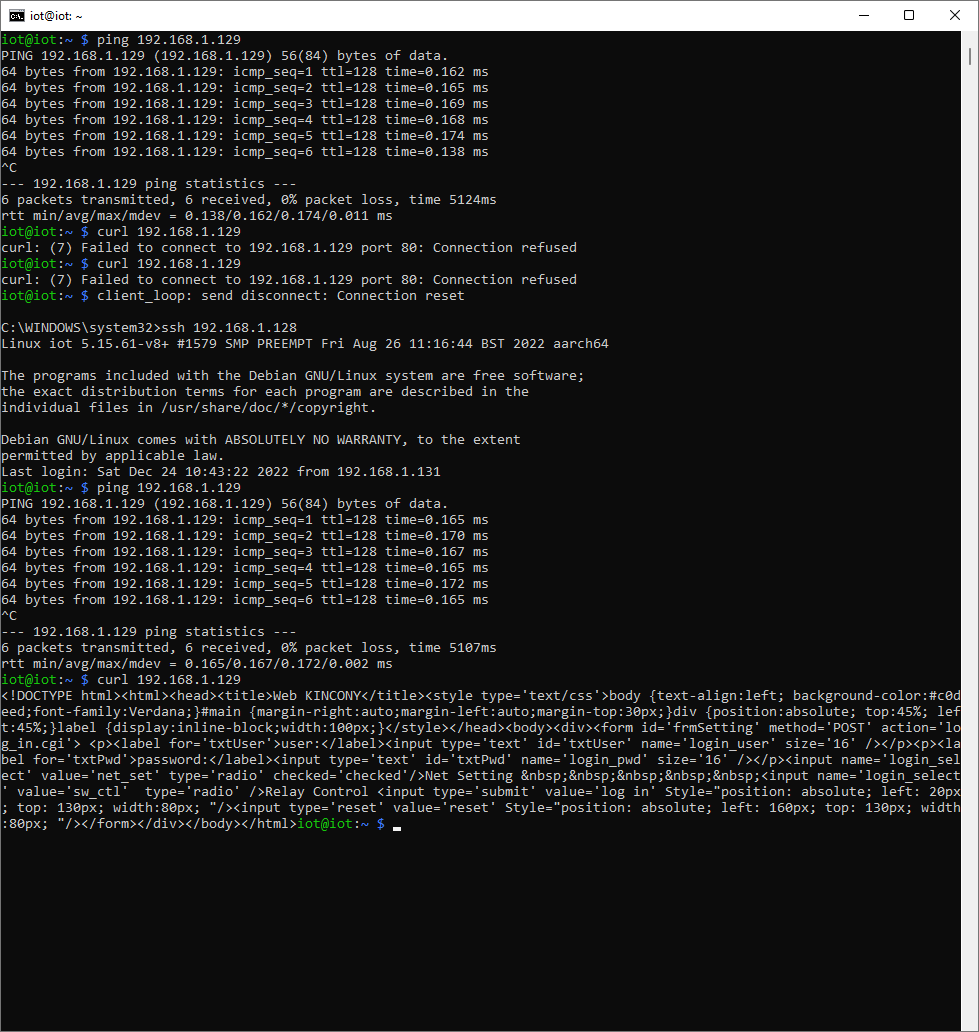

KC828-Server has two ethernet
I installed Debian on CM4 with ipV4 192.168.1.128
another ipV4 is 192.168.1.129, work mode MQTT

My problem is KC828-Server can be pinged from 192.168.1.128 to 192.168.1.129, but unable to respond mqtt command, neither to login until I do a restart then everything works fine.
This happens many times in a day, and I can't figure out how to solve it other than restarting the module.
Please advise.

Attached Files

Thumbnail(s)


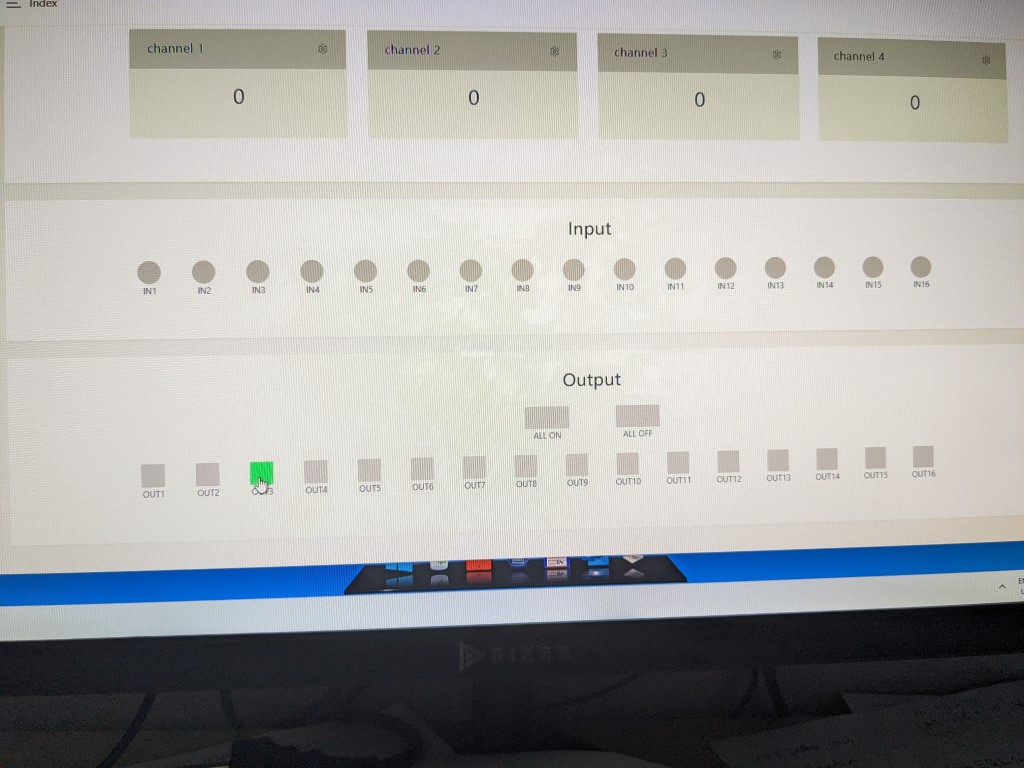

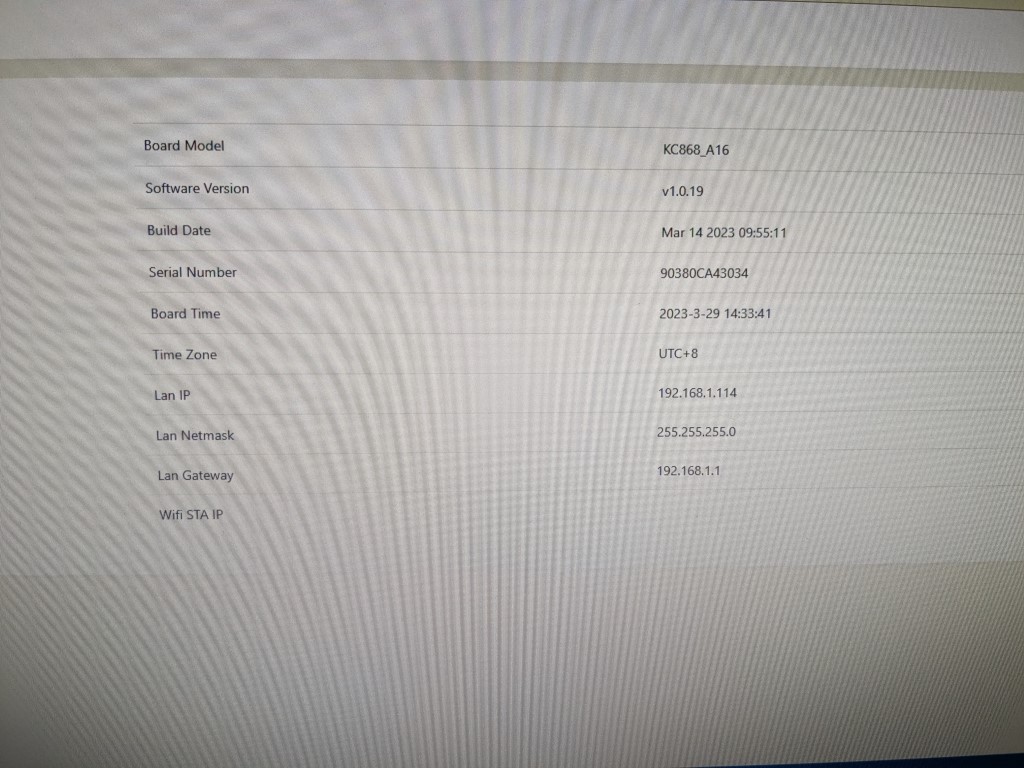

Hi,

The Uair case seems like a cool solution for DIY room sensors of any type but I'm not sold on the default PCB which is pretty expensive and contains features I do not need (like GPRS). However it seems to me that a case with nothing in it (eg no usb connector or LED) is also less than ideal as getting everything built into it and aligned is a pain.

Is there a barebones PCB option? For example the PCB  + USB B/C connector + break out header for the USB terminals? That would mean the PCB would be very cheap, but installing my own ESP32 and sensors would be easy....

Thanks!

CP.

hello all,

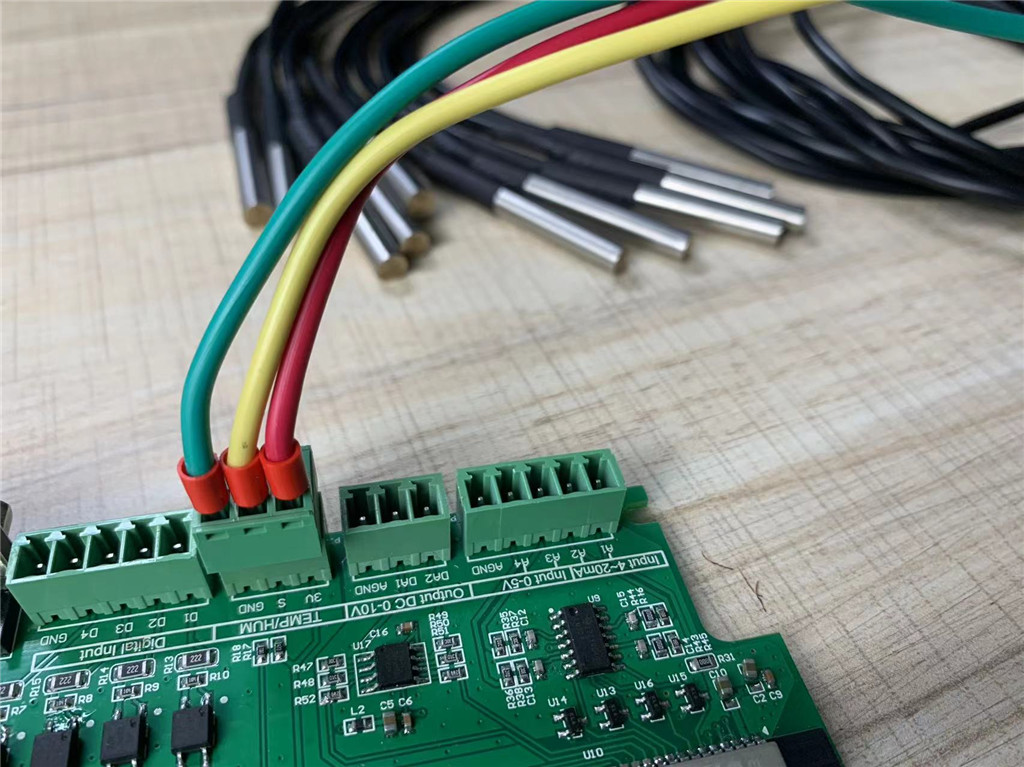

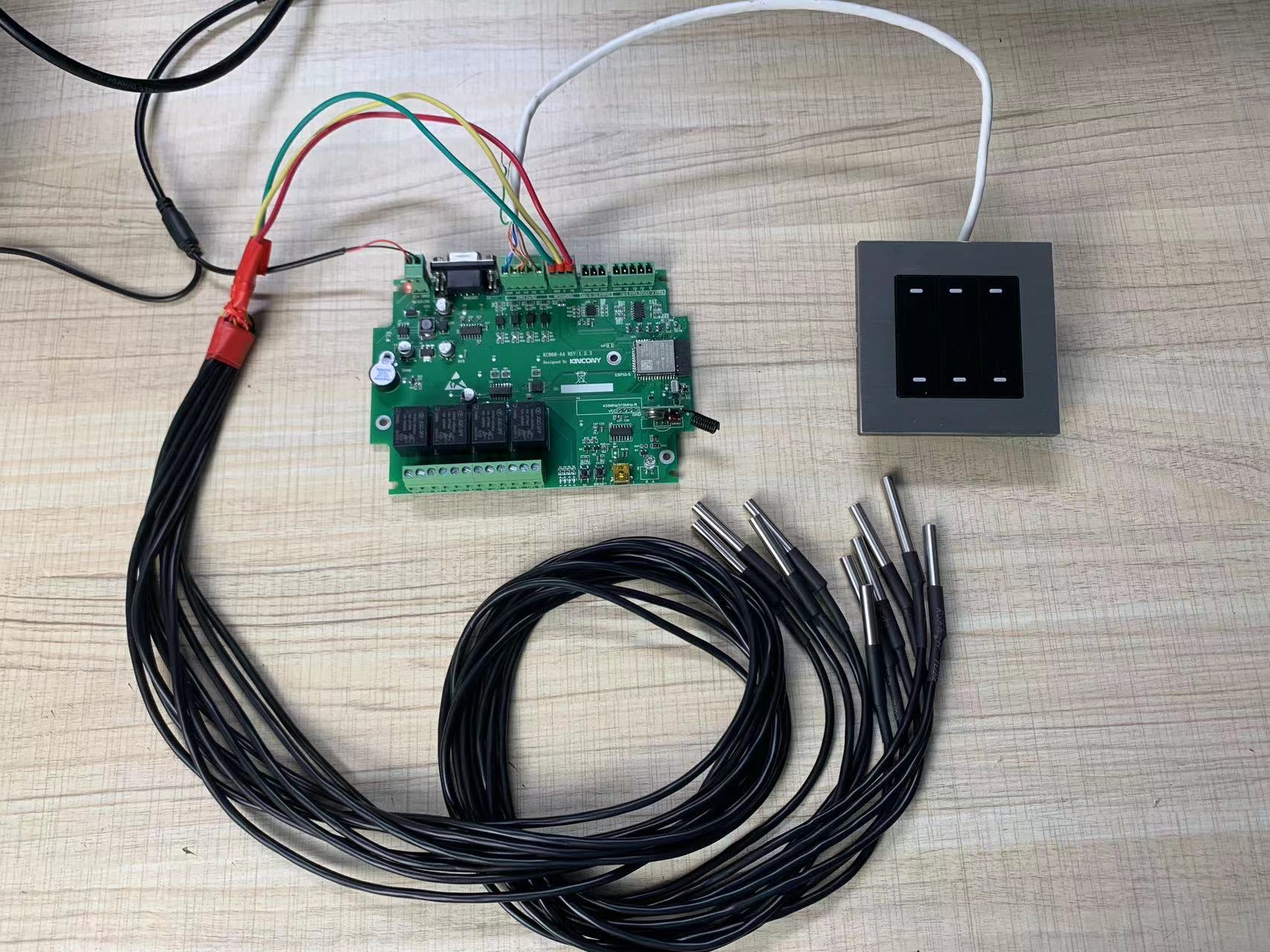

I am just new to the products of kincony and have a question: I am looking for a board with at least 8 relays and with the possibility to connect a few 1-wire sensors (temperature and VOC). If I saw it right, the KC868-A8 is exactly the right one for what I am looking for. Also price wise. Or ?
thx,
greatings

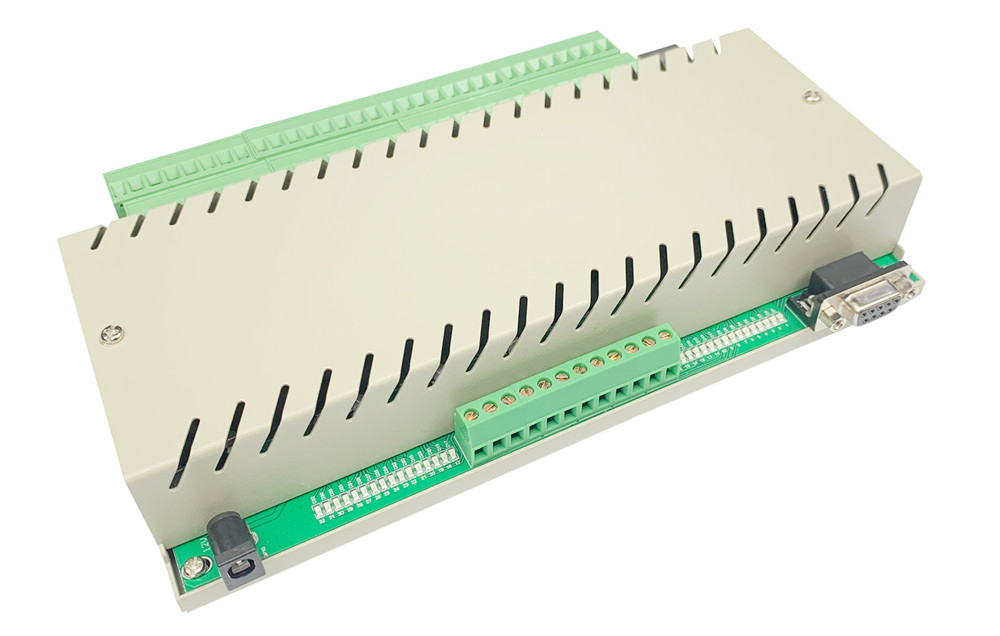

Let me present here my KC868-A16+16R* model to control my household lightning
+16R in name stands basic KC868-A16 have grown with additional 16-channel relay board on top of existing outputs.

Reason why I needed this is I have in my house impact relays what turn lights on/off and to control those I have low voltage push buttons what have led indicator to present light state.
KC868-A16 digital inputs are reserved for button inputs
KC868-A16 Mosfet outputs are reserved to present output state in buttons
Additional 16 relays are to control impact relays as those require 12-24Vac

Also I have here and there some smart lights what need to be constant AC, so for those channels impact relay is always in line powered positions and lights are controlled over the air, but for traditional dummy lights impact relays are controlled with that additional board relays. There's also failsafe that is Home Assistant or LAN is unreachable all lights are controlled with on/off function like traditional lights.

I'm running ESPhome in board

16-channel relay board is basic 12Vdc voltage board what can be found everywhere like from Amazon or Aliexpress. To able control relays I had to add pcf8575 16 channel I2C IO extender card to relay board and wire it to KC868-A16 board I2C pins. Also couple of other modifications needed to get board fitted to same enclosure than  KC868-A16. Those were to move large electrolytic capacitor, power connector and pins headers to bottom side of circuit board. note in a picture power connector is still in original place
Also KC868-A16 enclosure got some modification, like trimming a skirt, adding slot for the board and slots to reach connector screws from top. Need to add some finishing touch to enclosure for sure

she might not won beauty contest but she rock!


Failsafe function video https://drive.google.com/file/d/17PmpGSY...DObO1sK4g8

edit: thank you for uploading images.

I am embarrassed to ask this and have flashed many ESP32s with far more complicated code but I am just trying to load one of the demo sketches provided by KinCony just to test my 868-A6.
 I get this:

Connecting.....Traceback (most recent call last):
  File "esptool.py", line 34, in <module>
  File "esptool/__init__.py", line 1004, in _main
  File "esptool/__init__.py", line 790, in main
  File "esptool/loader.py", line 1108, in flash_set_parameters
  File "esptool/loader.py", line 406, in check_command
  File "esptool/loader.py", line 375, in command
  File "esptool/loader.py", line 307, in read
StopIteration
[94734] Failed to execute script 'esptool' due to unhandled exception!

I am using "cu.usbserial 14620" drivers and they work with my ESP32's. Can anyone tell me what might be wrong?
The script is:
Blink led on PIN0
by Mischianti Renzo <http://www.mischianti.org>

I have a lot to learn


/*
Blink led on PIN0
by Mischianti Renzo <http://www.mischianti.org>
https://www.mischianti.org/2019/01/02/pc...asy-usage/
*/
#include "Arduino.h"
#include "PCF8574.h"
// Set i2c address
PCF8574 pcf8574(0x24,4,15);
void setup()
{
Serial.begin(115200);
//delay(1000);
// Set pinMode to OUTPUT
pcf8574.pinMode(P0, OUTPUT);
pcf8574.pinMode(P1, OUTPUT);
pcf8574.pinMode(P2, OUTPUT);
pcf8574.pinMode(P3, OUTPUT);
pcf8574.pinMode(P4, OUTPUT);
pcf8574.pinMode(P5, OUTPUT);
pcf8574.digitalWrite(P0, HIGH);
pcf8574.digitalWrite(P1, HIGH);
pcf8574.digitalWrite(P2, HIGH);
pcf8574.digitalWrite(P3, HIGH);
pcf8574.digitalWrite(P4, HIGH);
pcf8574.digitalWrite(P5, HIGH);
Serial.print("Init pcf8574...");
if (pcf8574.begin()){
Serial.println("OK");
}else{
Serial.println("KO");
}
}
void loop()
{
delay(300);
pcf8574.digitalWrite(P0, LOW);
delay(300);
pcf8574.digitalWrite(P1, LOW);
delay(300);
pcf8574.digitalWrite(P2, LOW);
delay(300);
pcf8574.digitalWrite(P3, LOW);
delay(300);
pcf8574.digitalWrite(P4, LOW);
delay(300);
pcf8574.digitalWrite(P5, LOW);
delay(300);
}
