#include "PinDefinitionsAndMore.h"
#include <IRremote.h>

void setup() {

  Serial.begin(9600);
  IrSender.begin(IR_SEND_PIN, ENABLE_LED_FEEDBACK);

}

  uint16_t sAddress = 0x78;
  uint8_t sCommand = 0xCD;
  uint8_t sRepeats = 0;

void loop() {
  IrSender.sendNEC(sAddress, sCommand, sRepeats);
  delay(1000);
}


download arduino IDE source code file:

  Uair_IR_send.zip (Size: 388 bytes / Downloads: 732)

Note: install "IRremote" library online firstly.



set IR sender and receiver GPIO pins define as below image:

#include "PinDefinitionsAndMore.h"
#include <IRremote.h>

void setup() {
  Serial.begin(9600);
  IrReceiver.begin(IR_RECEIVE_PIN, ENABLE_LED_FEEDBACK, USE_DEFAULT_FEEDBACK_LED_PIN);
}

void loop() {
    if (IrReceiver.decode()) {

        IrReceiver.printIRResultShort(&Serial);
        if (IrReceiver.decodedIRData.protocol == UNKNOWN) {

            IrReceiver.printIRResultRawFormatted(&Serial, true);
        }
        Serial.println();
    IrReceiver.resume();
    }
}


download arduino IDE source code file:

  Uair_IR_receive.zip (Size: 569 bytes / Downloads: 726)
Note: install "IRremote" library online firstly.


set IR sender and receiver GPIO pins define as below image:


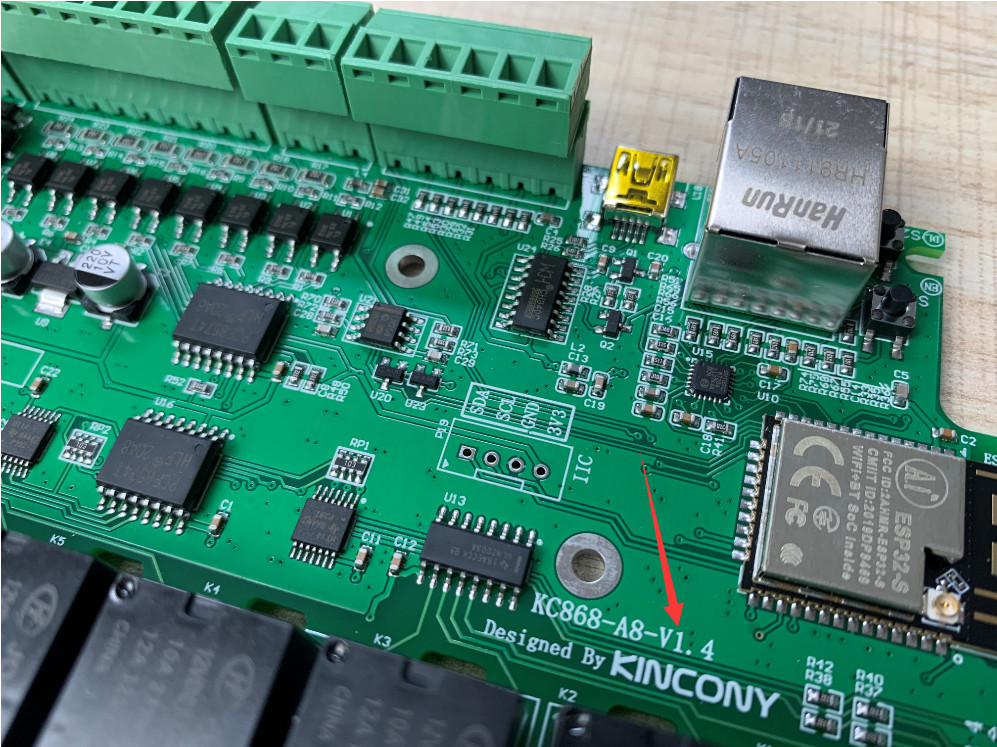

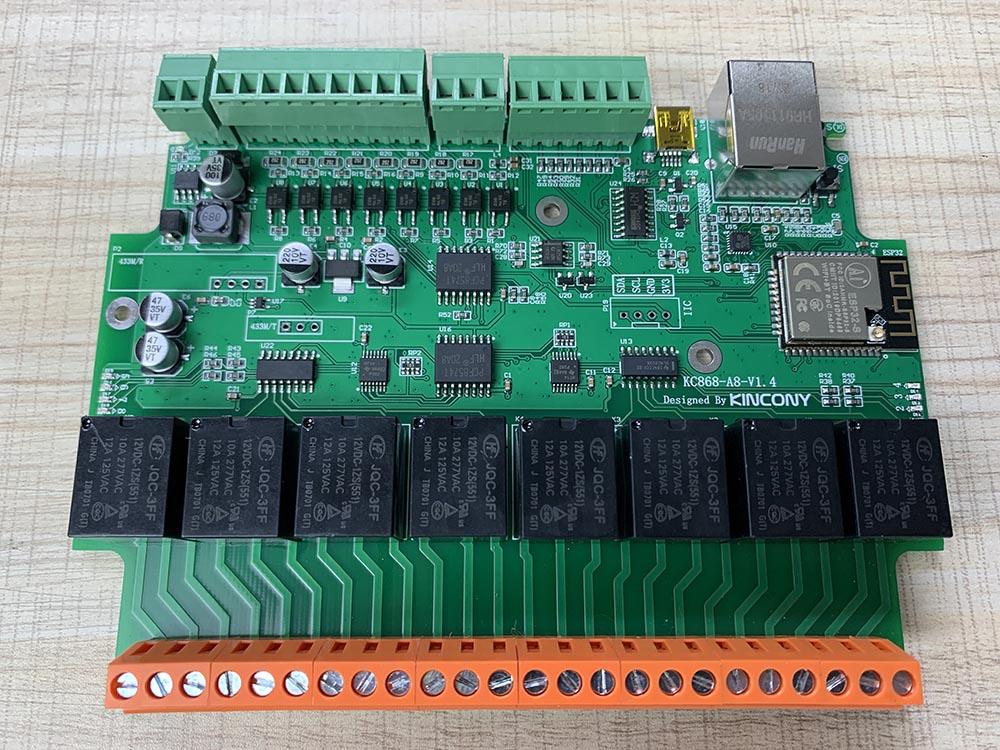

Hello, I would like to use my controller for homekit control. I found out from the instructional videos that Relay 3 and 4 are on pins 2 and 15.

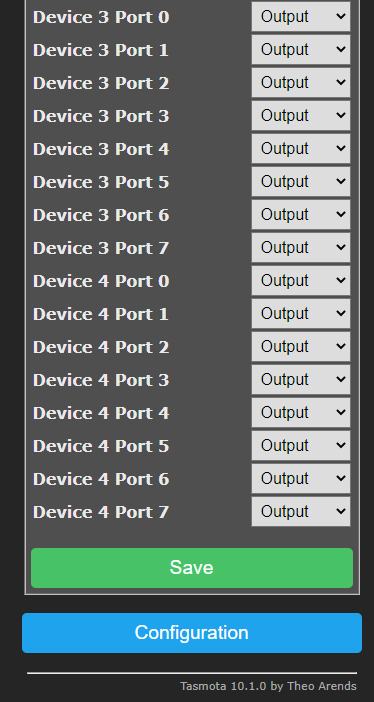

I would like to use more relays, and configure digital inputs as switches.

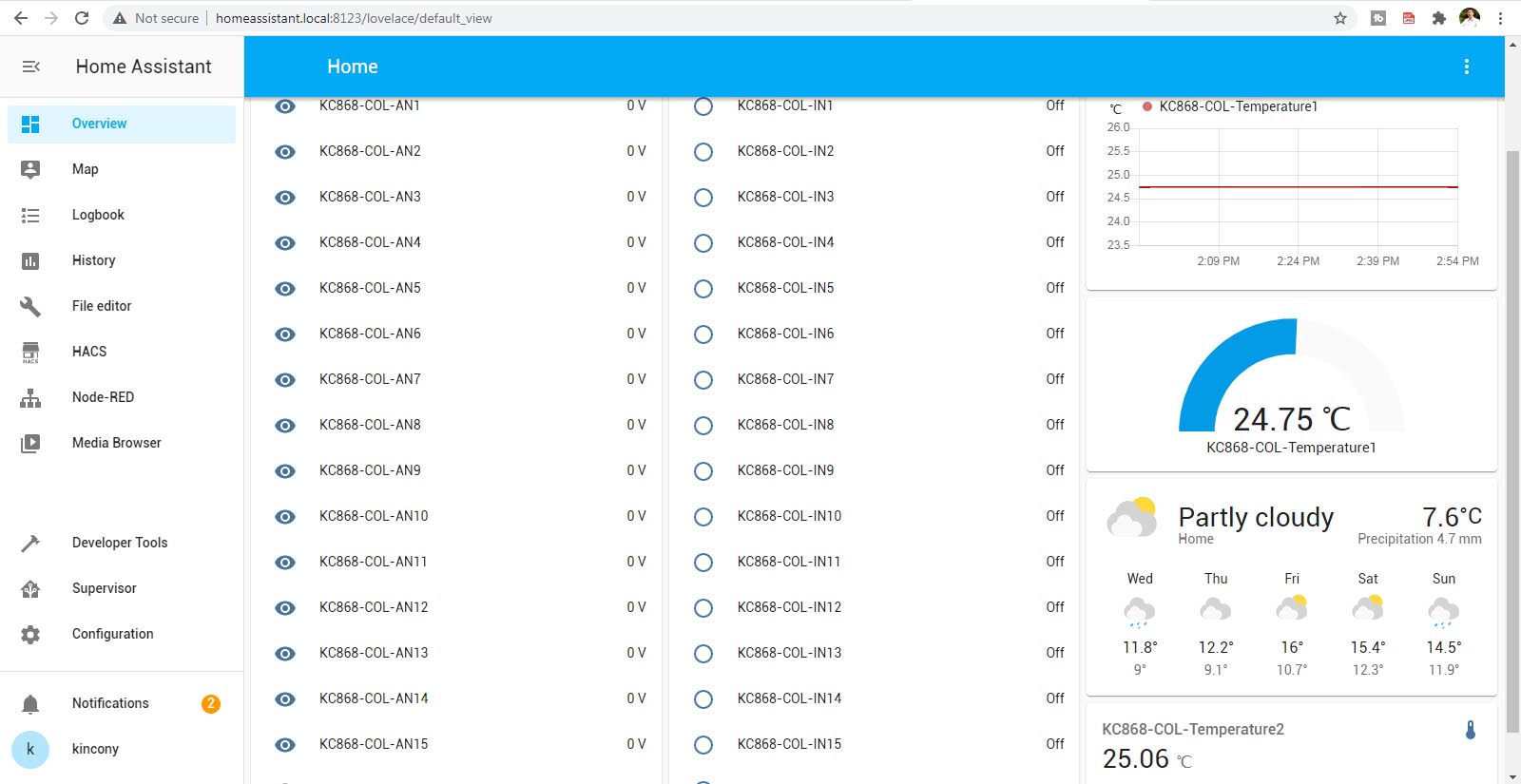

In further configuration I would like to use analog inputs and a temperature sensor.

#include <DS18B20.h>

DS18B20 ds(27);

void setup() {
    Serial.begin(9600);
}

void loop() {

    Serial.print(ds.getTempC());
    Serial.print("℃");
    Serial.println();
}

download arduino IDE source code file:

  temperature.zip (Size: 286 bytes / Downloads: 743)

Note: install "DallasTemperature" library online firstly.


edit IR send and receiver GPIO pin define in "PinDefinitionsAndMore.h"


Can you please confirm the following wiring of the RC snubber with a KC868-H32B for a furnace valve is OK ?

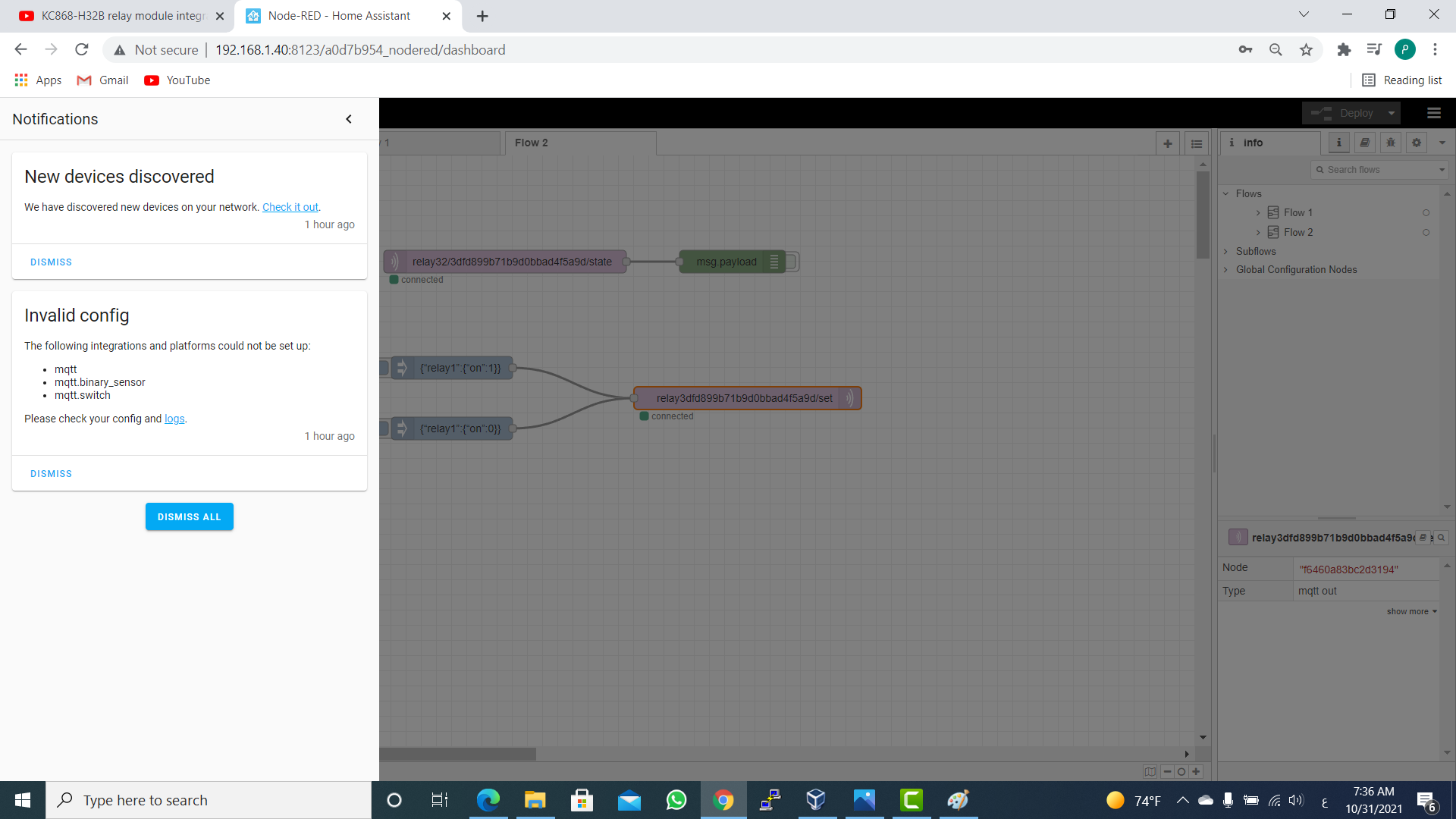

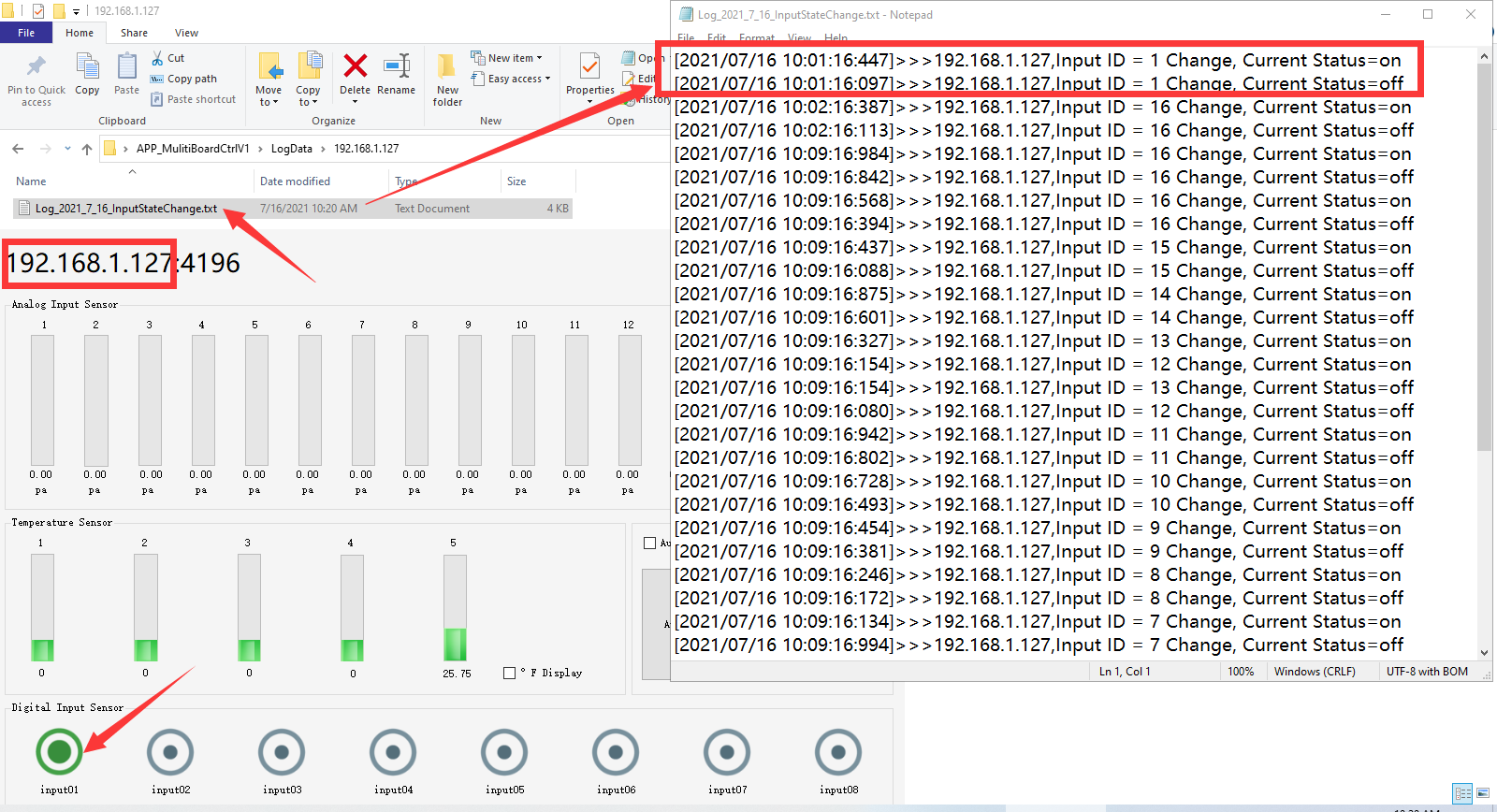

Hi, I have a problem with one of my setups. H32B and input panel stops communicating after 6-10 tries.
After deset it is ok gor 6-10 tries and then stops.

We changed the input panel and it is the same problem. Communicating with Home assistant and mode red is working, Just the connection with panel and contoller.
H32B was not replaced.

Any suggestions?

Hi
I am designing a pressure controlled vacuum tank.
Software of ESP32 and
Nextion screen is OK

But I have problem when
I get digital input from (TMCB)
thermal magnetic circuit protector( schneider gv2me14)
When red fault contacts close I want to get information of fault of motor.  But esp32 reset itself .

Attached Files

Thumbnail(s)


#define Do 262
#define Re 294
#define Mi 330
#define Fa 350
#define Sol 393
#define La 441
#define Si 495
#define Doo 882
#define CC 525
#define DD 589
#define EE 661
#define AA 882
#include <ESP32Servo.h>

int musiclist[32]={Do,Re,Mi,Do,Do,Re,Mi,Do,Mi,Fa,Sol,Mi,Fa,Sol,Sol,La,Sol,Fa,Mi,Do,Sol,La,Sol,Fa,Mi,Do,Re,Sol,Do,Re,Sol,Do};

int timelist[32]={2,2,2,2,2,2,2,2,2,2,4,2,2,4,1,1,1,1,2,2,1,1,1,1,2,2,3,3,4,3,3,4};

void setup(){
  Serial.begin(115200);
  pinMode(26,OUTPUT);
}

void loop(){
  int i = 0;
    for (int i = 0; i <32; i = i + (1)) {
      tone(26, musiclist[i], 125*timelist[i]);
      delay(100);
    }
    delay(1000);
    i = 0;
  }

download arduino IDE source code file:

  play music.zip (Size: 486 bytes / Downloads: 681)

Note: install "ESP32Servo" library online firstly.


void setup() {
  pinMode(26,OUTPUT);
}

void loop() {
  digitalWrite(26,HIGH);
  delay(3000);
  digitalWrite(26,LOW);
  delay(2000);
}


download arduino IDE source code file:

  beep.zip (Size: 247 bytes / Downloads: 746)

// define Buzzer GPIO
const int TONE_OUTPUT_PIN = 26;

const int TONE_PWM_CHANNEL = 0;

void setup() {
  ledcAttachPin(TONE_OUTPUT_PIN, TONE_PWM_CHANNEL);
}

void loop() {
  // Plays the middle C scale
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_C, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_D, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_E, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_F, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_G, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_A, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_B, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_C, 5);
  delay(500);
}

download arduino IDE source code file:

  play tone.zip (Size: 369 bytes / Downloads: 775)
