Latest Threads

N30 - Modbus-TCP
Forum: "KCS" v3 firmware
Last Post: admin
5 hours ago
» Replies: 1
» Views: 8

Reset Total Energy only w...
Forum: N30
Last Post: admin
5 hours ago
» Replies: 1
» Views: 7

N30 no Energy (kWh)
Forum: "KCS" v3 firmware
Last Post: admin
5 hours ago
» Replies: 5
» Views: 28

Factor settings and calcu...
Forum: "KCS" v3 firmware
Last Post: GWS
Yesterday, 03:54 PM
» Replies: 2
» Views: 16

DM16 output not turning o...
Forum: DM16
Last Post: admin
Yesterday, 12:55 PM
» Replies: 20
» Views: 2,012

"KCS" v3.24.5 firmware BI...
Forum: "KCS" v3 firmware
Last Post: admin
Yesterday, 12:41 PM
» Replies: 2
» Views: 347

N60 N30 N20 N10 ARM CPU f...
Forum: N30
Last Post: admin
05-13-2026, 09:44 PM
» Replies: 26
» Views: 976

How can I control 170 sma...
Forum: Development
Last Post: yosetadi4321
05-12-2026, 08:16 AM
» Replies: 2
» Views: 364

RS485 Modbus SHT30 sensor...
Forum: "KCS" v3 firmware
Last Post: admin
05-11-2026, 02:30 AM
» Replies: 4
» Views: 301

Current and Power not add...
Forum: N60
Last Post: edalquist
05-09-2026, 03:58 AM
» Replies: 10
» Views: 337

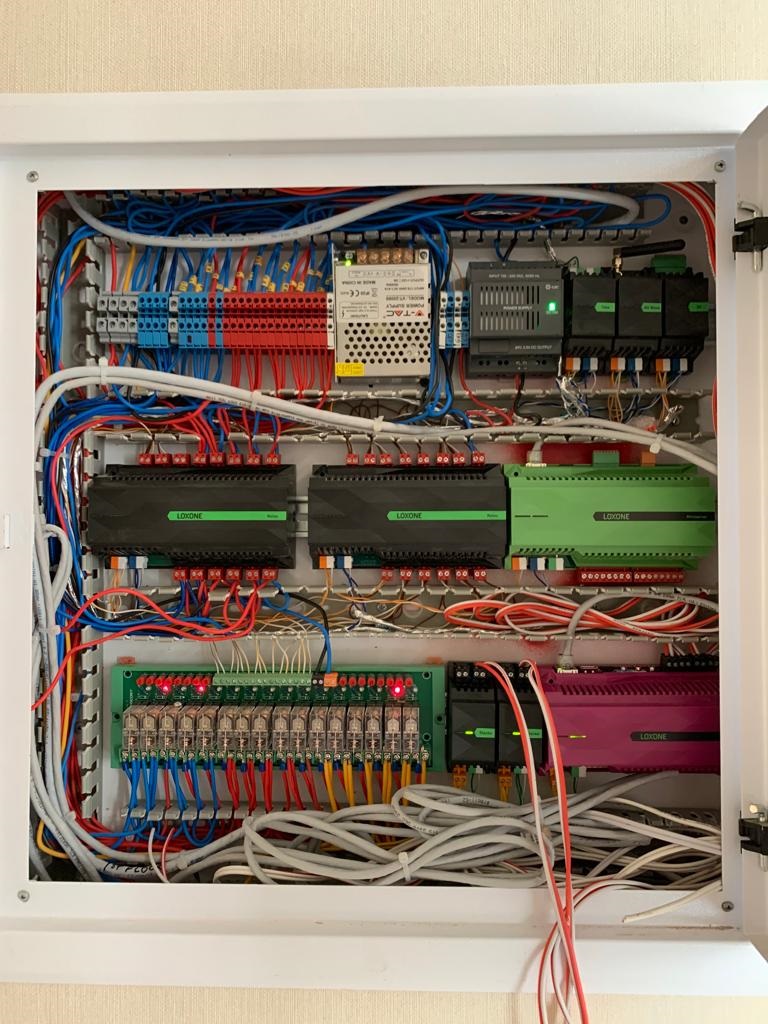

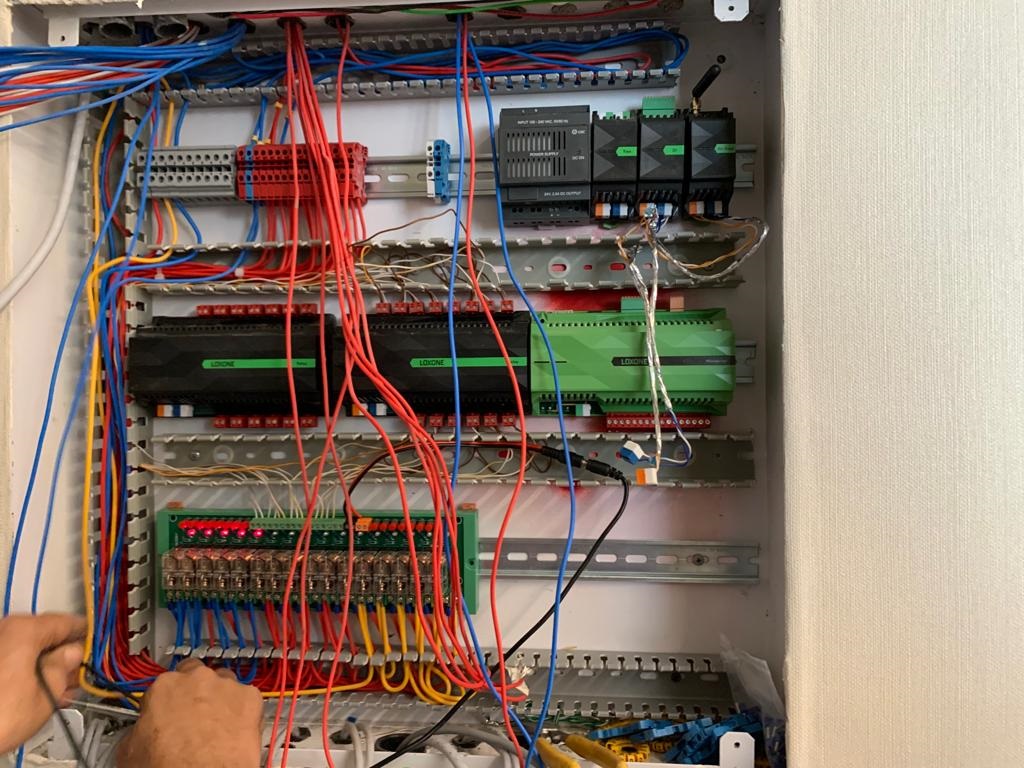

What i need and how communicate , and other ques.

Posted by: tahmasbi - 01-26-2022, 01:30 PM - Forum: KC868-HxB series Smart Controller - Replies (1)

1- can i use single pole wall switch (mechanical switch) .
2-If i use small ethernet relay installed under the wall switch for each room and connect the other side of ethernet to an switch is less expensive than all 'L' wires goes from DB for each light , because in first case it will have only on 'L' wire and all other switches in same room take from it , That's true or not?
3-What exactly needs to control house with 80 light switch (each switch my control 4 or 6 bulbs) , and control it from PC and from App?
4-Are there a way to control the thermostat?
5-Is the wire goes from KC868 to the wall switch and then to the 3 bulb?
6-Is there any diagram that shows not only inside the DB , But also how to goes to wall switch and then to bulb?

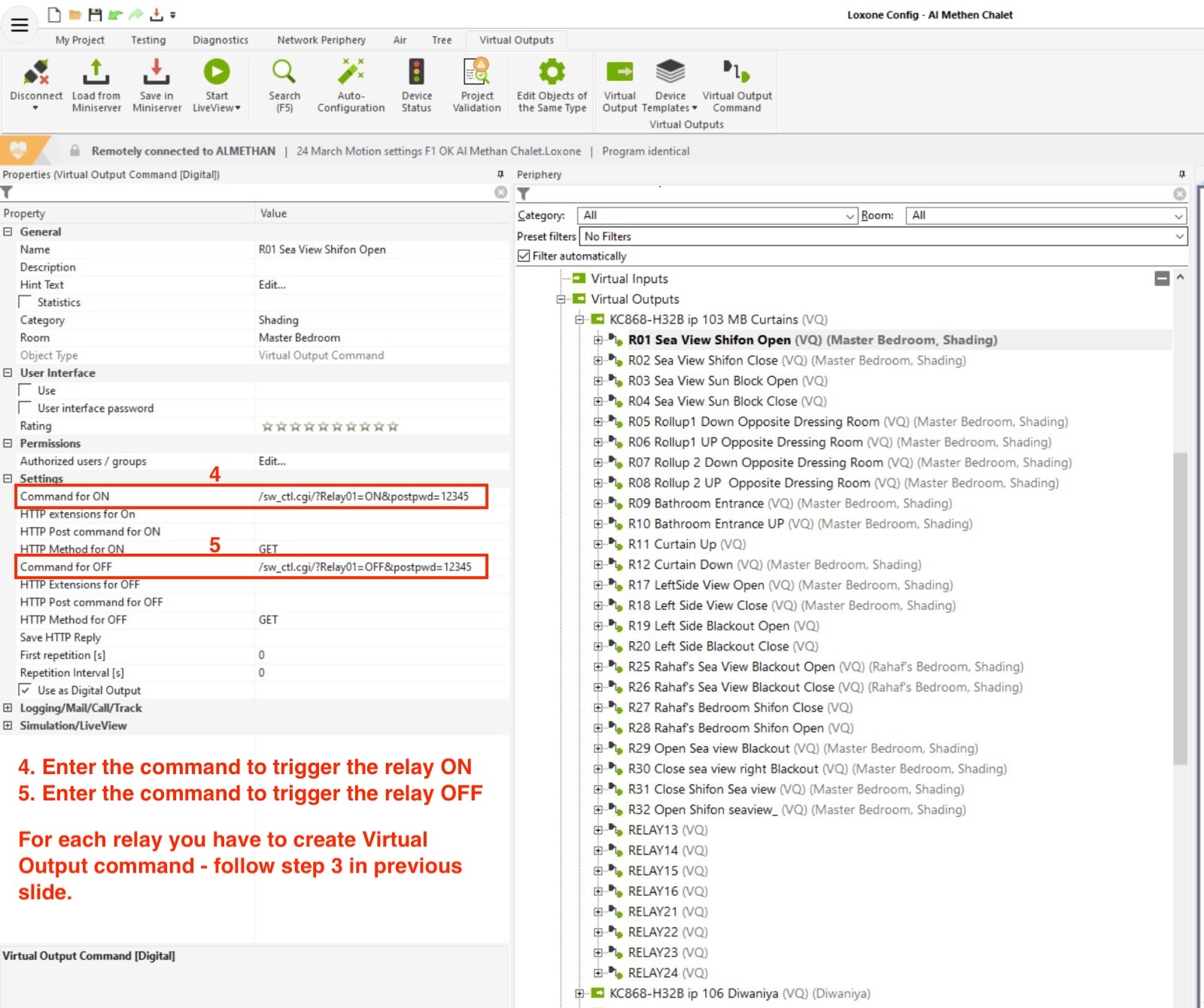

Chain KC868-H32B and KC868-H32L

Posted by: tdh - 01-26-2022, 07:08 AM - Forum: KC868-HxB series Smart Controller - Replies (3)

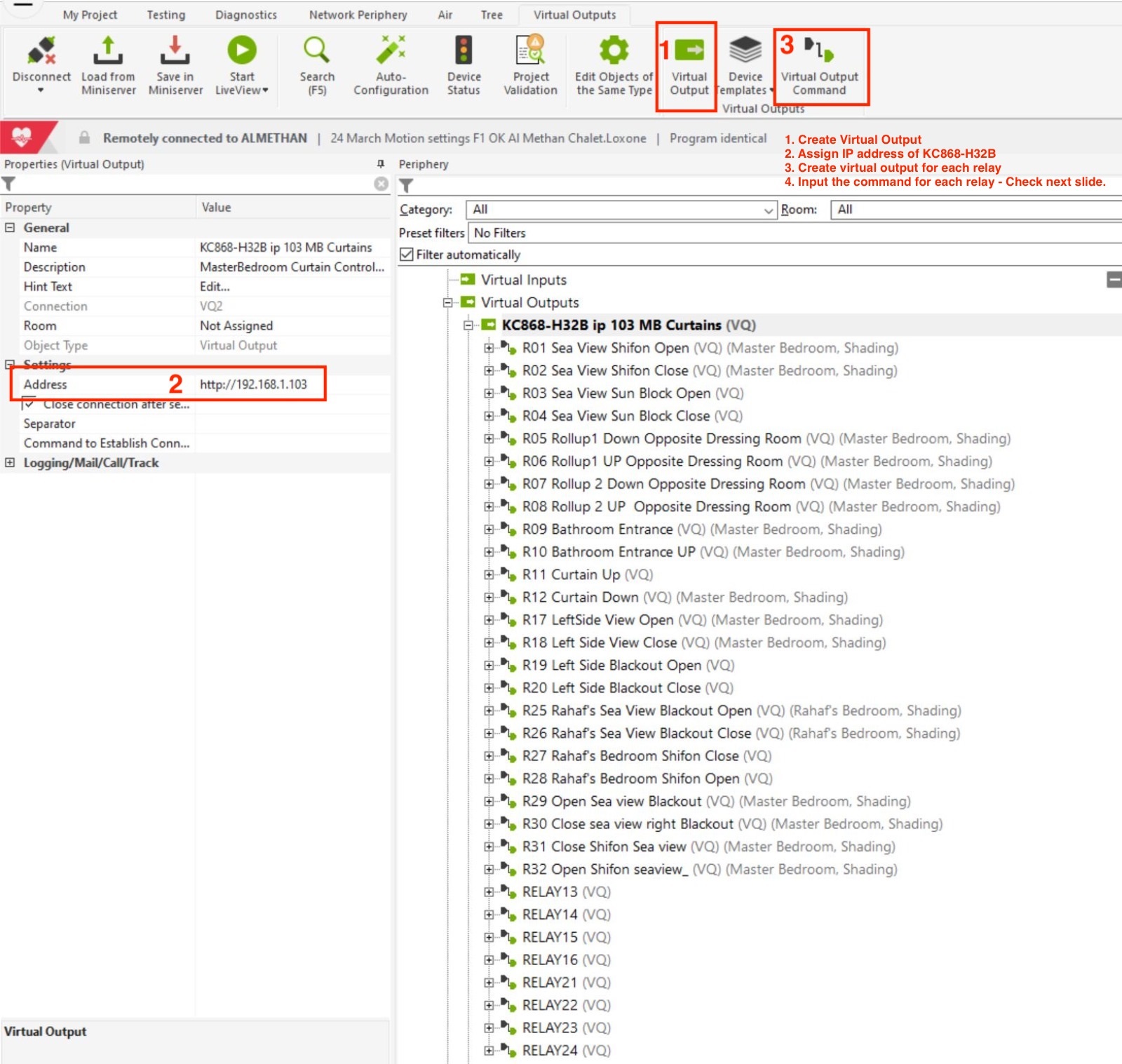

	Hi, I have both the KC868-H32B and KC868-H32L. Is it possible to extend / chain the two controllers so i have 64 relay's? And is it then also possible to control them over HTTP like : http://192.168.1.10/sw_ctl.cgi?Relay64=ON Thanks!!

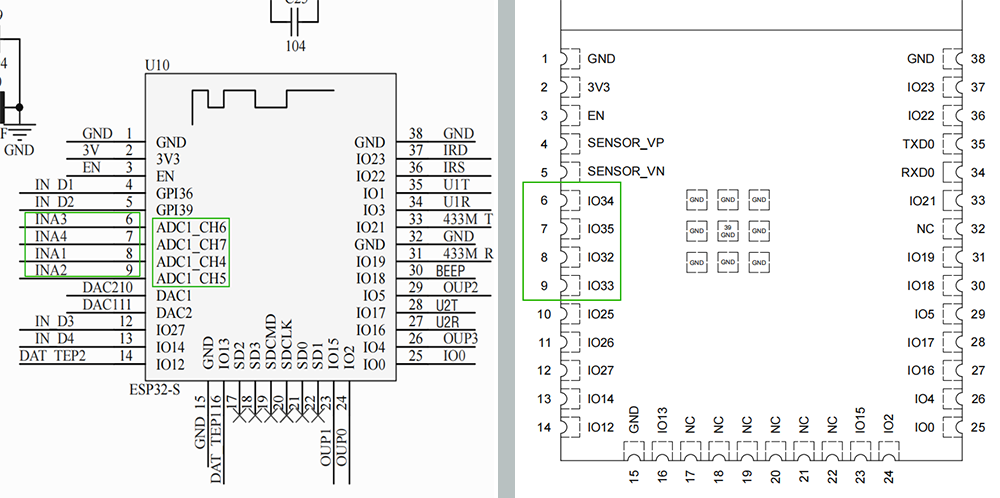

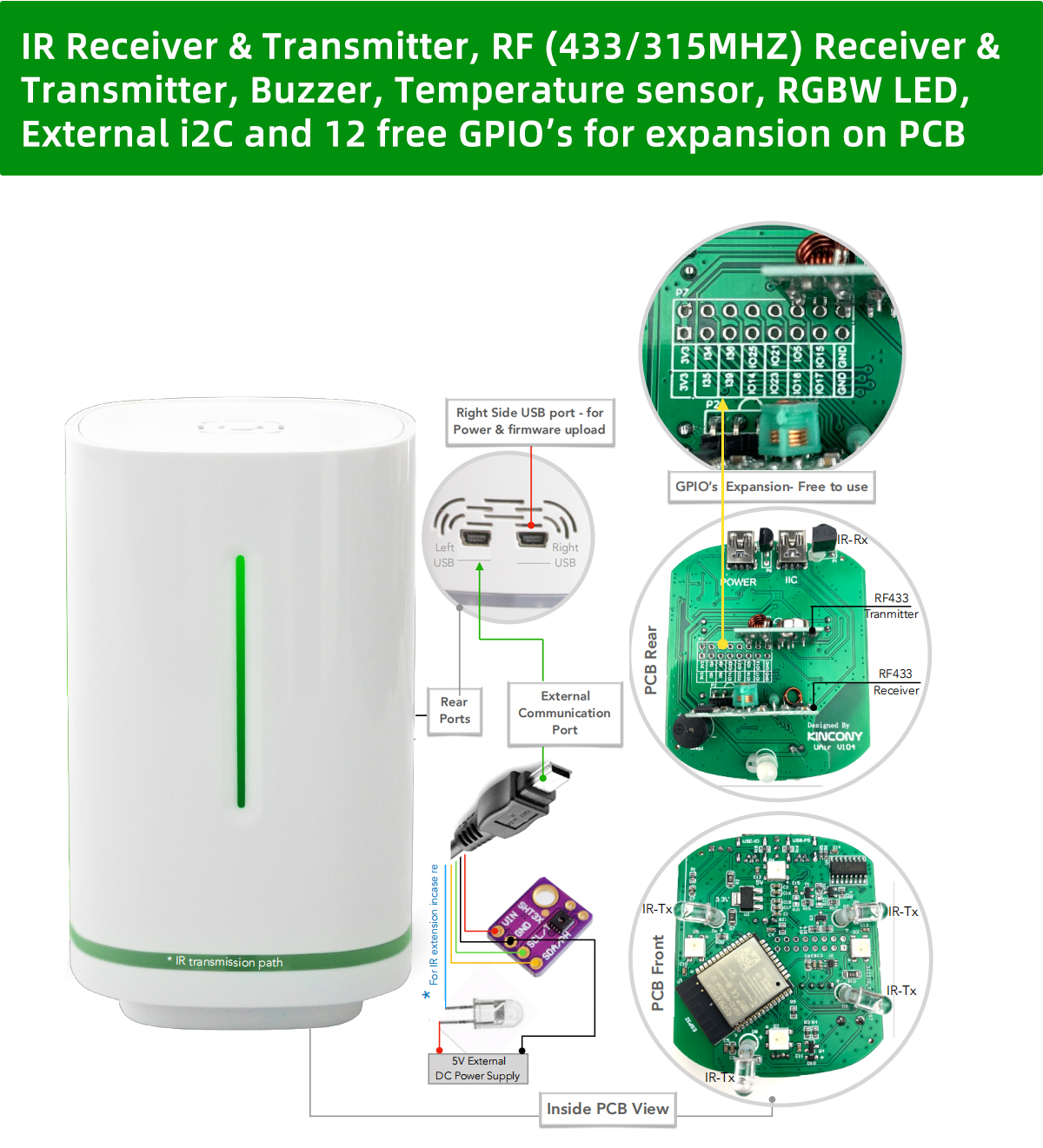

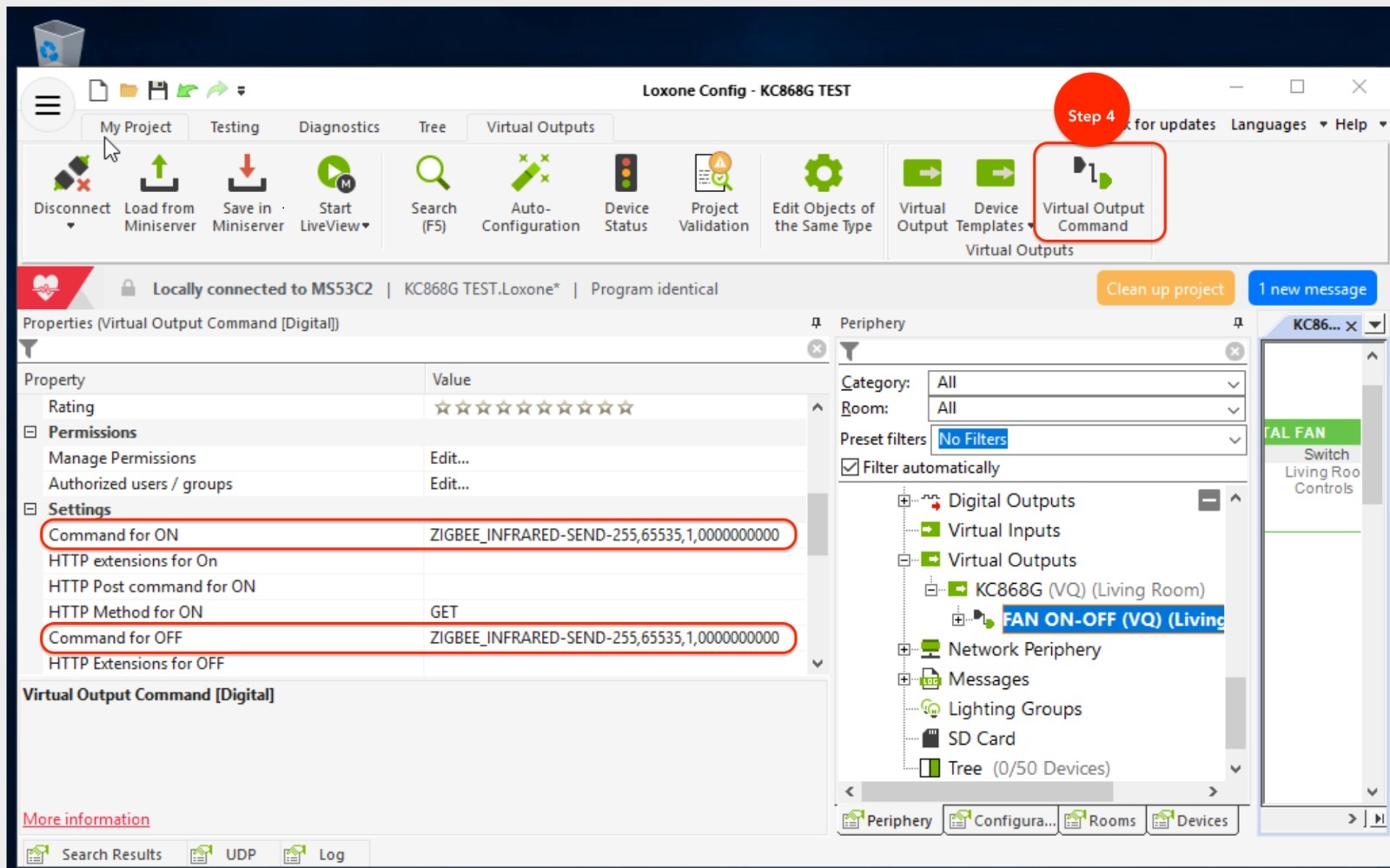

KC868-AG ESP32 I/O pin define

Posted by: admin - 01-26-2022, 05:00 AM - Forum: KC868-AG / AG Pro / AG8 / Z1 - Replies (14)

	ESP32 PINs define of KC868-AG IR receiver: IO23 IR sender: IO2 433MHz receiver: IO13 433MHz sender: IO22 Buzzer: IO4 LED: IO26,IO27,IO14 (if you want to use , need solder 3 LEDs (0603) on the bottom of PCB by yourself) free GPIO: IO19,IO18,IO16,IO33,IO35,IO39 IO13,IO21,IO17,IO32,IO34,IO36

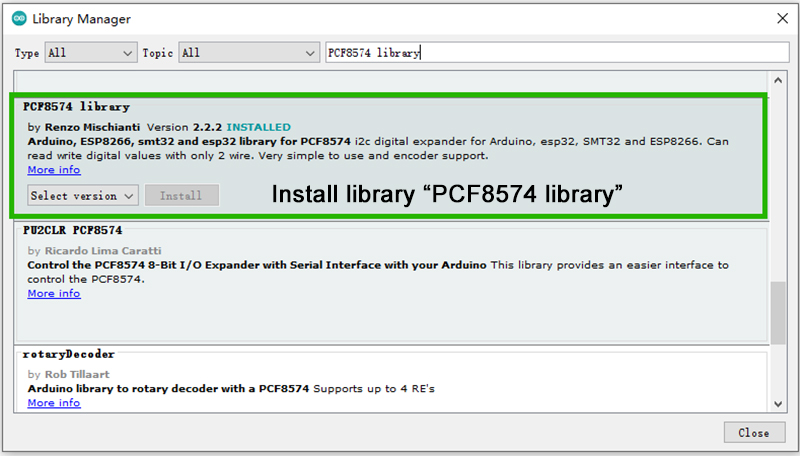

KC868-A16 ESP32 I/O pin define

Posted by: admin - 01-14-2022, 11:29 PM - Forum: KC868-A16 - Replies (10)

#define ANALOG_A1 36
#define ANALOG_A2 34
#define ANALOG_A3 35
#define ANALOG_A4 39

IIC SDA:4
IIC SCL:5

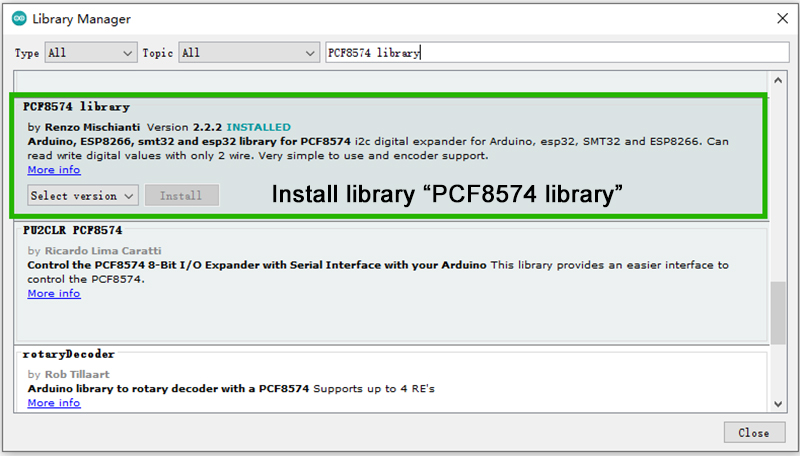

Relay_IIC_address 0x24
Relay_IIC_address 0x25

Input_IIC_address 0x21
Input_IIC_address 0x22

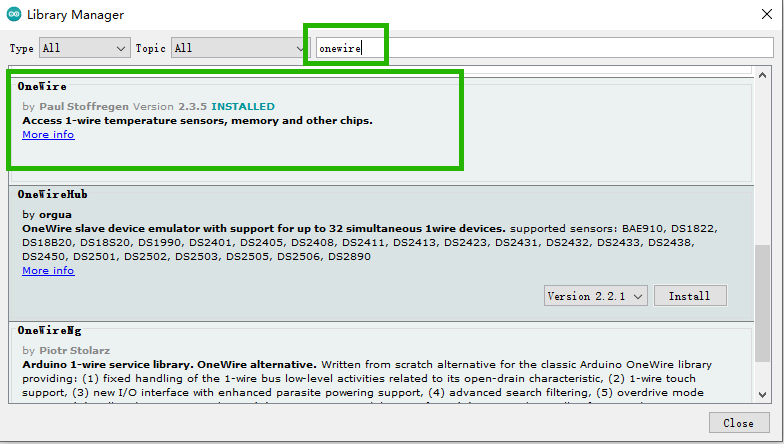

DS18B20/DHT11/DHT21/LED strip -1: 32
DS18B20/DHT11/DHT21/LED strip -2: 33
DS18B20/DHT11/DHT21/LED strip -2: 14

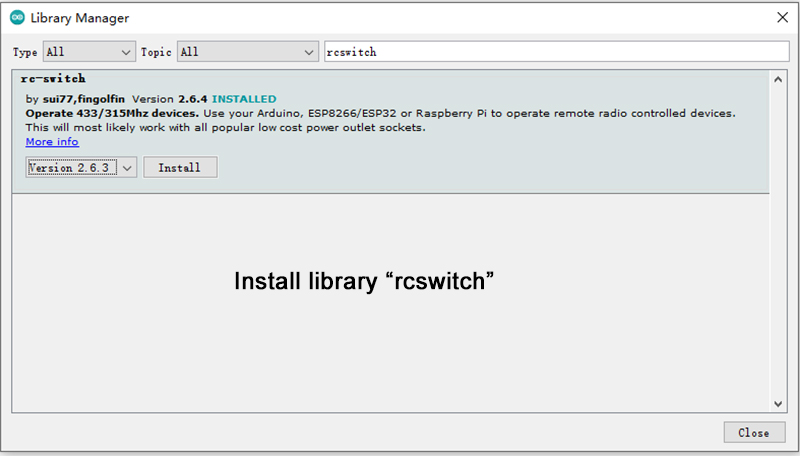

RF433MHz wireless receiver: 2
RF433MHz wireless sender: 15

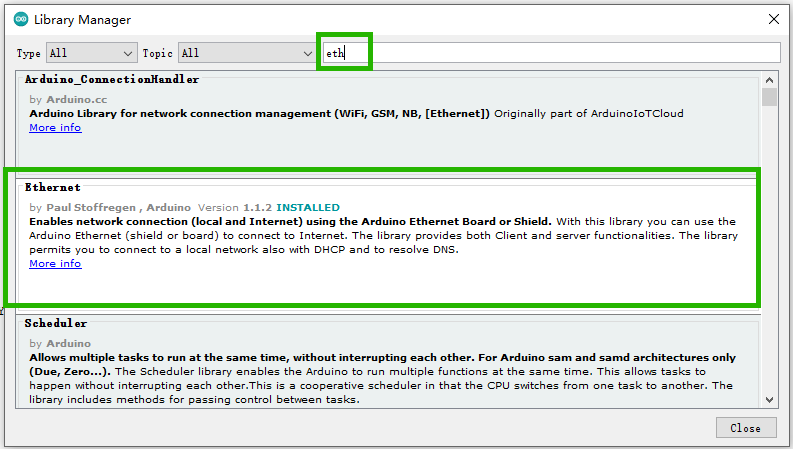

Ethernet (LAN8720) I/O define:

#define ETH_ADDR 0
#define ETH_POWER_PIN -1
#define ETH_MDC_PIN 23
#define ETH_MDIO_PIN 18
#define ETH_TYPE ETH_PHY_LAN8720
#define ETH_CLK_MODE ETH_CLOCK_GPIO17_OUT

RS485:
RXD:16
TXD:13

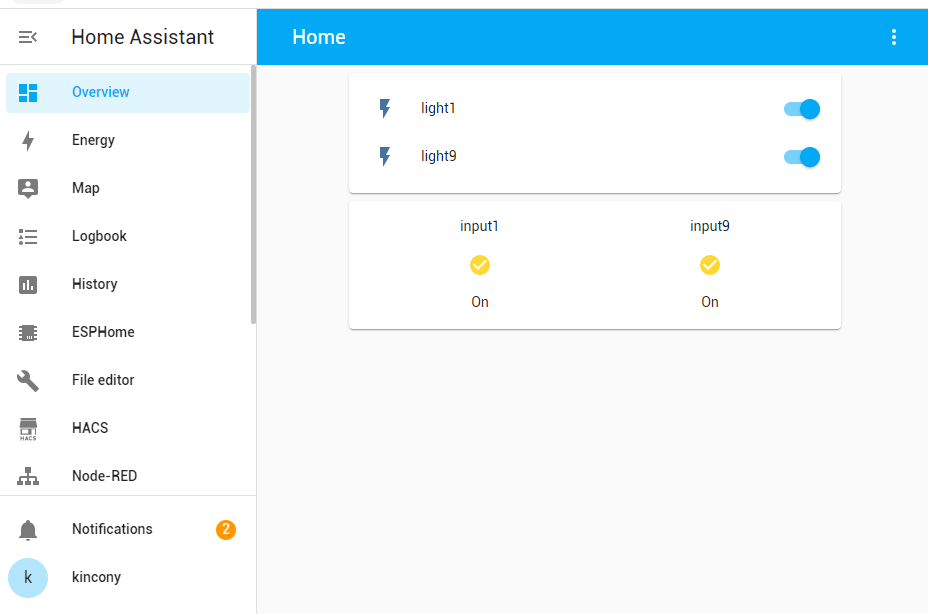

ESP Web Tools for KC868-A series board

Posted by: admin - 01-13-2022, 02:35 AM - Forum: KC868-A series and Uair Smart Controller - No Replies

online web install firmware for KC868-A4: https://hzkincony.github.io/kc868-a4/
online web install firmware for KC868-A8: https://hzkincony.github.io/kc868-a8/
online web install firmware for KC868-A16: https://hzkincony.github.io/kc868-a16/
online web install firmware for KC868-Uair: https://hzkincony.github.io/kc868-uair/
online web install firmware for KC868-AG: https://hzkincony.github.io/kc868-ag/

3D cad model of KC868-A4

Posted by: Raton - 01-12-2022, 01:26 PM - Forum: KC868-A4 - Replies (2)

	Hello I recently bought KC868-A4 board. I want to make my own case for it. Can you send me 3D model of that board (or case, if you have), so I can desigin it? preferably in .stl or .idv file. Thanks a lot.

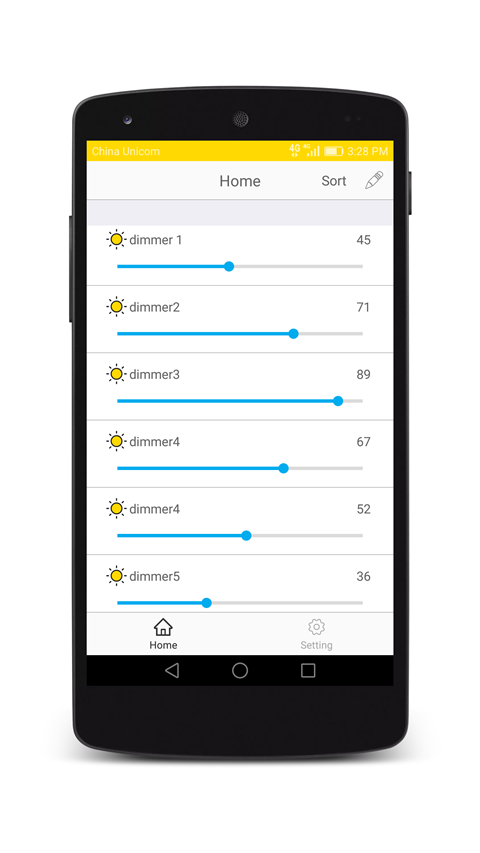

KBOX android phone app V2.0 updated

Posted by: admin - 01-10-2022, 07:42 AM - Forum: News - Replies (11)

1. Add remote control and monitor function by internet.

2. Support KinCony cloud server or any 3rd MQTT cloud server.

3. Set controller connect to any cloud server just according to server's IP and Port.

4. MQTT configure share QR code for new mobile phone.

Support products list:

KC868-H32BS,KC868-H32B,KC868-H16B,KC868-H8B,KC868-H4B,KC868-H2B,KC868-Server (in furture)

KC868-COLBS,KC868-COLB,KC868-COLB-Mini

Note: if update to this version, must delete your old version app firstly.

If you want to use KBOX application remote control by internet, KinCony supply free MQTT cloud server for you .

MQTT Server IP: 47.96.253.237 Domain name: iot.kincony.com Port: 1883

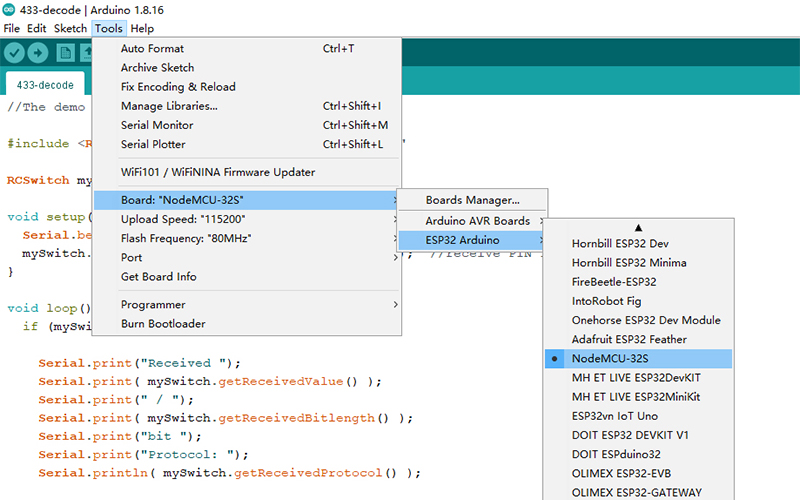

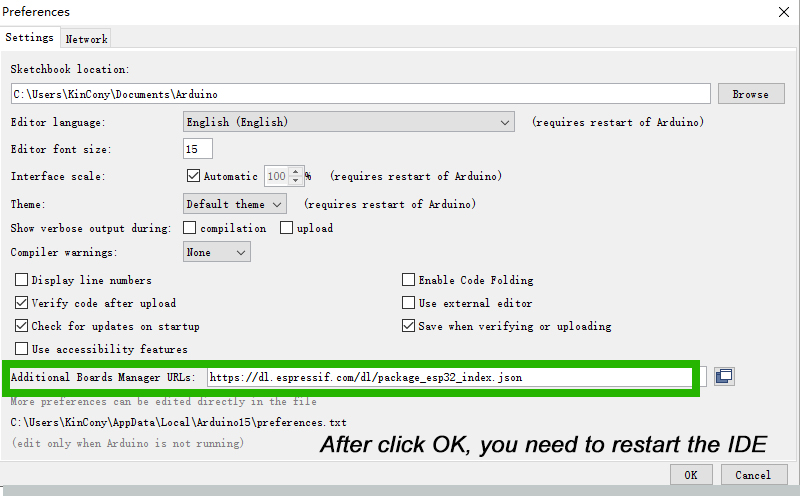

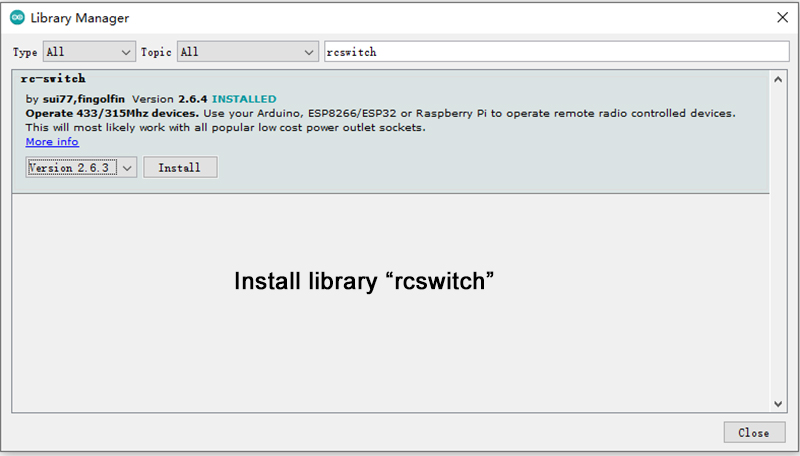

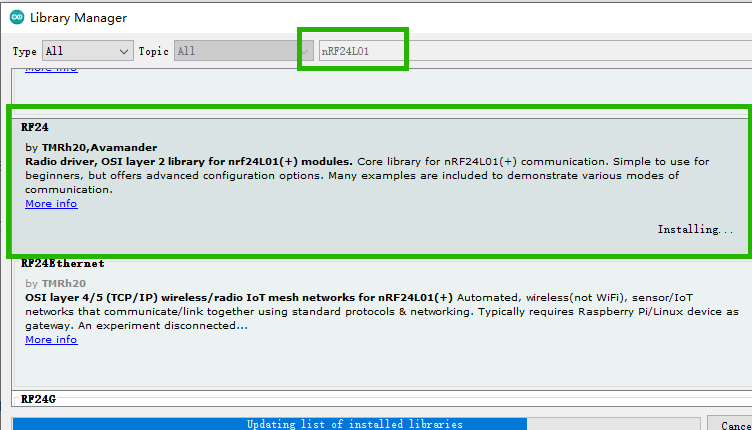

[Arduino demo source code for KC868-A4]-10 infrared signal receive and decoding

Posted by: KinCony Support - 01-07-2022, 05:27 AM - Forum: KC868-A4 - Replies (8)

Code 9: //The demo code is IR-ReceiveAndSend2 You can copy the code to your Arduino IDE.

Code:
#include <Arduino.h>

#include "PinDefinitionsAndMore.h"

//#define EXCLUDE_EXOTIC_PROTOCOLS // saves around 900 bytes program space

#include <IRremote.h>

int SEND_BUTTON_PIN = APPLICATION_PIN;

int STATUS_PIN = LED_BUILTIN;

int DELAY_BETWEEN_REPEAT = 50;

// On the Zero and others we switch explicitly to SerialUSB

#if defined(ARDUINO_ARCH_SAMD)

#define Serial SerialUSB

#endif

// Storage for the recorded code

struct storedIRDataStruct {

    IRData receivedIRData;

    // extensions for sendRaw

    uint8_t rawCode[RAW_BUFFER_LENGTH]; // The durations if raw

    uint8_t rawCodeLength; // The length of the code

} sStoredIRData;

int lastButtonState;

void storeCode(IRData *aIRReceivedData);

void sendCode(storedIRDataStruct *aIRDataToSend);

void setup() {

    Serial.begin(115200);

#if defined(__AVR_ATmega32U4__) || defined(SERIAL_USB) || defined(SERIAL_PORT_USBVIRTUAL)  || defined(ARDUINO_attiny3217)

    delay(4000); // To be able to connect Serial monitor after reset or power up and before first print out. Do not wait for an attached Serial Monitor!

#endif

    // Just to know which program is running on my Arduino

    Serial.println(F("START " __FILE__ " from " __DATE__ "\r\nUsing library version " VERSION_IRREMOTE));

    IrReceiver.begin(IR_RECEIVE_PIN, ENABLE_LED_FEEDBACK); // Start the receiver, enable feedback LED, take LED feedback pin from the internal boards definition

    IrSender.begin(IR_SEND_PIN, ENABLE_LED_FEEDBACK); // Specify send pin and enable feedback LED at default feedback LED pin

    pinMode(STATUS_PIN, OUTPUT);

    Serial.print(F("Ready to receive IR signals at pin "));

#if defined(ARDUINO_ARCH_STM32) || defined(ESP8266)

    Serial.println(IR_RECEIVE_PIN_STRING);

#else

    Serial.println(IR_RECEIVE_PIN);

#endif

    Serial.print(F("Ready to send IR signals at pin "));

#if defined(ARDUINO_ARCH_STM32) || defined(ESP8266)

    Serial.println(IR_SEND_PIN_STRING);

#else

    Serial.print(IR_SEND_PIN);

#endif

    Serial.print(F(" on press of button at pin "));

    Serial.println(SEND_BUTTON_PIN);

}

void loop() {

    // If button pressed, send the code.

    int buttonState = digitalRead(SEND_BUTTON_PIN); // Button pin is active LOW

    /*

     * Check for button just released in order to activate receiving

     */

    if (lastButtonState == LOW && buttonState == HIGH) {

        // Re-enable receiver

        Serial.println(F("Button released"));

        IrReceiver.start();

    }

    /*

     * Check for static button state

     */

    if (buttonState == LOW) {

        IrReceiver.stop();

        /*

         * Button pressed send stored data or repeat

         */

        Serial.println(F("Button pressed, now sending"));

        digitalWrite(STATUS_PIN, HIGH);

        if (lastButtonState == buttonState) {

            sStoredIRData.receivedIRData.flags = IRDATA_FLAGS_IS_REPEAT;

        }

        sendCode(&sStoredIRData);

        digitalWrite(STATUS_PIN, LOW);

        delay(DELAY_BETWEEN_REPEAT); // Wait a bit between retransmissions

        /*

         * Button is not pressed, check for incoming data

         */

    } else if (IrReceiver.available()) {

        storeCode(IrReceiver.read());

        IrReceiver.resume(); // resume receiver

    }

    lastButtonState = buttonState;

}

// Stores the code for later playback in sStoredIRData

// Most of this code is just logging

void storeCode(IRData *aIRReceivedData) {

    if (aIRReceivedData->flags & IRDATA_FLAGS_IS_REPEAT) {

        Serial.println(F("Ignore repeat"));

        return;

    }

    if (aIRReceivedData->flags & IRDATA_FLAGS_IS_AUTO_REPEAT) {

        Serial.println(F("Ignore autorepeat"));

        return;

    }

    if (aIRReceivedData->flags & IRDATA_FLAGS_PARITY_FAILED) {

        Serial.println(F("Ignore parity error"));

        return;

    }

    /*

     * Copy decoded data

     */

    sStoredIRData.receivedIRData = *aIRReceivedData;

    if (sStoredIRData.receivedIRData.protocol == UNKNOWN) {

        Serial.print(F("Received unknown code and store "));

        Serial.print(IrReceiver.decodedIRData.rawDataPtr->rawlen - 1);

        Serial.println(F(" timing entries as raw "));

        IrReceiver.printIRResultRawFormatted(&Serial, true); // Output the results in RAW format

        sStoredIRData.rawCodeLength = IrReceiver.decodedIRData.rawDataPtr->rawlen - 1;

        /*

         * Store the current raw data in a dedicated array for later usage

         */

        IrReceiver.compensateAndStoreIRResultInArray(sStoredIRData.rawCode);

    } else {

        IrReceiver.printIRResultShort(&Serial);

        sStoredIRData.receivedIRData.flags = 0; // clear flags -esp. repeat- for later sending

        Serial.println();

    }

}

void sendCode(storedIRDataStruct *aIRDataToSend) {

    if (aIRDataToSend->receivedIRData.protocol == UNKNOWN /* i.e. raw */) {

        // Assume 38 KHz

        IrSender.sendRaw(aIRDataToSend->rawCode, aIRDataToSend->rawCodeLength, 38);

        Serial.print(F("Sent raw "));

        Serial.print(aIRDataToSend->rawCodeLength);

        Serial.println(F(" marks or spaces"));

    } else {

        /*

         * Use the write function, which does the switch for different protocols

         */

        IrSender.write(&aIRDataToSend->receivedIRData, NO_REPEATS);

        Serial.print(F("Sent: "));

        printIRResultShort(&Serial, &aIRDataToSend->receivedIRData);

    }

}

ReceiveAndSend2.zip (Size: 4.73 KB / Downloads: 829)

[Arduino demo source code for KC868-A4]-09 homekit work with 2 relay

Posted by: KinCony Support - 01-07-2022, 05:19 AM - Forum: KC868-A4 - No Replies

Code 8: //The demo code is homekit You can copy the code to your Arduino IDE.

Code:
#include "HomeSpan.h"

#include "DEV_LED.h"          // NEW! Include this new file, DEV_LED.h, which will be fully explained below

void setup() {

  Serial.begin(115200);

  homeSpan.begin(Category::Lighting,"HomeSpan LEDs");

  new SpanAccessory();

    new Service::AccessoryInformation();

      new Characteristic::Name("LED #1");

      new Characteristic::Manufacturer("HomeSpan");

      new Characteristic::SerialNumber("123-ABC");

      new Characteristic::Model("20mA LED");

      new Characteristic::FirmwareRevision("0.9");

      new Characteristic::Identify();

    new Service::HAPProtocolInformation();

      new Characteristic::Version("1.1.0");

  new SpanAccessory();

    new Service::AccessoryInformation();

      new Characteristic::Name("LED #2");

      new Characteristic::Manufacturer("HomeSpan");

      new Characteristic::SerialNumber("123-ABC");

      new Characteristic::Model("20mA LED");

      new Characteristic::FirmwareRevision("0.9");

      new Characteristic::Identify();

    new Service::HAPProtocolInformation();

      new Characteristic::Version("1.1.0");

    new DEV_LED(15);                                  // ...and replaced with a single line that instantiates a second DEV_LED Service on Pin 17

}

void loop(){

  homeSpan.poll();

}

homekit.zip (Size: 6.28 KB / Downloads: 794)

[Arduino demo source code for KC868-A4]-08 control relay by BlueTooth

Posted by: KinCony Support - 01-07-2022, 05:12 AM - Forum: KC868-A4 - No Replies

Code 7: //The demo code is Bluetooth You can copy the code to your Arduino IDE.

Code:
#include "BluetoothSerial.h"

// init Class:

BluetoothSerial ESP_BT;

// init PINs: assign any pin on ESP32

int Relay1 = 2;

int Relay2 = 15;

int Relay3 = 5;

int Relay4 = 4;

// Parameters for Bluetooth interface

int incoming;

void setup() {

  ESP_BT.begin("KC868-A4-BlueTooth"); //Name of your Bluetooth interface -> will show up on your phone

  pinMode (Relay1, OUTPUT);

  pinMode (Relay2, OUTPUT);

  pinMode (Relay3, OUTPUT);

  pinMode (Relay4, OUTPUT);

}

void loop() {

  // -------------------- Receive Bluetooth signal ----------------------

  if (ESP_BT.available())

  {

    incoming = ESP_BT.read(); //Read what we receive

    // separate button ID from button value -> button ID is 10, 20, 30,40 etc, value is 1 or 0

    //Relay1 ON:11  OFF:10

    //Relay2 ON:21  OFF:20

    //Relay3 ON:31  OFF:30

    //Relay4 ON:41  OFF:40

    int button = floor(incoming / 10);

    int value = incoming % 10;

    switch (button) {

      case 1:

        digitalWrite(Relay1, value);

        break;

      case 2:

        digitalWrite(Relay2, value);

        break;

      case 3:

        digitalWrite(Relay3, value);

        break;

      case 4:

        digitalWrite(Relay4, value);

        break;

    }

  }

}

Pages (394): « Previous 1 … 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 … 394 Next »

Login
Username:
Password:	Lost Password?
	Remember me
