  tasmota - KC868-A16
Posted by: bencornish - 02-03-2022, 07:50 AM - Forum: KC868-A16 - Replies (4)

Hi,

a couple of things.. Is there a tasmota image ?

Is there also any sample arduino code for this board ?

Thanks

Print this item

  Kincony KC868-A4: ультимативный гайд. Часть 1. Обзор и железо
Posted by: admin - 02-01-2022, 02:19 PM - Forum: KC868-A4 - No Replies

Kincony KC868-A4: ультимативный гайд. Часть 1. Обзор и железо
https://habr.com/ru/company/ruvds/blog/646923/

Print this item

  KC868-H16B
Posted by: Михаил - 01-29-2022, 06:08 PM - Forum: KC868-HxB series Smart Controller - Replies (1)

Does not work in WI-FI server mode
from my smartphone I can't see the controller in the window of available WI-FI networks
I pressed the WI-FI server button. the green LED flashes, but there is no result
What's the matter?
connection modes are also poorly switched, both on WI-FI and wired connection (Client,server, UDP)
In the client function when connected via cable, it is also not controlled

Print this item

  KC868-H16B
Posted by: Михаил - 01-29-2022, 06:01 PM - Forum: KC868-HxB series Smart Controller - No Replies

Добрый день

Print this item

  KC868-H32BS v 1.44 x PZEM 017 DC
Posted by: rodrigomallmann - 01-28-2022, 01:03 PM - Forum: KC868-HxB series Smart Controller - Replies (4)

Hello, I would like to know if it is possible to use the RS485 port to receive the reading data from a pzem 017 dc to integrate with the Home Assistant using MQTT. Thanks.

Print this item

  KC868-H32BS v 1.44 x MQTT
Posted by: rodrigomallmann - 01-27-2022, 01:24 PM - Forum: KC868-HxB series Smart Controller - Replies (3)

Hello all right, I'm starting to integrate kc868-h32bs v1.44 via mqtt in home assistant v2021.12.10. However, when I check if the settings in the configuration.yaml file are correct.

Invalid config for [switch]: required key not provided @ data['platform']. Got None. (See /config/configuration.yaml, line 28).



Attached Files Thumbnail(s)

Print this item

Lightbulb [Arduino IDE demo source code for KC868-AG]--#04--IR receive code
Posted by: KinCony Support - 01-27-2022, 02:34 AM - Forum: KC868-AG / AG Pro / AG8 / Z1 - Replies (1)

Code 3: //The demo code is  IR receive code   You can copy the code to your Arduino IDE

Code:

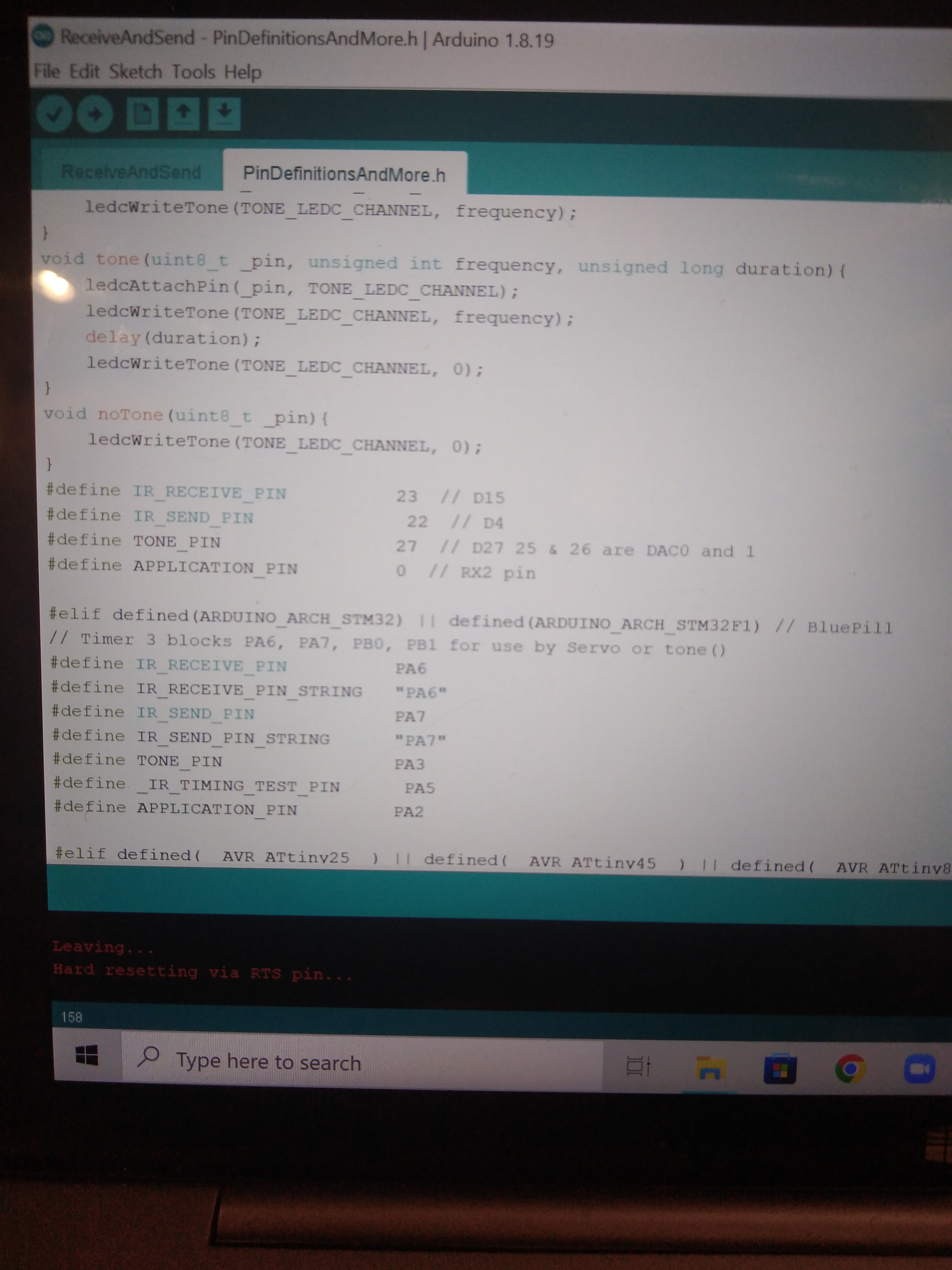

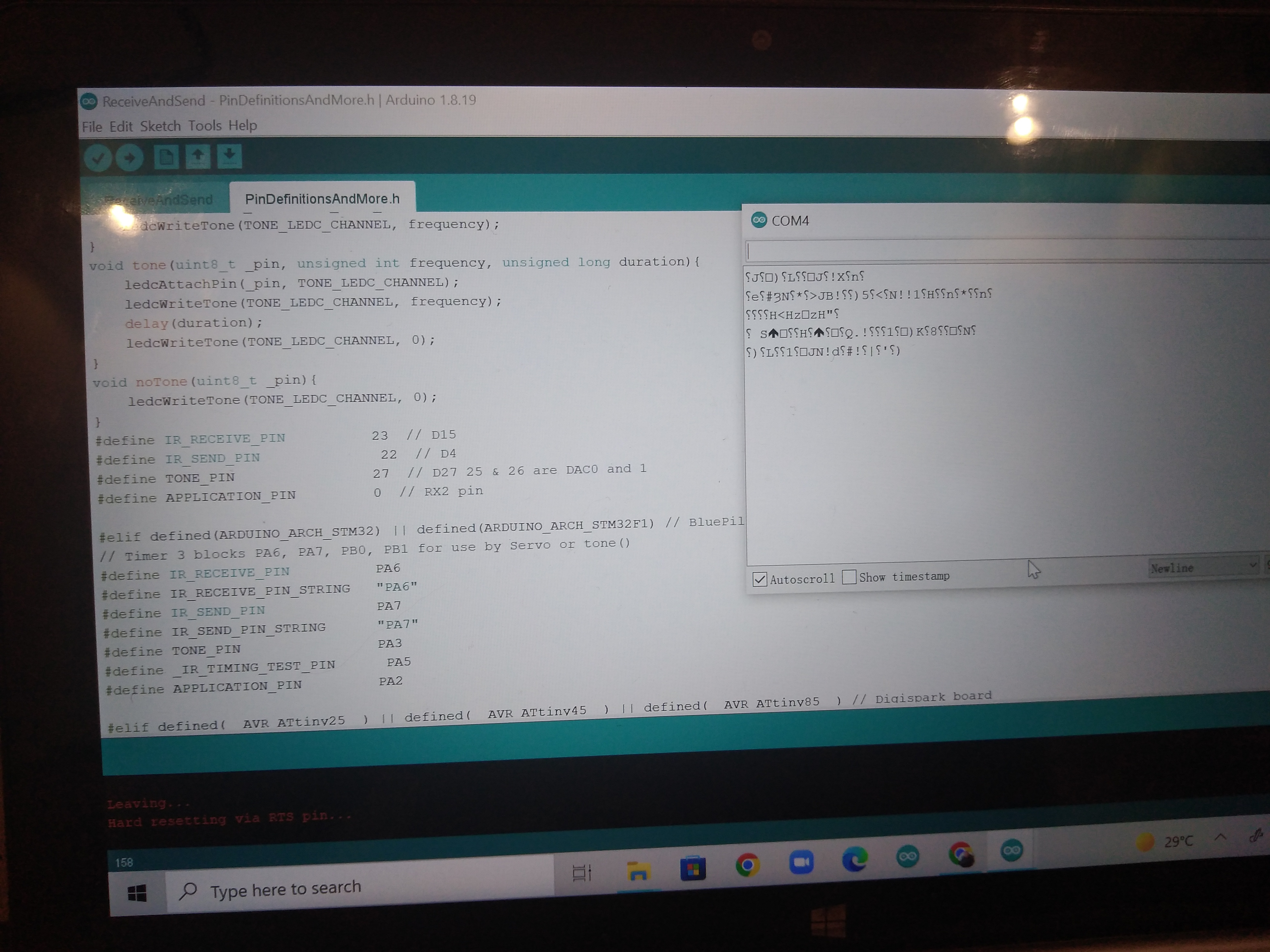

#include "PinDefinitionsAndMore.h"
#include <IRremote.h>

void setup() {

  Serial.begin(9600);
  IrReceiver.begin(IR_RECEIVE_PIN, ENABLE_LED_FEEDBACK, USE_DEFAULT_FEEDBACK_LED_PIN);
      //IR_RECEIVE_PIN is defined in PinDefinitionsAndMore.h file   IO23
}

void loop() {


    if (IrReceiver.decode()) {

       IrReceiver.printIRResultShort(&Serial);
        if (IrReceiver.decodedIRData.protocol == UNKNOWN) {
            IrReceiver.printIRResultRawFormatted(&Serial, true);
        }
        Serial.println();
     IrReceiver.resume();

    }
}



.zip   KC868-AG-IR_receive.zip (Size: 2.54 KB / Downloads: 701)

Print this item

Lightbulb [Arduino IDE demo source code for KC868-AG]--#03--IR send code
Posted by: KinCony Support - 01-27-2022, 02:08 AM - Forum: KC868-AG / AG Pro / AG8 / Z1 - No Replies

Code 3: //The demo code is IR SEND code   You can copy the code to your Arduino IDE

Code:
#include "PinDefinitionsAndMore.h"
#include <IRremote.h>

void setup() {

  Serial.begin(9600);
  IrSender.begin(IR_SEND_PIN, ENABLE_LED_FEEDBACK);// IR_SEND_PIN is defined in PinDefinitionsAndMore.h file

}

  uint16_t sAddress = 0x78;
  uint8_t sCommand = 0xCD;
  uint8_t sRepeats = 0;

void loop() {
  IrSender.sendNEC(sAddress, sCommand, sRepeats);
  delay(1000);
}


you can download the zip file.


.zip   KC868-AG_IR_send.zip (Size: 3.14 KB / Downloads: 728)

Print this item

Lightbulb [Arduino IDE demo source code for KC868-AG]--#02 433Mhz receive code
Posted by: KinCony Support - 01-27-2022, 01:36 AM - Forum: KC868-AG / AG Pro / AG8 / Z1 - No Replies

Code 2: //The demo code is 433Mhz receive code   You can copy the code to your Arduino IDE

Code:
#include <RCSwitch.h>

RCSwitch mySwitch = RCSwitch();

void setup() {
  Serial.begin(9600);
  mySwitch.enableReceive(digitalPinToInterrupt(13));// IO13  433 RECEIVE PIN
}

void loop() {
  if (mySwitch.available()) {

    Serial.print("Received ");
    Serial.print( mySwitch.getReceivedValue() );
    Serial.print(" / ");
    Serial.print( mySwitch.getReceivedBitlength() );
    Serial.print("bit ");
    Serial.print("Protocol: ");
    Serial.println( mySwitch.getReceivedProtocol() );

    mySwitch.resetAvailable();
  }
}

.zip   RF-receiver.zip (Size: 393 bytes / Downloads: 691)

Print this item

Lightbulb [Arduino IDE demo source code for KC868-AG]--#01-433Mhz send code
Posted by: KinCony Support - 01-27-2022, 01:31 AM - Forum: KC868-AG / AG Pro / AG8 / Z1 - No Replies

Code 1: //The demo code is RF-send  You can copy the code to your Arduino IDE

Code:
#include <RCSwitch.h>
RCSwitch mySwitch = RCSwitch();

void setup() {
  Serial.begin(9600);
  mySwitch.enableTransmit(digitalPinToInterrupt(22)); //IO22 433Mhz send pin
}

void loop() {
  mySwitch.switchOn("11111", "00010");
  delay(1000);
  mySwitch.switchOff("11111", "00010");
  delay(1000);

  mySwitch.send(5393, 24);
  delay(1000);
  mySwitch.send(5396, 24);
  delay(1000);

  mySwitch.send("000000000001010100010001");
  delay(1000);
  mySwitch.send("000000000001010100010100");
  delay(1000);

  mySwitch.sendTriState("00000FFF0F0F");
  delay(1000);
  mySwitch.sendTriState("00000FFF0FF0");
  delay(1000);
}


.zip   433-sender-code.zip (Size: 811 bytes / Downloads: 710)

Print this item
