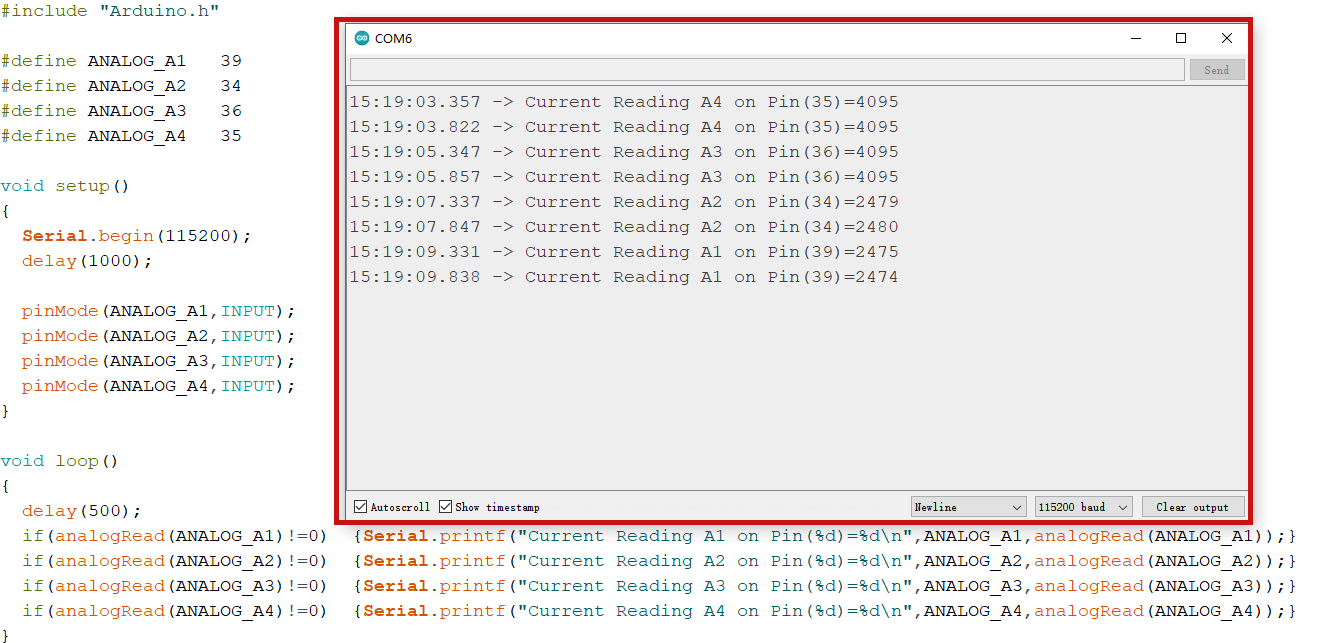

[Arduino IDE demo source code for KC868-A128]--#01--ADC_INOUT code

Posted by: KinCony Support - 08-05-2022, 02:07 AM - Forum: KC868-A128 - No Replies

[Arduino IDE demo source code for KC868-A128]--#01--ADC_INOUT code

Code:
#include "Arduino.h"

#define ANALOG_A1   39

#define ANALOG_A2   34

#define ANALOG_A3   36

#define ANALOG_A4   35

void setup()

{

    Serial.begin(115200);

    delay(1000);

  pinMode(ANALOG_A1,INPUT);

  pinMode(ANALOG_A2,INPUT);

  pinMode(ANALOG_A3,INPUT);

  pinMode(ANALOG_A4,INPUT);

}

void loop()

{

  delay(500);

  Serial.printf("Current Reading A1 on Pin(%d)=%d\n",ANALOG_A1,analogRead(ANALOG_A1));

  Serial.printf("Current Reading A2 on Pin(%d)=%d\n",ANALOG_A2,analogRead(ANALOG_A2));

  Serial.printf("Current Reading A3 on Pin(%d)=%d\n",ANALOG_A3,analogRead(ANALOG_A3));

  Serial.printf("Current Reading A4 on Pin(%d)=%d\n",ANALOG_A4,analogRead(ANALOG_A4));

}

led doesn't light up

Posted by: 2sdaymars - 08-05-2022, 01:38 AM - Forum: KC868-A16 - Replies (7)

I bought it and used it, but it doesn't work.

I put the code on esphome and turned on the switch, but the led doesn't light up.

i use this code

esphome:
name: a16

platform: ESP32

board: esp32dev

# Example configuration entry for ESP32

i2c:

sda: 4

scl: 5

scan: true

id: bus_a

# Example configuration entry

pcf8574:

- id: 'pcf8574_hub_out_1' # for output channel 1-8

address: 0x24

- id: 'pcf8574_hub_out_2' # for output channel 9-16

address: 0x25

- id: 'pcf8574_hub_in_1' # for input channel 1-8

address: 0x21

- id: 'pcf8574_hub_in_2' # for input channel 9-16

address: 0x22

# Individual outputs

switch:

- platform: gpio

name: "light1"

pin:

pcf8574: pcf8574_hub_out_1

# Use pin number 0

number: 0

# One of INPUT or OUTPUT

mode: OUTPUT

inverted: false

- platform: gpio

name: "light9"

pin:

pcf8574: pcf8574_hub_out_2

# Use pin number 0

number: 0

# One of INPUT or OUTPUT

mode: OUTPUT

inverted: false

binary_sensor:

- platform: gpio

name: "input1"

pin:

pcf8574: pcf8574_hub_in_1

# Use pin number 0

number: 0

# One of INPUT or OUTPUT

mode: INPUT

inverted: false

- platform: gpio

name: "input9"

pin:

pcf8574: pcf8574_hub_in_2

# Use pin number 0

number: 0

# One of INPUT or OUTPUT

mode: INPUT
inverted: false

# Enable logging

logger:

# Enable Home Assistant API

api:

encryption:

key: "xxxxxxxxxxxxxxxxxxxxxxxxxxxxx"

ota:

password: "xxxxxxxxxxxxxxxxx"

wifi:

ssid: !secret wifi_ssid

password: !secret wifi_password

# Enable fallback hotspot (captive portal) in case wifi connection fails

ap:

ssid: "xxxxxxxxxxxxxxx"

password: "xxxxxxxx"

captive_portal:

KC868-A128 configure for ESPhome

Posted by: admin - 08-04-2022, 09:47 PM - Forum: KC868-A128 - Replies (16)

.txt KC868-A128-ESPHome_PCF8575_Analog.txt (Size: 40.53 KB / Downloads: 962)
