  Operating WLAN and Ethernet together
Posted by: JuDie07 - 09-10-2025, 07:53 AM - Forum: Getting Started with ESPHome and Home Assistant - Replies (2)

Confused  When I enter WLAN and Ethernet together in ESPHome, I get the following error message:

Can you please provide a code example?



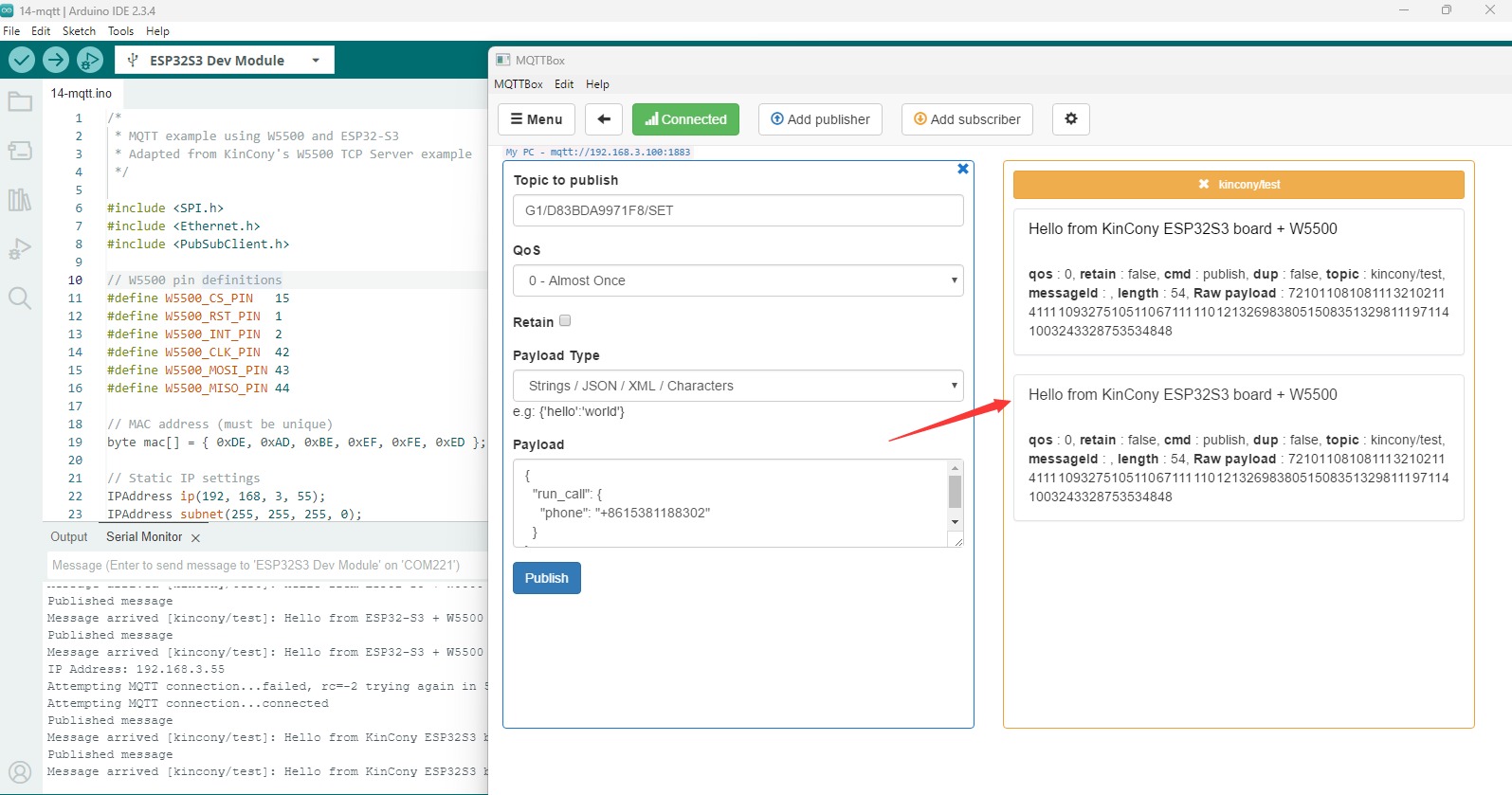

Attached Files Image(s)

Print this item

  Getting started with KC-868AG Pro for blinds control with ESPHome/Home Assistant
Posted by: Parallax Abstraction - 09-09-2025, 10:54 PM - Forum: KC868-AG / AG Pro / AG8 / Z1 - Replies (15)

Hey everyone.

First off, a lot of what I'm asking will be novice questions here, but I'm a quick learner.

I have a set of automated blinds that are controlled with a remote on 433.92Mhz. I purchased a KC-868AG Pro in order to be able to automate them using Home Assistant. I did check out some material on the device before I bought it, but it seems a lot of it assumed some basic setup had been done before hand and I'm struggling with that. I am a technical person and work in IT, but haven't done much with these kinds of devices. Clear documentation and firmware is not easy to find on KinCony's web site and after spending quite some time, I'm not sure I'm going down the right path.

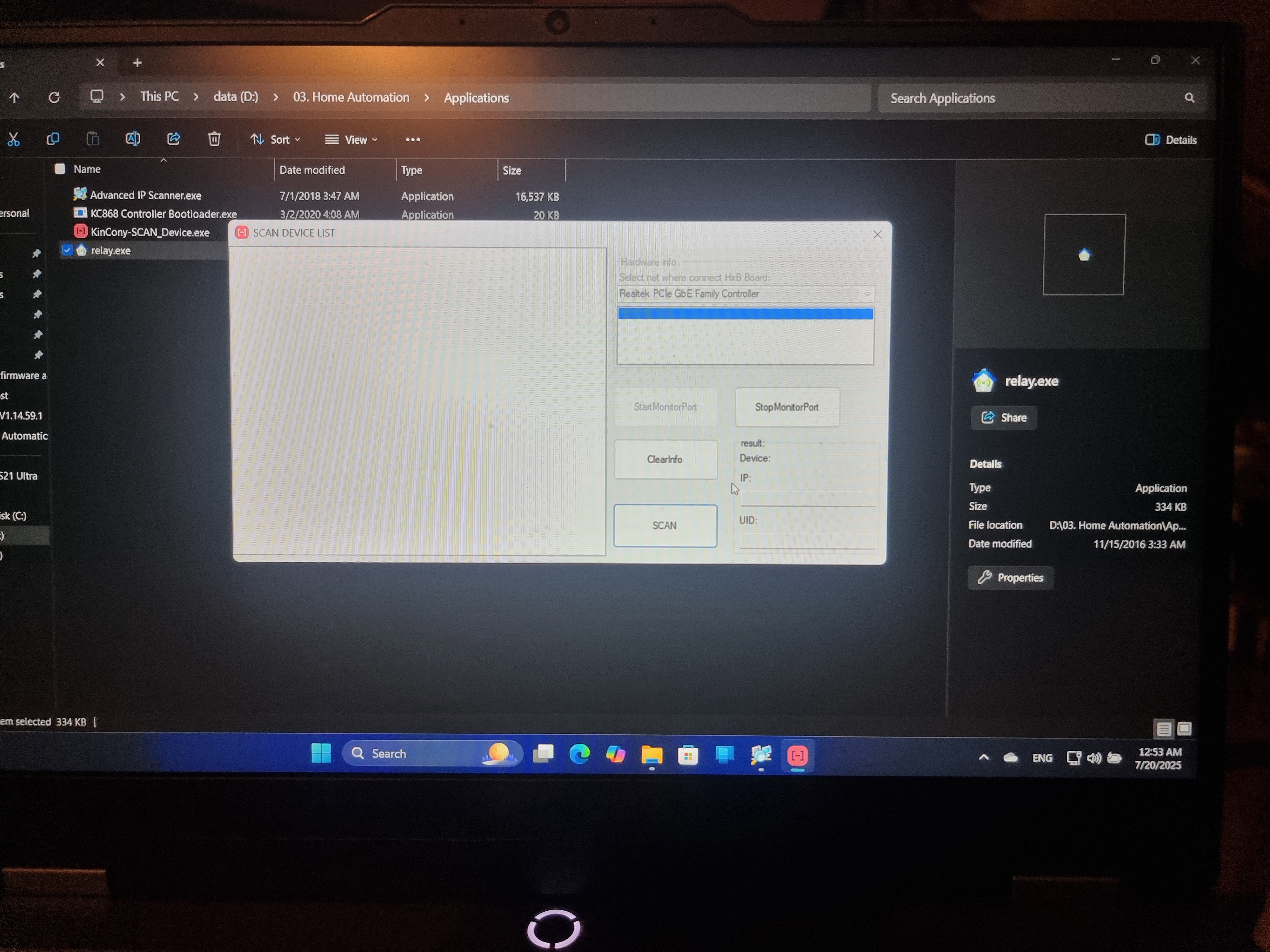

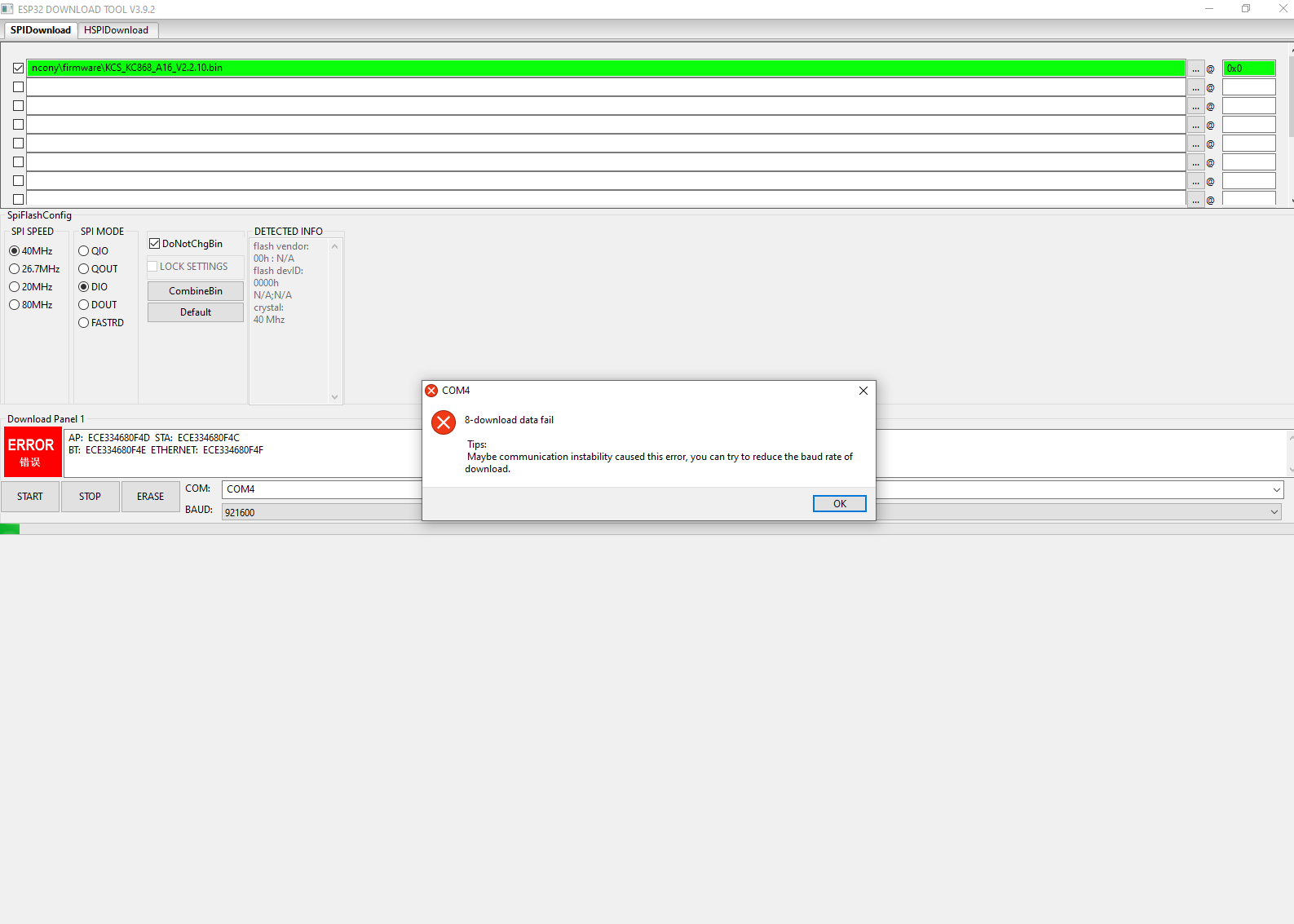

I have downloaded and installed the CH431SER driver on Windows 11 and the device does get detected when plugged in with USB. From what I understand, the next step is to install the ESPHome firmware for this device. However, I cannot find it. Every page about firmware on this forum I can find doesn't list one for this model and I can't find anything for it on the main web site. As I understand it, I can't join the device to my wi-fi or start programming it without this, so I'm hoping someone can point me in the right direction. In addition, is USB power all this device needs for what I want to do or will I need a separate power adapter? Since it powers on and it reachable over USB alone, I'm assuming that's all I need for my use case but again, it's unclear. I understand that I also need a default YAML file for ESPHome for Home Assistant to recognize the device. Is this the case and if so, is there somewhere I can grab that as well?

Once I get the basics done, I think I can figure things out from there. I'm just at a loss on these beginning steps.

Thanks for your help, I appreciate it!

Print this item

Sad Where are the pins led out?
Posted by: JuDie07 - 09-09-2025, 11:50 AM - Forum: KC868-A series and Uair Smart Controller - Replies (5)

PHP Code:
The Board KC868-A8v3

Hello,
in the example->  A8v3-HA.txt (Size: 8.41 KB / Downloads: 152)
the following code can be seen:

[code]## without resistance on PCB
  - platform: gpio
    name: "a8v3-5"
    pin:
      number: 5
      inverted:  false
  - platform: gpio
    name: "a8v3-0"
    pin:
      number: 0
      inverted:  false[/code]

Question where are the two pins (gpio 0 and 5) led out?
Print this item

  [arduino code examples for DM16]-10 Print TEXT on SSD1306 OLED displayer
Posted by: admin - 09-09-2025, 03:36 AM - Forum: DM16 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program demonstrates how to display text on an SSD1306 128x64 OLED display using the U8g2 library.
* The program draws two lines of text on the display:
* - The first line is "KINCONY" in a larger font.
* - The second line is "www.kincony.com" in a smaller font.
*
* The display is connected via I2C (software implementation) with:
* - SCL (clock) on pin IO18
* - SDA (data) on pin IO8
*
* The display's I2C address is set to 0x3C.
*/

#include <U8g2lib.h>  // Include the U8g2 library for controlling the OLED display
#include <Wire.h>     // Include the Wire library for I2C communication

// Initialize the display using the software I2C method (SCL = IO39, SDA = IO38)
U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0,  18, 8, U8X8_PIN_NONE);  // Screen rotation: U8G2_R0

// Function to display page 1 content
void page1() {
  // Set font size 18 for the larger "KINCONY" text
  u8g2.setFont(u8g2_font_timR18_tf);  // Use the Times Roman font, size 18
  u8g2.setFontPosTop();               // Set the text position at the top of the display
  u8g2.setCursor(5, 0);               // Position the cursor at coordinates (5, 0)
  u8g2.print("KINCONY");              // Display the text "KINCONY" on the screen

  // Set font size 12 for the smaller "www.kincony.com" text
  u8g2.setFont(u8g2_font_timR12_tf);  // Use the Times Roman font, size 12
  u8g2.setCursor(0, 40);              // Position the cursor at coordinates (0, 40)
  u8g2.print("www.kincony.com");      // Display the text "www.kincony.com"
}

// Setup function, runs once when the program starts
void setup() {
  // Set the I2C address for the display to 0x3C
  u8g2.setI2CAddress(0x3C*2);  // I2C address shift for 8-bit format

  // Initialize the display
  u8g2.begin();

  // Enable UTF-8 character printing for the display
  u8g2.enableUTF8Print();  // Allow UTF-8 encoded text to be printed
}

// Main loop function, continuously runs after setup()
void loop() {
  // Begin the display drawing process
  u8g2.firstPage();  // Prepare the first page for drawing
  do {
    // Call the page1() function to draw content on the display
    page1();
  } while (u8g2.nextPage());  // Continue to the next page until all pages are drawn
}
arduino ino file download:

.zip   10-oled-ssd1306.zip (Size: 1.12 KB / Downloads: 520)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   10-oled-ssd1306.ino.merged.zip (Size: 201.24 KB / Downloads: 517)

Print this item

  [arduino code examples for DM4]-10 Print TEXT on SSD1306 OLED displayer
Posted by: admin - 09-09-2025, 03:36 AM - Forum: DM4 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program demonstrates how to display text on an SSD1306 128x64 OLED display using the U8g2 library.
* The program draws two lines of text on the display:
* - The first line is "KINCONY" in a larger font.
* - The second line is "www.kincony.com" in a smaller font.
*
* The display is connected via I2C (software implementation) with:
* - SCL (clock) on pin IO18
* - SDA (data) on pin IO8
*
* The display's I2C address is set to 0x3C.
*/

#include <U8g2lib.h>  // Include the U8g2 library for controlling the OLED display
#include <Wire.h>     // Include the Wire library for I2C communication

// Initialize the display using the software I2C method (SCL = IO39, SDA = IO38)
U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0,  18, 8, U8X8_PIN_NONE);  // Screen rotation: U8G2_R0

// Function to display page 1 content
void page1() {
  // Set font size 18 for the larger "KINCONY" text
  u8g2.setFont(u8g2_font_timR18_tf);  // Use the Times Roman font, size 18
  u8g2.setFontPosTop();               // Set the text position at the top of the display
  u8g2.setCursor(5, 0);               // Position the cursor at coordinates (5, 0)
  u8g2.print("KINCONY");              // Display the text "KINCONY" on the screen

  // Set font size 12 for the smaller "www.kincony.com" text
  u8g2.setFont(u8g2_font_timR12_tf);  // Use the Times Roman font, size 12
  u8g2.setCursor(0, 40);              // Position the cursor at coordinates (0, 40)
  u8g2.print("www.kincony.com");      // Display the text "www.kincony.com"
}

// Setup function, runs once when the program starts
void setup() {
  // Set the I2C address for the display to 0x3C
  u8g2.setI2CAddress(0x3C*2);  // I2C address shift for 8-bit format

  // Initialize the display
  u8g2.begin();

  // Enable UTF-8 character printing for the display
  u8g2.enableUTF8Print();  // Allow UTF-8 encoded text to be printed
}

// Main loop function, continuously runs after setup()
void loop() {
  // Begin the display drawing process
  u8g2.firstPage();  // Prepare the first page for drawing
  do {
    // Call the page1() function to draw content on the display
    page1();
  } while (u8g2.nextPage());  // Continue to the next page until all pages are drawn
}
arduino ino file download:

.zip   10-oled-ssd1306.zip (Size: 1.12 KB / Downloads: 511)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   10-oled-ssd1306.ino.merged.zip (Size: 201.24 KB / Downloads: 518)

Print this item

  [arduino code examples for DM8]-10 Print TEXT on SSD1306 OLED displayer
Posted by: admin - 09-09-2025, 03:36 AM - Forum: DM8 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program demonstrates how to display text on an SSD1306 128x64 OLED display using the U8g2 library.
* The program draws two lines of text on the display:
* - The first line is "KINCONY" in a larger font.
* - The second line is "www.kincony.com" in a smaller font.
*
* The display is connected via I2C (software implementation) with:
* - SCL (clock) on pin IO18
* - SDA (data) on pin IO8
*
* The display's I2C address is set to 0x3C.
*/

#include <U8g2lib.h>  // Include the U8g2 library for controlling the OLED display
#include <Wire.h>     // Include the Wire library for I2C communication

// Initialize the display using the software I2C method (SCL = IO39, SDA = IO38)
U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0,  18, 8, U8X8_PIN_NONE);  // Screen rotation: U8G2_R0

// Function to display page 1 content
void page1() {
  // Set font size 18 for the larger "KINCONY" text
  u8g2.setFont(u8g2_font_timR18_tf);  // Use the Times Roman font, size 18
  u8g2.setFontPosTop();               // Set the text position at the top of the display
  u8g2.setCursor(5, 0);               // Position the cursor at coordinates (5, 0)
  u8g2.print("KINCONY");              // Display the text "KINCONY" on the screen

  // Set font size 12 for the smaller "www.kincony.com" text
  u8g2.setFont(u8g2_font_timR12_tf);  // Use the Times Roman font, size 12
  u8g2.setCursor(0, 40);              // Position the cursor at coordinates (0, 40)
  u8g2.print("www.kincony.com");      // Display the text "www.kincony.com"
}

// Setup function, runs once when the program starts
void setup() {
  // Set the I2C address for the display to 0x3C
  u8g2.setI2CAddress(0x3C*2);  // I2C address shift for 8-bit format

  // Initialize the display
  u8g2.begin();

  // Enable UTF-8 character printing for the display
  u8g2.enableUTF8Print();  // Allow UTF-8 encoded text to be printed
}

// Main loop function, continuously runs after setup()
void loop() {
  // Begin the display drawing process
  u8g2.firstPage();  // Prepare the first page for drawing
  do {
    // Call the page1() function to draw content on the display
    page1();
  } while (u8g2.nextPage());  // Continue to the next page until all pages are drawn
}
arduino ino file download:

.zip   10-oled-ssd1306.zip (Size: 1.12 KB / Downloads: 503)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   10-oled-ssd1306.ino.merged.zip (Size: 201.24 KB / Downloads: 514)

Print this item

  [arduino code examples for DM32]-10 Print TEXT on SSD1306 OLED displayer
Posted by: admin - 09-09-2025, 03:36 AM - Forum: DM32 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program demonstrates how to display text on an SSD1306 128x64 OLED display using the U8g2 library.
* The program draws two lines of text on the display:
* - The first line is "KINCONY" in a larger font.
* - The second line is "www.kincony.com" in a smaller font.
*
* The display is connected via I2C (software implementation) with:
* - SCL (clock) on pin IO18
* - SDA (data) on pin IO8
*
* The display's I2C address is set to 0x3C.
*/

#include <U8g2lib.h>  // Include the U8g2 library for controlling the OLED display
#include <Wire.h>     // Include the Wire library for I2C communication

// Initialize the display using the software I2C method (SCL = IO39, SDA = IO38)
U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0,  18, 8, U8X8_PIN_NONE);  // Screen rotation: U8G2_R0

// Function to display page 1 content
void page1() {
  // Set font size 18 for the larger "KINCONY" text
  u8g2.setFont(u8g2_font_timR18_tf);  // Use the Times Roman font, size 18
  u8g2.setFontPosTop();               // Set the text position at the top of the display
  u8g2.setCursor(5, 0);               // Position the cursor at coordinates (5, 0)
  u8g2.print("KINCONY");              // Display the text "KINCONY" on the screen

  // Set font size 12 for the smaller "www.kincony.com" text
  u8g2.setFont(u8g2_font_timR12_tf);  // Use the Times Roman font, size 12
  u8g2.setCursor(0, 40);              // Position the cursor at coordinates (0, 40)
  u8g2.print("www.kincony.com");      // Display the text "www.kincony.com"
}

// Setup function, runs once when the program starts
void setup() {
  // Set the I2C address for the display to 0x3C
  u8g2.setI2CAddress(0x3C*2);  // I2C address shift for 8-bit format

  // Initialize the display
  u8g2.begin();

  // Enable UTF-8 character printing for the display
  u8g2.enableUTF8Print();  // Allow UTF-8 encoded text to be printed
}

// Main loop function, continuously runs after setup()
void loop() {
  // Begin the display drawing process
  u8g2.firstPage();  // Prepare the first page for drawing
  do {
    // Call the page1() function to draw content on the display
    page1();
  } while (u8g2.nextPage());  // Continue to the next page until all pages are drawn
}
arduino ino file download:

.zip   10-oled-ssd1306.zip (Size: 1.12 KB / Downloads: 533)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   10-oled-ssd1306.ino.merged.zip (Size: 201.24 KB / Downloads: 509)

Print this item

  [arduino code examples for DM16]-09 how to communication with Tuya WiFi module
Posted by: admin - 09-09-2025, 03:34 AM - Forum: DM16 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program implements communication between ESP32 and the Tuya module
* via UART (serial communication). It listens for specific packets from the Tuya module
* and responds according to the predefined commands.
*
* Functionality:
* 1. When the ESP32 receives a heartbeat packet (55 AA 00 00 00 00 FF),
*    it sends a heartbeat response (55 AA 03 00 00 01 00 03).
* 2. When the ESP32 receives a product information request (55 AA 00 01 00 00 00),
*    it sends a product information response (55 AA 03 01 ...).
* 3. When the ESP32 receives a work mode request (55 AA 00 02 00 00 01),
*    it sends a work mode response (55 AA 03 02 00 03 10 1C 14 47).
* 4. When the ESP32 receives a network status request (55 AA 00 03 00 01 00 03),
*    it sends a network status response (55 AA 03 03 00 00 05).
* 5. Subsequent heartbeat packets (55 AA 00 00 00 00 FF) are responded to with
*    (55 AA 03 00 00 01 01 04).
*/

#include <HardwareSerial.h>

// Create a HardwareSerial object for UART communication on ESP32
HardwareSerial tuyaSerial(1);

// Define the GPIO pins for TXD and RXD used for serial communication
#define TXD_PIN 16
#define RXD_PIN 17

// Set the baud rate for Tuya module communication to 9600
#define BAUD_RATE 9600

// Define the response packets for different commands from the Tuya module

// Heartbeat response: 55 AA 03 00 00 01 00 03
uint8_t heartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x00, 0x03};

// Product info response with a detailed payload (e.g., firmware version, product name, etc.)
uint8_t productInfoResponse[] = {
  0x55, 0xAA, 0x03, 0x01, 0x00, 0x2A, 0x7B, 0x22, 0x70, 0x22, 0x3A, 0x22,
  0x63, 0x68, 0x6D, 0x7A, 0x6C, 0x67, 0x6A, 0x70, 0x61, 0x64, 0x70, 0x71,
  0x78, 0x64, 0x6B, 0x6F, 0x22, 0x2C, 0x22, 0x76, 0x22, 0x3A, 0x22, 0x31,
  0x2E, 0x30, 0x2E, 0x30, 0x22, 0x2C, 0x22, 0x6D, 0x22, 0x3A, 0x30, 0x7D, 0xAA
};

// Work mode response: 55 AA 03 02 00 03 10 1C 14 47
uint8_t workModeResponse[] = {0x55, 0xAA, 0x03, 0x02, 0x00, 0x03, 0x10, 0x1C, 0x14, 0x47};

// Network status response: 55 AA 03 03 00 00 05
uint8_t netStatusResponse[] = {0x55, 0xAA, 0x03, 0x03, 0x00, 0x00, 0x05};

// Subsequent heartbeat response: 55 AA 03 00 00 01 01 04
uint8_t secondHeartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x01, 0x04};

void setup() {
  // Initialize the serial communication for debugging at 115200 baud rate
  Serial.begin(115200);

  // Initialize the serial communication with Tuya module at 9600 baud rate
  tuyaSerial.begin(BAUD_RATE, SERIAL_8N1, RXD_PIN, TXD_PIN);

  // Debug message to indicate that the serial communication has been initialized
  Serial.println("ESP32-Tuya serial communication initialized.");
}

void loop() {
  // Check if data is available from the Tuya module
  if (tuyaSerial.available()) {
    uint8_t incomingPacket[7];  // Array to store the received packet
    size_t bytesRead = tuyaSerial.readBytes(incomingPacket, 7); // Read 7 bytes from Tuya

    // Check if the packet has a valid header (0x55, 0xAA)
    if (bytesRead >= 2 && incomingPacket[0] == 0x55 && incomingPacket[1] == 0xAA) {
      // If less than 7 bytes were received, wait for more data
      if (bytesRead < 7) {
        Serial.println("Incomplete packet received. Waiting for remaining bytes...");
        delay(50); // Delay to allow more data to be received
        while (tuyaSerial.available()) {
          incomingPacket[bytesRead++] = tuyaSerial.read(); // Continue reading remaining bytes
          if (bytesRead >= 7) break;
        }
      }

      // If still less than 7 bytes, discard the incomplete packet
      if (bytesRead < 7) {
        Serial.println("Error: Incomplete packet discarded.");
        return;
      }

      // Debug: Print the received packet for logging
      Serial.print("Received packet: ");
      for (size_t i = 0; i < 7; i++) {
        Serial.print(incomingPacket[i], HEX);
        Serial.print(" ");
      }
      Serial.println();

      // Call the function to process the received packet
      processTuyaPacket(incomingPacket, 7);

    } else {
      // If the header is invalid, discard the packet and flush the buffer
      Serial.print("Error: Invalid packet header. Data received: ");
      for (size_t i = 0; i < bytesRead; i++) {
        Serial.print(incomingPacket[i], HEX);
        Serial.print(" ");
      }
      Serial.println();
      tuyaSerial.flush(); // Clear the serial buffer
    }
  }

  // Delay to avoid CPU overuse
  delay(100);
}

// Function to process the received packet and send the appropriate response
void processTuyaPacket(uint8_t* packet, size_t size) {
  // Ensure the packet size is 7 and the header is valid
  if (size == 7 && packet[0] == 0x55 && packet[1] == 0xAA) {
    // Determine the command in the packet (packet[2])
    switch(packet[2]) {
      case 0x00:
        if (packet[3] == 0x00 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0xFF) {
          Serial.println("Heartbeat received.");
          sendPacket(heartBeatResponse, sizeof(heartBeatResponse));
        } else if (packet[3] == 0x01 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x00) {
          Serial.println("Product info request received.");
          sendPacket(productInfoResponse, sizeof(productInfoResponse));
        } else if (packet[3] == 0x02 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x01) {
          Serial.println("Work mode request received.");
          sendPacket(workModeResponse, sizeof(workModeResponse));
        } else if (packet[3] == 0x03 && packet[4] == 0x00 && packet[5] == 0x01 && packet[6] == 0x00) {
          Serial.println("Network status request received.");
          sendPacket(netStatusResponse, sizeof(netStatusResponse));
        }
        break;

      default:
        Serial.println("Error: Unhandled command received.");
        break;
    }
  }
}

// Function to send the response packet to the Tuya module
void sendPacket(uint8_t* packet, size_t size) {
  // Send the packet via UART to Tuya module
  tuyaSerial.write(packet, size);

  // Debug: Print the sent packet for logging
  Serial.print("Sent packet: ");
  for (size_t i = 0; i < size; i++) {
    Serial.print(packet[i], HEX);
    Serial.print(" ");
  }
  Serial.println();
}
arduino ino file download:

.zip   9-tuya-wifi-config.zip (Size: 2 KB / Downloads: 505)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   9-tuya-wifi-config.ino.merged.zip (Size: 184.93 KB / Downloads: 491)

Print this item

  [arduino code examples for DM4]-09 how to communication with Tuya WiFi module
Posted by: admin - 09-09-2025, 03:34 AM - Forum: DM4 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program implements communication between ESP32 and the Tuya module
* via UART (serial communication). It listens for specific packets from the Tuya module
* and responds according to the predefined commands.
*
* Functionality:
* 1. When the ESP32 receives a heartbeat packet (55 AA 00 00 00 00 FF),
*    it sends a heartbeat response (55 AA 03 00 00 01 00 03).
* 2. When the ESP32 receives a product information request (55 AA 00 01 00 00 00),
*    it sends a product information response (55 AA 03 01 ...).
* 3. When the ESP32 receives a work mode request (55 AA 00 02 00 00 01),
*    it sends a work mode response (55 AA 03 02 00 03 10 1C 14 47).
* 4. When the ESP32 receives a network status request (55 AA 00 03 00 01 00 03),
*    it sends a network status response (55 AA 03 03 00 00 05).
* 5. Subsequent heartbeat packets (55 AA 00 00 00 00 FF) are responded to with
*    (55 AA 03 00 00 01 01 04).
*/

#include <HardwareSerial.h>

// Create a HardwareSerial object for UART communication on ESP32
HardwareSerial tuyaSerial(1);

// Define the GPIO pins for TXD and RXD used for serial communication
#define TXD_PIN 16
#define RXD_PIN 17

// Set the baud rate for Tuya module communication to 9600
#define BAUD_RATE 9600

// Define the response packets for different commands from the Tuya module

// Heartbeat response: 55 AA 03 00 00 01 00 03
uint8_t heartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x00, 0x03};

// Product info response with a detailed payload (e.g., firmware version, product name, etc.)
uint8_t productInfoResponse[] = {
  0x55, 0xAA, 0x03, 0x01, 0x00, 0x2A, 0x7B, 0x22, 0x70, 0x22, 0x3A, 0x22,
  0x63, 0x68, 0x6D, 0x7A, 0x6C, 0x67, 0x6A, 0x70, 0x61, 0x64, 0x70, 0x71,
  0x78, 0x64, 0x6B, 0x6F, 0x22, 0x2C, 0x22, 0x76, 0x22, 0x3A, 0x22, 0x31,
  0x2E, 0x30, 0x2E, 0x30, 0x22, 0x2C, 0x22, 0x6D, 0x22, 0x3A, 0x30, 0x7D, 0xAA
};

// Work mode response: 55 AA 03 02 00 03 10 1C 14 47
uint8_t workModeResponse[] = {0x55, 0xAA, 0x03, 0x02, 0x00, 0x03, 0x10, 0x1C, 0x14, 0x47};

// Network status response: 55 AA 03 03 00 00 05
uint8_t netStatusResponse[] = {0x55, 0xAA, 0x03, 0x03, 0x00, 0x00, 0x05};

// Subsequent heartbeat response: 55 AA 03 00 00 01 01 04
uint8_t secondHeartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x01, 0x04};

void setup() {
  // Initialize the serial communication for debugging at 115200 baud rate
  Serial.begin(115200);

  // Initialize the serial communication with Tuya module at 9600 baud rate
  tuyaSerial.begin(BAUD_RATE, SERIAL_8N1, RXD_PIN, TXD_PIN);

  // Debug message to indicate that the serial communication has been initialized
  Serial.println("ESP32-Tuya serial communication initialized.");
}

void loop() {
  // Check if data is available from the Tuya module
  if (tuyaSerial.available()) {
    uint8_t incomingPacket[7];  // Array to store the received packet
    size_t bytesRead = tuyaSerial.readBytes(incomingPacket, 7); // Read 7 bytes from Tuya

    // Check if the packet has a valid header (0x55, 0xAA)
    if (bytesRead >= 2 && incomingPacket[0] == 0x55 && incomingPacket[1] == 0xAA) {
      // If less than 7 bytes were received, wait for more data
      if (bytesRead < 7) {
        Serial.println("Incomplete packet received. Waiting for remaining bytes...");
        delay(50); // Delay to allow more data to be received
        while (tuyaSerial.available()) {
          incomingPacket[bytesRead++] = tuyaSerial.read(); // Continue reading remaining bytes
          if (bytesRead >= 7) break;
        }
      }

      // If still less than 7 bytes, discard the incomplete packet
      if (bytesRead < 7) {
        Serial.println("Error: Incomplete packet discarded.");
        return;
      }

      // Debug: Print the received packet for logging
      Serial.print("Received packet: ");
      for (size_t i = 0; i < 7; i++) {
        Serial.print(incomingPacket[i], HEX);
        Serial.print(" ");
      }
      Serial.println();

      // Call the function to process the received packet
      processTuyaPacket(incomingPacket, 7);

    } else {
      // If the header is invalid, discard the packet and flush the buffer
      Serial.print("Error: Invalid packet header. Data received: ");
      for (size_t i = 0; i < bytesRead; i++) {
        Serial.print(incomingPacket[i], HEX);
        Serial.print(" ");
      }
      Serial.println();
      tuyaSerial.flush(); // Clear the serial buffer
    }
  }

  // Delay to avoid CPU overuse
  delay(100);
}

// Function to process the received packet and send the appropriate response
void processTuyaPacket(uint8_t* packet, size_t size) {
  // Ensure the packet size is 7 and the header is valid
  if (size == 7 && packet[0] == 0x55 && packet[1] == 0xAA) {
    // Determine the command in the packet (packet[2])
    switch(packet[2]) {
      case 0x00:
        if (packet[3] == 0x00 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0xFF) {
          Serial.println("Heartbeat received.");
          sendPacket(heartBeatResponse, sizeof(heartBeatResponse));
        } else if (packet[3] == 0x01 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x00) {
          Serial.println("Product info request received.");
          sendPacket(productInfoResponse, sizeof(productInfoResponse));
        } else if (packet[3] == 0x02 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x01) {
          Serial.println("Work mode request received.");
          sendPacket(workModeResponse, sizeof(workModeResponse));
        } else if (packet[3] == 0x03 && packet[4] == 0x00 && packet[5] == 0x01 && packet[6] == 0x00) {
          Serial.println("Network status request received.");
          sendPacket(netStatusResponse, sizeof(netStatusResponse));
        }
        break;

      default:
        Serial.println("Error: Unhandled command received.");
        break;
    }
  }
}

// Function to send the response packet to the Tuya module
void sendPacket(uint8_t* packet, size_t size) {
  // Send the packet via UART to Tuya module
  tuyaSerial.write(packet, size);

  // Debug: Print the sent packet for logging
  Serial.print("Sent packet: ");
  for (size_t i = 0; i < size; i++) {
    Serial.print(packet[i], HEX);
    Serial.print(" ");
  }
  Serial.println();
}
arduino ino file download:

.zip   9-tuya-wifi-config.zip (Size: 2 KB / Downloads: 506)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   9-tuya-wifi-config.ino.merged.zip (Size: 184.93 KB / Downloads: 531)

Print this item

  [arduino code examples for DM8]-09 how to communication with Tuya WiFi module
Posted by: admin - 09-09-2025, 03:34 AM - Forum: DM8 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program implements communication between ESP32 and the Tuya module
* via UART (serial communication). It listens for specific packets from the Tuya module
* and responds according to the predefined commands.
*
* Functionality:
* 1. When the ESP32 receives a heartbeat packet (55 AA 00 00 00 00 FF),
*    it sends a heartbeat response (55 AA 03 00 00 01 00 03).
* 2. When the ESP32 receives a product information request (55 AA 00 01 00 00 00),
*    it sends a product information response (55 AA 03 01 ...).
* 3. When the ESP32 receives a work mode request (55 AA 00 02 00 00 01),
*    it sends a work mode response (55 AA 03 02 00 03 10 1C 14 47).
* 4. When the ESP32 receives a network status request (55 AA 00 03 00 01 00 03),
*    it sends a network status response (55 AA 03 03 00 00 05).
* 5. Subsequent heartbeat packets (55 AA 00 00 00 00 FF) are responded to with
*    (55 AA 03 00 00 01 01 04).
*/

#include <HardwareSerial.h>

// Create a HardwareSerial object for UART communication on ESP32
HardwareSerial tuyaSerial(1);

// Define the GPIO pins for TXD and RXD used for serial communication
#define TXD_PIN 16
#define RXD_PIN 17

// Set the baud rate for Tuya module communication to 9600
#define BAUD_RATE 9600

// Define the response packets for different commands from the Tuya module

// Heartbeat response: 55 AA 03 00 00 01 00 03
uint8_t heartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x00, 0x03};

// Product info response with a detailed payload (e.g., firmware version, product name, etc.)
uint8_t productInfoResponse[] = {
  0x55, 0xAA, 0x03, 0x01, 0x00, 0x2A, 0x7B, 0x22, 0x70, 0x22, 0x3A, 0x22,
  0x63, 0x68, 0x6D, 0x7A, 0x6C, 0x67, 0x6A, 0x70, 0x61, 0x64, 0x70, 0x71,
  0x78, 0x64, 0x6B, 0x6F, 0x22, 0x2C, 0x22, 0x76, 0x22, 0x3A, 0x22, 0x31,
  0x2E, 0x30, 0x2E, 0x30, 0x22, 0x2C, 0x22, 0x6D, 0x22, 0x3A, 0x30, 0x7D, 0xAA
};

// Work mode response: 55 AA 03 02 00 03 10 1C 14 47
uint8_t workModeResponse[] = {0x55, 0xAA, 0x03, 0x02, 0x00, 0x03, 0x10, 0x1C, 0x14, 0x47};

// Network status response: 55 AA 03 03 00 00 05
uint8_t netStatusResponse[] = {0x55, 0xAA, 0x03, 0x03, 0x00, 0x00, 0x05};

// Subsequent heartbeat response: 55 AA 03 00 00 01 01 04
uint8_t secondHeartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x01, 0x04};

void setup() {
  // Initialize the serial communication for debugging at 115200 baud rate
  Serial.begin(115200);

  // Initialize the serial communication with Tuya module at 9600 baud rate
  tuyaSerial.begin(BAUD_RATE, SERIAL_8N1, RXD_PIN, TXD_PIN);

  // Debug message to indicate that the serial communication has been initialized
  Serial.println("ESP32-Tuya serial communication initialized.");
}

void loop() {
  // Check if data is available from the Tuya module
  if (tuyaSerial.available()) {
    uint8_t incomingPacket[7];  // Array to store the received packet
    size_t bytesRead = tuyaSerial.readBytes(incomingPacket, 7); // Read 7 bytes from Tuya

    // Check if the packet has a valid header (0x55, 0xAA)
    if (bytesRead >= 2 && incomingPacket[0] == 0x55 && incomingPacket[1] == 0xAA) {
      // If less than 7 bytes were received, wait for more data
      if (bytesRead < 7) {
        Serial.println("Incomplete packet received. Waiting for remaining bytes...");
        delay(50); // Delay to allow more data to be received
        while (tuyaSerial.available()) {
          incomingPacket[bytesRead++] = tuyaSerial.read(); // Continue reading remaining bytes
          if (bytesRead >= 7) break;
        }
      }

      // If still less than 7 bytes, discard the incomplete packet
      if (bytesRead < 7) {
        Serial.println("Error: Incomplete packet discarded.");
        return;
      }

      // Debug: Print the received packet for logging
      Serial.print("Received packet: ");
      for (size_t i = 0; i < 7; i++) {
        Serial.print(incomingPacket[i], HEX);
        Serial.print(" ");
      }
      Serial.println();

      // Call the function to process the received packet
      processTuyaPacket(incomingPacket, 7);

    } else {
      // If the header is invalid, discard the packet and flush the buffer
      Serial.print("Error: Invalid packet header. Data received: ");
      for (size_t i = 0; i < bytesRead; i++) {
        Serial.print(incomingPacket[i], HEX);
        Serial.print(" ");
      }
      Serial.println();
      tuyaSerial.flush(); // Clear the serial buffer
    }
  }

  // Delay to avoid CPU overuse
  delay(100);
}

// Function to process the received packet and send the appropriate response
void processTuyaPacket(uint8_t* packet, size_t size) {
  // Ensure the packet size is 7 and the header is valid
  if (size == 7 && packet[0] == 0x55 && packet[1] == 0xAA) {
    // Determine the command in the packet (packet[2])
    switch(packet[2]) {
      case 0x00:
        if (packet[3] == 0x00 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0xFF) {
          Serial.println("Heartbeat received.");
          sendPacket(heartBeatResponse, sizeof(heartBeatResponse));
        } else if (packet[3] == 0x01 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x00) {
          Serial.println("Product info request received.");
          sendPacket(productInfoResponse, sizeof(productInfoResponse));
        } else if (packet[3] == 0x02 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x01) {
          Serial.println("Work mode request received.");
          sendPacket(workModeResponse, sizeof(workModeResponse));
        } else if (packet[3] == 0x03 && packet[4] == 0x00 && packet[5] == 0x01 && packet[6] == 0x00) {
          Serial.println("Network status request received.");
          sendPacket(netStatusResponse, sizeof(netStatusResponse));
        }
        break;

      default:
        Serial.println("Error: Unhandled command received.");
        break;
    }
  }
}

// Function to send the response packet to the Tuya module
void sendPacket(uint8_t* packet, size_t size) {
  // Send the packet via UART to Tuya module
  tuyaSerial.write(packet, size);

  // Debug: Print the sent packet for logging
  Serial.print("Sent packet: ");
  for (size_t i = 0; i < size; i++) {
    Serial.print(packet[i], HEX);
    Serial.print(" ");
  }
  Serial.println();
}
arduino ino file download:

.zip   9-tuya-wifi-config.zip (Size: 2 KB / Downloads: 519)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   9-tuya-wifi-config.ino.merged.zip (Size: 184.93 KB / Downloads: 563)

Print this item
