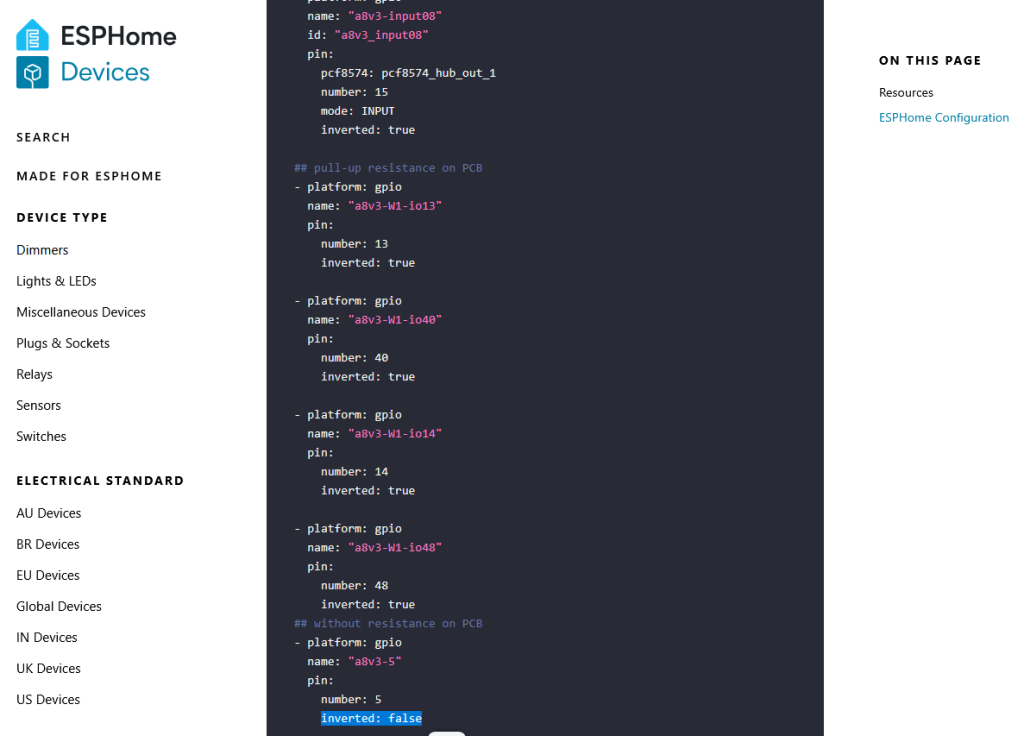

  [arduino code examples for DM32]-05 Read free GPIO state
Posted by: admin - 09-09-2025, 03:00 AM - Forum: DM32 (under designing) - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* GPIO Status Monitoring
*
* This program monitors the status (high or low) of multiple GPIO pins on the ESP32-S3.
* It prints the status of the pins to the serial monitor whenever a change is detected.
*
* GPIO Pins Monitored:
* - GPIO 40
* - GPIO 7
* - GPIO 48
* - GPIO 47
* - GPIO 13
* - GPIO 14
* - GPIO 21
* - GPIO 0
*
* Hardware Requirements:
* - Connect the pins to appropriate devices or pull them to HIGH/LOW for testing
*/

#define GPIO_PIN_40 40
#define GPIO_PIN_7 7
#define GPIO_PIN_48 48
#define GPIO_PIN_47 47
#define GPIO_PIN_13 13
#define GPIO_PIN_14 14
#define GPIO_PIN_21 21
#define GPIO_PIN_0 0

// Store the previous state of the GPIO pins
bool prevState[8] = {false, false, false, false, false, false, false, false};

void setup() {
  // Initialize serial communication for debugging purposes
  Serial.begin(115200); // Initialize the serial monitor at 115200 baud
  while (!Serial);      // Wait for the serial monitor to open

  // Initialize GPIO pins as inputs
  pinMode(GPIO_PIN_40, INPUT);
  pinMode(GPIO_PIN_7, INPUT);
  pinMode(GPIO_PIN_48, INPUT);
  pinMode(GPIO_PIN_47, INPUT);
  pinMode(GPIO_PIN_13, INPUT);
  pinMode(GPIO_PIN_14, INPUT);
  pinMode(GPIO_PIN_21, INPUT);
  pinMode(GPIO_PIN_0, INPUT);

  Serial.println("GPIO Status Monitoring Started");
}

void loop() {
  // Read the current state of each GPIO pin
  bool currentState[8];
  currentState[0] = digitalRead(GPIO_PIN_40);
  currentState[1] = digitalRead(GPIO_PIN_7);
  currentState[2] = digitalRead(GPIO_PIN_48);
  currentState[3] = digitalRead(GPIO_PIN_47);
  currentState[4] = digitalRead(GPIO_PIN_13);
  currentState[5] = digitalRead(GPIO_PIN_14);
  currentState[6] = digitalRead(GPIO_PIN_21);
  currentState[7] = digitalRead(GPIO_PIN_0);

  // Check for changes in GPIO pin states
  for (int i = 0; i < 8; i++) {
    if (currentState[i] != prevState[i]) {
      // Print the pin number and its new state if it has changed
      Serial.print("GPIO ");
      Serial.print(i == 0 ? GPIO_PIN_40 :
                   i == 1 ? GPIO_PIN_7 :
                   i == 2 ? GPIO_PIN_48 :
                   i == 3 ? GPIO_PIN_47 :
                   i == 4 ? GPIO_PIN_13 :
                   i == 5 ? GPIO_PIN_14 :
                   i == 6 ? GPIO_PIN_21 : GPIO_PIN_0);
      Serial.print(" changed to ");
      Serial.println(currentState[i] ? "HIGH" : "LOW");
      // Update the previous state
      prevState[i] = currentState[i];
    }
  }

  // Delay to avoid flooding the serial monitor
  delay(100); // Adjust the delay as needed
}
arduino ino file download:

.zip   5-free-gpio-state.zip (Size: 1.04 KB / Downloads: 236)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   5-free-gpio-state.ino.merged.zip (Size: 179.57 KB / Downloads: 221)

Print this item

  [arduino code examples for DM16]-04 RS485 communication test
Posted by: admin - 09-09-2025, 02:59 AM - Forum: DM16 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* RS485 Communication Test
*
* This program is a simple test for RS485 communication using ESP32-S3.
* It will send a message over RS485 and then read incoming messages.
* The TXD pin is defined as GPIO 18 and RXD pin is defined as GPIO 8.
*/

#include <HardwareSerial.h>

// Define RS485 pins
#define RS485_RXD 38
#define RS485_TXD 39

// Create a hardware serial object
HardwareSerial rs485Serial(1);

void setup() {
  // Start serial communication for debugging
  Serial.begin(115200);
  while (!Serial);

  // Initialize RS485 Serial communication
  rs485Serial.begin(9600, SERIAL_8N1, RS485_RXD, RS485_TXD);

  Serial.println("RS485 Test Start");
}

void loop() {
  // Send a test message
  rs485Serial.println("Hello from KinCony B16!");

  // Wait for a short period
  delay(1000);

  // Check if data is available to read
  if (rs485Serial.available()) {
    String receivedMessage = "";
    while (rs485Serial.available()) {
      char c = rs485Serial.read();
      receivedMessage += c;
    }
    // Print the received message
    Serial.print("Received: ");
    Serial.println(receivedMessage);
  }

  // Wait before sending the next message
  delay(2000);
}
arduino ino file download:

.zip   4-RS485-Test.zip (Size: 763 bytes / Downloads: 229)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   4-RS485-Test.ino.merged.zip (Size: 184.34 KB / Downloads: 277)

Print this item

  [arduino code examples for DM4]-04 RS485 communication test
Posted by: admin - 09-09-2025, 02:59 AM - Forum: DM4 (under designing) - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* RS485 Communication Test
*
* This program is a simple test for RS485 communication using ESP32-S3.
* It will send a message over RS485 and then read incoming messages.
* The TXD pin is defined as GPIO 18 and RXD pin is defined as GPIO 8.
*/

#include <HardwareSerial.h>

// Define RS485 pins
#define RS485_RXD 38
#define RS485_TXD 39

// Create a hardware serial object
HardwareSerial rs485Serial(1);

void setup() {
  // Start serial communication for debugging
  Serial.begin(115200);
  while (!Serial);

  // Initialize RS485 Serial communication
  rs485Serial.begin(9600, SERIAL_8N1, RS485_RXD, RS485_TXD);

  Serial.println("RS485 Test Start");
}

void loop() {
  // Send a test message
  rs485Serial.println("Hello from KinCony B16!");

  // Wait for a short period
  delay(1000);

  // Check if data is available to read
  if (rs485Serial.available()) {
    String receivedMessage = "";
    while (rs485Serial.available()) {
      char c = rs485Serial.read();
      receivedMessage += c;
    }
    // Print the received message
    Serial.print("Received: ");
    Serial.println(receivedMessage);
  }

  // Wait before sending the next message
  delay(2000);
}
arduino ino file download:

.zip   4-RS485-Test.zip (Size: 763 bytes / Downloads: 230)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   4-RS485-Test.ino.merged.zip (Size: 184.34 KB / Downloads: 276)

Print this item

  [arduino code examples for DM8]-04 RS485 communication test
Posted by: admin - 09-09-2025, 02:59 AM - Forum: DM8 (under designing) - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* RS485 Communication Test
*
* This program is a simple test for RS485 communication using ESP32-S3.
* It will send a message over RS485 and then read incoming messages.
* The TXD pin is defined as GPIO 18 and RXD pin is defined as GPIO 8.
*/

#include <HardwareSerial.h>

// Define RS485 pins
#define RS485_RXD 38
#define RS485_TXD 39

// Create a hardware serial object
HardwareSerial rs485Serial(1);

void setup() {
  // Start serial communication for debugging
  Serial.begin(115200);
  while (!Serial);

  // Initialize RS485 Serial communication
  rs485Serial.begin(9600, SERIAL_8N1, RS485_RXD, RS485_TXD);

  Serial.println("RS485 Test Start");
}

void loop() {
  // Send a test message
  rs485Serial.println("Hello from KinCony B16!");

  // Wait for a short period
  delay(1000);

  // Check if data is available to read
  if (rs485Serial.available()) {
    String receivedMessage = "";
    while (rs485Serial.available()) {
      char c = rs485Serial.read();
      receivedMessage += c;
    }
    // Print the received message
    Serial.print("Received: ");
    Serial.println(receivedMessage);
  }

  // Wait before sending the next message
  delay(2000);
}
arduino ino file download:

.zip   4-RS485-Test.zip (Size: 763 bytes / Downloads: 231)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   4-RS485-Test.ino.merged.zip (Size: 184.34 KB / Downloads: 275)

Print this item

  [arduino code examples for DM32]-04 RS485 communication test
Posted by: admin - 09-09-2025, 02:59 AM - Forum: DM32 (under designing) - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* RS485 Communication Test
*
* This program is a simple test for RS485 communication using ESP32-S3.
* It will send a message over RS485 and then read incoming messages.
* The TXD pin is defined as GPIO 18 and RXD pin is defined as GPIO 8.
*/

#include <HardwareSerial.h>

// Define RS485 pins
#define RS485_RXD 38
#define RS485_TXD 39

// Create a hardware serial object
HardwareSerial rs485Serial(1);

void setup() {
  // Start serial communication for debugging
  Serial.begin(115200);
  while (!Serial);

  // Initialize RS485 Serial communication
  rs485Serial.begin(9600, SERIAL_8N1, RS485_RXD, RS485_TXD);

  Serial.println("RS485 Test Start");
}

void loop() {
  // Send a test message
  rs485Serial.println("Hello from KinCony B16!");

  // Wait for a short period
  delay(1000);

  // Check if data is available to read
  if (rs485Serial.available()) {
    String receivedMessage = "";
    while (rs485Serial.available()) {
      char c = rs485Serial.read();
      receivedMessage += c;
    }
    // Print the received message
    Serial.print("Received: ");
    Serial.println(receivedMessage);
  }

  // Wait before sending the next message
  delay(2000);
}
arduino ino file download:

.zip   4-RS485-Test.zip (Size: 763 bytes / Downloads: 229)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   4-RS485-Test.ino.merged.zip (Size: 184.34 KB / Downloads: 277)

Print this item

  [arduino code examples for DM16]-03 Read ADS1115 analog input ports value
Posted by: admin - 09-09-2025, 02:53 AM - Forum: DM16 - No Replies

Code:
/*
* This program reads voltage values from the ADS1115 analog-to-digital converter
* on all four channels (A0, A1, A2, A3) and prints the results through the serial port.
* The ADS1115 communicates via the I2C protocol. This version of the code includes
* the capability to specify custom SDA and SCL pins for I2C communication.
*
* Copyright: Made by KinCony IoT: https://www.kincony.com
*
*/

#include <Wire.h>                // Library for I2C communication
#include <DFRobot_ADS1115.h>     // Library for ADS1115 ADC module

// Define the I2C SDA and SCL pins for communication with ADS1115
#define SDA_PIN 8
#define SCL_PIN 18

// Initialize ADS1115 instance using the Wire library
DFRobot_ADS1115 ads(&Wire);

void setup(void)
{
    // Begin serial communication at a baud rate of 115200
    Serial.begin(115200);

    // Initialize the I2C bus using the defined SDA and SCL pins
    Wire.begin(SDA_PIN, SCL_PIN);

    // Set the I2C address for the ADS1115 (default: 0x49)
    ads.setAddr_ADS1115(ADS1115_IIC_ADDRESS0);   // Address is 0x49

    // Set the gain for the ADS1115 (2/3x gain allows for a maximum input voltage of 6.144V)
    ads.setGain(eGAIN_TWOTHIRDS);

    // Set the ADS1115 to operate in single-shot mode (each reading is a single conversion)
    ads.setMode(eMODE_SINGLE);

    // Set the sample rate to 128 samples per second (SPS)
    ads.setRate(eRATE_128);

    // Set the operational status mode to single-conversion start
    ads.setOSMode(eOSMODE_SINGLE);

    // Initialize the ADS1115 module
    ads.init();
}

void loop(void)
{
    // Check if the ADS1115 is properly connected and functioning
    if (ads.checkADS1115())
    {
        // Variables to store the voltage readings for each channel
        int16_t adc0, adc1, adc2, adc3;

        // Read the voltage from channel A0 and print the value
        adc0 = ads.readVoltage(0);
        Serial.print("A0:");
        Serial.print(adc0);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A1 and print the value
        adc1 = ads.readVoltage(1);
        Serial.print("A1:");
        Serial.print(adc1);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A2 and print the value
        adc2 = ads.readVoltage(2);
        Serial.print("A2:");
        Serial.print(adc2);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A3 and print the value
        adc3 = ads.readVoltage(3);
        Serial.print("A3:");
        Serial.print(adc3);
        Serial.println("mV");     // Print the value in millivolts and end the line
    }
    else
    {
        // If ADS1115 is not connected, print a message indicating disconnection
        Serial.println("ADS1115 Disconnected!");
    }

    // Wait for 1 second before the next loop iteration
    delay(1000);
}
arduino ino file download:

.zip   3-ads1115_adc.zip (Size: 1.2 KB / Downloads: 218)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   3-ads1115_adc.ino.merged.zip (Size: 190.05 KB / Downloads: 230)

Print this item

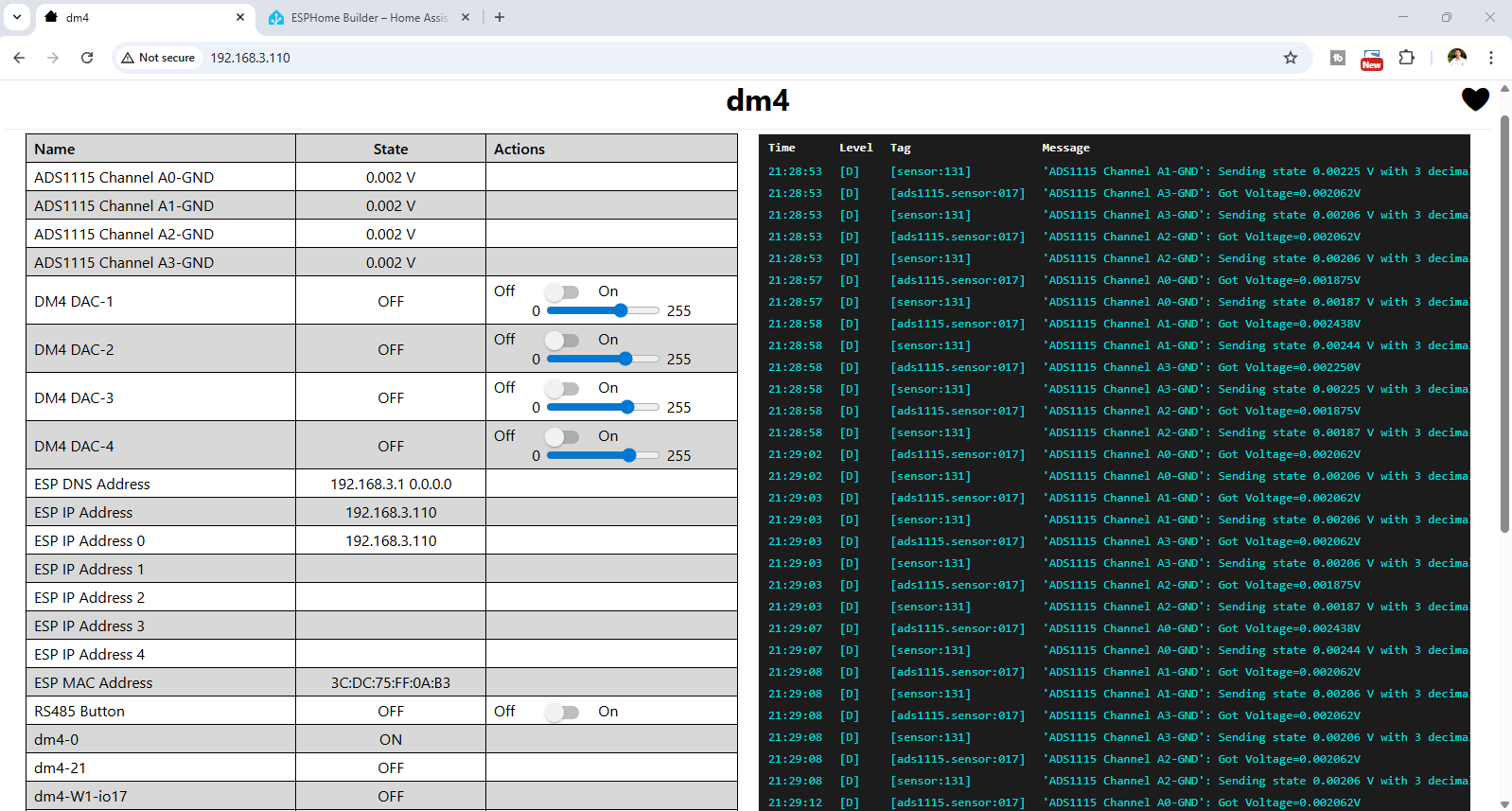

  [arduino code examples for DM4]-03 Read ADS1115 analog input ports value
Posted by: admin - 09-09-2025, 02:53 AM - Forum: DM4 (under designing) - No Replies

Code:
/*
* This program reads voltage values from the ADS1115 analog-to-digital converter
* on all four channels (A0, A1, A2, A3) and prints the results through the serial port.
* The ADS1115 communicates via the I2C protocol. This version of the code includes
* the capability to specify custom SDA and SCL pins for I2C communication.
*
* Copyright: Made by KinCony IoT: https://www.kincony.com
*
*/

#include <Wire.h>                // Library for I2C communication
#include <DFRobot_ADS1115.h>     // Library for ADS1115 ADC module

// Define the I2C SDA and SCL pins for communication with ADS1115
#define SDA_PIN 8
#define SCL_PIN 18

// Initialize ADS1115 instance using the Wire library
DFRobot_ADS1115 ads(&Wire);

void setup(void)
{
    // Begin serial communication at a baud rate of 115200
    Serial.begin(115200);

    // Initialize the I2C bus using the defined SDA and SCL pins
    Wire.begin(SDA_PIN, SCL_PIN);

    // Set the I2C address for the ADS1115 (default: 0x49)
    ads.setAddr_ADS1115(ADS1115_IIC_ADDRESS0);   // Address is 0x49

    // Set the gain for the ADS1115 (2/3x gain allows for a maximum input voltage of 6.144V)
    ads.setGain(eGAIN_TWOTHIRDS);

    // Set the ADS1115 to operate in single-shot mode (each reading is a single conversion)
    ads.setMode(eMODE_SINGLE);

    // Set the sample rate to 128 samples per second (SPS)
    ads.setRate(eRATE_128);

    // Set the operational status mode to single-conversion start
    ads.setOSMode(eOSMODE_SINGLE);

    // Initialize the ADS1115 module
    ads.init();
}

void loop(void)
{
    // Check if the ADS1115 is properly connected and functioning
    if (ads.checkADS1115())
    {
        // Variables to store the voltage readings for each channel
        int16_t adc0, adc1, adc2, adc3;

        // Read the voltage from channel A0 and print the value
        adc0 = ads.readVoltage(0);
        Serial.print("A0:");
        Serial.print(adc0);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A1 and print the value
        adc1 = ads.readVoltage(1);
        Serial.print("A1:");
        Serial.print(adc1);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A2 and print the value
        adc2 = ads.readVoltage(2);
        Serial.print("A2:");
        Serial.print(adc2);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A3 and print the value
        adc3 = ads.readVoltage(3);
        Serial.print("A3:");
        Serial.print(adc3);
        Serial.println("mV");     // Print the value in millivolts and end the line
    }
    else
    {
        // If ADS1115 is not connected, print a message indicating disconnection
        Serial.println("ADS1115 Disconnected!");
    }

    // Wait for 1 second before the next loop iteration
    delay(1000);
}
arduino ino file download:

.zip   3-ads1115_adc.zip (Size: 1.2 KB / Downloads: 220)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   3-ads1115_adc.ino.merged.zip (Size: 190.05 KB / Downloads: 231)

Print this item

  [arduino code examples for DM8]-03 Read ADS1115 analog input ports value
Posted by: admin - 09-09-2025, 02:53 AM - Forum: DM8 (under designing) - No Replies

Code:
/*
* This program reads voltage values from the ADS1115 analog-to-digital converter
* on all four channels (A0, A1, A2, A3) and prints the results through the serial port.
* The ADS1115 communicates via the I2C protocol. This version of the code includes
* the capability to specify custom SDA and SCL pins for I2C communication.
*
* Copyright: Made by KinCony IoT: https://www.kincony.com
*
*/

#include <Wire.h>                // Library for I2C communication
#include <DFRobot_ADS1115.h>     // Library for ADS1115 ADC module

// Define the I2C SDA and SCL pins for communication with ADS1115
#define SDA_PIN 8
#define SCL_PIN 18

// Initialize ADS1115 instance using the Wire library
DFRobot_ADS1115 ads(&Wire);

void setup(void)
{
    // Begin serial communication at a baud rate of 115200
    Serial.begin(115200);

    // Initialize the I2C bus using the defined SDA and SCL pins
    Wire.begin(SDA_PIN, SCL_PIN);

    // Set the I2C address for the ADS1115 (default: 0x49)
    ads.setAddr_ADS1115(ADS1115_IIC_ADDRESS0);   // Address is 0x49

    // Set the gain for the ADS1115 (2/3x gain allows for a maximum input voltage of 6.144V)
    ads.setGain(eGAIN_TWOTHIRDS);

    // Set the ADS1115 to operate in single-shot mode (each reading is a single conversion)
    ads.setMode(eMODE_SINGLE);

    // Set the sample rate to 128 samples per second (SPS)
    ads.setRate(eRATE_128);

    // Set the operational status mode to single-conversion start
    ads.setOSMode(eOSMODE_SINGLE);

    // Initialize the ADS1115 module
    ads.init();
}

void loop(void)
{
    // Check if the ADS1115 is properly connected and functioning
    if (ads.checkADS1115())
    {
        // Variables to store the voltage readings for each channel
        int16_t adc0, adc1, adc2, adc3;

        // Read the voltage from channel A0 and print the value
        adc0 = ads.readVoltage(0);
        Serial.print("A0:");
        Serial.print(adc0);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A1 and print the value
        adc1 = ads.readVoltage(1);
        Serial.print("A1:");
        Serial.print(adc1);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A2 and print the value
        adc2 = ads.readVoltage(2);
        Serial.print("A2:");
        Serial.print(adc2);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A3 and print the value
        adc3 = ads.readVoltage(3);
        Serial.print("A3:");
        Serial.print(adc3);
        Serial.println("mV");     // Print the value in millivolts and end the line
    }
    else
    {
        // If ADS1115 is not connected, print a message indicating disconnection
        Serial.println("ADS1115 Disconnected!");
    }

    // Wait for 1 second before the next loop iteration
    delay(1000);
}
arduino ino file download:

.zip   3-ads1115_adc.zip (Size: 1.2 KB / Downloads: 218)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   3-ads1115_adc.ino.merged.zip (Size: 190.05 KB / Downloads: 230)

Print this item

  [arduino code examples for DM32]-03 Read ADS1115 analog input ports value
Posted by: admin - 09-09-2025, 02:53 AM - Forum: DM32 (under designing) - No Replies

Code:
/*
* This program reads voltage values from the ADS1115 analog-to-digital converter
* on all four channels (A0, A1, A2, A3) and prints the results through the serial port.
* The ADS1115 communicates via the I2C protocol. This version of the code includes
* the capability to specify custom SDA and SCL pins for I2C communication.
*
* Copyright: Made by KinCony IoT: https://www.kincony.com
*
*/

#include <Wire.h>                // Library for I2C communication
#include <DFRobot_ADS1115.h>     // Library for ADS1115 ADC module

// Define the I2C SDA and SCL pins for communication with ADS1115
#define SDA_PIN 8
#define SCL_PIN 18

// Initialize ADS1115 instance using the Wire library
DFRobot_ADS1115 ads(&Wire);

void setup(void)
{
    // Begin serial communication at a baud rate of 115200
    Serial.begin(115200);

    // Initialize the I2C bus using the defined SDA and SCL pins
    Wire.begin(SDA_PIN, SCL_PIN);

    // Set the I2C address for the ADS1115 (default: 0x49)
    ads.setAddr_ADS1115(ADS1115_IIC_ADDRESS0);   // Address is 0x49

    // Set the gain for the ADS1115 (2/3x gain allows for a maximum input voltage of 6.144V)
    ads.setGain(eGAIN_TWOTHIRDS);

    // Set the ADS1115 to operate in single-shot mode (each reading is a single conversion)
    ads.setMode(eMODE_SINGLE);

    // Set the sample rate to 128 samples per second (SPS)
    ads.setRate(eRATE_128);

    // Set the operational status mode to single-conversion start
    ads.setOSMode(eOSMODE_SINGLE);

    // Initialize the ADS1115 module
    ads.init();
}

void loop(void)
{
    // Check if the ADS1115 is properly connected and functioning
    if (ads.checkADS1115())
    {
        // Variables to store the voltage readings for each channel
        int16_t adc0, adc1, adc2, adc3;

        // Read the voltage from channel A0 and print the value
        adc0 = ads.readVoltage(0);
        Serial.print("A0:");
        Serial.print(adc0);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A1 and print the value
        adc1 = ads.readVoltage(1);
        Serial.print("A1:");
        Serial.print(adc1);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A2 and print the value
        adc2 = ads.readVoltage(2);
        Serial.print("A2:");
        Serial.print(adc2);
        Serial.print("mV,  ");    // Print the value in millivolts

        // Read the voltage from channel A3 and print the value
        adc3 = ads.readVoltage(3);
        Serial.print("A3:");
        Serial.print(adc3);
        Serial.println("mV");     // Print the value in millivolts and end the line
    }
    else
    {
        // If ADS1115 is not connected, print a message indicating disconnection
        Serial.println("ADS1115 Disconnected!");
    }

    // Wait for 1 second before the next loop iteration
    delay(1000);
}
arduino ino file download:

.zip   3-ads1115_adc.zip (Size: 1.2 KB / Downloads: 220)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   3-ads1115_adc.ino.merged.zip (Size: 190.05 KB / Downloads: 230)

Print this item

  [arduino code examples for DM16]-02 Read digital input ports state
Posted by: admin - 09-09-2025, 02:51 AM - Forum: DM16 - No Replies

Code:
/*
* -----------------------------------------------------------------------------
* KinCony DM16 16-Channel Digital Input Reader using PCF8575
*
* This Arduino sketch reads the state of 16 digital input channels from a
* PCF8575 I/O expander over I2C and prints their status to the serial monitor.
*
* Input logic:
*   - Input 0 = ON
*   - Input 1 = OFF (with pull-up logic)
*
* Hardware:
*   - PCF8575 I/O Expander (I2C Address: 0x22)
*   - Custom input pin mapping as defined below
*   - I2C SDA pin: GPIO8
*   - I2C SCL pin: GPIO18
*
* Author: KinCony IoT
* Website: https://www.kincony.com
* License: MIT License
* -----------------------------------------------------------------------------
*/

#include <Wire.h>
#include "PCF8575.h"

// Define I2C pins
#define I2C_SDA 8   // SDA pin
#define I2C_SCL 18  // SCL pin

// Set the I2C address for PCF8575
PCF8575 pcf8575_IN1(0x22); // 0x22 is the I2C address for the DM16 module

void setup() {
    Serial.begin(115200);

    // Initialize I2C with specified SDA and SCL pins
    Wire.begin(I2C_SDA, I2C_SCL);

    // Start communication with PCF8575 device
    pcf8575_IN1.begin();

    Serial.println("KinCony DM16 16 channel input state 0:ON  1:OFF");
}

void loop() {
    // Define custom pin read order to match hardware mapping
    uint8_t pin_order[16] = {
        8, 9, 10, 11, 12, 13, 14, 15,
        0, 1, 2, 3, 4, 5, 6, 7
    };

    Serial.print("Input state: ");

    // Loop through all 16 pins and read their state
    for (int i = 0; i < 16; i++) {
        bool state = pcf8575_IN1.read(pin_order[i]); // Read pin state (HIGH or LOW)
        Serial.print(state); // Print state: 0 = ON, 1 = OFF
        Serial.print(" ");
    }

    Serial.println(); // Print new line
    delay(500);       // Wait for 500ms before next read
}
arduino ino file download:

.zip   2-digital-input.zip (Size: 995 bytes / Downloads: 240)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   2-digital-input.ino.merged.zip (Size: 192.34 KB / Downloads: 232)

Print this item
