Hello everyone,
Sorry for my English, I'm French...

I just bought an A16 and I can't see it on the wired or Wifi network.
I try to update the firmware without result. here is what I have






can you help me please

I'm starting with this product.

Thanks in advance

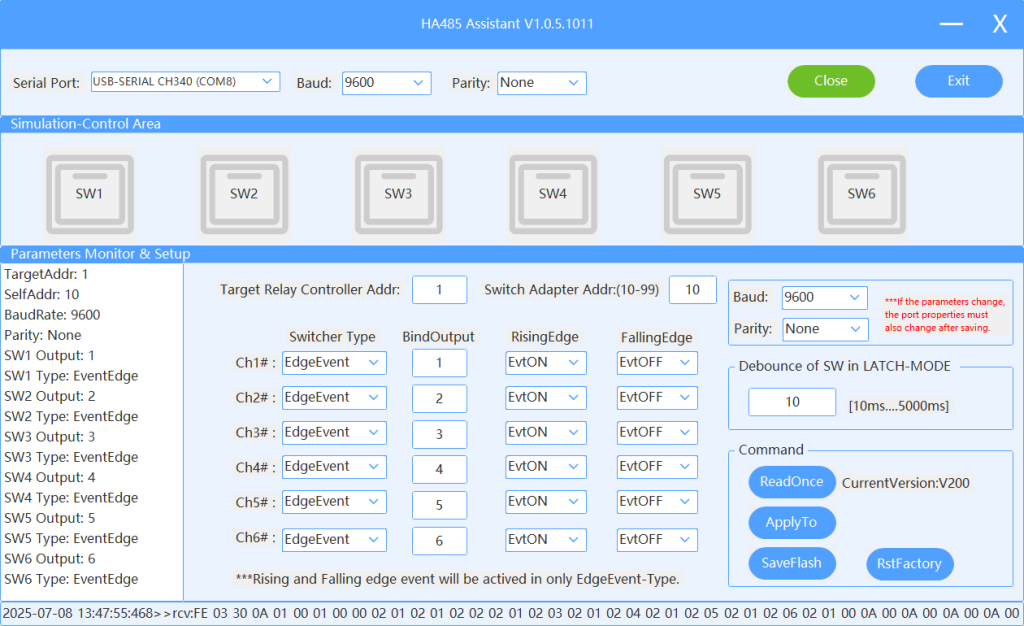

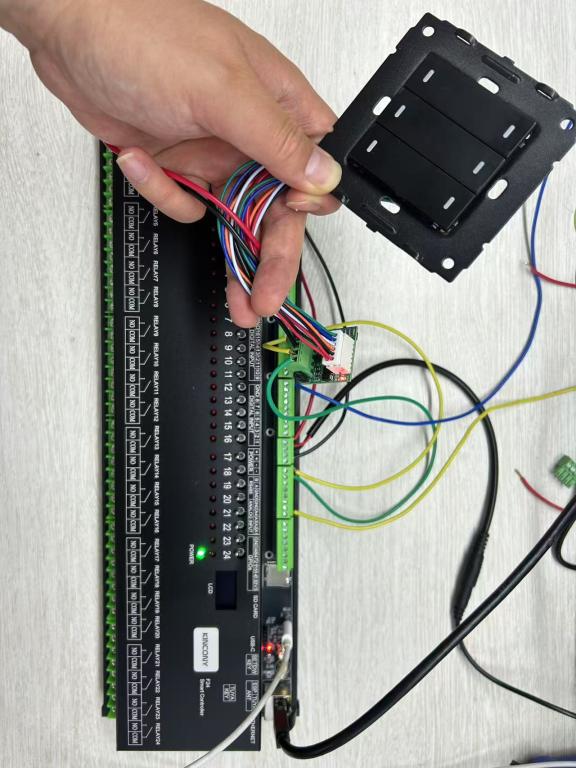

With the F16, without having digital out ports, is there any way to trigger the LED light on/off on wall switch panel?

HI EVERYONE, I'M LOOKING FOR THE LATEST FIRMWARE FOR THE KC868_A24 BOARD, CAN ANYONE HELP ME?

I am currently developing automation software using the Sedona Framework and would like to integrate it with Tridium Niagara. To achieve this, I am seeking access to the KCS firmware source code to facilitate a seamless integration between both platforms.
If you are willing to share the source code, I would greatly appreciate it if you could send it via email to me.
Thank you for your time and consideration.

Best regards,

Have received new MB DC Meter.

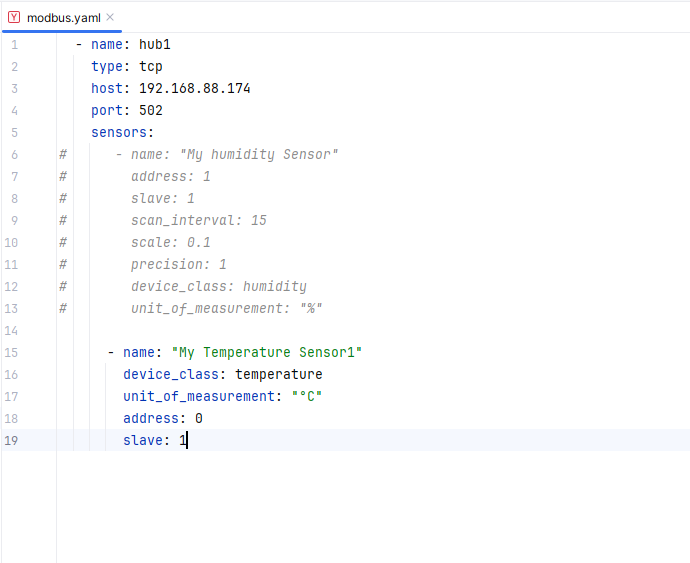

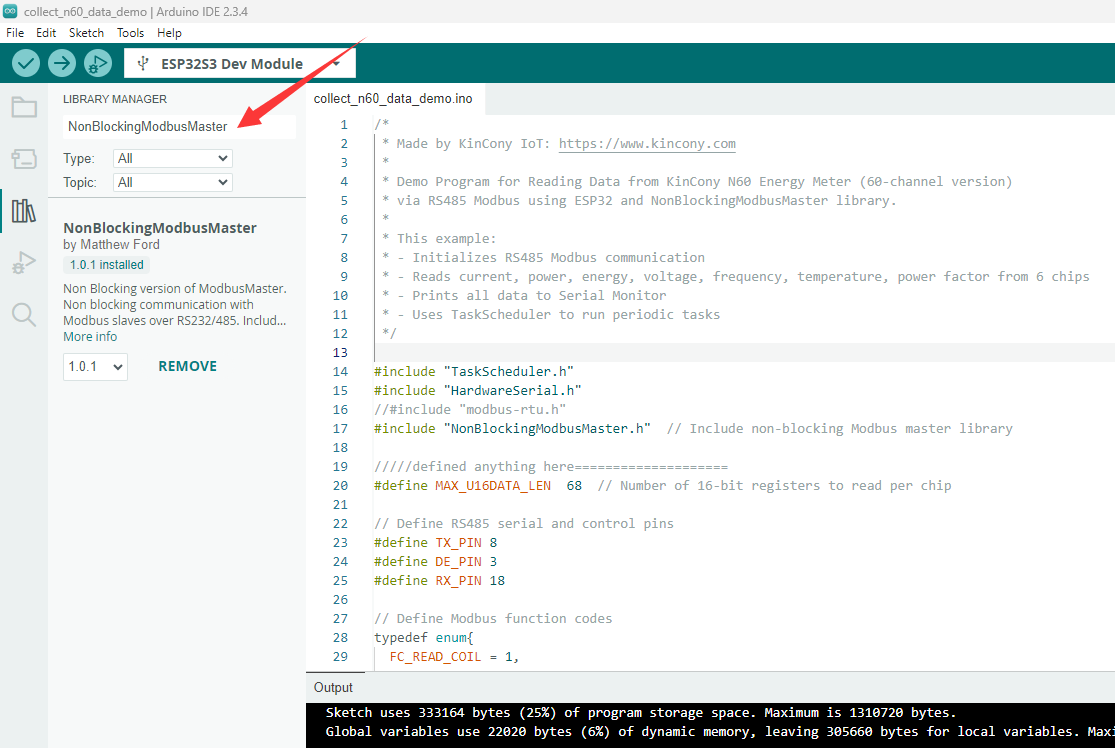

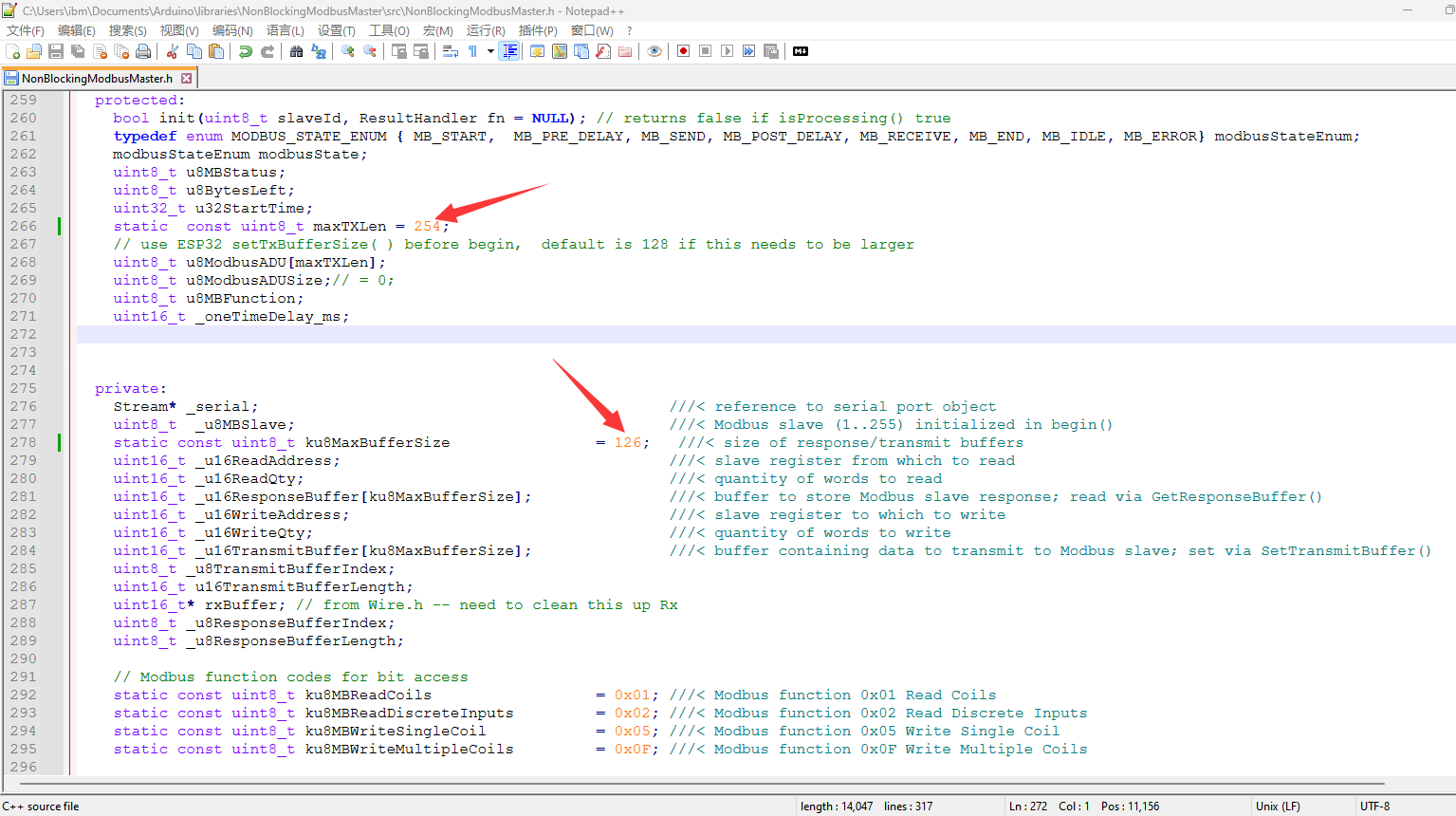

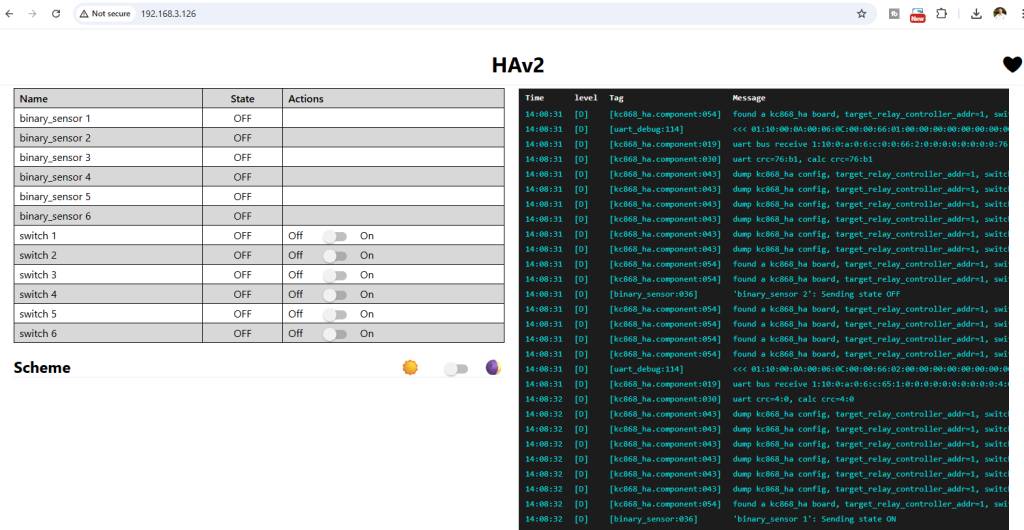

Please if you could provide the basics steps to get it connected to Home Assistant.

Thanks.

I'm asking for help because my inputs don't work.
I check by shorting the input to GND - as in the instructions.
Do I need to configure it? I tried various configurations but without any positive effect (picture).

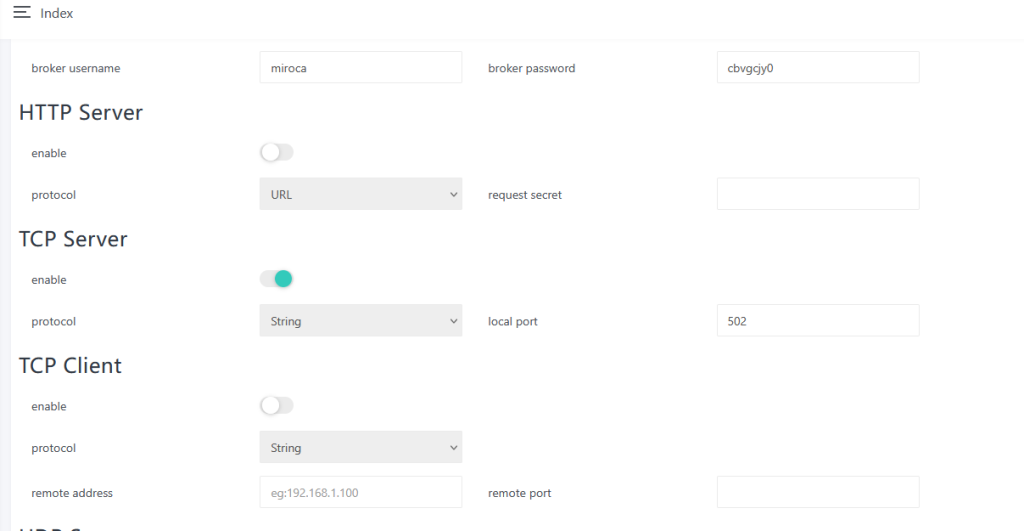

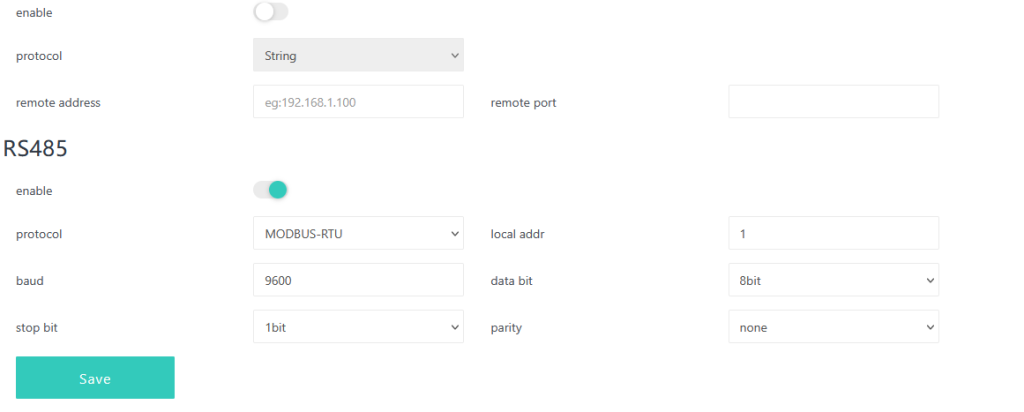

Attached Files

Thumbnail(s)


Hi! I have been working on my Project using F16. I cannot find the libraries for F16 "PCF8575" and "U8g2lib" anywhere. Kindly share the libraries. Also It would be helpful If you can provide the F16 Schematic Diagram. Thanks

Hi all
I can't use relays no turn on and no turn off.
How can you help me?


my code :
#include "gpio_i2c.h"
#include "compile_profile.h"
#include "print_log.h"
#include "PCF8574.h"
#include <Wire.h>


#define MODULE_NAME  "gpio_i2c.cpp"

#define Input_IIC_address 0x21
#define Input_IIC_address 0x22

#define Relay_IIC_address 0x24
#define Relay_IIC_address 0x25
GPIO_I2C gpioI2C;

// Set i2c address
PCF8574 pcf8574_input_1(Input_IIC_address,4,5);
PCF8574 pcf8574_input_2(Input_IIC_address,4,5);

PCF8574 pcf8574_relay_1(Relay_IIC_address,4,5);
PCF8574 pcf8574_relay_2(Relay_IIC_address,4,5);



void GPIO_I2C::Init()
{
#if ( PROFILE_COMPILE & GPIO_I2C_MODULE)

    PRINT_LOG_API_PrintDebug("Init()..", MODULE_NAME, __LINE__);
    byte count = 0;
    Wire.begin(4, 5);
  for (byte i = 8; i < 120; i++)
  {
    Wire.beginTransmission (i);          // Begin I2C transmission Address (i)
    if (Wire.endTransmission () == 0)  // Receive 0 = success (ACK response)
    {
      Serial.print ("Found address: ");
      Serial.print (i, DEC);
      Serial.print (" (0x");
      Serial.print (i, HEX);    // PCF8574 7 bit address
      Serial.println (")");
      break;
    }
  }


    //Wire.begin();  // Initialize I2C communication
  // Wire.setClock(100000); // Set I2C clock to 100kHz (default is 400kHz)





    pcf8574_relay_1.pinMode(P0, OUTPUT);
    pcf8574_relay_1.pinMode(P1, OUTPUT);
    pcf8574_relay_1.pinMode(P2, OUTPUT);
    pcf8574_relay_1.pinMode(P3, OUTPUT);
    pcf8574_relay_1.pinMode(P4, OUTPUT);
    pcf8574_relay_1.pinMode(P5, OUTPUT);
    pcf8574_relay_1.pinMode(P6, OUTPUT);
    pcf8574_relay_1.pinMode(P7, OUTPUT);

    pcf8574_relay_2.pinMode(P0, OUTPUT);
    pcf8574_relay_2.pinMode(P1, OUTPUT);
    pcf8574_relay_2.pinMode(P2, OUTPUT);
    pcf8574_relay_2.pinMode(P3, OUTPUT);
    pcf8574_relay_2.pinMode(P4, OUTPUT);
    pcf8574_relay_2.pinMode(P5, OUTPUT);
    pcf8574_relay_2.pinMode(P6, OUTPUT);
    pcf8574_relay_2.pinMode(P7, OUTPUT);



    pcf8574_input_1.pinMode(P0, INPUT);
    pcf8574_input_1.pinMode(P1, INPUT);
    pcf8574_input_1.pinMode(P2, INPUT);
    pcf8574_input_1.pinMode(P3, INPUT);
    pcf8574_input_1.pinMode(P4, INPUT);
    pcf8574_input_1.pinMode(P5, INPUT);
    pcf8574_input_1.pinMode(P6, INPUT);
    pcf8574_input_1.pinMode(P7, INPUT);

    pcf8574_input_2.pinMode(P0, INPUT);
    pcf8574_input_2.pinMode(P1, INPUT);
    pcf8574_input_2.pinMode(P2, INPUT);
    pcf8574_input_2.pinMode(P3, INPUT);
    pcf8574_input_2.pinMode(P4, INPUT);
    pcf8574_input_2.pinMode(P5, INPUT);
    pcf8574_input_2.pinMode(P6, INPUT);
    pcf8574_input_2.pinMode(P7, INPUT);


    if (pcf8574_relay_1.begin())
    {
        Serial.println("pcf8574_relay_1 OK");
    }
    else
    {
        Serial.println("pcf8574_relay_1 not OK");
    }

    Serial.print("Init pcf8574_2...");
    if (pcf8574_relay_2.begin())
    {
        Serial.println("pcf8574_relay_2 OK");
    }
    else
    {
        Serial.println("pcf8574_relay_2 NOT OK");
    }

    for(int i=0; i< 8; i++)
    {
        pcf8574_relay_1.digitalWrite(i, LOW);
        pcf8574_relay_2.digitalWrite(i, LOW);
    }

    if (pcf8574_input_1.begin())
    {
        Serial.println("pcf8574_input_1 OK");
    }
    else
    {
        Serial.println("pcf8574_input_1 not OK");
    }

    Serial.print("pcf8574_input_2...");
    if (pcf8574_input_2.begin())
    {
        Serial.println("pcf8574_input_2 OK");
    }
    else
    {
        Serial.println("pcf8574_input_2 NOT OK");
    }

  PRINT_LOG_API_PrintDebug("Init()..Finish", MODULE_NAME, __LINE__);
#endif

}
void GPIO_I2C:inMode(uint8_t pinNum, bool mode)
{
#if ( PROFILE_COMPILE & GPIO_I2C_MODULE)
if (pinNum > 8)
    {
        if(mode)
        {
            pcf8574_relay_1.pinMode((pinNum - 1), OUTPUT);
        }
    }
    else
    {
        if(mode)
        {
            pcf8574_relay_2.pinMode((pinNum - 1 - 8), OUTPUT);
        }
    }
#endif
}


void GPIO_I2C::SetPinMode(bool mode, uint8_t pinNum)
{
#if ( PROFILE_COMPILE & GPIO_I2C_MODULE)
    if (pinNum > 8)
    {
        if(mode)
        {
            pcf8574_relay_1.pinMode((pinNum - 1), OUTPUT);
        }

    }
    else
    {
        if(mode)
        {
            pcf8574_relay_2.pinMode((pinNum - 1 - 8), OUTPUT);

        }
    }

#endif
}

void GPIO_I2C:igitalWrite(uint8_t pinNum, bool mode)
{
#if ( PROFILE_COMPILE & GPIO_I2C_MODULE)

    if (pinNum > 8)
    {
        pcf8574_relay_1.digitalWrite(pinNum - 1, mode);
    }
    else
    {
        pcf8574_relay_2.digitalWrite(pinNum - 8 - 1, mode);
    }

#endif
}
void GPIO_I2C::SetOutputMode(bool mode, uint8_t pinNum)
{
#if ( PROFILE_COMPILE & GPIO_I2C_MODULE)

    if (pinNum > 8)
    {
        pcf8574_relay_1.digitalWrite(pinNum - 1, mode);
    }
    else
    {
        pcf8574_relay_2.digitalWrite(pinNum - 8 - 1, mode);
    }

#endif
}

bool GPIO_I2C::ReadInput(uint8_t pinNum)
{
    bool retVal = false;


#if ( PROFILE_COMPILE & GPIO_I2C_MODULE)


    if (pinNum > 8)
    {
        retVal = pcf8574_input_1.digitalRead(pinNum - 1);
    }
    else
    {
        retVal = pcf8574_input_2.digitalRead(pinNum - 8 - 1);
    }

#endif

    return retVal;

}


int GPIO_I2C:igitalRead(uint8_t pinNum)
{
    int retVal = -1;
#if ( PROFILE_COMPILE & GPIO_I2C_MODULE)

    if (pinNum > 8)
    {
        retVal = pcf8574_input_1.digitalRead(pinNum - 1);
    }
    else
    {
        retVal = pcf8574_input_2.digitalRead(pinNum - 8 - 1);
    }

#endif

return retVal;
}

void GPIO_I2C::TestOutput()
{
#if ( PROFILE_COMPILE & GPIO_I2C_MODULE)

    PRINT_LOG_API_PrintDebug("TestOutput()..", MODULE_NAME, __LINE__);

    for(int i=0; i< 8; i++)
    {
        PRINT_LOG_API_PrintDebug("TestOutput() HIGH", MODULE_NAME, __LINE__);
        pcf8574_relay_1.digitalWrite(i, HIGH);
        pcf8574_relay_2.digitalWrite(i, HIGH);
        delay(2500);
        PRINT_LOG_API_PrintDebug("TestOutput() LOW", MODULE_NAME, __LINE__);
        pcf8574_relay_1.digitalWrite(i, LOW);
        pcf8574_relay_2.digitalWrite(i, LOW);
    }
    PRINT_LOG_API_PrintDebug("TestOutput()..Finish", MODULE_NAME, __LINE__);
    #endif
}

void GPIO_I2C::TestOutputP1()
{
#if ( PROFILE_COMPILE & GPIO_I2C_MODULE)

        PRINT_LOG_API_PrintDebug("TestOutputP1() HIGH", MODULE_NAME, __LINE__);
        //pcf8574_relay_1.digitalWriteAll(0xff);
        //pcf8574_relay_2.digitalWriteAll(0xff);
        //pcf8574_1.digitalWrite(0, HIGH);
        for (size_t i = 0; i < 8; i++)
        {
            pcf8574_relay_1.digitalWrite(i, HIGH);
            pcf8574_relay_2.digitalWrite(i, HIGH);
        }


        delay(1000);
        PRINT_LOG_API_PrintDebug("TestOutputP2() LOW", MODULE_NAME, __LINE__);
        for (size_t i = 0; i < 8; i++)
        {
            pcf8574_relay_1.digitalWrite(i, LOW);
            pcf8574_relay_2.digitalWrite(i, LOW);
        }
        delay(1000);
    #endif
}

Hi,

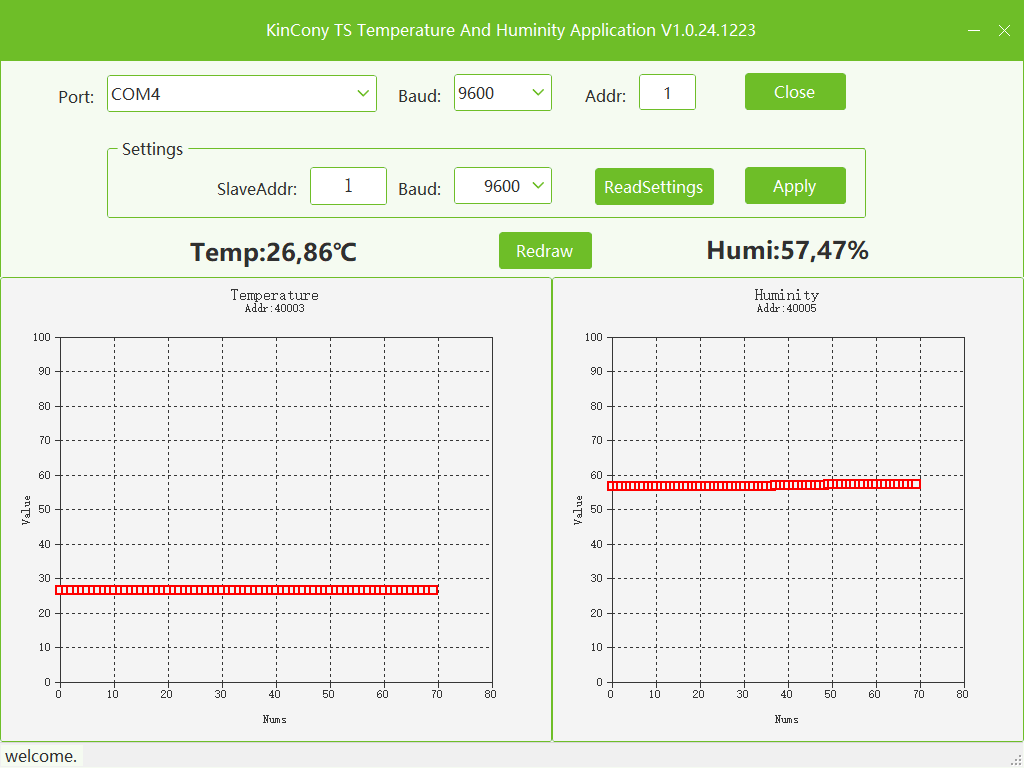

I have connected on KC868-a16S a DS18B20 on 1-Wire input, it's ok with KCS.
Is it possible to put an other DS18B20 in parallel ? I have try, but not possible to see an other sensor temperature.
If not possible with an other DS18B20, is it possible with other sensor type ? by exemple thermistance NTC b3950-10K on Analogic ADC input ? (I think there is two positions analogic for voltage)

Thanks.

Coundn't find a plastic case for the K868-a32 in the kincony store, there's a shell for kc868-ai but i'm not sure if it fits the K868-a32.
Anyone have a 3d print file? Or does anyone know if the AI shell fits the A32?
