USB Cable

Posted by: bob_tm - 08-01-2025, 12:06 PM - Forum: KC868-A16v3 - No Replies

For everyone, who spend hours to get first flash.

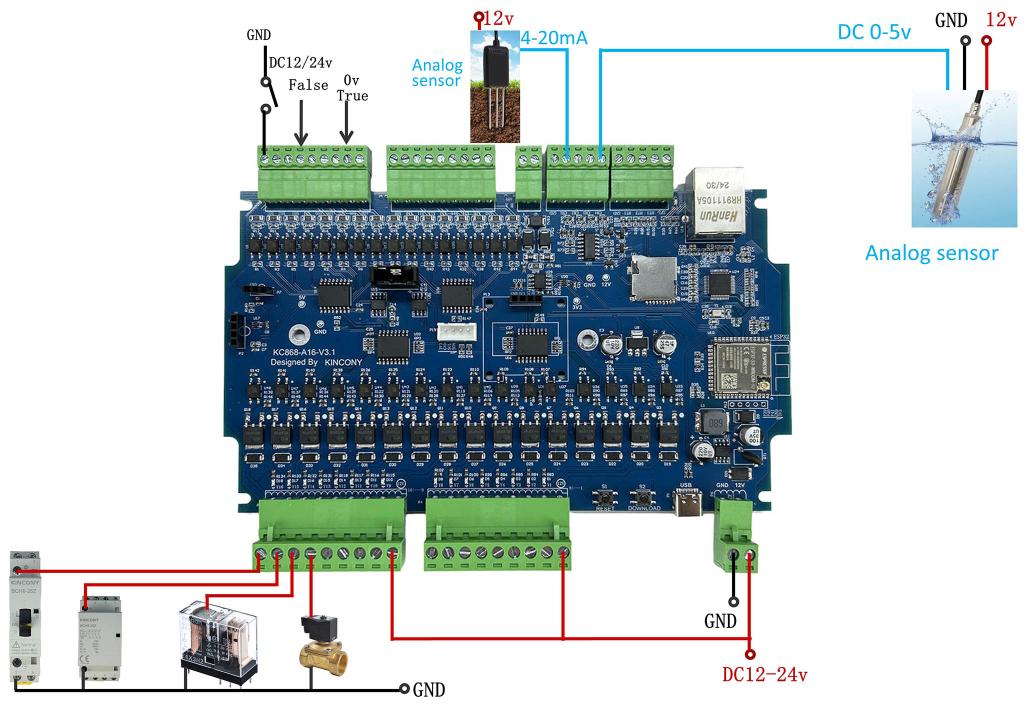

Modern type-c to type-c cables do not work with this board! Cheap or expensive - mine do not work at all.

I cut some cheap type c cable and measure connection between data lines and ESP contacts - only one line is connected. Other data line goes to unsoldered pin in type c socket! But in old big USB - both lines going to ESP32.

The only option that works for me - type C / type A cable with type A / type C adapter.

Hope this save time for somebody.

KinCony T64M Tiny ESP32 Smart Controller released

Posted by: admin - 08-01-2025, 04:56 AM - Forum: News - Replies (2)

KinCony T64M tiny ESP32 smart controller based on ESP32-S3-WROOM-1U (N16R8) wifi chip. Support 64 channel MOSFET output, 4 channel 1-wire GPIOs, 3 channel free GPIOs. T64M have RS485 port. You can write any code by Arduino IDE / Micro Python / ESP-IDF development tool to ESP32 module. We will supply Arduino / ESP-IDF demo code for different samples. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant or tasmota firmware for smart home automation DIY. T64M use KCS v3 firmware, it support home assistant auto discovery function by MQTT, so without write any config code (zero code) for home assistant. KCS v3 support KinCony cloud service (official shop customer free 2 years), remote monitor and control device by webpage in anywhere. KCS v3 support KinCony board integrate to Loxone Miniserver. Support Apple HomeKit for Siri.
[Image: T64M-1.jpg]
Model No. KinCony T64M
Description: KinCony 64 Channel Tiny ESP32-S3 Smart Controller – T64M
Power supply: 12-24V DC
Processor: ESP32-S3-WROOM-1U (N16R8)
Size: 200mm*83mm*56mm
interfaces: Ethernet(RJ45)-LAN 100Mbps IPv4/IPv6,WiFi,RS485,Bluetooth,USB-C
Installation method: DIN RAIL
Outputs:
64CH MOSFET Outputs, every channel use MAX 4A driver IC
Inputs:
64CH dry contact inputs (optocoupler isolation, long distance circuit for MAX 500 meters cable)
2 buttons: 1:ESP32 Reset 2:ESP32 Download
1-Wire GPIO: 4CH (with pull-up resistance on PCB)
free GPIO: 3CH (connect with ESP32S3 pin directly)
2CH analog input DC0-5V (A1,A2) 2CH analog input 4-20mA (A3,A4)
[Image: T64M-2.jpg]

Tasmota Template

Posted by: bob_tm - 07-31-2025, 12:43 PM - Forum: KC868-A16v3 - Replies (4)

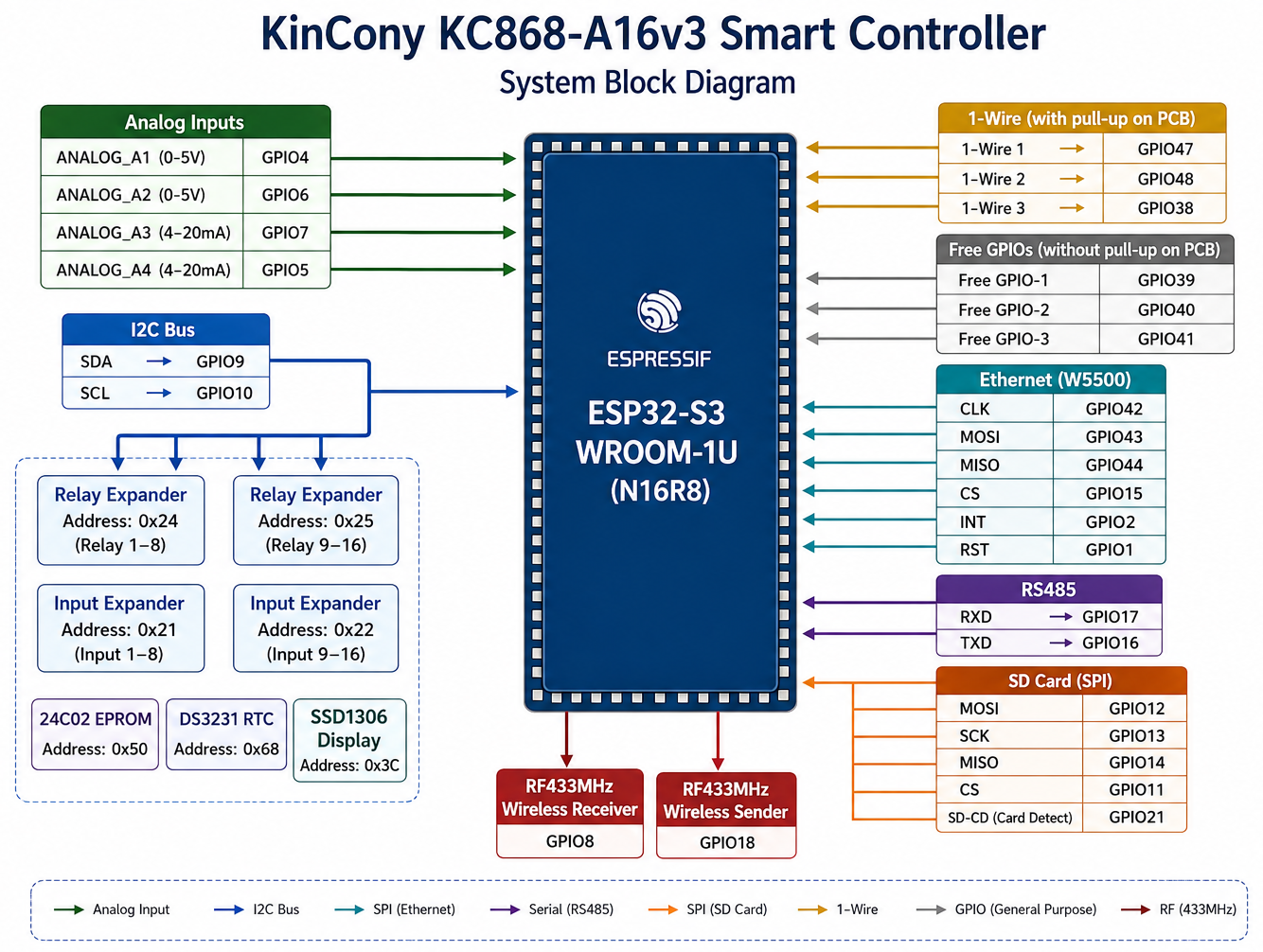

	Hello, How to convert this information to Tasmota components Ethernet (W5500) I/O define: type: W5500 clk_pin: GPIO42 mosi_pin: GPIO43 miso_pin: GPIO44 cs_pin: GPIO15 interrupt_pin: GPIO2 reset_pin: GPIO1 ?

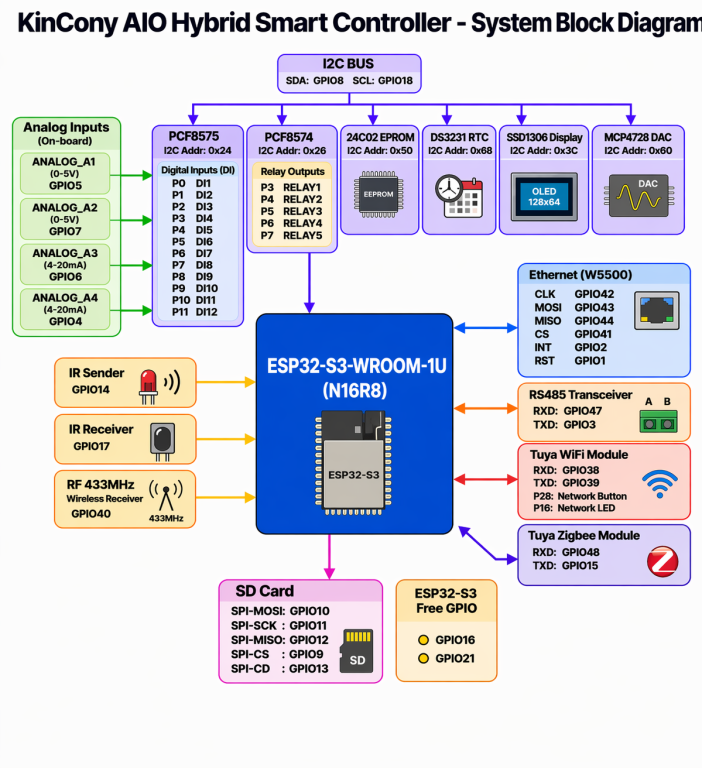

[arduino code examples for B24M]-11 digital INPUT trigger OUTPUT directly

Posted by: admin - 07-31-2025, 07:08 AM - Forum: B24M - No Replies

Code:
/*

 * Made by KinCony IoT: https://www.kincony.com

 *

 * This program reads 24 input states from two PCF8575 I/O expanders and

 * controls a corresponding 24-channel relay module.

 * When an input pin is LOW, the corresponding relay is turned ON (LOW means ON for the relay).

 * When the input pin is HIGH, the corresponding relay is turned OFF.

 *

 * Pin Definitions:

 * - SDA: GPIO 8

 * - SCL: GPIO 18

 * - Input I2C Address 1 (inputs 1-16): 0x24

 * - Input/Relay I2C Address 2 (inputs 17-24 and relays 1-8): 0x26

 * - Relay I2C Address 3 (relays 9-24): 0x25

 */

#include <Wire.h>        // I2C communication

#include <PCF8575.h>     // Library to control the PCF8575 I/O expander

// Define I2C pins

#define SDA 8            // SDA pin

#define SCL 18           // SCL pin

// I2C addresses for the PCF8575 modules

#define INPUT_I2C_ADDRESS_1 0x22   // I2C address for the first input PCF8575 module (inputs 1-16)

#define INPUT_RELAY_I2C_ADDRESS_2 0x25   // I2C address for inputs 17-24 and relays 1-8

#define RELAY_I2C_ADDRESS_3 0x24   // I2C address for relays 9-24

PCF8575 pcf8575_IN1(INPUT_I2C_ADDRESS_1);    // Create an object for the first input PCF8575 (inputs 1-16)

PCF8575 pcf8575_IN2(INPUT_RELAY_I2C_ADDRESS_2);    // Create an object for the second input PCF8575 (inputs 17-24 and relays 1-8)

PCF8575 pcf8575_RL(RELAY_I2C_ADDRESS_3);    // Create an object for the relay PCF8575 (relays 9-24)

void setup() {

  // Initialize I2C communication

  Wire.begin(SDA, SCL);

  // Initialize serial communication

  Serial.begin(115200);

  // Initialize input and relay modules

  pcf8575_IN1.begin();  // For inputs 1-16

  pcf8575_IN2.begin();  // For inputs 17-24 and relays 1-8

  pcf8575_RL.begin();   // For relays 9-24

  // Turn off all relays at the start (LOW means OFF)

  for (int i = 8; i < 16; i++) {

    pcf8575_IN2.write(i, HIGH);  // Turn off relays 1-8

  }

  for (int i = 0; i < 16; i++) {

    pcf8575_RL.write(i, HIGH);  // Turn off relays 9-24

  }

  Serial.println("System started: Input state controlling 24 relays");

}

void loop() {

if (pcf8575_IN1.read(8)==0) pcf8575_IN2.write(8, LOW); else pcf8575_IN2.write(8, HIGH);

if (pcf8575_IN1.read(9)==0) pcf8575_IN2.write(9, LOW); else pcf8575_IN2.write(9, HIGH);

if (pcf8575_IN1.read(10)==0) pcf8575_IN2.write(10, LOW); else pcf8575_IN2.write(10, HIGH);

if (pcf8575_IN1.read(11)==0) pcf8575_IN2.write(11, LOW); else pcf8575_IN2.write(11, HIGH);

if (pcf8575_IN1.read(12)==0) pcf8575_IN2.write(12, LOW); else pcf8575_IN2.write(12, HIGH);

if (pcf8575_IN1.read(13)==0) pcf8575_IN2.write(13, LOW); else pcf8575_IN2.write(13, HIGH);

if (pcf8575_IN1.read(14)==0) pcf8575_IN2.write(14, LOW); else pcf8575_IN2.write(14, HIGH);

if (pcf8575_IN1.read(15)==0) pcf8575_IN2.write(15, LOW); else pcf8575_IN2.write(15, HIGH);

if (pcf8575_IN1.read(0)==0) pcf8575_RL.write(0, LOW); else pcf8575_RL.write(0, HIGH);

if (pcf8575_IN1.read(1)==0) pcf8575_RL.write(1, LOW); else pcf8575_RL.write(1, HIGH);

if (pcf8575_IN1.read(2)==0) pcf8575_RL.write(2, LOW); else pcf8575_RL.write(2, HIGH);

if (pcf8575_IN1.read(3)==0) pcf8575_RL.write(3, LOW); else pcf8575_RL.write(3, HIGH);

if (pcf8575_IN1.read(4)==0) pcf8575_RL.write(4, LOW); else pcf8575_RL.write(4, HIGH);

if (pcf8575_IN1.read(5)==0) pcf8575_RL.write(5, LOW); else pcf8575_RL.write(5, HIGH);

if (pcf8575_IN1.read(6)==0) pcf8575_RL.write(6, LOW); else pcf8575_RL.write(6, HIGH);

if (pcf8575_IN1.read(7)==0) pcf8575_RL.write(7, LOW); else pcf8575_RL.write(7, HIGH);

if (pcf8575_IN2.read(0)==0) pcf8575_RL.write(8, LOW); else pcf8575_RL.write(8, HIGH);

if (pcf8575_IN2.read(1)==0) pcf8575_RL.write(9, LOW); else pcf8575_RL.write(9, HIGH);

if (pcf8575_IN2.read(2)==0) pcf8575_RL.write(10, LOW); else pcf8575_RL.write(10, HIGH);

if (pcf8575_IN2.read(3)==0) pcf8575_RL.write(11, LOW); else pcf8575_RL.write(11, HIGH);

if (pcf8575_IN2.read(4)==0) pcf8575_RL.write(12, LOW); else pcf8575_RL.write(12, HIGH);

if (pcf8575_IN2.read(5)==0) pcf8575_RL.write(13, LOW); else pcf8575_RL.write(13, HIGH);

if (pcf8575_IN2.read(6)==0) pcf8575_RL.write(14, LOW); else pcf8575_RL.write(14, HIGH);

if (pcf8575_IN2.read(7)==0) pcf8575_RL.write(15, LOW); else pcf8575_RL.write(15, HIGH);

  // Delay for 500 milliseconds

  delay(200);

}

arduino ino file download:

.zip

11-input-trigger-output.zip (Size: 1.18 KB / Downloads: 233)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip

11-input-trigger-output.ino.merged.zip (Size: 192.44 KB / Downloads: 242)

[arduino code examples for B24]-11 digital INPUT trigger OUTPUT directly

Posted by: admin - 07-31-2025, 07:08 AM - Forum: B24 - No Replies

Code:
/*

 * Made by KinCony IoT: https://www.kincony.com

 *

 * This program reads 24 input states from two PCF8575 I/O expanders and

 * controls a corresponding 24-channel relay module.

 * When an input pin is LOW, the corresponding relay is turned ON (LOW means ON for the relay).

 * When the input pin is HIGH, the corresponding relay is turned OFF.

 *

 * Pin Definitions:

 * - SDA: GPIO 8

 * - SCL: GPIO 18

 * - Input I2C Address 1 (inputs 1-16): 0x24

 * - Input/Relay I2C Address 2 (inputs 17-24 and relays 1-8): 0x26

 * - Relay I2C Address 3 (relays 9-24): 0x25

 */

#include <Wire.h>        // I2C communication

#include <PCF8575.h>     // Library to control the PCF8575 I/O expander

// Define I2C pins

#define SDA 8            // SDA pin

#define SCL 18           // SCL pin

// I2C addresses for the PCF8575 modules

#define INPUT_I2C_ADDRESS_1 0x22   // I2C address for the first input PCF8575 module (inputs 1-16)

#define INPUT_RELAY_I2C_ADDRESS_2 0x25   // I2C address for inputs 17-24 and relays 1-8

#define RELAY_I2C_ADDRESS_3 0x24   // I2C address for relays 9-24

PCF8575 pcf8575_IN1(INPUT_I2C_ADDRESS_1);    // Create an object for the first input PCF8575 (inputs 1-16)

PCF8575 pcf8575_IN2(INPUT_RELAY_I2C_ADDRESS_2);    // Create an object for the second input PCF8575 (inputs 17-24 and relays 1-8)

PCF8575 pcf8575_RL(RELAY_I2C_ADDRESS_3);    // Create an object for the relay PCF8575 (relays 9-24)

void setup() {

  // Initialize I2C communication

  Wire.begin(SDA, SCL);

  // Initialize serial communication

  Serial.begin(115200);

  // Initialize input and relay modules

  pcf8575_IN1.begin();  // For inputs 1-16

  pcf8575_IN2.begin();  // For inputs 17-24 and relays 1-8

  pcf8575_RL.begin();   // For relays 9-24

  // Turn off all relays at the start (LOW means OFF)

  for (int i = 8; i < 16; i++) {

    pcf8575_IN2.write(i, HIGH);  // Turn off relays 1-8

  }

  for (int i = 0; i < 16; i++) {

    pcf8575_RL.write(i, HIGH);  // Turn off relays 9-24

  }

  Serial.println("System started: Input state controlling 24 relays");

}

void loop() {

if (pcf8575_IN1.read(8)==0) pcf8575_IN2.write(8, LOW); else pcf8575_IN2.write(8, HIGH);

if (pcf8575_IN1.read(9)==0) pcf8575_IN2.write(9, LOW); else pcf8575_IN2.write(9, HIGH);

if (pcf8575_IN1.read(10)==0) pcf8575_IN2.write(10, LOW); else pcf8575_IN2.write(10, HIGH);

if (pcf8575_IN1.read(11)==0) pcf8575_IN2.write(11, LOW); else pcf8575_IN2.write(11, HIGH);

if (pcf8575_IN1.read(12)==0) pcf8575_IN2.write(12, LOW); else pcf8575_IN2.write(12, HIGH);

if (pcf8575_IN1.read(13)==0) pcf8575_IN2.write(13, LOW); else pcf8575_IN2.write(13, HIGH);

if (pcf8575_IN1.read(14)==0) pcf8575_IN2.write(14, LOW); else pcf8575_IN2.write(14, HIGH);

if (pcf8575_IN1.read(15)==0) pcf8575_IN2.write(15, LOW); else pcf8575_IN2.write(15, HIGH);

if (pcf8575_IN1.read(0)==0) pcf8575_RL.write(0, LOW); else pcf8575_RL.write(0, HIGH);

if (pcf8575_IN1.read(1)==0) pcf8575_RL.write(1, LOW); else pcf8575_RL.write(1, HIGH);

if (pcf8575_IN1.read(2)==0) pcf8575_RL.write(2, LOW); else pcf8575_RL.write(2, HIGH);

if (pcf8575_IN1.read(3)==0) pcf8575_RL.write(3, LOW); else pcf8575_RL.write(3, HIGH);

if (pcf8575_IN1.read(4)==0) pcf8575_RL.write(4, LOW); else pcf8575_RL.write(4, HIGH);

if (pcf8575_IN1.read(5)==0) pcf8575_RL.write(5, LOW); else pcf8575_RL.write(5, HIGH);

if (pcf8575_IN1.read(6)==0) pcf8575_RL.write(6, LOW); else pcf8575_RL.write(6, HIGH);

if (pcf8575_IN1.read(7)==0) pcf8575_RL.write(7, LOW); else pcf8575_RL.write(7, HIGH);

if (pcf8575_IN2.read(0)==0) pcf8575_RL.write(8, LOW); else pcf8575_RL.write(8, HIGH);

if (pcf8575_IN2.read(1)==0) pcf8575_RL.write(9, LOW); else pcf8575_RL.write(9, HIGH);

if (pcf8575_IN2.read(2)==0) pcf8575_RL.write(10, LOW); else pcf8575_RL.write(10, HIGH);

if (pcf8575_IN2.read(3)==0) pcf8575_RL.write(11, LOW); else pcf8575_RL.write(11, HIGH);

if (pcf8575_IN2.read(4)==0) pcf8575_RL.write(12, LOW); else pcf8575_RL.write(12, HIGH);

if (pcf8575_IN2.read(5)==0) pcf8575_RL.write(13, LOW); else pcf8575_RL.write(13, HIGH);

if (pcf8575_IN2.read(6)==0) pcf8575_RL.write(14, LOW); else pcf8575_RL.write(14, HIGH);

if (pcf8575_IN2.read(7)==0) pcf8575_RL.write(15, LOW); else pcf8575_RL.write(15, HIGH);

  // Delay for 500 milliseconds

  delay(200);

}

arduino ino file download:

.zip

11-input-trigger-output.zip (Size: 1.18 KB / Downloads: 240)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip

11-input-trigger-output.ino.merged.zip (Size: 192.44 KB / Downloads: 237)

[arduino code examples for B24M]-10 Print TEXT on SSD1306 OLED displayer

Posted by: admin - 07-31-2025, 07:06 AM - Forum: B24M - No Replies

Code:
/*

 * Made by KinCony IoT: https://www.kincony.com

 *

 * This Arduino program demonstrates how to display text on an SSD1306 128x64 OLED display using the U8g2 library.

 * The program draws two lines of text on the display:

 * - The first line is "KINCONY" in a larger font.

 * - The second line is "www.kincony.com" in a smaller font.

 *

 * The display is connected via I2C (software implementation) with:

 * - SCL (clock) on pin IO18

 * - SDA (data) on pin IO8

 *

 * The display's I2C address is set to 0x3C.

 */

#include <U8g2lib.h>  // Include the U8g2 library for controlling the OLED display

#include <Wire.h>     // Include the Wire library for I2C communication

// Initialize the display using the software I2C method (SCL = IO18, SDA = IO8)

U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0,  18, 8, U8X8_PIN_NONE);  // Screen rotation: U8G2_R0

// Function to display page 1 content

void page1() {

  // Set font size 18 for the larger "KINCONY" text

  u8g2.setFont(u8g2_font_timR18_tf);  // Use the Times Roman font, size 18

  u8g2.setFontPosTop();               // Set the text position at the top of the display

  u8g2.setCursor(5, 0);               // Position the cursor at coordinates (5, 0)

  u8g2.print("KINCONY");              // Display the text "KINCONY" on the screen

  // Set font size 12 for the smaller "www.kincony.com" text

  u8g2.setFont(u8g2_font_timR12_tf);  // Use the Times Roman font, size 12

  u8g2.setCursor(0, 40);              // Position the cursor at coordinates (0, 40)

  u8g2.print("www.kincony.com");      // Display the text "www.kincony.com"

}

// Setup function, runs once when the program starts

void setup() {

  // Set the I2C address for the display to 0x3C

  u8g2.setI2CAddress(0x3C*2);  // I2C address shift for 8-bit format

  // Initialize the display

  u8g2.begin();

  // Enable UTF-8 character printing for the display

  u8g2.enableUTF8Print();  // Allow UTF-8 encoded text to be printed

}

// Main loop function, continuously runs after setup()

void loop() {

  // Begin the display drawing process

  u8g2.firstPage();  // Prepare the first page for drawing

  do {

    // Call the page1() function to draw content on the display

    page1();

  } while (u8g2.nextPage());  // Continue to the next page until all pages are drawn

}

arduino ino file download:

.zip

10-oled-ssd1306.zip (Size: 1.11 KB / Downloads: 220)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip

10-oled-ssd1306.ino.merged.zip (Size: 202.58 KB / Downloads: 231)

[arduino code examples for B24]-10 Print TEXT on SSD1306 OLED displayer

Posted by: admin - 07-31-2025, 07:06 AM - Forum: B24 - No Replies

Code:
/*

 * Made by KinCony IoT: https://www.kincony.com

 *

 * This Arduino program demonstrates how to display text on an SSD1306 128x64 OLED display using the U8g2 library.

 * The program draws two lines of text on the display:

 * - The first line is "KINCONY" in a larger font.

 * - The second line is "www.kincony.com" in a smaller font.

 *

 * The display is connected via I2C (software implementation) with:

 * - SCL (clock) on pin IO18

 * - SDA (data) on pin IO8

 *

 * The display's I2C address is set to 0x3C.

 */

#include <U8g2lib.h>  // Include the U8g2 library for controlling the OLED display

#include <Wire.h>     // Include the Wire library for I2C communication

// Initialize the display using the software I2C method (SCL = IO18, SDA = IO8)

U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0,  18, 8, U8X8_PIN_NONE);  // Screen rotation: U8G2_R0

// Function to display page 1 content

void page1() {

  // Set font size 18 for the larger "KINCONY" text

  u8g2.setFont(u8g2_font_timR18_tf);  // Use the Times Roman font, size 18

  u8g2.setFontPosTop();               // Set the text position at the top of the display

  u8g2.setCursor(5, 0);               // Position the cursor at coordinates (5, 0)

  u8g2.print("KINCONY");              // Display the text "KINCONY" on the screen

  // Set font size 12 for the smaller "www.kincony.com" text

  u8g2.setFont(u8g2_font_timR12_tf);  // Use the Times Roman font, size 12

  u8g2.setCursor(0, 40);              // Position the cursor at coordinates (0, 40)

  u8g2.print("www.kincony.com");      // Display the text "www.kincony.com"

}

// Setup function, runs once when the program starts

void setup() {

  // Set the I2C address for the display to 0x3C

  u8g2.setI2CAddress(0x3C*2);  // I2C address shift for 8-bit format

  // Initialize the display

  u8g2.begin();

  // Enable UTF-8 character printing for the display

  u8g2.enableUTF8Print();  // Allow UTF-8 encoded text to be printed

}

// Main loop function, continuously runs after setup()

void loop() {

  // Begin the display drawing process

  u8g2.firstPage();  // Prepare the first page for drawing

  do {

    // Call the page1() function to draw content on the display

    page1();

  } while (u8g2.nextPage());  // Continue to the next page until all pages are drawn

}

arduino ino file download:

.zip

10-oled-ssd1306.zip (Size: 1.11 KB / Downloads: 213)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip

10-oled-ssd1306.ino.merged.zip (Size: 202.58 KB / Downloads: 251)

[arduino code examples for B24M]-09 how to communication with Tuya WiFi module

Posted by: admin - 07-31-2025, 07:05 AM - Forum: B24M - No Replies

Code:
/*

 * Made by KinCony IoT: https://www.kincony.com

 *

 * This Arduino program implements communication between ESP32 and the Tuya module

 * via UART (serial communication). It listens for specific packets from the Tuya module

 * and responds according to the predefined commands.

 *

 * Functionality:

 * 1. When the ESP32 receives a heartbeat packet (55 AA 00 00 00 00 FF),

 *    it sends a heartbeat response (55 AA 03 00 00 01 00 03).

 * 2. When the ESP32 receives a product information request (55 AA 00 01 00 00 00),

 *    it sends a product information response (55 AA 03 01 ...).

 * 3. When the ESP32 receives a work mode request (55 AA 00 02 00 00 01),

 *    it sends a work mode response (55 AA 03 02 00 03 10 1C 14 47).

 * 4. When the ESP32 receives a network status request (55 AA 00 03 00 01 00 03),

 *    it sends a network status response (55 AA 03 03 00 00 05).

 * 5. Subsequent heartbeat packets (55 AA 00 00 00 00 FF) are responded to with

 *    (55 AA 03 00 00 01 01 04).

 */

#include <HardwareSerial.h>

// Create a HardwareSerial object for UART communication on ESP32

HardwareSerial tuyaSerial(1);

// Define the GPIO pins for TXD and RXD used for serial communication

#define TXD_PIN 39

#define RXD_PIN 38

// Set the baud rate for Tuya module communication to 9600

#define BAUD_RATE 9600

// Define the response packets for different commands from the Tuya module

// Heartbeat response: 55 AA 03 00 00 01 00 03

uint8_t heartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x00, 0x03};

// Product info response with a detailed payload (e.g., firmware version, product name, etc.)

uint8_t productInfoResponse[] = {

  0x55, 0xAA, 0x03, 0x01, 0x00, 0x2A, 0x7B, 0x22, 0x70, 0x22, 0x3A, 0x22,

  0x63, 0x68, 0x6D, 0x7A, 0x6C, 0x67, 0x6A, 0x70, 0x61, 0x64, 0x70, 0x71,

  0x78, 0x64, 0x6B, 0x6F, 0x22, 0x2C, 0x22, 0x76, 0x22, 0x3A, 0x22, 0x31,

  0x2E, 0x30, 0x2E, 0x30, 0x22, 0x2C, 0x22, 0x6D, 0x22, 0x3A, 0x30, 0x7D, 0xAA

};

// Work mode response: 55 AA 03 02 00 03 10 1C 14 47

uint8_t workModeResponse[] = {0x55, 0xAA, 0x03, 0x02, 0x00, 0x03, 0x10, 0x1C, 0x14, 0x47};

// Network status response: 55 AA 03 03 00 00 05

uint8_t netStatusResponse[] = {0x55, 0xAA, 0x03, 0x03, 0x00, 0x00, 0x05};

// Subsequent heartbeat response: 55 AA 03 00 00 01 01 04

uint8_t secondHeartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x01, 0x04};

void setup() {

  // Initialize the serial communication for debugging at 115200 baud rate

  Serial.begin(115200);

  // Initialize the serial communication with Tuya module at 9600 baud rate

  tuyaSerial.begin(BAUD_RATE, SERIAL_8N1, RXD_PIN, TXD_PIN);

  // Debug message to indicate that the serial communication has been initialized

  Serial.println("ESP32-Tuya serial communication initialized.");

}

void loop() {

  // Check if data is available from the Tuya module

  if (tuyaSerial.available()) {

    uint8_t incomingPacket[7];  // Array to store the received packet

    size_t bytesRead = tuyaSerial.readBytes(incomingPacket, 7); // Read 7 bytes from Tuya

    // Check if the packet has a valid header (0x55, 0xAA)

    if (bytesRead >= 2 && incomingPacket[0] == 0x55 && incomingPacket[1] == 0xAA) {

      // If less than 7 bytes were received, wait for more data

      if (bytesRead < 7) {

        Serial.println("Incomplete packet received. Waiting for remaining bytes...");

        delay(50); // Delay to allow more data to be received

        while (tuyaSerial.available()) {

          incomingPacket[bytesRead++] = tuyaSerial.read(); // Continue reading remaining bytes

          if (bytesRead >= 7) break;

        }

      }

      // If still less than 7 bytes, discard the incomplete packet

      if (bytesRead < 7) {

        Serial.println("Error: Incomplete packet discarded.");

        return;

      }

      // Debug: Print the received packet for logging

      Serial.print("Received packet: ");

      for (size_t i = 0; i < 7; i++) {

        Serial.print(incomingPacket[i], HEX);

        Serial.print(" ");

      }

      Serial.println();

      // Call the function to process the received packet

      processTuyaPacket(incomingPacket, 7);

    } else {

      // If the header is invalid, discard the packet and flush the buffer

      Serial.print("Error: Invalid packet header. Data received: ");

      for (size_t i = 0; i < bytesRead; i++) {

        Serial.print(incomingPacket[i], HEX);

        Serial.print(" ");

      }

      Serial.println();

      tuyaSerial.flush(); // Clear the serial buffer

    }

  }

  // Delay to avoid CPU overuse

  delay(100);

}

// Function to process the received packet and send the appropriate response

void processTuyaPacket(uint8_t* packet, size_t size) {

  // Ensure the packet size is 7 and the header is valid

  if (size == 7 && packet[0] == 0x55 && packet[1] == 0xAA) {

    // Determine the command in the packet (packet[2])

    switch(packet[2]) {

      case 0x00:

        if (packet[3] == 0x00 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0xFF) {

          Serial.println("Heartbeat received.");

          sendPacket(heartBeatResponse, sizeof(heartBeatResponse));

        } else if (packet[3] == 0x01 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x00) {

          Serial.println("Product info request received.");

          sendPacket(productInfoResponse, sizeof(productInfoResponse));

        } else if (packet[3] == 0x02 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x01) {

          Serial.println("Work mode request received.");

          sendPacket(workModeResponse, sizeof(workModeResponse));

        } else if (packet[3] == 0x03 && packet[4] == 0x00 && packet[5] == 0x01 && packet[6] == 0x00) {

          Serial.println("Network status request received.");

          sendPacket(netStatusResponse, sizeof(netStatusResponse));

        }

        break;

      default:

        Serial.println("Error: Unhandled command received.");

        break;

    }

  }

}

// Function to send the response packet to the Tuya module

void sendPacket(uint8_t* packet, size_t size) {

  // Send the packet via UART to Tuya module

  tuyaSerial.write(packet, size);

  // Debug: Print the sent packet for logging

  Serial.print("Sent packet: ");

  for (size_t i = 0; i < size; i++) {

    Serial.print(packet[i], HEX);

    Serial.print(" ");

  }

  Serial.println();

}

arduino ino file download:

.zip

9-tuya-wifi-config.zip (Size: 2 KB / Downloads: 251)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip

9-tuya-wifi-config.ino.merged.zip (Size: 187.17 KB / Downloads: 247)

[arduino code examples for B24]-09 how to communication with Tuya WiFi module

Posted by: admin - 07-31-2025, 07:05 AM - Forum: B24 - No Replies

Code:
/*

 * Made by KinCony IoT: https://www.kincony.com

 *

 * This Arduino program implements communication between ESP32 and the Tuya module

 * via UART (serial communication). It listens for specific packets from the Tuya module

 * and responds according to the predefined commands.

 *

 * Functionality:

 * 1. When the ESP32 receives a heartbeat packet (55 AA 00 00 00 00 FF),

 *    it sends a heartbeat response (55 AA 03 00 00 01 00 03).

 * 2. When the ESP32 receives a product information request (55 AA 00 01 00 00 00),

 *    it sends a product information response (55 AA 03 01 ...).

 * 3. When the ESP32 receives a work mode request (55 AA 00 02 00 00 01),

 *    it sends a work mode response (55 AA 03 02 00 03 10 1C 14 47).

 * 4. When the ESP32 receives a network status request (55 AA 00 03 00 01 00 03),

 *    it sends a network status response (55 AA 03 03 00 00 05).

 * 5. Subsequent heartbeat packets (55 AA 00 00 00 00 FF) are responded to with

 *    (55 AA 03 00 00 01 01 04).

 */

#include <HardwareSerial.h>

// Create a HardwareSerial object for UART communication on ESP32

HardwareSerial tuyaSerial(1);

// Define the GPIO pins for TXD and RXD used for serial communication

#define TXD_PIN 39

#define RXD_PIN 38

// Set the baud rate for Tuya module communication to 9600

#define BAUD_RATE 9600

// Define the response packets for different commands from the Tuya module

// Heartbeat response: 55 AA 03 00 00 01 00 03

uint8_t heartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x00, 0x03};

// Product info response with a detailed payload (e.g., firmware version, product name, etc.)

uint8_t productInfoResponse[] = {

  0x55, 0xAA, 0x03, 0x01, 0x00, 0x2A, 0x7B, 0x22, 0x70, 0x22, 0x3A, 0x22,

  0x63, 0x68, 0x6D, 0x7A, 0x6C, 0x67, 0x6A, 0x70, 0x61, 0x64, 0x70, 0x71,

  0x78, 0x64, 0x6B, 0x6F, 0x22, 0x2C, 0x22, 0x76, 0x22, 0x3A, 0x22, 0x31,

  0x2E, 0x30, 0x2E, 0x30, 0x22, 0x2C, 0x22, 0x6D, 0x22, 0x3A, 0x30, 0x7D, 0xAA

};

// Work mode response: 55 AA 03 02 00 03 10 1C 14 47

uint8_t workModeResponse[] = {0x55, 0xAA, 0x03, 0x02, 0x00, 0x03, 0x10, 0x1C, 0x14, 0x47};

// Network status response: 55 AA 03 03 00 00 05

uint8_t netStatusResponse[] = {0x55, 0xAA, 0x03, 0x03, 0x00, 0x00, 0x05};

// Subsequent heartbeat response: 55 AA 03 00 00 01 01 04

uint8_t secondHeartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x01, 0x04};

void setup() {

  // Initialize the serial communication for debugging at 115200 baud rate

  Serial.begin(115200);

  // Initialize the serial communication with Tuya module at 9600 baud rate

  tuyaSerial.begin(BAUD_RATE, SERIAL_8N1, RXD_PIN, TXD_PIN);

  // Debug message to indicate that the serial communication has been initialized

  Serial.println("ESP32-Tuya serial communication initialized.");

}

void loop() {

  // Check if data is available from the Tuya module

  if (tuyaSerial.available()) {

    uint8_t incomingPacket[7];  // Array to store the received packet

    size_t bytesRead = tuyaSerial.readBytes(incomingPacket, 7); // Read 7 bytes from Tuya

    // Check if the packet has a valid header (0x55, 0xAA)

    if (bytesRead >= 2 && incomingPacket[0] == 0x55 && incomingPacket[1] == 0xAA) {

      // If less than 7 bytes were received, wait for more data

      if (bytesRead < 7) {

        Serial.println("Incomplete packet received. Waiting for remaining bytes...");

        delay(50); // Delay to allow more data to be received

        while (tuyaSerial.available()) {

          incomingPacket[bytesRead++] = tuyaSerial.read(); // Continue reading remaining bytes

          if (bytesRead >= 7) break;

        }

      }

      // If still less than 7 bytes, discard the incomplete packet

      if (bytesRead < 7) {

        Serial.println("Error: Incomplete packet discarded.");

        return;

      }

      // Debug: Print the received packet for logging

      Serial.print("Received packet: ");

      for (size_t i = 0; i < 7; i++) {

        Serial.print(incomingPacket[i], HEX);

        Serial.print(" ");

      }

      Serial.println();

      // Call the function to process the received packet

      processTuyaPacket(incomingPacket, 7);

    } else {

      // If the header is invalid, discard the packet and flush the buffer

      Serial.print("Error: Invalid packet header. Data received: ");

      for (size_t i = 0; i < bytesRead; i++) {

        Serial.print(incomingPacket[i], HEX);

        Serial.print(" ");

      }

      Serial.println();

      tuyaSerial.flush(); // Clear the serial buffer

    }

  }

  // Delay to avoid CPU overuse

  delay(100);

}

// Function to process the received packet and send the appropriate response

void processTuyaPacket(uint8_t* packet, size_t size) {

  // Ensure the packet size is 7 and the header is valid

  if (size == 7 && packet[0] == 0x55 && packet[1] == 0xAA) {

    // Determine the command in the packet (packet[2])

    switch(packet[2]) {

      case 0x00:

        if (packet[3] == 0x00 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0xFF) {

          Serial.println("Heartbeat received.");

          sendPacket(heartBeatResponse, sizeof(heartBeatResponse));

        } else if (packet[3] == 0x01 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x00) {

          Serial.println("Product info request received.");

          sendPacket(productInfoResponse, sizeof(productInfoResponse));

        } else if (packet[3] == 0x02 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x01) {

          Serial.println("Work mode request received.");

          sendPacket(workModeResponse, sizeof(workModeResponse));

        } else if (packet[3] == 0x03 && packet[4] == 0x00 && packet[5] == 0x01 && packet[6] == 0x00) {

          Serial.println("Network status request received.");

          sendPacket(netStatusResponse, sizeof(netStatusResponse));

        }

        break;

      default:

        Serial.println("Error: Unhandled command received.");

        break;

    }

  }

}

// Function to send the response packet to the Tuya module

void sendPacket(uint8_t* packet, size_t size) {

  // Send the packet via UART to Tuya module

  tuyaSerial.write(packet, size);

  // Debug: Print the sent packet for logging

  Serial.print("Sent packet: ");

  for (size_t i = 0; i < size; i++) {

    Serial.print(packet[i], HEX);

    Serial.print(" ");

  }

  Serial.println();

}

arduino ino file download:

.zip

9-tuya-wifi-config.zip (Size: 2 KB / Downloads: 246)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip

9-tuya-wifi-config.ino.merged.zip (Size: 187.17 KB / Downloads: 235)

[arduino code examples for B24M]-08 Ethernet W5500 chip work with TCP Server mode

Posted by: admin - 07-31-2025, 07:04 AM - Forum: B24M - No Replies

Code:
/*

 * Made by KinCony IoT: https://www.kincony.com

 *

 * This Arduino program sets up an ESP32-S3 with a W5500 Ethernet module

 * as a TCP server. It listens on port 4196 and echoes back any string

 * received from a client.

 *

 * Hardware connections:

 * - CLK: GPIO42

 * - MOSI: GPIO43

 * - MISO: GPIO44

 * - CS: GPIO41

 * - RST: GPIO1

 * - INT: GPIO2

 *

 * Static IP address: 192.168.3.55

 * Subnet Mask: 255.255.255.0

 * Gateway: 192.168.3.1

 * DNS: 192.168.3.1

 */

#include <SPI.h>

#include <Ethernet.h>

// Define the W5500 Ethernet module pins

#define W5500_CS_PIN  42

#define W5500_RST_PIN 44

#define W5500_INT_PIN 43

#define W5500_CLK_PIN 1

#define W5500_MOSI_PIN 2

#define W5500_MISO_PIN 41

// MAC address for your Ethernet shield (must be unique on your network)

byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };

// Static IP address configuration

IPAddress ip(192, 168, 3, 55);       // Static IP address

IPAddress subnet(255, 255, 255, 0);   // Subnet mask

IPAddress gateway(192, 168, 3, 1);    // Default gateway

IPAddress dns(192, 168, 3, 1);        // DNS server address

// Create an EthernetServer object to handle TCP connections

EthernetServer server(4196);

void setup() {

  // Initialize serial communication

  Serial.begin(115200);

  while (!Serial) {

    ; // Wait for serial port to connect

  }

  // Initialize the W5500 module

  pinMode(W5500_RST_PIN, OUTPUT);

  pinMode(W5500_INT_PIN, INPUT);

  digitalWrite(W5500_RST_PIN, LOW);  // Reset the W5500 module

  delay(100);                       // Wait for reset to complete

  digitalWrite(W5500_RST_PIN, HIGH); // Release reset

  // Initialize SPI with the correct pin definitions

  SPI.begin(W5500_CLK_PIN, W5500_MISO_PIN, W5500_MOSI_PIN);

  // Set up the Ethernet library with W5500-specific pins

  Ethernet.init(W5500_CS_PIN);

  // Start the Ethernet connection with static IP configuration

  Ethernet.begin(mac, ip, dns, gateway, subnet);

  // Print the IP address to the serial monitor

  Serial.print("IP Address: ");

  Serial.println(Ethernet.localIP());

  // Start listening for incoming TCP connections

  server.begin();

}

void loop() {

  // Check for incoming client connections

  EthernetClient client = server.available();

  if (client) {

    Serial.println("New client connected");

    // Read data from the client and echo it back

    while (client.connected()) {

      if (client.available()) {

        char c = client.read();

        server.write(c);

      }

    }

    // Close the connection when done

    client.stop();

    Serial.println("Client disconnected");

  }

}

arduino ino file download:

.zip

8-Ethernet-W5500.zip (Size: 1.23 KB / Downloads: 255)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip

8-Ethernet-W5500.ino.merged.zip (Size: 191.07 KB / Downloads: 258)

Pages (356): « Previous 1 … 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 … 356 Next »

Login
Username:
Password:	Lost Password?
	Remember me
