Node-Red-flows for KC868-Hx relay controller, suit for KC868-H2,4,8,16,32 relay controller ,support old and new version of all relay controller.

  KC868-Relay-Controller-AWS-EC2.zip (Size: 6.09 KB / Downloads: 1201)

Hi There
What is the correct cmd to turn on off relay on this (board is TCP server)
I can connect but no answer, have try with following cmds
RELAY-SET-1,1,1 / RELAY-SET-1,1,0
that is what you own software is sending (Relay.Exe), here is allso no respons
have allso try with these cmd's
RELAY-SET-255,1,1 / RELAY-SET-255,1,0
this work for me with KC868-H16

Hi everyone, I would like to know if it is possible to rename inputs and outputs in the management software of COL.

KC868-COLB Logical Controller main improvements than KC868-COL:

1.both have Ethernet and Wifi work at the same time
2.work in local network and send data to your own cloud server
3.Ultra long distance connection digital input sensor for 1000 meter
4.Manual button for change work mode setting easily
5.MAX support 11 computer monitors work at the same time in local network

Dear Admin

i need help on the KC868-COLW logical controller. in my house i was using IP 192.168.1.xxx. When i purchase the KC868-COLW logical controller i did the setup. It has been some time since i set it up. I now need to do a reset as the KC868-COLW logical controller as it is now in a new location and the router is now using IP 192.168.8.xxx.

If i reset the KC868-COLW logical controller, how do i get access to the KC868-COLW logical controller to configure the WiFi to access this new SSID and IP? Do i need to connect to the KC868-COLW logical controller using a LAN Cable or i can use the built in WiFI. When i reset the KC868-COLW logical controller, what is the default SSID for me to access the configuration?

i know i have to use the Application VirCom but what IP should i use and port number? i was looking for the "How to setup KC868-COLW logical controller" on your website and i am not able to find it. Please help!

Here is flows file for KC868-COL connect to your own cloud server.

  KC868-COL-AWS-EC2.zip (Size: 5.71 KB / Downloads: 1262)

Dear Admin please send the latest firmware for my KC868 H32 PLC.

I have PLC with 5A relays.

Please send for my email kemi.electronic@gmail.com


Thank You.

Attached Files

Thumbnail(s)


Hi,
I purchased a KC868-D8-Dimmer Controller and attached it to the network. Then I used the KBOX Smart App to control a lamp attached to Output-Channel 1. Then I wanted to use my switches to increase or decrease the brightness. Well, this is where the problem starts. I connected K1+ and K1- to switch one and K2+ and K2- to switch two as described on your page Dimmer Product Page, especially the diagram at https://www.kincony.com/images/KC868-D8/...mmer-6.png

Unfortunately, the controller does not react at all. It is just ignoring if I press the switch or not. Then I started some research and found your YouTube video
There you used 5 wires and not four. I do not exactly know how everything is connected

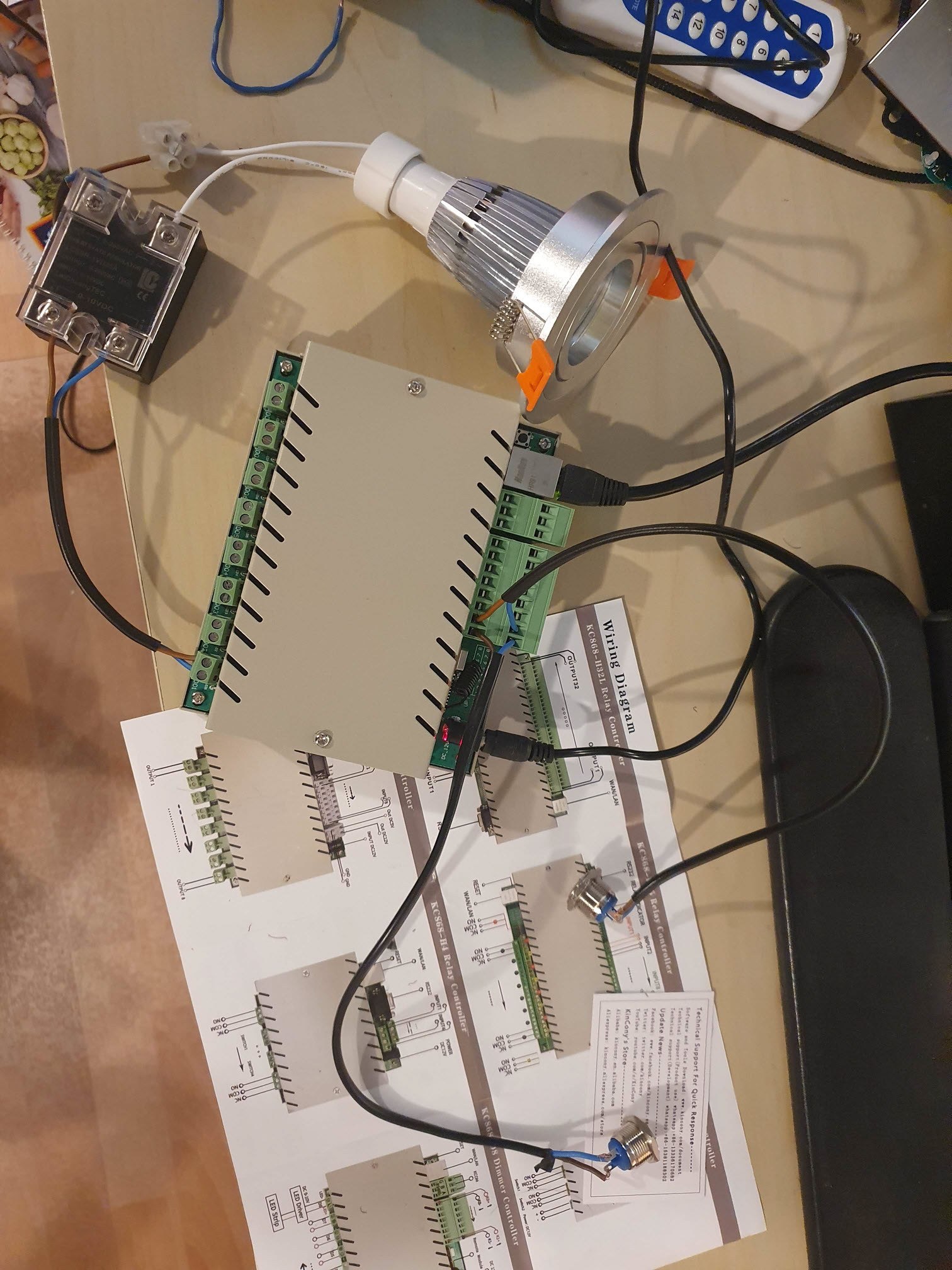

I attached a photo of how I connected everything (test phase, no soldering used). Do you know what I am doing wrong?

Thanks, iwzr

Attached Files

Thumbnail(s)


the All On and All Off function of the switch board, will turn on all the 32 switches that is attached to the switch board,   but what if i like only switch 1 to switch 8 to turn on all at the same time and switch 9 to switch 16 to turn on and off at the same time, is this possible, how do we do it

Hi, I'm from Brasil. So, is my first time here.

Can I use one sinric API KEY for two KC868 voice assistant? Because have a KC868 at my Bedroom e other at my kitchen. I have two Alexa and KC868-H8B too.

PS: Sorry my Inglish.
