  [arduino code examples for A8v3]-02 Read digital input ports state
Posted by: admin - 04-20-2025, 06:32 AM - Forum: KC868-A8v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* Description:
* This Arduino program reads the state of a 16-channel PCF8575 I/O expander
* and prints the state of all input pins to the Serial Monitor. The state of
* each pin is represented as a bit in a 16-bit value, where each bit corresponds
* to an input pin. The program prints the input state in binary format.
*
* Pin Definitions:
* - SDA: GPIO 8
* - SCL: GPIO 18
* - PCF8575 I2C Address: 0x22
*/

#include "Arduino.h"
#include "PCF8575.h"

// Define I2C pins
#define I2C_SDA 8  // Define SDA pin
#define I2C_SCL 18  // Define SCL pin

// Set I2C address
PCF8575 pcf8575_IN1(0x22); // The I2C address of the PCF8575

void setup() {
    Serial.begin(115200);

    // Initialize I2C communication
    Wire.begin(I2C_SDA, I2C_SCL); // Initialize I2C with defined SDA and SCL pins

    pcf8575_IN1.begin(); // Initialize the PCF8575

    Serial.println("KinCony B8M 8 channel input state 0:ON  1:OFF");
}

void loop() {
    uint16_t state = 0;

    // Read the state of each pin (assuming 16 pins)
    for (int pin = 8; pin < 16; pin++) {
        if (pcf8575_IN1.read(pin)) {
            state |= (1 << pin); // Set the bit for the active pin
        }
    }

    Serial.print("Input state: ");
    Serial.println(state, BIN); // Print the state of inputs in binary

    delay(500); // Delay 500ms
}
arduino ino file download:

.zip   2-digital-input.zip (Size: 839 bytes / Downloads: 754)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   2-digital-input.ino.merged.zip (Size: 189.5 KB / Downloads: 666)

Print this item

  [arduino code examples for A8v3]-01 Turn ON/OFF relay
Posted by: admin - 04-20-2025, 06:18 AM - Forum: KC868-A8v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This program controls a 16-channel relay board via a PCF8575 I/O expander.
* It sequentially turns on each relay and then turns them off in a loop.
*
* Pin Definitions:
* - SDA: GPIO 8
* - SCL: GPIO 18
*
* Delay Time:
* - 200 milliseconds between switching relays
*/

#include <Wire.h>        // Include the Wire library for I2C communication
#include <PCF8575.h>     // Include the PCF8575 library to control the I/O expander

#define SDA 8           // Define the SDA pin
#define SCL 18          // Define the SCL pin
#define DELAY_TIME 200   // Define the delay time in milliseconds

// Set I2C address of the PCF8575 module
#define I2C_ADDRESS 0x22 // I2C address of the PCF8575 module

PCF8575 pcf8575_R1(I2C_ADDRESS); // Create a PCF8575 object with the specified I2C address

void setup() {
  // Initialize I2C communication
  Wire.begin(SDA, SCL); // SDA on GPIO 8, SCL on GPIO 18 (according to your board's configuration)

  // Initialize serial communication for debugging (optional)
  Serial.begin(115200);
  Serial.println("PCF8575 Relay Control: Starting...");

  // Initialize the PCF8575 module
  pcf8575_R1.begin();

  // Turn off all relays initially (set all pins HIGH)
  for (int i = 0; i < 8; i++) {
    pcf8575_R1.write(i, HIGH); // Set all relays to OFF (assuming HIGH means OFF for relays)
  }
}

void loop() {
  // Sequentially turn on each relay
  for (int i = 0; i < 8; i++) {
    pcf8575_R1.write(i, LOW);   // Turn on the relay at pin i (LOW means ON for the relay)
    delay(DELAY_TIME);          // Wait for DELAY_TIME milliseconds
  }

  // Sequentially turn off each relay
  for (int i = 0; i < 8; i++) {
    pcf8575_R1.write(i, HIGH);  // Turn off the relay at pin i (HIGH means OFF for the relay)
    delay(DELAY_TIME);          // Wait for DELAY_TIME milliseconds
  }
}
arduino ino file download:

.zip   1-output.zip (Size: 925 bytes / Downloads: 683)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   1-output.ino.merged.zip (Size: 189.23 KB / Downloads: 699)

Print this item

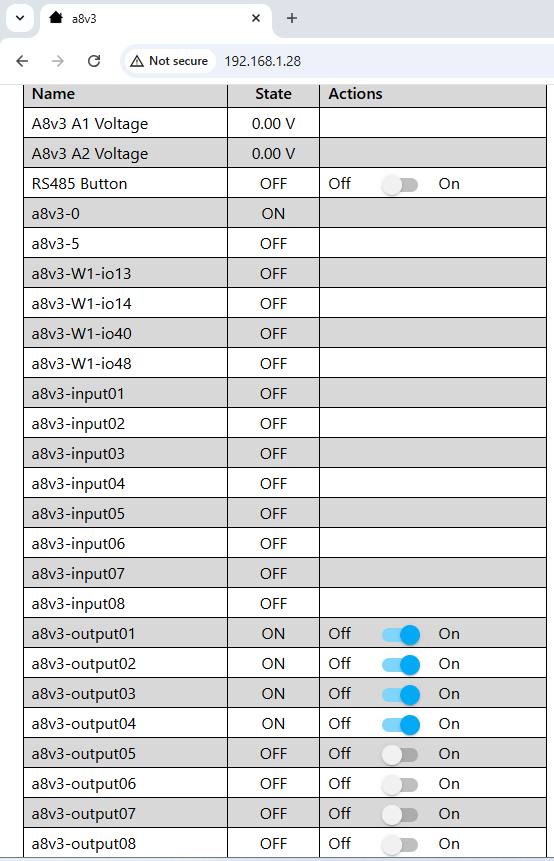

  KC868-A8v3 ESPHome yaml for home assistant
Posted by: admin - 04-20-2025, 06:15 AM - Forum: KC868-A8v3 - No Replies



Code:
esphome:
  name: a8v3
  friendly_name: a8v3
  platformio_options:
    board_build.extra_flags:
      # WIFI_CONTROL_SELF_MODE = 0
      # WIFI_CONTROL_SELF_MODE = 1
      - "-DWIFI_CONTROL_SELF_MODE=1"
esp32:
  board: esp32-s3-devkitc-1
  framework:
    type: arduino

external_components:
  - source:
      type: git
      url: https://github.com/hzkincony/esphome-tuya-wifi-mcu
      ref: v1.1.0

# Enable logging
# logger:
#   hardware_uart: USB_SERIAL_JTAG
# Enable Home Assistant API
api:
  encryption:
    key: "WeVOuL5oNhjXcfzXtTirlOwvtWvCD5yqIxd3oV4es1k="

ethernet:
  type: W5500
  clk_pin: GPIO1
  mosi_pin: GPIO2
  miso_pin: GPIO41
  cs_pin: GPIO42
  interrupt_pin: GPIO43
  reset_pin: GPIO44

i2c:
   - id: bus_a
     sda: 8
     scl: 18
     scan: true
     frequency: 400kHz

pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 0-7| input channel 8-15
    i2c_id: bus_a
    address: 0x22
    pcf8575: true

uart:
  - id: uart_1    #RS485
    baud_rate: 9600
    debug:
      direction: BOTH
      dummy_receiver: true
      after:
        timeout: 10ms
    tx_pin: 39
    rx_pin: 38

  - id: tuya_mcu_uart
    tx_pin: GPIO16
    rx_pin: GPIO17
    baud_rate: 9600

tuya_wifi_mcu:
  # tuya mcu product id
  product_id: qlvsreramxcldwek
  uart_id: tuya_mcu_uart
  wifi_reset_pin: 28
  wifi_led_pin: 16

switch:
  - platform: uart
    uart_id: uart_1
    name: "RS485 Button"
    data: [0x11, 0x22, 0x33, 0x44, 0x55]

  - platform: gpio
    name: "a8v3-output01"
    id: "a8v3_output01"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-output1-tuya
    dp_id: 1
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "a8v3_output01"

  - platform: gpio
    name: "a8v3-output02"
    id: "a8v3_output02"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-output2-tuya
    dp_id: 2
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "a8v3_output02"

  - platform: gpio
    name: "a8v3-output03"
    id: "a8v3_output03"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-output3-tuya
    dp_id: 3
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "a8v3_output03"

  - platform: gpio
    name: "a8v3-output04"
    id: "a8v3_output04"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-output4-tuya
    dp_id: 4
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "a8v3_output04"

  - platform: gpio
    name: "a8v3-output05"
    id: "a8v3_output05"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-output5-tuya
    dp_id: 5
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "a8v3_output05"

  - platform: gpio
    name: "a8v3-output06"
    id: "a8v3_output06"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-output6-tuya
    dp_id: 6
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "a8v3_output06"

  - platform: gpio
    name: "a8v3-output07"
    id: "a8v3_output07"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-output7-tuya
    dp_id: 101
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "a8v3_output07"

  - platform: gpio
    name: "a8v3-output08"
    id: "a8v3_output08"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-output8-tuya
    dp_id: 102
    # hide from homeassistant ui
    internal: true
    # bind other switch, sync state
    bind_switch_id: "a8v3_output08"

binary_sensor:
  - platform: gpio
    name: "a8v3-input01"
    id: "a8v3_input01"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 8
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-input1-tuya
    dp_id: 111
    bind_binary_sensor_id: a8v3_input01
    internal: true

  - platform: gpio
    name: "a8v3-input02"
    id: "a8v3_input02"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 9
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-input2-tuya
    dp_id: 112
    bind_binary_sensor_id: a8v3_input02
    internal: true

  - platform: gpio
    name: "a8v3-input03"
    id: "a8v3_input03"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 10
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-input3-tuya
    dp_id: 113
    bind_binary_sensor_id: a8v3_input03
    internal: true

  - platform: gpio
    name: "a8v3-input04"
    id: "a8v3_input04"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 11
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-input4-tuya
    dp_id: 114
    bind_binary_sensor_id: a8v3_input04
    internal: true

  - platform: gpio
    name: "a8v3-input05"
    id: "a8v3_input05"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 12
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-input5-tuya
    dp_id: 115
    bind_binary_sensor_id: a8v3_input05
    internal: true

  - platform: gpio
    name: "a8v3-input06"
    id: "a8v3_input06"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 13
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-input6-tuya
    dp_id: 116
    bind_binary_sensor_id: a8v3_input06
    internal: true

  - platform: gpio
    name: "a8v3-input07"
    id: "a8v3_input07"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 14
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-input7-tuya
    dp_id: 117
    bind_binary_sensor_id: a8v3_input07
    internal: true

  - platform: gpio
    name: "a8v3-input08"
    id: "a8v3_input08"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 15
      mode: INPUT
      inverted: true
  - platform: tuya_wifi_mcu
    name: a8v3-input8-tuya
    dp_id: 118
    bind_binary_sensor_id: a8v3_input08
    internal: true

##pull-up resistance on PCB
  - platform: gpio
    name: "a8v3-W1-io13"
    pin:
      number: 13
      inverted: true

  - platform: gpio
    name: "a8v3-W1-io40"
    pin:
      number: 40
      inverted: true

  - platform: gpio
    name: "a8v3-W1-io14"
    pin:
      number: 14
      inverted: true

  - platform: gpio
    name: "a8v3-W1-io48"
    pin:
      number: 48
      inverted: true
## without resistance on PCB
  - platform: gpio
    name: "a8v3-5"
    pin:
      number: 5
      inverted:  false

  - platform: gpio
    name: "a8v3-0"
    pin:
      number: 0
      inverted:  false

sensor:
  - platform: adc
    pin: 7
    name: "A8v3 A1 Voltage"
    update_interval: 5s
    attenuation: 11db
    filters:
      - lambda:
          if (x >= 3.11) {
            return x * 1.60256;
          } else if (x <= 0.15) {
            return 0;
          } else {
            return x * 1.51;
          }
  - platform: adc
    pin: 6
    name: "A8v3 A2 Voltage"
    update_interval: 5s
    attenuation: 11db
    filters:
      # - multiply: 1.51515
      - lambda:
          if (x >= 3.11) {
            return x * 1.60256;
          } else if (x <= 0.15) {
            return 0;
          } else {
            return x * 1.51;
          }

web_server:
  port: 80

font:
  - file: "gfonts://Roboto"
    id: roboto
    size: 20

display:
  - platform: ssd1306_i2c
    i2c_id: bus_a
    model: "SSD1306 128x64"
    address: 0x3C
    lambda: |-
      it.printf(0, 0, id(roboto), "KinCony a8v3");
esphome yaml file download:

.txt   A8v3-HA.txt (Size: 8.41 KB / Downloads: 693)

Print this item

  KC868-A8v3 ESP32-S3 IO pins define
Posted by: admin - 04-20-2025, 06:13 AM - Forum: KC868-A8v3 - No Replies

IIC Bus:

SDA:GPIO8
SCL:GPIO18

PCF8575: i2c address:0x22

PCF8575->P0 (relay1)
PCF8575->P1 (relay2)
PCF8575->P2 (relay3)
PCF8575->P3 (relay4)
PCF8575->P4 (relay5)
PCF8575->P5 (relay6)
PCF8575->P6 (relay7)
PCF8575->P7 (relay8)

PCF8575->P8 (DI1)
PCF8575->P9 (DI2)
PCF8575->P10 (DI3)
PCF8575->P11 (DI4)
PCF8575->P12 (DI5)
PCF8575->P13 (DI6)
PCF8575->P14 (DI7)
PCF8575->P15 (DI8)

24C02 EPROM i2c address: 0x50
DS3231 RTC i2c address: 0x68
SSD1306 display: i2c address:0x3c


Analog input (A1: DC 0-5v): GPIO7
Analog input (A2: DC 0-5v): GPIO6

-----------------
1-wire GPIOs (with pull-up resistance on PCB):
S1:GPIO40
S2:GPIO13
S3:GPIO48
S4:GPIO14


-----------------

Ethernet (W5500) I/O define:

clk_pin: GPIO1
mosi_pin: GPIO2
miso_pin: GPIO41
cs_pin: GPIO42

interrupt_pin: GPIO43
reset_pin: GPIO44

--------------------
RS485:
RXD:GPIO38
TXD:GPIO39

Tuya module:
RXD:GPIO17
TXD:GPIO16

Tuya network button: Tuya module's P28
Tuya network LED: Tuya module's P16
--------------------
SD Card:
SPI-MOSI:GPIO10
SPI-SCK:GPIO11
SPI-MISO:GPIO12
SPI-CS:GPIO9
SPI-CD:GPIO47
--------------------
RF433M sender:GPIO4
RF433M receiver:GPIO5

Print this item

  [arduino code examples for A2v3]-11 Digital input trigger relay output
Posted by: admin - 04-20-2025, 06:07 AM - Forum: KC868-A2v3 - No Replies

Code:
/**
* @brief Example to control relays based on digital input states using ESP32
* @details This program reads the states of two digital inputs (GPIO16, GPIO17)
*          and controls two relays (GPIO40, GPIO39) accordingly.
*
* Made by KinCony IoT: https://www.kincony.com
*/

// Define the GPIO pins for digital inputs
#define INPUT1_PIN 16  // GPIO16 for Digital Input 1
#define INPUT2_PIN 17  // GPIO17 for Digital Input 2

// Define the GPIO pins for relays
#define RELAY1_PIN 40  // GPIO40 for Relay 1
#define RELAY2_PIN 39  // GPIO39 for Relay 2

void setup() {
    // Initialize the serial communication for debugging
    Serial.begin(115200);
    Serial.println("ESP32 Input-Controlled Relay Example");

    // Set the input pins as INPUT
    pinMode(INPUT1_PIN, INPUT);
    pinMode(INPUT2_PIN, INPUT);

    // Set the relay pins as OUTPUT
    pinMode(RELAY1_PIN, OUTPUT);
    pinMode(RELAY2_PIN, OUTPUT);

    // Turn off both relays at startup (assuming active LOW relays)
    digitalWrite(RELAY1_PIN, HIGH);
    digitalWrite(RELAY2_PIN, HIGH);
}

void loop() {
    // Read the state of the digital inputs
    int state1 = digitalRead(INPUT1_PIN);
    int state2 = digitalRead(INPUT2_PIN);

    // Control the relays based on input states
    digitalWrite(RELAY1_PIN, state1 == HIGH ? LOW : HIGH); // Activate relay if input is HIGH
    digitalWrite(RELAY2_PIN, state2 == HIGH ? LOW : HIGH); // Activate relay if input is HIGH

    // Print the states to the Serial Monitor
    Serial.print("Digital Input 1 State: ");
    Serial.println(state1);
    Serial.print("Digital Input 2 State: ");
    Serial.println(state2);

    // Wait for 100 milliseconds before reading again
    delay(100);
}
arduino ino file download:

.zip   11-input-trigger-output.zip (Size: 866 bytes / Downloads: 746)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   11-input-trigger-output.ino.merged.zip (Size: 179.47 KB / Downloads: 718)

Print this item

  [arduino code examples for A2v3]-10 Print TEXT on SSD1306 OLED displayer
Posted by: admin - 04-20-2025, 06:04 AM - Forum: KC868-A2v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program demonstrates how to display text on an SSD1306 128x64 OLED display using the U8g2 library.
* The program draws two lines of text on the display:
* - The first line is "KINCONY" in a larger font.
* - The second line is "www.kincony.com" in a smaller font.
*
* The display is connected via I2C (software implementation) with:
* - SCL (clock) on pin IO47
* - SDA (data) on pin IO48
*
* The display's I2C address is set to 0x3C.
*/

#include <U8g2lib.h>  // Include the U8g2 library for controlling the OLED display
#include <Wire.h>     // Include the Wire library for I2C communication

// Initialize the display using the software I2C method (SCL = IO47, SDA = IO48)
U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0,  47, 48, U8X8_PIN_NONE);  // Screen rotation: U8G2_R0

// Function to display page 1 content
void page1() {
  // Set font size 18 for the larger "KINCONY" text
  u8g2.setFont(u8g2_font_timR18_tf);  // Use the Times Roman font, size 18
  u8g2.setFontPosTop();               // Set the text position at the top of the display
  u8g2.setCursor(5, 0);               // Position the cursor at coordinates (5, 0)
  u8g2.print("KINCONY");              // Display the text "KINCONY" on the screen

  // Set font size 12 for the smaller "www.kincony.com" text
  u8g2.setFont(u8g2_font_timR12_tf);  // Use the Times Roman font, size 12
  u8g2.setCursor(0, 40);              // Position the cursor at coordinates (0, 40)
  u8g2.print("www.kincony.com");      // Display the text "www.kincony.com"
}

// Setup function, runs once when the program starts
void setup() {
  // Set the I2C address for the display to 0x3C
  u8g2.setI2CAddress(0x3C*2);  // I2C address shift for 8-bit format

  // Initialize the display
  u8g2.begin();

  // Enable UTF-8 character printing for the display
  u8g2.enableUTF8Print();  // Allow UTF-8 encoded text to be printed
}

// Main loop function, continuously runs after setup()
void loop() {
  // Begin the display drawing process
  u8g2.firstPage();  // Prepare the first page for drawing
  do {
    // Call the page1() function to draw content on the display
    page1();
  } while (u8g2.nextPage());  // Continue to the next page until all pages are drawn
}
arduino ino file download:

.zip   10-oled-ssd1306.zip (Size: 1.12 KB / Downloads: 708)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   10-oled-ssd1306.ino.merged.zip (Size: 201.24 KB / Downloads: 682)

Print this item

Photo KCSv3 ADC threshold does nothing with Home Assistant MQTT
Posted by: riri0 - 04-20-2025, 06:03 AM - Forum: "KCS" v3 firmware - Replies (3)

Hi. Does the ADC threshold not apply to Home Assistant MQTT? For testing, my CH1 is around 1430 to 1450, value does not go above 1450. I put 100 so it should update in MQTT the value when it go above 1500 correct? But in Home Assistant MQTT the value still update every 2 second between 1430 to 1450.
The drop in the graph is when I try reboot the board to see if threshold apply after reboot. Still same.


Print this item

  [arduino code examples for A2v3]-08 Ethernet W5500 chip work with TCP Server mode
Posted by: admin - 04-20-2025, 06:01 AM - Forum: KC868-A2v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program sets up an ESP32-S3 with a W5500 Ethernet module
* as a TCP server. It listens on port 4196 and echoes back any string
* received from a client.
*
* Hardware connections:
* - CLK: GPIO42
* - MOSI: GPIO43
* - MISO: GPIO44
* - CS: GPIO41
* - RST: GPIO1
* - INT: GPIO2
*
* Static IP address: 192.168.3.55
* Subnet Mask: 255.255.255.0
* Gateway: 192.168.3.1
* DNS: 192.168.3.1
*/

#include <SPI.h>
#include <Ethernet.h>

// Define the W5500 Ethernet module pins
#define W5500_CS_PIN  41
#define W5500_RST_PIN 1
#define W5500_INT_PIN 2
#define W5500_CLK_PIN 42
#define W5500_MOSI_PIN 43
#define W5500_MISO_PIN 44

// MAC address for your Ethernet shield (must be unique on your network)
byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };

// Static IP address configuration
IPAddress ip(192, 168, 3, 55);       // Static IP address
IPAddress subnet(255, 255, 255, 0);   // Subnet mask
IPAddress gateway(192, 168, 3, 1);    // Default gateway
IPAddress dns(192, 168, 3, 1);        // DNS server address

// Create an EthernetServer object to handle TCP connections
EthernetServer server(4196);

void setup() {
  // Initialize serial communication
  Serial.begin(115200);
  while (!Serial) {
    ; // Wait for serial port to connect
  }

  // Initialize the W5500 module
  pinMode(W5500_RST_PIN, OUTPUT);
  pinMode(W5500_INT_PIN, INPUT);
  digitalWrite(W5500_RST_PIN, LOW);  // Reset the W5500 module
  delay(100);                       // Wait for reset to complete
  digitalWrite(W5500_RST_PIN, HIGH); // Release reset

  // Initialize SPI with the correct pin definitions
  SPI.begin(W5500_CLK_PIN, W5500_MISO_PIN, W5500_MOSI_PIN);

  // Set up the Ethernet library with W5500-specific pins
  Ethernet.init(W5500_CS_PIN);

  // Start the Ethernet connection with static IP configuration
  Ethernet.begin(mac, ip, dns, gateway, subnet);

  // Print the IP address to the serial monitor
  Serial.print("IP Address: ");
  Serial.println(Ethernet.localIP());

  // Start listening for incoming TCP connections
  server.begin();
}

void loop() {
  // Check for incoming client connections
  EthernetClient client = server.available();
  if (client) {
    Serial.println("New client connected");

    // Read data from the client and echo it back
    while (client.connected()) {
      if (client.available()) {
        char c = client.read();
        server.write(c);
      }
    }

    // Close the connection when done
    client.stop();
    Serial.println("Client disconnected");
  }
}
arduino ino file download:

.zip   8-Ethernet-W5500.zip (Size: 1.23 KB / Downloads: 756)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   8-Ethernet-W5500.ino.merged.zip (Size: 188.93 KB / Downloads: 674)

Print this item

  [arduino code examples for A2v3]-07 how to DS3231 RTC clock
Posted by: admin - 04-20-2025, 06:00 AM - Forum: KC868-A2v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* DS3231 RTC with Arduino
*
* This program demonstrates how to use the DS3231 RTC (Real-Time Clock) module with the Arduino.
* It includes functionality to:
* - Initialize the DS3231 RTC module
* - Read the current date and time from the RTC
* - Set the RTC time based on a serial command:Command format: DYYYY-MM-DDTHH:MM:SS
*    Set date and time command example: D2024-09-19T11:50:22
*    print current date and time command: current time
*
*
* Hardware Connections:
* - SDA: GPIO 48
* - SCL: GPIO 47
*/

#include <DS3231.h>
#include <Wire.h>

String serial_cmd_rcv = ""; // Serial port receiver

typedef struct
{
  byte year;    // Last two digits of the year, library adds 2000.
  byte month;
  byte day;
  byte hour;
  byte minute;
  byte second;
} MY_DATE_STR;

MY_DATE_STR my_date_str = {0};

// Define constants for relay control
#define OPEN_RLY_DATA    26
#define OPEN_RLY_MONTH   4
#define CLOSE_RLY_DATA   2
#define CLOSE_RLY_MONTH  5

// Define pin connections
#define SDA_PIN   48
#define SCL_PIN   47

DS3231 rtc; // Create an instance of the DS3231 RTC
bool h12Flag;
bool pmFlag;
static bool bCentury = false;
static bool old_level_high = false;
static bool old_level_low = false;


/**
* @brief Print the current time from the RTC to the Serial Monitor.
*/
static void PrintfCurTime()
{
  Serial.print("Current time is: ");
  int year = rtc.getYear() + 2000;
  Serial.print(year);
  Serial.print("-");

  Serial.print(rtc.getMonth(bCentury), DEC);
  Serial.print("-");

  Serial.print(rtc.getDate(), DEC);
  Serial.print(" ");

  Serial.print(rtc.getHour(h12Flag, pmFlag), DEC);
  Serial.print(":");
  Serial.print(rtc.getMinute(), DEC);
  Serial.print(":");
  Serial.println(rtc.getSecond(), DEC);
}

/**
* @brief Process serial commands to set the RTC time.
* Command format: DYYYY-MM-DDTHH:MM:SS
*/
static void GetSerialCmd()
{
  if (Serial.available() > 0)
  {
    delay(100);
    int num_read = Serial.available();
    while (num_read--)
      serial_cmd_rcv += char(Serial.read());
  }
  else return;

  serial_cmd_rcv.trim();

  if (serial_cmd_rcv == "current time")
  {
    PrintfCurTime();
    serial_cmd_rcv = "";
    return;
  }

  Serial.print("Received length: ");
  Serial.println(serial_cmd_rcv.length());

  int indexof_d = serial_cmd_rcv.indexOf('D');
  int indexof_t = serial_cmd_rcv.indexOf('T');

  Serial.print("D index: ");
  Serial.print(indexof_d);
  Serial.print(" T index: ");
  Serial.println(indexof_t);

  if (serial_cmd_rcv.length() != 20 ||
      serial_cmd_rcv.substring(0, 1) != "D" ||
      serial_cmd_rcv.substring(11, 12) != "T")
  {
    Serial.println(serial_cmd_rcv);
    serial_cmd_rcv = "";
    return;
  }

  Serial.println("Setting time...");

  my_date_str.year = (byte)serial_cmd_rcv.substring(3, 5).toInt();
  my_date_str.month = (byte)serial_cmd_rcv.substring(6, 8).toInt();
  my_date_str.day = (byte)serial_cmd_rcv.substring(9, 11).toInt();
  my_date_str.hour = (byte)serial_cmd_rcv.substring(12, 14).toInt();
  my_date_str.minute = (byte)serial_cmd_rcv.substring(15, 17).toInt();
  my_date_str.second = (byte)serial_cmd_rcv.substring(18).toInt();

  rtc.setYear(my_date_str.year);
  rtc.setMonth(my_date_str.month);
  rtc.setDate(my_date_str.day);
  rtc.setHour(my_date_str.hour);
  rtc.setMinute(my_date_str.minute);
  rtc.setSecond(my_date_str.second);

  serial_cmd_rcv = "";

  Serial.println("Time set.");
}

void setup() {
  // Initialize the I2C interface
  Wire.begin(SDA_PIN, SCL_PIN, 40000);

  // Initialize Serial communication
  Serial.begin(115200);
  // Set the RTC to 24-hour mode
  rtc.setClockMode(false); // 24-hour format

  // Print current time to Serial Monitor
  PrintfCurTime();

  // Clear any remaining serial data
  while (Serial.read() >= 0) {}
}

void loop() {
  // Process incoming serial commands
  GetSerialCmd();
  delay(1000); // Delay for 1 second
}
arduino ino file download:

.zip   7-DS3231-RTC.zip (Size: 1.56 KB / Downloads: 694)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   7-DS3231-RTC.ino.merged.zip (Size: 191.09 KB / Downloads: 683)

Print this item

  [arduino code examples for A2v3]-06 How to use SD Card
Posted by: admin - 04-20-2025, 05:58 AM - Forum: KC868-A2v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* SD Card File Operations
*
* This program demonstrates basic file operations on an SD card using the ESP32.
* It includes functionality to:
* - Initialize and test the SD card
* - Read from, write to, append to, and delete files on the SD card
* - Measure file read and write performance
*
* Hardware Connections:
* - SCK: GPIO 13
* - MISO: GPIO 14
* - MOSI: GPIO 12
* - CS: GPIO 11
*/

#include "FS.h"
#include "SD.h"
#include "SPI.h"

// Pin definitions for SD card
#define SCK  13
#define MISO 14
#define MOSI 12
#define CS   11

/**
* @brief Reads the contents of a file from the SD card and prints it to the serial monitor.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to read.
*/
void readFile(fs::FS &fs, const char * path) {
  Serial.printf("Reading file: %s\n", path);

  File file = fs.open(path);
  if (!file) {
    Serial.println("Failed to open file for reading");
    return;
  }

  Serial.print("Read from file: ");
  while (file.available()) {
    Serial.print((char)file.read());
  }
  file.close();
}

/**
* @brief Writes a message to a file on the SD card.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to write.
* @param message Message to write to the file.
*/
void writeFile(fs::FS &fs, const char * path, const char * message) {
  Serial.printf("Writing file: %s\n", path);

  File file = fs.open(path, FILE_WRITE);
  if (!file) {
    Serial.println("Failed to open file for writing");
    return;
  }
  if (file.print(message)) {
    Serial.println("File written");
  } else {
    Serial.println("Write failed");
  }
  file.close();
}

/**
* @brief Appends a message to a file on the SD card.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to append.
* @param message Message to append to the file.
*/
void appendFile(fs::FS &fs, const char * path, const char * message) {
  Serial.printf("Appending to file: %s\n", path);

  File file = fs.open(path, FILE_APPEND);
  if (!file) {
    Serial.println("Failed to open file for appending");
    return;
  }
  if (file.print(message)) {
    Serial.println("Message appended");
  } else {
    Serial.println("Append failed");
  }
  file.close();
}

/**
* @brief Deletes a file from the SD card.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to delete.
*/
void deleteFile(fs::FS &fs, const char * path) {
  Serial.printf("Deleting file: %s\n", path);
  if (fs.remove(path)) {
    Serial.println("File deleted");
  } else {
    Serial.println("Delete failed");
  }
}

/**
* @brief Tests file read and write performance.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to test.
*/
void testFileIO(fs::FS &fs, const char * path) {
  File file = fs.open(path);
  static uint8_t buf[512];
  size_t len = 0;
  uint32_t start = millis();
  uint32_t end = start;

  if (file) {
    len = file.size();
    size_t flen = len;
    start = millis();
    while (len) {
      size_t toRead = len;
      if (toRead > 512) {
        toRead = 512;
      }
      file.read(buf, toRead);
      len -= toRead;
    }
    end = millis() - start;
    Serial.printf("%u bytes read for %u ms\n", flen, end);
    file.close();
  } else {
    Serial.println("Failed to open file for reading");
  }

  file = fs.open(path, FILE_WRITE);
  if (!file) {
    Serial.println("Failed to open file for writing");
    return;
  }

  size_t i;
  start = millis();
  for (i = 0; i < 2048; i++) {
    file.write(buf, 512);
  }
  end = millis() - start;
  Serial.printf("%u bytes written for %u ms\n", 2048 * 512, end);
  file.close();
}

void setup() {
  // Initialize serial communication
  Serial.begin(115200);

  // Initialize SPI and SD card
  SPIClass spi = SPIClass(HSPI);
  spi.begin(SCK, MISO, MOSI, CS);

  if (!SD.begin(CS, spi, 80000000)) {
    Serial.println("Card Mount Failed");
    return;
  }

  uint8_t cardType = SD.cardType();

  if (cardType == CARD_NONE) {
    Serial.println("No SD card attached");
    return;
  }

  Serial.print("SD Card Type: ");
  if (cardType == CARD_MMC) {
    Serial.println("MMC");
  } else if (cardType == CARD_SD) {
    Serial.println("SDSC");
  } else if (cardType == CARD_SDHC) {
    Serial.println("SDHC");
  } else {
    Serial.println("UNKNOWN");
  }

  uint64_t cardSize = SD.cardSize() / (1024 * 1024);
  Serial.printf("SD Card Size: %lluMB\n", cardSize);
  delay(2000);

  // Perform file operations
  deleteFile(SD, "/hello.txt");
  writeFile(SD, "/hello.txt", "Hello ");
  appendFile(SD, "/hello.txt", "World!\n");
  readFile(SD, "/hello.txt");
  testFileIO(SD, "/test.txt");
  Serial.printf("Total space: %lluMB\n", SD.totalBytes() / (1024 * 1024));
  Serial.printf("Used space: %lluMB\n", SD.usedBytes() / (1024 * 1024));
}

void loop() {
  // No operation in loop
}
arduino ino file download:

.zip   6-SD.zip (Size: 1.53 KB / Downloads: 695)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   6-SD.ino.merged.zip (Size: 221.25 KB / Downloads: 666)

Print this item
