  MB Specs - 8A per channel? variable voltage per channel?
Posted by: gregoryx - 04-07-2025, 05:24 AM - Forum: KC868-M16 / M1 / MB / M30 - Replies (8)

Looking to use an MB board (KinCony ESP32 Battery Monitor) to monitor DC circuit power.

I can't tell from the specification if it's 8A per channel or 8A for all 16 channels?

And it's unclear if it can be different voltage on every channel? Can I have 12VDC on one channel and 24VDC on another channel and have correct measurements on both?

thank you.
-Greg

Print this item

  Low output voltage
Posted by: Knightrider - 04-05-2025, 01:00 PM - Forum: KC868-A16 - Replies (6)

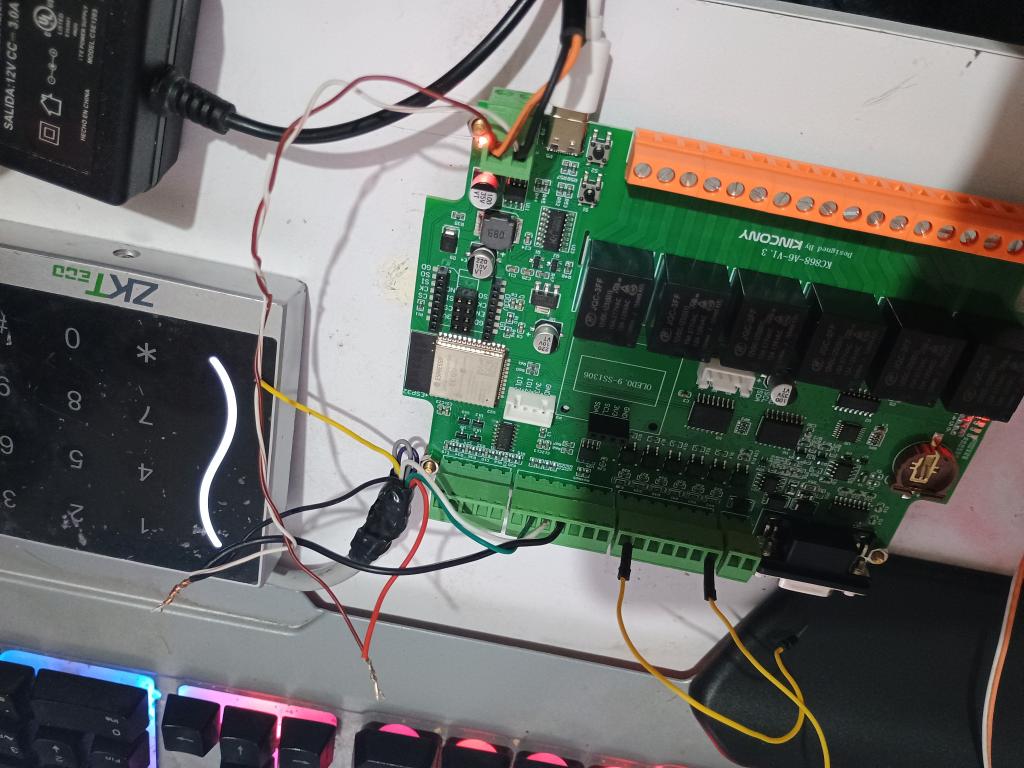

I am trying to use one of the outputs to drive a 12v siren directly.  I have a 12v power supply, with 12v passing from the input to the 12v terminal on the output block.  If I connect my siren to the 12v and output terminal on the block, it doesn't sound properly, and if I measure the voltage across them with a multimeter I am only seeing ~10.5v.
Is this a limitation of the board, or have I wired something wrong?

Print this item

  KC868-D16 firmware update
Posted by: Gazoved - 04-03-2025, 05:48 PM - Forum: KC868-HxB series Smart Controller - Replies (1)

Good day!

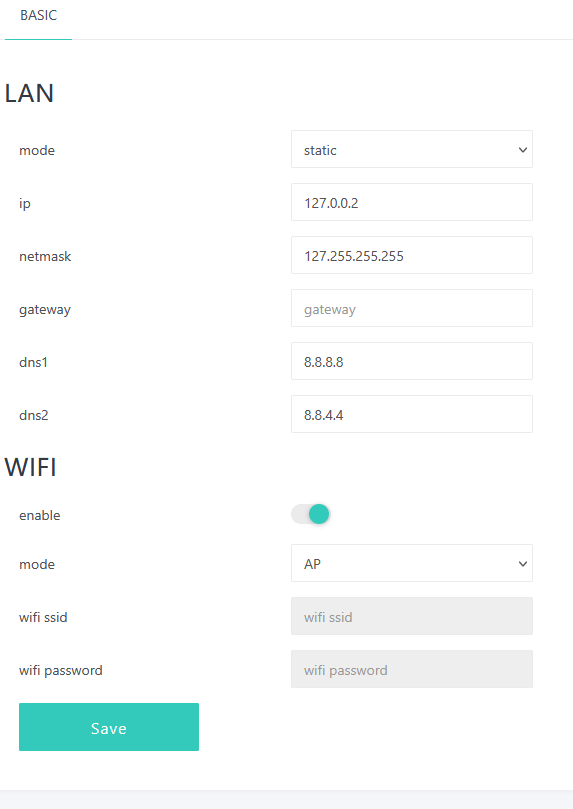

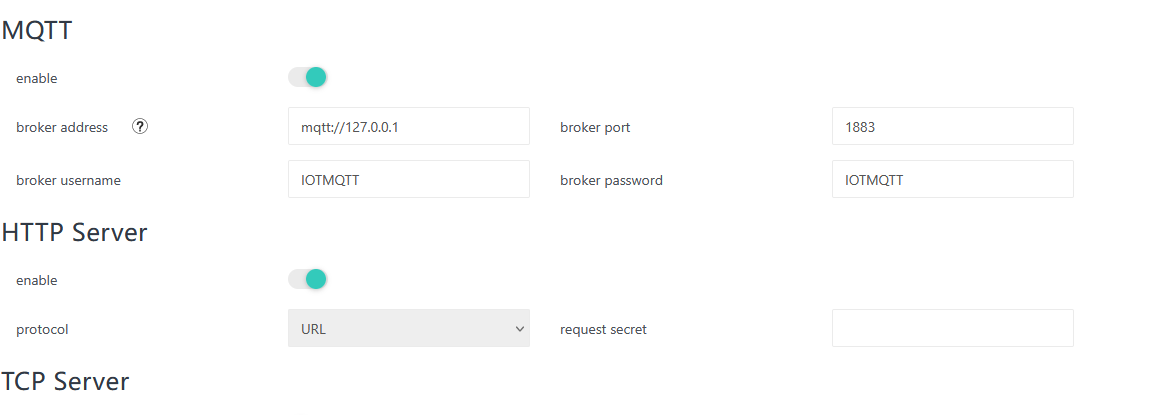

Dear hardware developers ( admin ), do you have any plans to update firmware for KC868-D16 controllers?
The current firmware is D16_V1.08?

Print this item

  [arduino code examples for TA]-08 how to communication with Tuya WiFi module
Posted by: admin - 04-03-2025, 06:55 AM - Forum: TA - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program implements communication between ESP32 and the Tuya module
* via UART (serial communication). It listens for specific packets from the Tuya module
* and responds according to the predefined commands.
*
* Functionality:
* 1. When the ESP32 receives a heartbeat packet (55 AA 00 00 00 00 FF),
*    it sends a heartbeat response (55 AA 03 00 00 01 00 03).
* 2. When the ESP32 receives a product information request (55 AA 00 01 00 00 00),
*    it sends a product information response (55 AA 03 01 ...).
* 3. When the ESP32 receives a work mode request (55 AA 00 02 00 00 01),
*    it sends a work mode response (55 AA 03 02 00 03 10 1C 14 47).
* 4. When the ESP32 receives a network status request (55 AA 00 03 00 01 00 03),
*    it sends a network status response (55 AA 03 03 00 00 05).
* 5. Subsequent heartbeat packets (55 AA 00 00 00 00 FF) are responded to with
*    (55 AA 03 00 00 01 01 04).
*/

#include <HardwareSerial.h>

// Create a HardwareSerial object for UART communication on ESP32
HardwareSerial tuyaSerial(1);

// Define the GPIO pins for TXD and RXD used for serial communication
#define TXD_PIN 16
#define RXD_PIN 17

// Set the baud rate for Tuya module communication to 9600
#define BAUD_RATE 9600

// Define the response packets for different commands from the Tuya module

// Heartbeat response: 55 AA 03 00 00 01 00 03
uint8_t heartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x00, 0x03};

// Product info response with a detailed payload (e.g., firmware version, product name, etc.)
uint8_t productInfoResponse[] = {
  0x55, 0xAA, 0x03, 0x01, 0x00, 0x2A, 0x7B, 0x22, 0x70, 0x22, 0x3A, 0x22,
  0x63, 0x68, 0x6D, 0x7A, 0x6C, 0x67, 0x6A, 0x70, 0x61, 0x64, 0x70, 0x71,
  0x78, 0x64, 0x6B, 0x6F, 0x22, 0x2C, 0x22, 0x76, 0x22, 0x3A, 0x22, 0x31,
  0x2E, 0x30, 0x2E, 0x30, 0x22, 0x2C, 0x22, 0x6D, 0x22, 0x3A, 0x30, 0x7D, 0xAA
};

// Work mode response: 55 AA 03 02 00 03 10 1C 14 47
uint8_t workModeResponse[] = {0x55, 0xAA, 0x03, 0x02, 0x00, 0x03, 0x10, 0x1C, 0x14, 0x47};

// Network status response: 55 AA 03 03 00 00 05
uint8_t netStatusResponse[] = {0x55, 0xAA, 0x03, 0x03, 0x00, 0x00, 0x05};

// Subsequent heartbeat response: 55 AA 03 00 00 01 01 04
uint8_t secondHeartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x01, 0x04};

void setup() {
  // Initialize the serial communication for debugging at 115200 baud rate
  Serial.begin(115200);

  // Initialize the serial communication with Tuya module at 9600 baud rate
  tuyaSerial.begin(BAUD_RATE, SERIAL_8N1, RXD_PIN, TXD_PIN);

  // Debug message to indicate that the serial communication has been initialized
  Serial.println("ESP32-Tuya serial communication initialized.");
}

void loop() {
  // Check if data is available from the Tuya module
  if (tuyaSerial.available()) {
    uint8_t incomingPacket[7];  // Array to store the received packet
    size_t bytesRead = tuyaSerial.readBytes(incomingPacket, 7); // Read 7 bytes from Tuya

    // Check if the packet has a valid header (0x55, 0xAA)
    if (bytesRead >= 2 && incomingPacket[0] == 0x55 && incomingPacket[1] == 0xAA) {
      // If less than 7 bytes were received, wait for more data
      if (bytesRead < 7) {
        Serial.println("Incomplete packet received. Waiting for remaining bytes...");
        delay(50); // Delay to allow more data to be received
        while (tuyaSerial.available()) {
          incomingPacket[bytesRead++] = tuyaSerial.read(); // Continue reading remaining bytes
          if (bytesRead >= 7) break;
        }
      }

      // If still less than 7 bytes, discard the incomplete packet
      if (bytesRead < 7) {
        Serial.println("Error: Incomplete packet discarded.");
        return;
      }

      // Debug: Print the received packet for logging
      Serial.print("Received packet: ");
      for (size_t i = 0; i < 7; i++) {
        Serial.print(incomingPacket[i], HEX);
        Serial.print(" ");
      }
      Serial.println();

      // Call the function to process the received packet
      processTuyaPacket(incomingPacket, 7);

    } else {
      // If the header is invalid, discard the packet and flush the buffer
      Serial.print("Error: Invalid packet header. Data received: ");
      for (size_t i = 0; i < bytesRead; i++) {
        Serial.print(incomingPacket[i], HEX);
        Serial.print(" ");
      }
      Serial.println();
      tuyaSerial.flush(); // Clear the serial buffer
    }
  }

  // Delay to avoid CPU overuse
  delay(100);
}

// Function to process the received packet and send the appropriate response
void processTuyaPacket(uint8_t* packet, size_t size) {
  // Ensure the packet size is 7 and the header is valid
  if (size == 7 && packet[0] == 0x55 && packet[1] == 0xAA) {
    // Determine the command in the packet (packet[2])
    switch(packet[2]) {
      case 0x00:
        if (packet[3] == 0x00 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0xFF) {
          Serial.println("Heartbeat received.");
          sendPacket(heartBeatResponse, sizeof(heartBeatResponse));
        } else if (packet[3] == 0x01 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x00) {
          Serial.println("Product info request received.");
          sendPacket(productInfoResponse, sizeof(productInfoResponse));
        } else if (packet[3] == 0x02 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x01) {
          Serial.println("Work mode request received.");
          sendPacket(workModeResponse, sizeof(workModeResponse));
        } else if (packet[3] == 0x03 && packet[4] == 0x00 && packet[5] == 0x01 && packet[6] == 0x00) {
          Serial.println("Network status request received.");
          sendPacket(netStatusResponse, sizeof(netStatusResponse));
        }
        break;

      default:
        Serial.println("Error: Unhandled command received.");
        break;
    }
  }
}

// Function to send the response packet to the Tuya module
void sendPacket(uint8_t* packet, size_t size) {
  // Send the packet via UART to Tuya module
  tuyaSerial.write(packet, size);

  // Debug: Print the sent packet for logging
  Serial.print("Sent packet: ");
  for (size_t i = 0; i < size; i++) {
    Serial.print(packet[i], HEX);
    Serial.print(" ");
  }
  Serial.println();
}
arduino ino file download:

.zip   8-tuya-wifi-config.zip (Size: 2 KB / Downloads: 816)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   8-tuya-wifi-config.ino.merged.zip (Size: 187.17 KB / Downloads: 819)

Print this item

  [arduino code examples for TA]-07 Ethernet W5500 chip work with TCP Server mode
Posted by: admin - 04-03-2025, 06:54 AM - Forum: TA - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program sets up an ESP32-S3 with a W5500 Ethernet module
* as a TCP server. It listens on port 4196 and echoes back any string
* received from a client.
*
* Hardware connections:
* - CLK: GPIO42
* - MOSI: GPIO43
* - MISO: GPIO44
* - CS: GPIO41
* - RST: GPIO1
* - INT: GPIO2
*
* Static IP address: 192.168.3.55
* Subnet Mask: 255.255.255.0
* Gateway: 192.168.3.1
* DNS: 192.168.3.1
*/

#include <SPI.h>
#include <Ethernet.h>

// Define the W5500 Ethernet module pins
#define W5500_CS_PIN  42
#define W5500_RST_PIN 44
#define W5500_INT_PIN 43
#define W5500_CLK_PIN 1
#define W5500_MOSI_PIN 2
#define W5500_MISO_PIN 41

// MAC address for your Ethernet shield (must be unique on your network)
byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };

// Static IP address configuration
IPAddress ip(192, 168, 3, 55);       // Static IP address
IPAddress subnet(255, 255, 255, 0);   // Subnet mask
IPAddress gateway(192, 168, 3, 1);    // Default gateway
IPAddress dns(192, 168, 3, 1);        // DNS server address

// Create an EthernetServer object to handle TCP connections
EthernetServer server(4196);

void setup() {
  // Initialize serial communication
  Serial.begin(115200);
  while (!Serial) {
    ; // Wait for serial port to connect
  }

  // Initialize the W5500 module
  pinMode(W5500_RST_PIN, OUTPUT);
  pinMode(W5500_INT_PIN, INPUT);
  digitalWrite(W5500_RST_PIN, LOW);  // Reset the W5500 module
  delay(100);                       // Wait for reset to complete
  digitalWrite(W5500_RST_PIN, HIGH); // Release reset

  // Initialize SPI with the correct pin definitions
  SPI.begin(W5500_CLK_PIN, W5500_MISO_PIN, W5500_MOSI_PIN);

  // Set up the Ethernet library with W5500-specific pins
  Ethernet.init(W5500_CS_PIN);

  // Start the Ethernet connection with static IP configuration
  Ethernet.begin(mac, ip, dns, gateway, subnet);

  // Print the IP address to the serial monitor
  Serial.print("IP Address: ");
  Serial.println(Ethernet.localIP());

  // Start listening for incoming TCP connections
  server.begin();
}

void loop() {
  // Check for incoming client connections
  EthernetClient client = server.available();
  if (client) {
    Serial.println("New client connected");

    // Read data from the client and echo it back
    while (client.connected()) {
      if (client.available()) {
        char c = client.read();
        server.write(c);
      }
    }

    // Close the connection when done
    client.stop();
    Serial.println("Client disconnected");
  }
}
arduino ino file download:

.zip   7-Ethernet-W5500.zip (Size: 1.23 KB / Downloads: 802)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   7-Ethernet-W5500.ino.merged.zip (Size: 191.07 KB / Downloads: 792)

Print this item

  [arduino code examples for TA]-06 how to DS3231 RTC clock
Posted by: admin - 04-03-2025, 06:52 AM - Forum: TA - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* DS3231 RTC with Arduino
*
* This program demonstrates how to use the DS3231 RTC (Real-Time Clock) module with the Arduino.
* It includes functionality to:
* - Initialize the DS3231 RTC module
* - Read the current date and time from the RTC
* - Set the RTC time based on a serial command:Command format: DYYYY-MM-DDTHH:MM:SS
*    Set date and time command example: D2024-09-19T11:50:22
*    print current date and time command: current time
*
*
* Hardware Connections:
* - SDA: GPIO 8
* - SCL: GPIO 18
*/

#include <DS3231.h>
#include <Wire.h>

String serial_cmd_rcv = ""; // Serial port receiver

typedef struct
{
  byte year;    // Last two digits of the year, library adds 2000.
  byte month;
  byte day;
  byte hour;
  byte minute;
  byte second;
} MY_DATE_STR;

MY_DATE_STR my_date_str = {0};

// Define constants for relay control
#define OPEN_RLY_DATA    26
#define OPEN_RLY_MONTH   4
#define CLOSE_RLY_DATA   2
#define CLOSE_RLY_MONTH  5

// Define pin connections
#define SDA_PIN   8
#define SCL_PIN   18

DS3231 rtc; // Create an instance of the DS3231 RTC
bool h12Flag;
bool pmFlag;
static bool bCentury = false;
static bool old_level_high = false;
static bool old_level_low = false;


/**
* @brief Print the current time from the RTC to the Serial Monitor.
*/
static void PrintfCurTime()
{
  Serial.print("Current time is: ");
  int year = rtc.getYear() + 2000;
  Serial.print(year);
  Serial.print("-");

  Serial.print(rtc.getMonth(bCentury), DEC);
  Serial.print("-");

  Serial.print(rtc.getDate(), DEC);
  Serial.print(" ");

  Serial.print(rtc.getHour(h12Flag, pmFlag), DEC);
  Serial.print(":");
  Serial.print(rtc.getMinute(), DEC);
  Serial.print(":");
  Serial.println(rtc.getSecond(), DEC);
}

/**
* @brief Process serial commands to set the RTC time.
* Command format: DYYYY-MM-DDTHH:MM:SS
*/
static void GetSerialCmd()
{
  if (Serial.available() > 0)
  {
    delay(100);
    int num_read = Serial.available();
    while (num_read--)
      serial_cmd_rcv += char(Serial.read());
  }
  else return;

  serial_cmd_rcv.trim();

  if (serial_cmd_rcv == "current time")
  {
    PrintfCurTime();
    serial_cmd_rcv = "";
    return;
  }

  Serial.print("Received length: ");
  Serial.println(serial_cmd_rcv.length());

  int indexof_d = serial_cmd_rcv.indexOf('D');
  int indexof_t = serial_cmd_rcv.indexOf('T');

  Serial.print("D index: ");
  Serial.print(indexof_d);
  Serial.print(" T index: ");
  Serial.println(indexof_t);

  if (serial_cmd_rcv.length() != 20 ||
      serial_cmd_rcv.substring(0, 1) != "D" ||
      serial_cmd_rcv.substring(11, 12) != "T")
  {
    Serial.println(serial_cmd_rcv);
    serial_cmd_rcv = "";
    return;
  }

  Serial.println("Setting time...");

  my_date_str.year = (byte)serial_cmd_rcv.substring(3, 5).toInt();
  my_date_str.month = (byte)serial_cmd_rcv.substring(6, 8).toInt();
  my_date_str.day = (byte)serial_cmd_rcv.substring(9, 11).toInt();
  my_date_str.hour = (byte)serial_cmd_rcv.substring(12, 14).toInt();
  my_date_str.minute = (byte)serial_cmd_rcv.substring(15, 17).toInt();
  my_date_str.second = (byte)serial_cmd_rcv.substring(18).toInt();

  rtc.setYear(my_date_str.year);
  rtc.setMonth(my_date_str.month);
  rtc.setDate(my_date_str.day);
  rtc.setHour(my_date_str.hour);
  rtc.setMinute(my_date_str.minute);
  rtc.setSecond(my_date_str.second);

  serial_cmd_rcv = "";

  Serial.println("Time set.");
}

void setup() {
  // Initialize the I2C interface
  Wire.begin(SDA_PIN, SCL_PIN, 40000);

  // Initialize Serial communication
  Serial.begin(115200);

  // Set the RTC to 24-hour mode
  rtc.setClockMode(false); // 24-hour format

  // Print current time to Serial Monitor
  PrintfCurTime();

  // Clear any remaining serial data
  while (Serial.read() >= 0) {}
}

void loop() {
  // Process incoming serial commands
  GetSerialCmd();
  delay(1000); // Delay for 1 second
}
arduino ino file download:

.zip   6-DS3231-RTC.zip (Size: 1.56 KB / Downloads: 720)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   6-DS3231-RTC.ino.merged.zip (Size: 193.66 KB / Downloads: 787)

Print this item

  [arduino code examples for TA]-05 Read free GPIO state
Posted by: admin - 04-03-2025, 06:50 AM - Forum: TA - No Replies

Code:
/*
* ESP32 GPIO State Reader
* Reads the state of 12 GPIOs and prints the results to the serial monitor.
*
* Made by KinCony IoT: https://www.kincony.com
*/

#define GPIO_9   9
#define GPIO_11  11
#define GPIO_5   5
#define GPIO_4   4
#define GPIO_7   7
#define GPIO_6   6
#define GPIO_13  13
#define GPIO_40  40
#define GPIO_14  14
#define GPIO_48  48
#define GPIO_21  21
#define GPIO_47  47

void setup() {
    Serial.begin(115200); // Initialize serial communication at 115200 baud rate

    // Set GPIOs as input
    pinMode(GPIO_9, INPUT);
    pinMode(GPIO_11, INPUT);
    pinMode(GPIO_5, INPUT);
    pinMode(GPIO_4, INPUT);
    pinMode(GPIO_7, INPUT);
    pinMode(GPIO_6, INPUT);
    pinMode(GPIO_13, INPUT);
    pinMode(GPIO_40, INPUT);
    pinMode(GPIO_14, INPUT);
    pinMode(GPIO_48, INPUT);
    pinMode(GPIO_21, INPUT);
    pinMode(GPIO_47, INPUT);
}

void loop() {
    // Read GPIO states
    int state_9  = digitalRead(GPIO_9);
    int state_11 = digitalRead(GPIO_11);
    int state_5  = digitalRead(GPIO_5);
    int state_4  = digitalRead(GPIO_4);
    int state_7  = digitalRead(GPIO_7);
    int state_6  = digitalRead(GPIO_6);
    int state_13 = digitalRead(GPIO_13);
    int state_40 = digitalRead(GPIO_40);
    int state_14 = digitalRead(GPIO_14);
    int state_48 = digitalRead(GPIO_48);
    int state_21 = digitalRead(GPIO_21);
    int state_47 = digitalRead(GPIO_47);

    // Print GPIO states to the serial monitor
    Serial.printf("GPIO9: %d, GPIO11: %d, GPIO5: %d, GPIO4: %d, GPIO7: %d, GPIO6: %d, GPIO13: %d, GPIO40: %d, GPIO14: %d, GPIO48: %d, GPIO21: %d, GPIO47: %d\n",
                  state_9, state_11, state_5, state_4, state_7, state_6, state_13, state_40, state_14, state_48, state_21, state_47);

    delay(1000); // Read GPIO states every second
}
arduino ino file download:

.zip   5-free-gpio-state.zip (Size: 737 bytes / Downloads: 795)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   5-free-gpio-state.ino.merged.zip (Size: 181.6 KB / Downloads: 810)

Print this item

  [arduino code examples for TA]-04 RS485 communication test
Posted by: admin - 04-03-2025, 06:45 AM - Forum: TA - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* RS485 Communication Test
*
* This program is a simple test for RS485 communication using ESP32-S3.
* It will send a message over RS485 and then read incoming messages.
* The TXD pin is defined as GPIO 18 and RXD pin is defined as GPIO 8.
*/

#include <HardwareSerial.h>

// Define RS485 pins
#define RS485_RXD 38
#define RS485_TXD 39

// Create a hardware serial object
HardwareSerial rs485Serial(1);

void setup() {
  // Start serial communication for debugging
  Serial.begin(115200);
  while (!Serial);

  // Initialize RS485 Serial communication
  rs485Serial.begin(9600, SERIAL_8N1, RS485_RXD, RS485_TXD);

  Serial.println("RS485 Test Start");
}

void loop() {
  // Send a test message
  rs485Serial.println("Hello from KinCony TA!");

  // Wait for a short period
  delay(1000);

  // Check if data is available to read
  if (rs485Serial.available()) {
    String receivedMessage = "";
    while (rs485Serial.available()) {
      char c = rs485Serial.read();
      receivedMessage += c;
    }
    // Print the received message
    Serial.print("Received: ");
    Serial.println(receivedMessage);
  }

  // Wait before sending the next message
  delay(2000);
}
arduino ino file download:

.zip   4-RS485-Test.zip (Size: 762 bytes / Downloads: 751)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   4-RS485-Test.ino.merged.zip (Size: 186.54 KB / Downloads: 756)

Print this item

  [arduino code examples for TA]-03 RF433MHz signal decode
Posted by: admin - 04-03-2025, 06:43 AM - Forum: TA - No Replies

Code:
/*
  Simple example for receiving

  https://github.com/sui77/rc-switch/
*/

#include <RCSwitch.h>

RCSwitch mySwitch = RCSwitch();

void setup() {
  Serial.begin(9600);
  mySwitch.enableReceive(digitalPinToInterrupt(12));
  Serial.print("begin test");
}

void loop() {
  if (mySwitch.available()) {

    Serial.print("Received ");
    Serial.print( mySwitch.getReceivedValue() );
    Serial.print(" / ");
    Serial.print( mySwitch.getReceivedBitlength() );
    Serial.print("bit ");
    Serial.print("Protocol: ");
    Serial.println( mySwitch.getReceivedProtocol() );

    mySwitch.resetAvailable();
  }
}
arduino ino file download:

.zip   3-433-decode.zip (Size: 455 bytes / Downloads: 779)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   3-433-decode.ino.merged.zip (Size: 183.33 KB / Downloads: 794)

Print this item

  [arduino code examples for TA]-02 Read digital input ports state
Posted by: admin - 04-03-2025, 06:39 AM - Forum: TA - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* Description:
* This Arduino program reads the state of a 16-channel PCF8575 I/O expander
* and prints the state of all input pins to the Serial Monitor. The state of
* each pin is represented as a bit in a 16-bit value, where each bit corresponds
* to an input pin. The program prints the input state in binary format.
*
* Pin Definitions:
* - SDA: GPIO 8
* - SCL: GPIO 18
* - PCF8575 I2C Address: 0x22
*/

#include "Arduino.h"
#include "PCF8575.h"

// Define I2C pins
#define I2C_SDA 8  // Define SDA pin
#define I2C_SCL 18  // Define SCL pin

// Set I2C address
PCF8575 pcf8575_IN1(0x22); // The I2C address of the PCF8575

void setup() {
    Serial.begin(115200);

    // Initialize I2C communication
    Wire.begin(I2C_SDA, I2C_SCL); // Initialize I2C with defined SDA and SCL pins

    pcf8575_IN1.begin(); // Initialize the PCF8575

    Serial.println("KinCony TA 12 channel input state 0:ON  1:OFF");
}

void loop() {
    uint16_t state = 0;

    // Read the state of each pin (assuming 16 pins)
    for (int pin = 0; pin < 12; pin++) {
        if (pcf8575_IN1.read(pin)) {
            state |= (1 << pin); // Set the bit for the active pin
        }
    }

    Serial.print("Input state: ");
    Serial.println(state, BIN); // Print the state of inputs in binary

    delay(500); // Delay 500ms
}
arduino ino file download:

.zip   2-digital-input.zip (Size: 837 bytes / Downloads: 750)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   2-digital-input.ino.merged.zip (Size: 192.29 KB / Downloads: 792)

Print this item
