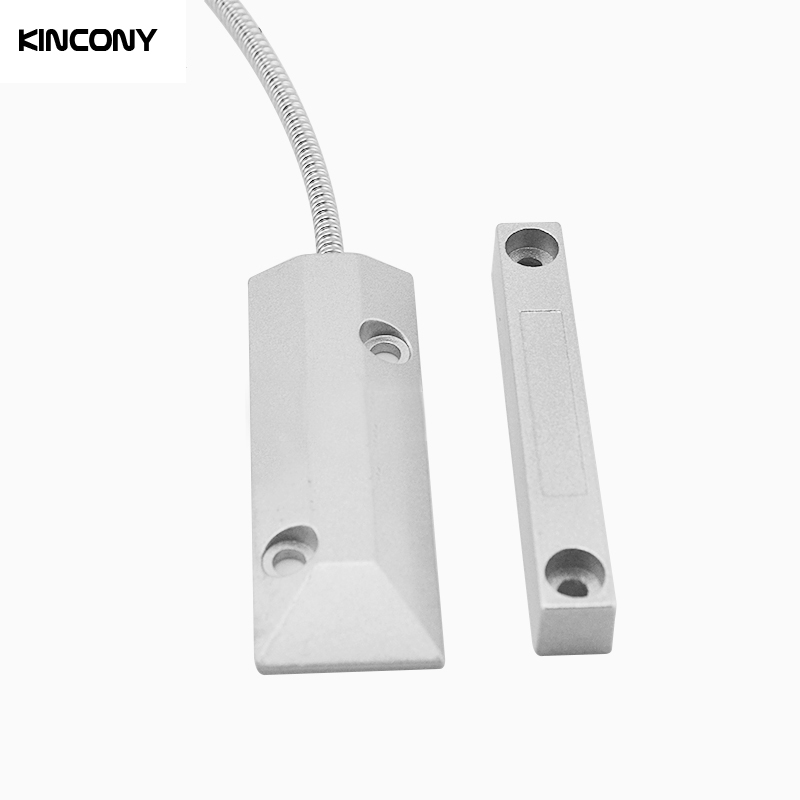

Wired Door Magnetic Sensor

Product Parameters   Dimension:106*38*10mm   106*16*16mm   106*50*50mm Induction Distance: 50-70mm Switch Form:N/C, N/O and Converted Electrical Parameter: Max power 10W, Max Voltage 100V, Max Current 0.5A Material: Zinc Alloy, silver gray Lead Wire:1007UL#22AWG 550mm 380mm SS steel protective pipe Package: 1set/bag, 50sets/CTN, 18.0kg/CTN Suitable: Rolling shutter door
Contact Us



Product Parameters



Dimension:106*38*10mm   106*16*16mm   106*50*50mm

Induction Distance: 50-70mm

Switch Form:N/C, N/O and Converted

Electrical Parameter: Max power 10W, Max Voltage 100V, Max Current 0.5A

Material: Zinc Alloy, silver gray

Lead Wire:1007UL#22AWG 550mm 380mm SS steel protective pipe

Package: 1set/bag, 50sets/CTN, 18.0kg/CTN

Suitable: Rolling shutter door
