KinCony Pi5R16 – Raspberry Pi CM5 DIN Rail IoT Gateway for Smart Home & Industrial Automation
Product Overview

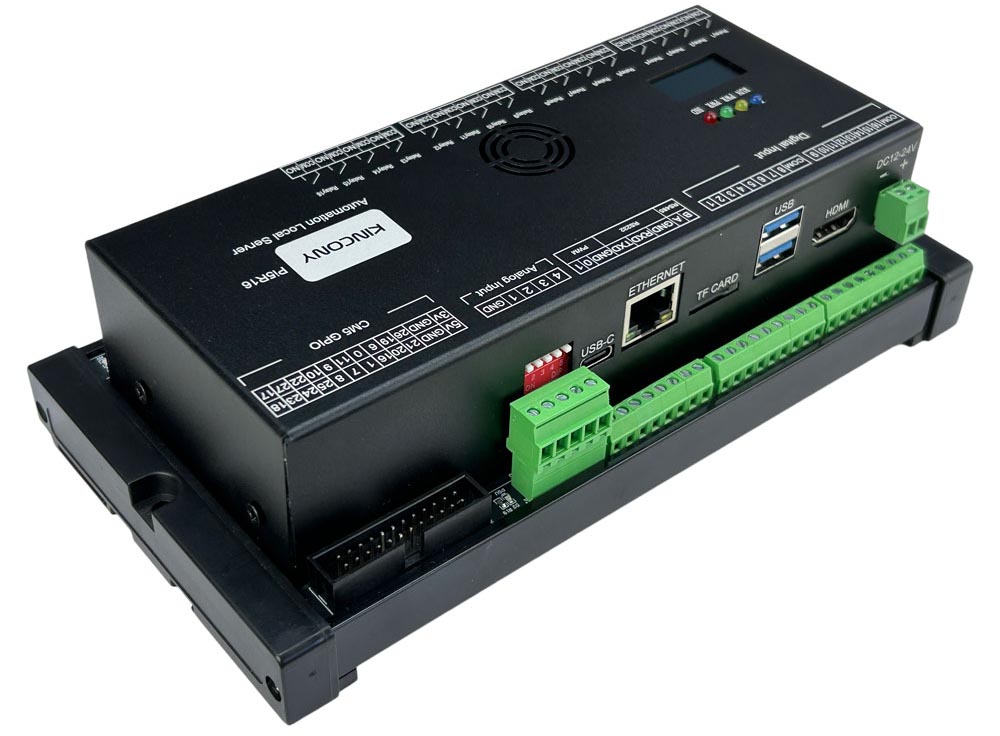

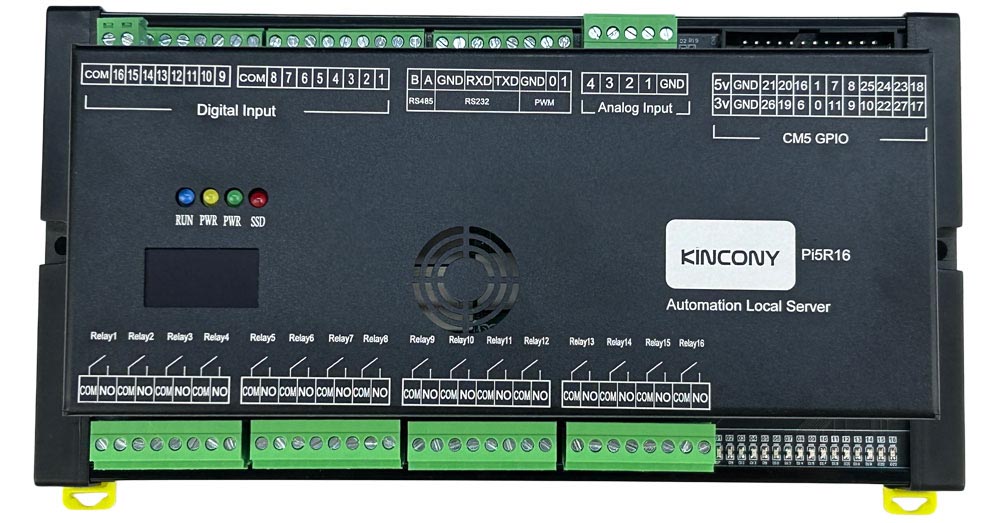

KinCony Pi5R16 is a powerful Raspberry Pi–based IoT gateway designed for smart home automation and industrial control applications. Built around the Raspberry Pi Compute Module 5 (CM5), it integrates relay outputs, opto-isolated digital inputs, analog inputs, RS232/RS485 communication, PWM outputs, and multiple expansion interfaces into a compact DIN rail aluminum enclosure.
Pi5R16 is ideal for users who want to build local automation systems using platforms such as Home Assistant, Node-RED, MQTT, Modbus, or custom Linux applications.
The CM5 module directly manages all relays, digital inputs, analog inputs, PWM outputs, and serial communication ports, making development and deployment simple and flexible.
Key Features
- Raspberry Pi Compute Module 5 (CM5) integrated
- 16-channel relay outputs
- 16-channel optocoupler-isolated digital inputs
- Supports Home Assistant and Node-RED
- RS232 and RS485 communication ports
- 2-channel PWM outputs
- Analog input support:
- 2 × DC 0–5V
- 2 × 4–20mA
- 20 free GPIO expansion ports
- Gigabit Ethernet support
- M.2 PCIe expansion socket
- DIN rail aluminum enclosure design
- SSD1306 I2C OLED display
- Designed for industrial and smart home automation
Product Specifications
| Item | Specification |
|---|---|
| Model | KinCony Pi5R16 |
| Size | 202mm*105mm*58mm |
| Description | KinCony Automation Local Server – Pi5R16 |
| Processor | Raspberry Pi Compute Module 5 |

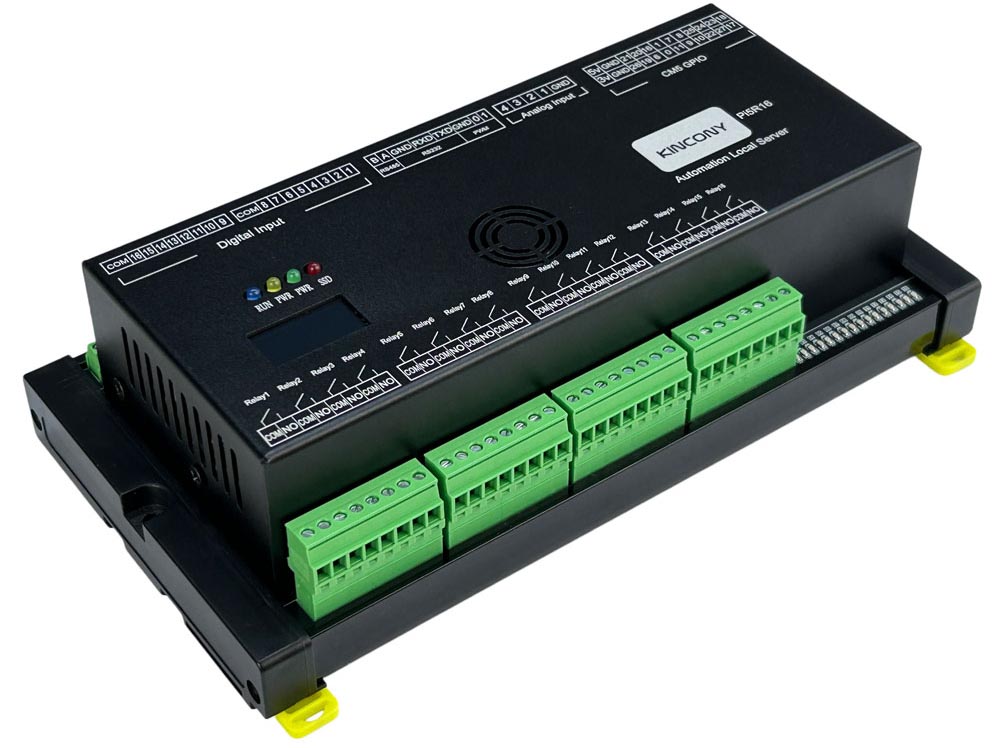

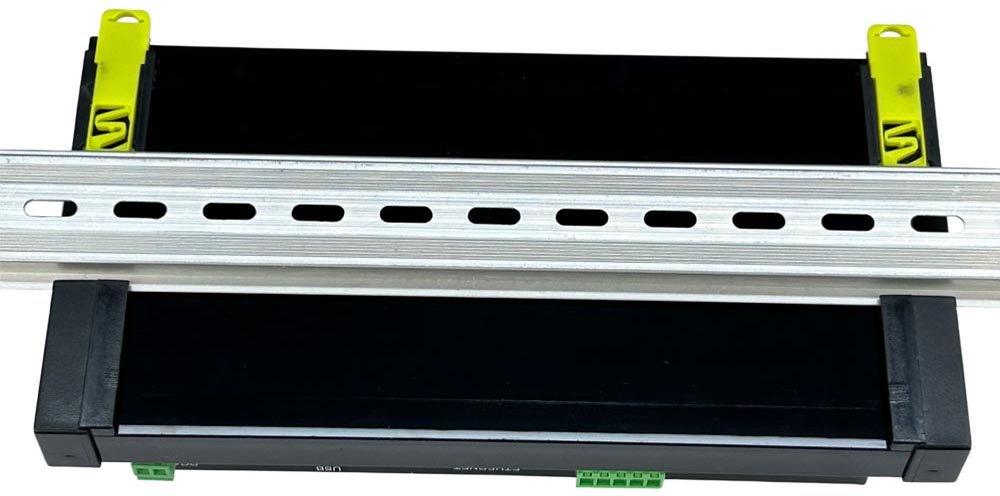

| Installation | DIN Rail |
| Material | Aluminum Shell |
| Power Supply | DC 12V–24V |
| Working Temperature | -20°C to 70°C |
| Working Humidity | 20%–80% |

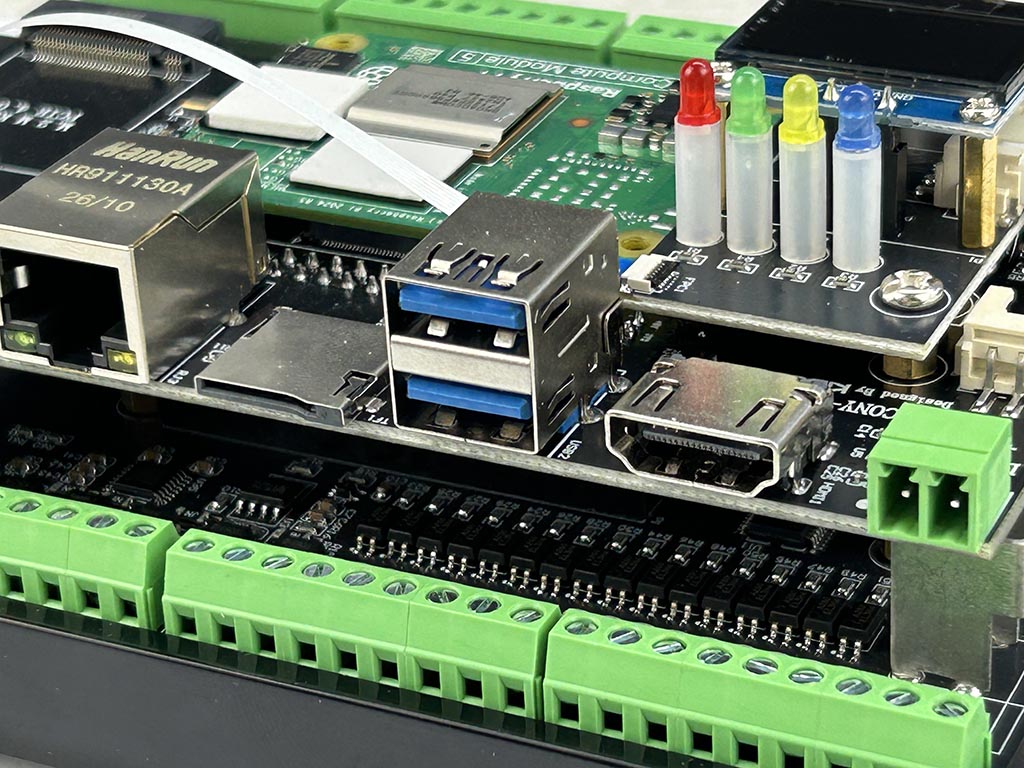

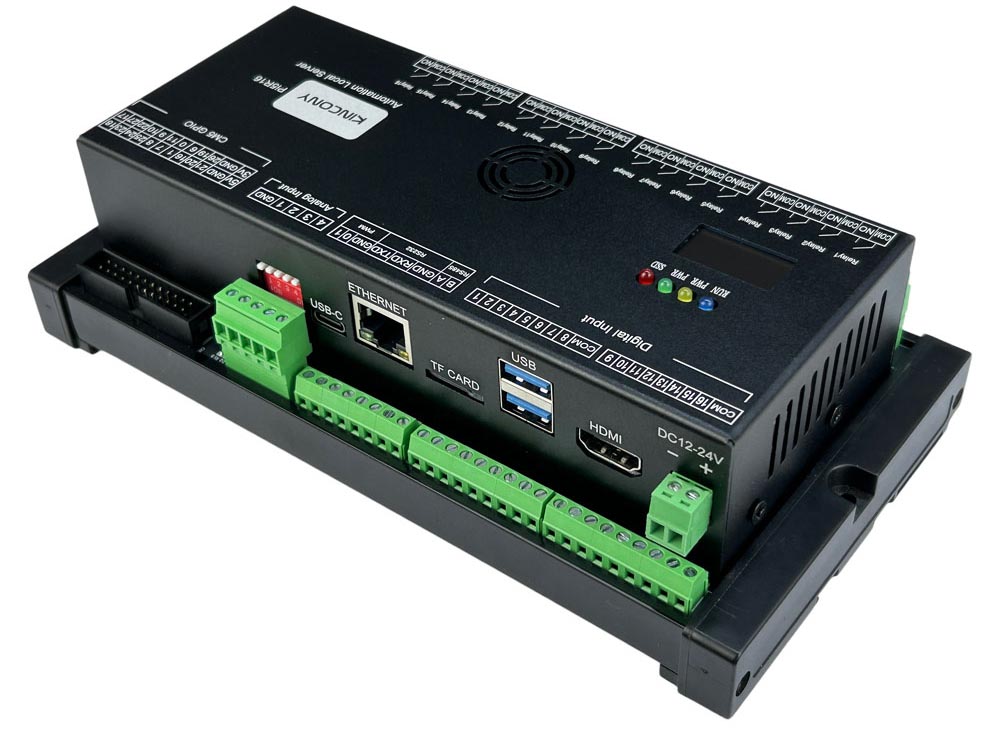

| Ethernet | 1 × RJ45 Gigabit Ethernet (IPv4/IPv6) |
| USB | 2 × USB 3.0 |
| HDMI | 1 × HDMI 2.0 |
| USB-C | 1 × USB-C |
| TF Card | 1 × microSD socket (Lite version only) |
| RS232 | 1 Port |
| RS485 | 1 Port |
| OLED Display | SSD1306 I2C OLED |

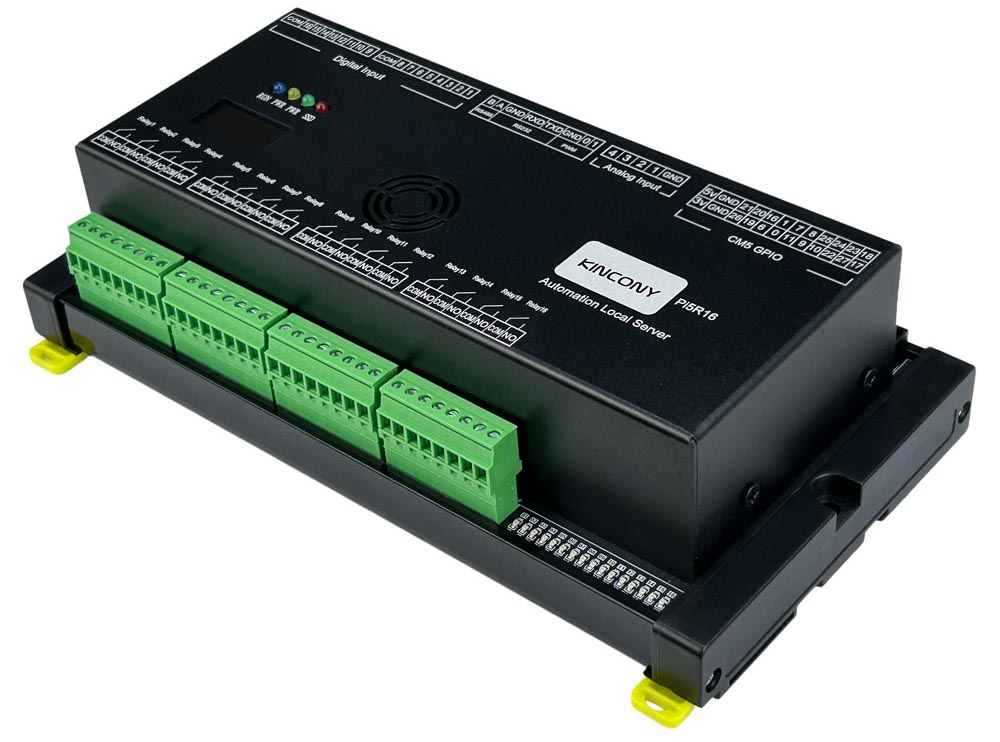

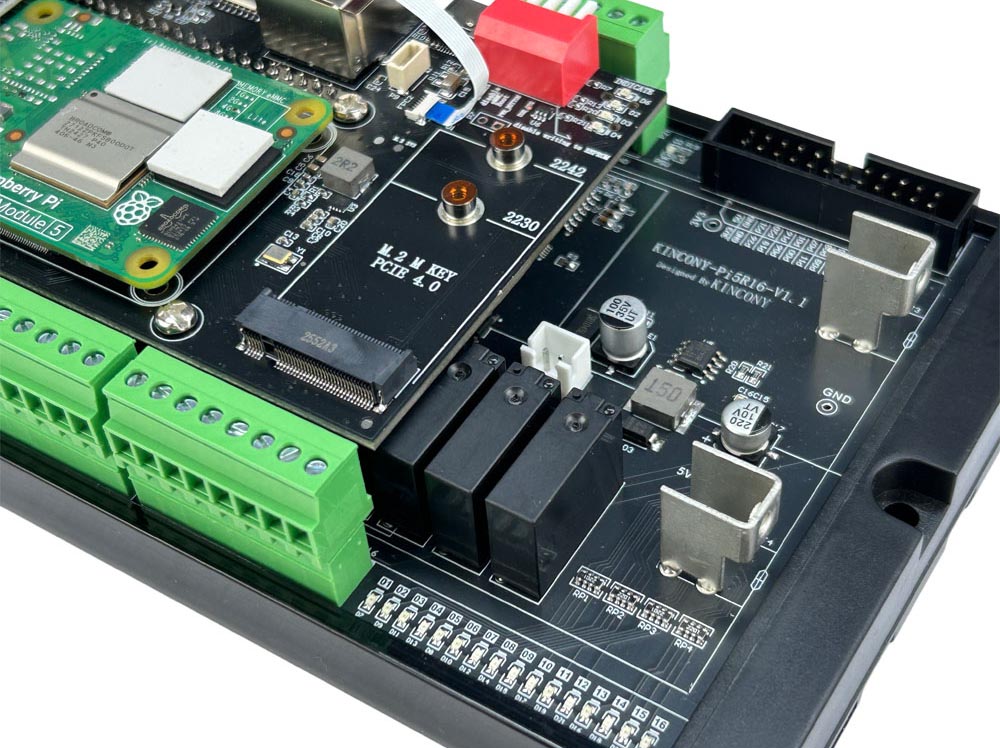

| Expansion | M.2 M-Key PCIe Socket |
| GPIO Expansion | CM5 GPIO Extender |
| Cooling | Heatsink + Fan |

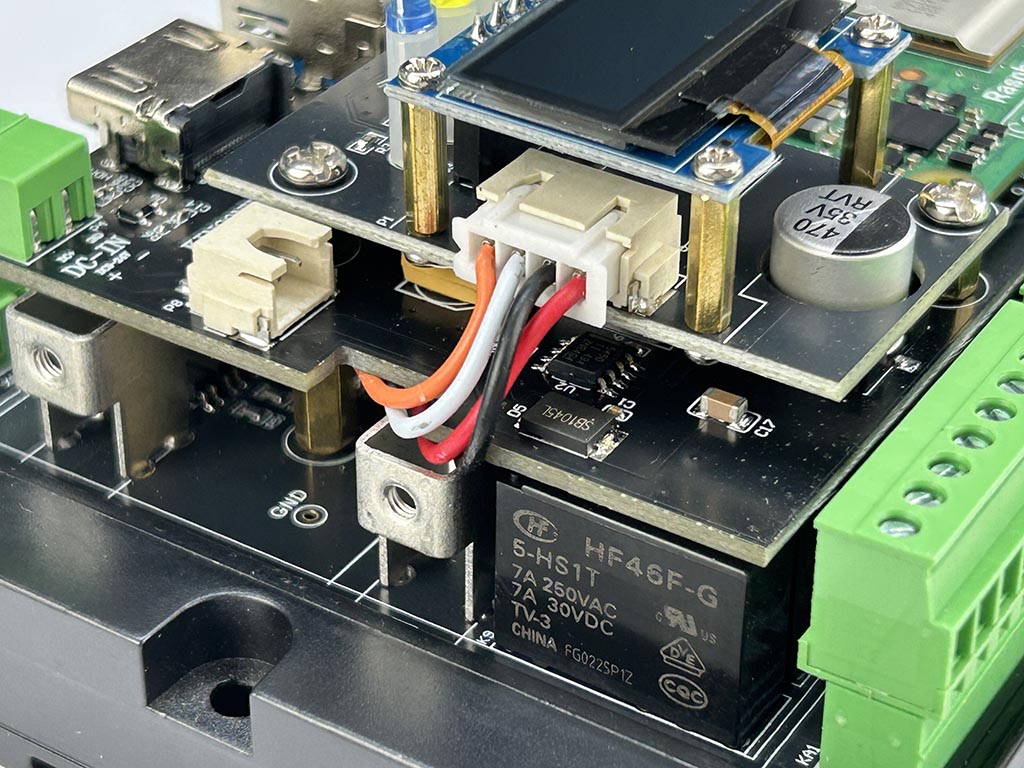

Relay Output Specifications
| Item | Specification |
|---|---|
| Relay Channels | 16 |
| Contact Type | COM / NO |
| Max Load | AC 250V / 7A |
| Max DC Load | DC 30V / 7A |
Digital Input Specifications
| Item | Specification |
|---|---|
| Input Channels | 16 |
| Isolation | Optocoupler Isolation |
| Signal Type | Dry Contact |
| Max Cable Distance | 500 meters |
| Logic “1” | DC 0V |
| Logic “0” | DC 12V |
Analog Input Specifications
| Item | Specification |
|---|---|
| Analog Voltage Input | 2 × DC 0–5V |
| Current Input | 2 × 4–20mA |
PWM Output
| Item | Specification |
|---|---|
| PWM Channels | 2 |

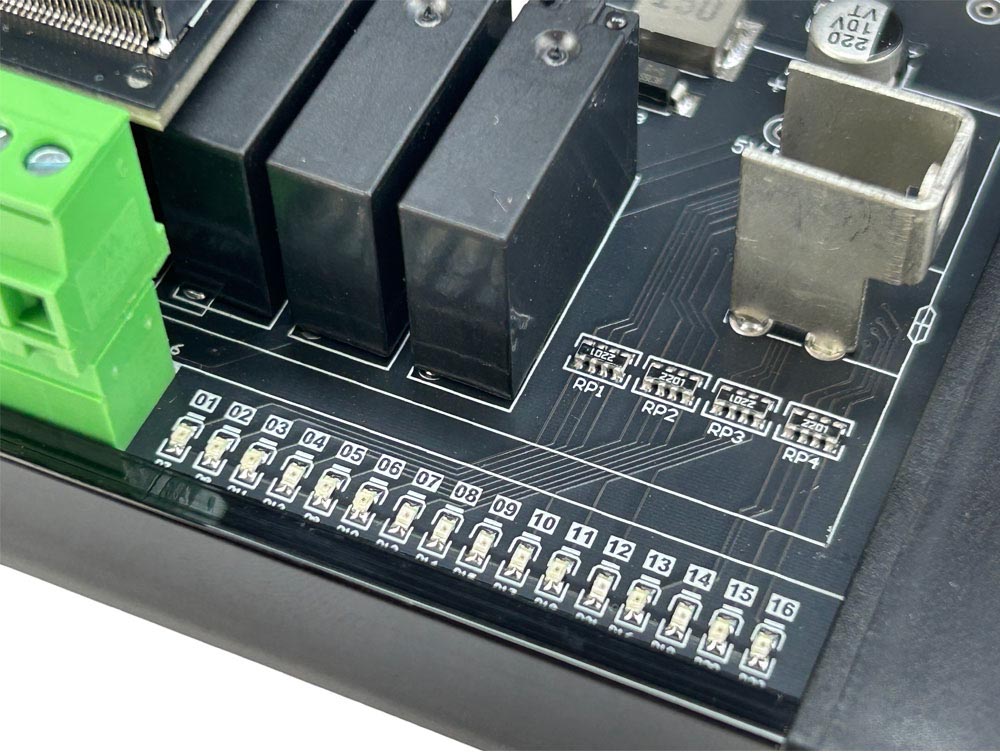

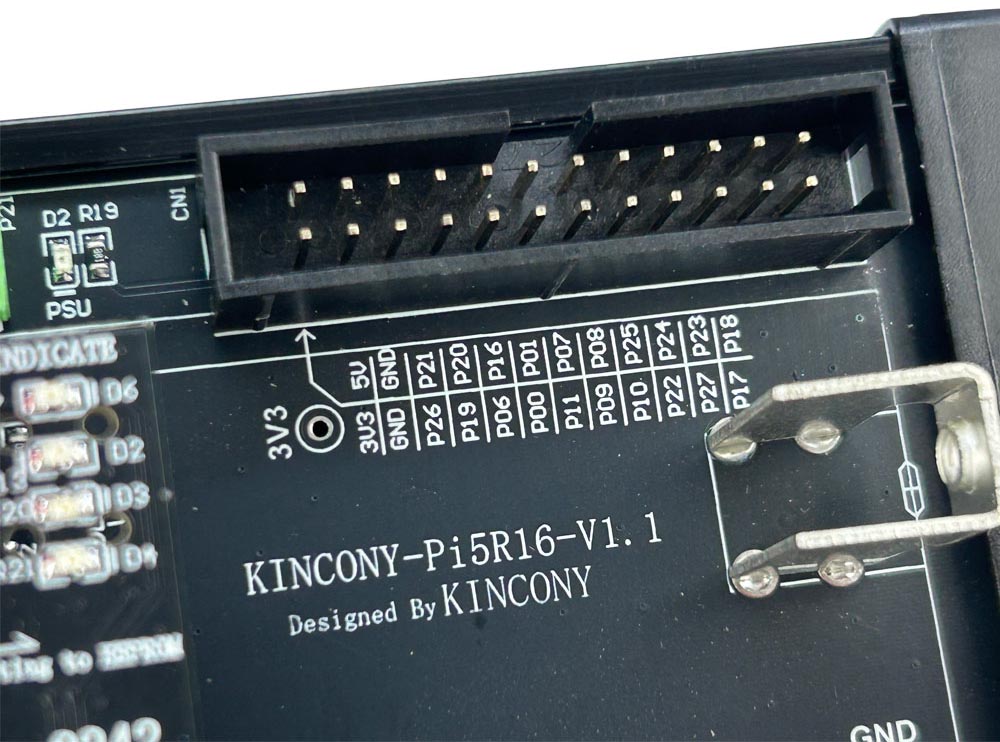

Free GPIO Ports
The Pi5R16 provides 20 free GPIOs from the CM5 module for custom expansion and DIY applications.
Available GPIOs:
GPIO21, GPIO20, GPIO16, GPIO01, GPIO07, GPIO08, GPIO25, GPIO24, GPIO23, GPIO18,
GPIO26, GPIO19, GPIO06, GPIO00, GPIO11, GPIO09, GPIO10, GPIO22, GPIO27, GPIO17
Default CM5 Version
- CM5004000
- RAM: 4GB
- Lite Version
- Without WiFi
- Without Bluetooth
Important Notes
microSD Card Support
If you are using the CM5 eMMC version, the microSD card slot and SSD disk cannot be used.
The microSD card slot and SSD disk only works with CM5 Lite versions.
Flashing Firmware via USB-C
- Connect the Pi5R16 to your PC using a USB-C cable
- Run the rpiboot executable on your Windows PC
- The eMMC or SD card or SSD disk will appear as a removable drive in Windows
This allows you to flash Raspberry Pi OS or other Linux systems directly.
Package Options

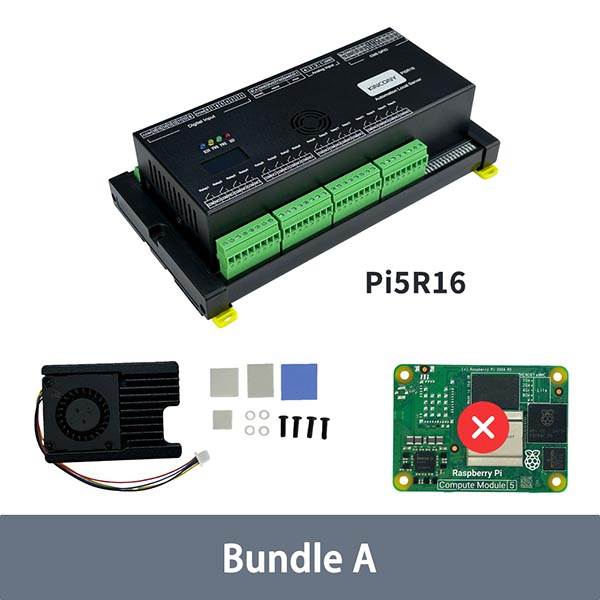

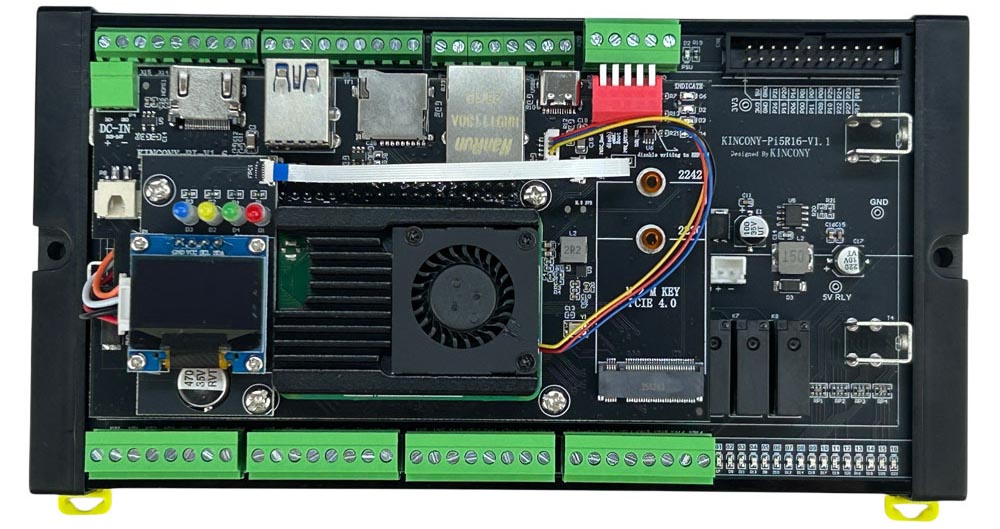

Bundle A
- Pi5R16 mainboard
- Without CM5 module
- Heatsink
- Cooling fan

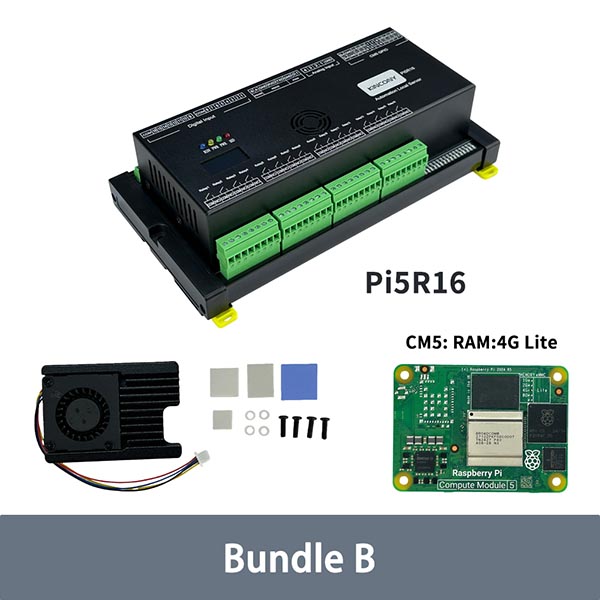

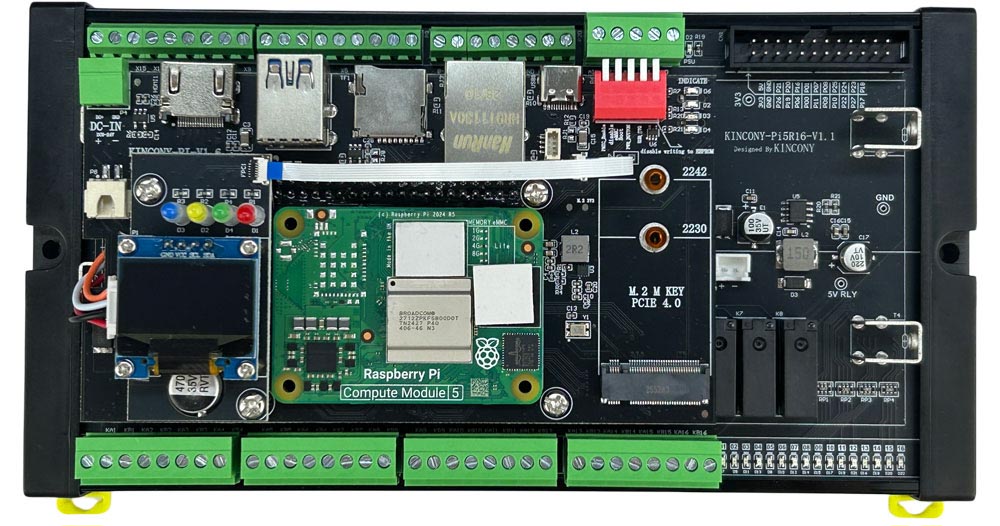

Bundle B
- Pi5R16 mainboard
- CM5 module (CM5004000)
- 4GB RAM Lite version
- Heatsink
- Cooling fan
Typical Applications
- Home Assistant local server
- Smart home automation
- Industrial automation control
- MQTT gateway
- Modbus RTU/TCP controller
- Node-RED automation server
- Energy management systems
- Remote relay control systems
- IoT edge computing gateway
Software Support
- Home Assistant
- Node-RED
- Raspberry Pi OS
- MQTT
- Modbus RTU/TCP
- Docker
- Python
- Linux-based automation software
Why Choose Pi5R16?
Unlike traditional relay controllers, the Pi5R16 combines the power of a full Raspberry Pi CM5 computer with industrial-grade IO interfaces in one DIN rail device. This allows users to run local automation software directly on the controller without requiring an external server.
It is an excellent solution for users looking for a reliable, expandable, and fully local smart automation platform.
