KinCony Pi5 is a Raspberry Pi CM5 server v2 for smart home automation and industrial automation control. It can use for home assistant local server. It’s a Linux computer, you can install software by yourself, such as Node red. The product default CM5 version is CM5004000. It without Bluetooth and wifi, RAM:4G Lite version.
Model No. KinCony Pi5v2
Description: KinCony Automation Local Server – Pi5
Power supply: 12-24V DC
Processor: Raspberry Pi Compute Module 5
Size: 146mm*83mm*56mm
interfaces: Ethernet(RJ45)-LAN 1000Mbps IPv4/IPv6,USB-C
Installation method: DIN RAIL
2 × USB 3 sockets
microSD card socket for CM5 Lite modules
M.2 M key PCIe socket
1 × full-size HDMI 2.0 connectors
DIP SWITCH for jumpers
SSD1306 i2c OLED displayer
CM5 GPIO extender
V2 improvement:

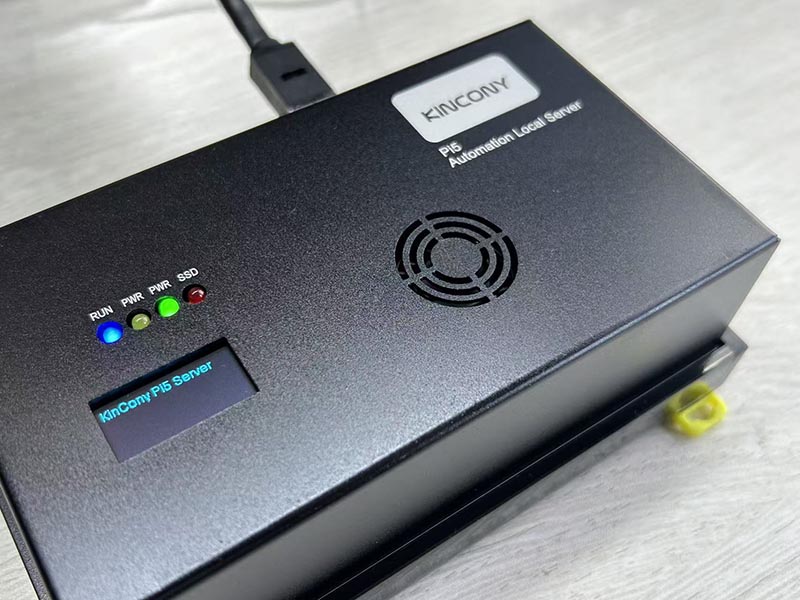

1: add SSD1306 i2c OLED display
2: add PWM fan for CM5
3: add DB37 CM5 GPIO extender interface.
Order bundles:
Bundle A: Pi5 without CM5 + heatsink + fan
Bundle B: Pi5 with CM5(CM5004000):RAM:4G-Lite + heatsink + fan
here is CM5 free GPIOs for user.
if you want to use CM5 free GPIOs, you can add this CM5 GPIO extender
Related technical information
———————————
user online guide: https://www.kincony.com/forum/forumdisplay.php?fid=90
note:
if you are using CM5 with eMMC version, so can’t use SD card. SD card only use for CM5 lite version.
if you want download firmware to eMMC or SD card by USB-C cable in your computer. You should run rpiboot EXE file in your PC. So that SD card or eMMC will work as a windows driver.
