Security and intelligent linkage control solution are mainly composed of sensors and application equipments. Through the trigger of the sensor, the alarm message can be sent to the user’s mobile phone, and some automatic control can be carried out at the same time. With the security system, you can know the real-time situation of the monitored place at any time.
A. Scenarios suitable for security and intelligent linkage control solution
- The anti-theft alarm application for office, factory, enterprise, apartment, villa and school.
- Some application needed to be trigged
- Places where the environmental parameter testing is required
B.The basic frame of the control system:

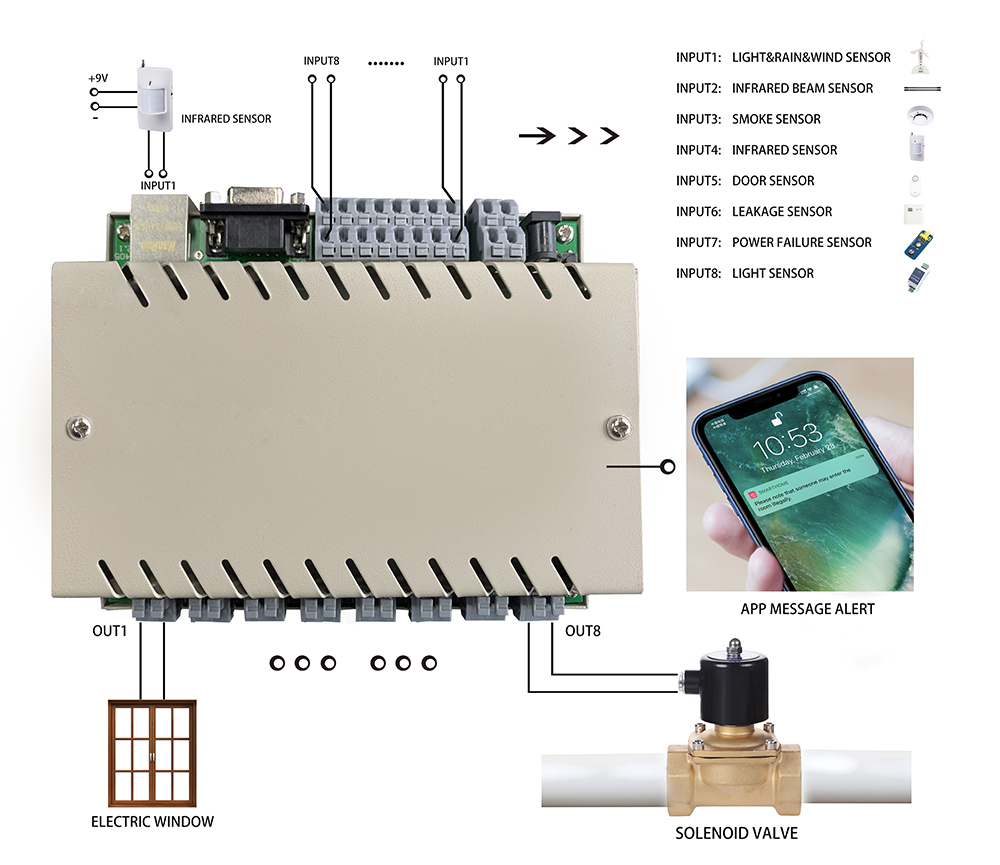

It is mainly composed of the center control system with KC868-H8 device and the sensors and application equipments. The concrete structure diagram is as follows:
If you want to connect more equipments, please choose KC868-H32 controller, which is the corresponding wiring diagram.
The device of KC868-H8 has two parts: inputs and outputs as showed the frame diagram. At the upper parts, the input terminals are connected with wired switch signal sensors, such as: wind, rain, fencing, smoke, human infrared, door lock, leakage, power loss, light and so on. Sensors need external power supply, which is generally divided into DC 9v and DC 12v, and DC 9V is more common. After supplying power to the sensors, then connect the two detection lines of the sensor into the “input” of the device KC868-H8, regardless of the positive and negative polarity.
At the bottom part, the output terminals can connect with varies of application equipments. Through the internal relay switch, the device KC868-H8 can control equipments like as: solenoid valve, electric doors and windows and other actuator equipments.
Mobile phone APP personality setting:
First, the alarm message can be set to send or not, when each sensor is triggered. If you want to receive the alarm message, you can set up the contents by yourself.
Second, you can set the linkage control for outputs when the inputs are triggered. For example, when the leakage sensor connected to the terminal of “input end 6″ is triggered, it will linkage control the “output terminal 8” to close the connected solenoid valve, meanwhile, the message will be sent to the mobile phone with contents “a leak has been detected in the house” Please go home as soon as possible for inspection so as not to cause unnecessary damage. Similarly, the input terminal one connects to the rainy sensor, and the output terminal connect to the electric window; when the rainy sensor detect raining, the window will be closed automatically by the electric motor, so that avoiding the rain water into the house.
The outputs of KC868-H8 can connect many different types of electrical equipments. For the detail connecting methods, you can refer to the relevant hardware introduction documentation. The 8 inputs can match to the 8 outputs one by one, and 1 input can matches many outputs together, such as operation of scene mode. All the operation is supporting the user=defined linkage.
C. Install and Operation
- Connect the applicationequipmentsto the output terminals of the KC868-H8 device, regardless of lines direction.
- Connect the detecting sensors or wired switch signal equipments to the input terminals of KC868-H8, regardless of lines direction.
- Connect the KC868-H8 deviceto the network (network cable of WAN or LAN) and get power on; if there is no cable network,you can add 4G wireless router to convert it to cable network or use the KC868-H8W Wi-Fi version device.
- Configure the IPparameters of the KC868-H8 device (generally, itis DHCP mode as default, just plug the cable to the device)
- Installthe appinto your mobile (Scan the QR code from the official website) or install the software to your computer (downloaded from the official website)
- Set up the executive actions in the APP, whichwill be executed after the sensors are triggered. If a message is required to be sent, then set up the relevant settings. If there are already some accountants whoare authorized to use it, the alarm messages will be sent to all the accountants at the same time. For example, one of the three members of the family is an administrator and the other two are users; when the sensor triggers, all three can receive the alarm message.
